0-37 — TURBOCHARGER (#39976) — 18 parça

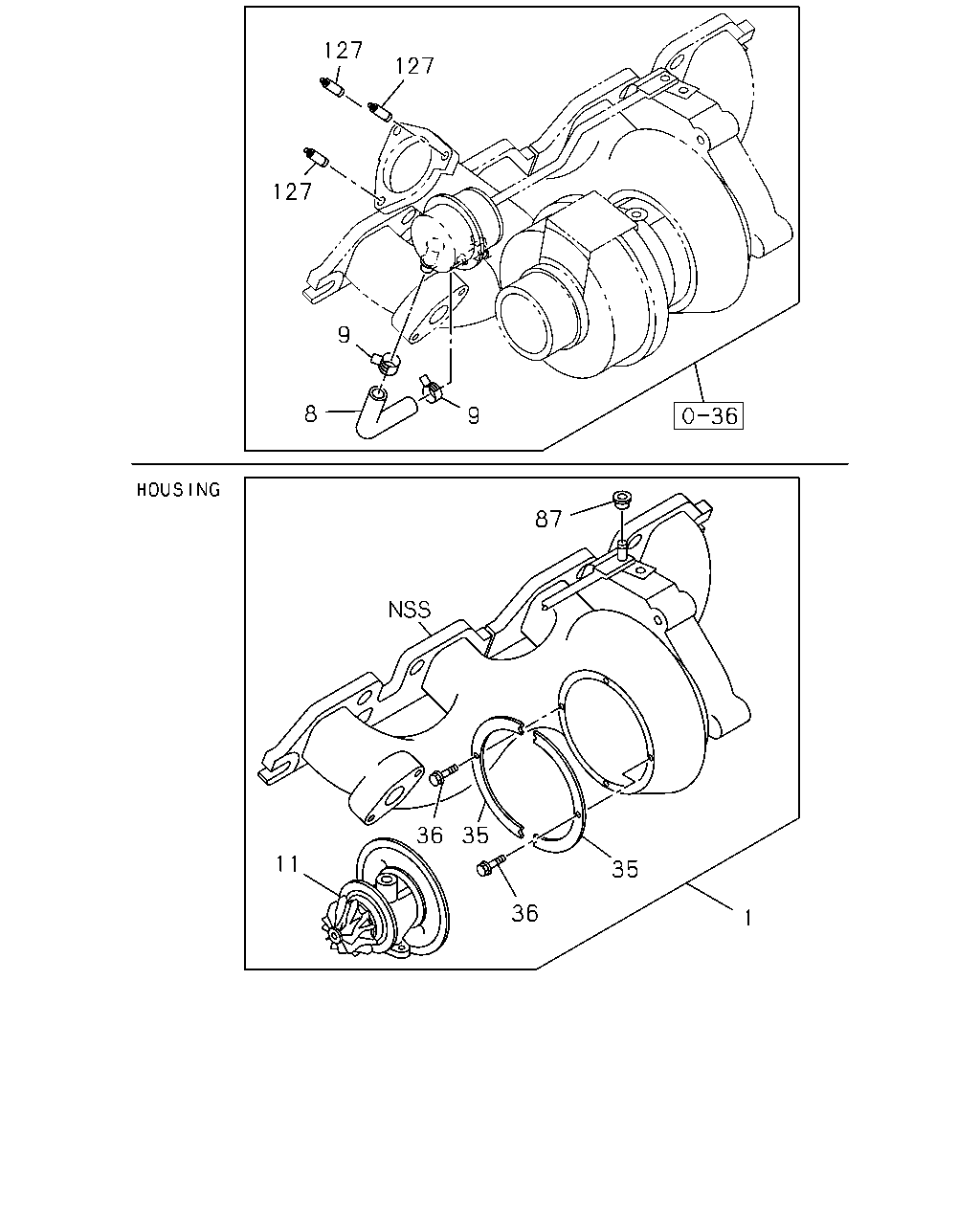

127 127 127 9 8 9 87 36 35 11 35 36 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.346 HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 8-97326-752-1, 97326752	8-97223-905-0	01	1	-
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: C = 8-98015-115-2, 98015115, D = 8-98054-011-1, 98054011, F = 8-98097-686-1, 98097686	8-94311-934-0	01	1	-
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-97326-752-1, 97326752	8-97213-591-0	01	1	-
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: E = 8-98079-569-2, 98079569	8-97215-553-0	01	1	-
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: B = 8-98000-031-2, 98000031	8-97375-933-0	01	1	-
9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: C = 8-98015-115-2, 98015115, D = 8-98054-011-1, 98054011, F = 8-98097-686-1, 98097686	8-94167-469-0	02	1	-
9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-97326-752-1, 97326752, B = 8-98000-031-2, 98000031, E = 8-98079-569-2, 98079569	8-97213-592-0	02	1	-
11	03.346 HOUSING ASM; TURBOCHARGER ASM PART: A = 8-97326-752-1, 97326752	8-97326-280-0	01	1	-
35	03.346 CLAMP; TURBINE HSG,TURBOCHARGER ASM PART: A = 8-97326-752-1, 97326752	8-97213-590-0	02	1	-
36	03.348 BOLT; LK PLATE,TURBINE HSG,TURBO ASM PART: A = 8-97326-752-1, 97326752	8-97213-579-0	04	1	-
87	03.346 RING; ACTUATOR,TURBOCHARGER ASM PART: A = 8-97326-752-1, 97326752	8-97213-588-0	01	1	-
127	03.348 STUD; TURBOCHARGER ASM PART: A = 8-97326-752-1, 97326752	8-97213-578-0	03	1	-

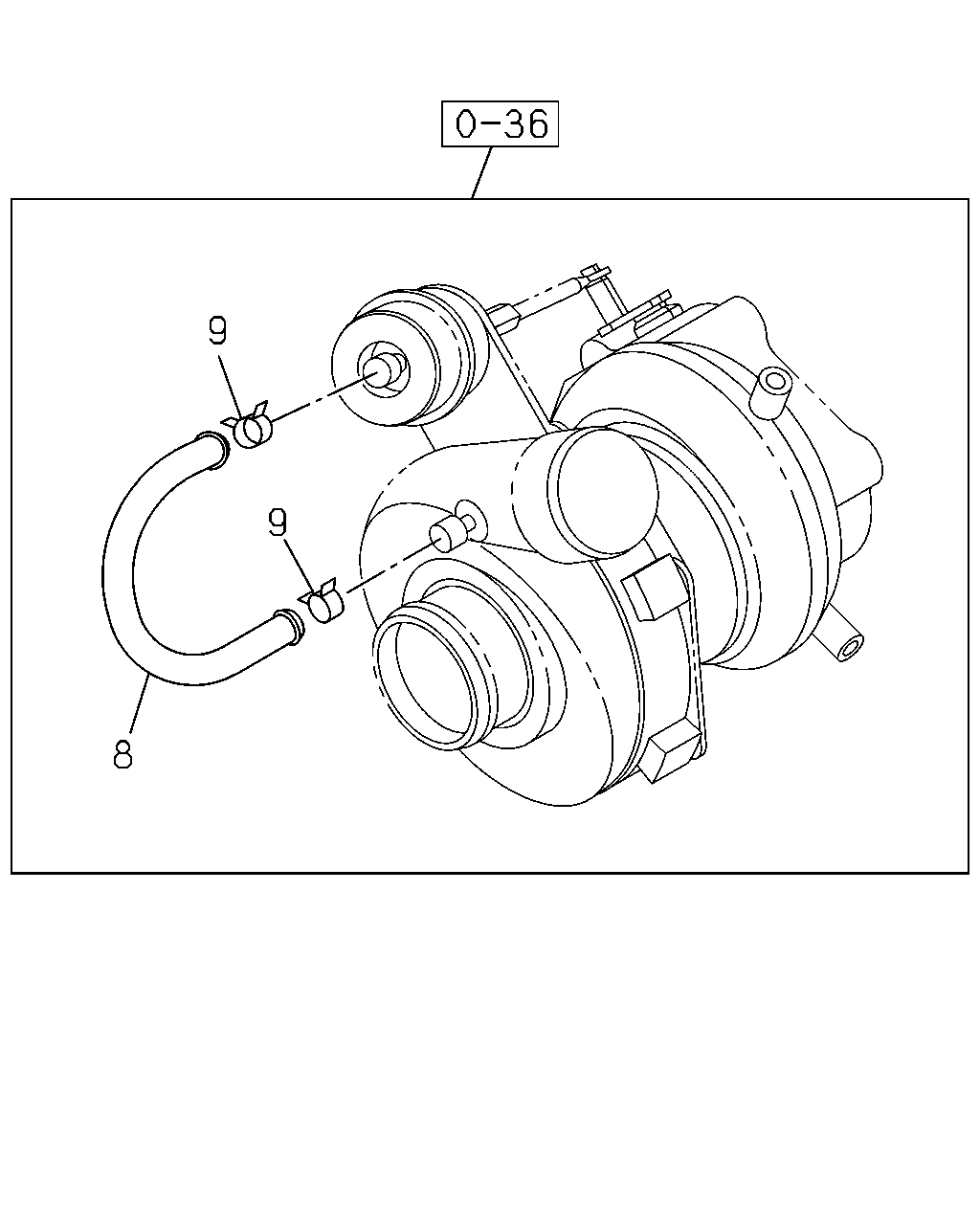

9 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: C = 8-98015-115-2, 98015115, D = 8-98054-011-1, 98054011, F = 8-98097-686-1, 98097686	8-94311-934-0	01	1	-
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-97326-752-1, 97326752	8-97213-591-0	01	1	-
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: E = 8-98079-569-2, 98079569	8-97215-553-0	01	1	-
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: B = 8-98000-031-2, 98000031	8-97375-933-0	01	1	-
9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: C = 8-98015-115-2, 98015115, D = 8-98054-011-1, 98054011, F = 8-98097-686-1, 98097686	8-94167-469-0	02	1	-
9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-97326-752-1, 97326752, B = 8-98000-031-2, 98000031, E = 8-98079-569-2, 98079569	8-97213-592-0	02	1	-
