Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#39975) — 899 parça

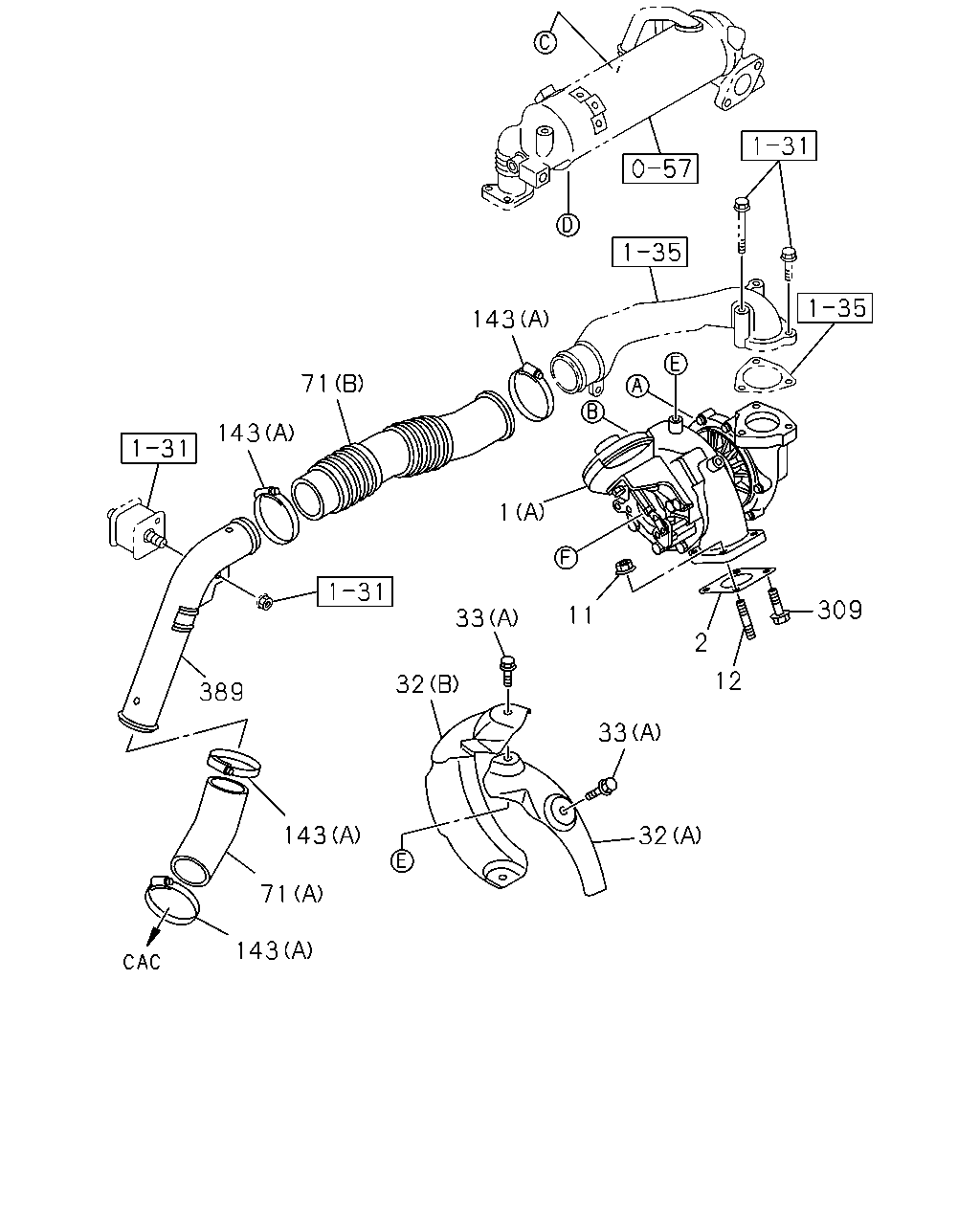

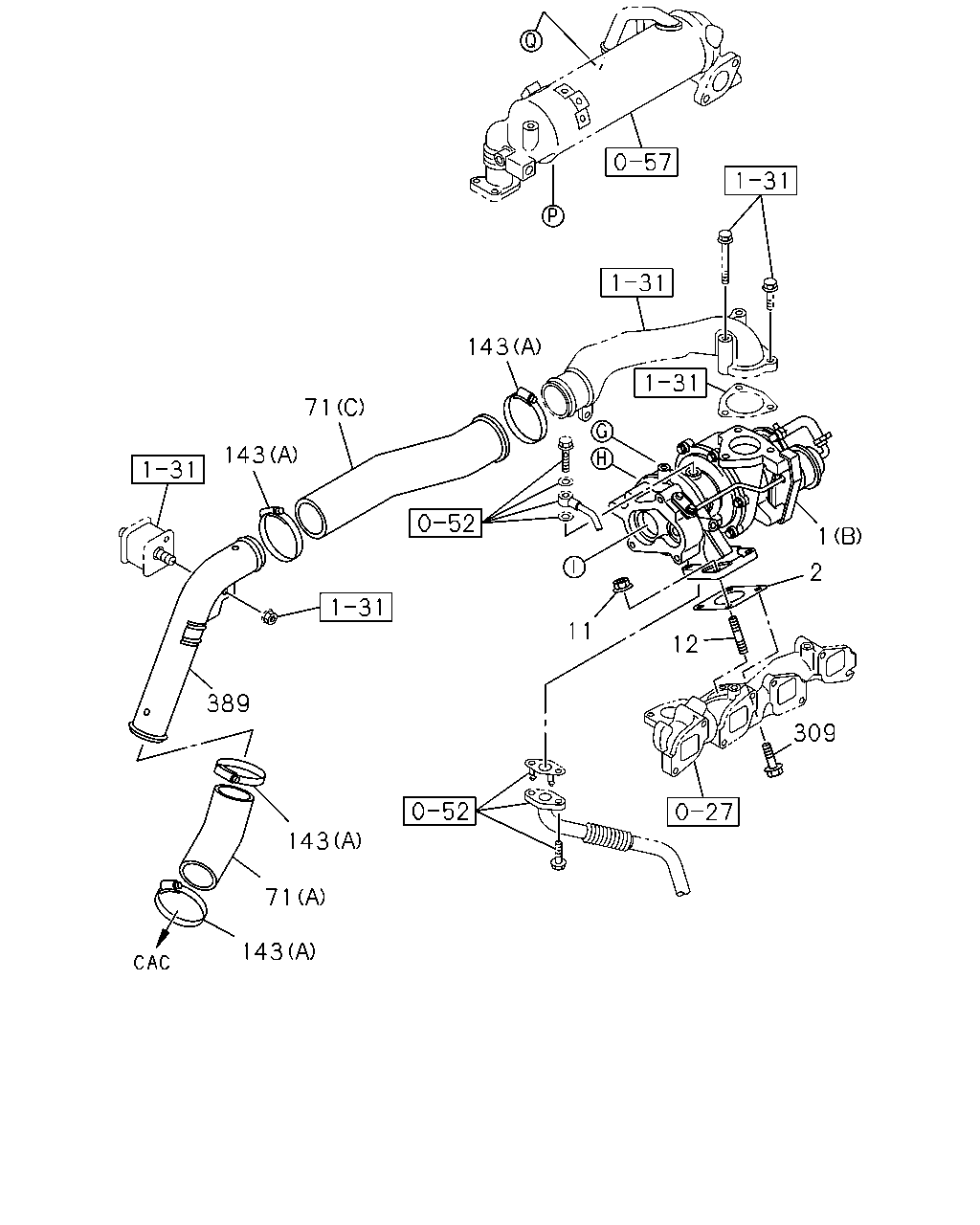

143 71 143 1 309 11 33 2 12 32 389 33 143 32 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1112-	●
1	03.342 TURBOCHARGER ASM (C) SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-		●
1	03.342 TURBOCHARGER ASM (A)	8-97381-507-5	01	1	1012-			●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E)	8-98027-772-5	01	1	1012-1509				●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E) SEE FIG-NO 0-37 FOR COMPONENT.	8-98322-481-0	01	1	1510-				●	●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1012-	●
1	03.342 TURBOCHARGER ASM EXC. COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0>	8-97912-697-0	01	1	1105-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94433-605-0	01	1	1012-1104	●		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94433-605-0	01	1	1105-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0>	8-94433-605-0	01	1	1105-	●
11	03.342 NUT; TURBOCHARGER VIETNAM EQUIPMENT<CL0> M8 FLANGE	8-97379-384-0	02	1	1105-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1012-1104	●		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-			●
11	03.342 NUT; TURBOCHARGER EXC. VIETNAM EQUIPMENT<CL0> 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	1012-				●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8	9-09842-007-0	04	1	1012-				●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-	●		●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	1012-				●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28	9-04731-028-0	02	1	1012-				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-990-3	01	1	1012-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-991-1	01	1	1012-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98031-888-3	01	1	1012-				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97351-168-0	01	1	1012-				●	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (C) M6X12 FLANGE	8-97108-669-0	04	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1012-			●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1012-			●
33	03.342 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 (B) M8X12 FLANGE	0-28050-812-0	06	1	1012-1104	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	06	1	1105-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1012-	●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98055-062-2	01	1	1012-	●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98059-964-1	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (E)	8-98107-509-1	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (F)	8-98006-133-2	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (G)	8-98039-732-3	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98159-280-1	01	1	1012-	●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1012-	●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	04	1	1012-	●		●
309	03.342 BOLT; TURBOCHARGER VIETNAM EQUIPMENT<CL0> 03.417 M8X28 FLANGE	8-98041-363-0	02	1	1105-	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1012-1104	●		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1105-			●
309	03.342 BOLT; TURBOCHARGER EXC. VIETNAM EQUIPMENT<CL0> 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1105-	●
309	03.342 BOLT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-				●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1012-	●		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	1012-				●	●

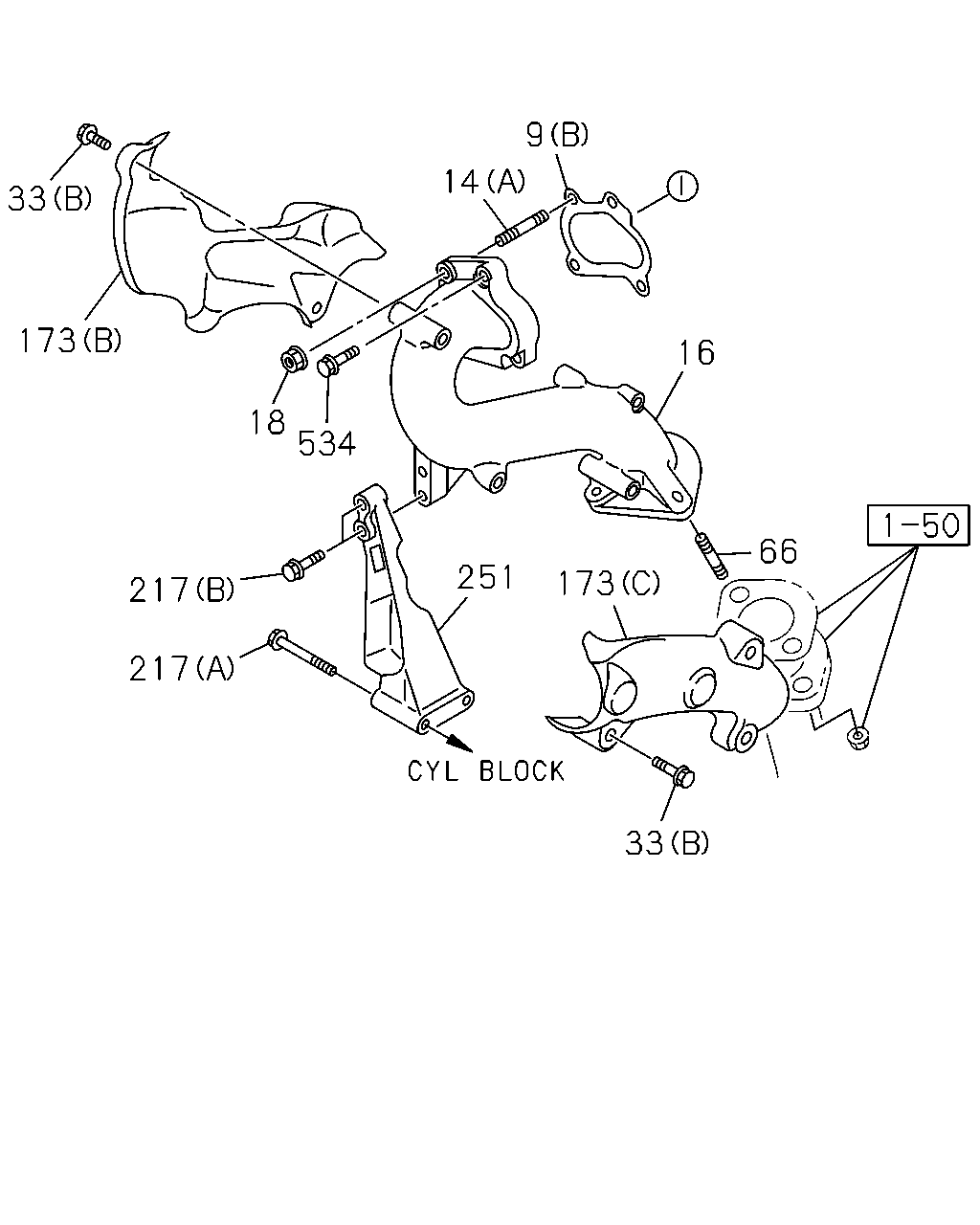

9 14 33 173 16 18 534 66 251 173 217 217 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) (B)	8-98015-116-1	02	1	1012-1104	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-1	02	1	1105-1111	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98015-116-1	02	1	1112-1306	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) COLOMBIA EQUIPMENT(CB7) (B)	8-98015-116-1	02	1	1112-1306	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-1	02	1	1307-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-3	01	1	1105-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.611 (A)	8-98011-532-0	01	1	1012-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO4 SPECIFICATION(NT4) (E) ID=54	8-97376-758-0	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO4 SPECIFICATION(NT4) (F) ID=49	8-98046-241-0	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (C)	8-97039-777-1	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97039-777-1	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-97374-412-0	01	1	1012-				●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1012-	●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X94 L=108	8-97019-477-0	02	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) M8X94 L=108	8-97019-477-0	02	1	1012-				●	●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1012-			●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	1012-				●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98012-735-4	01	1	1012-1104	●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1105-	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	1012-				●	●
18	03.613 NUT; EXH PIPE VIETNAM EQUIPMENT<CL0> 03.342 M8 FLANGE	8-97379-384-0	02	1	1105-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1012-1104	●		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1105-			●
18	03.613 NUT; EXH PIPE EXC. VIETNAM EQUIPMENT<CL0> M8 FLANGE	8-97161-607-0	02	1	1105-	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (C) M6X12 FLANGE	8-97108-669-0	04	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1012-			●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1012-			●
33	03.342 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 (B) M8X12 FLANGE	0-28050-812-0	06	1	1012-1104	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	06	1	1105-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-		●		●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-97178-497-2	01	1	1012-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1012-			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1012-	●		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO2 SPECIFICATION(NT2) (C)	8-98032-023-1	01	1	1012-1104	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98032-023-1	01	1	1105-	●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1012-	●		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1012-	●		●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	1012-	●		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1012-			●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) M8X35 FLANGE	8-98053-224-0	02	1	1012-1104	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE M8X35 FLANGE	8-98053-224-0	02	1	1105-	●

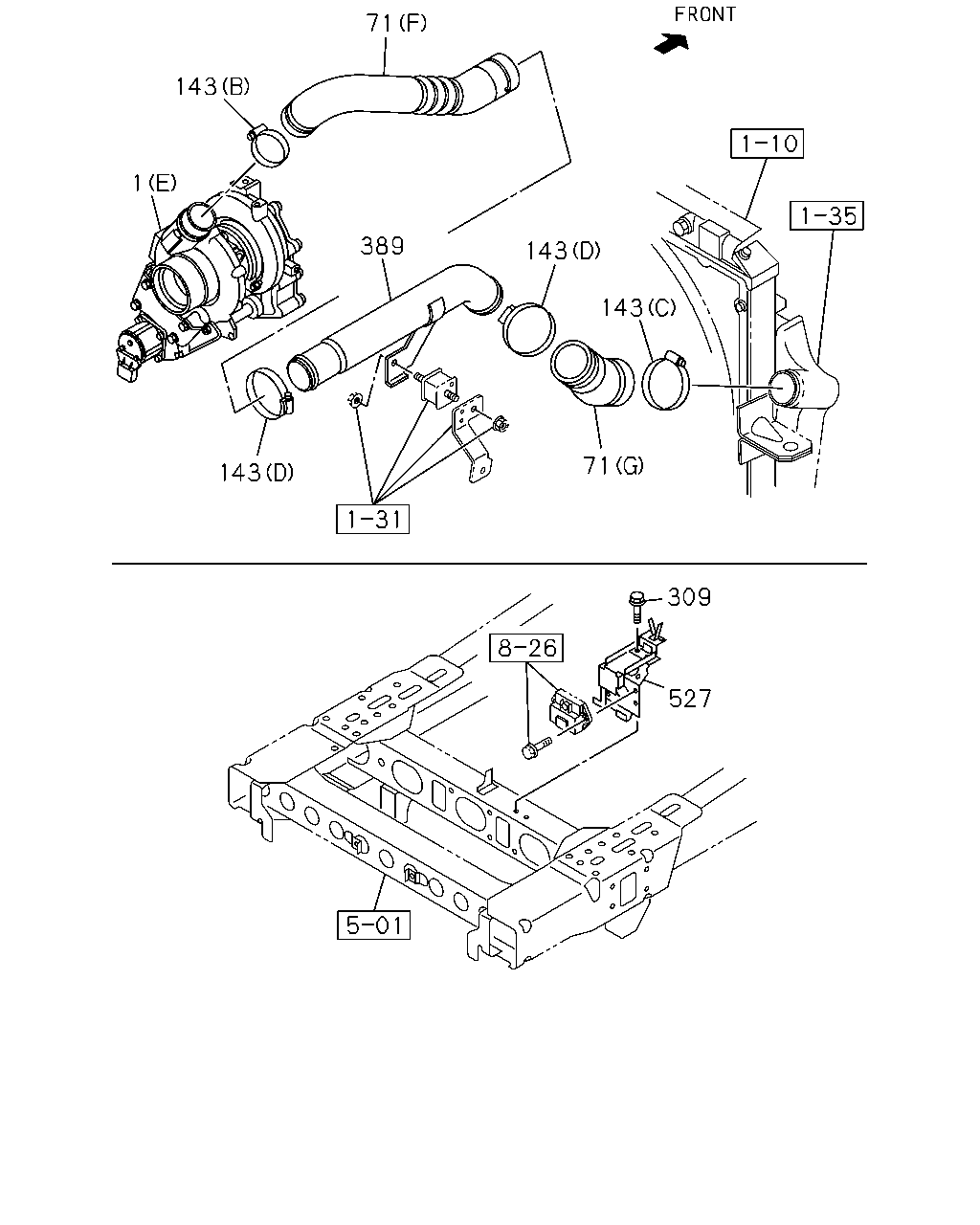

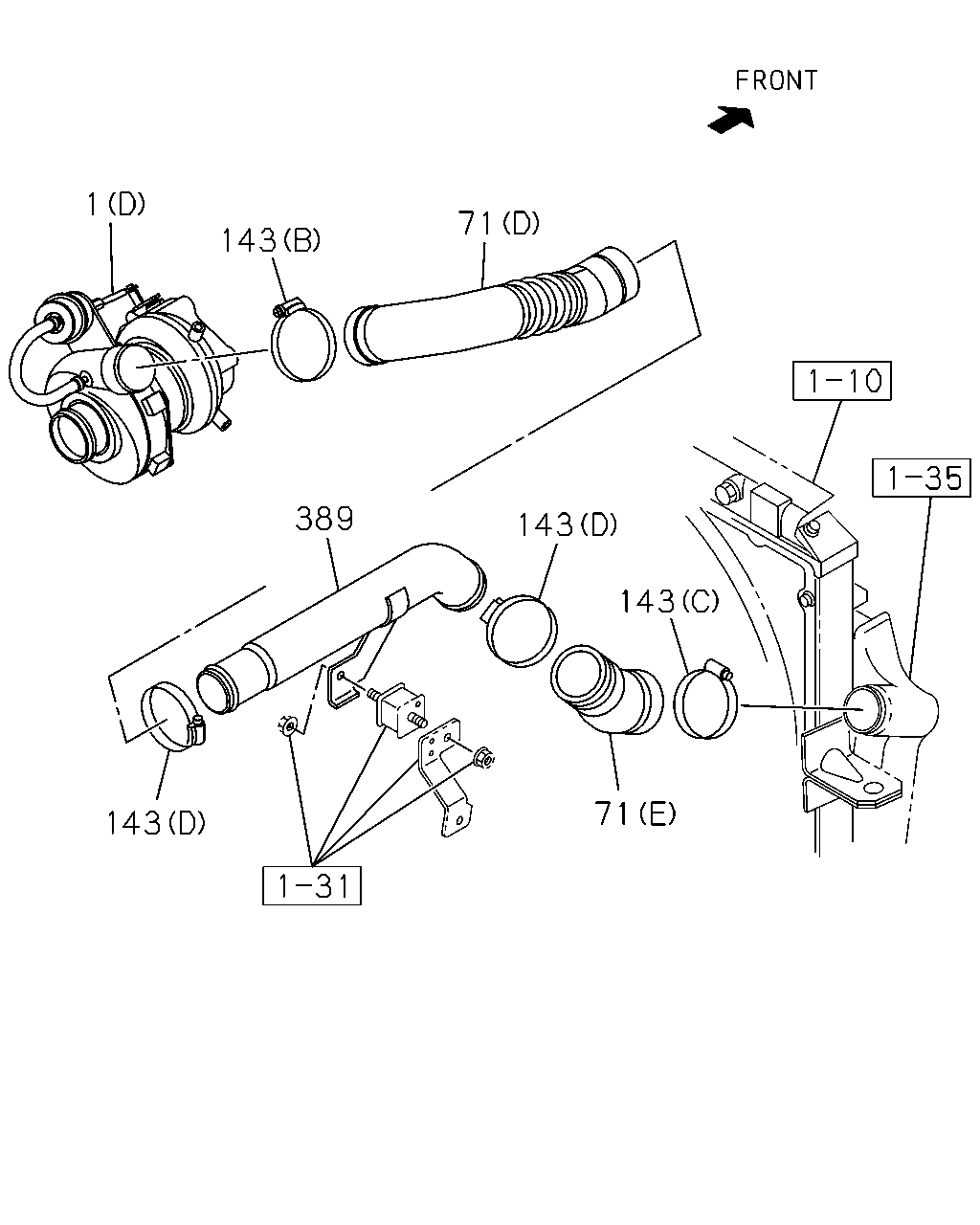

71 143 1 389 143 143 71 143 309 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1112-	●
1	03.342 TURBOCHARGER ASM (C) SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-		●
1	03.342 TURBOCHARGER ASM (A)	8-97381-507-5	01	1	1012-			●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E)	8-98027-772-5	01	1	1012-1509				●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E) SEE FIG-NO 0-37 FOR COMPONENT.	8-98322-481-0	01	1	1510-				●	●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1012-	●
1	03.342 TURBOCHARGER ASM EXC. COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1012-	●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98055-062-2	01	1	1012-	●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98059-964-1	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (E)	8-98107-509-1	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (F)	8-98006-133-2	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (G)	8-98039-732-3	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98159-280-1	01	1	1012-	●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1012-	●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	04	1	1012-	●		●
309	03.342 BOLT; TURBOCHARGER VIETNAM EQUIPMENT<CL0> 03.417 M8X28 FLANGE	8-98041-363-0	02	1	1105-	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1012-1104	●		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1105-			●
309	03.342 BOLT; TURBOCHARGER EXC. VIETNAM EQUIPMENT<CL0> 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1105-	●
309	03.342 BOLT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-				●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1012-	●		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	1012-				●	●
527	03.373 BRACKET; TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98105-299-0	01	1	1012-				●	●

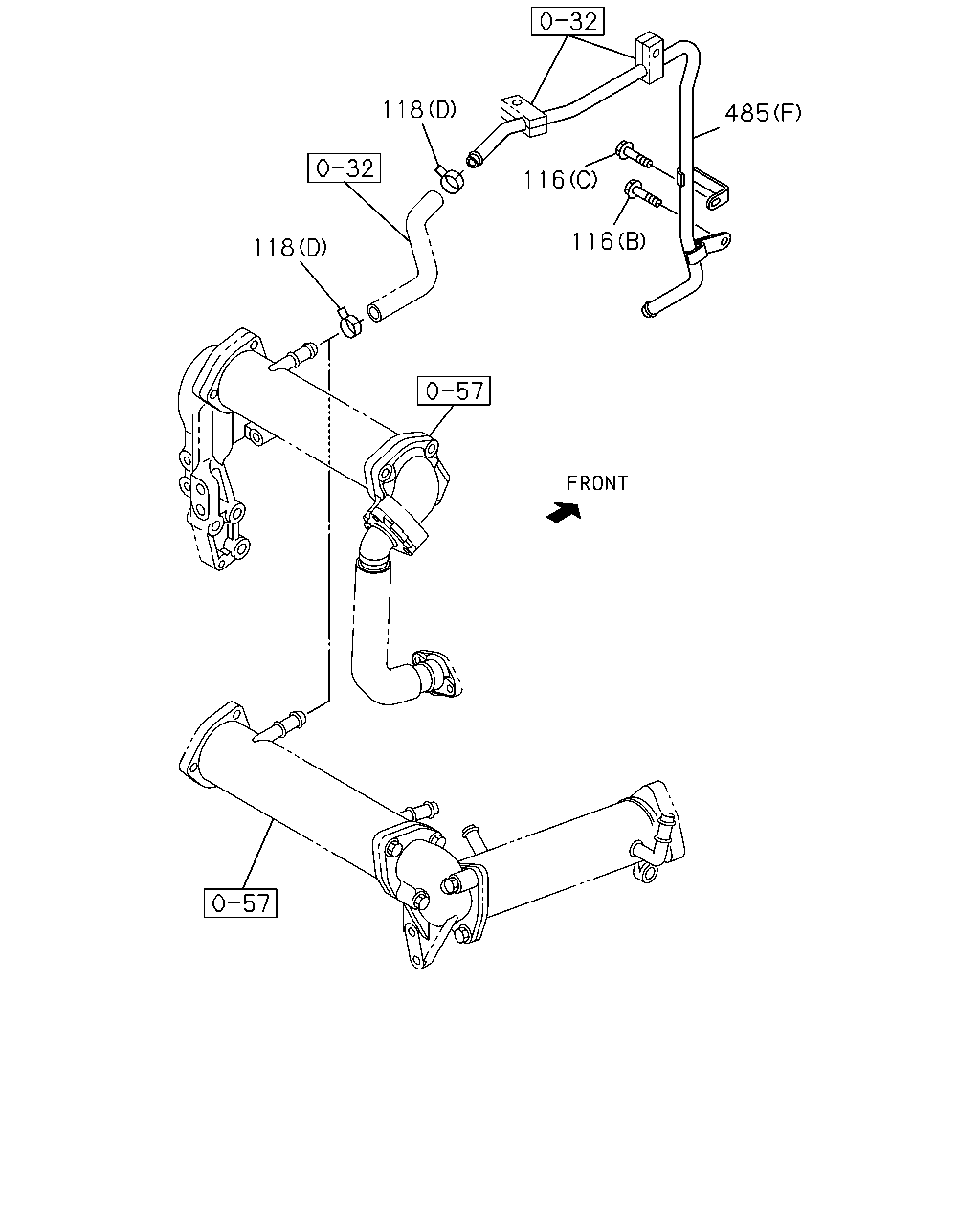

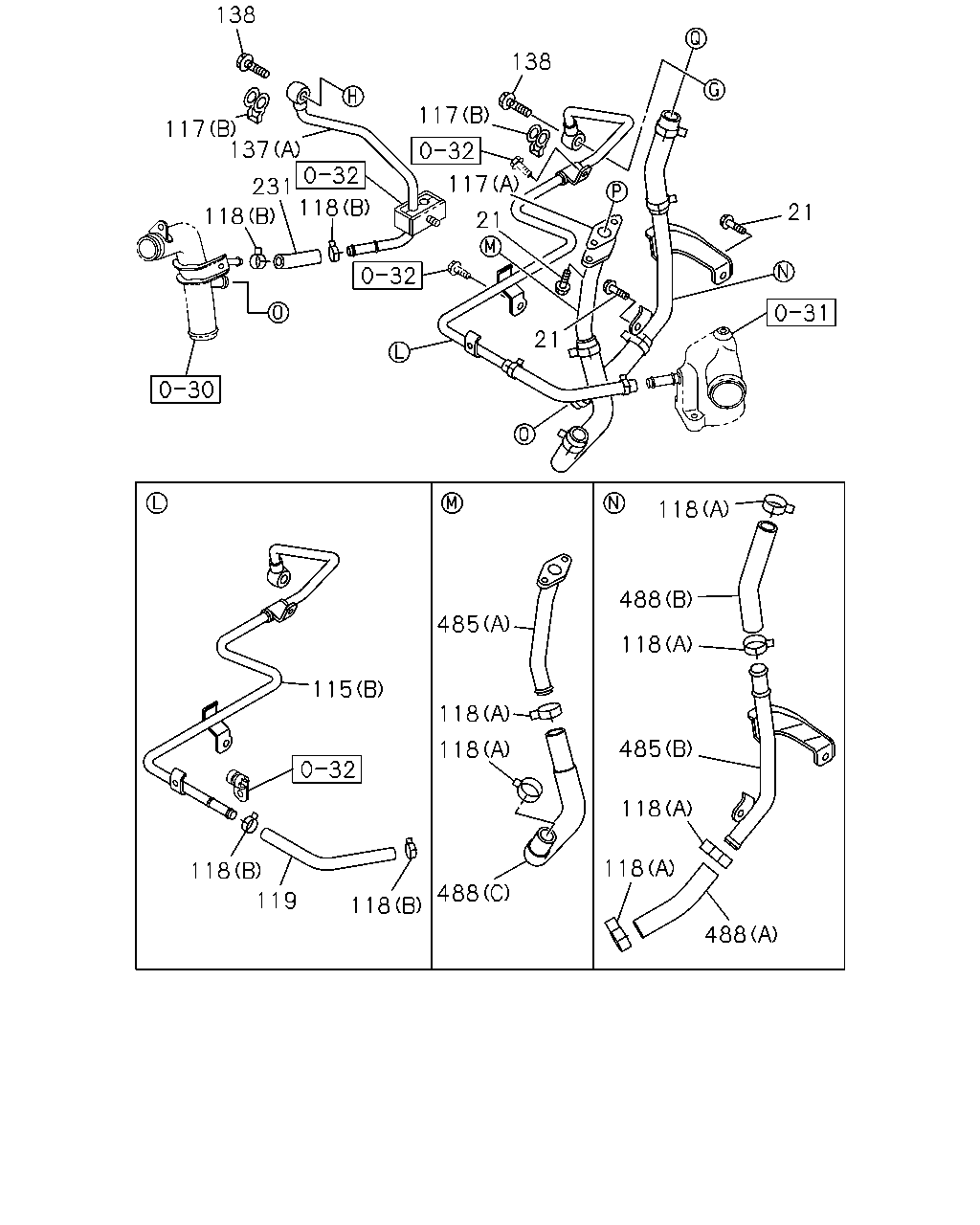

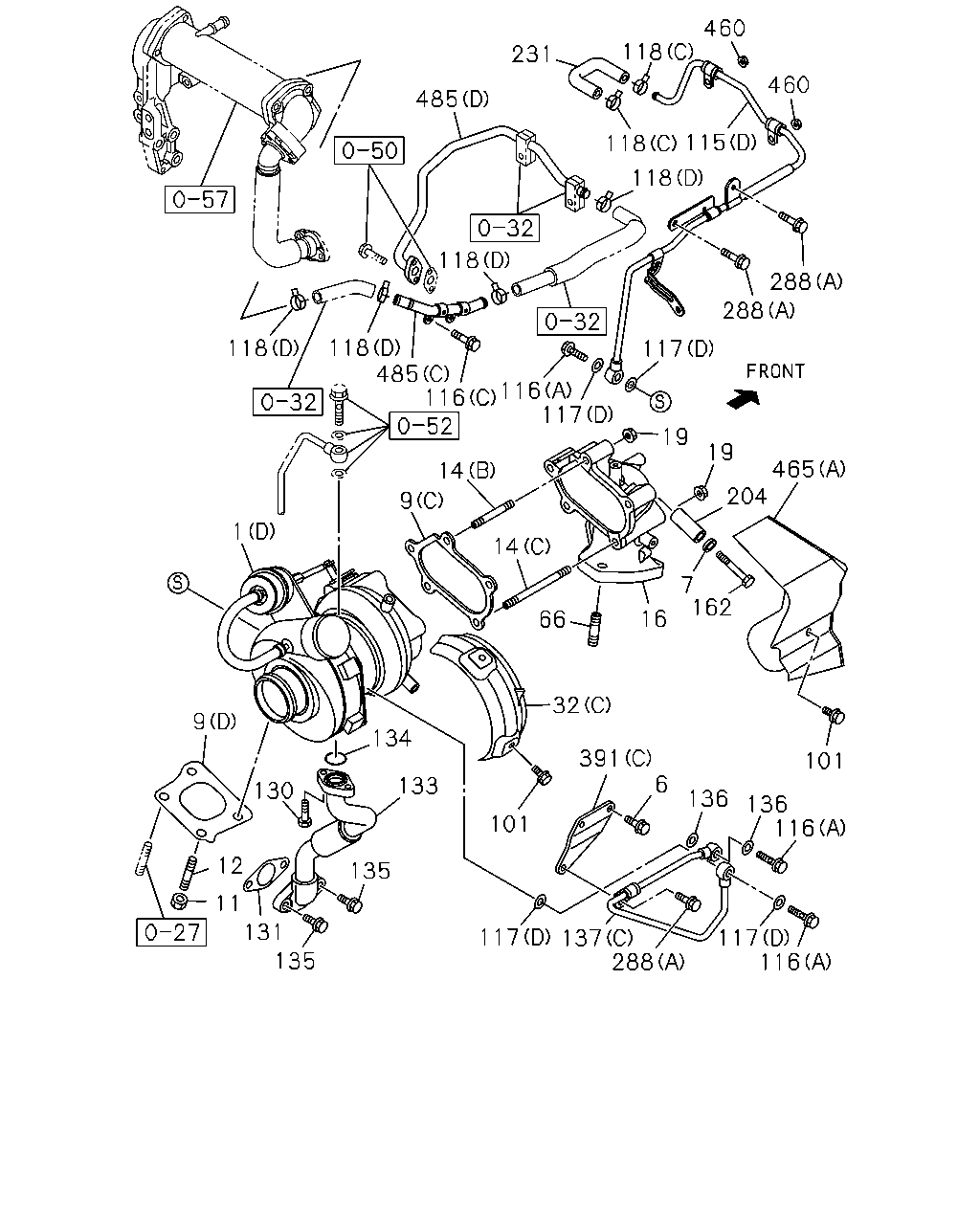

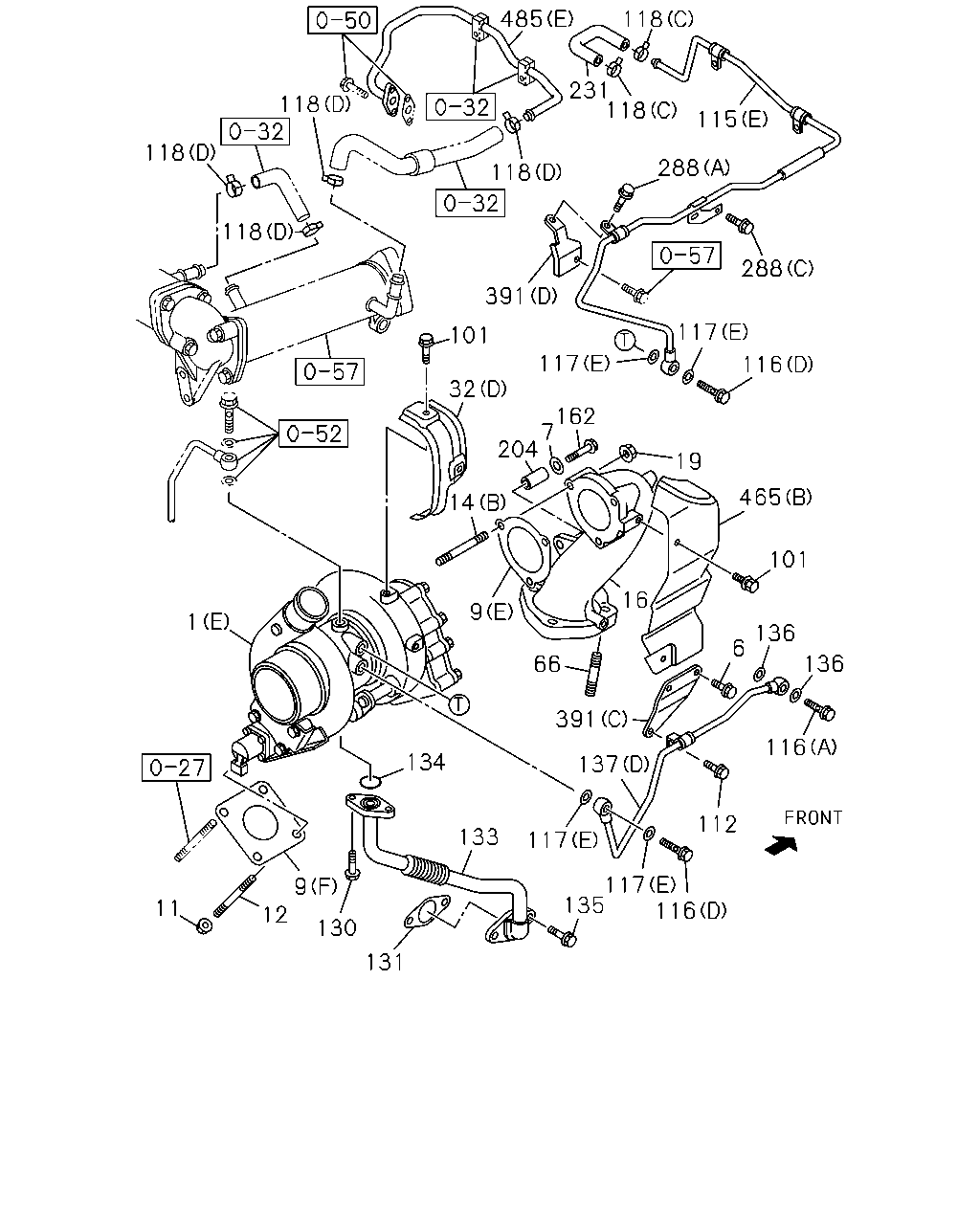

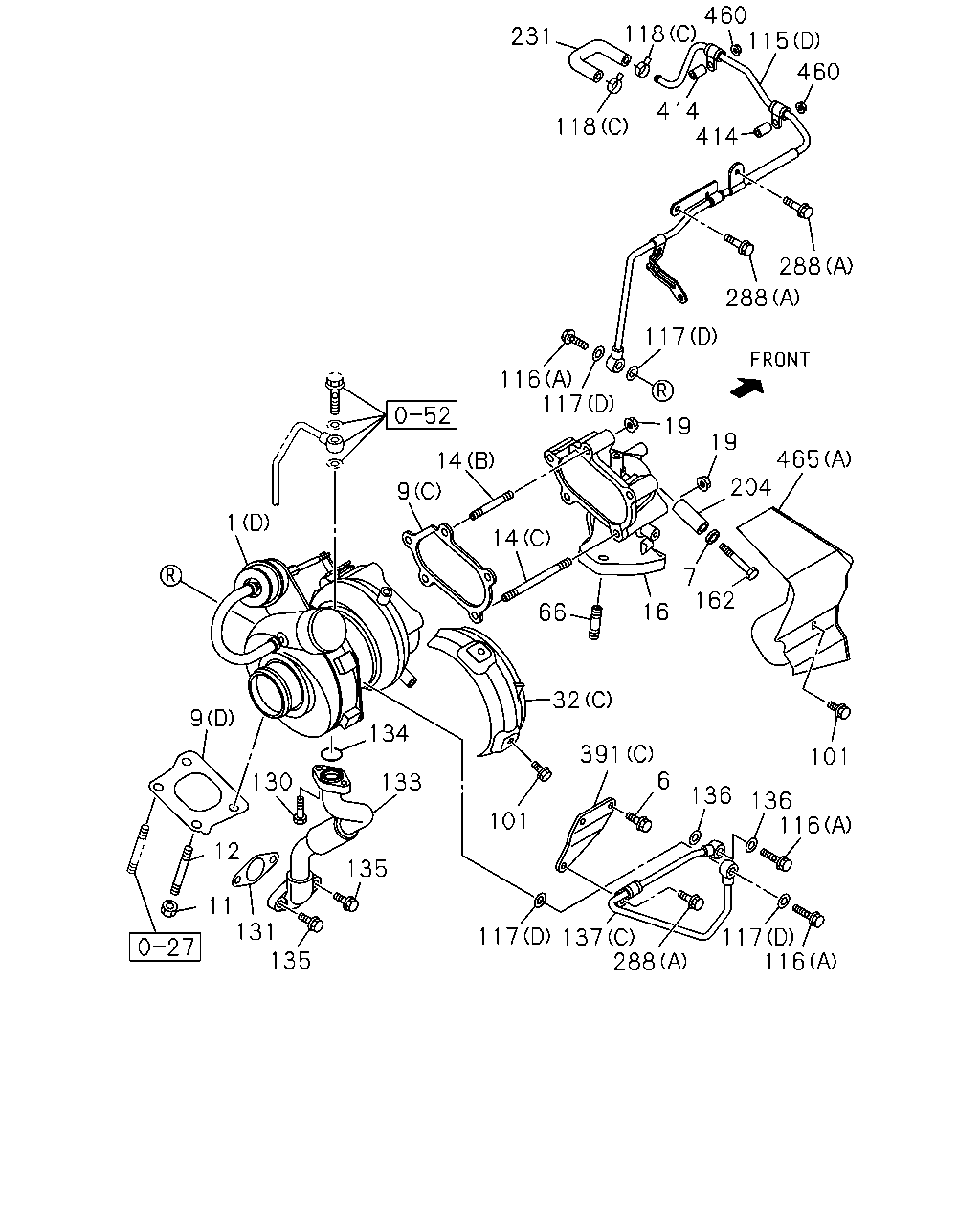

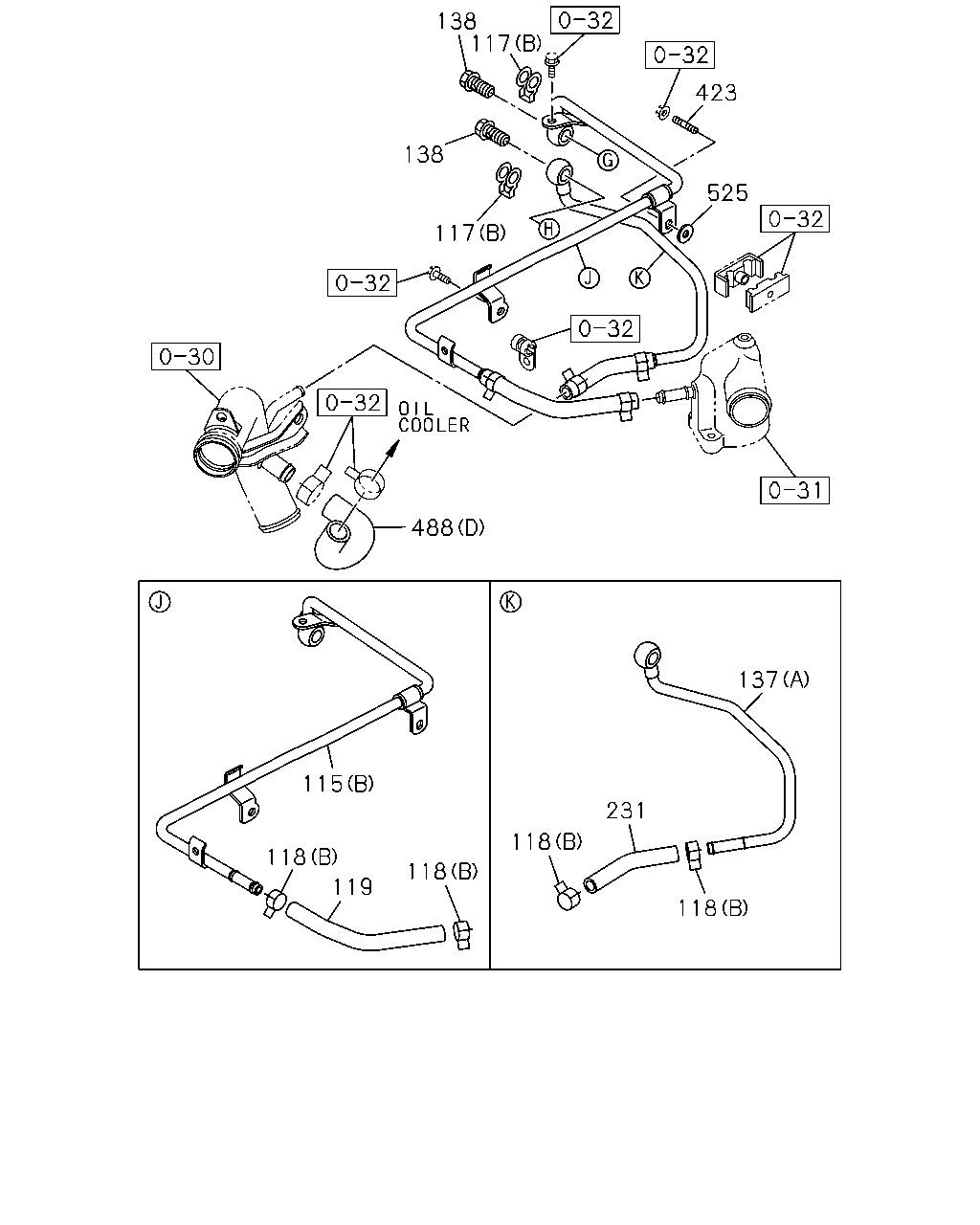

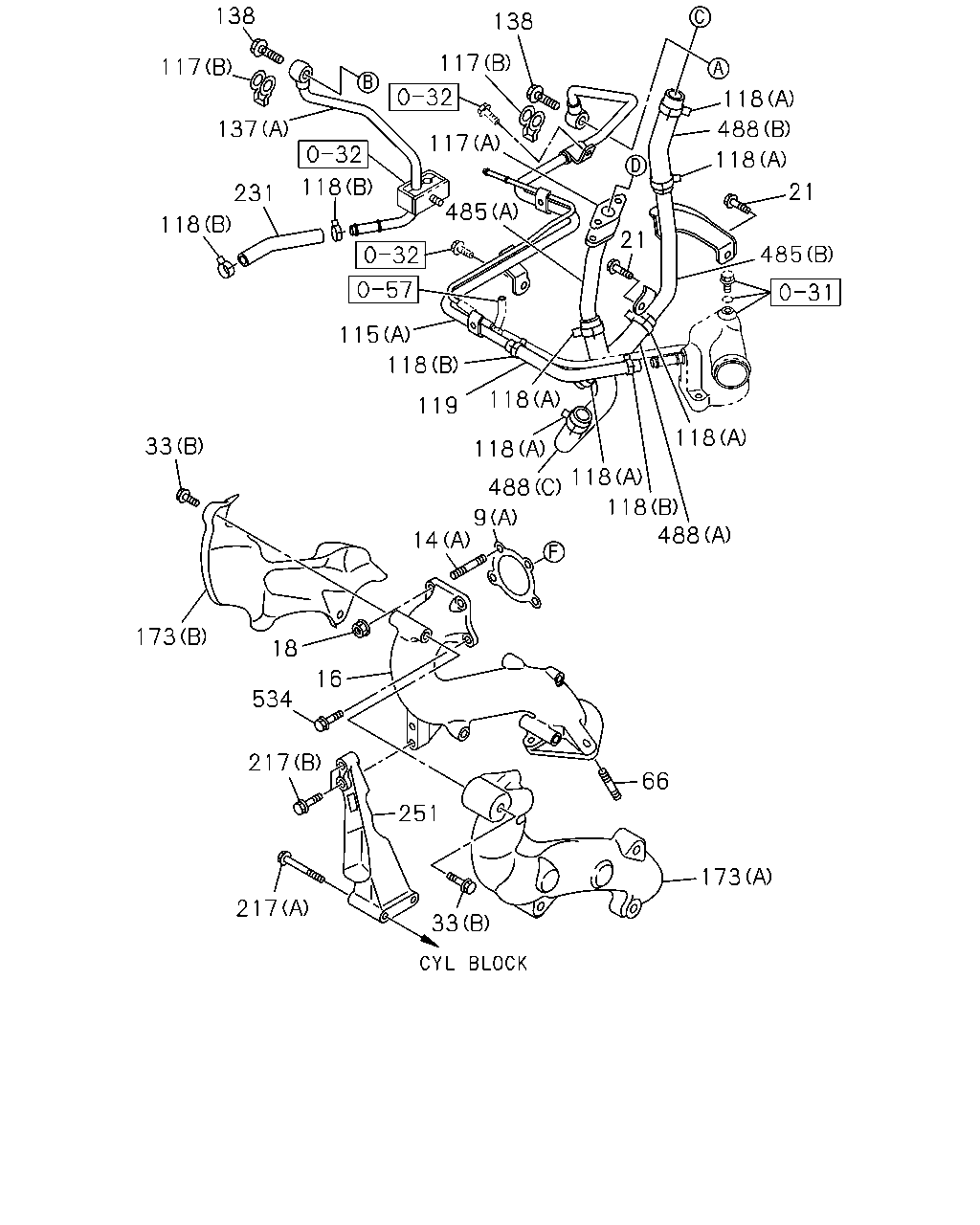

138 117 137 231 118 118 117 138 117 21 21 21 115 118 119 118 485 118 118 488 118 488 118 485 118 118 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
21	03.358 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-1111			●
21	03.358 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1112-			●
21	03.358 BOLT; PIPE EURO3 SPECIFICATION(NT3) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1112-	●
21	03.358 BOLT; PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1012-1111			●
21	03.358 BOLT; PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1112-			●
21	03.358 BOLT; PIPE EURO3 SPECIFICATION(NT3) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1112-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (B)	8-98113-709-0	01	1	1112-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (C)	8-97210-077-2	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	1012-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (E)	8-98085-187-0	01	1	1012-				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1012-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98096-928-0	01	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	1012-1111			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	1112-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (A)	8-97262-117-0	01	1	1112-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (E) ID=12.2	9-09571-412-0	04	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (D) ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-				●	●
118	03.342 CLIP; WATER HOSE VIETNAM EQUIPMENT<CL0> (B) ID=12.8	8-97944-125-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1012-1111			●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1112-			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (A) ID=22	8-97359-141-0	06	1	1112-	●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1012-1112	●		●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-			●
118	03.342 CLIP; WATER HOSE EXC. VIETNAM EQUIPMENT<CL0> 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	1012-		●		●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (D) ID=20	1-09707-084-1	06	1	1012-				●	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	1012-	●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97229-036-0	01	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97381-650-0	01	1	1012-	●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (D)	8-97387-271-0	01	1	1012-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98063-840-0	01	1	1012-				●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●		●	●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	1012-1111			●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	1112-			●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-97381-651-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	1012-1111			●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	1112-			●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97381-652-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (D)	8-97376-773-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (E)	8-98032-267-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (F)	8-98041-637-1	01	1	1012-				●	●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1111			●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1112-			●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1112-	●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1012-1111			●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1112-			●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1112-	●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	1012-1111			●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	1112-			●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (C)	8-98015-118-0	01	1	1112-	●
488	03.163 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (D)	8-98066-091-0	01	1	1012-	●

138 117 423 138 525 117 488 137 115 231 118 118 118 119 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (B)	8-98113-709-0	01	1	1112-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (C)	8-97210-077-2	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	1012-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (E)	8-98085-187-0	01	1	1012-				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1012-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98096-928-0	01	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	1012-1111			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	1112-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (A)	8-97262-117-0	01	1	1112-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (E) ID=12.2	9-09571-412-0	04	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (D) ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-				●	●
118	03.342 CLIP; WATER HOSE VIETNAM EQUIPMENT<CL0> (B) ID=12.8	8-97944-125-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1012-1111			●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1112-			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (A) ID=22	8-97359-141-0	06	1	1112-	●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1012-1112	●		●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-			●
118	03.342 CLIP; WATER HOSE EXC. VIETNAM EQUIPMENT<CL0> 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	1012-		●		●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (D) ID=20	1-09707-084-1	06	1	1012-				●	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	1012-	●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97229-036-0	01	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97381-650-0	01	1	1012-	●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (D)	8-97387-271-0	01	1	1012-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98063-840-0	01	1	1012-				●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●		●	●
423	03.373 STUD; WATER PIPE EURO2 SPECIFICATION(NT2) 00.206 M6X16 L=25	0-41010-616-0	01	1	1012-	●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1111			●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1112-			●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1112-	●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1012-1111			●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1112-			●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1112-	●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	1012-1111			●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	1112-			●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (C)	8-98015-118-0	01	1	1112-	●
488	03.163 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (D)	8-98066-091-0	01	1	1012-	●
525	03.373 PLATE; WATER,TURBO VIETNAM EQUIPMENT<CL0> ID=6.4 OD=18	0-91614-706-0	01	1	1105-	●
525	03.373 PLATE; WATER,TURBO EURO2 SPECIFICATION(NT2) 02.334 ID=6.4 OD=18	9-09164-706-0	01	1	1012-1104	●
525	03.373 PLATE; WATER,TURBO EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> 02.334 ID=6.4 OD=18	9-09164-706-0	01	1	1105-	●

143 71 143 1 2 11 12 389 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1112-	●
1	03.342 TURBOCHARGER ASM (C) SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-		●
1	03.342 TURBOCHARGER ASM (A)	8-97381-507-5	01	1	1012-			●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E)	8-98027-772-5	01	1	1012-1509				●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E) SEE FIG-NO 0-37 FOR COMPONENT.	8-98322-481-0	01	1	1510-				●	●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1012-	●
1	03.342 TURBOCHARGER ASM EXC. COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0>	8-97912-697-0	01	1	1105-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94433-605-0	01	1	1012-1104	●		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94433-605-0	01	1	1105-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0>	8-94433-605-0	01	1	1105-	●
11	03.342 NUT; TURBOCHARGER VIETNAM EQUIPMENT<CL0> M8 FLANGE	8-97379-384-0	02	1	1105-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1012-1104	●		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-			●
11	03.342 NUT; TURBOCHARGER EXC. VIETNAM EQUIPMENT<CL0> 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	1012-				●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8	9-09842-007-0	04	1	1012-				●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-	●		●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	1012-				●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28	9-04731-028-0	02	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1012-	●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98055-062-2	01	1	1012-	●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98059-964-1	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (E)	8-98107-509-1	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (F)	8-98006-133-2	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (G)	8-98039-732-3	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98159-280-1	01	1	1012-	●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1012-	●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	04	1	1012-	●		●
309	03.342 BOLT; TURBOCHARGER VIETNAM EQUIPMENT<CL0> 03.417 M8X28 FLANGE	8-98041-363-0	02	1	1105-	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1012-1104	●		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1105-			●
309	03.342 BOLT; TURBOCHARGER EXC. VIETNAM EQUIPMENT<CL0> 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1105-	●
309	03.342 BOLT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-				●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1012-	●		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	1012-				●	●

118 485 116 116 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (C) M8X20 FLANGE	0-28650-820-0	04	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-		●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-				●	●
118	03.342 CLIP; WATER HOSE VIETNAM EQUIPMENT<CL0> (B) ID=12.8	8-97944-125-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1012-1111			●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1112-			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (A) ID=22	8-97359-141-0	06	1	1112-	●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1012-1112	●		●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-			●
118	03.342 CLIP; WATER HOSE EXC. VIETNAM EQUIPMENT<CL0> 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	1012-		●		●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (D) ID=20	1-09707-084-1	06	1	1012-				●	●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	1012-1111			●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	1112-			●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-97381-651-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	1012-1111			●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	1112-			●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97381-652-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (D)	8-97376-773-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (E)	8-98032-267-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (F)	8-98041-637-1	01	1	1012-				●	●

1 71 143 389 143 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1112-	●
1	03.342 TURBOCHARGER ASM (C) SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-		●
1	03.342 TURBOCHARGER ASM (A)	8-97381-507-5	01	1	1012-			●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E)	8-98027-772-5	01	1	1012-1509				●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E) SEE FIG-NO 0-37 FOR COMPONENT.	8-98322-481-0	01	1	1510-				●	●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1012-	●
1	03.342 TURBOCHARGER ASM EXC. COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1012-	●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98055-062-2	01	1	1012-	●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98059-964-1	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (E)	8-98107-509-1	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (F)	8-98006-133-2	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (G)	8-98039-732-3	01	1	1012-				●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98159-280-1	01	1	1012-	●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1012-	●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-				●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	04	1	1012-	●		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1012-	●		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	1012-				●	●

116 117 116 136 136 137 117 101 133 134 135 130 12 11 131 135 1 9 9 14 14 16 162 391 32 101 6 66 116 117 117 19 19 204 7 465 288 288 118 231 118 414 414 115 460 460 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1112-	●
1	03.342 TURBOCHARGER ASM (C) SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-		●
1	03.342 TURBOCHARGER ASM (A)	8-97381-507-5	01	1	1012-			●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E)	8-98027-772-5	01	1	1012-1509				●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E) SEE FIG-NO 0-37 FOR COMPONENT.	8-98322-481-0	01	1	1510-				●	●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1012-	●
1	03.342 TURBOCHARGER ASM EXC. COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-				●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1012-		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) (B)	8-98015-116-1	02	1	1012-1104	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-1	02	1	1105-1111	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98015-116-1	02	1	1112-1306	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) COLOMBIA EQUIPMENT(CB7) (B)	8-98015-116-1	02	1	1112-1306	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-1	02	1	1307-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-3	01	1	1105-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.611 (A)	8-98011-532-0	01	1	1012-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO4 SPECIFICATION(NT4) (E) ID=54	8-97376-758-0	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO4 SPECIFICATION(NT4) (F) ID=49	8-98046-241-0	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (C)	8-97039-777-1	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97039-777-1	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-97374-412-0	01	1	1012-				●	●
11	03.342 NUT; TURBOCHARGER VIETNAM EQUIPMENT<CL0> M8 FLANGE	8-97379-384-0	02	1	1105-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1012-1104	●		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-			●
11	03.342 NUT; TURBOCHARGER EXC. VIETNAM EQUIPMENT<CL0> 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	1012-				●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8	9-09842-007-0	04	1	1012-				●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-	●		●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	1012-				●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28	9-04731-028-0	02	1	1012-				●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1012-	●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X94 L=108	8-97019-477-0	02	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) M8X94 L=108	8-97019-477-0	02	1	1012-				●	●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1012-			●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	1012-				●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98012-735-4	01	1	1012-1104	●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1105-	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	1012-				●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE	8-94170-486-0	03	1	1012-				●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-990-3	01	1	1012-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-991-1	01	1	1012-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98031-888-3	01	1	1012-				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97351-168-0	01	1	1012-				●	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-		●		●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1012-				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (B)	8-98113-709-0	01	1	1112-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (C)	8-97210-077-2	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	1012-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (E)	8-98085-187-0	01	1	1012-				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1012-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98096-928-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (C) M8X20 FLANGE	0-28650-820-0	04	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-		●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	1012-1111			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	1112-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (A)	8-97262-117-0	01	1	1112-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (E) ID=12.2	9-09571-412-0	04	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (D) ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-				●	●
118	03.342 CLIP; WATER HOSE VIETNAM EQUIPMENT<CL0> (B) ID=12.8	8-97944-125-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1012-1111			●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1112-			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (A) ID=22	8-97359-141-0	06	1	1112-	●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1012-1112	●		●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-			●
118	03.342 CLIP; WATER HOSE EXC. VIETNAM EQUIPMENT<CL0> 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	1012-		●		●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (D) ID=20	1-09707-084-1	06	1	1012-				●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1012-		●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1012-		●		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1012-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98172-661-0	01	1	1012-				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98172-658-0	01	1	1012-				●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1012-		●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-		●		●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312				●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97229-036-0	01	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97381-650-0	01	1	1012-	●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (D)	8-97387-271-0	01	1	1012-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98063-840-0	01	1	1012-				●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1012-		●		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1012-		●		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●		●	●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	1012-		●
288	03.342 BOLT; WATER PIPE CLIP EURO4 SPECIFICATION(NT4) 03.407 (C) M8X10 FLANGE	0-28050-810-0	01	1	1012-				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-		●
288	03.342 BOLT; WATER PIPE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-				●	●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	1012-		●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	1012-		●
391	03.342 BRACKET; WATER PIPE EURO4 SPECIFICATION(NT4) (D)	8-98013-958-0	01	1	1012-				●	●
391	03.342 BRACKET; WATER PIPE (C)	8-97371-730-0	01	1	1012-				●	●
414	03.602 SPACER EURO2 SPECIFICATION(NT2) 01.429 M8X10	1-11369-081-0	02	1	1012-				●	●
460	03.374 NUT; PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-				●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION(NT4) 03.417 (B)	8-98052-394-0	01	1	1012-				●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 (A)	8-97351-167-0	01	1	1012-1204				●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98176-248-0	01	1	1205-				●	●

138 138 117 117 118 137 488 117 118 118 21 231 485 118 21 485 115 118 118 119 118 33 118 118 488 118 488 9 14 173 18 16 534 217 66 251 173 217 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) (B)	8-98015-116-1	02	1	1012-1104	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-1	02	1	1105-1111	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98015-116-1	02	1	1112-1306	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) COLOMBIA EQUIPMENT(CB7) (B)	8-98015-116-1	02	1	1112-1306	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-1	02	1	1307-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-3	01	1	1105-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.611 (A)	8-98011-532-0	01	1	1012-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO4 SPECIFICATION(NT4) (E) ID=54	8-97376-758-0	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO4 SPECIFICATION(NT4) (F) ID=49	8-98046-241-0	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (C)	8-97039-777-1	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97039-777-1	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-97374-412-0	01	1	1012-				●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1012-	●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X94 L=108	8-97019-477-0	02	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) M8X94 L=108	8-97019-477-0	02	1	1012-				●	●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1012-			●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	1012-				●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98012-735-4	01	1	1012-1104	●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1105-	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	1012-				●	●
18	03.613 NUT; EXH PIPE VIETNAM EQUIPMENT<CL0> 03.342 M8 FLANGE	8-97379-384-0	02	1	1105-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1012-1104	●		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1105-			●
18	03.613 NUT; EXH PIPE EXC. VIETNAM EQUIPMENT<CL0> M8 FLANGE	8-97161-607-0	02	1	1105-	●
21	03.358 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-1111			●
21	03.358 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1112-			●
21	03.358 BOLT; PIPE EURO3 SPECIFICATION(NT3) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1112-	●
21	03.358 BOLT; PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1012-1111			●
21	03.358 BOLT; PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1112-			●
21	03.358 BOLT; PIPE EURO3 SPECIFICATION(NT3) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1112-	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (C) M6X12 FLANGE	8-97108-669-0	04	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1012-			●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1012-			●
33	03.342 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 (B) M8X12 FLANGE	0-28050-812-0	06	1	1012-1104	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	06	1	1105-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-		●		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (B)	8-98113-709-0	01	1	1112-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (C)	8-97210-077-2	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	1012-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (E)	8-98085-187-0	01	1	1012-				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1012-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98096-928-0	01	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	1012-1111			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	1112-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (A)	8-97262-117-0	01	1	1112-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (E) ID=12.2	9-09571-412-0	04	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (D) ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-				●	●
118	03.342 CLIP; WATER HOSE VIETNAM EQUIPMENT<CL0> (B) ID=12.8	8-97944-125-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1012-1111			●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1112-			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (A) ID=22	8-97359-141-0	06	1	1112-	●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1012-1112	●		●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-			●
118	03.342 CLIP; WATER HOSE EXC. VIETNAM EQUIPMENT<CL0> 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	1012-		●		●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (D) ID=20	1-09707-084-1	06	1	1012-				●	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	1012-	●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97229-036-0	01	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97381-650-0	01	1	1012-	●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (D)	8-97387-271-0	01	1	1012-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98063-840-0	01	1	1012-				●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-	●		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-97178-497-2	01	1	1012-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1012-			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1012-	●		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO2 SPECIFICATION(NT2) (C)	8-98032-023-1	01	1	1012-1104	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98032-023-1	01	1	1105-	●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1012-	●		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1012-	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●		●	●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	1012-	●		●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	1012-1111			●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	1112-			●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-97381-651-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	1012-1111			●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	1112-			●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97381-652-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (D)	8-97376-773-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (E)	8-98032-267-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (F)	8-98041-637-1	01	1	1012-				●	●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1111			●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1112-			●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1112-	●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1012-1111			●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1112-			●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1112-	●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	1012-1111			●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	1112-			●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (C)	8-98015-118-0	01	1	1112-	●
488	03.163 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (D)	8-98066-091-0	01	1	1012-	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1012-			●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) M8X35 FLANGE	8-98053-224-0	02	1	1012-1104	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE M8X35 FLANGE	8-98053-224-0	02	1	1105-	●

33 118 288 231 33 173 118 291 252 33 204 115 116 19 391 14 19 391 288 14 7 162 117 117 16 9 1 117 137 117 116 66 288 134 117 117 131 116 130 133 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1112-	●
1	03.342 TURBOCHARGER ASM (C) SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-		●
1	03.342 TURBOCHARGER ASM (A)	8-97381-507-5	01	1	1012-			●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E)	8-98027-772-5	01	1	1012-1509				●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E) SEE FIG-NO 0-37 FOR COMPONENT.	8-98322-481-0	01	1	1510-				●	●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1012-	●
1	03.342 TURBOCHARGER ASM EXC. COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1012-		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) (B)	8-98015-116-1	02	1	1012-1104	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-1	02	1	1105-1111	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98015-116-1	02	1	1112-1306	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) COLOMBIA EQUIPMENT(CB7) (B)	8-98015-116-1	02	1	1112-1306	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-1	02	1	1307-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-3	01	1	1105-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.611 (A)	8-98011-532-0	01	1	1012-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO4 SPECIFICATION(NT4) (E) ID=54	8-97376-758-0	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO4 SPECIFICATION(NT4) (F) ID=49	8-98046-241-0	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (C)	8-97039-777-1	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97039-777-1	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-97374-412-0	01	1	1012-				●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1012-	●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X94 L=108	8-97019-477-0	02	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) M8X94 L=108	8-97019-477-0	02	1	1012-				●	●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1012-			●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	1012-				●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98012-735-4	01	1	1012-1104	●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1105-	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	1012-				●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE	8-94170-486-0	03	1	1012-				●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-				●	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (C) M6X12 FLANGE	8-97108-669-0	04	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1012-			●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1012-			●
33	03.342 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 (B) M8X12 FLANGE	0-28050-812-0	06	1	1012-1104	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	06	1	1105-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-		●		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (B)	8-98113-709-0	01	1	1112-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (C)	8-97210-077-2	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	1012-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (E)	8-98085-187-0	01	1	1012-				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1012-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98096-928-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (C) M8X20 FLANGE	0-28650-820-0	04	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-		●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	1012-1111			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	1112-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (A)	8-97262-117-0	01	1	1112-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (E) ID=12.2	9-09571-412-0	04	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (D) ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-				●	●
118	03.342 CLIP; WATER HOSE VIETNAM EQUIPMENT<CL0> (B) ID=12.8	8-97944-125-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1012-1111			●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1112-			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (A) ID=22	8-97359-141-0	06	1	1112-	●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1012-1112	●		●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-			●
118	03.342 CLIP; WATER HOSE EXC. VIETNAM EQUIPMENT<CL0> 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	1012-		●		●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (D) ID=20	1-09707-084-1	06	1	1012-				●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1012-		●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1012-		●		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1012-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98172-661-0	01	1	1012-				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98172-658-0	01	1	1012-				●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1012-		●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-		●		●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97229-036-0	01	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97381-650-0	01	1	1012-	●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (D)	8-97387-271-0	01	1	1012-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98063-840-0	01	1	1012-				●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1012-		●		●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-97178-497-2	01	1	1012-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1012-			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1012-	●		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO2 SPECIFICATION(NT2) (C)	8-98032-023-1	01	1	1012-1104	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98032-023-1	01	1	1105-	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1012-		●		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●		●	●
252	03.417 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-		●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	1012-		●
288	03.342 BOLT; WATER PIPE CLIP EURO4 SPECIFICATION(NT4) 03.407 (C) M8X10 FLANGE	0-28050-810-0	01	1	1012-				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-		●
288	03.342 BOLT; WATER PIPE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-				●	●
291	03.374 NUT; PIPE TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	1012-		●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	1012-		●
391	03.342 BRACKET; WATER PIPE EURO4 SPECIFICATION(NT4) (D)	8-98013-958-0	01	1	1012-				●	●
391	03.342 BRACKET; WATER PIPE (C)	8-97371-730-0	01	1	1012-				●	●

485 118 231 118 118 115 118 288 118 118 288 391 117 101 117 116 32 162 7 204 19 465 14 101 16 9 1 136 6 136 66 391 116 134 137 112 133 117 117 135 116 9 12 11 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1112-	●
1	03.342 TURBOCHARGER ASM (C) SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-		●
1	03.342 TURBOCHARGER ASM (A)	8-97381-507-5	01	1	1012-			●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E)	8-98027-772-5	01	1	1012-1509				●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E) SEE FIG-NO 0-37 FOR COMPONENT.	8-98322-481-0	01	1	1510-				●	●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1012-	●
1	03.342 TURBOCHARGER ASM EXC. COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-				●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1012-		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) (B)	8-98015-116-1	02	1	1012-1104	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-1	02	1	1105-1111	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98015-116-1	02	1	1112-1306	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) COLOMBIA EQUIPMENT(CB7) (B)	8-98015-116-1	02	1	1112-1306	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-1	02	1	1307-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-3	01	1	1105-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.611 (A)	8-98011-532-0	01	1	1012-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO4 SPECIFICATION(NT4) (E) ID=54	8-97376-758-0	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO4 SPECIFICATION(NT4) (F) ID=49	8-98046-241-0	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (C)	8-97039-777-1	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97039-777-1	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-97374-412-0	01	1	1012-				●	●
11	03.342 NUT; TURBOCHARGER VIETNAM EQUIPMENT<CL0> M8 FLANGE	8-97379-384-0	02	1	1105-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1012-1104	●		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-			●
11	03.342 NUT; TURBOCHARGER EXC. VIETNAM EQUIPMENT<CL0> 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	1012-				●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8	9-09842-007-0	04	1	1012-				●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-	●		●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	1012-				●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28	9-04731-028-0	02	1	1012-				●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1012-	●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X94 L=108	8-97019-477-0	02	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) M8X94 L=108	8-97019-477-0	02	1	1012-				●	●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1012-			●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	1012-				●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98012-735-4	01	1	1012-1104	●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1105-	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	1012-				●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE	8-94170-486-0	03	1	1012-				●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-990-3	01	1	1012-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-991-1	01	1	1012-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98031-888-3	01	1	1012-				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97351-168-0	01	1	1012-				●	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-		●		●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1012-				●	●
112	03.417 BOLT; CLIP EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (B)	8-98113-709-0	01	1	1112-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (C)	8-97210-077-2	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	1012-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (E)	8-98085-187-0	01	1	1012-				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1012-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98096-928-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (C) M8X20 FLANGE	0-28650-820-0	04	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-		●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	1012-1111			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	1112-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (A)	8-97262-117-0	01	1	1112-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (E) ID=12.2	9-09571-412-0	04	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (D) ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-				●	●
118	03.342 CLIP; WATER HOSE VIETNAM EQUIPMENT<CL0> (B) ID=12.8	8-97944-125-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1012-1111			●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1112-			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (A) ID=22	8-97359-141-0	06	1	1112-	●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1012-1112	●		●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-			●
118	03.342 CLIP; WATER HOSE EXC. VIETNAM EQUIPMENT<CL0> 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	1012-		●		●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (D) ID=20	1-09707-084-1	06	1	1012-				●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1012-		●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1012-		●		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1012-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98172-661-0	01	1	1012-				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98172-658-0	01	1	1012-				●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1012-		●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-		●		●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312				●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97229-036-0	01	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97381-650-0	01	1	1012-	●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (D)	8-97387-271-0	01	1	1012-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98063-840-0	01	1	1012-				●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1012-		●		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1012-		●		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●		●	●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	1012-		●
288	03.342 BOLT; WATER PIPE CLIP EURO4 SPECIFICATION(NT4) 03.407 (C) M8X10 FLANGE	0-28050-810-0	01	1	1012-				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-		●
288	03.342 BOLT; WATER PIPE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-				●	●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	1012-		●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	1012-		●
391	03.342 BRACKET; WATER PIPE EURO4 SPECIFICATION(NT4) (D)	8-98013-958-0	01	1	1012-				●	●
391	03.342 BRACKET; WATER PIPE (C)	8-97371-730-0	01	1	1012-				●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION(NT4) 03.417 (B)	8-98052-394-0	01	1	1012-				●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 (A)	8-97351-167-0	01	1	1012-1204				●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98176-248-0	01	1	1205-				●	●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	1012-1111			●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	1112-			●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-97381-651-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	1012-1111			●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	1112-			●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97381-652-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (D)	8-97376-773-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (E)	8-98032-267-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (F)	8-98041-637-1	01	1	1012-				●	●

116 117 116 117 136 391 101 133 134 135 135 131 11 12 130 9 1 9 14 14 66 32 16 7 162 136 6 101 137 288 204 465 19 19 117 116 116 485 118 118 118 117 288 288 118 118 485 231 118 460 115 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1112-	●
1	03.342 TURBOCHARGER ASM (C) SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-		●
1	03.342 TURBOCHARGER ASM (A)	8-97381-507-5	01	1	1012-			●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (D) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1012-					●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E)	8-98027-772-5	01	1	1012-1509				●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (E) SEE FIG-NO 0-37 FOR COMPONENT.	8-98322-481-0	01	1	1510-				●	●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1012-	●
1	03.342 TURBOCHARGER ASM EXC. COLOMBIA EQUIPMENT(CB7) (B) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-				●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1012-		●		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) (B)	8-98015-116-1	02	1	1012-1104	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-1	02	1	1105-1111	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98015-116-1	02	1	1112-1306	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) COLOMBIA EQUIPMENT(CB7) (B)	8-98015-116-1	02	1	1112-1306	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-1	02	1	1307-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT<CL0> (B)	8-98015-116-3	01	1	1105-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.611 (A)	8-98011-532-0	01	1	1012-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO4 SPECIFICATION(NT4) (E) ID=54	8-97376-758-0	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO4 SPECIFICATION(NT4) (F) ID=49	8-98046-241-0	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (C)	8-97039-777-1	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97039-777-1	01	1	1012-				●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-97374-412-0	01	1	1012-				●	●
11	03.342 NUT; TURBOCHARGER VIETNAM EQUIPMENT<CL0> M8 FLANGE	8-97379-384-0	02	1	1105-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1012-1104	●		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-			●
11	03.342 NUT; TURBOCHARGER EXC. VIETNAM EQUIPMENT<CL0> 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	1012-				●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8	9-09842-007-0	04	1	1012-				●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-	●		●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	1012-				●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28	9-04731-028-0	02	1	1012-				●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1012-	●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-		●		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X94 L=108	8-97019-477-0	02	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) M8X94 L=108	8-97019-477-0	02	1	1012-				●	●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1012-			●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	1012-				●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98012-735-4	01	1	1012-1104	●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1105-	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	1012-				●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE	8-94170-486-0	03	1	1012-				●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-990-3	01	1	1012-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-991-1	01	1	1012-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98031-888-3	01	1	1012-				●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97351-168-0	01	1	1012-				●	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-		●		●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1012-				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (B)	8-98113-709-0	01	1	1112-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (C)	8-97210-077-2	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	1012-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (E)	8-98085-187-0	01	1	1012-				●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1012-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98096-928-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (C) M8X20 FLANGE	0-28650-820-0	04	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-		●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-				●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	1012-1111			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	1112-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (A)	8-97262-117-0	01	1	1112-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (E) ID=12.2	9-09571-412-0	04	1	1012-				●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (D) ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-				●	●
118	03.342 CLIP; WATER HOSE VIETNAM EQUIPMENT<CL0> (B) ID=12.8	8-97944-125-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1012-1111			●
118	03.342 CLIP; WATER HOSE 03.278 (A) ID=22	8-97359-141-0	06	1	1112-			●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (A) ID=22	8-97359-141-0	06	1	1112-	●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1012-1112	●		●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-			●
118	03.342 CLIP; WATER HOSE EXC. VIETNAM EQUIPMENT<CL0> 01.153 (B) ID=12.8	8-94367-943-0	04	1	1201-	●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	1012-		●		●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (D) ID=20	1-09707-084-1	06	1	1012-				●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1012-		●		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1012-		●		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1012-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98172-661-0	01	1	1012-				●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98172-658-0	01	1	1012-				●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1012-		●		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-		●		●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312				●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97229-036-0	01	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97381-650-0	01	1	1012-	●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (D)	8-97387-271-0	01	1	1012-				●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98063-840-0	01	1	1012-				●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1012-		●		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1012-		●		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●		●	●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	1012-		●
288	03.342 BOLT; WATER PIPE CLIP EURO4 SPECIFICATION(NT4) 03.407 (C) M8X10 FLANGE	0-28050-810-0	01	1	1012-				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-				●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-		●
288	03.342 BOLT; WATER PIPE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-				●	●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	1012-		●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	1012-		●
391	03.342 BRACKET; WATER PIPE EURO4 SPECIFICATION(NT4) (D)	8-98013-958-0	01	1	1012-				●	●
391	03.342 BRACKET; WATER PIPE (C)	8-97371-730-0	01	1	1012-				●	●
460	03.374 NUT; PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-				●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION(NT4) 03.417 (B)	8-98052-394-0	01	1	1012-				●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 (A)	8-97351-167-0	01	1	1012-1204				●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98176-248-0	01	1	1205-				●	●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	1012-1111			●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	1112-			●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-97381-651-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	1012-1111			●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	1112-			●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97381-652-0	01	1	1112-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (D)	8-97376-773-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (E)	8-98032-267-0	01	1	1012-				●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (F)	8-98041-637-1	01	1	1012-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
