Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#3997) — 327 parça

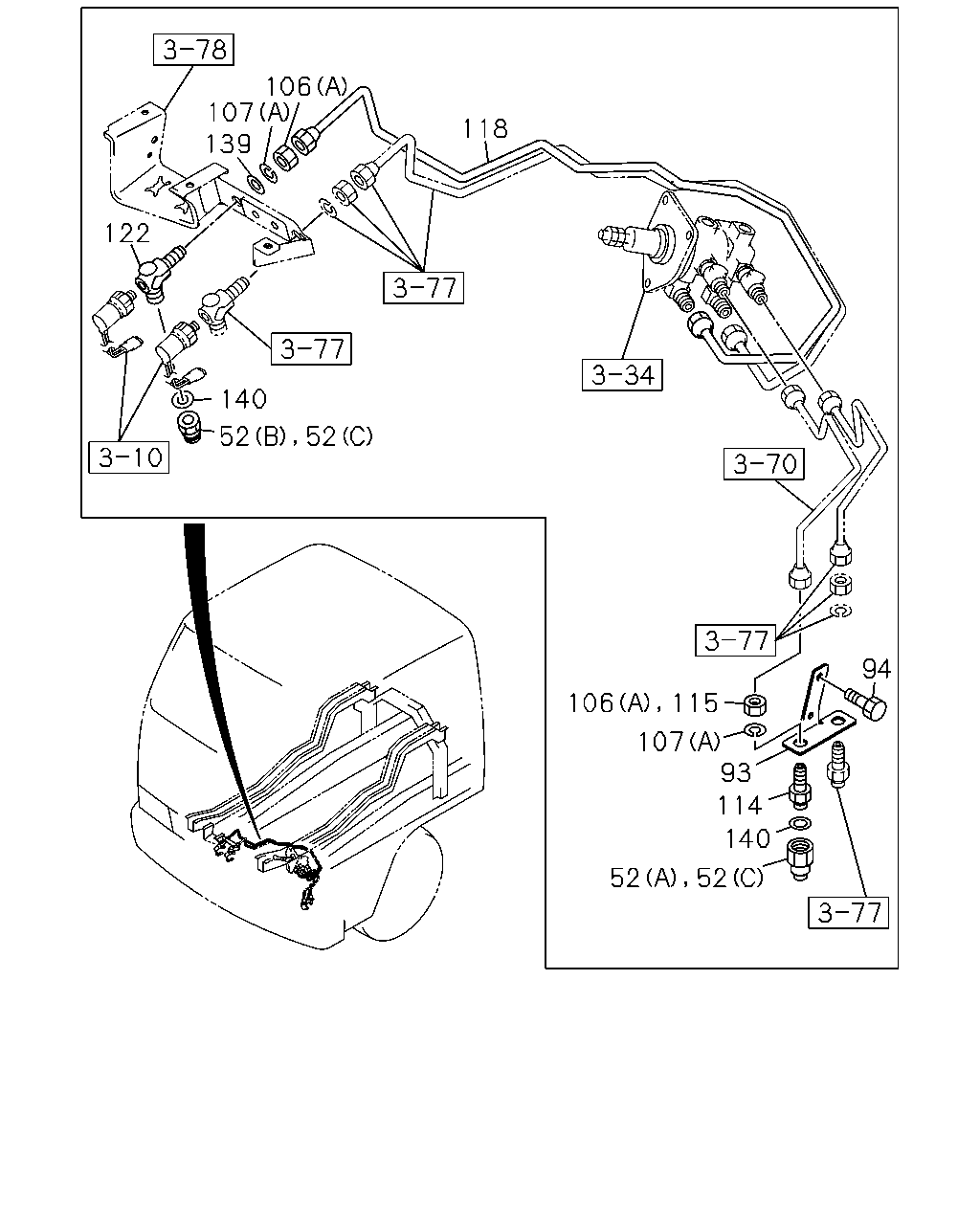

106 107 139 118 122 140 94 106 115 107 93 114 140 52 52 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	CONNECTOR; NYLON TUBE (C)	1-09660-728-1	02	1	9510-9802	●	●
52	CONNECTOR; NYLON TUBE (B)	1-09660-728-1	01	1	9803-9811	●	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9812-0007	●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0007	●	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	9510-	●	●
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-0904	●	●
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9510-0004	●	●
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	0005-0512	●	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	9-99111-416-0	02	1	0005-0512		●
106	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	0-91111-516-0	02	1	0601-		●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	01	1	0005-0512		●
106	NUT; FLEX HOSE (B) M20	0-91111-520-0	01	1	0601-	●	●
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9510-0004	●	●
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	0005-0603	●	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	9-09150-516-0	02	1	0005-0603		●
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	0-91510-516-0	02	1	0604-		●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	01	1	0005-0603		●
107	WASHER; LK,FLEX HOSE (B) ID=20.2	0-91510-520-0	01	1	0604-	●	●
114	UNION; NYLON TUBE	1-09660-807-1	01	1	9510-9512	●	●
115	NUT; TUBE UNION M16	9-99111-416-0	01	1	9510-9512	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=1303	1-49116-437-0	01	1	9510-0004	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=989	1-49121-666-0	01	1	0005-	●	●
122	CONNECTOR; FLEX HOSE	1-09656-700-0	01	1	9510-9811	●	●
122	CONNECTOR; FLEX HOSE M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	9812-	●	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9510-9512	●	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9510-9802	●	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9803-9811	●	●

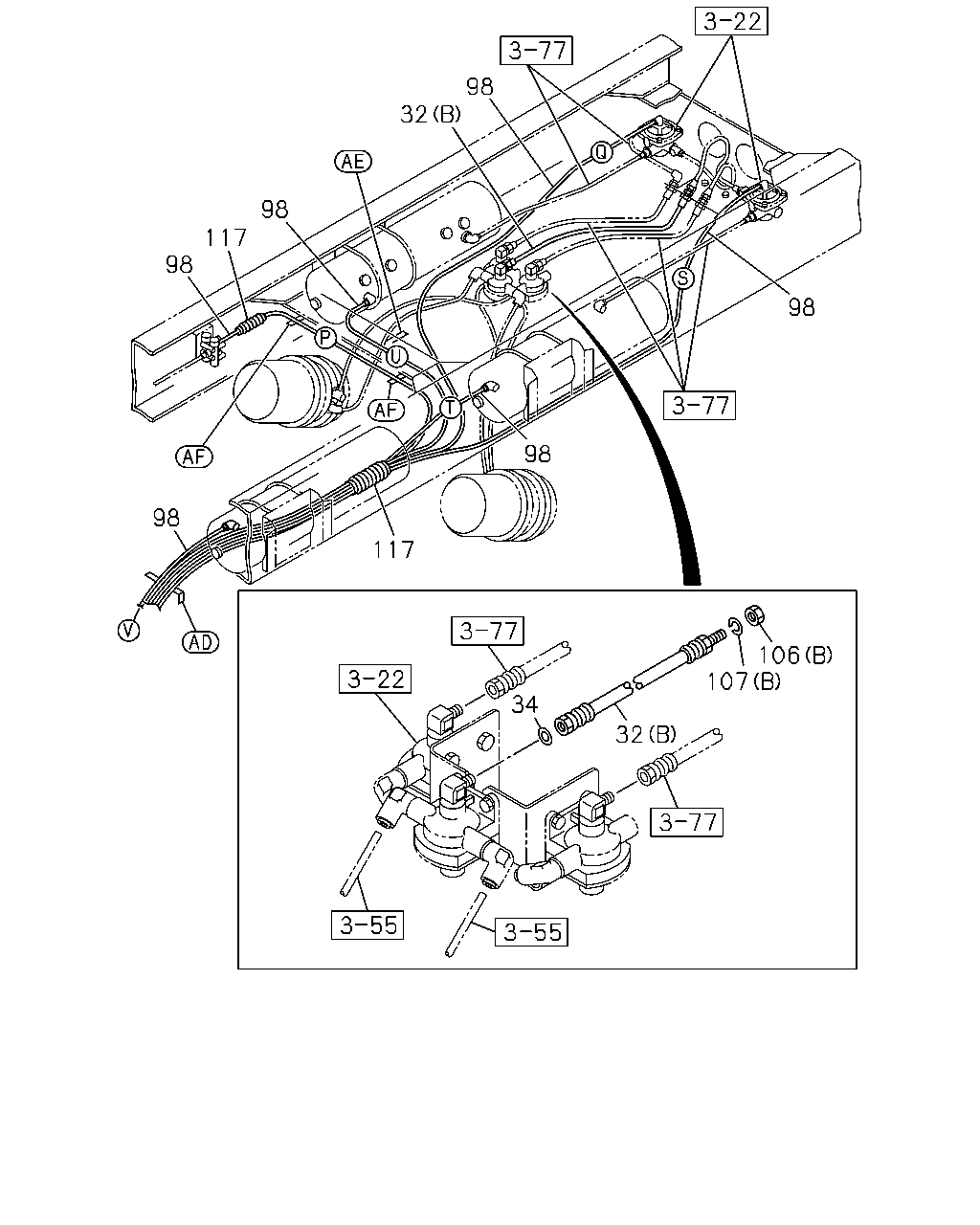

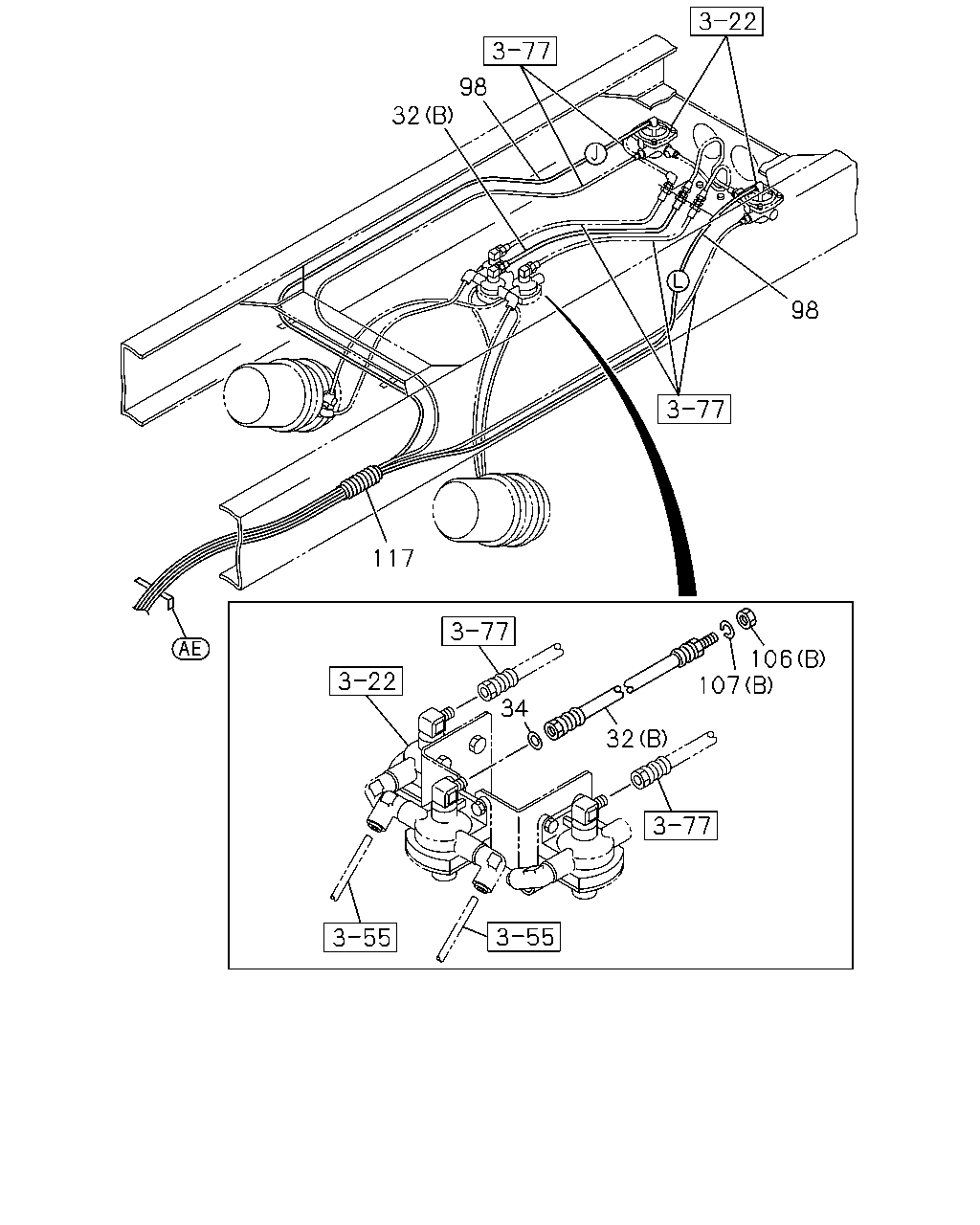

98 32 98 117 106 107 34 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=520	0-07475-520-1	02	1	0005-0605		●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=520	0-57475-520-1	02	1	0606-0607		●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> (A) L=520	0-57475-520-1	02	1	0608-		●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=720	0-07807-720-1	01	1	0005-0605		●
32	HOSE; FLEX,FRT (B) L=720	0-57807-720-1	01	1	0606-	●	●
34	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	01	1	0005-0607		●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0608-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0307-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0007-0306	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0307-	●	●
98	TUBE; NYLON L=2000 OD=12	1-87410-069-0	AR	1	9510-9802	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9803-0306	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0307-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0306	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0007	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0005-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0007	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0612-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0612-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0612-	●	●
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9510-0004	●	●
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	0005-0512	●	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	9-99111-416-0	02	1	0005-0512		●
106	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	0-91111-516-0	02	1	0601-		●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	01	1	0005-0512		●
106	NUT; FLEX HOSE (B) M20	0-91111-520-0	01	1	0601-	●	●
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9510-0004	●	●
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	0005-0603	●	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	9-09150-516-0	02	1	0005-0603		●
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	0-91510-516-0	02	1	0604-		●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	01	1	0005-0603		●
107	WASHER; LK,FLEX HOSE (B) ID=20.2	0-91510-520-0	01	1	0604-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0005-0306	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9803-0306	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0612-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0612-	●	●

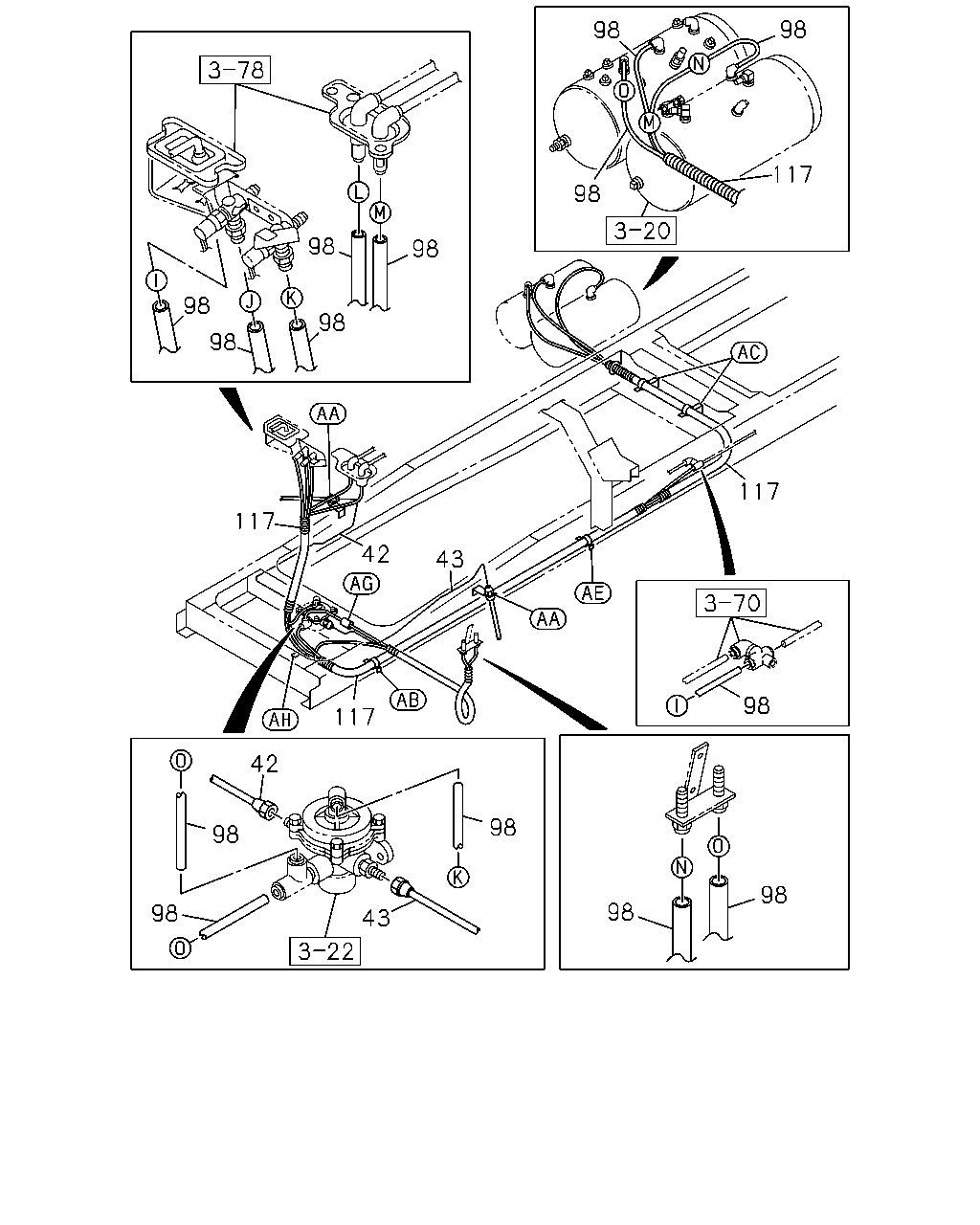

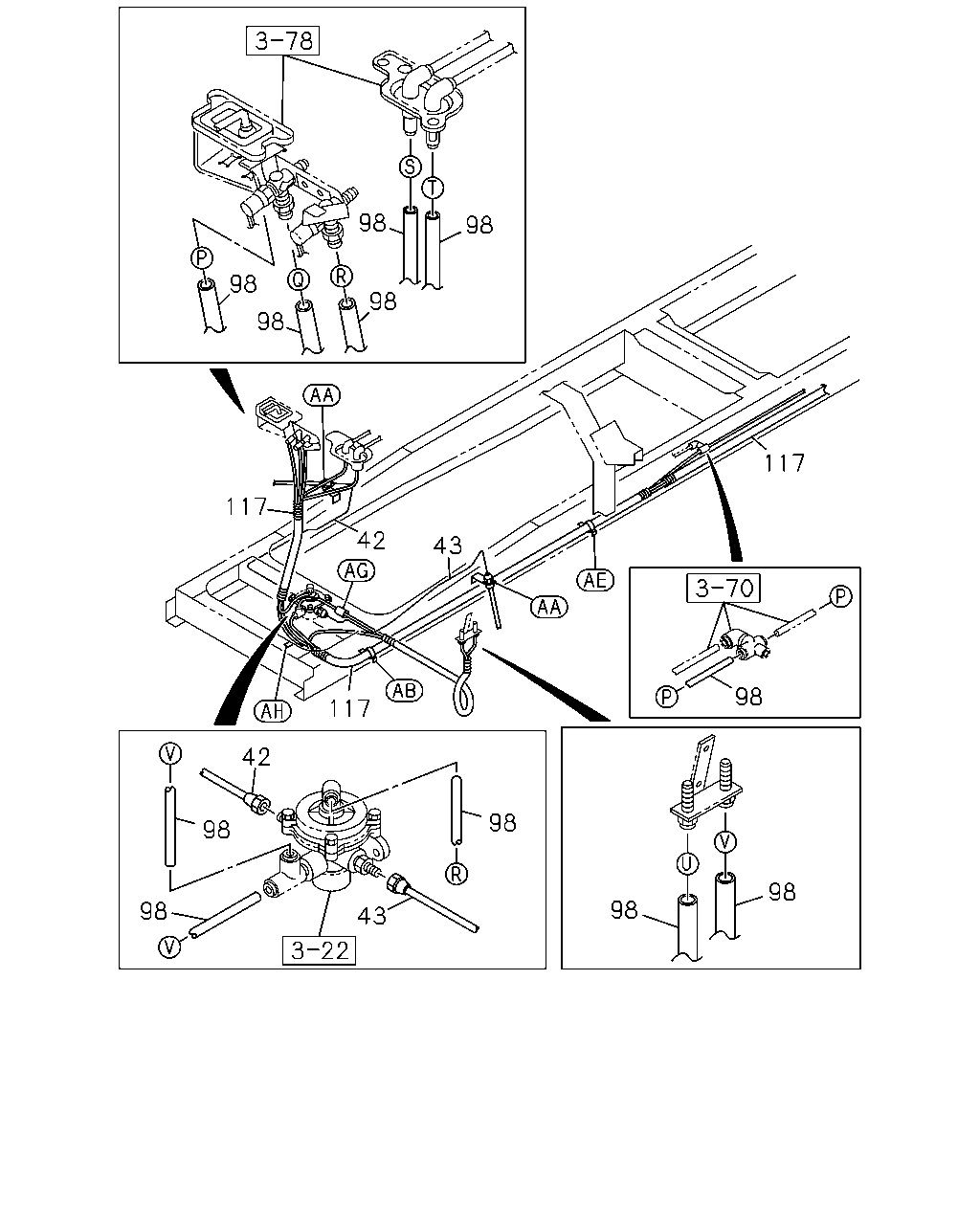

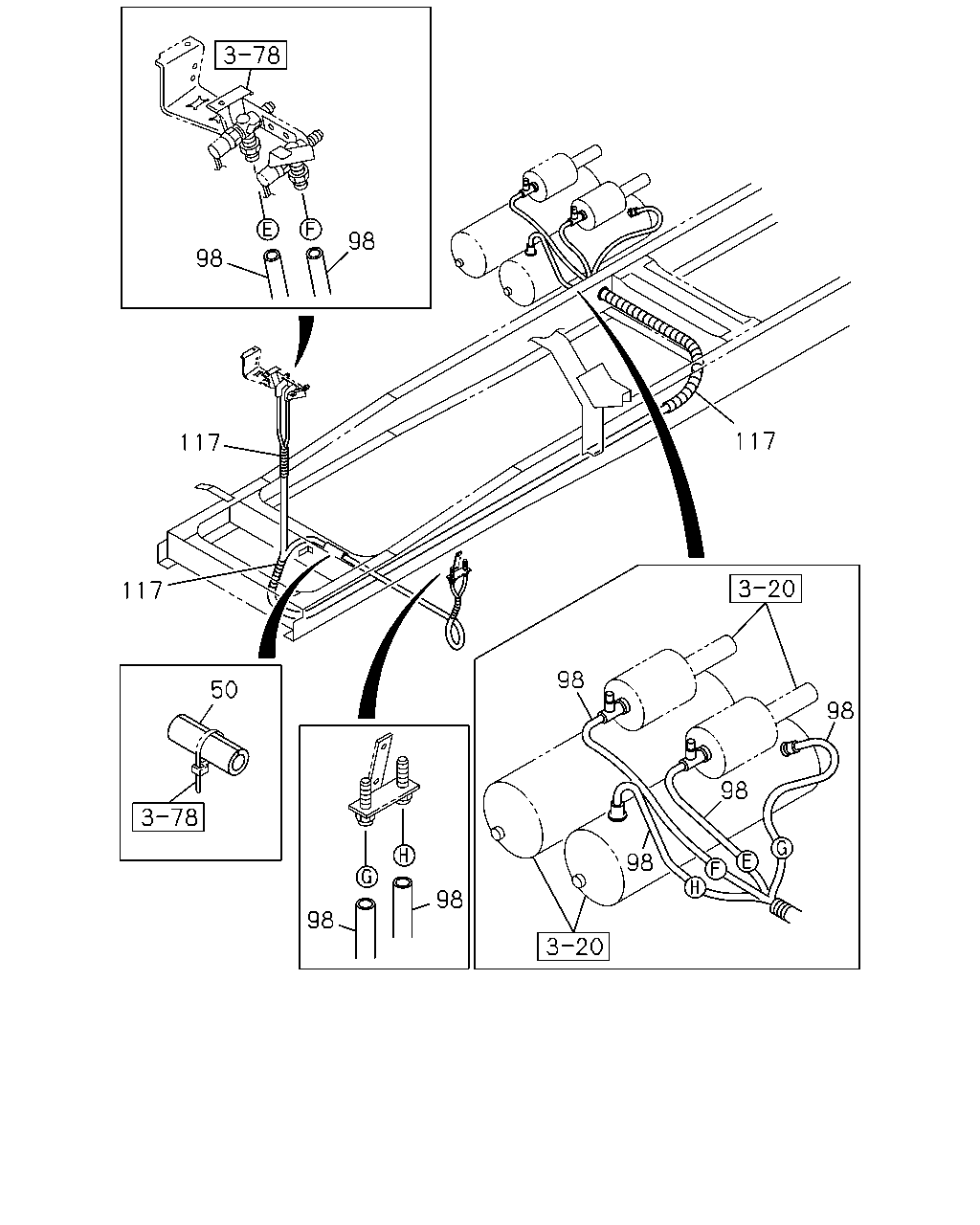

98 98 117 117 117 98 50 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	0302-		●
50	SLEEVE; RUBBER,NYLON TUBE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9901-0108		●
50	SLEEVE; RUBBER,NYLON TUBE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0109-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0307-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0007-0306	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0307-	●	●
98	TUBE; NYLON L=2000 OD=12	1-87410-069-0	AR	1	9510-9802	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9803-0306	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0307-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0306	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0007	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0005-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0007	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0612-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0612-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0612-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0005-0306	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9803-0306	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0612-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0612-	●	●

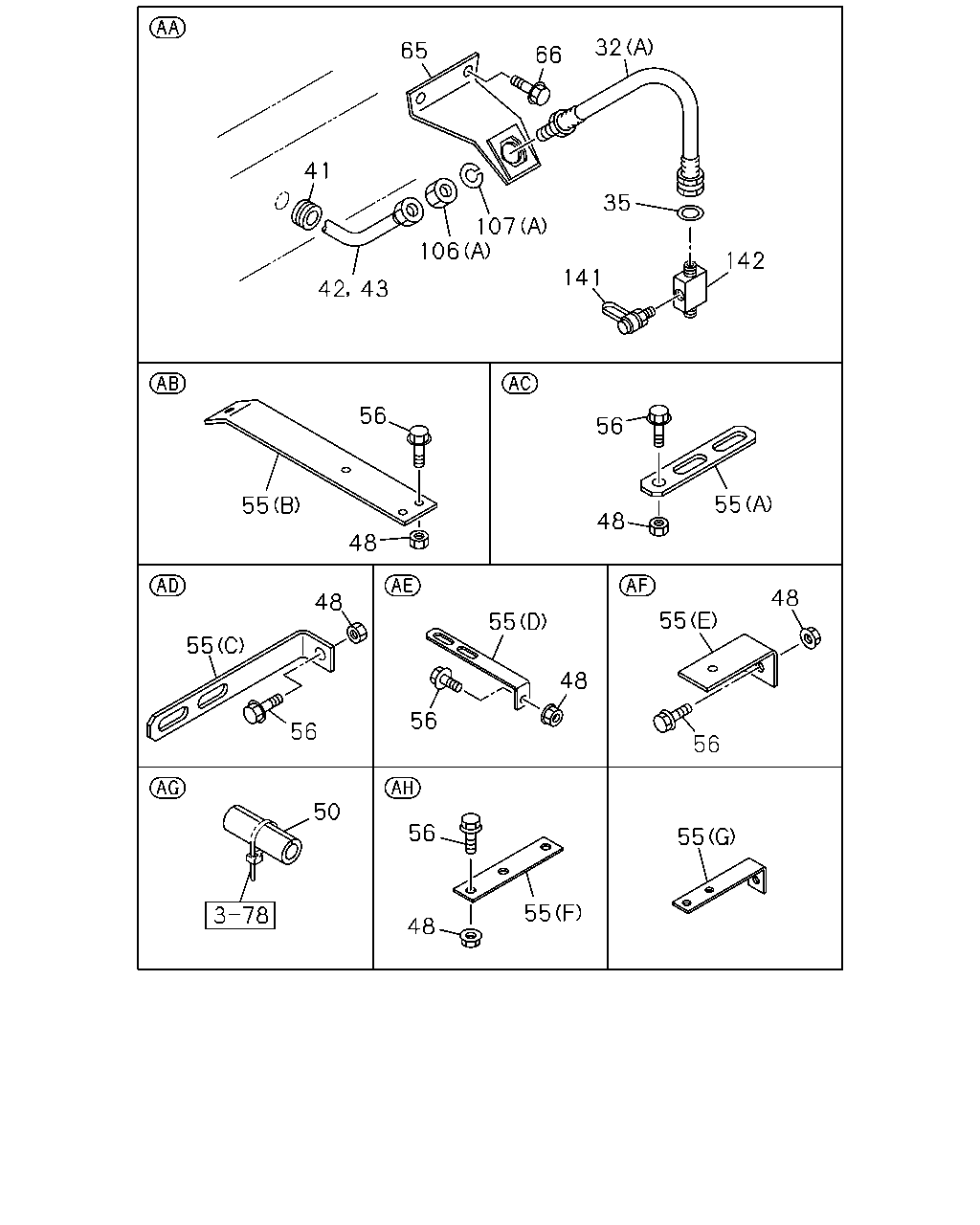

32 65 66 41 35 107 106 142 141 42 43 56 56 55 55 48 48 48 48 55 55 55 48 56 56 56 50 56 55 55 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=520	0-07475-520-1	02	1	0005-0605		●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=520	0-57475-520-1	02	1	0606-0607		●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> (A) L=520	0-57475-520-1	02	1	0608-		●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=720	0-07807-720-1	01	1	0005-0605		●
32	HOSE; FLEX,FRT (B) L=720	0-57807-720-1	01	1	0606-	●	●
35	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	0005-0607		●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0608-	●	●
41	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=24 OD=30 T=17	9-09956-092-1	02	1	0005-0607		●
41	GROMMET; AIR PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0608-	●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1208 SERVICED BY L=1250	1-47428-791-0	01	1	0005-0607		●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION L=1208 SERVICED BY L=1250	1-47428-791-0	01	1	0608-	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1182 SERVICED BY L=1250	1-47428-791-0	01	1	0005-0607		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1182 SERVICED BY L=1250	1-47428-791-0	01	1	0608-	●	●
48	NUT; UNION BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	07	1	0612-		●
48	NUT; UNION BRKT M16	9-99111-416-0	01	1	9510-9802	●	●
48	NUT; UNION BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	07	1	0005-0602		●
48	NUT; UNION BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	07	1	0603-0611		●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	05	1	0612-	●	●
48	NUT; UNION BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	09	1	0005-0602		●
48	NUT; UNION BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	09	1	0603-		●
50	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	0302-		●
50	SLEEVE; RUBBER,NYLON TUBE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9901-0108		●
50	SLEEVE; RUBBER,NYLON TUBE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0109-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) L=100 H=30	1-47477-645-2	03	1	0005-0006		●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) L=100 H=30	1-47477-645-2	02	1	0007-0607		●
55	BRACKET; TUBE UNION (F) L=100 H=30	1-47477-645-2	02	1	0608-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-650-0	01	1	0005-0607		●
55	BRACKET; TUBE UNION (B)	1-47477-650-0	01	1	0608-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) L=59 B=20	1-47479-048-0	01	1	0007-0607		●
55	BRACKET; TUBE UNION (G) L=59 B=20	1-47479-048-0	01	1	0608-	●	●
55	BRACKET; TUBE UNION WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-514-3	02	1	0005-0607		●
55	BRACKET; TUBE UNION (A)	1-47477-514-3	02	1	0608-	●	●
55	BRACKET; TUBE UNION WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=150 H=30	1-47477-629-2	02	1	0005-0607		●
55	BRACKET; TUBE UNION (D) L=150 H=30	1-47477-629-2	02	1	0608-0611	●	●
55	BRACKET; TUBE UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=150 H=30	1-47477-629-2	01	1	0005-		●
55	BRACKET; TUBE UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=225	1-47477-646-3	01	1	0005-		●
55	BRACKET; TUBE UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) L=55 B=25	1-47478-439-0	02	1	0005-		●
55	BRACKET; TUBE UNION WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=150 H=30	1-47477-629-2	03	1	0005-		●
56	BOLT; UNION BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	07	1	0612-		●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16 FLANGE	0-28181-016-0	02	1	0005-0512		●
56	BOLT; UNION BRKT M10X16 FLANGE	0-28151-016-0	02	1	0601-	●	●
56	BOLT; UNION BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	07	1	0005-0512		●
56	BOLT; UNION BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	07	1	0601-0611		●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	05	1	0612-	●	●
56	BOLT; UNION BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	09	1	0005-0512		●
56	BOLT; UNION BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	09	1	0601-		●
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-210-0	01	1	0005-0607		●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0608-	●	●
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-211-0	01	1	0005-0607		●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0608-	●	●
66	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●	●
66	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	9802-9802	●	●
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	04	1	0005-0006		●
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	0007-0512		●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9510-0004	●	●
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	0005-0512	●	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	9-99111-416-0	02	1	0005-0512		●
106	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	0-91111-516-0	02	1	0601-		●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	01	1	0005-0512		●
106	NUT; FLEX HOSE (B) M20	0-91111-520-0	01	1	0601-	●	●
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9510-0004	●	●
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	0005-0603	●	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	9-09150-516-0	02	1	0005-0603		●
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	0-91510-516-0	02	1	0604-		●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	01	1	0005-0603		●
107	WASHER; LK,FLEX HOSE (B) ID=20.2	0-91510-520-0	01	1	0604-	●	●
141	CONNECTOR; TEST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0005-		●
142	UNION; 3-WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09660-838-0	01	1	0005-0305		●
142	UNION; 3-WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09661-592-0	01	1	0306-		●

98 98 98 98 98 117 117 42 43 98 117 42 98 98 98 98 98 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	PIPE; AIR,QUICK RELAY VALVE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1208 SERVICED BY L=1250	1-47428-791-0	01	1	0005-0607		●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION L=1208 SERVICED BY L=1250	1-47428-791-0	01	1	0608-	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1182 SERVICED BY L=1250	1-47428-791-0	01	1	0005-0607		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1182 SERVICED BY L=1250	1-47428-791-0	01	1	0608-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0307-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0007-0306	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0307-	●	●
98	TUBE; NYLON L=2000 OD=12	1-87410-069-0	AR	1	9510-9802	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9803-0306	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0307-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0306	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0007	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0005-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0007	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0612-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0612-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0612-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0005-0306	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9803-0306	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0612-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0612-	●	●

98 98 117 98 98 98 98 98 98 117 117 42 43 98 117 42 98 98 98 98 98 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	PIPE; AIR,QUICK RELAY VALVE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1208 SERVICED BY L=1250	1-47428-791-0	01	1	0005-0607		●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION L=1208 SERVICED BY L=1250	1-47428-791-0	01	1	0608-	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1182 SERVICED BY L=1250	1-47428-791-0	01	1	0005-0607		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1182 SERVICED BY L=1250	1-47428-791-0	01	1	0608-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0307-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0007-0306	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0307-	●	●
98	TUBE; NYLON L=2000 OD=12	1-87410-069-0	AR	1	9510-9802	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9803-0306	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0307-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0306	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0007	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0005-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0007	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0612-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0612-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0612-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0005-0306	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9803-0306	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0612-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0612-	●	●

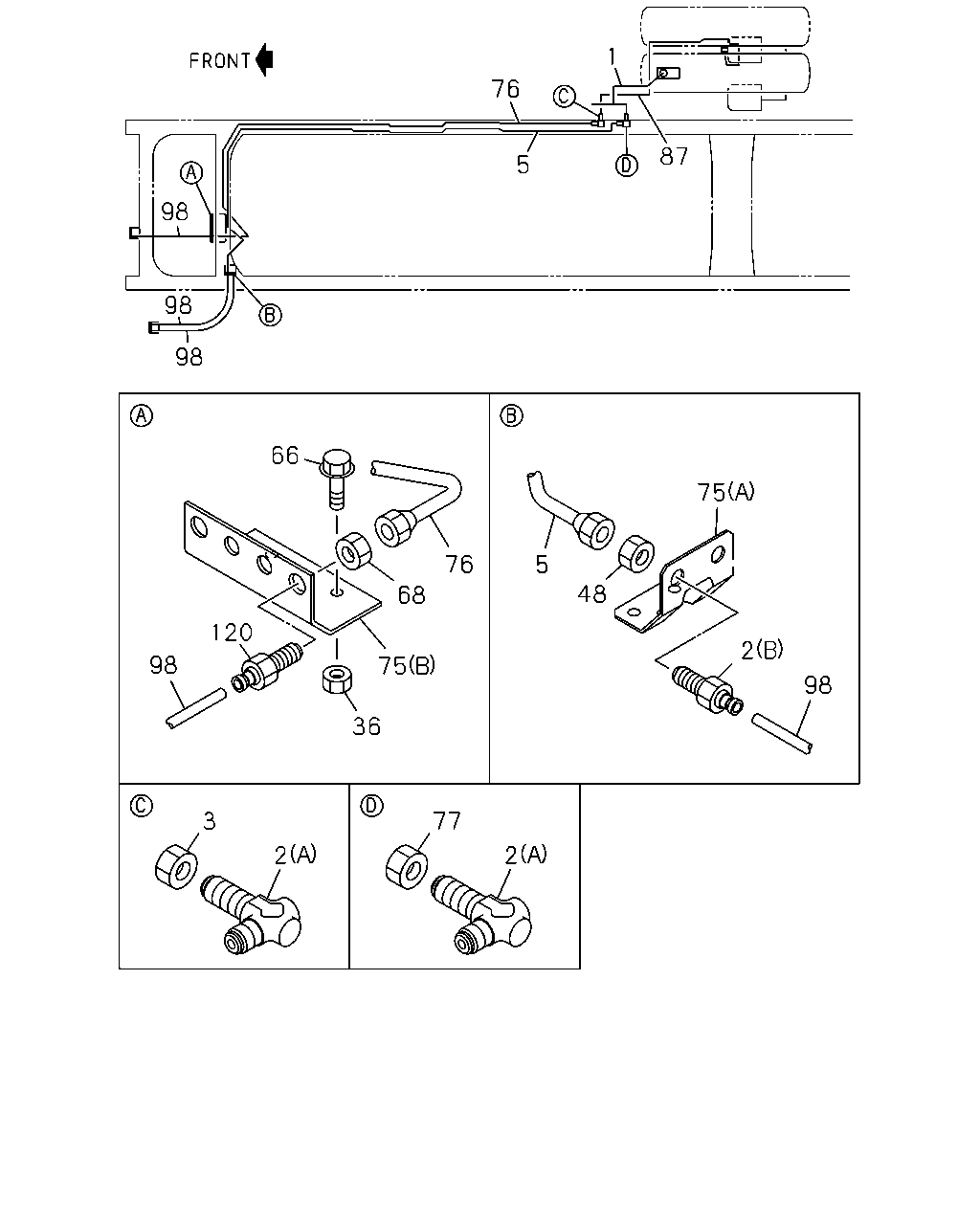

1 76 87 5 98 98 98 66 75 76 5 48 68 120 2 98 75 98 36 3 77 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION	1-49114-887-0	01	1	9510-9802	●	●
2	UNION; AIR PIPE (B)	1-09660-807-2	01	1	9510-9802	●	●
2	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	9510-9801	●	●
2	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	02	1	9802-9802	●	●
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9510-9802	●	●
5	PIPE; AIR,UNION TO UNION L=2816 SERVICED BY L=2900	1-47426-425-0	01	1	9510-9802	●	●
36	NUT; HOSE BRKT M8	9-09110-408-0	02	1	9510-9606	●	●
36	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9802	●	●
48	NUT; UNION BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	07	1	0612-		●
48	NUT; UNION BRKT M16	9-99111-416-0	01	1	9510-9802	●	●
48	NUT; UNION BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	07	1	0005-0602		●
48	NUT; UNION BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	07	1	0603-0611		●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	05	1	0612-	●	●
48	NUT; UNION BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	09	1	0005-0602		●
48	NUT; UNION BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	09	1	0603-		●
66	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●	●
66	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	9802-9802	●	●
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	04	1	0005-0006		●
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	0007-0512		●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
68	NUT; UNION M16	9-99111-416-0	01	1	9510-9802	●	●
75	BRACKET; UNION (A)	1-47477-487-2	01	1	9510-9802	●	●
75	BRACKET; UNION (B)	1-47477-642-2	01	1	9510-9802	●	●
76	PIPE; AIR,UNION TO UNION L=2675 SERVICED BY L=2900	1-47426-425-0	01	1	9510-9802	●	●
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	9510-9802	●	●
87	PIPE; AIR,UNION TO AIR MASTER L=1189 SERVICED BY L=1250	1-47426-416-0	01	1	9510-9802	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0307-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0007-0306	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0307-	●	●
98	TUBE; NYLON L=2000 OD=12	1-87410-069-0	AR	1	9510-9802	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9803-0306	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0307-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0306	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0007	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0005-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0007	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0612-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0612-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0612-	●	●
120	UNION; AIR PIPE	1-09660-807-2	01	1	9510-9802	●	●

98 32 98 117 98 98 98 98 117 106 107 34 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=520	0-07475-520-1	02	1	0005-0605		●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=520	0-57475-520-1	02	1	0606-0607		●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAB UP +50MM<W60> (A) L=520	0-57475-520-1	02	1	0608-		●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=720	0-07807-720-1	01	1	0005-0605		●
32	HOSE; FLEX,FRT (B) L=720	0-57807-720-1	01	1	0606-	●	●
34	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	01	1	0005-0607		●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0608-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0307-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0007-0306	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0307-	●	●
98	TUBE; NYLON L=2000 OD=12	1-87410-069-0	AR	1	9510-9802	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9803-0306	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0307-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0306	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0007	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0005-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0007	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0612-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0612-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0612-	●	●
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9510-0004	●	●
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	0005-0512	●	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	9-99111-416-0	02	1	0005-0512		●
106	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	0-91111-516-0	02	1	0601-		●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	01	1	0005-0512		●
106	NUT; FLEX HOSE (B) M20	0-91111-520-0	01	1	0601-	●	●
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9510-0004	●	●
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	0005-0603	●	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	9-09150-516-0	02	1	0005-0603		●
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	0-91510-516-0	02	1	0604-		●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	01	1	0005-0603		●
107	WASHER; LK,FLEX HOSE (B) ID=20.2	0-91510-520-0	01	1	0604-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0005-0306	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9803-0306	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0612-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0612-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
