◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11102 - FRR RHD EURO2/4 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#39960) — 46 parça
çizim 178156
71 378 378
BalonParca AdiParca NoAdetTipApplied Date A B
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 0710-0711 ● ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-234-1 01 1 0712-1301 ● ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 1302- ● ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98041-428-0 01 1 0710-0711 ● ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98041-428-0 01 1 0712- ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-428-0 01 1 0712- ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98041-759-0 01 1 0710-1111 ● ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98204-846-0 01 1 1112- ● ●

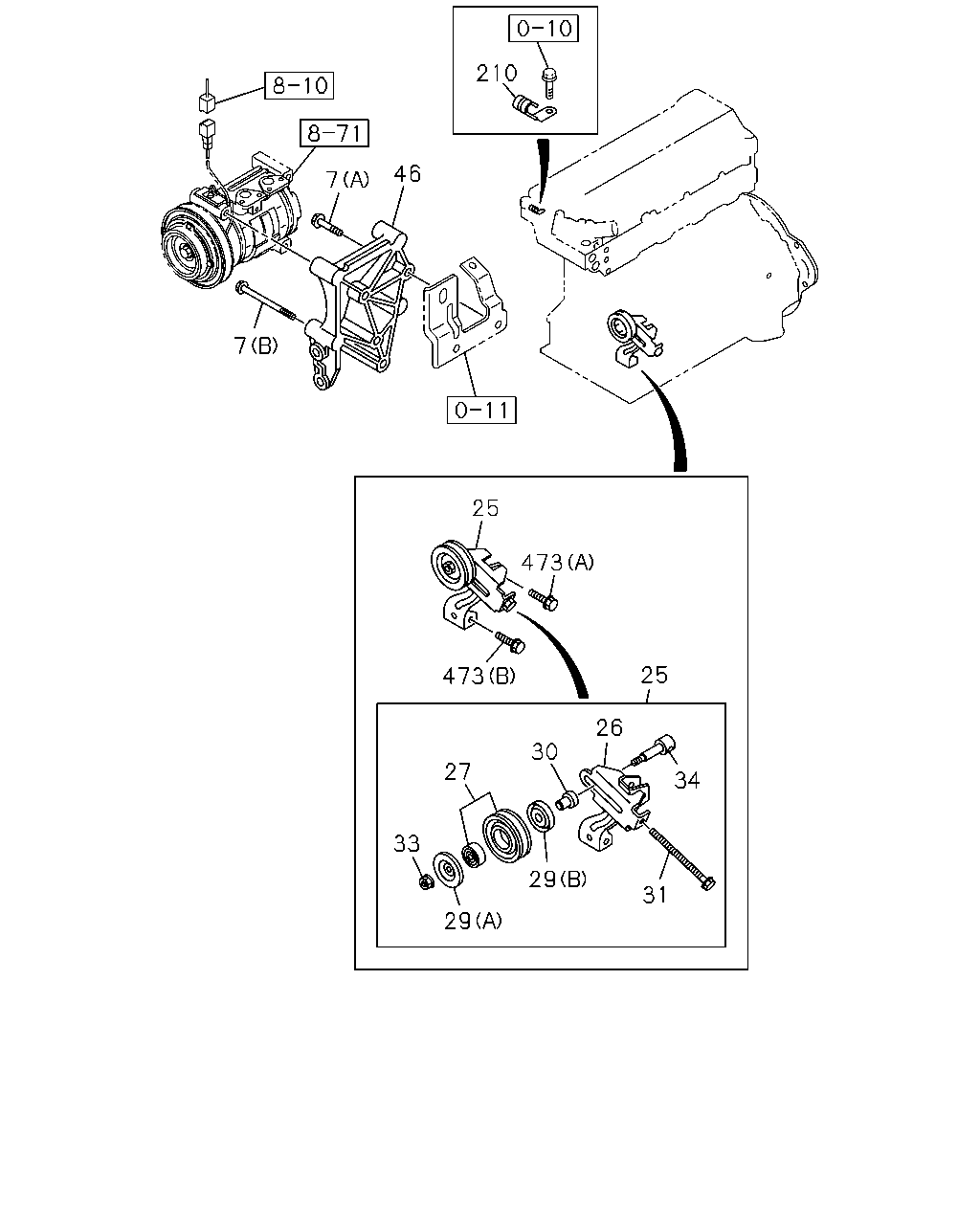

çizim 178168
210 46 7 7 25 473 25 473 26 30 27 34 33 29 31 29
BalonParca AdiParca NoAdetTipApplied Date A B
7 BOLT; BRKT
EXC. GENERATOR 24V90A(K44) (B) M10X80 FLANGE 		0-28151-080-0 02 1 0804- ● ●
7 BOLT; BRKT
(A) M10X45 FLANGE 		0-28151-045-0 02 1 0710- ● ●
7 BOLT; BRKT
(B) M10X80 FLANGE 		0-28151-080-0 02 1 0710-0803 ● ●
7 BOLT; BRKT
GENERATOR 24V90A(K44) (B) M10X80 FLANGE 		0-28151-080-0 01 1 0804- ● ●
7 BOLT; BRKT
GENERATOR 24V90A(K44) (B) M10X130 FLANGE 		0-28156-013-0 01 1 0804- ● ●
25 PULLEY ASM; IDLER,CMPR
1-GROOVE 		8-97161-198-1 01 1 0710-0808 ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 1-GROOVE 		8-97161-198-1 01 1 0809- ● ●
26 BRACKET; IDLE PULLEY,A/C 8-97161-031-1 01 1 0710-0808 ● ●
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97161-031-1 01 1 0809- ● ●
27 PULLEY; IDLE,A/C 8-97386-869-0 01 1 0710-0808 ● ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97386-869-0 01 1 0809- ● ●
29 COVER; DUST,IDLE PULLEY
(A) 		8-97384-114-0 01 1 0710-0808 ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97384-114-0 01 1 0809- ● ●
29 COVER; DUST,IDLE PULLEY
(B) 		8-97384-115-0 01 1 0710-0808 ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97384-115-0 01 1 0809- ● ●
30 COLLAR; IDLE PULLEY 8-97384-117-0 01 1 0710-0808 ● ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97384-117-0 01 1 0809- ● ●
31 BOLT; ADJ,IDLE PULLEY 8-97384-113-0 01 1 0710-0808 ● ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97384-113-0 01 1 0809- ● ●
33 NUT; IDLER PULLEY 8-97384-118-0 01 1 0710-0808 ● ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97384-118-0 01 1 0809- ● ●
34 SHAFT; IDLE PULLEY 8-97384-116-0 01 1 0710-0808 ● ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97384-116-0 01 1 0809- ● ●
46 BRACKET; CMPR
GENERATOR 24V90A(K44) 		8-98101-365-0 01 1 0804- ● ●
46 BRACKET; CMPR 8-97382-614-1 01 1 0710-0711 ● ●
46 BRACKET; CMPR 8-98101-364-0 01 1 0712-0803 ● ●
46 BRACKET; CMPR
EXC. GENERATOR 24V90A(K44) 		8-98101-364-0 01 1 0804- ● ●
210 CLIP; HARNESS
EURO2 SPECIFICATION<NT2> ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1008-1011 ●
210 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1012- ●
473 BOLT; TENSIONER
(A) M8X50 FLANGE 		0-28050-850-0 01 1 0712-0808 ● ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X50 FLANGE 		0-28050-850-0 01 1 0809- ● ●
473 BOLT; TENSIONER
(B) M10X65 FLANGE 		8-94344-540-1 01 1 0712-0808 ● ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X65 FLANGE 		8-94344-540-1 01 1 0809- ● ●

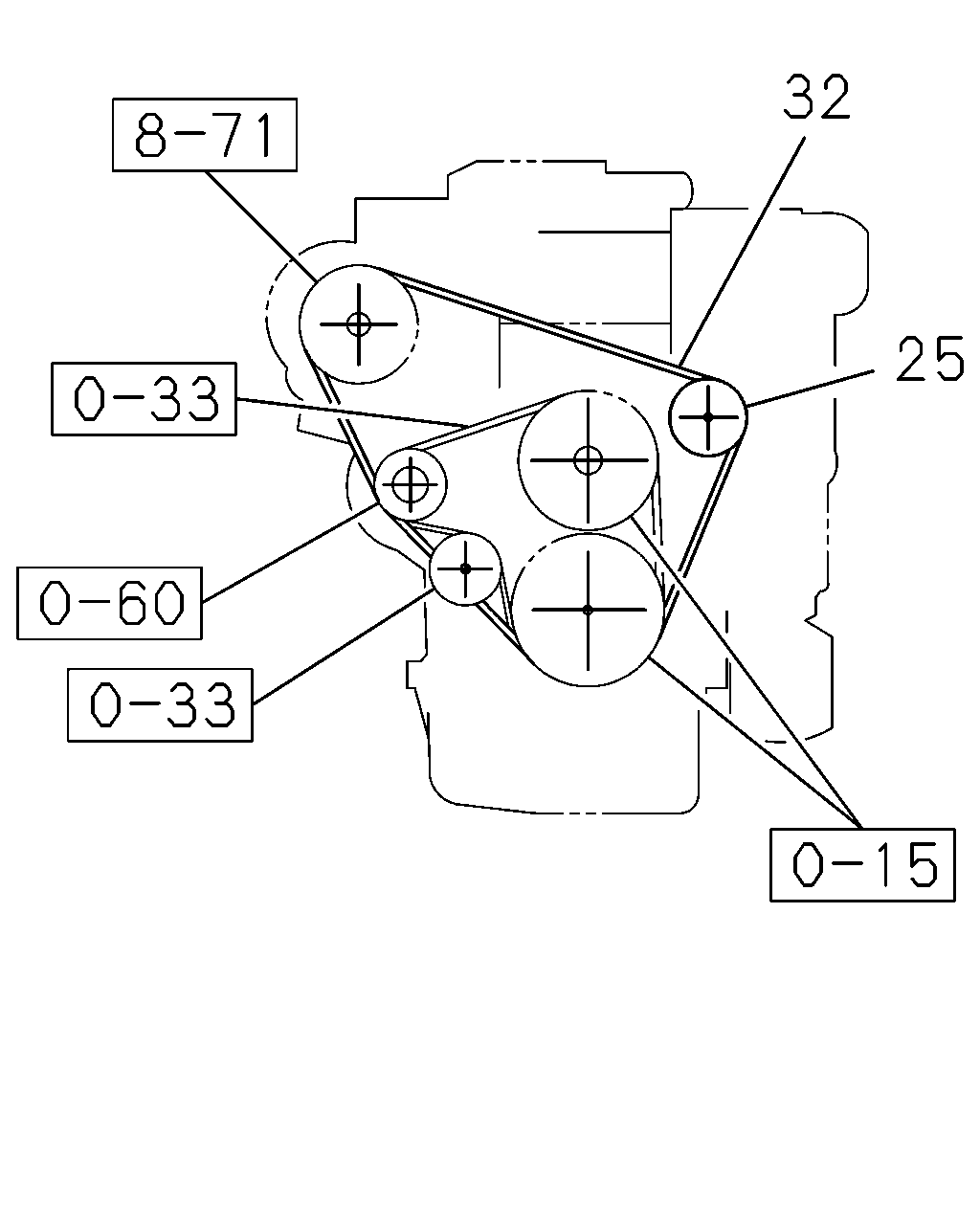

çizim 178187
32 25
BalonParca AdiParca NoAdetTipApplied Date A B
25 PULLEY ASM; IDLER,CMPR
1-GROOVE 		8-97161-198-1 01 1 0710-0808 ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 1-GROOVE 		8-97161-198-1 01 1 0809- ● ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) BEST VALUE PARTS 		1-87610-100-0 01 1 0907- ● ●
32 BELT; A/C CMPR
L=1594 		8-97383-577-0 01 1 0710-0808 ● ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1594 		8-97383-577-1 01 1 0809- ● ●
