◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#3996) — 969 parça
çizim 115765
297 296 297 229 296 296 297 341 421
BalonParca AdiParca NoAdetTipApplied Date A B
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0007 ●
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0106 ●
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0107- ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9803-0211 ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9803-0211 ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0212- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0212- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9803-0211 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0212- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0612- ● ●
341 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ●
341 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0611 ●
341 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 01 1 0612- ●
341 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28680-825-0 04 1 0005-0106 ●
341 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X25 FLANGE 		0-28680-825-0 04 1 0107-0512 ●
341 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X25 FLANGE 		0-28650-825-0 04 1 0601-0611 ●
341 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X25 FLANGE 		0-28650-825-0 04 1 0612- ●
341 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8X25 FLANGE 		0-28680-825-0 03 1 0107-0512 ●
341 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8X25 FLANGE 		0-28650-825-0 03 1 0601-0611 ●
341 BOLT; BRKT
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8X25 FLANGE 		0-28650-825-0 03 1 0612- ●
421 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 05 1 0005-0106 ●
421 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE 		0-91150-108-0 05 1 0107-0602 ●
421 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE 		0-91180-108-0 05 1 0603-0611 ●
421 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8 FLANGE 		0-91180-108-0 05 1 0612- ●
421 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE 		0-91150-108-0 04 1 0107-0602 ●
421 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE 		0-91180-108-0 04 1 0603-0611 ●
421 NUT; BRKT
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE 		0-91180-108-0 04 1 0612- ●

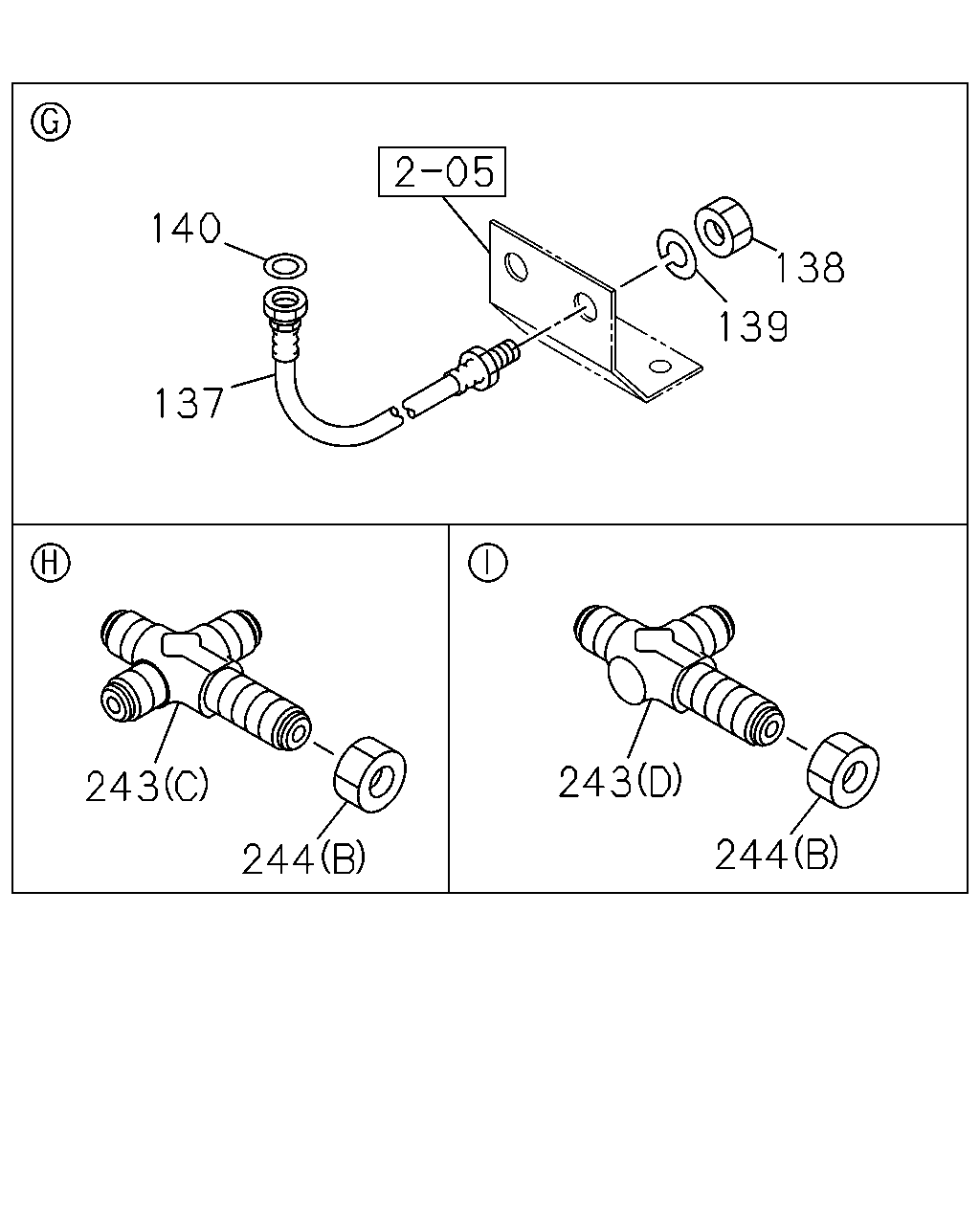

çizim 116074
140 138 139 137 243 243 244 244
BalonParca AdiParca NoAdetTipApplied Date A B
137 HOSE; FLEX,AIR PRESSURE GAGE
AIR SUSP DRIVER SEAT<A56> L=450 		0-07120-450-0 01 1 9510-9802 ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450 		0-07120-450-0 01 1 9510-9802 ● ●
138 NUT; FLEX HOSE,AIR GOV
AIR SUSP DRIVER SEAT<A56> M12 		9-09840-280-0 01 1 9510-9802 ● ●
138 NUT; FLEX HOSE,AIR GOV
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 9510-9802 ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
AIR SUSP DRIVER SEAT<A56> ID=12.2 		9-09150-512-0 01 1 9510-9802 ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9510-9802 ● ●
140 GASKET; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ● ●
140 GASKET; FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> (C) M12 		9-09228-306-1 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) M12 		9-09228-306-1 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9510-9510 ● ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9511-9802 ● ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9511-9802 ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9803-0004 ● ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9803-0004 ● ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 ELBOW 		9-09225-206-1 01 1 9510-9510 ● ●
243 UNION; AIR PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 ELBOW 		9-09225-206-1 01 1 9511-9802 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (A) M12 ELBOW 		9-09225-206-1 01 1 9511-9802 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		9-09223-306-1 01 1 9803-0004 ● ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		9-09223-306-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		9-09223-306-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
243 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (D) M12 2WAY 		1-09654-059-2 01 1 9510-9802 ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 9510-0004 ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 0005- ●
244 NUT; UNION,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 		9-09840-280-0 01 1 0005- ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-99111-412-0 01 1 9510-9802 ● ●

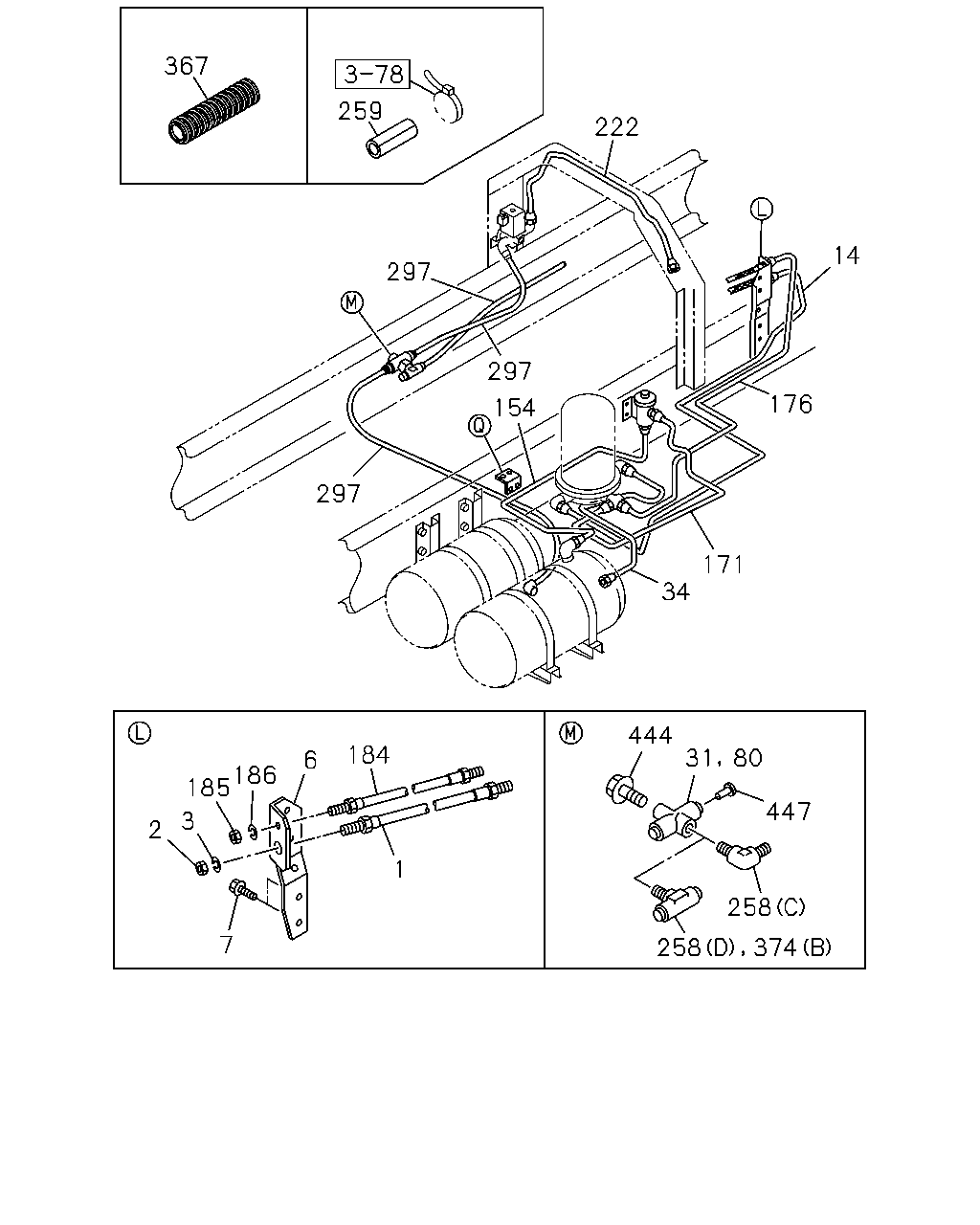

çizim 116075
367 259 222 14 297 297 176 154 297 171 34 444 184 31 80 6 186 185 447 3 2 1 258 7 258 374
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9510-9709 ● ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9710-0004 ●
1 HOSE; FLEX,AIR TANK
EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-0004 ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9710-0607 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0608- ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0608- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9510-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9510-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9510-0304 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> EXC. AIR DRYER<PS7> L=1684 		1-49124-961-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-877-0 01 1 9510-9802 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 9803-9810 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 9811-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 9811-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0110-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0110-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49118-360-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 9811-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-876-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 0110- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-876-0 01 1 0110- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49118-849-0 01 1 0005-0611 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49124-003-0 01 1 0612- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-460-0 01 1 0005- ●
31 UNION; 3 WAY
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-294-0 01 1 9811-0004 ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-294-0 01 1 0005-0109 ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-294-0 01 1 0110- ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49118-294-0 01 1 0110- ●
34 PIPE; AIR
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-169-0 01 1 0005- ●
34 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-461-0 01 1 0005-0005 ●
34 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-684-0 01 1 0006- ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0510 ● ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●

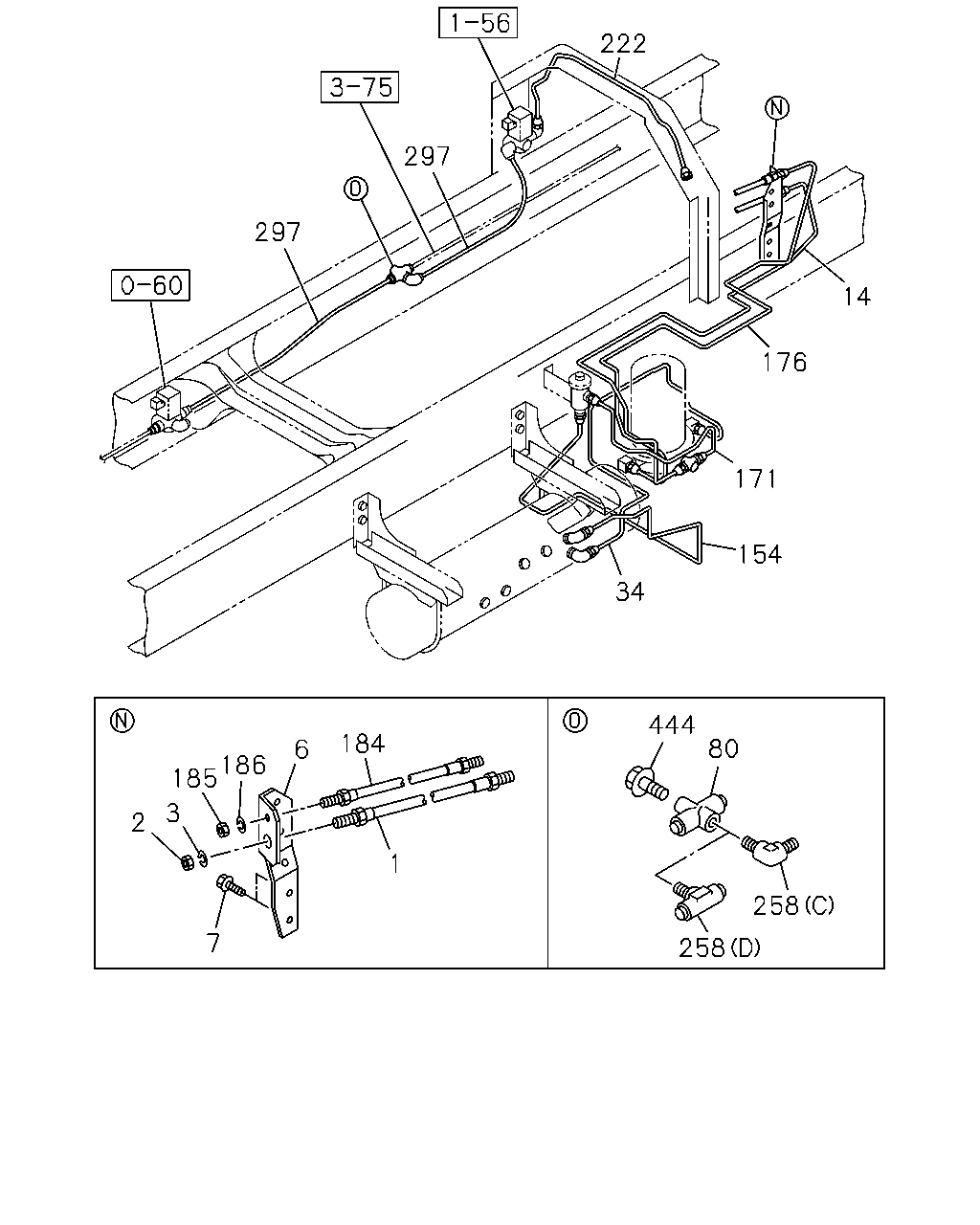

154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-49114-881-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49118-296-0 01 1 9803-9910 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 9911-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49122-147-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=450 		1-47486-409-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-166-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-462-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1028 SERVICED BY L=1100 		1-47426-351-0 01 1 9811-9910 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-157-0 01 1 9911-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49122-157-0 01 1 0005-0109 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-157-0 01 1 0110- ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49122-157-0 01 1 0110- ●
171 PIPE; AIR,GOV TO AIR DRYER
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-167-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-463-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-885-0 01 1 9811-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-885-0 01 1 0005-0109 ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-885-0 01 1 0110- ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-885-0 01 1 0110- ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0208 ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1330 SERVICED BY L=1200 		1-47428-816-0 01 1 0209-0611 ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0612- ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-464-0 01 1 0005- ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 9607-9802 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9607-9802 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9803-0004 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 0005- ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=350 		1-09363-651-0 01 1 0005- ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 9510-9606 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9607-9802 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9803-0607 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9803-0607 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0608- ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) L=330 		1-09363-584-0 01 1 0608- ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=370 		1-09363-586-0 01 1 0005-0012 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=370 		1-09363-586-0 01 1 0101- ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9510- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9510-0603 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1041 SERVICED BY L=1100 		1-47428-815-0 01 1 0608- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9803-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1047 SERVICED BY L=1100 		1-47426-351-0 01 1 9511-9711 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9712-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9803- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9803- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCC ENG(76L) L=1047 		1-49113-685-0 01 1 9710-9711 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0510 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9510-0302 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0510 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0510 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
259 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0612- ●
259 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0005- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9803-0211 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0212- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0612- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9803- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0005- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0005- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0608- ● ●
374 CONNECTOR
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0612- ●
374 CONNECTOR
(A) 		1-09654-324-0 01 1 9601-9802 ● ●
374 CONNECTOR
(A) M16 STRAIGHT 		1-09654-380-0 01 1 9803- ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9803-0001 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0002-0004 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0005-0512 ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28080-820-0 01 1 0005-0512 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601- ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ●
444 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ●
444 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
447 PLUG; UNION
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> OD=8 PLASTIC 		1-09661-616-0 01 1 0612- ●
çizim 116076
53 57 58 116 242 244 244 243 243 238 251 238 251
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; AIR,AIR TANK TO VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-49115-945-0 01 1 9510-9802 ●
57 PIPE; AIR,P/VALVE TO A/T
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-49113-523-0 01 1 9510-9802 ●
58 PIPE; AIR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-49113-524-0 01 1 9510-9802 ●
116 PIPE; AIR,PROTECTION VLV
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-49116-277-0 01 1 9510-9802 ●
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1449 SERVICED BY L=1500 		1-47426-355-0 01 1 9510-9802 ● ●
242 PIPE; AIR,AIR TANK TO UNION 1-49114-895-0 01 1 9510-9802 ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-49114-895-0 01 1 9510-9802 ●
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> (C) M12 		9-09228-306-1 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) M12 		9-09228-306-1 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9510-9510 ● ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9511-9802 ● ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9511-9802 ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9803-0004 ● ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9803-0004 ● ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 ELBOW 		9-09225-206-1 01 1 9510-9510 ● ●
243 UNION; AIR PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 ELBOW 		9-09225-206-1 01 1 9511-9802 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (A) M12 ELBOW 		9-09225-206-1 01 1 9511-9802 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		9-09223-306-1 01 1 9803-0004 ● ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		9-09223-306-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		9-09223-306-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
243 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (D) M12 2WAY 		1-09654-059-2 01 1 9510-9802 ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 9510-0004 ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 0005- ●
244 NUT; UNION,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 		9-09840-280-0 01 1 0005- ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-99111-412-0 01 1 9510-9802 ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> 		1-49114-905-0 01 1 9510-9802 ● ●

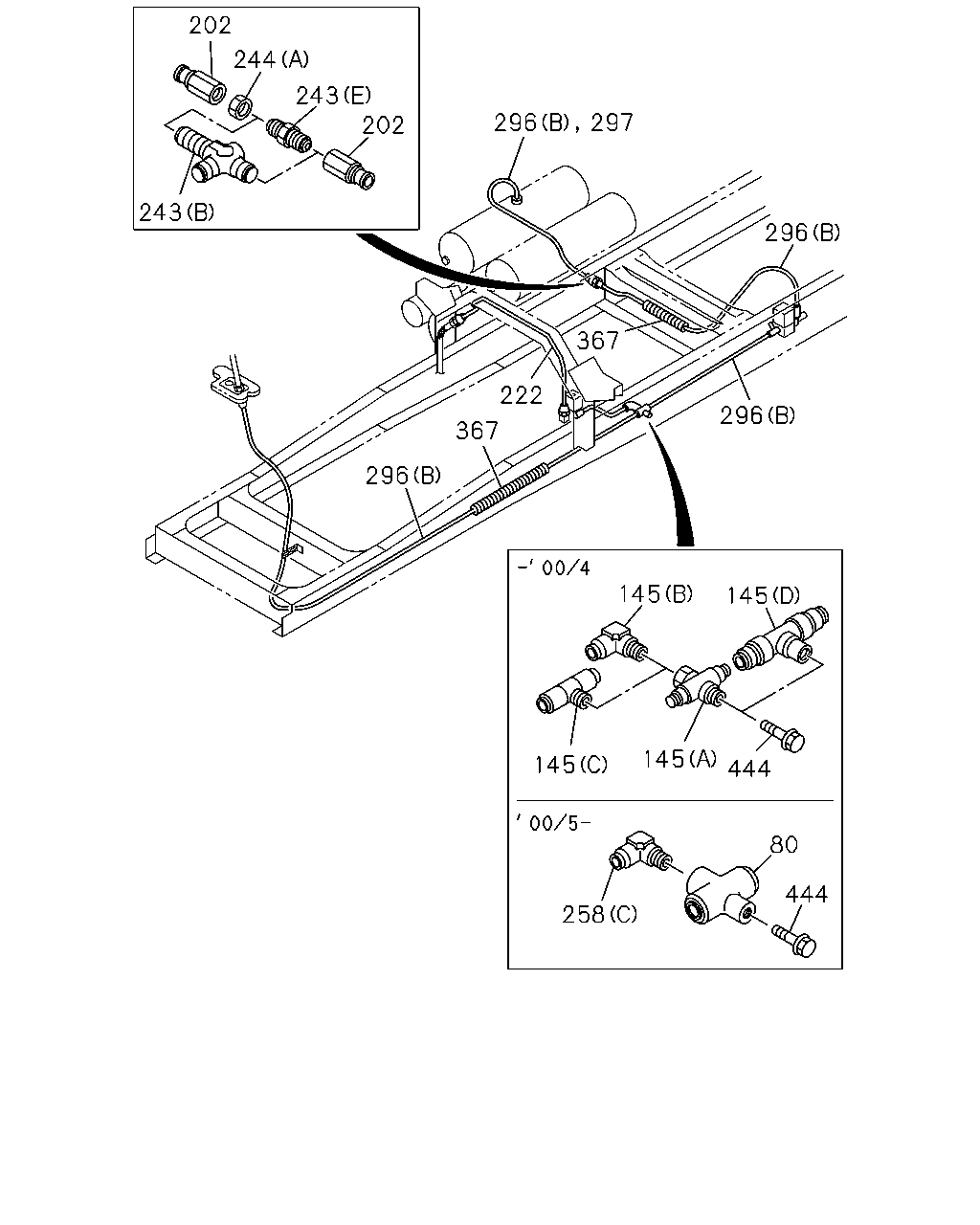

çizim 116078
202 244 243 202 296 297 243 296 367 222 296 367 296 145 145 145 444 145 80 444 258
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0510 ● ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
PTO CONTROL<SV6> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-0004 ● ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-0004 ● ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>, DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9803-9804 ● ●
145 UNION; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-0004 ● ●
145 UNION; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-0004 ● ●
145 UNION; NYLON TUBE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6> (D) 		1-09660-788-0 01 1 9803-9804 ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9803-0004 ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 0005-0007 ●
202 ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 0005-0007 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0008- ●
202 ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0008- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1041 SERVICED BY L=1100 		1-47428-815-0 01 1 0608- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9803-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1047 SERVICED BY L=1100 		1-47426-351-0 01 1 9511-9711 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9712-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9803- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9803- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCC ENG(76L) L=1047 		1-49113-685-0 01 1 9710-9711 ●
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> (C) M12 		9-09228-306-1 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) M12 		9-09228-306-1 01 1 9510-9802 ● ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9510-9510 ● ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9511-9802 ● ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9511-9802 ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9803-0004 ● ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9803-0004 ● ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 ELBOW 		9-09225-206-1 01 1 9510-9510 ● ●
243 UNION; AIR PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 ELBOW 		9-09225-206-1 01 1 9511-9802 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (A) M12 ELBOW 		9-09225-206-1 01 1 9511-9802 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		9-09223-306-1 01 1 9803-0004 ● ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		9-09223-306-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		9-09223-306-1 01 1 0005-0607 ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (E) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
243 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> (D) M12 2WAY 		1-09654-059-2 01 1 9510-9802 ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 9510-0004 ● ●
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 0005- ●
244 NUT; UNION,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 		9-09840-280-0 01 1 0005- ●
244 NUT; UNION,AIR PIPE
(B) M12 		9-99111-412-0 01 1 9510-9802 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0510 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9510-0302 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0510 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0510 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9803-0211 ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9803-0211 ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0212- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0212- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9803-0211 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0212- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0612- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9803- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0005- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0005- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0608- ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9803-0001 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0002-0004 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0005-0512 ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28080-820-0 01 1 0005-0512 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601- ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ●
444 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ●
444 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
çizim 116081
154 14 170 154 14 170 184 186 185 155 1 6 3 2 7 155
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9510-9709 ● ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9710-0004 ●
1 HOSE; FLEX,AIR TANK
EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-0004 ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9710-0607 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0608- ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0608- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9510-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9510-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9510-0304 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> EXC. AIR DRYER<PS7> L=1684 		1-49124-961-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-877-0 01 1 9510-9802 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 9803-9810 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 9811-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 9811-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0110-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0110-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49118-360-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 9811-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-876-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 0110- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-876-0 01 1 0110- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49118-849-0 01 1 0005-0611 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49124-003-0 01 1 0612- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-460-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-49114-881-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49118-296-0 01 1 9803-9910 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 9911-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49122-147-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=450 		1-47486-409-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-166-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-462-0 01 1 0005- ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9510-9910 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> EXC. AIR DRYER<PS7> 		1-49124-962-0 01 1 0608- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49114-883-0 01 1 9510-9802 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49118-403-0 01 1 9803-9803 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49119-460-0 01 1 9804-9810 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49119-460-0 01 1 9811-9910 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49119-460-0 01 1 9811-9910 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49122-149-0 01 1 9911-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 9911-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49122-149-0 01 1 0005-0109 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0005-0109 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0110-0607 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0110-0607 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0608- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49122-149-0 01 1 0608- ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 9607-9802 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9607-9802 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9803-0004 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 0005- ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=350 		1-09363-651-0 01 1 0005- ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 9510-9606 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9607-9802 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9803-0607 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9803-0607 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0608- ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) L=330 		1-09363-584-0 01 1 0608- ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=370 		1-09363-586-0 01 1 0005-0012 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=370 		1-09363-586-0 01 1 0101- ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9510- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9510-0603 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
çizim 116082
251 222 217 272 250 238 222 217
BalonParca AdiParca NoAdetTipApplied Date A B
217 PIPE; VAC,UNION TO MAG VLV 1-49114-886-0 01 1 9510-9802 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1041 SERVICED BY L=1100 		1-47428-815-0 01 1 0608- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9803-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1047 SERVICED BY L=1100 		1-47426-351-0 01 1 9511-9711 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9712-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9803- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9803- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCC ENG(76L) L=1047 		1-49113-685-0 01 1 9710-9711 ●
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1449 SERVICED BY L=1500 		1-47426-355-0 01 1 9510-9802 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
AIR SUSP DRIVER SEAT<A56> L=2728 SERVICED BY L=2900 		1-47426-364-0 01 1 9510-9802 ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=2728 SERVICED BY L=2900 		1-47426-364-0 01 1 9510-9802 ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> 		1-49114-905-0 01 1 9510-9802 ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> 		1-49114-906-0 01 1 9510-9802 ● ●
çizim 116084
296 367 296 367 297 297 296 367 297
BalonParca AdiParca NoAdetTipApplied Date A B
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9803-0211 ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9803-0211 ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0212- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0212- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9803-0211 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0212- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0612- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9803- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0005- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0005- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0608- ● ●
çizim 116086
14 154 170 34 14 154 176 171 184 186 185 1 155 6 3 2 7 155
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9510-9709 ● ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9710-0004 ●
1 HOSE; FLEX,AIR TANK
EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-0004 ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9710-0607 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0608- ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0608- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9510-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9510-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9510-0304 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> EXC. AIR DRYER<PS7> L=1684 		1-49124-961-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-877-0 01 1 9510-9802 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 9803-9810 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 9811-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 9811-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0110-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0110-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49118-360-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 9811-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-876-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 0110- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-876-0 01 1 0110- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49118-849-0 01 1 0005-0611 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49124-003-0 01 1 0612- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-460-0 01 1 0005- ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-294-0 01 1 9811-0004 ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-294-0 01 1 0005-0109 ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-294-0 01 1 0110- ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49118-294-0 01 1 0110- ●
34 PIPE; AIR
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-169-0 01 1 0005- ●
34 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-461-0 01 1 0005-0005 ●
34 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-684-0 01 1 0006- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-49114-881-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49118-296-0 01 1 9803-9910 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 9911-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49122-147-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=450 		1-47486-409-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-166-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-462-0 01 1 0005- ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9510-9910 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> EXC. AIR DRYER<PS7> 		1-49124-962-0 01 1 0608- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49114-883-0 01 1 9510-9802 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49118-403-0 01 1 9803-9803 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49119-460-0 01 1 9804-9810 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49119-460-0 01 1 9811-9910 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49119-460-0 01 1 9811-9910 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49122-149-0 01 1 9911-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 9911-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49122-149-0 01 1 0005-0109 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0005-0109 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0110-0607 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0110-0607 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49122-149-0 01 1 0608- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49122-149-0 01 1 0608- ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1028 SERVICED BY L=1100 		1-47426-351-0 01 1 9811-9910 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-157-0 01 1 9911-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49122-157-0 01 1 0005-0109 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-157-0 01 1 0110- ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49122-157-0 01 1 0110- ●
171 PIPE; AIR,GOV TO AIR DRYER
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-167-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-463-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-885-0 01 1 9811-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-885-0 01 1 0005-0109 ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-885-0 01 1 0110- ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-885-0 01 1 0110- ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0208 ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1330 SERVICED BY L=1200 		1-47428-816-0 01 1 0209-0611 ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0612- ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-464-0 01 1 0005- ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 9607-9802 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9607-9802 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9803-0004 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 0005- ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=350 		1-09363-651-0 01 1 0005- ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 9510-9606 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9607-9802 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9803-0607 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9803-0607 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0608- ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) L=330 		1-09363-584-0 01 1 0608- ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=370 		1-09363-586-0 01 1 0005-0012 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=370 		1-09363-586-0 01 1 0101- ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9510- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9510-0603 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
çizim 116087
307 322 323 438 321 375 374 140 137 337 258 434 325 333 325 328 286 337 434 258 296
BalonParca AdiParca NoAdetTipApplied Date A B
137 HOSE; FLEX,AIR PRESSURE GAGE
AIR SUSP DRIVER SEAT<A56> L=450 		0-07120-450-0 01 1 9510-9802 ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450 		0-07120-450-0 01 1 9510-9802 ● ●
140 GASKET; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ● ●
140 GASKET; FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0510 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9510-0302 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0510 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0510 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 9510- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9803-0211 ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9803-0211 ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0212- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0212- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
DUAL AIR GAUGE<UG2> L=540 		1-49113-427-2 01 1 9510- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
EXC. DUAL AIR GAUGE<UG2> L=434 		1-49116-435-1 01 1 9510- ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9811 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9811 ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812- ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812- ● ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510- ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510- ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-0603 ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-0603 ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604- ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 9510- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 9510- ● ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47470-415-1 01 1 9510- ● ●
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-473-0 01 1 9510- ● ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510- ● ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9510-0608 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-57210-720-0 02 1 0609- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9510-0605 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-57210-810-0 01 1 0606- ● ●
374 CONNECTOR
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0612- ●
374 CONNECTOR
(A) 		1-09654-324-0 01 1 9601-9802 ● ●
374 CONNECTOR
(A) M16 STRAIGHT 		1-09654-380-0 01 1 9803- ● ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9811 ● ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9811 ● ●
434 CLIP
DUAL AIR GAUGE<UG2> (C) ID=10 & 10 		1-09709-221-0 01 1 9812- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9510- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9510- ● ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510- ● ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510- ● ●
çizim 116091
113 113
BalonParca AdiParca NoAdetTipApplied Date A B
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 SERVICED BY L=550 		1-47426-377-0 01 1 9510-9802 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 SERVICED BY L=550 		1-47426-377-0 01 1 9510-9802 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 		1-47498-511-0 01 1 9803-0004 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 		1-47498-511-0 01 1 9803-0004 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=501 		1-47498-511-0 01 1 0005- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 SERVICED BY L=730 		1-47426-382-0 01 1 9510-9802 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 SERVICED BY L=730 		1-47426-382-0 01 1 9510-9802 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 		1-47498-510-0 01 1 9803-0004 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 		1-47498-510-0 01 1 9803-0004 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=693 		1-47498-510-0 01 1 0005- ● ●
çizim 116092
230 307 230 322 323 438 321 137 140 339 375 374 231 258 232 334 330 231 337 325 232 333 337 325 328 286 258 434 296
BalonParca AdiParca NoAdetTipApplied Date A B
137 HOSE; FLEX,AIR PRESSURE GAGE
AIR SUSP DRIVER SEAT<A56> L=450 		0-07120-450-0 01 1 9510-9802 ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> L=450 		0-07120-450-0 01 1 9510-9802 ● ●
140 GASKET; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ● ●
140 GASKET; FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ● ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) L=426 		1-49116-433-0 01 1 9510- ● ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) L=483 		1-49116-434-0 01 1 9510- ● ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (A) M10 ELBOW 		1-09654-186-2 01 1 9510- ● ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (B) M10 STRAIGHT 		1-09654-361-0 01 1 9510- ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> (B) M10 H=8 		1-09400-029-0 01 1 9510- ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> (A) M10 		9-09110-410-0 01 1 9510-0512 ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> (A) M10 		0-91110-510-0 01 1 0601- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0510 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9510-0302 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0510 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0510 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 9510- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9803-0211 ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9803-0211 ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0212- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0212- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
DUAL AIR GAUGE<UG2> L=540 		1-49113-427-2 01 1 9510- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
EXC. DUAL AIR GAUGE<UG2> L=434 		1-49116-435-1 01 1 9510- ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9811 ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9510-9811 ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812- ● ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 9812- ● ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510- ● ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9510- ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-0603 ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9510-0603 ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604- ● ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 9510- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 9510- ● ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47470-415-1 01 1 9510- ● ●
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-473-0 01 1 9510- ● ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 02 1 9510-0603 ● ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 02 1 0604- ● ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510- ● ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510- ● ●
334 SPACER; PIPE UNION
DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9510- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9510-0608 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-57210-720-0 02 1 0609- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9510-0605 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-57210-810-0 01 1 0606- ● ●
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 9510- ● ●
374 CONNECTOR
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0612- ●
374 CONNECTOR
(A) 		1-09654-324-0 01 1 9601-9802 ● ●
374 CONNECTOR
(A) M16 STRAIGHT 		1-09654-380-0 01 1 9803- ● ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9811 ● ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9803-9811 ● ●
434 CLIP
DUAL AIR GAUGE<UG2> (C) ID=10 & 10 		1-09709-221-0 01 1 9812- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9510- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9510- ● ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510- ● ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510- ● ●
çizim 116096
222 297 297 14 176 171 154 34 444 184 80 6 186 185 3 2 1 258 7 258
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9510-9709 ● ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9710-0004 ●
1 HOSE; FLEX,AIR TANK
EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-0004 ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9710-0607 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0608- ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0608- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9510-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9510-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 9510-0304 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> EXC. AIR DRYER<PS7> L=1684 		1-49124-961-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-877-0 01 1 9510-9802 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 9803-9810 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 9811-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 9811-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-360-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0110-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0110-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-360-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CAB UP +50MM<W60> 		1-49118-360-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 9811-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-876-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49114-876-0 01 1 0110- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-876-0 01 1 0110- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49118-849-0 01 1 0005-0611 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49124-003-0 01 1 0612- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-460-0 01 1 0005- ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-294-0 01 1 9811-0004 ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-294-0 01 1 0005-0109 ●
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-294-0 01 1 0110- ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49118-294-0 01 1 0110- ●
34 PIPE; AIR
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-169-0 01 1 0005- ●
34 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-461-0 01 1 0005-0005 ●
34 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-684-0 01 1 0006- ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0510 ● ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-0607 ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0608-0611 ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0612- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-49114-881-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49118-296-0 01 1 9803-9910 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 9911-0004 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-147-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49122-147-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=450 		1-47486-409-0 01 1 9510-9802 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-166-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-462-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1028 SERVICED BY L=1100 		1-47426-351-0 01 1 9811-9910 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-157-0 01 1 9911-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49122-157-0 01 1 0005-0109 ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-157-0 01 1 0110- ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49122-157-0 01 1 0110- ●
171 PIPE; AIR,GOV TO AIR DRYER
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-167-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-463-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-885-0 01 1 9811-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-885-0 01 1 0005-0109 ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49114-885-0 01 1 0110- ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-49114-885-0 01 1 0110- ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0208 ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1330 SERVICED BY L=1200 		1-47428-816-0 01 1 0209-0611 ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0612- ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49122-464-0 01 1 0005- ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 9607-9802 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9607-9802 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9803-0004 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 0005- ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=350 		1-09363-651-0 01 1 0005- ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 9510-9606 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9607-9802 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9803-0607 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=330 		1-09363-584-0 01 1 9803-0607 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0608- ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) L=330 		1-09363-584-0 01 1 0608- ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> L=370 		1-09363-586-0 01 1 0005-0012 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=370 		1-09363-586-0 01 1 0101- ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9510- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9510-0603 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1041 SERVICED BY L=1100 		1-47428-815-0 01 1 0608- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9510-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9803-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1047 SERVICED BY L=1100 		1-47426-351-0 01 1 9511-9711 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9712-9802 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9803- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 9803- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TCC ENG(76L) L=1047 		1-49113-685-0 01 1 9710-9711 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0510 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-0607 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-0611 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR SUSP DRIVER SEAT<A56>,EURO2 SPECIFICATION<THN>,DUAL AIR GAUGE<UG2> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9510-0302 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9803-9811 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0510 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0510 ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> PTO CONTROL<SV6> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0511- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9803-0211 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0212- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0612- ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9803-0001 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0002-0004 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0005-0512 ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28080-820-0 01 1 0005-0512 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601- ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ●
444 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ●
444 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
