Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#39957) — 270 parça

760 566 312 200 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
86	NUT; BUZZER M10 FLANGE	0-91180-210-0	01	1	0710-	●
200	BUZZER; WARNING,AIR SUSP	1-83460-104-0	01	1	0710-	●
312	BOLT; BUZZER M10X30 FLANGE	0-28651-030-0	01	1	0710-	●
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	0710-	●
760	SCREW; HARNESS CONN M3X10	9-93490-310-0	04	1	0710-	●

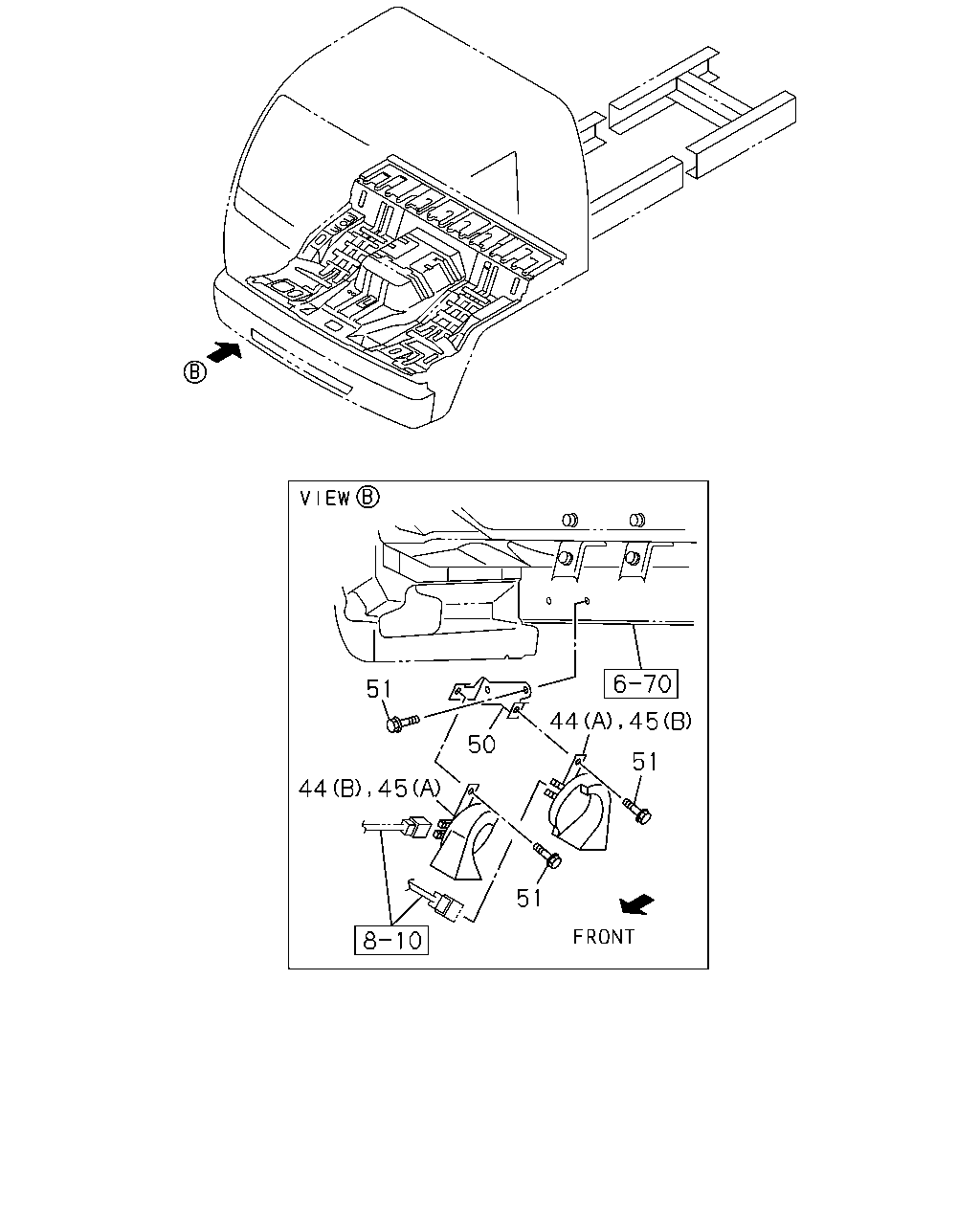

51 45 44 50 51 51 44 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE (A)	8-97611-677-2	01	1	0710-0711	●	●
44	HORN; HIGH NOTE (A)	8-97611-677-2	01	1	0712-	●
44	HORN; HIGH NOTE ELECTRICAL HORN<WB7> (A)	8-97611-677-2	01	1	0712-		●
44	HORN; HIGH NOTE EXC. ELECTRICAL HORN<WB7> (B)	8-98022-022-0	01	1	0712-1001		●
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> (B)	8-98022-022-0	01	1	1002-		●
45	HORN; LOW NOTE (A)	8-97611-676-2	01	1	0710-0711	●	●
45	HORN; LOW NOTE (A)	8-97611-676-2	01	1	0712-	●
45	HORN; LOW NOTE ELECTRICAL HORN<WB7> (A)	8-97611-676-2	01	1	0712-		●
45	HORN; LOW NOTE EXC. ELECTRICAL HORN<WB7> (B)	8-98022-023-0	01	1	0712-		●
50	BRACKET; HORN	8-97613-300-2	01	1	0710-	●	●
51	BOLT; HORN TO BRKT EXC. ELECTRICAL HORN<WB7>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1002-		●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0710-1001	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-	●
51	BOLT; HORN TO BRKT ELECTRICAL HORN<WB7>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-		●

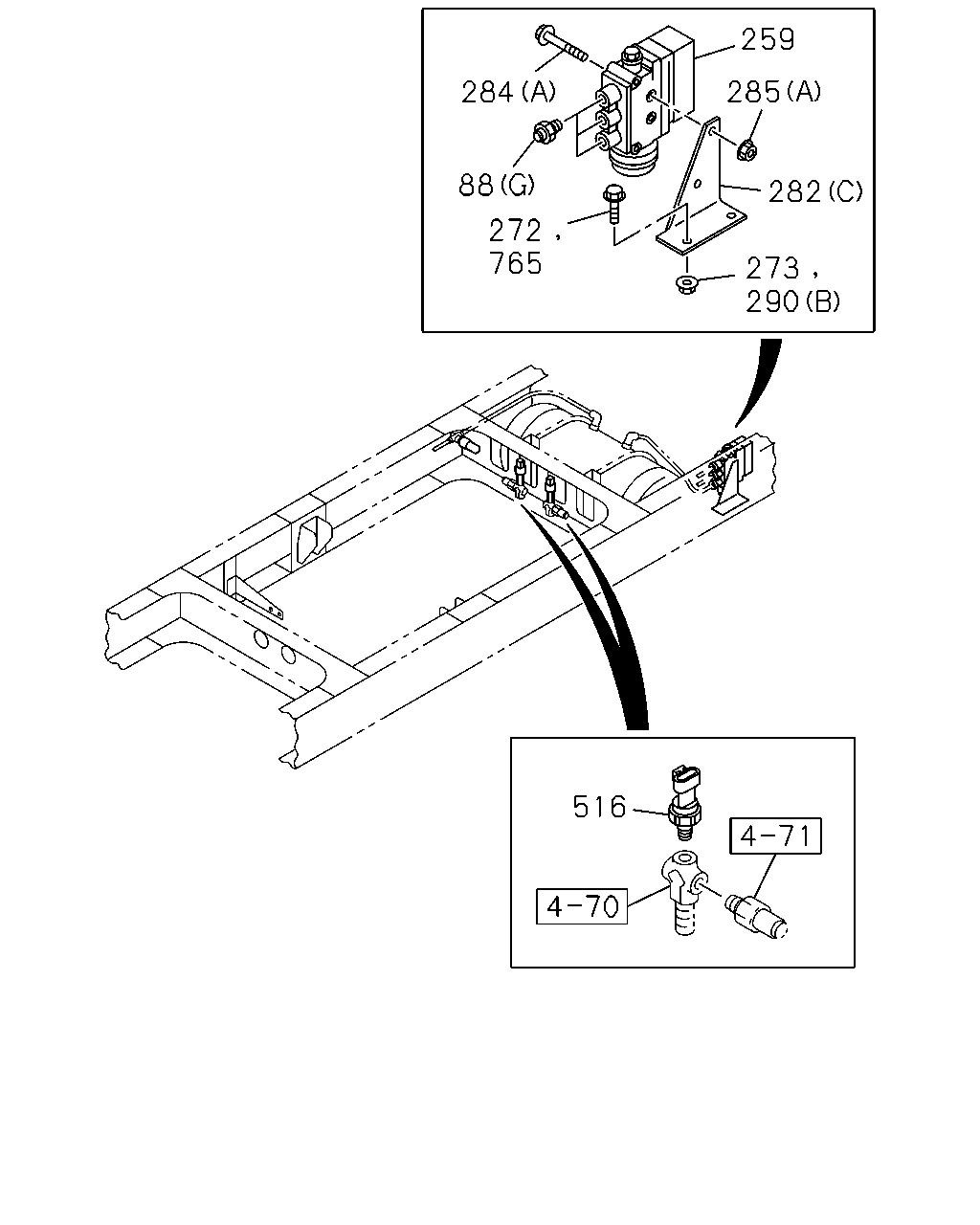

259 285 284 88 282 272 765 273 290 516

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0710-	●
88	CONNECTOR; MAG VLV (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (G) DIN8 & M22 STRAIGHT	1-09661-091-0	03	1	0710-	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0808	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0711	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0808	●
88	CONNECTOR; MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-0711	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0712-0808	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (H) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0710-	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0710-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-		●
259	VALVE; MAG,AIR SUSP CONT	1-82563-713-0	01	1	0710-	●
272	BOLT; MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	0710-0807	●
273	NUT; MAG VLV M10 FLANGE	0-91180-210-0	02	1	0710-0807	●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0710-0808	●	●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0809-	●
282	BRACKET; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98034-702-0	01	1	0809-		●
282	BRACKET; MAG VLV (C)	1-47478-319-0	01	1	0710-	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98049-845-1	01	1	0710-	●	●
284	BOLT; MAG VLV (A) M8X70	0-10855-870-0	02	1	0710-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-0808	●	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-		●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (C) M8X60 FLANGE	0-28050-860-0	02	1	0710-	●	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0710-0808	●	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0809-	●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE	0-91180-106-0	01	1	0809-		●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
285	NUT; MAG VLV (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●
290	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0808-	●
290	NUT THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
516	SWITCH; PRESS THREAD R1/8	1-80220-025-0	02	1	0710-	●
765	BOLT; VLV M10X30 FLANGE	0-28651-030-0	02	1	0808-	●

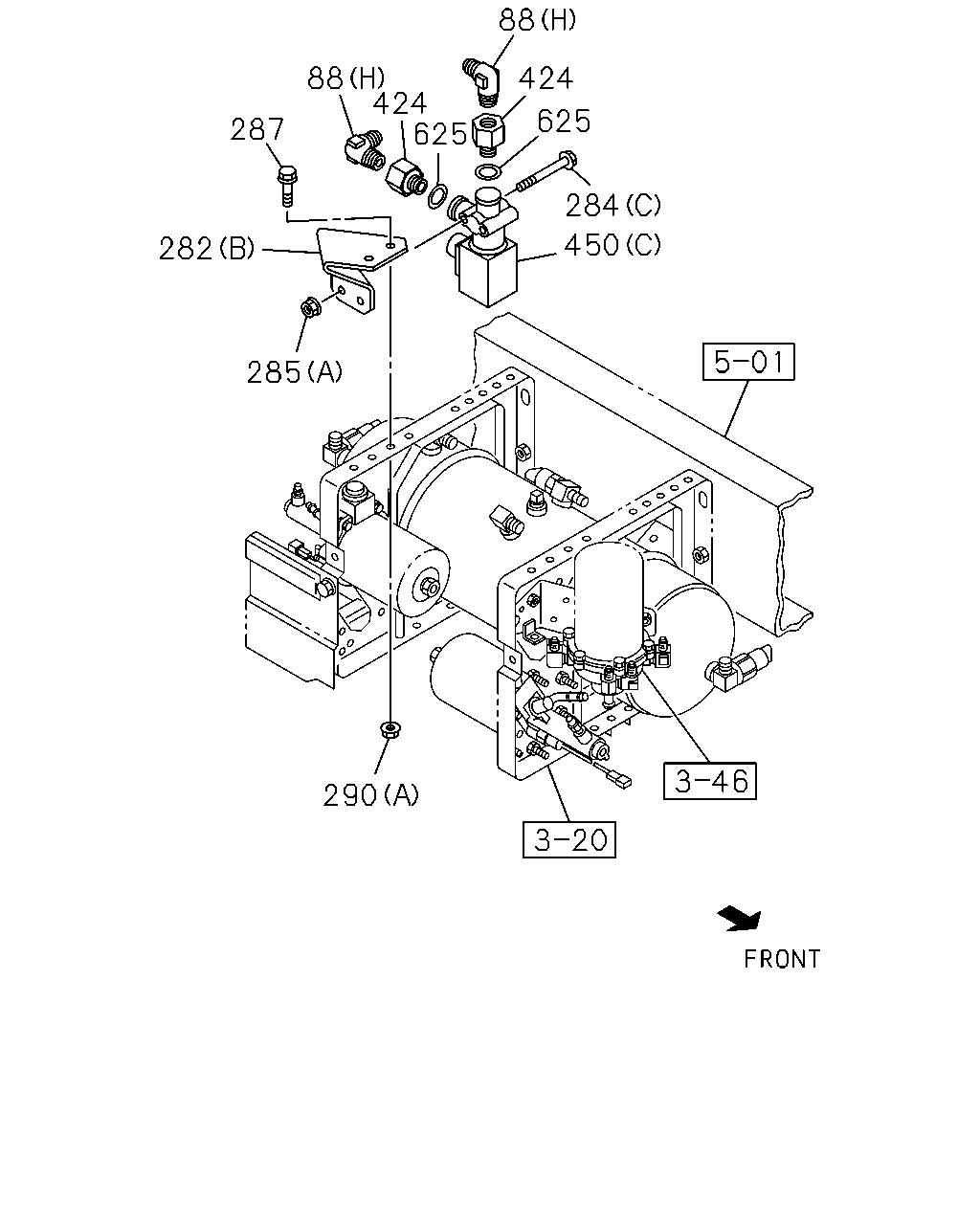

88 88 424 625 424 625 287 284 450 282 285 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0710-	●
88	CONNECTOR; MAG VLV (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (G) DIN8 & M22 STRAIGHT	1-09661-091-0	03	1	0710-	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0808	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0711	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0808	●
88	CONNECTOR; MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-0711	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0712-0808	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (H) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0710-	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0710-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-		●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0710-0808	●	●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0809-	●
282	BRACKET; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98034-702-0	01	1	0809-		●
282	BRACKET; MAG VLV (C)	1-47478-319-0	01	1	0710-	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98049-845-1	01	1	0710-	●	●
284	BOLT; MAG VLV (A) M8X70	0-10855-870-0	02	1	0710-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-0808	●	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-		●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (C) M8X60 FLANGE	0-28050-860-0	02	1	0710-	●	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0710-0808	●	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0809-	●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE	0-91180-106-0	01	1	0809-		●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
285	NUT; MAG VLV (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●
287	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
290	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0808-	●
290	NUT THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
424	ADAPTER THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 STRAIGHT	1-09661-044-0	02	1	0710-	●	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0710-0808	●	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0809-0910	●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97376-939-3	01	1	0809-0910		●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-	●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97633-075-0	01	1	0911-		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0710-0808	●	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0809-	●
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0809-		●
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	0710-	●	●
625	GASKET; CONNECTOR THROTTLE CONTROL SYSTEM(6XH) ID=16.2 OD=24	9-09571-416-0	02	1	0710-	●	●

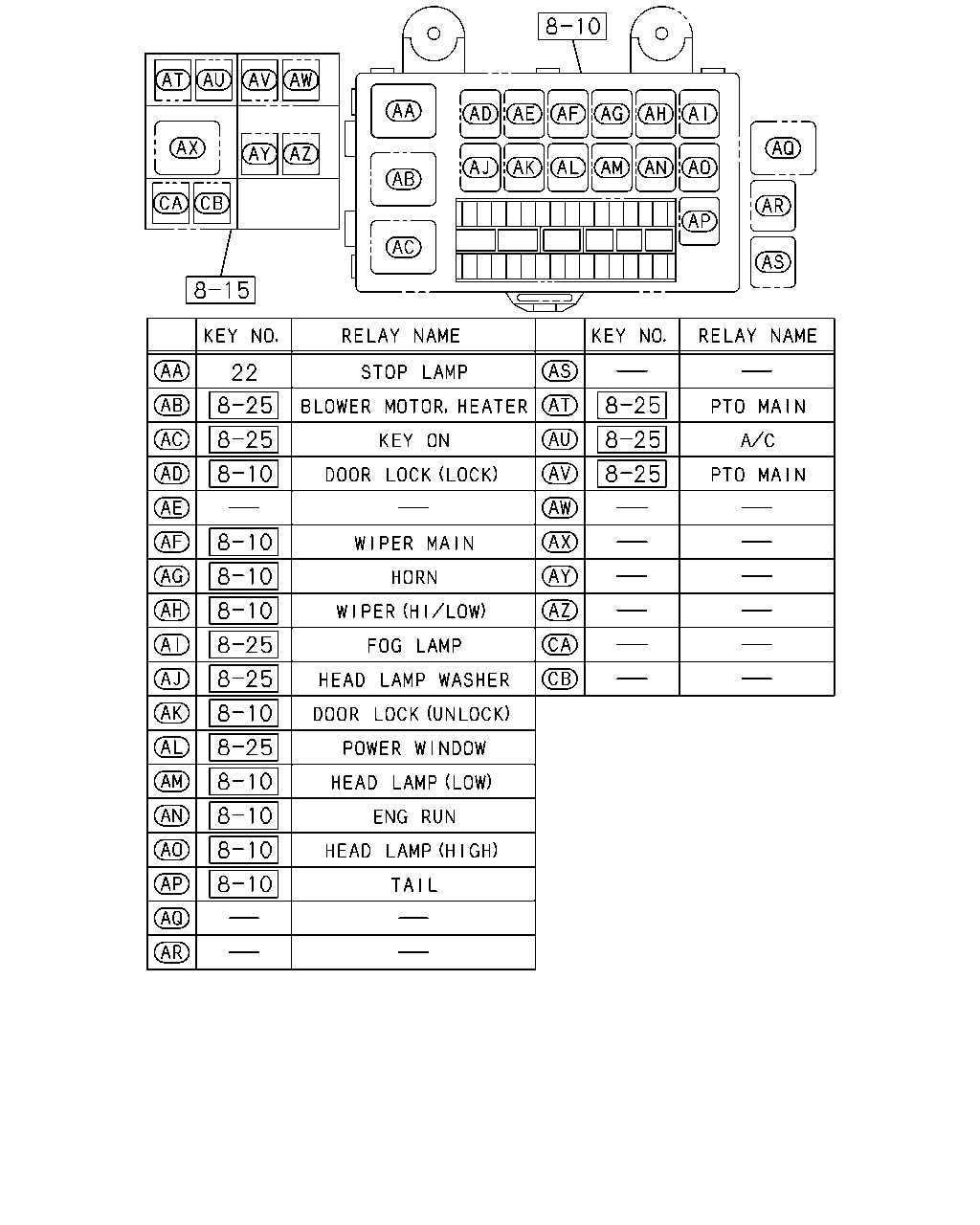

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	531	RELAY; MAIN 24V 30A MITUBA	8-97238-540-0	01	1	0710-1402	●	●
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●

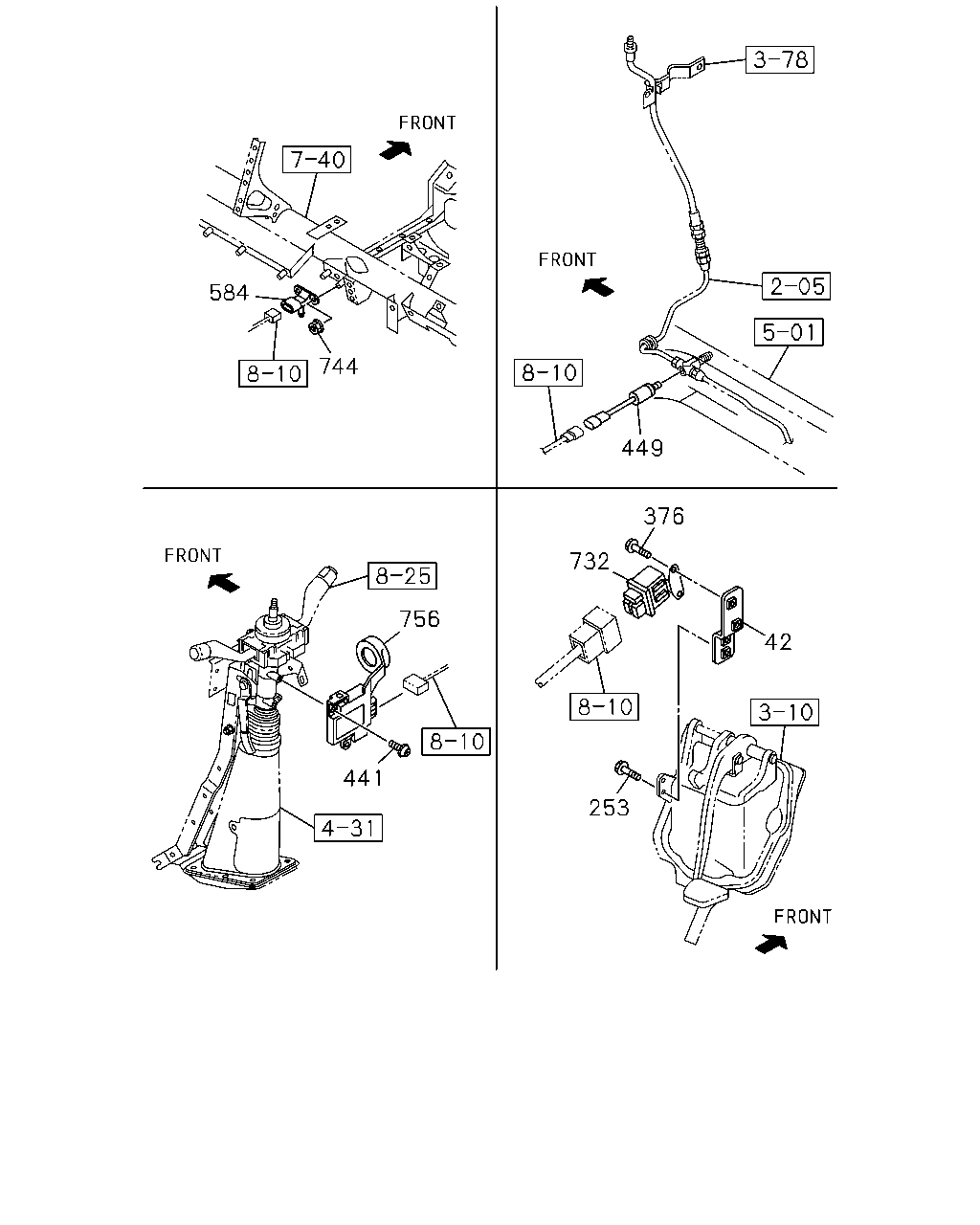

584 744 449 376 732 756 42 441 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	BRACKET; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-051-2	01	1	0710-	●	●
253	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
376	BOLT; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	0710-	●	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0710-0711	●	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0712-	●
441	SCREW; CONT UNIT IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0712-		●
449	SWITCH; OIL PRESS,CLUTCH 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82410-143-1	01	1	0710-0906	●	●
449	SWITCH; OIL PRESS,CLUTCH 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82410-143-1	01	1	0907-1011	●	●
449	SWITCH; OIL PRESS,CLUTCH H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82410-143-1	01	1	1012-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0710-	●	●
732	RELAY; EDS TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82550-337-1	01	1	0710-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98073-883-0	01	1	0710-0711	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98073-883-0	01	1	0712-0712	●
756	CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM<7KC>	8-98073-883-0	01	1	0712-0712		●
756	CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0712-1005	●
756	CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM<7KC>	8-98097-554-0	01	1	0712-1005		●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1006-	●
756	CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM<7KC>	8-98158-127-0	01	1	1006-		●

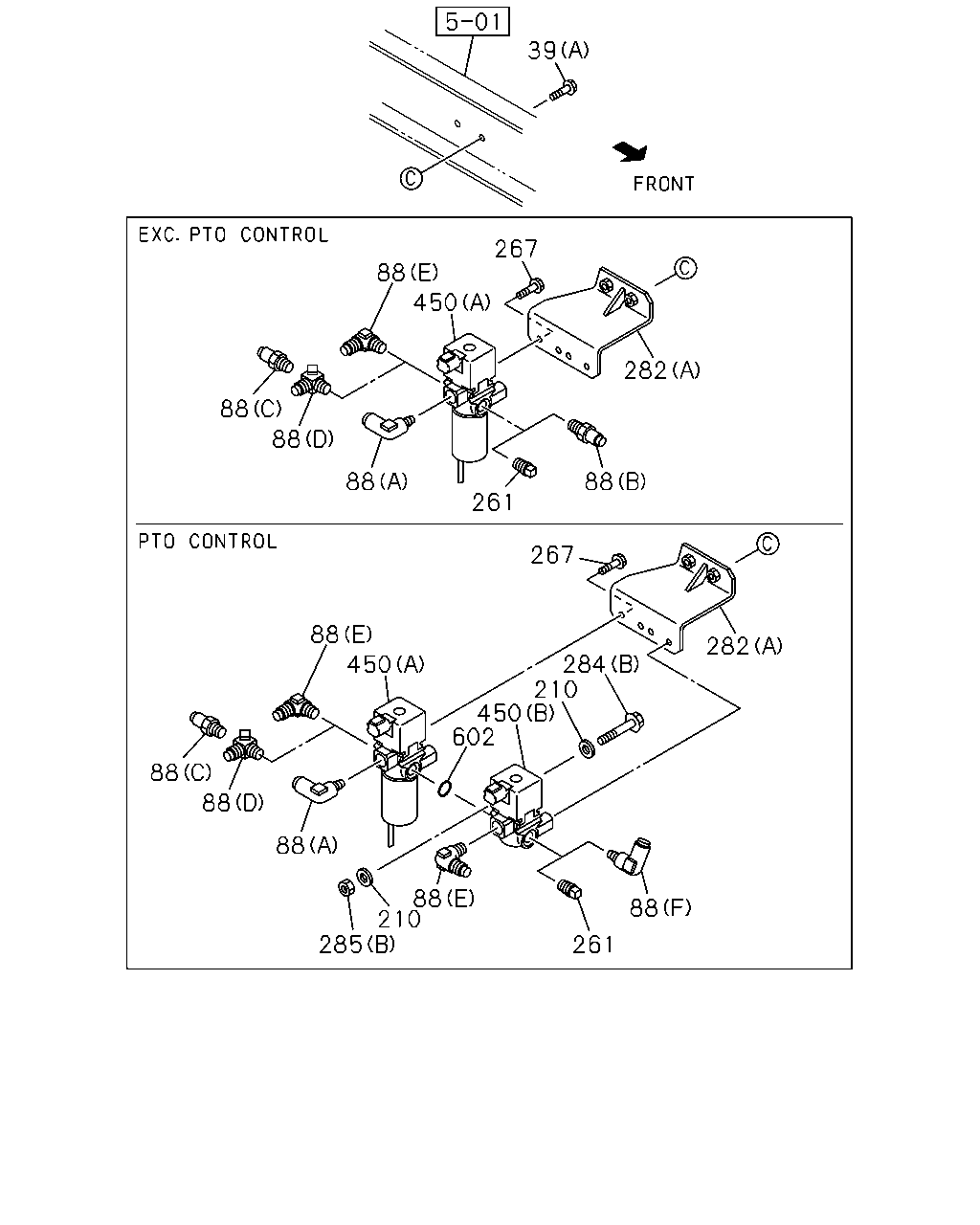

39 267 88 450 282 88 88 88 88 261 267 88 282 284 210 450 602 450 88 88 88 88 210 285 88 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) M10X25 FLANGE	0-28651-025-0	02	1	0809-1011		●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-0808	●	●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-1011	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-1011		●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0710-	●
88	CONNECTOR; MAG VLV (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-	●
88	CONNECTOR; MAG VLV (G) DIN8 & M22 STRAIGHT	1-09661-091-0	03	1	0710-	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0808	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0711	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0808	●
88	CONNECTOR; MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-0711	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0712-0808	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (H) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0710-	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0710-0808		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0710-0808	●	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0809-	●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0809-		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0712-0808		●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-		●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
267	BOLT; VLV TO BRKT CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0710-0808	●	●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0809-	●
282	BRACKET; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98034-702-0	01	1	0809-		●
282	BRACKET; MAG VLV (C)	1-47478-319-0	01	1	0710-	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98049-845-1	01	1	0710-	●	●
284	BOLT; MAG VLV (A) M8X70	0-10855-870-0	02	1	0710-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-0808	●	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-		●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (C) M8X60 FLANGE	0-28050-860-0	02	1	0710-	●	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0710-0808	●	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0809-	●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE	0-91180-106-0	01	1	0809-		●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
285	NUT; MAG VLV (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0710-0808	●	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0809-0910	●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97376-939-3	01	1	0809-0910		●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-	●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97633-075-0	01	1	0911-		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0710-0808	●	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0809-	●
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0809-		●
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	0710-	●	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0710-0808	●	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0809-	●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0809-		●

39 36 33 34 35 34 34 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM>	1-82563-871-2	01	1	0809-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROLWITH DPD<8JM> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-		●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM>	8-98034-702-0	01	1	0809-		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) M10X25 FLANGE	0-28651-025-0	02	1	0809-1011		●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-0808	●	●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-1011	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-1011		●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0712-0808		●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-		●

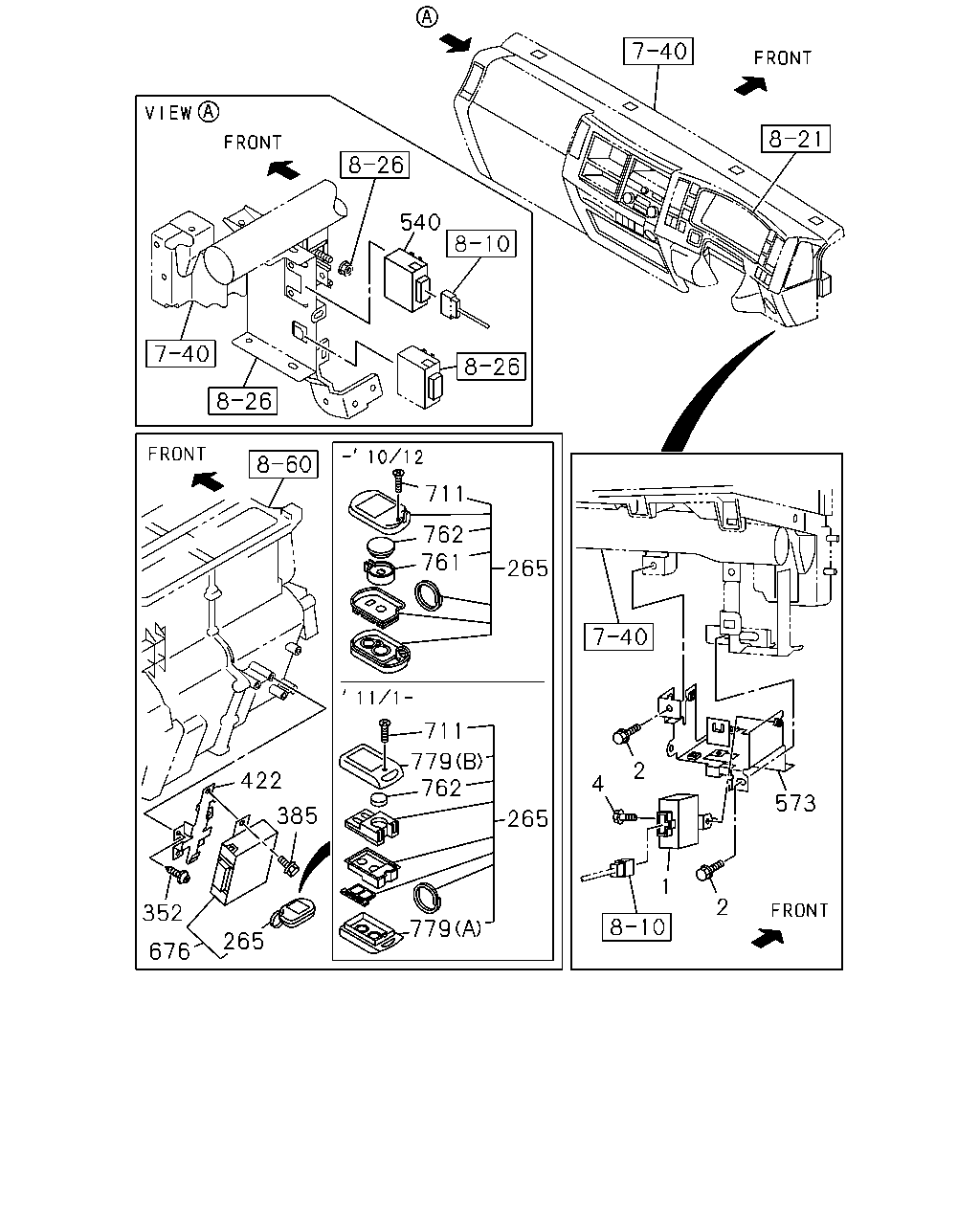

540 711 762 761 265 711 779 762 265 422 385 265 676 352 779 4 2 573 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	0710-	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0710-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0710-	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0710-0711	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0712-1012	●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98048-459-1	02	1	0712-1012		●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1205	●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98180-751-0	02	1	1101-1205		●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-	●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98218-236-0	02	1	1206-		●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0710-0711	●	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0712-	●
352	SCREW; BRKT REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0712-		●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0710-0711	●	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0712-	●
385	BOLT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0712-		●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0710-0711	●	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0712-	●
422	BRACKET; CONT UNIT REMOTE CONT DOOR LOCK<6NF>	8-98055-281-1	01	1	0712-		●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0710-1109	●	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1110-1308	●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	1110-1308		●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-		●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	0710-	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0710-0711	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0712-1012	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98017-258-1	01	1	0712-1012		●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1205	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98181-809-0	01	1	1101-1205		●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98218-231-0	01	1	1206-		●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0907-1205	●
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0907-1205		●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-	●
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1206-		●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	01	1	0710-0711	●	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	01	1	0712-0906	●
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	01	1	0712-0906		●
761	HOLDER; BATTERY	8-98078-063-0	02	1	0907-1012	●
761	HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0907-1012		●
761	HOLDER; BATTERY	8-98078-063-0	01	1	0710-0711	●	●
761	HOLDER; BATTERY	8-98078-063-0	01	1	0712-0906	●
761	HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	01	1	0712-0906		●
762	BATTERY	8-98078-061-0	02	1	0907-	●
762	BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0907-		●
762	BATTERY	8-98078-061-0	01	1	0710-0711	●	●
762	BATTERY	8-98078-061-0	01	1	0712-0906	●
762	BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	01	1	0712-0906		●
779	COVER; TRANSMITTER (A)	8-98218-240-0	02	1	1206-	●
779	COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> (A)	8-98218-240-0	02	1	1206-		●
779	COVER; TRANSMITTER (B)	8-98218-243-0	02	1	1206-	●
779	COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> (B)	8-98218-243-0	02	1	1206-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
