Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#39954) — 220 parça

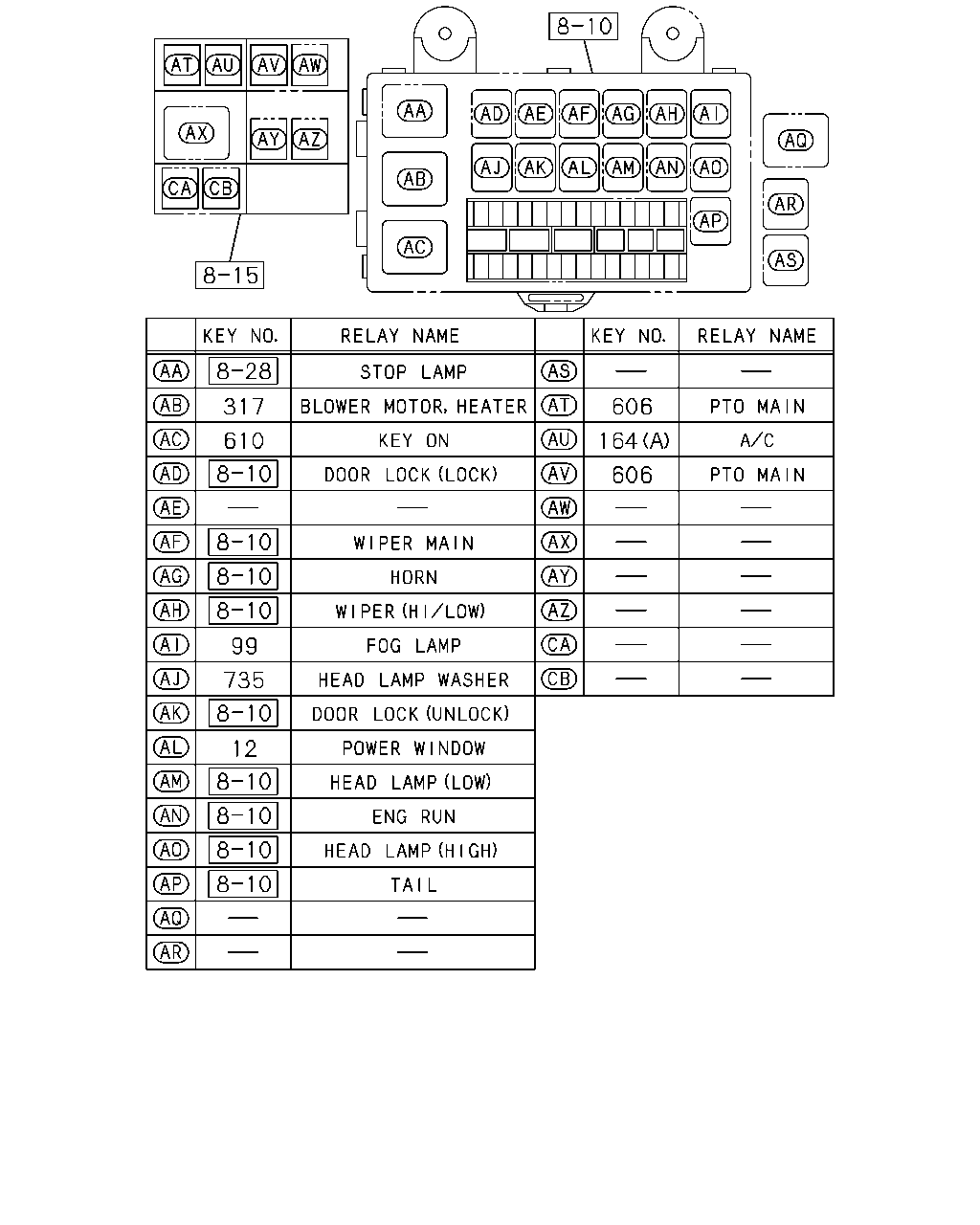

164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
164	RELAY; A/C COMPRESSOR (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0711	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC	8-97173-035-1	02	1	0710-0710	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●

237

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	237	NUT M8 FLANGE	0-91180-108-0	01	1	0710-	●	●

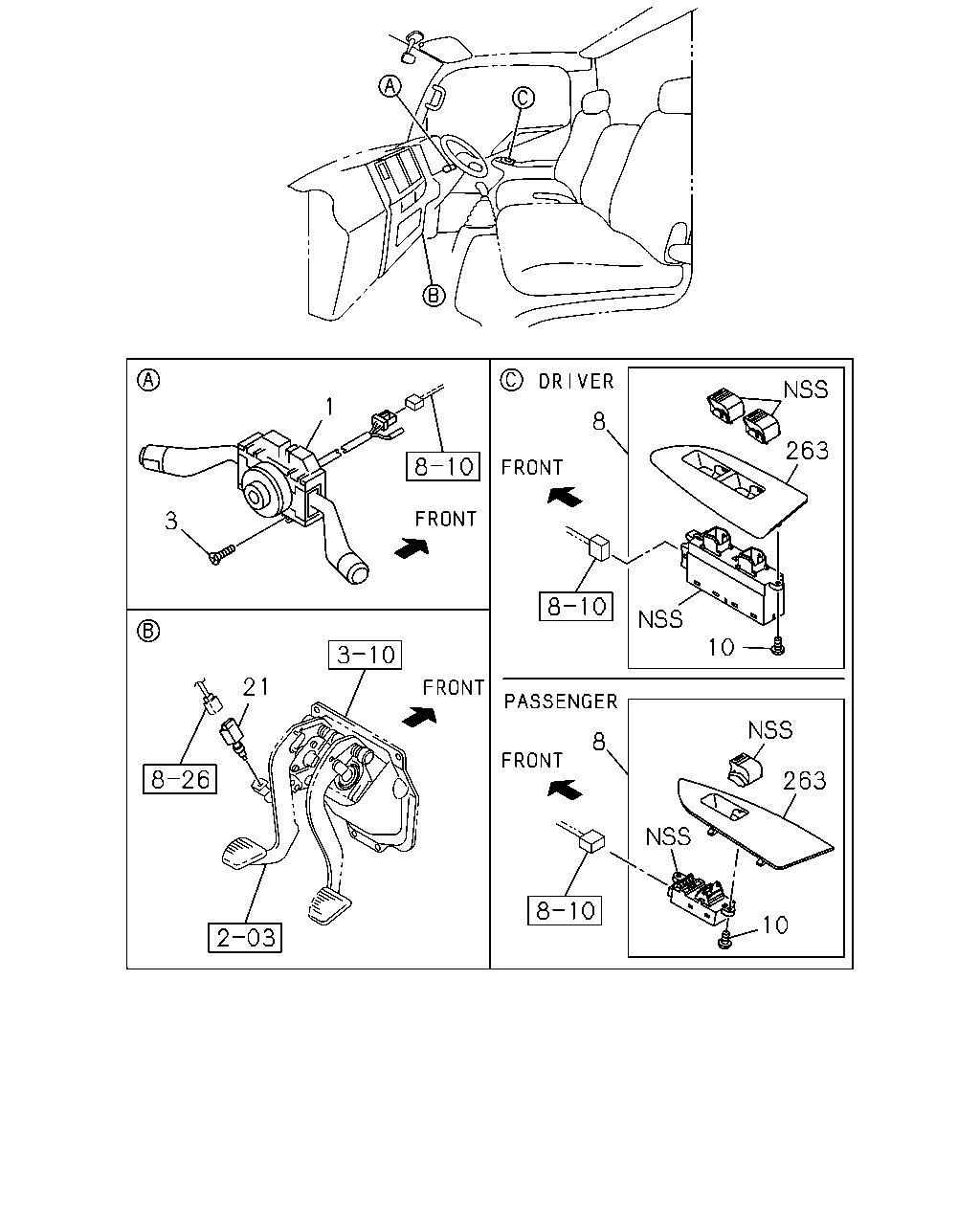

1 8 263 3 10 21 8 263 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,AUTO CRUISE<K30>	8-98064-894-2	01	1	0712-1310		●
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,AUTO CRUISE<K30>	8-98243-706-0	01	1	1311-		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98064-763-1	01	1	0710-0711	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98064-763-1	01	1	0712-0905	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> AUTO CRUISE<K30>	8-98064-763-1	01	1	0712-0905		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98146-619-0	01	1	0906-1210	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> AUTO CRUISE<K30>	8-98146-619-0	01	1	0906-1210		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98217-821-0	01	1	1211-1310	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> AUTO CRUISE<K30>	8-98217-821-0	01	1	1211-1310		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98243-692-0	01	1	1311-	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> AUTO CRUISE<K30>	8-98243-692-0	01	1	1311-		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98064-764-1	01	1	0710-0711	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98064-764-1	01	1	0712-0905	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30>	8-98064-764-1	01	1	0712-0905		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98146-618-0	01	1	0906-1210	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30>	8-98146-618-0	01	1	0906-1210		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98217-820-0	01	1	1211-1310	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30>	8-98217-820-0	01	1	1211-1310		●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98243-691-0	01	1	1311-	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30>	8-98243-691-0	01	1	1311-		●
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>	8-98060-302-1	01	1	0710-0711	●	●
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>	8-98060-302-1	01	1	0712-1310	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>	8-98060-302-1	01	1	0712-1310		●
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>	8-98243-704-0	01	1	1311-	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>	8-98243-704-0	01	1	1311-		●
1	SWITCH; COMB AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98024-269-1	01	1	0710-0711	●	●
1	SWITCH; COMB AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98024-269-1	01	1	0712-1310	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98024-269-1	01	1	0712-1310		●
1	SWITCH; COMB AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98243-705-0	01	1	1311-	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98243-705-0	01	1	1311-		●
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0710-	●	●
8	SWITCH; POWER WINDOW PASSENGER	8-97387-034-2	01	1	0710-0711	●	●
8	SWITCH; POWER WINDOW PASSENGER	8-97387-034-2	01	1	0712-	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER	8-97387-034-2	01	1	0712-		●
8	SWITCH; POWER WINDOW DRIVER	8-98003-785-1	01	1	0710-0711	●	●
8	SWITCH; POWER WINDOW DRIVER	8-98003-785-1	01	1	0712-0809	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98003-785-1	01	1	0712-0809		●
8	SWITCH; POWER WINDOW DRIVER	8-98129-844-0	01	1	0810-1001	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98129-844-0	01	1	0810-1001		●
8	SWITCH; POWER WINDOW DRIVER	8-98159-543-0	01	1	1002-	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98159-543-0	01	1	1002-		●
10	SCREW; POWER WINDOW SW	8-98153-865-0	03	1	0710-0711	●	●
10	SCREW; POWER WINDOW SW	8-98153-865-0	03	1	0712-	●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-98153-865-0	03	1	0712-		●
21	SWITCH; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97358-248-0	01	1	0710-	●	●
21	SWITCH; CLU TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94337-761-0	01	1	0710-	●	●
263	COVER; SW DRIVER	8-98153-836-0	01	1	0710-0711	●	●
263	COVER; SW DRIVER	8-98153-836-0	01	1	0712-	●
263	COVER; SW POWER WINDOW FRT DOOR<A32> DRIVER	8-98153-836-0	01	1	0712-		●
263	COVER; SW PASSENGER	8-98153-841-0	01	1	0710-0711	●	●
263	COVER; SW PASSENGER	8-98153-841-0	01	1	0712-	●
263	COVER; SW POWER WINDOW FRT DOOR<A32> PASSENGER	8-98153-841-0	01	1	0712-		●

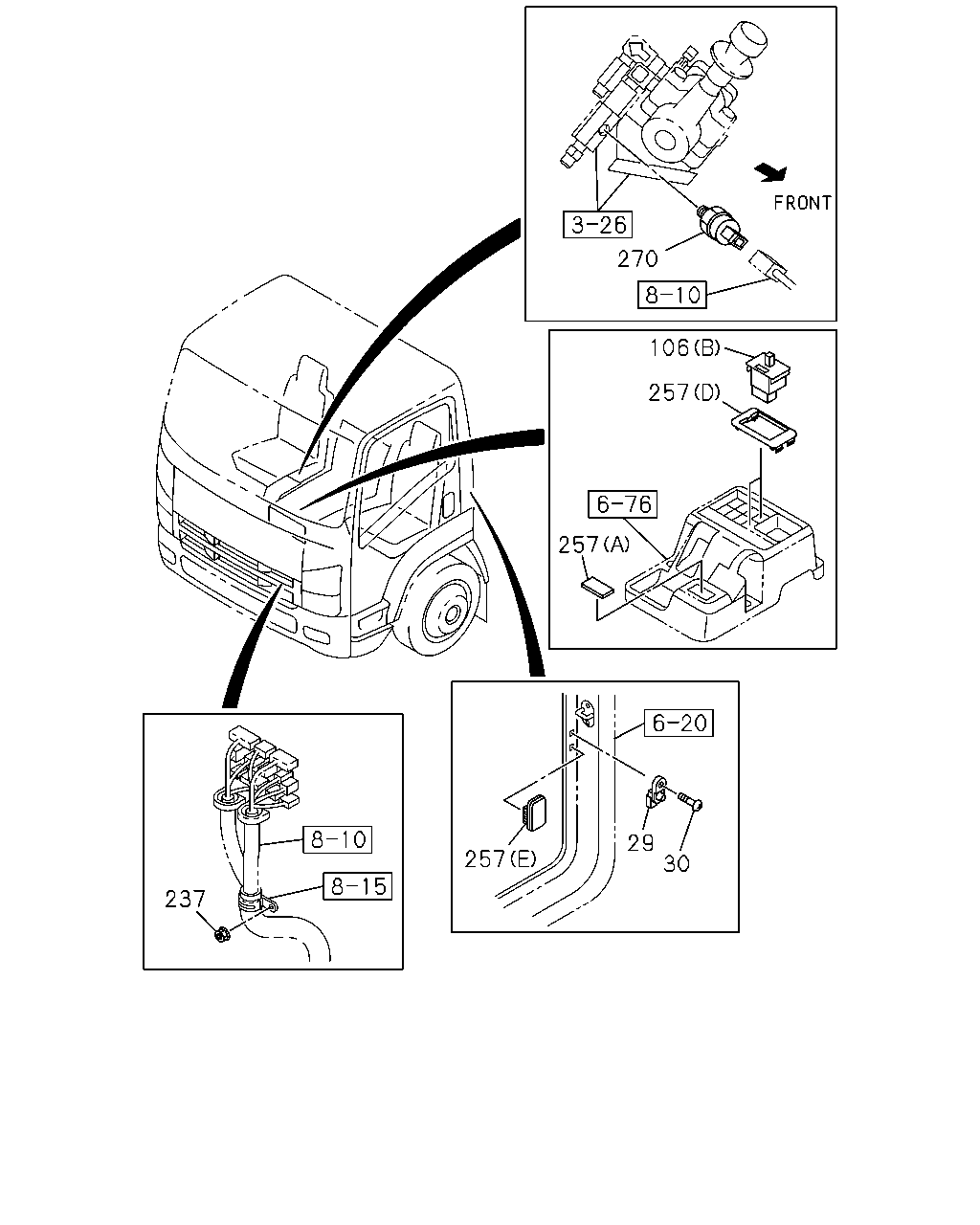

270 106 257 257 29 30 257 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0710-0711	●	●
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0710-0711	●	●
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0712-	●	●
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0712-	●
29	SWITCH; DOOR H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> BLACK	8-98022-211-0	01	1	0712-		●
29	SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> BLACK	8-98022-211-0	01	1	0712-		●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0710-0711	●	●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0710-0711	●	●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0712-	●	●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0712-	●
30	SCREW; DOOR SW H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	01	1	0712-		●
30	SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	01	1	0712-		●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97173-294-1	01	1	0712-		●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-82350-223-0	02	1	0710-0711	●	●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-82350-223-0	02	1	0712-	●
106	SWITCH; REMOTE CONT MIRROR AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-82350-223-0	02	1	0712-		●
237	NUT M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0710-0711	●	●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0712-0906	●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0712-0906		●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	01	1	0907-	●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	01	1	0907-		●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (E)	8-98029-917-0	01	1	0712-		●
257	COVER; HOLE,SW (A) GRAY	8-97409-339-0	01	1	0710-0710	●	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0710-0711	●	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0712-	●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) (B)	8-98029-914-1	01	1	0712-		●
257	COVER; HOLE,SW EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	8-98029-914-1	01	1	0712-		●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	01	1	0710-0711	●	●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	01	1	0712-0906	●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	01	1	0712-0906		●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0907-	●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0907-		●
257	COVER; HOLE,SW (C)	8-98025-954-1	03	1	0710-	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-0711	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0710-0711	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0710-0711	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98025-954-1	01	1	0710-0711	●	●
257	COVER; HOLE,SW EXC. HEAD LAMP WASHER<CE4> (C)	8-98025-954-1	01	1	0710-0711	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0710-0711		●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0712-0808	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0712-0808	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0712-0808	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98025-954-1	01	1	0712-0808	●	●
257	COVER; HOLE,SW EXC. HEAD LAMP WASHER<CE4> (C)	8-98025-954-1	01	1	0712-0808	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0712-0808		●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. HEAD LAMP WASHER<CE4> (C)	8-98025-954-1	01	1	0809-1003	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	0809-1003		●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0809-1003		●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0809-1003		●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1004-	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	1004-		●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1004-		●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1004-		●
270	SWITCH; PRESS,WHEEL PARKING STAMP 2.0	8-98010-856-1	01	1	0710-0711	●	●
270	SWITCH; PRESS,WHEEL PARKING STAMP 2.0	8-98010-856-2	01	1	0712-	●
270	SWITCH; PRESS,WHEEL PARKING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 2.0	8-98010-856-2	01	1	0712-		●

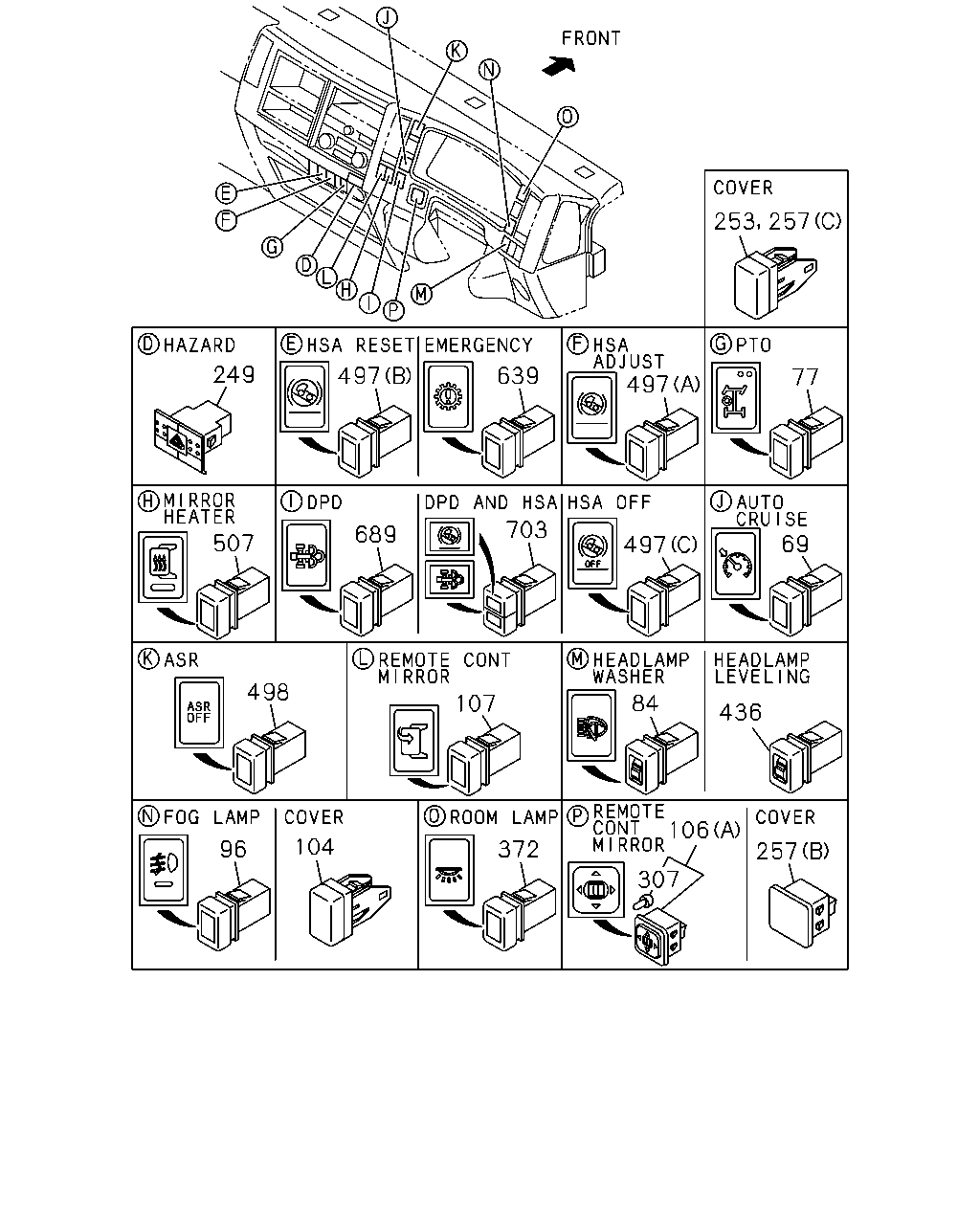

497 249 639 497 77 507 69 703 689 497 107 84 498 436 106 104 96 372 257 307 253 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
69	SWITCH; AUTO CRUISE AUTO CRUISE<K30>	8-98011-344-1	01	1	0710-	●	●
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97615-488-2	01	1	0710-	●	●
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-964-2	01	1	0710-	●	●
84	SWITCH; WASHER,HEADLAMP HEAD LAMP WASHER<CE4>	8-97614-052-0	01	1	0710-1003	●
96	SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0710-	●	●
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>	8-98025-954-1	01	1	0710-	●	●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97173-294-1	01	1	0712-		●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-82350-223-0	02	1	0710-0711	●	●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-82350-223-0	02	1	0712-	●
106	SWITCH; REMOTE CONT MIRROR AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-82350-223-0	02	1	0712-		●
107	SWITCH; REMOTE CONT,MIRROR O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH>	8-98011-343-1	01	1	0712-0912		●
249	SWITCH; HAZARD	8-97386-922-1	01	1	0710-	●	●
253	COVER; SW HOLE	8-98025-954-1	02	1	0710-	●	●
253	COVER; SW HOLE EXC. AUTO CRUISE<K30>	8-98025-954-1	01	1	0710-	●	●
253	COVER; SW HOLE EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98025-954-1	01	1	0710-	●	●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0710-0711	●	●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0712-0906	●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0712-0906		●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	01	1	0907-	●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	01	1	0907-		●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (E)	8-98029-917-0	01	1	0712-		●
257	COVER; HOLE,SW (A) GRAY	8-97409-339-0	01	1	0710-0710	●	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0710-0711	●	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0712-	●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) (B)	8-98029-914-1	01	1	0712-		●
257	COVER; HOLE,SW EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	8-98029-914-1	01	1	0712-		●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	01	1	0710-0711	●	●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	01	1	0712-0906	●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	01	1	0712-0906		●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0907-	●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0907-		●
257	COVER; HOLE,SW (C)	8-98025-954-1	03	1	0710-	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-0711	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0710-0711	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0710-0711	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98025-954-1	01	1	0710-0711	●	●
257	COVER; HOLE,SW EXC. HEAD LAMP WASHER<CE4> (C)	8-98025-954-1	01	1	0710-0711	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0710-0711		●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0712-0808	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0712-0808	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0712-0808	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98025-954-1	01	1	0712-0808	●	●
257	COVER; HOLE,SW EXC. HEAD LAMP WASHER<CE4> (C)	8-98025-954-1	01	1	0712-0808	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0712-0808		●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98025-954-1	01	1	0809-1003	●	●
257	COVER; HOLE,SW EXC. HEAD LAMP WASHER<CE4> (C)	8-98025-954-1	01	1	0809-1003	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	0809-1003		●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0809-1003		●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0809-1003		●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98025-954-1	01	1	1004-	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1004-	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	1004-		●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1004-		●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1004-		●
307	BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) 24V	8-98226-896-0	01	1	0907-		●
307	BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) 28V 40MA	8-97116-331-0	01	1	0712-0906		●
372	SWITCH; ROOM LAMP	8-97386-917-1	01	1	0710-0711	●	●
372	SWITCH; ROOM LAMP	8-97386-917-2	01	1	0712-	●
372	SWITCH; ROOM LAMP FLUORESCENT LAMP<6UC>	8-97386-917-2	01	1	0712-		●
436	SWITCH; HEADLAMP LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-97386-981-2	01	1	0710-		●
497	SWITCH; HSA H.S.A SYSTEM<6EP> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) OFF	8-97386-923-2	01	1	0809-		●
497	SWITCH; HSA H.S.A SYSTEM<6EP> (A) ADJUST	8-97386-967-2	01	1	0710-0806	●	●
497	SWITCH; HSA H.S.A SYSTEM<6EP> (A) ADJUST	8-98119-947-1	01	1	0807-	●	●
497	SWITCH; HSA H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) RESET	8-97386-985-1	01	1	0710-0806	●	●
497	SWITCH; HSA H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) RESET	8-98119-946-0	01	1	0807-	●	●
498	SWITCH; ASR THROTTLE CONTROL SYSTEM(6XH)	8-97386-920-2	01	1	0710-	●	●
507	SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV>	8-97386-924-3	01	1	0710-	●	●
639	SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-000-2	01	1	0710-0806	●	●
639	SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	0807-	●	●
689	SWITCH; DPD EXC. H.S.A SYSTEM<6EP>	8-97386-921-1	01	1	0710-0808	●	●
689	SWITCH; DPD EXC. H.S.A SYSTEM<6EP>	8-97386-921-2	01	1	0809-	●
689	SWITCH; DPD CATALYSIS CONTROL WITH DPD<8JM> EXC. H.S.A SYSTEM<6EP>	8-97386-921-2	01	1	0809-		●
703	SWITCH; DPD & HSA H.S.A SYSTEM<6EP>	8-98011-346-1	01	1	0710-0808	●	●
703	SWITCH; DPD & HSA H.S.A SYSTEM<6EP>	8-98011-346-2	01	1	0809-	●
703	SWITCH; DPD & HSA H.S.A SYSTEM<6EP> CATALYSIS CONTROL WITH DPD<8JM>	8-98011-346-2	01	1	0809-		●

317 606 610 164 606 99 735 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0711	●	●
12	RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0712-	●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0712-		●
99	RELAY; FOG LAMP FOG LAMP<T96> 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
164	RELAY; A/C COMPRESSOR (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0711	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC	8-97173-035-1	02	1	0710-0710	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
317	RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0806	●	●
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0807-	●	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0805	●	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0805	●	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	0806-	●	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 10A PANASONIC	8-97173-035-1	01	1	0806-	●	●
610	RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●
735	RELAY; HEAD LAMP WASHER HEAD LAMP WASHER<CE4> 24V 10A PANASONIC	8-97173-035-1	01	1	0710-1003	●

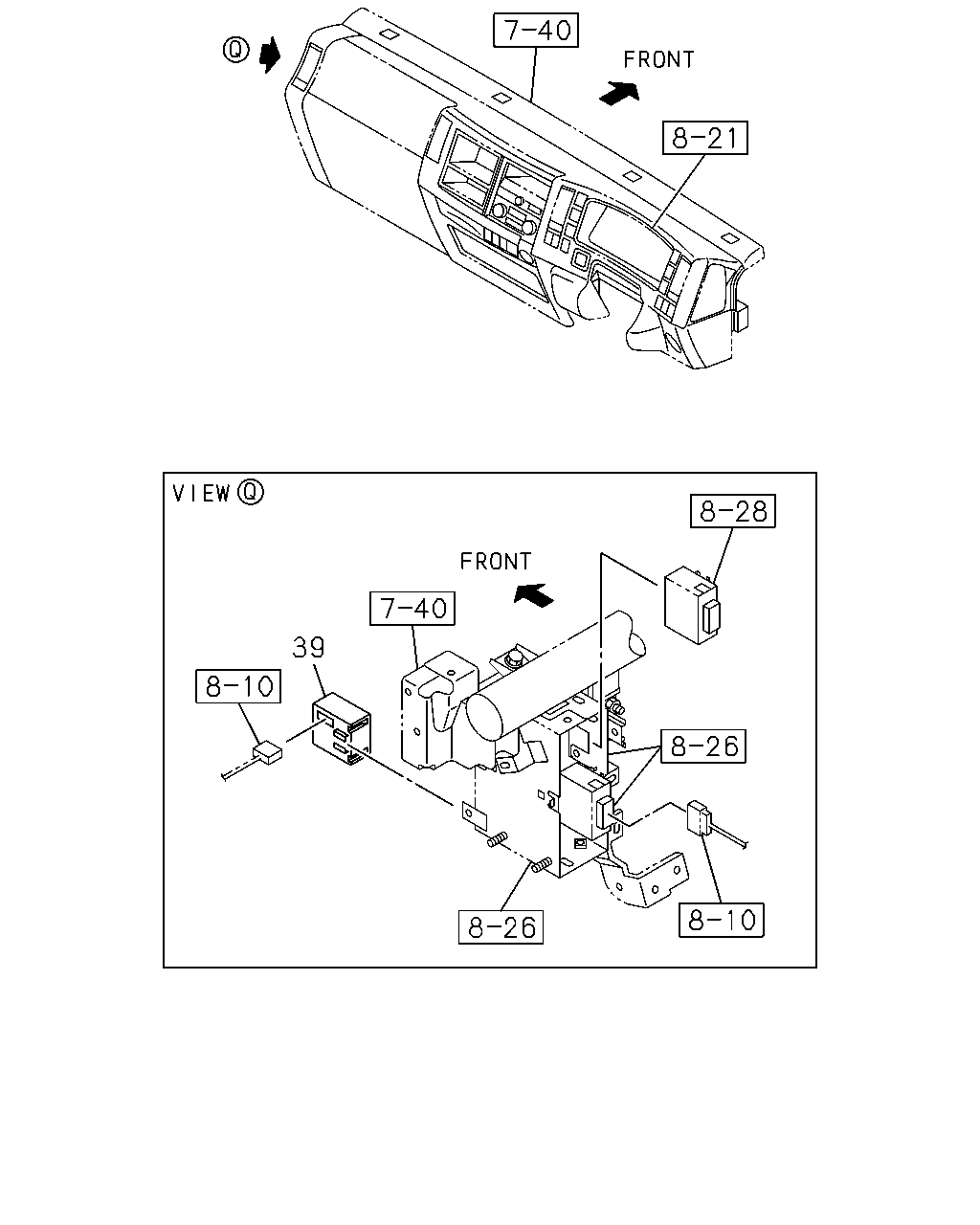

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	39	RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
