◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11102 - FRR RHD EURO2/4 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#39952) — 26 parça

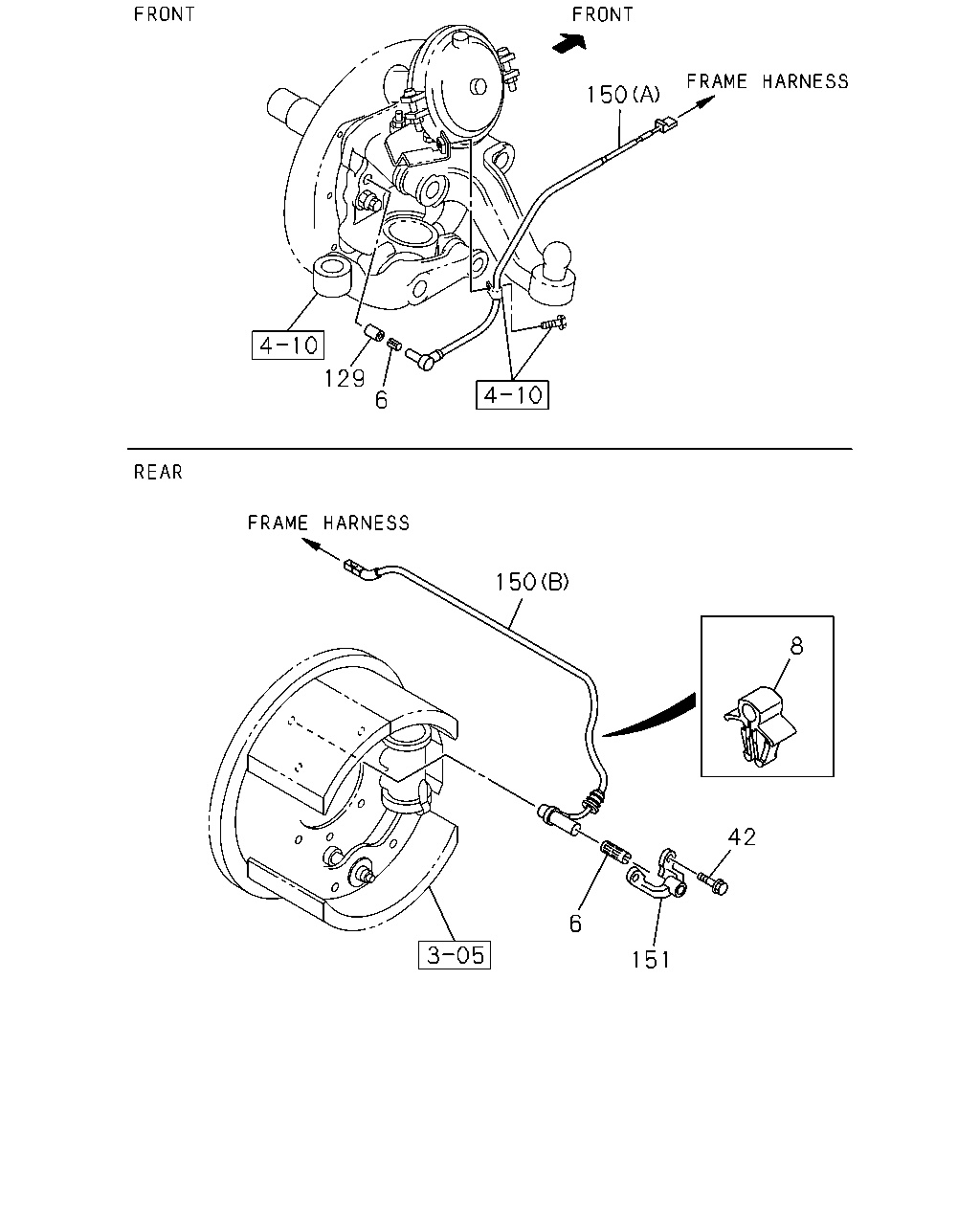

çizim 178137
150 129 6 150 8 42 6 151
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0710-0711 ● ●
6 HOLDER; SPD SENSOR
FINAL GEAR 39/8 14.5"(W1U),FINAL GEAR 41/8 14.5"(W4F) 		1-83129-260-1 02 1 0710-0711 ● ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0712- ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0712- ●
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE(JE5) 		1-83129-260-1 02 1 0712- ●
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE(JE5) 		1-83129-260-1 02 1 0712- ●
8 CLIP; HARNESS
ID=4.8 		1-09701-218-0 02 1 0710-0711 ●
8 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) ID=4.8 		1-09701-218-0 02 1 0712- ●
42 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710-0711 ● ●
42 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0712- ●
42 BOLT; BRKT
ANTI LOCK BRAKE(JE5) M8X25 FLANGE 		0-28650-825-0 04 1 0712- ●
129 COLLAR 1-83129-471-0 02 1 0710-0906 ● ●
129 COLLAR 1-83129-471-0 02 1 0907- ●
129 COLLAR
ANTI LOCK BRAKE(JE5) 		1-83129-471-0 02 1 0907- ●
150 SENSOR; SPEED,ABS
(A) 		1-83227-019-1 02 1 0710-0906 ● ●
150 SENSOR; SPEED,ABS
(A) 		1-83227-019-1 02 1 0907- ●
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE(JE5) (A) 		1-83227-019-1 02 1 0907- ●
150 SENSOR; SPEED,ABS
(B) 		8-98012-782-4 02 1 0710-0711 ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98012-782-4 02 1 0712- ●
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE(JE5) (B) 		8-98012-782-4 02 1 0712- ●
151 BRACKET; SPD SENSOR 8-98064-696-0 01 1 0710-0711 ● ●
151 BRACKET; SPD SENSOR 8-98064-696-0 01 1 0712- ●
151 BRACKET; SPD SENSOR
ANTI LOCK BRAKE(JE5) 		8-98064-696-0 01 1 0712- ●
151 BRACKET; SPD SENSOR 8-98064-697-0 01 1 0710-0711 ● ●
151 BRACKET; SPD SENSOR 8-98064-697-0 01 1 0712- ●
151 BRACKET; SPD SENSOR
ANTI LOCK BRAKE(JE5) 		8-98064-697-0 01 1 0712- ●
