◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11102 - FRR RHD EURO2/4 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#39951) — 1002 parça

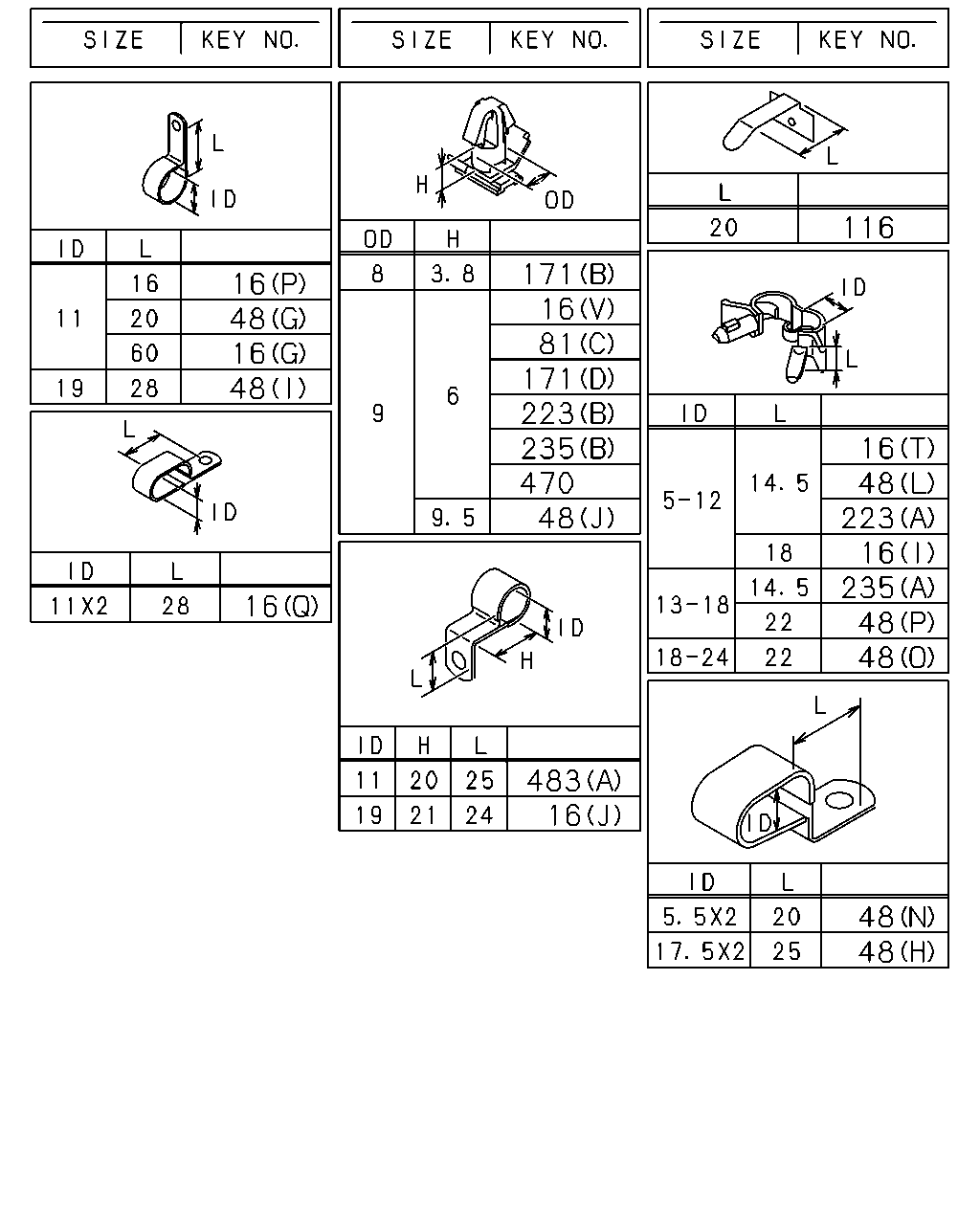

çizim 178099
116 171 16 81 171 223 235 470 48 16 48 16 48 16 48 223 16 235 48 48 16 483 16 48 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (I) ID=5-12 L=18 		1-09709-287-0 01 1 0809- ●
16 CLIP; HARNESS
(W) ID=25 L=55 		9-09917-573-0 01 1 0802-0811 ● ●
16 CLIP; HARNESS
(G) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(G) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0906 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0906 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0907- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0907- ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 02 1 0710-0911 ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 01 1 0912- ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		1-09700-734-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		1-09700-734-0 01 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (Q) ID=11X2 L=16 		1-09700-734-0 01 1 0712- ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710- ●
16 CLIP; HARNESS
(T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710-0711 ● ●
16 CLIP; HARNESS
(T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712- ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (X) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (X) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (X) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (X) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (X) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (X) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(U) L=36.5 		8-97019-892-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(U) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (U) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(R) ID=19 L=39 H=21 		1-09700-972-1 01 1 0710-0807 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0710-0801 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 01 1 0802-0808 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0809- ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 01 1 0710-0806 ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 0807- ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 03 1 0710-0911 ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 0710-0808 ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 0809-1011 ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=5-12 L=18 		1-09709-287-0 02 1 0809-1011 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (I) ID=5-12 L=18 		1-09709-287-0 02 1 1012- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I) ID=5-12 L=18 		1-09709-287-0 02 1 1012- ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0710-0808 ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0809- ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0809- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0710-0712 ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (V) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 0907- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (R) ID=14 L=44 		9-09917-427-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (R) ID=14 L=44 		9-09917-427-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (R) ID=14 L=44 		9-09917-427-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1003- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (O) ID=18-24 L=22 		1-09709-295-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (P) ID=13-18 L=22 		1-09709-292-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) L=180 		1-09707-162-1 01 1 0806-0808 ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) L=180 		1-09707-162-1 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0806-0808 ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 13 1 0712-0804 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 12 1 0805-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (R) ID=14 L=44 		9-09917-427-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
EXC. ANTI LOCK BRAKE(JE5) (N) ID=5.5X2 L=35 		1-09700-974-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 14 1 0710-0804 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 13 1 0805-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 11 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=11 L=20 		0-95235-035-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
(C) ID=21 L=24 		8-94176-807-1 03 1 0710- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0710-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 06 1 0710-0808 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0809-0809 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 06 1 0809-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 06 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (R) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0906 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 10 1 0710-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 10 1 0809-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (R) ID=14 L=44 		9-09917-427-0 10 1 1008- ●
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=35 L=50 		1-09701-214-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 0710-0905 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=20 L=50 		9-09917-430-0 04 1 0710-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 07 1 0810-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (R) ID=14 L=44 		9-09917-427-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=20 L=50 		9-09917-430-0 05 1 0710-0809 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE(JE5) (B) ID=11 L=41 		1-09700-403-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE(JE5) (H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (A) L=250 		5-09707-030-1 02 1 0710-0906 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0710-0906 ● ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (A) L=250 		5-09707-030-1 02 1 0907-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0907-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (A) L=250 		5-09707-030-1 01 1 1003- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2> (A) L=250 		5-09707-030-1 01 1 1003- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50 		1-09701-055-1 01 1 0710- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 07 1 0710-0808 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=20 L=50 		9-09917-430-0 07 1 0809-0809 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 05 1 0810-1007 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 01 1 1008-1201 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (R) ID=14 L=44 		9-09917-427-0 01 1 1202- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0712-0901 ● ●
81 CLIP; HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0906 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0907- ● ●
81 CLIP; HARNESS
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0803-0906 ● ●
81 CLIP; HARNESS
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0907-1007 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 1008- ● ●
116 CLIP; ROOF HARNESS
EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 03 1 0712- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-0711 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0712- ●
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 04 1 0712- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0806-0808 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0809- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0806-0808 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0806-0808 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0809- ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0710-0710 ● ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0711-0803 ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0804- ● ●
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 0710-0803 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1011 ● ●
171 CLIP; STARTER HARNESS
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1012-1102 ● ●
171 CLIP; STARTER HARNESS
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 1002- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 0710- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710-0711 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE(JE5) (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 02 1 0710-0711 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE(JE5) (B) OD=9 H=6 		1-09709-178-0 02 1 0712- ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0710-1205 ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
470 CLIP; HARNESS,LICENSE LAMP
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. AUSTRALIA EQUIPMENT(B13) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) ID=12 B=13 ID=6.5 		5-09700-348-0 02 1 1401- ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=18 H=23 L=28 		1-09700-860-0 02 1 1201-1210 ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=21 L=24 		8-98019-191-0 01 1 1211- ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (N) ID=16 L=50 		1-09701-158-0 01 1 1008-1011 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (N) ID=16 L=50 		1-09701-158-0 01 1 1012- ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (M) ID=21 L=24 		1-09701-201-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 03 1 0809-1007 ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (O) ID=21 L=30 H=40 		1-09700-991-1 01 1 1008-1011 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (O) ID=21 L=30 H=40 		1-09700-991-1 01 1 1012- ●
483 CLIP; ENG HARNESS
4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 03 1 1012- ●
483 CLIP; ENG HARNESS
(J) 		1-09701-124-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(K) 		1-09987-281-0 01 1 0712-0808 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (K) 		1-09987-281-0 01 1 0809- ● ●
483 CLIP; ENG HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0808 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (L) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 0712-1007 ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 02 1 1008-1011 ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 1008-1011 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 02 1 1012- ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 1012- ●
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0710-1112 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1201-1210 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1211- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(I) ID=18 L=25 		8-94121-004-1 01 1 0710-0808 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=18 L=25 		8-94121-004-1 01 1 0809- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0710-0711 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0710-0711 ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0712-0808 ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0712-0808 ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0809- ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0809- ●
483 CLIP; ENG HARNESS
(F) ID=14.5 & 6 		8-94312-791-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-94225-185-0 02 1 0710-0801 ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-97367-985-1 02 1 0802- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (H) 		8-97101-436-0 01 1 0710- ●
çizim 178101
16 16 483 16 183 171 483 16 16 483 483
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (I) ID=5-12 L=18 		1-09709-287-0 01 1 0809- ●
16 CLIP; HARNESS
(W) ID=25 L=55 		9-09917-573-0 01 1 0802-0811 ● ●
16 CLIP; HARNESS
(G) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(G) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0906 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0906 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0907- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0907- ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 02 1 0710-0911 ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 01 1 0912- ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		1-09700-734-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		1-09700-734-0 01 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (Q) ID=11X2 L=16 		1-09700-734-0 01 1 0712- ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710- ●
16 CLIP; HARNESS
(T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710-0711 ● ●
16 CLIP; HARNESS
(T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712- ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (X) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (X) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (X) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (X) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (X) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (X) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(U) L=36.5 		8-97019-892-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(U) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (U) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(R) ID=19 L=39 H=21 		1-09700-972-1 01 1 0710-0807 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0710-0801 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 01 1 0802-0808 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0809- ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 01 1 0710-0806 ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 0807- ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 03 1 0710-0911 ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 0710-0808 ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 0809-1011 ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=5-12 L=18 		1-09709-287-0 02 1 0809-1011 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (I) ID=5-12 L=18 		1-09709-287-0 02 1 1012- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I) ID=5-12 L=18 		1-09709-287-0 02 1 1012- ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0710-0808 ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0809- ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0809- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0710-0712 ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (V) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0806-0808 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0809- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0806-0808 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0806-0808 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0809- ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0710-0710 ● ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0711-0803 ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0804- ● ●
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 0710-0803 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1011 ● ●
171 CLIP; STARTER HARNESS
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1012-1102 ● ●
171 CLIP; STARTER HARNESS
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103- ● ●
183 CLIP; CONNECTOR
L=175 		1-09707-178-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) ID=12 B=13 ID=6.5 		5-09700-348-0 02 1 1401- ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=18 H=23 L=28 		1-09700-860-0 02 1 1201-1210 ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=21 L=24 		8-98019-191-0 01 1 1211- ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (N) ID=16 L=50 		1-09701-158-0 01 1 1008-1011 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (N) ID=16 L=50 		1-09701-158-0 01 1 1012- ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (M) ID=21 L=24 		1-09701-201-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 03 1 0809-1007 ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (O) ID=21 L=30 H=40 		1-09700-991-1 01 1 1008-1011 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (O) ID=21 L=30 H=40 		1-09700-991-1 01 1 1012- ●
483 CLIP; ENG HARNESS
4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 03 1 1012- ●
483 CLIP; ENG HARNESS
(J) 		1-09701-124-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(K) 		1-09987-281-0 01 1 0712-0808 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (K) 		1-09987-281-0 01 1 0809- ● ●
483 CLIP; ENG HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0808 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (L) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 0712-1007 ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 02 1 1008-1011 ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 1008-1011 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 02 1 1012- ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 1012- ●
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0710-1112 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1201-1210 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1211- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(I) ID=18 L=25 		8-94121-004-1 01 1 0710-0808 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=18 L=25 		8-94121-004-1 01 1 0809- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0710-0711 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0710-0711 ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0712-0808 ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0712-0808 ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0809- ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0809- ●
483 CLIP; ENG HARNESS
(F) ID=14.5 & 6 		8-94312-791-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-94225-185-0 02 1 0710-0801 ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-97367-985-1 02 1 0802- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (H) 		8-97101-436-0 01 1 0710- ●

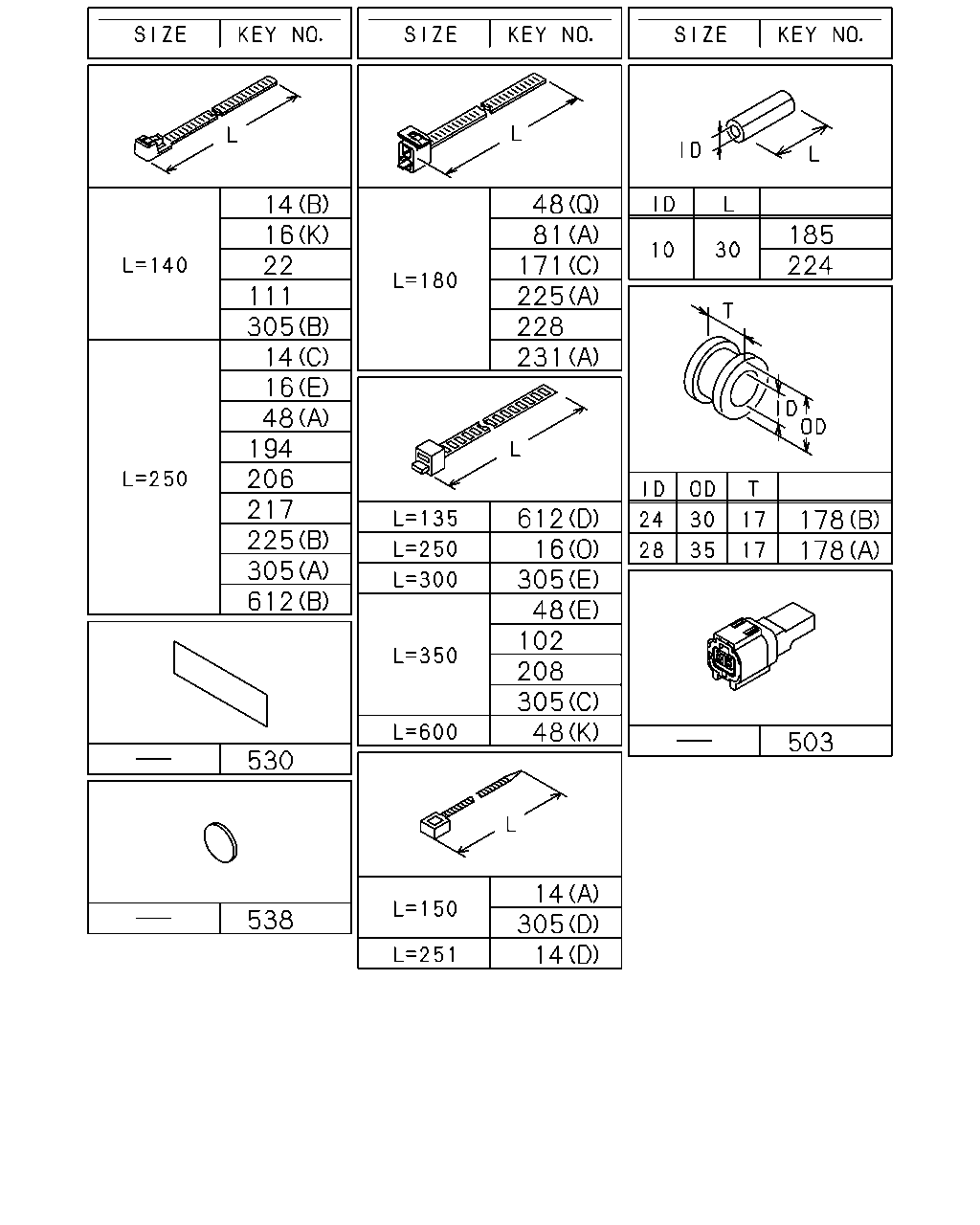

çizim 178108
14 16 22 111 305 14 16 48 194 206 217 225 305 612 48 81 171 225 228 231 185 224 612 16 305 48 102 208 305 48 178 178 503 530 14 305 14 538
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> (B) L=140 		5-09707-031-1 01 1 1008-1011 ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) L=140 		5-09707-031-1 01 1 1012-1311 ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) L=140 		5-09707-031-1 01 1 1312- ●
14 CLIP; BAND,HARNESS
GLOW SYSTEM DELETE<7RK> (B) L=140 		5-09707-031-1 01 1 1312- ●
14 CLIP; BAND,HARNESS
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) L=250 		5-09707-030-1 15 1 0801-0805 ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 0803-0808 ● ●
14 CLIP; BAND,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=140 		5-09707-031-1 02 1 0809-1107 ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1108- ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 02 1 0710- ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 03 1 0710-0711 ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 03 1 0712-0803 ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 03 1 0712-0803 ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 04 1 0804- ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 04 1 0804- ●
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 01 1 0710- ● ●
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 0710- ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 01 1 0710-0711 ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 04 1 0712-0803 ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 05 1 0804- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (I) ID=5-12 L=18 		1-09709-287-0 01 1 0809- ●
16 CLIP; HARNESS
(W) ID=25 L=55 		9-09917-573-0 01 1 0802-0811 ● ●
16 CLIP; HARNESS
(G) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(G) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0906 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0906 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0907- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0907- ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 02 1 0710-0911 ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 01 1 0912- ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		1-09700-734-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		1-09700-734-0 01 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (Q) ID=11X2 L=16 		1-09700-734-0 01 1 0712- ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710- ●
16 CLIP; HARNESS
(T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710-0711 ● ●
16 CLIP; HARNESS
(T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712- ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (X) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (X) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (X) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (X) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (X) L=40.6 		8-97229-357-0 02 1 1203- ●

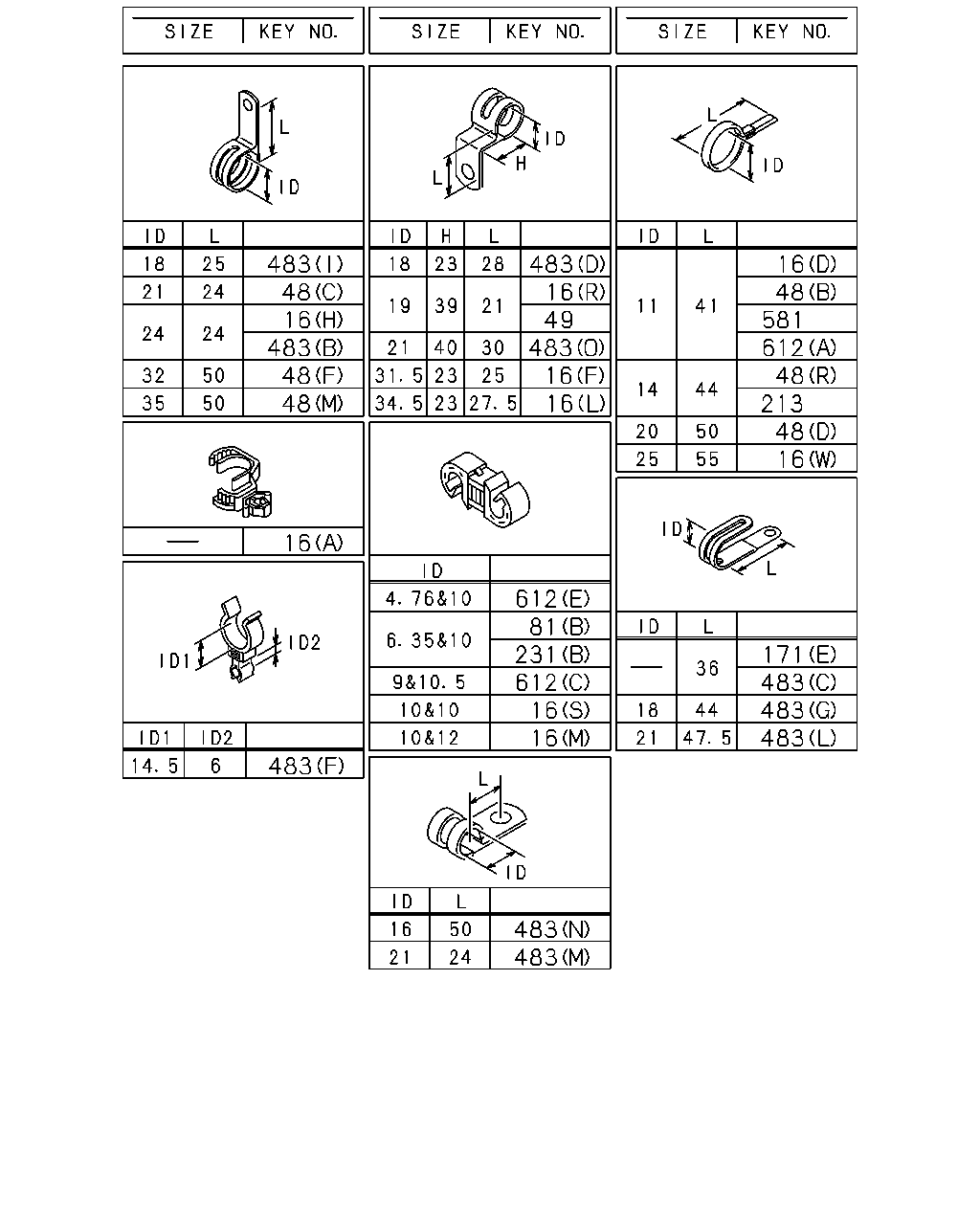

16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (X) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(U) L=36.5 		8-97019-892-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(U) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (U) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(R) ID=19 L=39 H=21 		1-09700-972-1 01 1 0710-0807 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0710-0801 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 01 1 0802-0808 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0809- ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 01 1 0710-0806 ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 0807- ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 03 1 0710-0911 ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 0710-0808 ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 0809-1011 ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=5-12 L=18 		1-09709-287-0 02 1 0809-1011 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (I) ID=5-12 L=18 		1-09709-287-0 02 1 1012- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I) ID=5-12 L=18 		1-09709-287-0 02 1 1012- ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0710-0808 ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0809- ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0809- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0710-0712 ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (V) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 03 1 0710-0803 ● ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 0804- ● ●
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 0907- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (R) ID=14 L=44 		9-09917-427-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (R) ID=14 L=44 		9-09917-427-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (R) ID=14 L=44 		9-09917-427-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1003- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (O) ID=18-24 L=22 		1-09709-295-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (P) ID=13-18 L=22 		1-09709-292-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) L=180 		1-09707-162-1 01 1 0806-0808 ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) L=180 		1-09707-162-1 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0806-0808 ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 13 1 0712-0804 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 12 1 0805-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (R) ID=14 L=44 		9-09917-427-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
EXC. ANTI LOCK BRAKE(JE5) (N) ID=5.5X2 L=35 		1-09700-974-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 14 1 0710-0804 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 13 1 0805-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 11 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=11 L=20 		0-95235-035-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
(C) ID=21 L=24 		8-94176-807-1 03 1 0710- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0710-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 06 1 0710-0808 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0809-0809 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 06 1 0809-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 06 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (R) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0906 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 10 1 0710-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 10 1 0809-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (R) ID=14 L=44 		9-09917-427-0 10 1 1008- ●
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=35 L=50 		1-09701-214-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 0710-0905 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=20 L=50 		9-09917-430-0 04 1 0710-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 07 1 0810-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (R) ID=14 L=44 		9-09917-427-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=20 L=50 		9-09917-430-0 05 1 0710-0809 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE(JE5) (B) ID=11 L=41 		1-09700-403-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE(JE5) (H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (A) L=250 		5-09707-030-1 02 1 0710-0906 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0710-0906 ● ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (A) L=250 		5-09707-030-1 02 1 0907-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0907-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (A) L=250 		5-09707-030-1 01 1 1003- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2> (A) L=250 		5-09707-030-1 01 1 1003- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50 		1-09701-055-1 01 1 0710- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 07 1 0710-0808 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=20 L=50 		9-09917-430-0 07 1 0809-0809 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 05 1 0810-1007 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 01 1 1008-1201 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (R) ID=14 L=44 		9-09917-427-0 01 1 1202- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0712-0901 ● ●
81 CLIP; HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0906 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0907- ● ●
81 CLIP; HARNESS
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0803-0906 ● ●
81 CLIP; HARNESS
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0907-1007 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 1008- ● ●
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 0710-0911 ● ●
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 03 1 0710-0807 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0806-0808 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0809- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0806-0808 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0806-0808 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0809- ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0710-0710 ● ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0711-0803 ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0804- ● ●
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 0710-0803 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1011 ● ●
171 CLIP; STARTER HARNESS
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1012-1102 ● ●
171 CLIP; STARTER HARNESS
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103- ● ●
178 GROMMET; HARNESS
EURO2 SPECIFICATION<NT2> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0809- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 0710- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0710-0711 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0712- ●
178 GROMMET; HARNESS
ANTI LOCK BRAKE(JE5) (B) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0712- ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0710- ● ●
185 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0710-0711 ● ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0710-0901 ●
194 CLIP; BAND
WHEEL BASE 5300MM(53W) L=250 		5-09707-030-1 02 1 0902- ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 01 1 0710-0810 ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 0811- ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0710-0810 ● ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0710- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0710- ● ●
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0710-0803 ● ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0710- ● ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 0710-0811 ● ●
228 CLIP; COOLER HARNESS
L=180 		1-09707-162-1 01 1 0710-0803 ● ●
231 CLIP; BAND,OIL PRESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0710-0711 ● ●
231 CLIP; BAND,OIL PRESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0710-0711 ● ●
305 CLIP; ENG HARNESS
(C) L=350 		8-94152-256-1 01 1 0712-0905 ● ●
305 CLIP; ENG HARNESS
(E) L=300 		1-09707-001-1 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(D) L=150 		8-97355-273-0 01 1 0712-0905 ● ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (A) L=250 		5-09707-030-1 01 1 0710-0803 ● ●
305 CLIP; ENG HARNESS
MZX6P M/T(RSW) (A) L=250 		5-09707-030-1 01 1 0804-0809 ● ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 01 1 0810-0906 ● ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 01 1 0907- ● ●
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 01 1 0710-0710 ● ●
305 CLIP; ENG HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=140 		5-09707-031-1 01 1 0711-0803 ● ●
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 01 1 0804-0905 ● ●
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 02 1 0906- ● ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82691-191-0 01 1 0710- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0710-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 15 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0710-1305 ● ●
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
O/SIDE MIRROR RR VIEW FLAT<YS1> 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 180X40 		1-72498-019-1 01 1 1306- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803-0808 ● ●
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0809- ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0809- ●
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0710-0804 ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-0808 ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0809- ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) ID=11 L=41 		1-09700-403-0 01 1 0809- ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0710-0808 ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0809- ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (D) L=135 		1-09987-143-1 01 1 0809- ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0710-0808 ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0809- ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) L=250 		5-09707-030-1 01 1 0809- ●
çizim 178111
524 219 294 515 525 219 294 524 47 84 184
BalonParca AdiParca NoAdetTipApplied Date A B
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
84 WASHER; LK BRKT,HARNESS
ID=14.2 		0-91510-814-0 02 1 0710-0906 ● ●
84 WASHER; LK BRKT,HARNESS
ID=14.2 		0-91510-814-0 02 1 0907- ●
84 WASHER; LK BRKT,HARNESS
ANTI LOCK BRAKE(JE5) ID=14.2 		0-91510-814-0 02 1 0907- ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0806- ● ●
219 NUT
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE 		0-91180-210-0 01 1 0806-0808 ● ●
219 NUT
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE 		0-91180-210-0 01 1 0809- ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710- ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
219 NUT
ANTI LOCK BRAKE(JE5) (A) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0902- ● ●
294 NUT
EURO2 SPECIFICATION<NT2> (B) M10 FLANGE 		0-91180-210-0 01 1 0809-1010 ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011-1011 ●
294 NUT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6SM/T(X7W) (B) M10 FLANGE 		0-91180-210-0 01 1 1011-1011 ●
294 NUT
EURO2 SPECIFICATION<NT2> (B) M10 FLANGE 		0-91180-210-0 01 1 1011-1011 ●
294 NUT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) (B) M10 FLANGE 		0-91180-210-0 01 1 1012- ●
294 NUT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6SM/T(X7W) (B) M10 FLANGE 		0-91180-210-0 01 1 1012- ●
294 NUT
EURO2 SPECIFICATION<NT2> (B) M10 FLANGE 		0-91180-210-0 01 1 1012- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0912 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0912 ●
294 NUT
ANTI LOCK BRAKE(JE5) (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0912 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1001- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0712-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0712-0901 ●
294 NUT
ANTI LOCK BRAKE(JE5) (A) M8 FLANGE 		0-91180-108-0 04 1 0712-0901 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0902- ●
294 NUT
ANTI LOCK BRAKE(JE5) (A) M8 FLANGE 		0-91180-108-0 04 1 0902- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0901 ●
294 NUT
ANTI LOCK BRAKE(JE5) (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0901 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902- ●
294 NUT
ANTI LOCK BRAKE(JE5) (A) M8 FLANGE 		0-91180-108-0 01 1 0902- ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 0710-1010 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1011- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
524 NUT; HARNESS
(A) M10 FLANGE 		0-91180-110-0 01 1 0809- ● ●
524 NUT; HARNESS
(B) M6 FLANGE 		0-91180-106-0 04 1 0710- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0804-1008 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ●
çizim 178119
150 150 150 139 150 150 38 304 150 139 304 139 150 38 38 93 313 38 19 139 313 150 139 313 139 38 139 313 150 377 38 386 127 139 38 386
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0807 ●
38 BOLT; CLIP,HARNESS
(F) M8X16 FLANGE 		8-98076-109-0 01 1 0710-0710 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0710-0711 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0712- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE(JE5) (C) M8X16 FLANGE 		0-28050-816-0 03 1 0712- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE(JE5) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0710- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
38 BOLT; CLIP,HARNESS
(E) M10X30 FLANGE 		0-28651-030-0 01 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0710-1201 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
127 SCREW; FACIA HARNESS CLIP
EXC. IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0712- ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0907- ●
139 BOLT; BRKT
ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0907- ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (H) M8X65 FLANGE 		1-09044-072-1 01 1 0809- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0710-0711 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0712- ●
139 BOLT; BRKT
ANTI LOCK BRAKE(JE5) (B) M8X30 FLANGE 		0-28650-830-0 04 1 0712- ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0710-0711 ● ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0712- ●
139 BOLT; BRKT
ANTI LOCK BRAKE(JE5) (D) M8X25 FLANGE 		0-28050-825-0 02 1 0712- ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0906 ●
139 BOLT; BRKT
ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0906 ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0802 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0710- ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 0710- ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 0710- ● ●
150 BOLT; CLIP
EURO2 SPECIFICATION<NT2> (F) M6X20 FLANGE 		0-28050-620-0 01 1 1005-1007 ●
150 BOLT; CLIP
EURO2 SPECIFICATION<NT2> (H) M6X12 FLANGE 		0-28050-612-0 02 1 1008-1011 ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) M6X12 FLANGE 		0-28050-612-0 02 1 1012-1312 ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) M6X12 FLANGE 		0-28050-612-0 04 1 1401- ●
150 BOLT; CLIP
4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> (F) M6X20 FLANGE 		0-28050-620-0 01 1 1012- ●
150 BOLT; CLIP
EURO2 SPECIFICATION<NT2> (E) M8X16 FLANGE 		0-28050-816-0 02 1 0809-1007 ●
150 BOLT; CLIP
EURO2 SPECIFICATION<NT2> (I) M8X25 FLANGE 		0-28650-825-0 01 1 1008-1011 ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (I) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
150 BOLT; CLIP
4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> (E) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
150 BOLT; CLIP
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0710-0803 ● ●
150 BOLT; CLIP
(F) M6X20 FLANGE 		0-28050-620-0 01 1 0710-1004 ● ●
150 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (F) M6X20 FLANGE 		0-28050-620-0 02 1 1005- ● ●
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ●
150 BOLT; CLIP
POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ●
150 BOLT; CLIP
(E) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0808 ● ●
150 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (E) M8X16 FLANGE 		0-28050-816-0 01 1 0809-1007 ● ●
150 BOLT; CLIP
(E) M8X16 FLANGE 		0-28050-816-0 01 1 1008-1011 ● ●
150 BOLT; CLIP
(E) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
150 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (E) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
150 BOLT; CLIP
(D) M8X14 FLANGE 		0-28080-814-0 01 1 0710-0803 ● ●
150 BOLT; CLIP
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0808 ● ●
150 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (A) M6X16 FLANGE 		0-28650-616-0 01 1 0809-1312 ● ●
150 BOLT; CLIP
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1401- ●
150 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (A) M6X16 FLANGE 		0-28650-616-0 01 1 1401- ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A) M6X16 FLANGE 		0-28650-616-0 01 1 1401- ●
150 BOLT; CLIP
(G) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0906 ● ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (G) M8X30 FLANGE 		0-28650-830-0 01 1 0907-1011 ● ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (G) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
150 BOLT; CLIP
(G) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
304 BOLT; ENG HARNESS CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0803 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M10X16 FLANGE 		0-28151-016-0 01 1 0710-0803 ● ●
313 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (D) M10X30 FLANGE 		0-28651-030-0 01 1 0809- ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0710- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
çizim 178135
7 53 53 53 59 69 53 53 53 59 59 59 59 69 59 59 59 69
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0710- ● ●
53 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (F) L=170 		1-47479-380-0 01 1 0809- ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		8-98084-590-0 01 1 0801- ● ●
53 BRACKET; HARNESS
EXC. IMMOBILIZER SYSTEM<7KC> (D) 		8-98074-502-0 01 1 0712-0807 ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 0710- ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 0710- ●
53 BRACKET; HARNESS
(B) L=95 		1-82699-085-0 01 1 0710- ●
53 BRACKET; HARNESS
(C) 		8-98052-458-0 01 1 0710- ● ●
59 BRACKET; FRAME HARNESS
EXC. CATALYSIS CONTROL WITH DPD<8JM> (G) 		8-97622-828-0 01 1 1402- ●
59 BRACKET; FRAME HARNESS
(A) L=55 		1-47475-304-0 01 1 0710-0912 ● ●
59 BRACKET; FRAME HARNESS
(F) L=85 		8-98044-743-0 01 1 1001- ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 0710-0802 ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-98099-963-0 01 1 0803- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97616-305-0 01 1 0710-1502 ● ●
59 BRACKET; FRAME HARNESS
(H) 		8-98254-592-0 01 1 1503- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97619-533-0 01 1 0710- ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-97619-535-0 01 1 0710-1401 ● ●
59 BRACKET; FRAME HARNESS
4HK1-TCS ENG(RJS) (E) 		8-97619-535-0 01 1 1402- ●
59 BRACKET; FRAME HARNESS
CATALYSIS CONTROL WITH DPD<8JM> (E) 		8-97619-535-0 01 1 1402- ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=55 		1-47475-304-0 01 1 0803-0803 ● ●
69 BRACKET; CLIP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		1-82698-167-0 01 1 0804-0906 ● ●
69 BRACKET; CLIP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		1-82698-167-0 01 1 0907-1011 ● ●
69 BRACKET; CLIP
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		1-82698-167-0 01 1 1012- ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		1-82698-167-0 01 1 1012- ●
69 BRACKET; CLIP
(B) 		8-97614-738-0 01 1 0710- ● ●
çizim 178138
483 48 16 483 48 48 483 16 49 483 16 16 16 48 581 612 48 213 48 16 16 612 81 231 612 16 16 171 483 483 483 483 483 483
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) EURO2 SPECIFICATION<NT2> (I) ID=5-12 L=18 		1-09709-287-0 01 1 0809- ●
16 CLIP; HARNESS
(W) ID=25 L=55 		9-09917-573-0 01 1 0802-0811 ● ●
16 CLIP; HARNESS
(G) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(G) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0906 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0906 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0907- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0907- ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 02 1 0710-0911 ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 01 1 0912- ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		1-09700-734-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		1-09700-734-0 01 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (Q) ID=11X2 L=16 		1-09700-734-0 01 1 0712- ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710- ●
16 CLIP; HARNESS
(T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710-0711 ● ●
16 CLIP; HARNESS
(T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712- ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (X) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (X) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (X) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (X) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (X) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (X) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(U) L=36.5 		8-97019-892-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(U) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (U) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(R) ID=19 L=39 H=21 		1-09700-972-1 01 1 0710-0807 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0710-0801 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 01 1 0802-0808 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0809- ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 01 1 0710-0806 ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 0807- ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 03 1 0710-0911 ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 0710-0808 ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 0809-1011 ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=5-12 L=18 		1-09709-287-0 02 1 0809-1011 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (I) ID=5-12 L=18 		1-09709-287-0 02 1 1012- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I) ID=5-12 L=18 		1-09709-287-0 02 1 1012- ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0710-0808 ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0809- ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0809- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0710-0712 ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (V) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 0907- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (R) ID=14 L=44 		9-09917-427-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (R) ID=14 L=44 		9-09917-427-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (R) ID=14 L=44 		9-09917-427-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1003- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (O) ID=18-24 L=22 		1-09709-295-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (P) ID=13-18 L=22 		1-09709-292-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) L=180 		1-09707-162-1 01 1 0806-0808 ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) L=180 		1-09707-162-1 01 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0806-0808 ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0809-0809 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 13 1 0712-0804 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 12 1 0805-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (R) ID=14 L=44 		9-09917-427-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
EXC. ANTI LOCK BRAKE(JE5) (N) ID=5.5X2 L=35 		1-09700-974-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 14 1 0710-0804 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 13 1 0805-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 11 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=11 L=20 		0-95235-035-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
(C) ID=21 L=24 		8-94176-807-1 03 1 0710- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0710-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 06 1 0710-0808 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0809-0809 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 06 1 0809-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 06 1 0809-0809 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (R) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0906 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 10 1 0710-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 10 1 0809-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (R) ID=14 L=44 		9-09917-427-0 10 1 1008- ●
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=35 L=50 		1-09701-214-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 0710-0905 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=20 L=50 		9-09917-430-0 04 1 0710-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 07 1 0810-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (R) ID=14 L=44 		9-09917-427-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=20 L=50 		9-09917-430-0 05 1 0710-0809 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE(JE5) (B) ID=11 L=41 		1-09700-403-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE(JE5) (H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (A) L=250 		5-09707-030-1 02 1 0710-0906 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0710-0906 ● ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (A) L=250 		5-09707-030-1 02 1 0907-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0907-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (A) L=250 		5-09707-030-1 01 1 1003- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2> (A) L=250 		5-09707-030-1 01 1 1003- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50 		1-09701-055-1 01 1 0710- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 07 1 0710-0808 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=20 L=50 		9-09917-430-0 07 1 0809-0809 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 05 1 0810-1007 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 01 1 1008-1201 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (R) ID=14 L=44 		9-09917-427-0 01 1 1202- ●
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 0808- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0712-0901 ● ●
81 CLIP; HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0906 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0907- ● ●
81 CLIP; HARNESS
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0803-0906 ● ●
81 CLIP; HARNESS
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0907-1007 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 1008- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0806-0808 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0809- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0806-0808 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0809- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0806-0808 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0809- ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0710-0710 ● ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0711-0803 ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0804- ● ●
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 0710-0803 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1011 ● ●
171 CLIP; STARTER HARNESS
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1012-1102 ● ●
171 CLIP; STARTER HARNESS
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103- ● ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0710- ● ●
231 CLIP; BAND,OIL PRESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0710-0711 ● ●
231 CLIP; BAND,OIL PRESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0710-0711 ● ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) ID=12 B=13 ID=6.5 		5-09700-348-0 02 1 1401- ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=18 H=23 L=28 		1-09700-860-0 02 1 1201-1210 ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=21 L=24 		8-98019-191-0 01 1 1211- ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (N) ID=16 L=50 		1-09701-158-0 01 1 1008-1011 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (N) ID=16 L=50 		1-09701-158-0 01 1 1012- ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (M) ID=21 L=24 		1-09701-201-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 03 1 0809-1007 ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (O) ID=21 L=30 H=40 		1-09700-991-1 01 1 1008-1011 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (O) ID=21 L=30 H=40 		1-09700-991-1 01 1 1012- ●
483 CLIP; ENG HARNESS
4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 03 1 1012- ●
483 CLIP; ENG HARNESS
(J) 		1-09701-124-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(K) 		1-09987-281-0 01 1 0712-0808 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (K) 		1-09987-281-0 01 1 0809- ● ●
483 CLIP; ENG HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0808 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (L) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 0712-1007 ●
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 02 1 1008-1011 ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 1008-1011 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C) L=36 		8-94224-891-1 02 1 1012- ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 1012- ●
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0710-1112 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1201-1210 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1211- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(I) ID=18 L=25 		8-94121-004-1 01 1 0710-0808 ● ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=18 L=25 		8-94121-004-1 01 1 0809- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0710-0711 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0710-0711 ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0712-0808 ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0712-0808 ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0809- ●
483 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0809- ●
483 CLIP; ENG HARNESS
(F) ID=14.5 & 6 		8-94312-791-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-94225-185-0 02 1 0710-0801 ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-97367-985-1 02 1 0802- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (H) 		8-97101-436-0 01 1 0710- ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 0710- ●
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803-0808 ● ●
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0809- ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0809- ●
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0710-0804 ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-0808 ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0809- ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) ID=11 L=41 		1-09700-403-0 01 1 0809- ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0710-0808 ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0809- ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (D) L=135 		1-09987-143-1 01 1 0809- ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0710-0808 ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0809- ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) L=250 		5-09707-030-1 01 1 0809- ●
çizim 468068
137 137 137 137 137 312 312 312 428 428 335 324 504
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 0710-0711 ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE(JE5) (A) 		8-98065-904-0 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
(C) 		8-98058-354-1 01 1 0710-0711 ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-98058-354-1 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE(JE5) (C) 		8-98058-354-1 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97618-098-2 01 1 0710-0711 ● ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97618-098-2 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE(JE5) (D) 		8-97618-098-2 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97614-688-1 01 1 0710-0712 ● ●
137 BRACKET; HARNESS CLAMP
(E) 		8-97624-016-0 01 1 0801- ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-98092-257-0 01 1 0710-0710 ● ●
312 BRACKET; CLIP HARNESS
(C) 		8-98094-804-0 01 1 0711-0808 ● ●
312 BRACKET; CLIP HARNESS
EURO4 SPECIFICATION<NT4> (C) 		8-98094-804-0 01 1 0809- ● ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0710- ● ●
324 BRACKET; CLIP 8-98061-654-2 01 1 0710-0711 ● ●
324 BRACKET; CLIP 8-98061-654-2 01 1 0712- ●
324 BRACKET; CLIP
ANTI LOCK BRAKE(JE5) 		8-98061-654-2 01 1 0712- ●
324 BRACKET; CLIP 8-98061-653-2 01 1 0710-0711 ● ●
324 BRACKET; CLIP 8-98061-653-2 01 1 0712- ●
324 BRACKET; CLIP
ANTI LOCK BRAKE(JE5) 		8-98061-653-2 01 1 0712- ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0710- ● ●
428 BRACKET
(A) 		8-98090-951-0 01 1 0710-0806 ● ●
428 BRACKET
(B) 		8-98116-461-0 01 1 0807- ● ●
504 PROTECTOR; HARNESS 8-98042-155-0 01 1 0710-0807 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
