8-08 — HEAD LAMP WASHER (#39949) — 95 parça

7 17 5 17 17 7 9 17 17 9 7 17 17 5 17 7 7 63 17 17 7 17 7 63 9 9 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	VALVE; CHECK,HLC HOSE HEAD LAMP WASHER<CE4>	8-98071-475-0	02	1	0710-1003
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (A)	8-98071-485-0	01	1	0710-0906
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (A)	8-98071-485-0	01	1	0907-1003
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (G)	8-98071-486-0	01	1	0710-0906
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (G)	8-98071-486-0	01	1	0907-1003
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (F)	8-98071-487-0	01	1	0710-0906
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (F)	8-98071-487-0	01	1	0907-1003
7	HOSE; HLC HEAD LAMP WASHER<CE4> (E)	8-98071-481-0	01	1	0710-1003
7	HOSE; HLC HEAD LAMP WASHER<CE4> (C)	8-98071-482-0	01	1	0710-1003
7	HOSE; HLC HEAD LAMP WASHER<CE4> (D)	8-98071-483-0	02	1	0710-1003
7	HOSE; HLC HEAD LAMP WASHER<CE4> (B)	8-98073-183-0	01	1	0710-1003
9	JOINT; HLC HOSE HEAD LAMP WASHER<CE4> (A)	8-98071-473-0	01	1	0710-1003
9	JOINT; HLC HOSE HEAD LAMP WASHER<CE4> (B)	8-98071-474-0	01	1	0710-0906
9	JOINT; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (B)	8-98071-474-0	01	1	0710-0906
9	JOINT; HLC HOSE HEAD LAMP WASHER<CE4> (B)	8-98071-474-0	01	1	0907-1003
9	JOINT; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (B)	8-98071-474-0	01	1	0907-1003
9	JOINT; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (C)	8-98071-484-0	01	1	0710-0906
9	JOINT; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (C)	8-98071-484-0	01	1	0907-1003
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (B) ID=14	1-09700-057-1	02	1	0710-0906
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (B) ID=14	1-09700-057-1	02	1	0907-1003
17	CLIP; HLC HOSE HEAD LAMP WASHER<CE4> (B) ID=14	1-09700-057-1	06	1	0710-1003
17	CLIP; HLC HOSE HEAD LAMP WASHER<CE4> (D) ID=6.35 & 10.0	1-09709-274-1	01	1	0710-1003
17	CLIP; HLC HOSE HEAD LAMP WASHER<CE4> (E) ID=30	8-94315-423-0	01	1	0710-1003
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (A) ID=37	8-94481-468-0	01	1	0710-0906
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (A) ID=37	8-94481-468-0	01	1	0907-1003
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (F)	8-98071-476-0	03	1	0710-0906
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (F)	8-98071-476-0	03	1	0907-1003
17	CLIP; HLC HOSE HEAD LAMP WASHER<CE4> (F)	8-98071-476-0	06	1	0710-1003
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (C)	8-98071-477-0	01	1	0710-0906
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (C)	8-98071-477-0	01	1	0907-1003
17	CLIP; HLC HOSE HEAD LAMP WASHER<CE4> (C)	8-98071-477-0	02	1	0710-1003
63	CORRUGATE; TUBE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (A)	8-98071-488-0	01	1	0710-0906
63	CORRUGATE; TUBE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (A)	8-98071-488-0	01	1	0907-1003
63	CORRUGATE; TUBE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (B)	8-98071-489-0	01	1	0710-0906
63	CORRUGATE; TUBE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (B)	8-98071-489-0	01	1	0907-1003

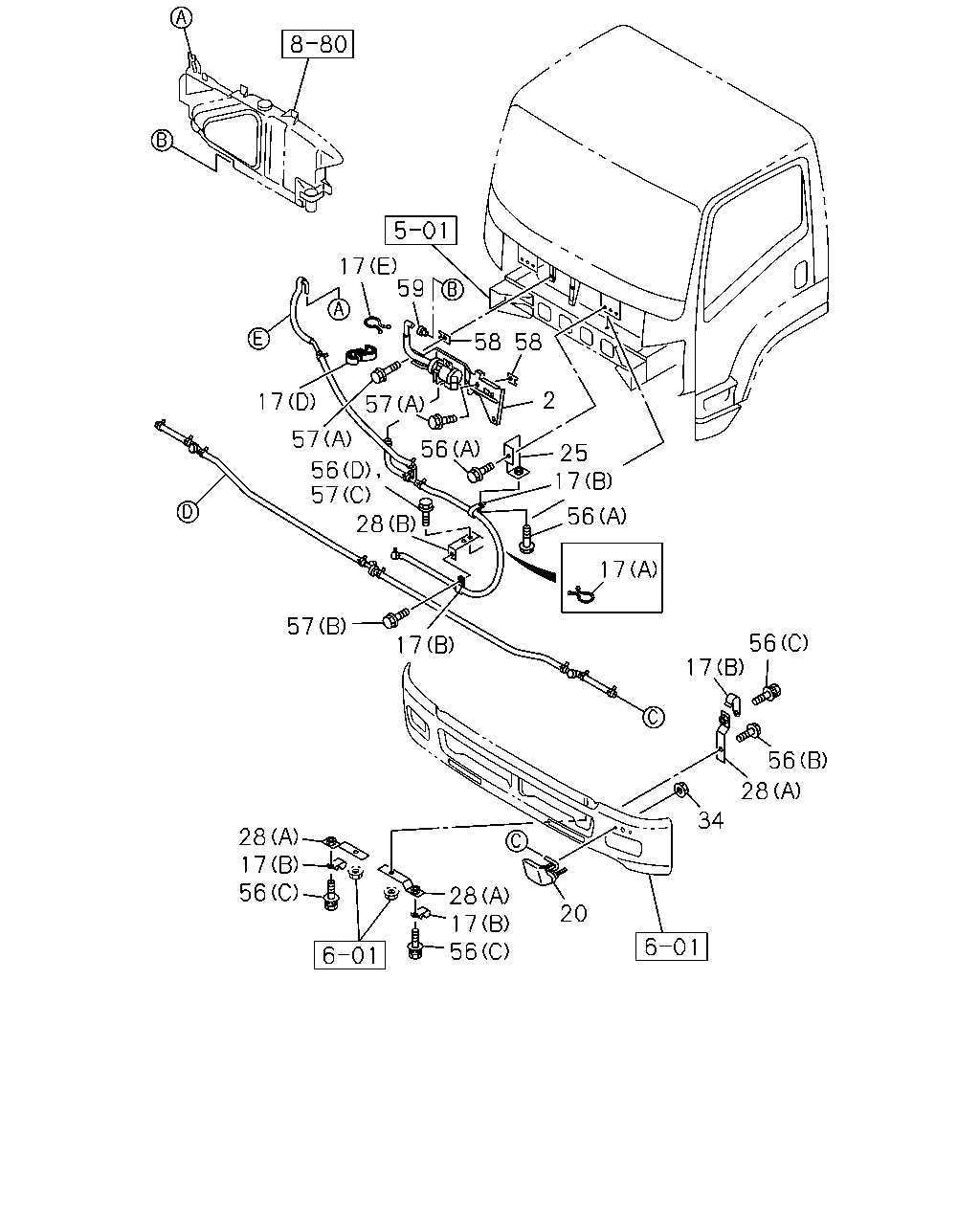

17 59 58 58 2 17 7 57 56 25 17 56 57 28 56 17 57 56 17 17 56 28 34 28 17 56 28 17 56 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PUMP ASM; HEADLAMP CLEANER HEAD LAMP WASHER<CE4>	8-98041-459-1	01	1	0710-1003
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (A)	8-98071-485-0	01	1	0710-0906
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (A)	8-98071-485-0	01	1	0907-1003
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (G)	8-98071-486-0	01	1	0710-0906
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (G)	8-98071-486-0	01	1	0907-1003
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (F)	8-98071-487-0	01	1	0710-0906
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (F)	8-98071-487-0	01	1	0907-1003
7	HOSE; HLC HEAD LAMP WASHER<CE4> (E)	8-98071-481-0	01	1	0710-1003
7	HOSE; HLC HEAD LAMP WASHER<CE4> (C)	8-98071-482-0	01	1	0710-1003
7	HOSE; HLC HEAD LAMP WASHER<CE4> (D)	8-98071-483-0	02	1	0710-1003
7	HOSE; HLC HEAD LAMP WASHER<CE4> (B)	8-98073-183-0	01	1	0710-1003
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (B) ID=14	1-09700-057-1	02	1	0710-0906
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (B) ID=14	1-09700-057-1	02	1	0907-1003
17	CLIP; HLC HOSE HEAD LAMP WASHER<CE4> (B) ID=14	1-09700-057-1	06	1	0710-1003
17	CLIP; HLC HOSE HEAD LAMP WASHER<CE4> (D) ID=6.35 & 10.0	1-09709-274-1	01	1	0710-1003
17	CLIP; HLC HOSE HEAD LAMP WASHER<CE4> (E) ID=30	8-94315-423-0	01	1	0710-1003
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (A) ID=37	8-94481-468-0	01	1	0710-0906
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (A) ID=37	8-94481-468-0	01	1	0907-1003
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (F)	8-98071-476-0	03	1	0710-0906
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (F)	8-98071-476-0	03	1	0907-1003
17	CLIP; HLC HOSE HEAD LAMP WASHER<CE4> (F)	8-98071-476-0	06	1	0710-1003
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (C)	8-98071-477-0	01	1	0710-0906
17	CLIP; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (C)	8-98071-477-0	01	1	0907-1003
17	CLIP; HLC HOSE HEAD LAMP WASHER<CE4> (C)	8-98071-477-0	02	1	0710-1003
20	NOZZLE; HEADLAMP CLEANER HEAD LAMP WASHER<CE4>	8-98041-461-0	02	1	0710-1003
25	BRACKET; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4>	8-98041-462-1	01	1	0710-0906
25	BRACKET; HLC HOSE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4>	8-98041-462-1	01	1	0907-1003
28	BRACKET; NOZZLE HEAD LAMP WASHER<CE4> (A)	8-98041-463-1	06	1	0710-1003
28	BRACKET; NOZZLE 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (B)	8-98049-547-0	01	1	0710-0710
34	NUT; NOZZLE HEAD LAMP WASHER<CE4> M6 FLANGE	0-91180-106-0	04	1	0710-1003
56	BOLT; CLIP 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (D) M8X20 W/LK&PL WASHER	0-50640-820-0	01	1	0710-0906
56	BOLT; CLIP 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (D) M8X20 W/LK&PL WASHER	0-50640-820-0	01	1	0907-1003
56	BOLT; CLIP 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-0906
56	BOLT; CLIP 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (B) M8X20 FLANGE	0-28650-820-0	02	1	0907-1003
56	BOLT; CLIP HEAD LAMP WASHER<CE4> (A) M6X20 W/LK&PL WASHER	0-50640-620-0	02	1	0710-1003
56	BOLT; CLIP HEAD LAMP WASHER<CE4> (C) M8X16 W/LK WASHER	0-50740-816-0	06	1	0710-1003
57	BOLT; HEAD LAMP WASHER HEAD LAMP WASHER<CE4> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-1003
57	BOLT; HEAD LAMP WASHER 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (C) M8X20 W/LK&PL WASHER	0-50640-820-0	01	1	0710-0710
57	BOLT; HEAD LAMP WASHER 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (B) M8X16 W/LK WASHER	0-50740-816-0	01	1	0710-0906
57	BOLT; HEAD LAMP WASHER 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (B) M8X16 W/LK WASHER	0-50740-816-0	01	1	0907-1003
58	NUT; HEAD LAMP WASHER HEAD LAMP WASHER<CE4> M8	8-98041-929-0	02	1	0710-1003
59	RUBBER; BOOT,HLC HOSE HEAD LAMP WASHER<CE4>	8-98065-994-0	01	1	0710-1003

2 61 22 60 16 7 22 15 3 15 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PUMP ASM; HEADLAMP CLEANER HEAD LAMP WASHER<CE4>	8-98041-459-1	01	1	0710-1003
3	PUMP; WASHER TANK HEAD LAMP WASHER<CE4>	8-98073-188-0	01	1	0710-1003
6	BRACKET; HEADLAMP CLEANER PUMP HEAD LAMP WASHER<CE4>	8-98073-189-0	01	1	0710-1003
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (A)	8-98071-485-0	01	1	0710-0906
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (A)	8-98071-485-0	01	1	0907-1003
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (G)	8-98071-486-0	01	1	0710-0906
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (G)	8-98071-486-0	01	1	0907-1003
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (F)	8-98071-487-0	01	1	0710-0906
7	HOSE; HLC 4HK1-TCS ENG(RJS) HEAD LAMP WASHER<CE4> (F)	8-98071-487-0	01	1	0907-1003
7	HOSE; HLC HEAD LAMP WASHER<CE4> (E)	8-98071-481-0	01	1	0710-1003
7	HOSE; HLC HEAD LAMP WASHER<CE4> (C)	8-98071-482-0	01	1	0710-1003
7	HOSE; HLC HEAD LAMP WASHER<CE4> (D)	8-98071-483-0	02	1	0710-1003
7	HOSE; HLC HEAD LAMP WASHER<CE4> (B)	8-98073-183-0	01	1	0710-1003
15	BOLT; PUMP BRKT HEAD LAMP WASHER<CE4>	8-98073-207-0	03	1	0710-1003
16	NUT; PUMP BRKT HEAD LAMP WASHER<CE4>	8-98073-213-0	01	1	0710-1003
22	CLIP; BAND,HEADLAMP CLEANER HOSE HEAD LAMP WASHER<CE4>	8-98071-476-0	02	1	0710-1003
60	RELAY; CONTROL HEAD LAMP WASHER<CE4>	8-98073-187-0	01	1	0710-1003
61	JOINT; HOSE HEAD LAMP WASHER<CE4>	8-98073-184-0	01	1	0710-1003
