Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#39943) — 760 parça

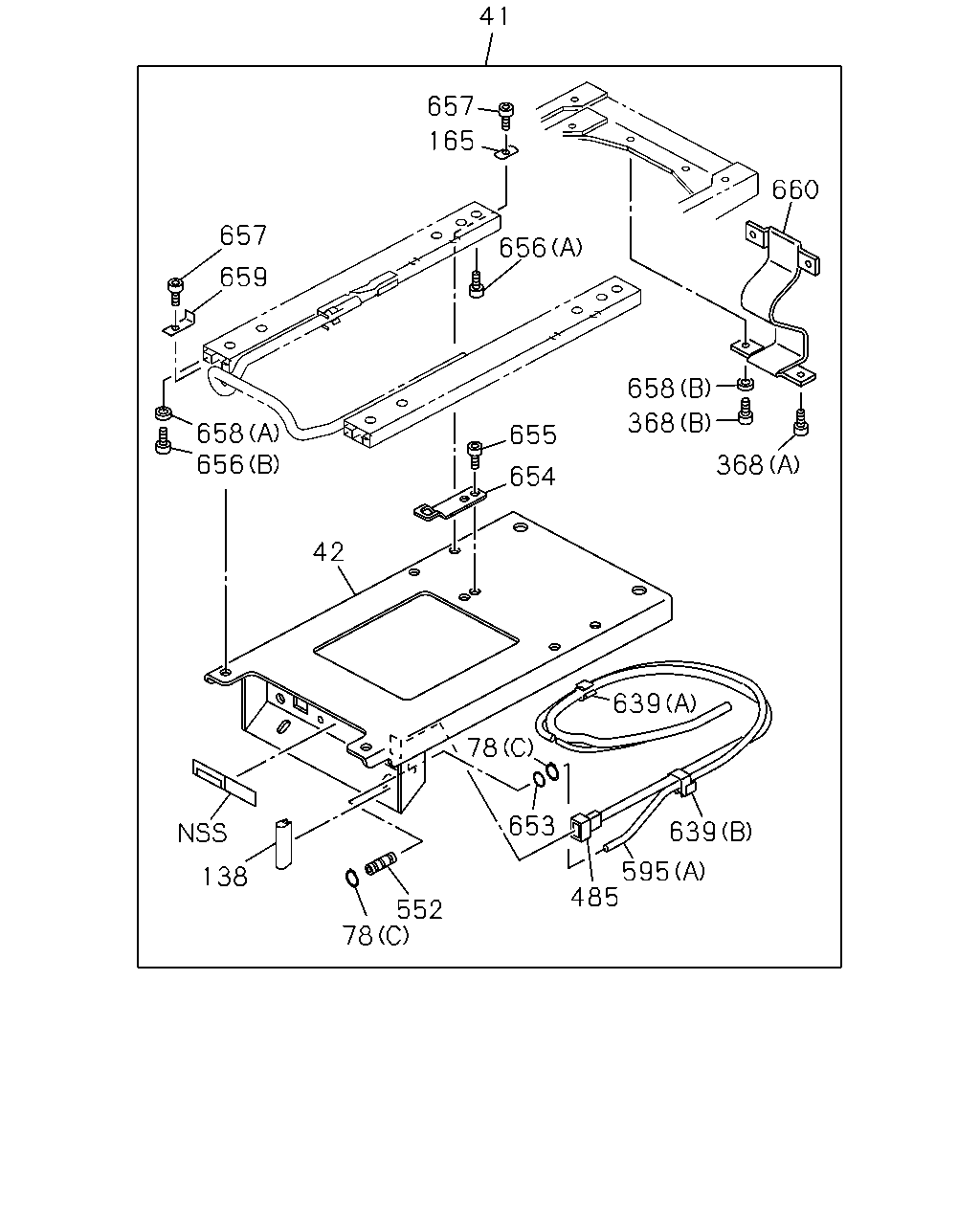

41 657 660 165 659 657 656 658 368 368 655 654 656 658 42 78 639 639 595 485 653 552 78 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0907-1212	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0907-1212		●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-		●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0907-1212	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0907-1212		●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-		●
42	STAND; DRIVER SEAT	8-98106-346-0	01	1	0907-	●
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-346-0	01	1	0907-		●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	0712-		●
78	RING; SNAP (C)	8-98101-900-0	02	1	0907-	●
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98101-900-0	02	1	0907-		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0712-		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0712-		●
138	PROTECTOR; SEAT STAND	8-98106-351-0	01	1	0907-	●
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-351-0	01	1	0907-		●
165	WASHER; PL	1-75590-086-0	04	1	0907-	●
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	1-75590-086-0	04	1	0907-		●
368	BOLT; SEAT (A)	8-98106-353-0	03	1	0907-	●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-353-0	03	1	0907-		●
368	BOLT; SEAT (B)	8-98106-358-0	01	1	0907-	●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-358-0	01	1	0907-		●
485	HARNESS; FRT SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-360-0	01	1	0907-	●
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-360-0	01	1	0907-		●
485	HARNESS; FRT SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-361-0	01	1	0907-	●
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-361-0	01	1	0907-		●
552	CONNECTOR	8-98101-902-0	01	1	0907-	●
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98101-902-0	01	1	0907-		●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	0907-	●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-348-0	01	1	0907-		●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	0710-0711	●	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	0712-	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B)	8-98067-762-0	01	1	0712-		●
639	CLIP; SEAT (A)	8-98106-349-0	01	1	0907-	●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-349-0	01	1	0907-		●
639	CLIP; SEAT (B)	8-98106-350-0	01	1	0907-	●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-350-0	01	1	0907-		●
653	GASKET	8-98101-901-0	01	1	0907-	●
653	GASKET DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98101-901-0	01	1	0907-		●
654	HOOK; STOPPER	8-98106-352-0	01	1	0907-	●
654	HOOK; STOPPER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-352-0	01	1	0907-		●
655	BOLT; HOOK	8-98106-353-0	02	1	0907-	●
655	BOLT; HOOK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-353-0	02	1	0907-		●
656	BOLT; SLIDER TO SEAT (A)	1-75590-085-0	04	1	0907-	●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	1-75590-085-0	04	1	0907-		●
656	BOLT; SLIDER TO SEAT (B)	8-98106-354-0	02	1	0907-	●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-354-0	02	1	0907-		●
657	BOLT; SLIDER TO STAND	1-75590-085-0	06	1	0907-	●
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	1-75590-085-0	06	1	0907-		●
658	SPACER; BOLT (A)	8-98106-355-0	02	1	0907-	●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-355-0	02	1	0907-		●
658	SPACER; BOLT (B)	8-98106-359-0	01	1	0907-	●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-359-0	01	1	0907-		●
659	STOPPER	8-98106-356-0	02	1	0907-	●
659	STOPPER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-356-0	02	1	0907-		●
660	BELT; TETHER	8-98106-357-0	01	1	0907-	●
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-357-0	01	1	0907-		●

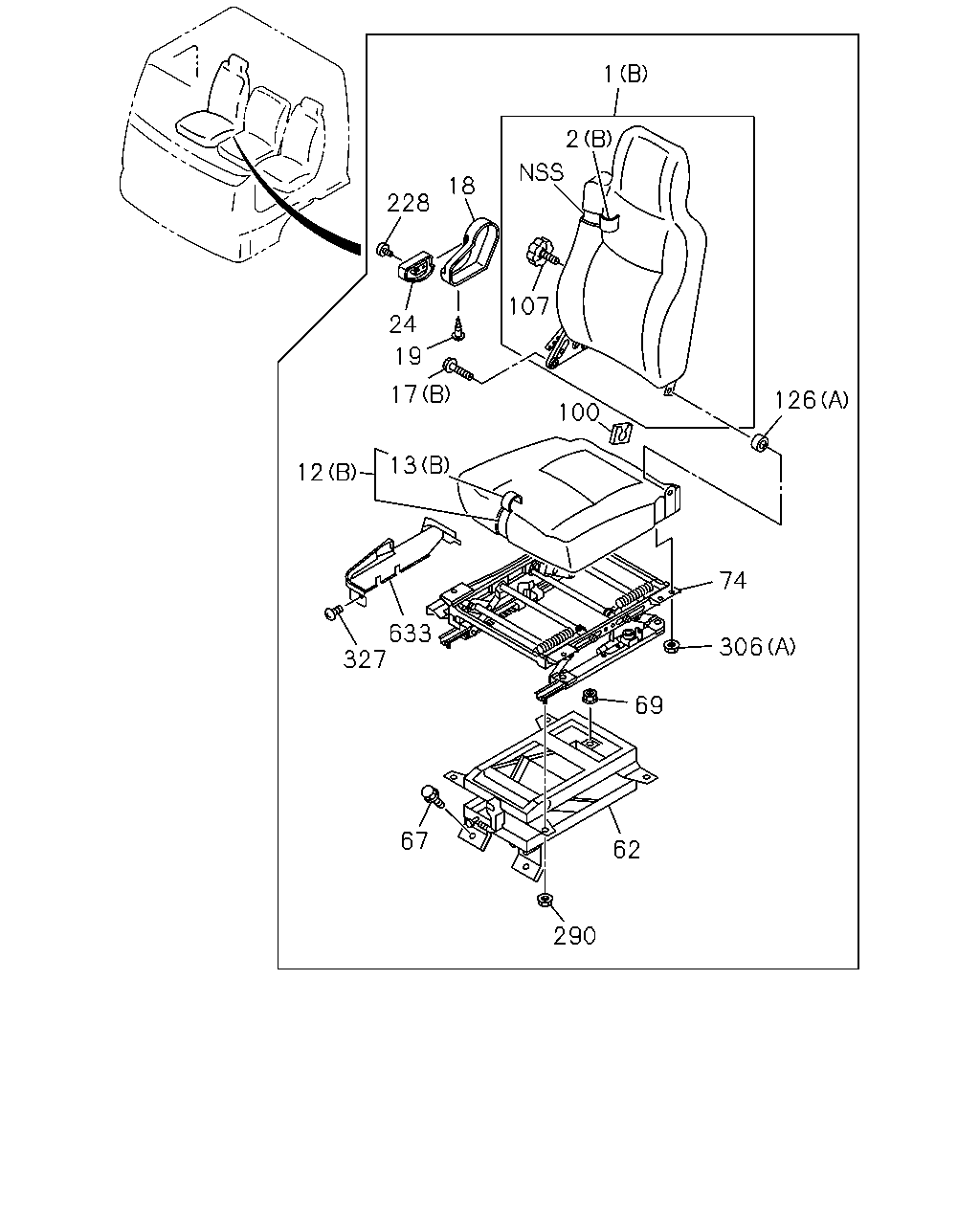

126 1 2 107 100 74 306 69 62 290 67 327 12 13 633 17 19 24 228 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-201-0	01	1	1001-1009		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1010-		●
1	BACK ASM; SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0710-0711	●	●
1	BACK ASM; SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0712-	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0712-		●
1	BACK ASM; SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0710-0711	●	●
1	BACK ASM; SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0712-	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0712-		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-112-2	01	1	0712-0902		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-202-0	01	1	0903-1009		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-407-1	01	1	1010-		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-3	01	1	0712-0906		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97409-955-5	01	1	0907-		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-206-0	01	1	1001-1009		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1010-		●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98097-966-0	01	1	0710-0711	●	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98097-966-0	01	1	0712-1212	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-966-0	01	1	0712-1212		●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98232-353-0	01	1	1301-	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98232-353-0	01	1	1301-		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-113-1	01	1	0712-0902		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-207-0	01	1	0903-1009		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-412-0	01	1	1010-		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-1	01	1	0712-0906		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97411-910-2	01	1	0907-		●
12	CUSHION; SEAT,FRT (A)	8-98098-006-0	01	1	0710-0711	●	●
12	CUSHION; SEAT,FRT (A)	8-98098-006-0	01	1	0712-	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-006-0	01	1	0712-		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> (B) DARK GRAY	8-97414-120-0	01	1	0712-0902		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-212-1	01	1	0903-0912		●
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE(PR2) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-212-1	01	1	1001-1009		●
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE(PR2) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1010-		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97409-958-0	01	1	0712-0902		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97416-211-1	01	1	0903-0912		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97416-211-1	01	1	1001-1009		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97421-397-2	01	1	1010-		●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE(PR2) RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	0712-		●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97409-954-2	01	1	0712-		●
13	COVER; TRIM,FRT SEAT,CUSHION (A)	8-98098-007-0	01	1	0710-0711	●	●
13	COVER; TRIM,FRT SEAT,CUSHION (A)	8-98098-007-0	01	1	0712-	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-007-0	01	1	0712-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> (B) DARK GRAY	8-97414-121-0	01	1	0712-0902		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-216-0	01	1	0903-0912		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVING POSITION WIDE LEG SPACE(PR2) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-216-0	01	1	1001-1009		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVING POSITION WIDE LEG SPACE(PR2) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1010-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97414-111-0	01	1	0712-0902		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97416-215-0	01	1	0903-0912		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97416-215-0	01	1	1001-1009		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97421-401-2	01	1	1010-		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-0	01	1	0712-0906		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97411-909-1	01	1	0907-		●
17	BOLT; RECLINING (C)	8-98097-974-0	02	1	0907-	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	0907-		●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	0712-		●
17	BOLT; RECLINING SEAT CLOTH<7FL> (A) M8X20	8-98092-334-0	02	1	0710-0711	●	●
17	BOLT; RECLINING SEAT CLOTH<7FL> (A) M8X20	8-98092-334-0	02	1	0712-0912	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0712-0912		●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1001-	●	●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	0712-		●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	0712-		●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	0712-		●

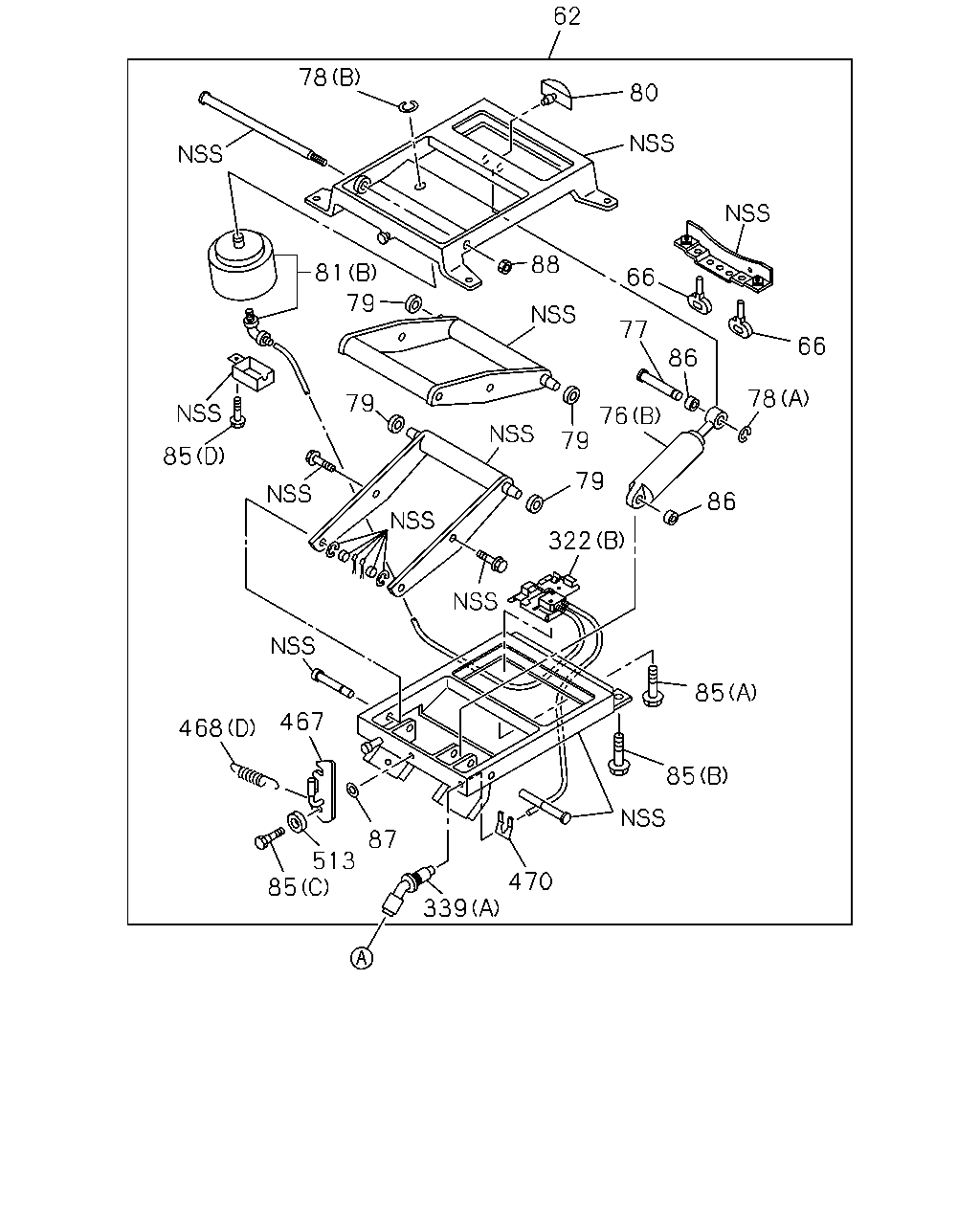

62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-183-8	01	1	0712-1403		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1404-		●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0710-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98003-678-0	01	1	0712-1502		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1503-		●
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1110-		●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	0712-		●
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1105-1109		●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	0712-		●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	8-97854-900-0	01	1	0710-0711	●	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	8-97854-900-0	01	1	0712-0912	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0712-0912		●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1001-1104	●	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1105-1109	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	8-97854-900-0	01	1	1105-1109		●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1110-	●	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	0712-		●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	0712-		●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0712-		●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0712-		●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
327	CLIP; COVER	8-98098-004-0	01	1	0710-0711	●	●
327	CLIP; COVER	8-98098-004-0	01	1	0712-	●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-004-0	01	1	0712-		●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-09987-273-0	01	1	0712-		●
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-956-0	01	1	0712-		●

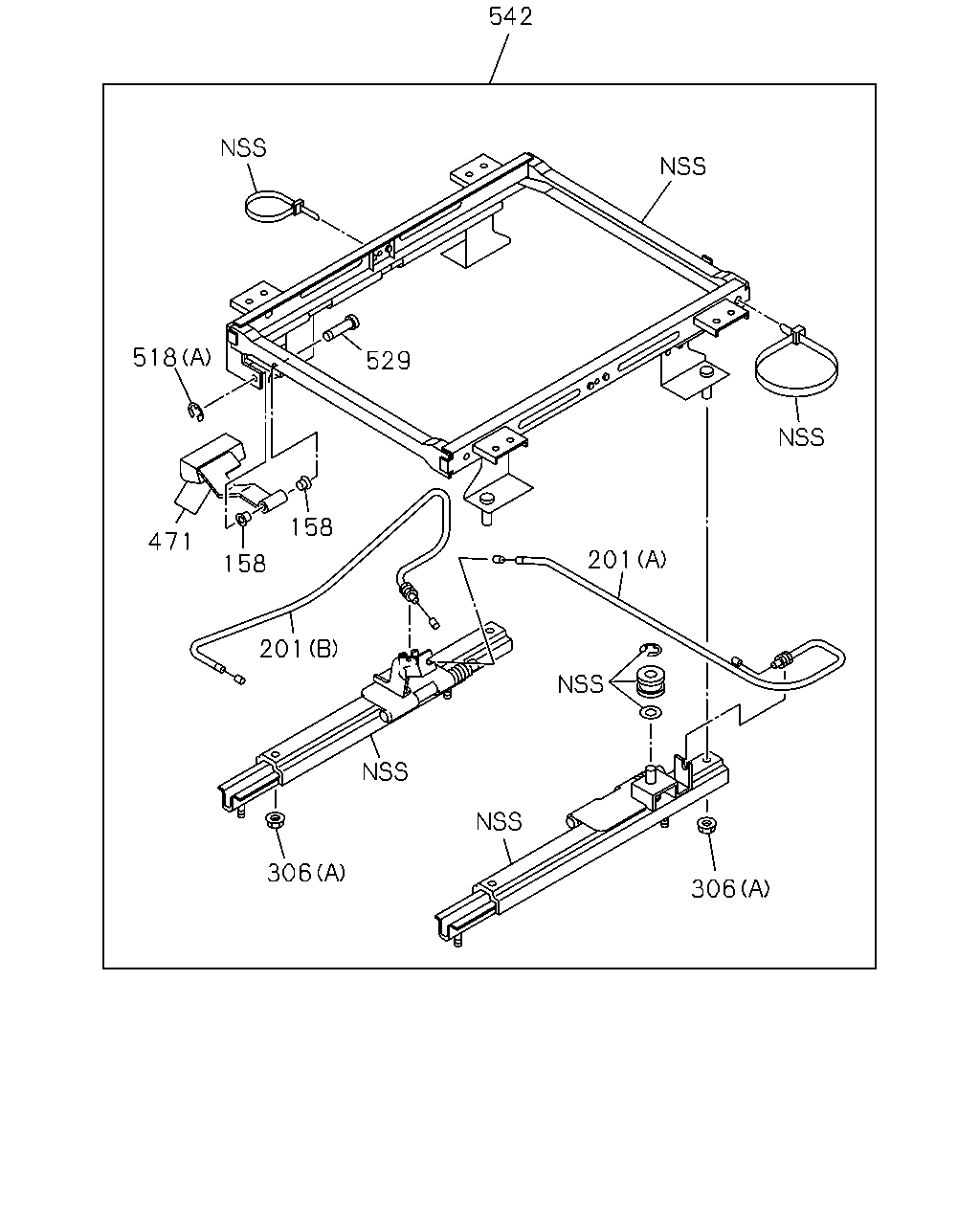

542 529 518 471 158 158 201 201 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	0712-		●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	0712-		●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	0712-		●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0712-		●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0712-		●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	0712-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	0712-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	0712-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	0712-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	0712-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	0712-		●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	0712-		●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98093-310-0	01	1	0712-1502		●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-653-0	01	1	1503-		●

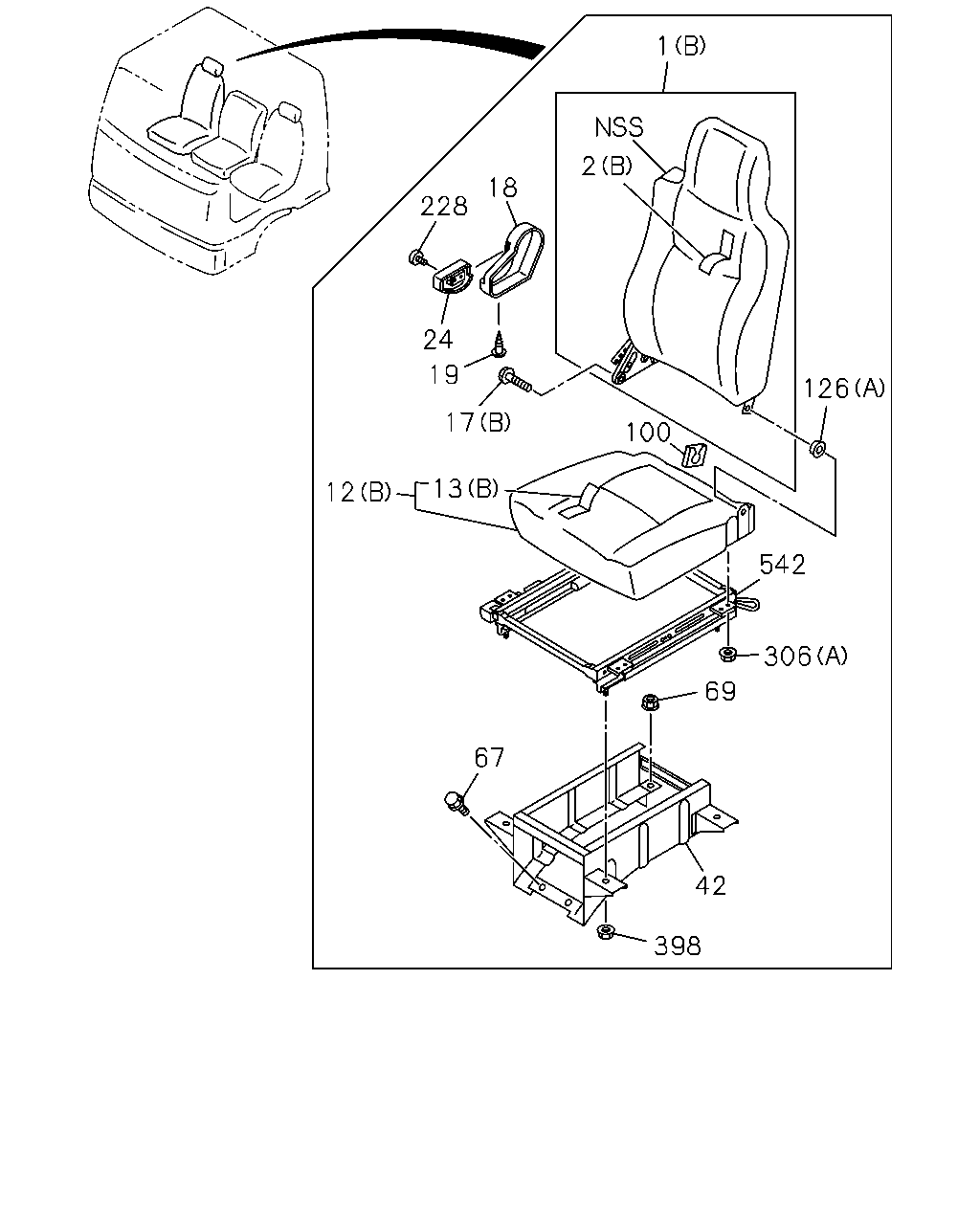

1 2 18 228 24 17 12 13 100 126 542 306 69 67 42 398 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-201-0	01	1	1001-1009		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1010-		●
1	BACK ASM; SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0710-0711	●	●
1	BACK ASM; SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0712-	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0712-		●
1	BACK ASM; SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0710-0711	●	●
1	BACK ASM; SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0712-	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0712-		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-112-2	01	1	0712-0902		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-202-0	01	1	0903-1009		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-407-1	01	1	1010-		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-3	01	1	0712-0906		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97409-955-5	01	1	0907-		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-206-0	01	1	1001-1009		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1010-		●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98097-966-0	01	1	0710-0711	●	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98097-966-0	01	1	0712-1212	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-966-0	01	1	0712-1212		●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98232-353-0	01	1	1301-	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98232-353-0	01	1	1301-		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-113-1	01	1	0712-0902		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-207-0	01	1	0903-1009		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-412-0	01	1	1010-		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-1	01	1	0712-0906		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97411-910-2	01	1	0907-		●
12	CUSHION; SEAT,FRT (A)	8-98098-006-0	01	1	0710-0711	●	●
12	CUSHION; SEAT,FRT (A)	8-98098-006-0	01	1	0712-	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-006-0	01	1	0712-		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> (B) DARK GRAY	8-97414-120-0	01	1	0712-0902		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-212-1	01	1	0903-0912		●
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE(PR2) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-212-1	01	1	1001-1009		●
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE(PR2) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1010-		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97409-958-0	01	1	0712-0902		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97416-211-1	01	1	0903-0912		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97416-211-1	01	1	1001-1009		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97421-397-2	01	1	1010-		●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE(PR2) RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	0712-		●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97409-954-2	01	1	0712-		●
13	COVER; TRIM,FRT SEAT,CUSHION (A)	8-98098-007-0	01	1	0710-0711	●	●
13	COVER; TRIM,FRT SEAT,CUSHION (A)	8-98098-007-0	01	1	0712-	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-007-0	01	1	0712-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> (B) DARK GRAY	8-97414-121-0	01	1	0712-0902		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-216-0	01	1	0903-0912		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVING POSITION WIDE LEG SPACE(PR2) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-216-0	01	1	1001-1009		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVING POSITION WIDE LEG SPACE(PR2) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1010-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97414-111-0	01	1	0712-0902		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97416-215-0	01	1	0903-0912		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97416-215-0	01	1	1001-1009		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97421-401-2	01	1	1010-		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-0	01	1	0712-0906		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97411-909-1	01	1	0907-		●
17	BOLT; RECLINING (C)	8-98097-974-0	02	1	0907-	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	0907-		●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	0712-		●
17	BOLT; RECLINING SEAT CLOTH<7FL> (A) M8X20	8-98092-334-0	02	1	0710-0711	●	●
17	BOLT; RECLINING SEAT CLOTH<7FL> (A) M8X20	8-98092-334-0	02	1	0712-0912	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0712-0912		●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1001-	●	●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	0712-		●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	0712-		●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	0712-		●
42	STAND; DRIVER SEAT	8-98106-346-0	01	1	0907-	●
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-346-0	01	1	0907-		●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	0712-		●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0710-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1110-		●
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1105-1109		●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	0712-		●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	8-97854-900-0	01	1	0710-0711	●	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	8-97854-900-0	01	1	0712-0912	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0712-0912		●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1001-1104	●	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1105-1109	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	8-97854-900-0	01	1	1105-1109		●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1110-	●	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	0712-		●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0712-		●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0712-		●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0712-		●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98093-310-0	01	1	0712-1502		●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-653-0	01	1	1503-		●

41 1 2 12 13 651 365 650 411 336 651 17 651 642 532 587 310 509 336 634 635 336 637 602 336 648 642 642 17 661 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-201-0	01	1	1001-1009		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1010-		●
1	BACK ASM; SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0710-0711	●	●
1	BACK ASM; SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0712-	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0712-		●
1	BACK ASM; SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0710-0711	●	●
1	BACK ASM; SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0712-	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0712-		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-112-2	01	1	0712-0902		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-202-0	01	1	0903-1009		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-407-1	01	1	1010-		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-3	01	1	0712-0906		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97409-955-5	01	1	0907-		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-206-0	01	1	1001-1009		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1010-		●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98097-966-0	01	1	0710-0711	●	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98097-966-0	01	1	0712-1212	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-966-0	01	1	0712-1212		●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98232-353-0	01	1	1301-	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98232-353-0	01	1	1301-		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-113-1	01	1	0712-0902		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-207-0	01	1	0903-1009		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-412-0	01	1	1010-		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-1	01	1	0712-0906		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97411-910-2	01	1	0907-		●
12	CUSHION; SEAT,FRT (A)	8-98098-006-0	01	1	0710-0711	●	●
12	CUSHION; SEAT,FRT (A)	8-98098-006-0	01	1	0712-	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-006-0	01	1	0712-		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> (B) DARK GRAY	8-97414-120-0	01	1	0712-0902		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-212-1	01	1	0903-0912		●
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE(PR2) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-212-1	01	1	1001-1009		●
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE(PR2) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1010-		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97409-958-0	01	1	0712-0902		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97416-211-1	01	1	0903-0912		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97416-211-1	01	1	1001-1009		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97421-397-2	01	1	1010-		●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE(PR2) RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	0712-		●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97409-954-2	01	1	0712-		●
13	COVER; TRIM,FRT SEAT,CUSHION (A)	8-98098-007-0	01	1	0710-0711	●	●
13	COVER; TRIM,FRT SEAT,CUSHION (A)	8-98098-007-0	01	1	0712-	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-007-0	01	1	0712-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> (B) DARK GRAY	8-97414-121-0	01	1	0712-0902		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE(PR2) SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-216-0	01	1	0903-0912		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVING POSITION WIDE LEG SPACE(PR2) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-216-0	01	1	1001-1009		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVING POSITION WIDE LEG SPACE(PR2) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1010-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97414-111-0	01	1	0712-0902		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97416-215-0	01	1	0903-0912		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97416-215-0	01	1	1001-1009		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) DARK GRAY	8-97421-401-2	01	1	1010-		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-0	01	1	0712-0906		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97411-909-1	01	1	0907-		●
17	BOLT; RECLINING (C)	8-98097-974-0	02	1	0907-	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	0907-		●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	0712-		●
17	BOLT; RECLINING SEAT CLOTH<7FL> (A) M8X20	8-98092-334-0	02	1	0710-0711	●	●
17	BOLT; RECLINING SEAT CLOTH<7FL> (A) M8X20	8-98092-334-0	02	1	0712-0912	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0712-0912		●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1001-	●	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0907-1212	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0907-1212		●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-		●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0907-1212	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0907-1212		●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-		●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT	8-98097-992-0	01	1	0710-0711	●	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT	8-98097-992-0	01	1	0712-	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-992-0	01	1	0712-		●
336	COVER; DRIVER SEAT (D)	8-98097-978-0	01	1	0710-0711	●	●
336	COVER; DRIVER SEAT (D)	8-98097-978-0	01	1	0712-	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (D)	8-98097-978-0	01	1	0712-		●
336	COVER; DRIVER SEAT (C)	8-98097-984-0	01	1	0710-0711	●	●
336	COVER; DRIVER SEAT (C)	8-98097-984-0	01	1	0712-	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-984-0	01	1	0712-		●
336	COVER; DRIVER SEAT (A)	8-98097-995-0	01	1	0710-0711	●	●
336	COVER; DRIVER SEAT (A)	8-98097-995-0	01	1	0712-	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-995-0	01	1	0712-		●
336	COVER; DRIVER SEAT (B)	8-98097-996-0	01	1	0710-0711	●	●
336	COVER; DRIVER SEAT (B)	8-98097-996-0	01	1	0712-	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98097-996-0	01	1	0712-		●
365	LOCK ASM; SEAT	8-98097-972-0	01	1	0907-	●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-972-0	01	1	0907-		●
365	LOCK ASM; SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1105-1109		●

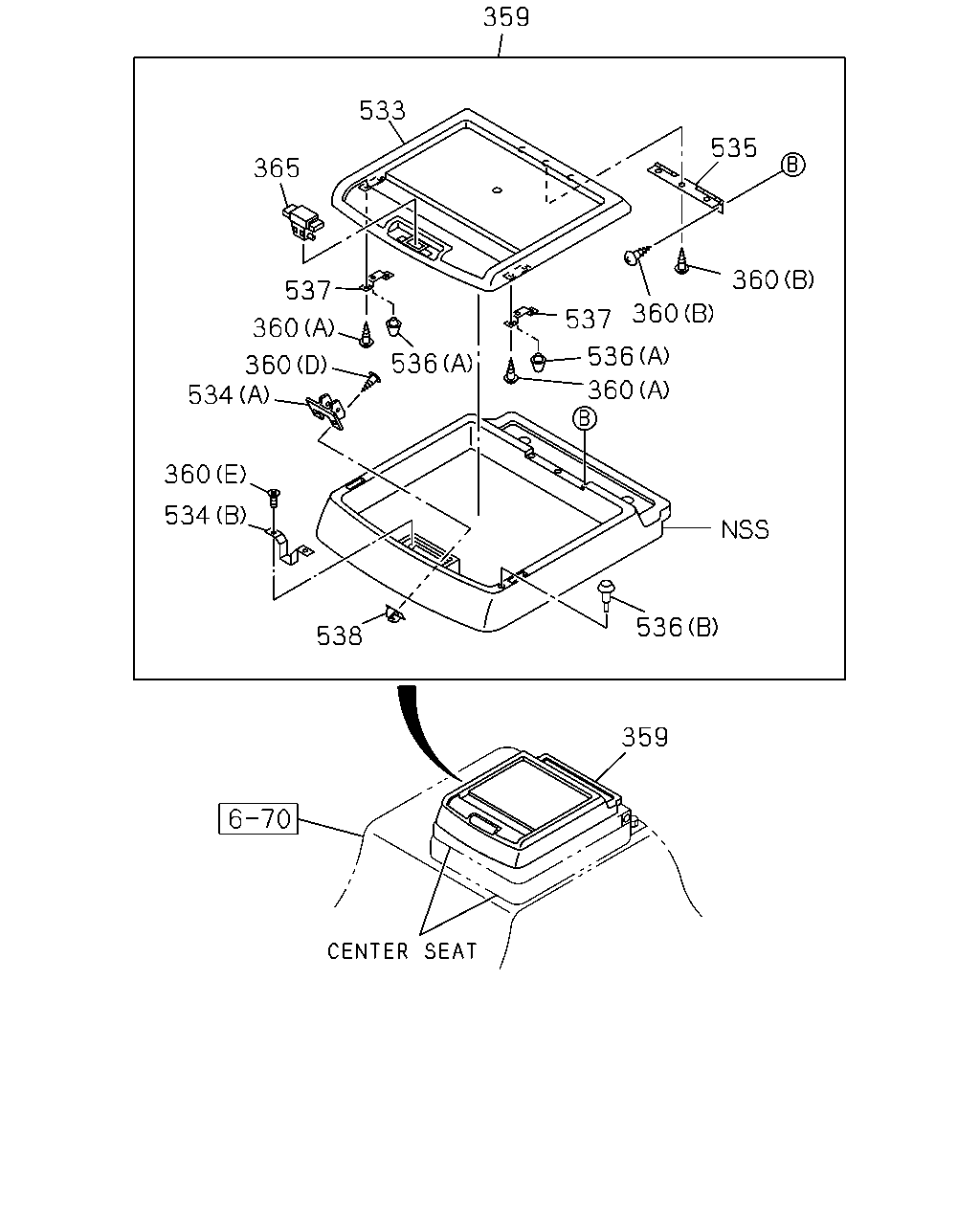

365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72538-312-0	01	1	0710-0711	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72538-312-0	01	1	0712-0912	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	0712-0912		●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1001-1104	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1105-1109	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72538-312-0	01	1	1105-1109		●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1110-	●	●
411	GUIDE; SEAT BELT	8-98097-967-0	01	1	0710-0711	●	●
411	GUIDE; SEAT BELT	8-98097-967-0	01	1	0712-	●
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-967-0	01	1	0712-		●
509	LEVER; DAMPER	8-98097-988-0	01	1	0710-0711	●	●
509	LEVER; DAMPER	8-98097-988-0	01	1	0712-	●
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-988-0	01	1	0712-		●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-203-0	01	1	0712-		●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-204-1	01	1	0712-		●
532	LEVER ASM; TILT (C)	8-98097-982-0	01	1	0710-0711	●	●
532	LEVER ASM; TILT (C)	8-98097-982-0	01	1	0712-	●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-982-0	01	1	0712-		●
587	VALVE; LUMBAR SUPPORT	8-98097-986-0	01	1	0710-0711	●	●
587	VALVE; LUMBAR SUPPORT	8-98097-986-0	01	1	0712-	●
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-986-0	01	1	0712-		●
602	KNOB; ADJ,SEAT	8-98098-008-0	01	1	0710-0711	●	●
602	KNOB; ADJ,SEAT	8-98098-008-0	01	1	0712-	●
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-008-0	01	1	0712-		●
634	COVER; CONNECTOR,SEAT	8-98088-279-0	01	1	0710-0711	●	●
634	COVER; CONNECTOR,SEAT	8-98088-279-0	01	1	0712-	●
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98088-279-0	01	1	0712-		●
635	BOLT; COVER M6X16	0-52000-616-0	02	1	0710-0711	●	●
635	BOLT; COVER M6X16	0-52000-616-0	02	1	0712-	●
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M6X16	0-52000-616-0	02	1	0712-		●
637	LEVER; SLOPE ADJ	8-98097-989-0	01	1	0710-0711	●	●
637	LEVER; SLOPE ADJ	8-98097-989-0	01	1	0712-	●
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-989-0	01	1	0712-		●
638	VALVE; LOWERING	8-98097-994-0	01	1	0710-0711	●	●
638	VALVE; LOWERING	8-98097-994-0	01	1	0712-	●
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-994-0	01	1	0712-		●
642	SLIDER; CUSHION	8-98192-932-0	04	1	0907-	●
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98192-932-0	04	1	0907-		●
648	BUCKLE; SEAT BELT	8-98097-976-0	01	1	0907-	●
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-976-0	01	1	0907-		●
650	CABLE	8-98097-973-0	01	1	0907-1212	●
650	CABLE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-973-0	01	1	0907-1212		●
650	CABLE	8-98232-354-0	01	1	1301-	●
650	CABLE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98232-354-0	01	1	1301-		●
651	RIVET	8-98194-075-0	04	1	0907-	●
651	RIVET DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98194-075-0	04	1	0907-		●
661	LOCK ASM; RECLINING	8-98097-980-0	01	1	0907-	●
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-980-0	01	1	0907-		●

81 322 63 327 325 69 67 67 41 76 652

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0907-1212	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0907-1212		●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-		●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0907-1212	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0907-1212		●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-199-1	01	1	0712-		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-323-0	01	1	0712-		●
63	ADJUSTER; SEAT SLIDE (C)	8-98098-005-0	01	1	0710-0711	●	●
63	ADJUSTER; SEAT SLIDE (C)	8-98098-005-0	01	1	0712-	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98098-005-0	01	1	0712-		●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0710-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
76	DAMPER; AIR SUSP (A)	8-98097-999-0	01	1	0710-0711	●	●
76	DAMPER; AIR SUSP (A)	8-98097-999-0	01	1	0712-	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-999-0	01	1	0712-		●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	0712-		●
81	SPRING; AIR (A)	8-98098-000-0	01	1	0710-0711	●	●
81	SPRING; AIR (A)	8-98098-000-0	01	1	0712-	●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-000-0	01	1	0712-		●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	0712-1312		●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-		●
322	VALVE; AIR SPRING (A)	8-98098-001-0	01	1	0710-0711	●	●
322	VALVE; AIR SPRING (A)	8-98098-001-0	01	1	0712-	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-001-0	01	1	0712-		●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-186-3	01	1	0712-		●
325	COVER; SUSPENSION DEVICE	8-98098-003-0	01	1	0710-0711	●	●
325	COVER; SUSPENSION DEVICE	8-98098-003-0	01	1	0712-	●
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-003-0	01	1	0712-		●
327	CLIP; COVER	8-98098-004-0	01	1	0710-0711	●	●
327	CLIP; COVER	8-98098-004-0	01	1	0712-	●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-004-0	01	1	0712-		●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-09987-273-0	01	1	0712-		●
652	LOCK ASM; HEIGHT	8-98098-002-0	01	1	0907-	●
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-002-0	01	1	0907-		●

468 468 51 512 51 51 51 512 532 278 532 302 518 518 518 278 302 74 543 543 278 518 518 543 468 529 468 543 302 518 543 72 551 302 302 158 158 471 551 302 518 302 518 72 551 551 518 302 518 201 201 63 518 63 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	0712-		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-199-1	01	1	0712-		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-323-0	01	1	0712-		●
63	ADJUSTER; SEAT SLIDE (C)	8-98098-005-0	01	1	0710-0711	●	●
63	ADJUSTER; SEAT SLIDE (C)	8-98098-005-0	01	1	0712-	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98098-005-0	01	1	0712-		●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	0712-1502		●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1503-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98003-678-0	01	1	0712-1502		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1503-		●
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	0712-		●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	0712-		●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	0712-		●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	0712-		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	0712-		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	0712-1502		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1503-		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	0712-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0712-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0712-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0712-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0712-		●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	0712-		●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-243-1	02	1	0712-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	0712-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	0712-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	0712-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	0712-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	0712-		●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	0712-		●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-203-0	01	1	0712-		●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-204-1	01	1	0712-		●
532	LEVER ASM; TILT (C)	8-98097-982-0	01	1	0710-0711	●	●
532	LEVER ASM; TILT (C)	8-98097-982-0	01	1	0712-	●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-982-0	01	1	0712-		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	0712-1502		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	0712-		●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	0712-		●

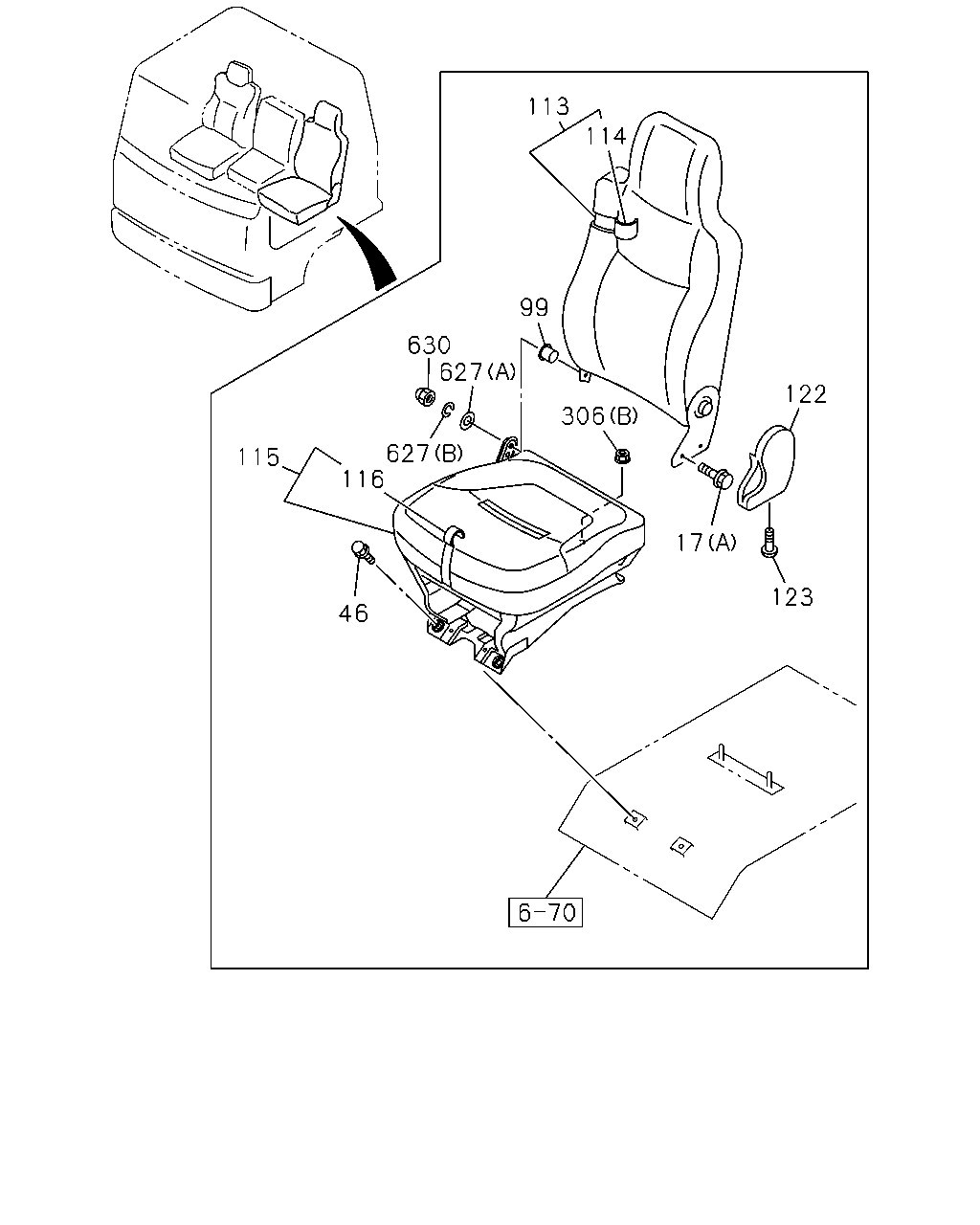

115 116 627 46 627 630 99 113 114 306 122 17 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING (C)	8-98097-974-0	02	1	0907-	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	0907-		●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	0712-		●
17	BOLT; RECLINING SEAT CLOTH<7FL> (A) M8X20	8-98092-334-0	02	1	0710-0711	●	●
17	BOLT; RECLINING SEAT CLOTH<7FL> (A) M8X20	8-98092-334-0	02	1	0712-0912	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0712-0912		●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1001-	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0710-	●	●
99	BUSHING; SEAT BACK SEAT CLOTH<7FL>	8-98063-219-0	01	1	0710-0711	●	●
99	BUSHING; SEAT BACK SEAT CLOTH<7FL>	8-98063-219-0	01	1	0712-0912	●
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	0712-0912		●
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	1001-1009	●	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-	●	●
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-966-1	01	1	0712-		●
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97409-969-0	01	1	0710-0902	●	●
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-221-0	01	1	0903-0912	●	●
113	BACK ASM; SEAT DARK GRAY	8-97416-221-0	01	1	1001-1009	●
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-221-0	01	1	1001-1009		●
113	BACK ASM; SEAT DARK GRAY	8-97421-422-0	01	1	1010-	●
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-422-0	01	1	1010-		●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-916-0	01	1	0712-		●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97411-914-0	01	1	0710-0902	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97416-223-0	01	1	0903-0912	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97416-223-0	01	1	1001-1009	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97416-223-0	01	1	1001-1009		●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-424-0	01	1	1010-	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-424-0	01	1	1010-		●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97409-965-1	01	1	0712-		●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97409-968-0	01	1	0710-0902	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-225-0	01	1	0903-0912	●	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-225-0	01	1	1001-1009	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-225-0	01	1	1001-1009		●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-418-1	01	1	1010-	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-418-1	01	1	1010-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-915-0	01	1	0712-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97411-913-0	01	1	0710-0902	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97416-227-0	01	1	0903-0912	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97416-227-0	01	1	1001-1009	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97416-227-0	01	1	1001-1009		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-420-0	01	1	1010-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-420-0	01	1	1010-		●
122	COVER; ADJ,RECLINING SEAT CLOTH<7FL> GRAY	8-97409-967-0	01	1	0710-0902	●	●
122	COVER; ADJ,RECLINING SEAT CLOTH<7FL> GRAY	8-97409-967-0	01	1	0903-0912	●
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	0903-0912		●
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	1001-	●	●
122	COVER; ADJ,RECLINING VINYL SEAT<A83> GRAY	8-97409-967-0	01	1	0712-0902		●
123	SCREW; COVER,RECLINING SEAT CLOTH<7FL>	8-98070-026-0	01	1	0710-0711	●	●
123	SCREW; COVER,RECLINING SEAT CLOTH<7FL>	8-98070-026-0	01	1	0712-0912	●
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	0712-0912		●
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	1001-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0712-		●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0712-		●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
627	WASHER; FRT SEAT SEAT CLOTH<7FL> (A)	8-98063-223-0	01	1	0710-0711	●	●
627	WASHER; FRT SEAT SEAT CLOTH<7FL> (A)	8-98063-223-0	01	1	0712-0912	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0712-0912		●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1001-	●	●
627	WASHER; FRT SEAT SEAT CLOTH<7FL> (B)	8-98063-224-0	01	1	0710-0711	●	●
627	WASHER; FRT SEAT SEAT CLOTH<7FL> (B)	8-98063-224-0	01	1	0712-0912	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0712-0912		●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1001-	●	●
630	NUT; CAP SEAT CLOTH<7FL> M8	8-98063-225-0	01	1	0710-0711	●	●
630	NUT; CAP SEAT CLOTH<7FL> M8	8-98063-225-0	01	1	0712-0912	●
630	NUT; CAP M8	8-98063-225-0	01	1	0712-0912		●
630	NUT; CAP M8	8-98063-225-0	01	1	1001-	●	●

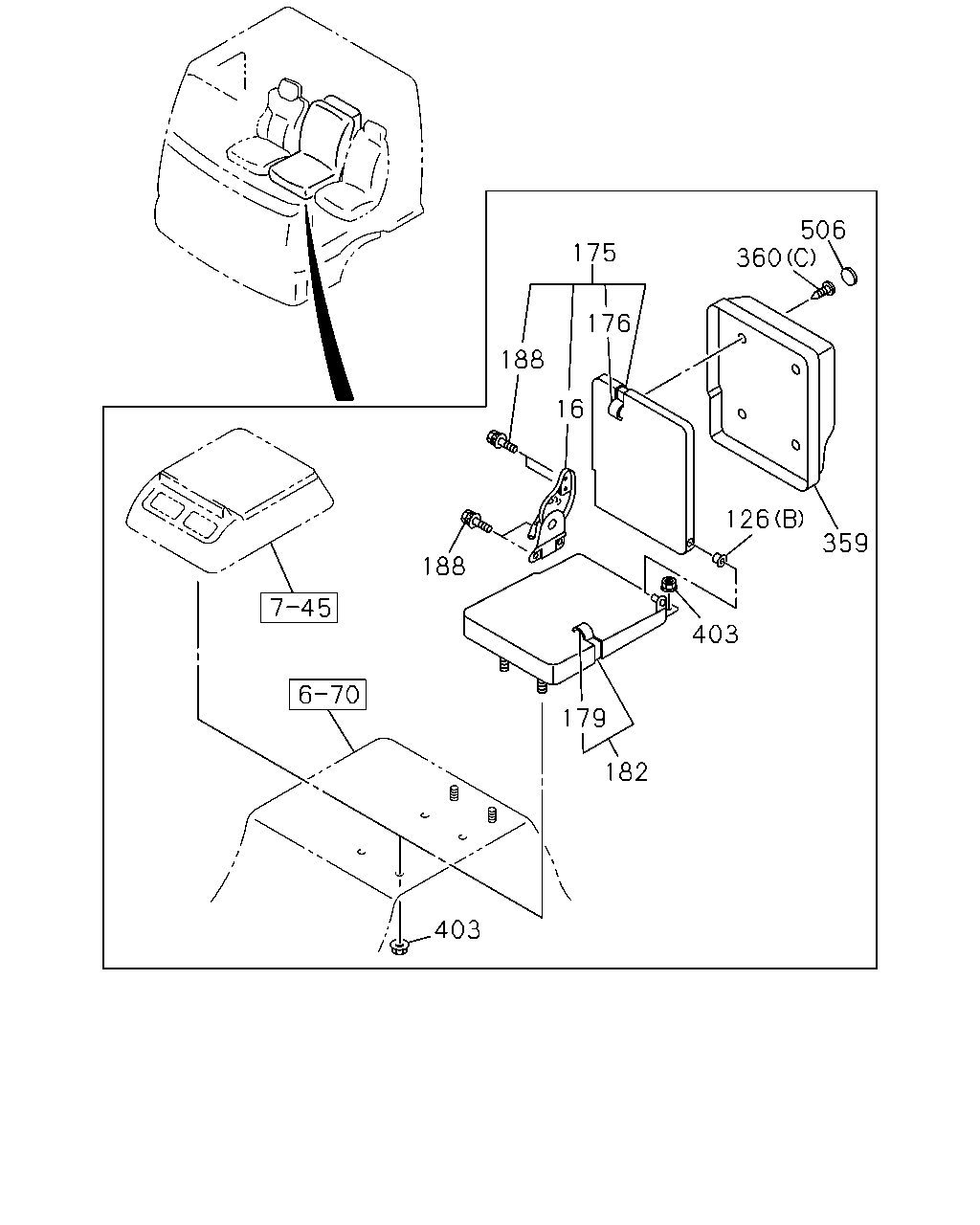

403 182 179 403 359 126 188 188 176 175 360 506 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1105-1109		●
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-75418-062-1	01	1	0710-0711	●	●
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-75418-062-1	01	1	0712-0912	●
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	0712-0912		●
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1001-1104	●	●
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1105-1109	●
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-75418-062-1	01	1	1105-1109		●
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1110-	●	●
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1105-1109		●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	0712-		●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	8-97854-900-0	01	1	0710-0711	●	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	8-97854-900-0	01	1	0712-0912	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0712-0912		●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1001-1104	●	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1105-1109	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	8-97854-900-0	01	1	1105-1109		●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1110-	●	●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-1	01	1	0712-		●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97409-984-0	01	1	0710-0902	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-233-0	01	1	0903-0912	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-233-0	01	1	1001-1009	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-233-0	01	1	1001-1009		●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-434-1	01	1	1010-	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-434-1	01	1	1010-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-1	01	1	0712-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97409-985-0	01	1	0710-0902	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-234-0	01	1	0903-0912	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-234-0	01	1	1001-1009	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-234-0	01	1	1001-1009		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-435-1	01	1	1010-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-435-1	01	1	1010-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-974-1	01	1	1007-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-974-0	01	1	0712-0909		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97409-983-0	01	1	0710-0902	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-237-0	01	1	0903-0912	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-237-0	01	1	1001-1009	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-237-0	01	1	1001-1009		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-432-1	01	1	1010-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-432-1	01	1	1010-		●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-973-3	01	1	0712-		●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97409-982-0	01	1	0710-0902	●	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-235-0	01	1	0903-0912	●	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-235-0	01	1	1001-1009	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-235-0	01	1	1001-1009		●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-430-3	01	1	1010-	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-430-3	01	1	1010-		●
188	BOLT; BACK TO CUSHION VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1105-1109		●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE	1-75198-053-0	04	1	0710-0711	●	●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE	1-75198-053-0	04	1	0712-0912	●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	0712-0912		●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1001-1104	●	●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1105-1109	●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE	1-75198-053-0	04	1	1105-1109		●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1110-	●	●
359	BOX; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-1	01	1	0712-0902		●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY	8-97409-977-1	01	1	0710-0902	●	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY	8-97409-977-2	01	1	0903-0912	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0903-0912		●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	1001-1006	●	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-	●	●
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1105-1109		●
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0710-0711	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0712-0912	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0712-0912		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1001-1009	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-1104	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16	0-70040-416-0	06	1	0710-0711	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16	0-70040-416-0	06	1	0712-0912	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0712-0912		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1001-1104	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1105-1109	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16	0-70040-416-0	06	1	1105-1109		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1110-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0710-0711	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0712-0912	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0712-0912		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1001-1110	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (D) M5X20	9-09829-324-1	02	1	0710-0711	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (D) M5X20	9-09829-324-1	02	1	0712-0912	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0712-0912		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	1001-1009	●	●
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
506	CAP; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-0	04	1	0712-0902		●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY	8-97409-980-0	08	1	0710-0902	●	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY	8-97409-980-1	04	1	0903-0912	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	04	1	0903-0912		●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	04	1	1001-1006	●	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1007-	●	●

62 80 66 78 86 86 77 66 88 78 81 79 79 322 85 85 470 339 87 513 85 467 468 85 76 79 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-183-8	01	1	0712-1403		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1404-		●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	0712-		●
76	DAMPER; AIR SUSP (A)	8-98097-999-0	01	1	0710-0711	●	●
76	DAMPER; AIR SUSP (A)	8-98097-999-0	01	1	0712-	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-999-0	01	1	0712-		●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	0712-		●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	0712-		●
78	RING; SNAP (C)	8-98101-900-0	02	1	0907-	●
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98101-900-0	02	1	0907-		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0712-		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0712-		●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	0712-1403		●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-		●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	0712-		●
81	SPRING; AIR (A)	8-98098-000-0	01	1	0710-0711	●	●
81	SPRING; AIR (A)	8-98098-000-0	01	1	0712-	●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-000-0	01	1	0712-		●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	0712-1312		●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	0712-		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	0712-		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0712-1312		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-		●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0712-		●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	0712-		●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	0712-		●
322	VALVE; AIR SPRING (A)	8-98098-001-0	01	1	0710-0711	●	●
322	VALVE; AIR SPRING (A)	8-98098-001-0	01	1	0712-	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-001-0	01	1	0712-		●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-186-3	01	1	0712-		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	0712-		●
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	0710-0711	●	●
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	0712-	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B)	8-98014-971-0	01	1	0712-		●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	0712-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0712-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0712-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0712-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0712-		●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	0712-		●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	0712-		●

359 536 538 534 360 534 360 360 537 536 365 533 359 535 360 360 537 536 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
359	BOX; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-1	01	1	0712-0902		●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY	8-97409-977-1	01	1	0710-0902	●	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY	8-97409-977-2	01	1	0903-0912	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0903-0912		●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	1001-1006	●	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-	●	●
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1105-1109		●
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0710-0711	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0712-0912	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0712-0912		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1001-1009	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-1104	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16	0-70040-416-0	06	1	0710-0711	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16	0-70040-416-0	06	1	0712-0912	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0712-0912		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1001-1104	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1105-1109	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16	0-70040-416-0	06	1	1105-1109		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1110-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0710-0711	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0712-0912	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0712-0912		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1001-1110	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (D) M5X20	9-09829-324-1	02	1	0710-0711	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (D) M5X20	9-09829-324-1	02	1	0712-0912	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0712-0912		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	1001-1009	●	●
365	LOCK ASM; SEAT	8-98097-972-0	01	1	0907-	●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-972-0	01	1	0907-		●
365	LOCK ASM; SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1105-1109		●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72538-312-0	01	1	0710-0711	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72538-312-0	01	1	0712-0912	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	0712-0912		●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1001-1104	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1105-1109	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72538-312-0	01	1	1105-1109		●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1110-	●	●
533	LID; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-0	01	1	0712-0902		●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY	8-97409-979-0	01	1	0710-0902	●	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY	8-97409-979-1	01	1	0903-0912	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-1	01	1	0903-0912		●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-1	01	1	1001-1006	●	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1007-	●	●
534	STRIKER; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1105-1109		●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A)	1-72538-181-0	01	1	0710-0711	●	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A)	1-72538-181-0	01	1	0712-0912	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (A)	1-72538-181-0	01	1	0712-0912		●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (A)	1-72538-181-0	01	1	1001-1009	●	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1010-1104	●	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1105-1109	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	1-72538-190-0	01	1	1105-1109		●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1110-	●	●
535	HINGE; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1105-1109		●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72447-391-1	01	1	0710-0711	●	●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72447-391-1	01	1	0712-0912	●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	0712-0912		●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1001-1104	●	●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1105-1109	●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72447-391-1	01	1	1105-1109		●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1110-	●	●
536	RUBBER; CUSHION VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1105-1109		●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A)	5-09983-002-1	02	1	0710-0711	●	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A)	5-09983-002-1	02	1	0712-0912	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (A)	5-09983-002-1	02	1	0712-0912		●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (A)	5-09983-002-1	02	1	1001-1009	●	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1010-1104	●	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1105-1109	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	1-72538-187-0	02	1	1105-1109		●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1110-	●	●
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72548-057-1	02	1	0710-0711	●	●
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72548-057-1	02	1	0712-0912	●
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC>	1-72548-057-1	02	1	0712-0912		●
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC>	1-72548-057-1	02	1	1001-1009	●	●
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-09983-165-0	02	1	0710-0711	●	●
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-09983-165-0	02	1	0712-0912	●
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC>	1-09983-165-0	02	1	0712-0912		●
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC>	1-09983-165-0	02	1	1001-1009	●	●

581 401 641 400 400 632 339 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	0712-		●
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	0710-0711	●	●
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	0712-	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B)	8-98014-971-0	01	1	0712-		●
400	BOLT; SUPPORT (B)	8-98098-996-0	02	1	0710-0711	●	●
400	BOLT; SUPPORT (B)	8-98098-996-0	02	1	0712-	●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98098-996-0	02	1	0712-		●
400	BOLT; SUPPORT (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●	●
400	BOLT; SUPPORT (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-		●
401	NUT; SUPPORT M10 FLANGE	0-91180-110-0	02	1	0710-0711	●	●
401	NUT; SUPPORT M10 FLANGE	0-91180-110-0	02	1	0712-	●
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE	0-91180-110-0	02	1	0712-		●
581	PIPE; SEAT	8-97589-692-3	01	1	0710-0711	●	●
581	PIPE; SEAT	8-97589-692-3	01	1	0712-	●
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-97589-692-3	01	1	0712-		●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	0907-	●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-348-0	01	1	0907-		●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	0710-0711	●	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	0712-	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B)	8-98067-762-0	01	1	0712-		●
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	0712-		●
641	WASHER; SUPPORT	8-98099-007-0	02	1	0710-0711	●	●
641	WASHER; SUPPORT	8-98099-007-0	02	1	0712-	●
641	WASHER; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98099-007-0	02	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
