3-55 — BRAKE PIPING; OIL,REAR (#3994) — 112 parça

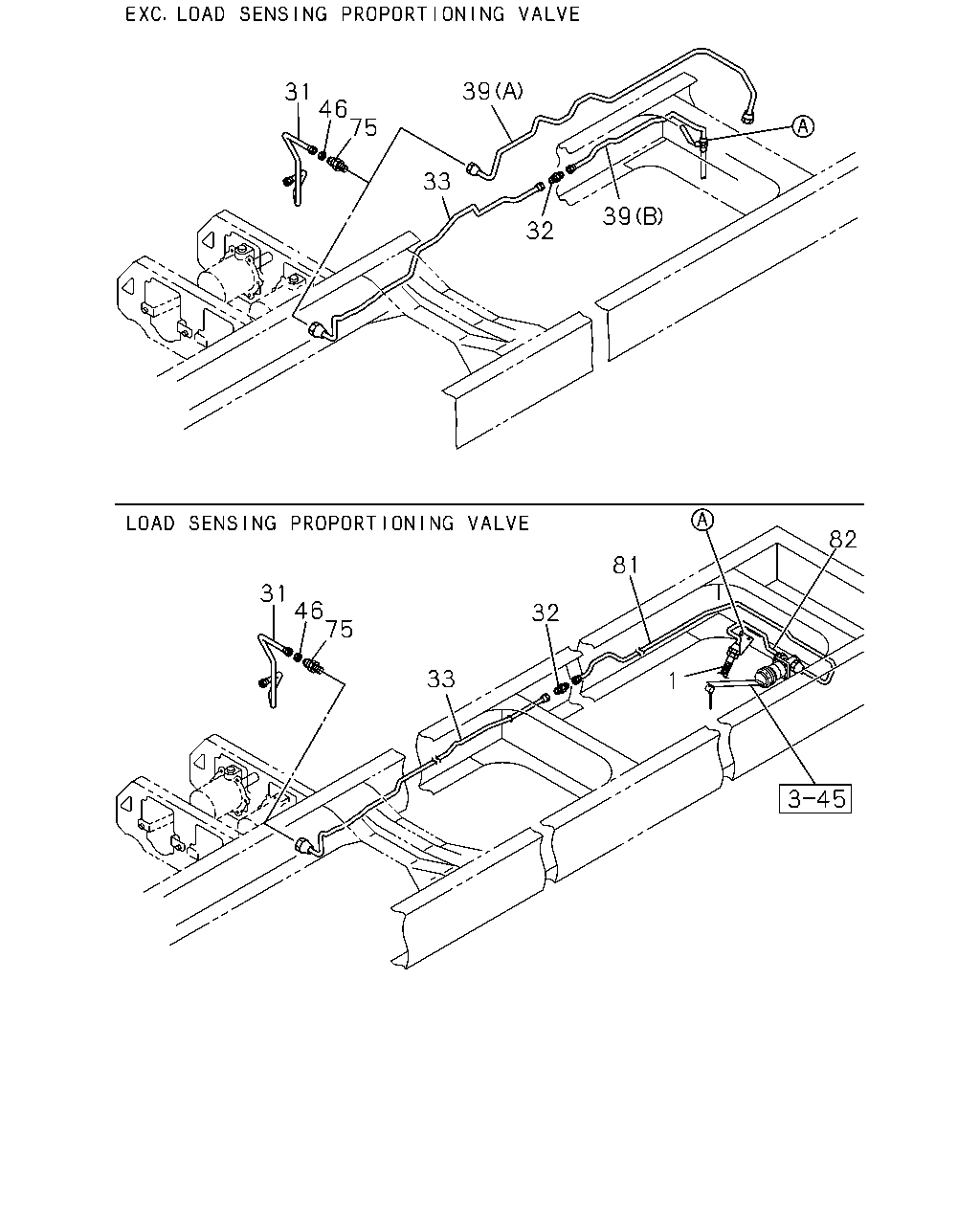

çizim 116059
39 31 46 75 33 39 32 82 81 31 46 75 32 33 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=700 		0-05312-700-0 01 1 9510-0004 ● ●
1 HOSE; FLEX,RR BRK
L=700 		0-05312-700-0 01 1 0005-0907 ●
1 HOSE; FLEX,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=700 		0-05312-700-0 01 1 0005-0907 ●
1 HOSE; FLEX,RR BRK
L=700 		0-05212-700-0 01 1 0908- ●
1 HOSE; FLEX,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=700 		0-05212-700-0 01 1 0908- ●
31 PIPE; OIL,AIR MASTER TO UNION
L=415 		1-47428-489-0 01 1 9510-9802 ● ●
31 PIPE; OIL,AIR MASTER TO UNION
L=405 		1-49161-102-0 01 1 9803-0004 ● ●
31 PIPE; OIL,AIR MASTER TO UNION
L=405 		1-49161-102-0 01 1 0005- ●
31 PIPE; OIL,AIR MASTER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=405 		1-49161-102-0 01 1 0005- ●
32 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 01 1 9510-0004 ●
32 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=40 		9-09223-006-1 01 1 0005-0607 ●
32 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=40 		0-92113-006-0 01 1 0608- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4200MM(42W) L=1180 SERVICED BY L=1200 		1-47426-352-0 01 1 9510-0004 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1180 SERVICED BY L=1200 		1-47426-352-0 01 1 0005- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) L=1585 SERVICED BY L=1620 		1-47426-356-0 01 1 9510-0004 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1585 SERVICED BY L=1620 		1-47426-356-0 01 1 0005- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5000MM(50W) L=1985 SERVICED BY L=2000 		1-47426-359-0 01 1 9510-0004 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1985 SERVICED BY L=2000 		1-47426-359-0 01 1 0005- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) L=2485 SERVICED BY L=2500 		1-47426-362-0 01 1 9706-0004 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2485 SERVICED BY L=2500 		1-47426-362-0 01 1 0005- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) L=2860 SERVICED BY L=2900 		1-47426-364-0 01 1 9510-9909 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2860 SERVICED BY L=2900 		1-47426-364-0 01 1 9910-0004 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) L=2860 SERVICED BY L=2900 		1-47426-364-0 01 1 0005- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2928 SERVICED BY L=3200 		1-47426-365-0 01 1 9910-0004 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2156 SERVICED BY L=2200 		1-47426-360-0 01 1 9510-9705 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2156 SERVICED BY L=2200 		1-47426-360-0 01 1 9706-9802 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2156 SERVICED BY L=2200 		1-47426-360-0 01 1 9803-0004 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2156 SERVICED BY L=2200 		1-47426-360-0 01 1 0005-0307 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (B) L=2156 SERVICED BY L=2200 		1-47426-360-0 01 1 0308- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2085 SERVICED BY L=2200 		1-47426-360-0 01 1 9510-0004 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2085 SERVICED BY L=2200 		1-47426-360-0 01 1 0005-0307 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. LOAD SENSING PROPORTIONING VALVE(JR7),HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2085 SERVICED BY L=2200 		1-47426-360-0 01 1 0308- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=2606 SERVICED BY L=2650 		1-47426-363-0 01 1 9706-9802 ●
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9510-0004 ● ●
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0005- ●
46 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 0005- ●
75 UNION; OIL PIPE
M12 L=66.5 		9-09223-306-1 01 1 9510-0004 ● ●
75 UNION; OIL PIPE
M12 L=66.5 		9-09223-306-1 01 1 0005-0607 ●
75 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=66.5 		9-09223-306-1 01 1 0005-0607 ●
75 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 01 1 0608- ●
75 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
81 PIPE; OIL,UNION TO LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) L=2429 SERVICED BY L=2500 		1-47426-362-0 01 1 0308- ●
82 PIPE; OIL,LSPV TO FLEX HOSE
LOAD SENSING PROPORTIONING VALVE(JR7) L=405 SERVICED BY L=460 		1-47426-342-0 01 1 0308- ●

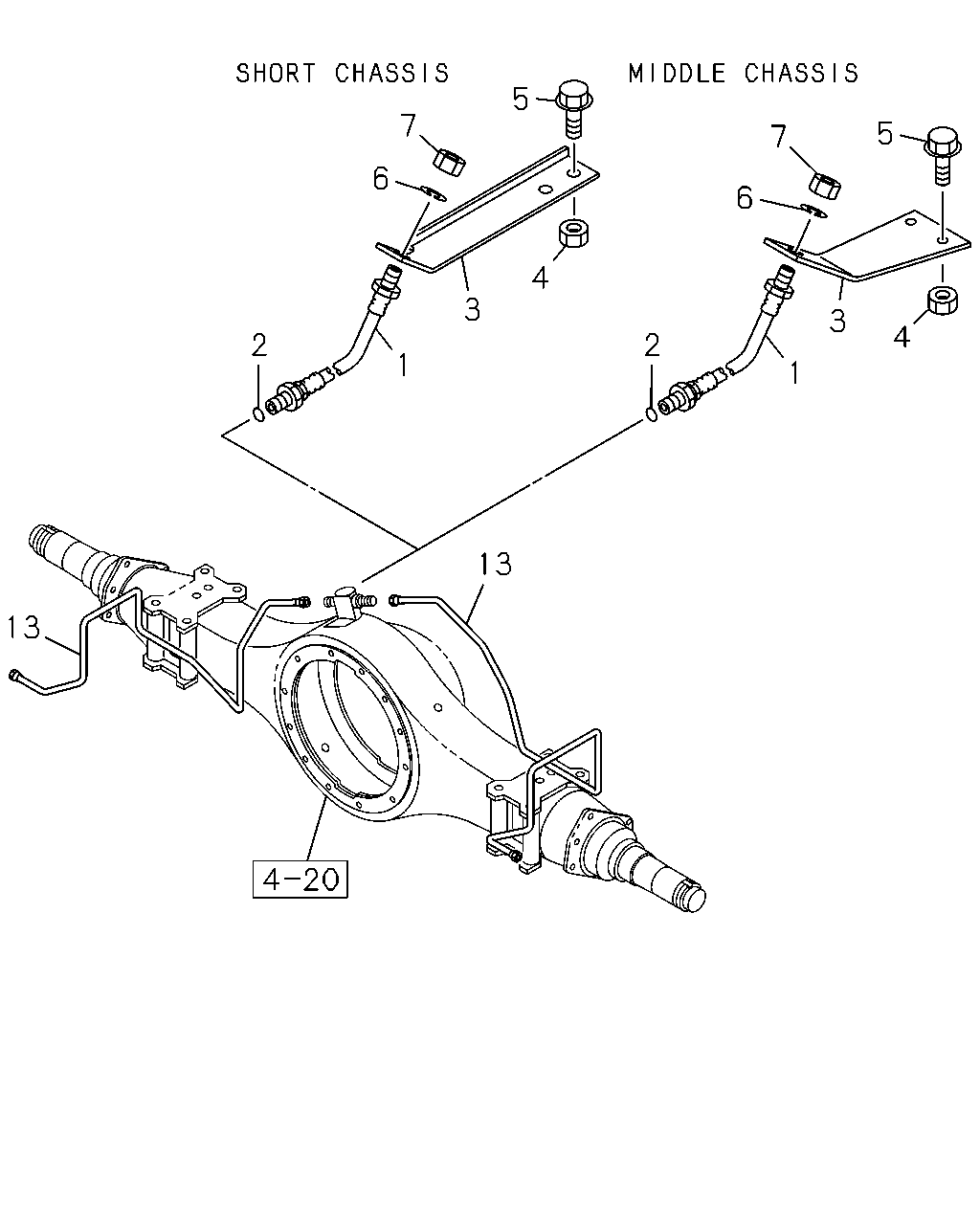

çizim 116083
5 7 5 7 6 6 4 3 3 4 2 2 1 1 13 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=700 		0-05312-700-0 01 1 9510-0004 ● ●
1 HOSE; FLEX,RR BRK
L=700 		0-05312-700-0 01 1 0005-0907 ●
1 HOSE; FLEX,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=700 		0-05312-700-0 01 1 0005-0907 ●
1 HOSE; FLEX,RR BRK
L=700 		0-05212-700-0 01 1 0908- ●
1 HOSE; FLEX,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=700 		0-05212-700-0 01 1 0908- ●
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 9510-0004 ● ●
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 0005- ●
2 GASKET; FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17 		9-09920-472-0 01 1 0005- ●
3 BRACKET; FLEX HOSE,RR BRK 1-47475-112-0 01 1 9510- ●
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 9510-0004 ●
3 BRACKET; FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47465-251-0 01 1 0005- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 		9-09110-408-0 02 1 9510-9606 ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91150-108-0 02 1 9607-9802 ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91150-108-0 02 1 9803-0004 ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
4 NUT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9802 ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28680-825-0 02 1 9803-0004 ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9510-0004 ● ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0005-0603 ●
6 WASHER; LK,FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 0005-0603 ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0604- ●
6 WASHER; LK,FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		0-91510-512-0 01 1 0604- ●
7 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 9510-0004 ● ●
7 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0005- ●
7 NUT; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 0005- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-096-0 01 1 9510-9810 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-096-0 01 1 9510-9810 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-096-0 01 1 9811-0004 ● ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47429-096-0 01 1 0005- ● ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-095-0 01 1 9510-9810 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-095-0 01 1 9510-9810 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-095-0 01 1 9811-0004 ● ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47429-095-0 01 1 0005- ● ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-094-0 01 1 9510-9810 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 15.5"<B2X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-094-0 01 1 9510-9810 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 15.5"<B2X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-094-0 01 1 9811-0004 ● ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 15.5"<B2X> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-094-0 01 1 0005- ● ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-093-0 01 1 9510-9810 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 15.5"<B2X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-093-0 01 1 9510-9810 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 15.5"<B2X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-093-0 01 1 9811-0004 ● ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 15.5"<B2X> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47429-093-0 01 1 0005- ● ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 16.5"<B2Y> L=1215 		1-47428-959-0 01 1 9510-9802 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 16.5"<B2Y> DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T 152-12(SDP) L=1215 		1-47428-959-0 01 1 9803-9909 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 16.5"<B2Y> L=1215 		1-47428-959-0 01 1 9910-0004 ● ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 16.5"<B2Y> DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T 152-12(SDP) L=1215 		1-47428-959-0 01 1 0005-0106 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 16.5"<B2Y> DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T 152-12(SDP) L=1215 		1-47428-959-0 01 1 0107-0107 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 16.5"<B2Y> L=1215 		1-47428-959-0 01 1 0108-0603 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7 16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5" HYPOID(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1215 		1-47428-959-0 01 1 0604- ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 16.5"<B2Y> L=938 		1-47428-958-0 01 1 9510-9802 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 16.5"<B2Y> DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T 152-12(SDP) L=938 		1-47428-958-0 01 1 9803-9909 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 16.5"<B2Y> L=938 		1-47428-958-0 01 1 9910-0004 ● ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 16.5"<B2Y> DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T 152-12(SDP) L=938 		1-47428-958-0 01 1 0005-0106 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 16.5"<B2Y> DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T 152-12(SDP) L=938 		1-47428-958-0 01 1 0107-0107 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 16.5"<B2Y> L=938 		1-47428-958-0 01 1 0108-0603 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7 16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5" HYPOID(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=938 		1-47428-958-0 01 1 0604- ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=690 		1-47417-651-0 01 1 9706-9802 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1249 		1-47417-650-0 01 1 9706-9802 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 39/7 16.5" HYPOID(W3B) HEAVY DUTY PACKAGE TRUCK<RD2> BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> 		1-49162-891-0 01 1 9811-9901 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 39/7 16.5" HYPOID(W3B) HEAVY DUTY PACKAGE TRUCK<RD2> BRK LINING MATERIAL 3662F NON ASBESTOS<BDR> 		1-49162-890-0 01 1 9811-9901 ●

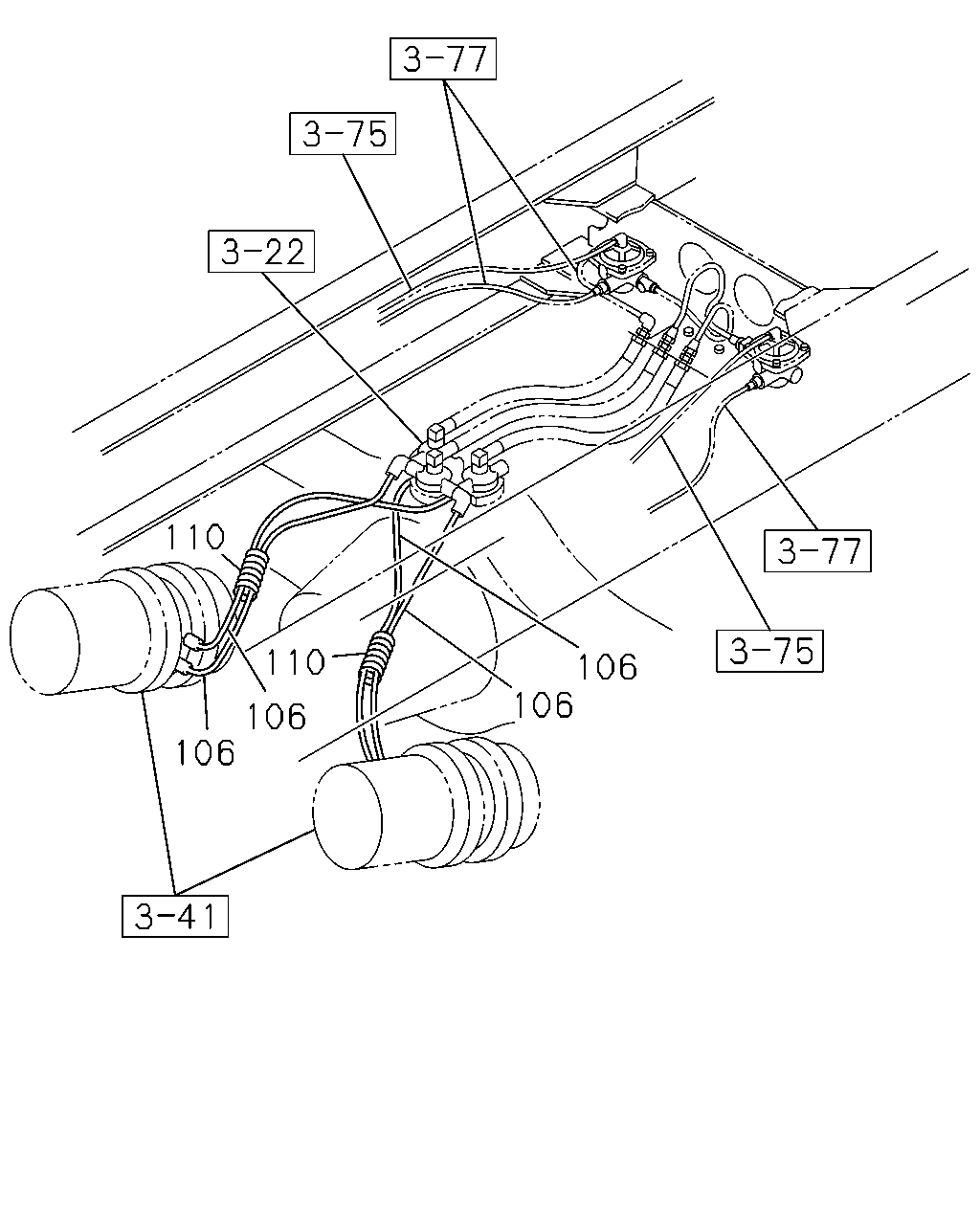

çizim 116228
110 110 106 106 106 106
BalonParca AdiParca NoAdetTipApplied Date A B
106 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0005- ●
110 TUBE; CORRUGATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 0005- ●
