◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#3993) — 61 parça

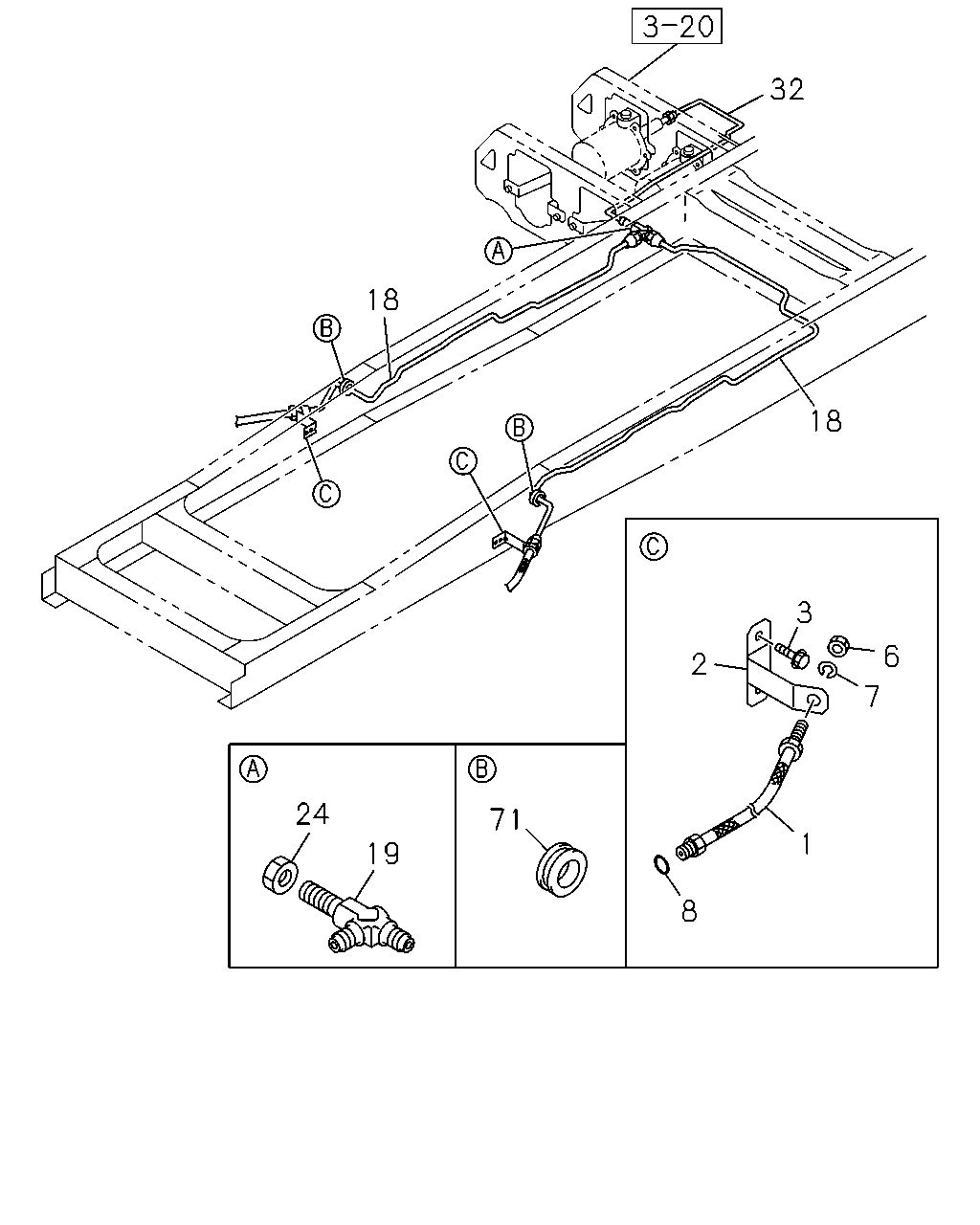

çizim 116060
32 18 18 3 6 2 7 24 71 1 19 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
L=610 		0-05312-610-0 02 1 9510-9705 ● ●
1 HOSE; FLEX,FRT BRK
L=610 		0-05312-610-0 02 1 9706-9802 ●
1 HOSE; FLEX,FRT BRK
EXC. FRONT AXLE F063(FS7) L=610 		0-05312-610-0 02 1 9706-9802 ●
1 HOSE; FLEX,FRT BRK
L=610 		0-05312-610-0 02 1 9803-0004 ● ●
1 HOSE; FLEX,FRT BRK
L=610 		0-05312-610-0 02 1 0005-0907 ●
1 HOSE; FLEX,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610 		0-05312-610-0 02 1 0005-0907 ●
1 HOSE; FLEX,FRT BRK
L=610 		0-05212-610-0 02 1 0908- ●
1 HOSE; FLEX,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610 		0-05212-610-0 02 1 0908- ●
1 HOSE; FLEX,FRT BRK
FRONT AXLE F063(FS7) L=650 		0-05312-650-0 02 1 9706-9802 ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-817-0 02 1 9510-0004 ● ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-817-0 02 1 0005- ●
2 BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47476-817-0 02 1 0005- ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE 		0-28080-820-0 04 1 9510-9606 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE 		0-28680-820-0 04 1 9607-9702 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 9703-9802 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 9803-0004 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 0005-0512 ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28680-825-0 04 1 0005-0512 ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 9510-0004 ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 0005- ●
6 NUT; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 02 1 0005- ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 9510-0004 ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 0005-0603 ●
7 WASHER; LK,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 02 1 0005-0603 ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		0-91510-512-0 02 1 0604- ●
7 WASHER; LK,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		0-91510-512-0 02 1 0604- ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 9510-0004 ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 0005- ●
8 GASKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17 		9-09920-472-0 02 1 0005- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=2658 SERVICED BY L=2900 		1-47426-364-0 01 1 9510-9802 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=1688 SERVICED BY L=1700 		1-47426-357-0 01 1 9510-9802 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=2683 SERVICED BY L=3700 		1-47426-367-0 01 1 9803-0001 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=2676 SERVICED BY L=2900 		1-47426-364-0 01 1 0002-0004 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=2676 SERVICED BY L=2900 		1-47426-364-0 01 1 0005-0012 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2676 SERVICED BY L=2900 		1-47426-364-0 01 1 0005-0012 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=2712 SERVICED BY L=2900 		1-47426-364-0 01 1 0101- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2712 SERVICED BY L=2900 		1-47426-364-0 01 1 0101- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=1910 SERVICED BY L=2000 		1-47426-359-0 01 1 9803-9804 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=1911 SERVICED BY L=2000 		1-47428-739-0 01 1 9805-0004 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=1911 SERVICED BY L=2000 		1-47428-739-0 01 1 0005- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1911 SERVICED BY L=2000 		1-47428-739-0 01 1 0005- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 9510-0004 ● ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
19 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ●
19 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 3WAY 		0-92138-906-0 01 1 0608- ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9510-0004 ● ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0005- ●
24 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 0005- ●
32 PIPE; OIL,AIR MASTER TO UNION
L=950 		1-47428-529-0 01 1 9510-9802 ● ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1208 SERVICED BY L=1250 		1-47426-353-0 01 1 9803-0001 ● ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1204 SERVICED BY L=1200 		1-47426-352-0 01 1 0002-0004 ● ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1204 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0101 ●
32 PIPE; OIL,AIR MASTER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1204 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0101 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1218 SERVICED BY L=1200 		1-47426-352-0 01 1 0102- ●
32 PIPE; OIL,AIR MASTER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1218 SERVICED BY L=1200 		1-47426-352-0 01 1 0102- ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 9510-0004 ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0005- ●
71 GROMMET; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0005- ●
