◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11102 - FRR RHD EURO2/4 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#39928) — 27 parça

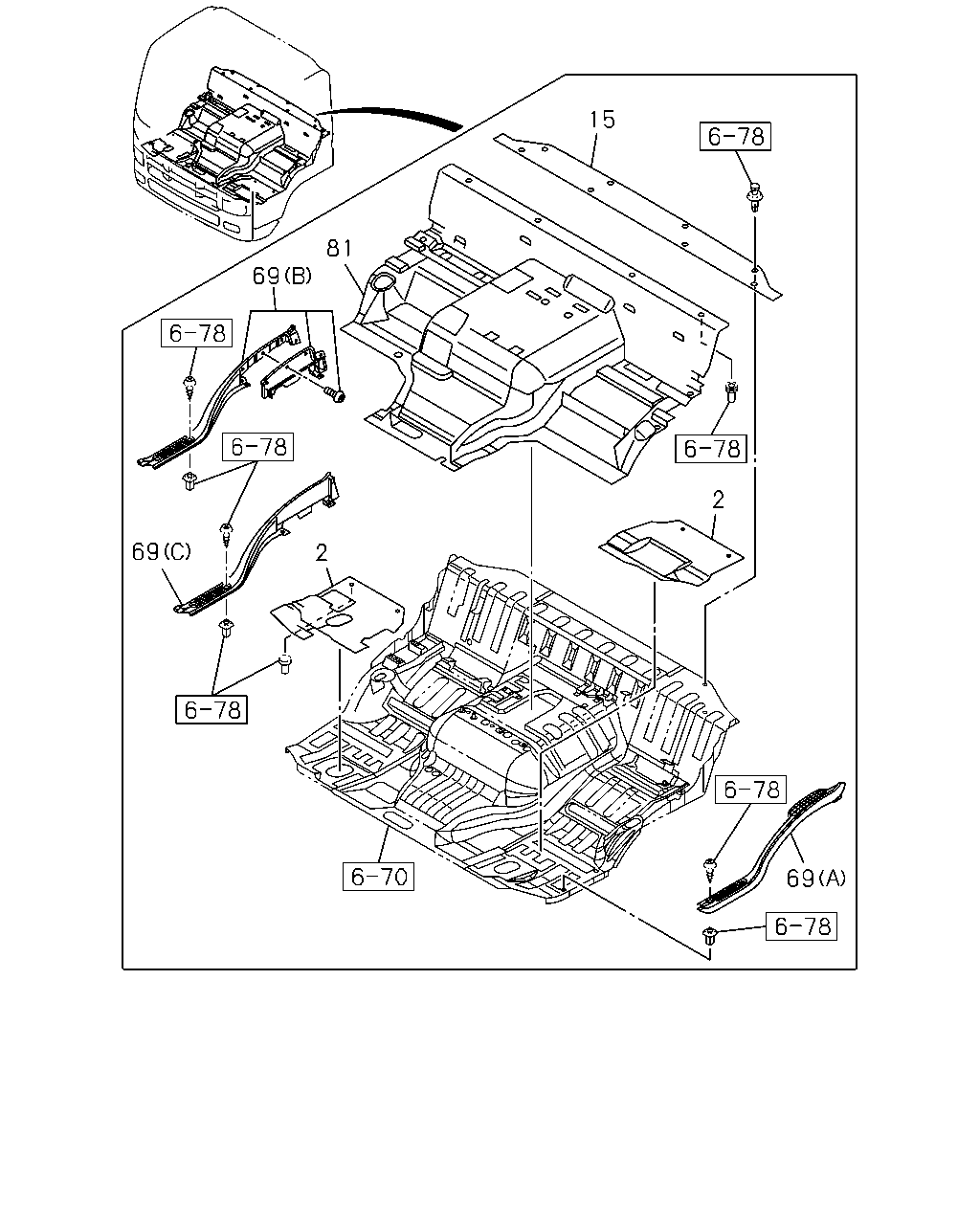

çizim 178095
81 69 69 69 15 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
VINYL CARPET<B30> GRAY 		8-97407-748-3 01 1 0712-1006 ●
2 MAT; FLOOR
VINYL CARPET<B30> DARK GRAY 		8-97418-946-0 01 1 1007- ●
2 MAT; FLOOR
VINYL CARPET<B30> GRAY 		8-97407-749-1 01 1 0712-1006 ●
2 MAT; FLOOR
VINYL CARPET<B30> DARK GRAY 		8-97418-948-0 01 1 1007- ●
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-744-4 01 1 0710- ● ●
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-745-2 01 1 0710- ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> GRAY 		8-97407-515-0 01 1 0712-1006 ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> DARK GRAY 		8-97418-954-0 01 1 1007- ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> GRAY 		8-97407-517-1 01 1 0710- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97407-413-1 01 1 0710- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97407-414-3 01 1 0710-1503 ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97465-138-0 01 1 1504- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-412-1 01 1 0710- ● ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) VINYL CARPET<B30> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97411-783-2 01 1 0712-0801 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) VINYL CARPET<B30> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-390-6 01 1 0712-0801 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) VINYL CARPET<B30> GRAY 		8-97407-390-6 01 1 0802-1006 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) VINYL CARPET<B30> DARK GRAY 		8-97418-937-0 01 1 1007- ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-407-3 01 1 0712- ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97411-782-2 01 1 0712-0801 ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-387-6 01 1 0712-0801 ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97407-387-6 01 1 0802-1006 ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DARK GRAY 		8-97418-936-0 01 1 1007- ●
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97411-790-3 01 1 0712- ●
81 MAT; FLOOR,CENTER
FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-405-3 01 1 0712- ●
81 MAT; FLOOR,CENTER
FLOOR COVER<6WX> GRAY 		8-97411-788-3 01 1 0710- ●
81 MAT; FLOOR,CENTER
FLOOR COVER<6WX> GRAY 		8-97411-791-3 01 1 0710-0711 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> FLOOR COVER<6WX> GRAY 		8-97411-791-3 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
