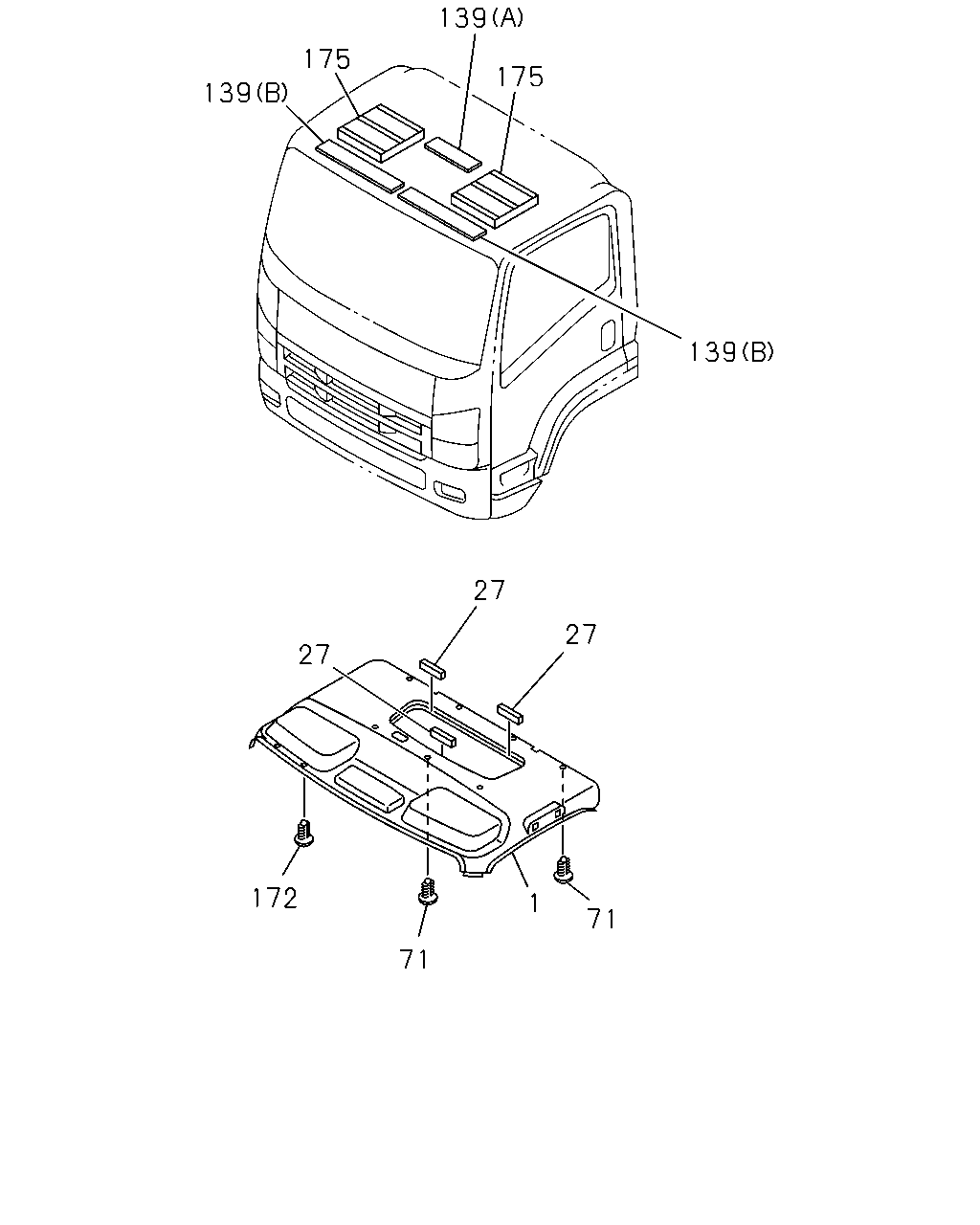

6-66 — HEAD LINING AND TRIM (#39926) — 48 parça

139 175 175 139 139 27 27 27 172 1 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> EXC. FLUORESCENT LAMP<6UC> DARK GRAY	8-97409-828-2	01	1	0712-1306	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> EXC. FLUORESCENT LAMP<6UC> DARK GRAY	8-97426-669-0	01	1	1307-	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR>,FLUORESCENT LAMP<6UC> DARK GRAY	8-97409-897-1	01	1	0712-1306	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR>,FLUORESCENT LAMP<6UC> DARK GRAY	8-97426-659-0	01	1	1307-	●
1	LINING; HD RR VIEW MIRROR<D31> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR>,FLUORESCENT LAMP<6UC> DARK GRAY	8-97409-896-1	01	1	0712-1306	●
1	LINING; HD RR VIEW MIRROR<D31> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR>,FLUORESCENT LAMP<6UC> DARK GRAY	8-97426-657-0	01	1	1307-	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> EXC. RR VIEW MIRROR<D31>,FLUORESCENT LAMP<6UC> DARK GRAY	8-97409-827-2	01	1	0712-1306	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> EXC. RR VIEW MIRROR<D31>,FLUORESCENT LAMP<6UC> DARK GRAY	8-97426-668-0	01	1	1307-	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31>,3-SPEAKER SYSTEM FRT<NNR> ,FLUORESCENT LAMP<6UC> DARK GRAY	8-97411-888-1	01	1	0712-1306	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31>,3-SPEAKER SYSTEM FRT<NNR> ,FLUORESCENT LAMP<6UC> DARK GRAY	8-97426-658-0	01	1	1307-	●
1	LINING; HD EXC. RR VIEW MIRROR<D31>,HEADER CONSOLE DRIVER & PASSENGER<EDG>,3-SPEAKER SYSTEM FRT<NNR>, FLUORESCENT LAMP<6UC> DARK GRAY	8-97411-887-1	01	1	0712-1306	●
1	LINING; HD EXC. RR VIEW MIRROR<D31>,HEADER CONSOLE DRIVER & PASSENGER<EDG>,3-SPEAKER SYSTEM FRT<NNR>, FLUORESCENT LAMP<6UC> DARK GRAY	8-97426-656-0	01	1	1307-	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31>,3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97407-533-3	01	1	0710-0711	●	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31>,3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97407-533-3	01	1	0712-0811	●	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31>,3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97416-353-0	01	1	0812-1306	●	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31>,3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97426-674-0	01	1	1307-	●	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> EXC. RR VIEW MIRROR<D31> DARK GRAY	8-97409-829-2	01	1	0710-0711	●	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31> DARK GRAY	8-97409-829-2	01	1	0712-0811	●	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31> DARK GRAY	8-97416-355-0	01	1	0812-1306	●	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31> DARK GRAY	8-97426-676-0	01	1	1307-	●	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97409-830-2	01	1	0710-0711	●	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> FLUORESCENT LAMP<6UC> DARK GRAY	8-97409-830-2	01	1	0712-0811	●	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> FLUORESCENT LAMP<6UC> DARK GRAY	8-97416-356-0	01	1	0812-1306	●	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> FLUORESCENT LAMP<6UC> DARK GRAY	8-97426-677-0	01	1	1307-	●	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97407-888-3	01	1	0710-0711	●	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97407-888-3	01	1	0712-0811	●	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97416-351-0	01	1	0812-1306	●	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97426-672-0	01	1	1307-	●	●
1	LINING; HD RR VIEW MIRROR<D31> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97407-887-3	01	1	0710-0711	●	●
1	LINING; HD RR VIEW MIRROR<D31> FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97407-887-3	01	1	0712-0811	●	●
1	LINING; HD RR VIEW MIRROR<D31> FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97416-352-0	01	1	0812-1306	●	●
1	LINING; HD RR VIEW MIRROR<D31> FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97426-673-0	01	1	1307-	●	●
1	LINING; HD EXC. RR VIEW MIRROR<D31>,HEADER CONSOLE DRIVER & PASSENGER<EDG>,3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97407-534-3	01	1	0710-0711	●	●
1	LINING; HD FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31>,HEADER CONSOLE DRIVER & PASSENGER<EDG>,3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97407-534-3	01	1	0712-0811	●	●
1	LINING; HD FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31>,HEADER CONSOLE DRIVER & PASSENGER<EDG>,3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97416-354-0	01	1	0812-1306	●	●
1	LINING; HD FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31>,HEADER CONSOLE DRIVER & PASSENGER<EDG>,3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97426-675-0	01	1	1307-	●	●
27	INSULATION; ROOF	8-98046-638-1	03	1	0710-0911	●	●
27	INSULATION; ROOF	8-98046-638-2	03	1	0912-		●
27	INSULATION; ROOF FLUORESCENT LAMP<6UC>	8-98046-638-2	03	1	0912-	●
71	FASTENER; HD LINING DARK GRAY	8-97405-282-0	09	1	0710-0804	●	●
71	FASTENER; HD LINING DARK GRAY	8-97405-282-0	07	1	0805-	●	●
139	SEAL; ROOF (A)	8-98076-275-0	01	1	0710-0711	●	●
139	SEAL; ROOF (A)	8-98076-275-0	01	1	0712-0712		●
139	SEAL; ROOF FLUORESCENT LAMP<6UC> (A)	8-98076-275-0	01	1	0712-0712	●
139	SEAL; ROOF (B)	8-98076-274-0	02	1	0710-1009	●	●
139	SEAL; ROOF (B)	8-98169-116-0	02	1	1010-	●	●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	14	1	0710-	●	●
175	CUSHION; HEAD LINING	8-98030-965-2	02	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
