◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11102 - FRR RHD EURO2/4 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#39923) — 20 parça

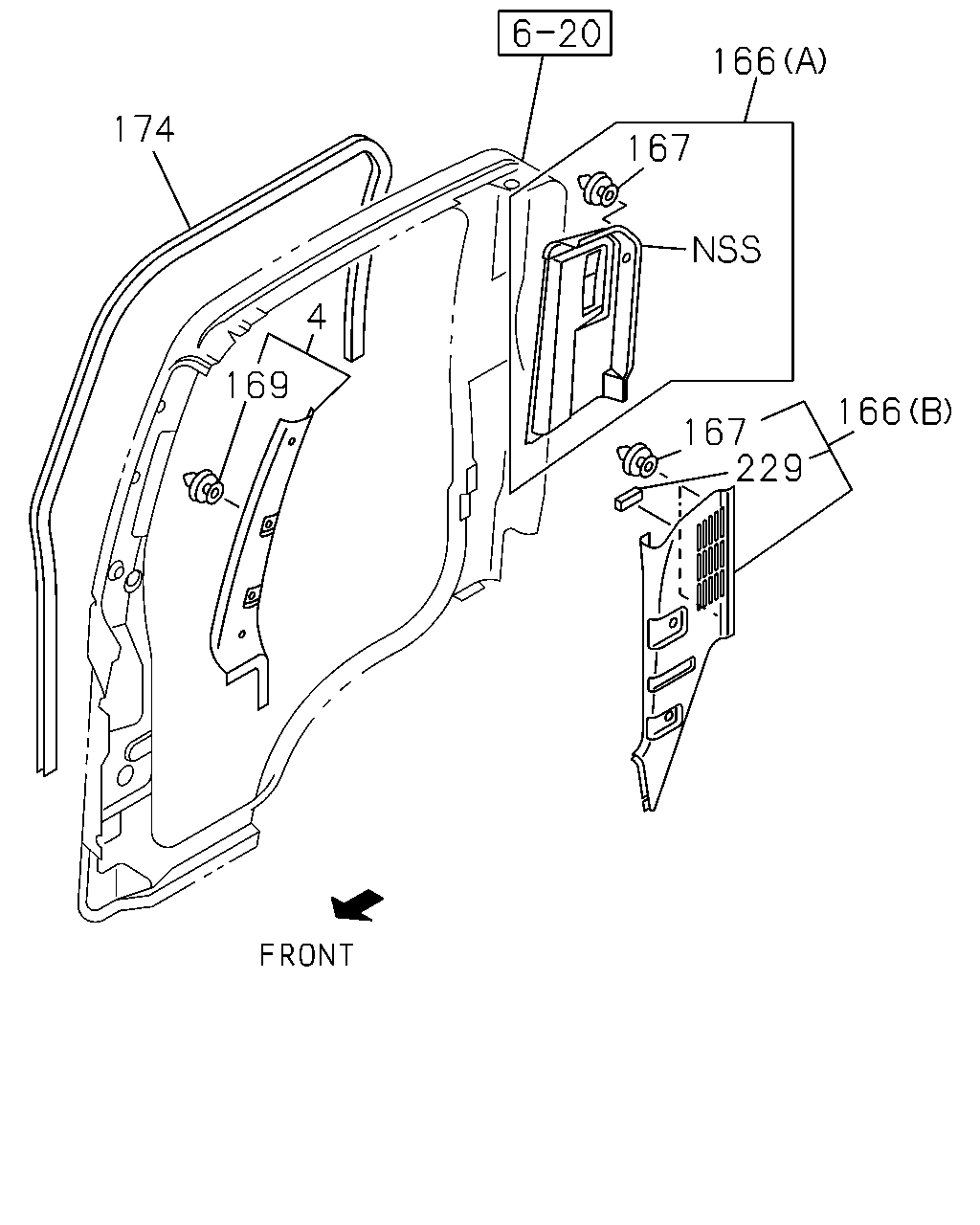

çizim 178438
166 174 167 4 169 166 167 229
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 0710- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 0710- ● ●
166 TRIM; RR PILLAR
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) GRAY 		8-97407-539-0 01 1 0712- ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-301-0 01 1 0710-0711 ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-301-0 01 1 0712- ●
166 TRIM; RR PILLAR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) GRAY 		8-97414-301-0 01 1 0712- ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97406-796-1 01 1 0710- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-540-0 01 1 0710- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97407-900-0 01 1 0710- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 02 1 0710- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 02 1 0710- ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 0710- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0710- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-918-1 01 1 0710-0912 ● ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1001- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-917-1 01 1 0710-0912 ● ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1001- ● ●
229 SEAL 8-98092-662-0 01 1 0710-0711 ● ●
229 SEAL 8-98092-662-0 01 1 0712- ●
229 SEAL
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98092-662-0 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
