Sayfa 6-04 - Isuzu EPC

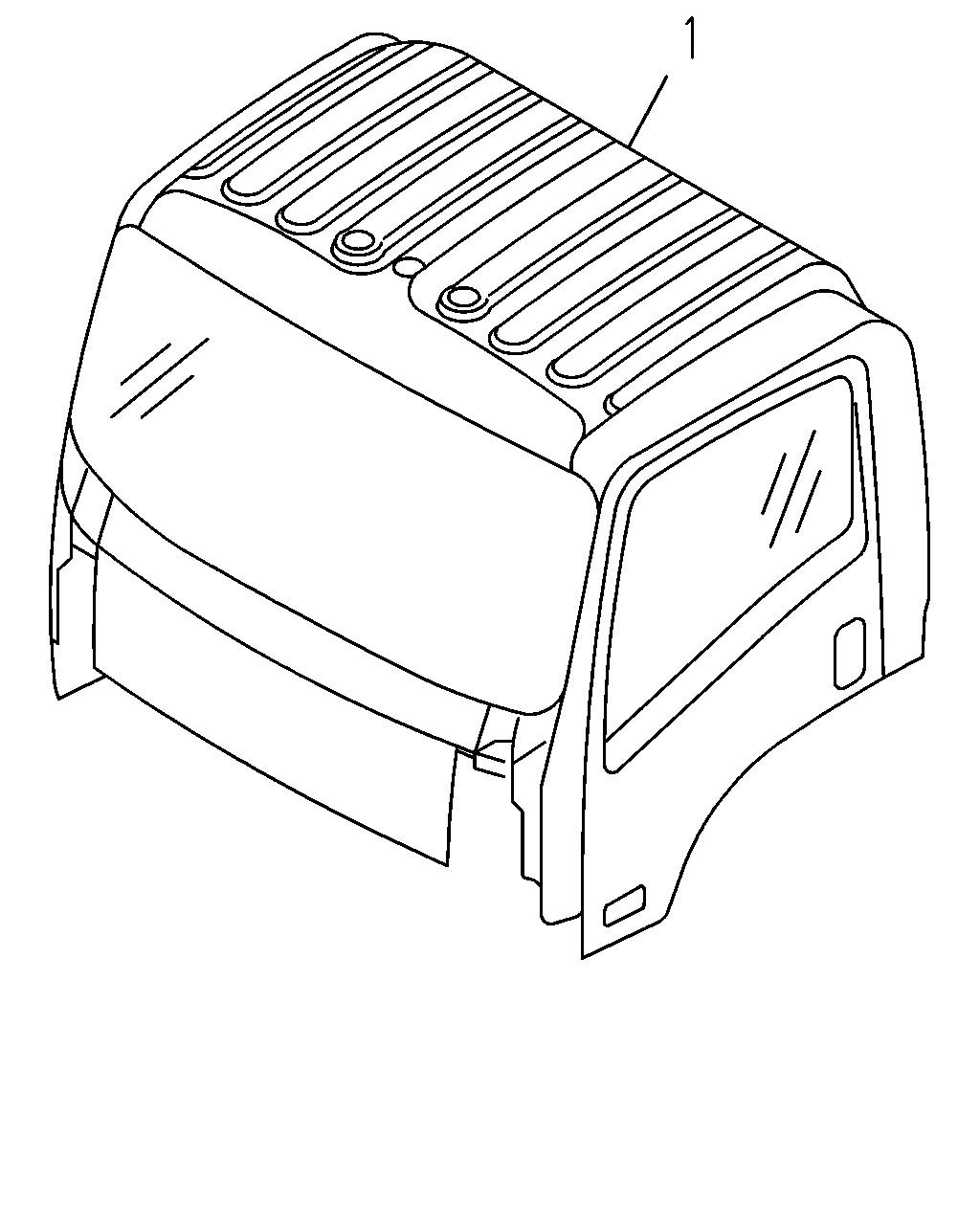

6-04 — CAB ASM (#39915) — 4 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> INTERIOR FULL TRIM<WM3> 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> MANUAL TRANSMISSION<X9C> WINDOW RR<8LF> EXC. COUNTRY NEW ZEALAND(CX6),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRROR UNDER VIEW<RR9>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-61087-340-0	01	1	0712-	●	●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> INTERIOR FULL TRIM<WM3> 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> MANUAL TRANSMISSION<X9C> WINDOW RR<8LF> COUNTRY NEW ZEALAND(CX6) O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, TRANSMISSION CONTROL-SMOOTHER(8GF)	1-61087-624-0	01	1	0712-		●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,P ILLAR MOUNTED<DNB>,NEW ZEALAND EQUIPMENT(E13), 3-SPEAKER SYSTEM FRT<NNR>,FUEL TANK CAP KEY LOCK<N05>, O/SIDE MIRROR UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,2-SPEAKER SYSTEM BASE<U95>,INTERIOR FULL TRIM<WM3>,OK WINDOW<6ND>,FLUORESCENT LAMP<6UC>,IMMOB ILIZER SYSTEM<7KC>,WINDOW RR<8LF>	1-61088-797-0	01	1	1012-		●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT DOOR<A32> ASSISTOR SHIFT CONTROL<WX8> LAMPS TWO ROOF MARKER<TEC> WINDOW RR<8LF> EXC. COUNTRY NEW ZEALAND(CX6),O/SIDE MIRROR UNDER VIEW<RR9>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-61087-340-0	01	1	0710-0711	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
