5-10 — CAB MOUNTING; FRAME SIDE (#39909) — 43 parça

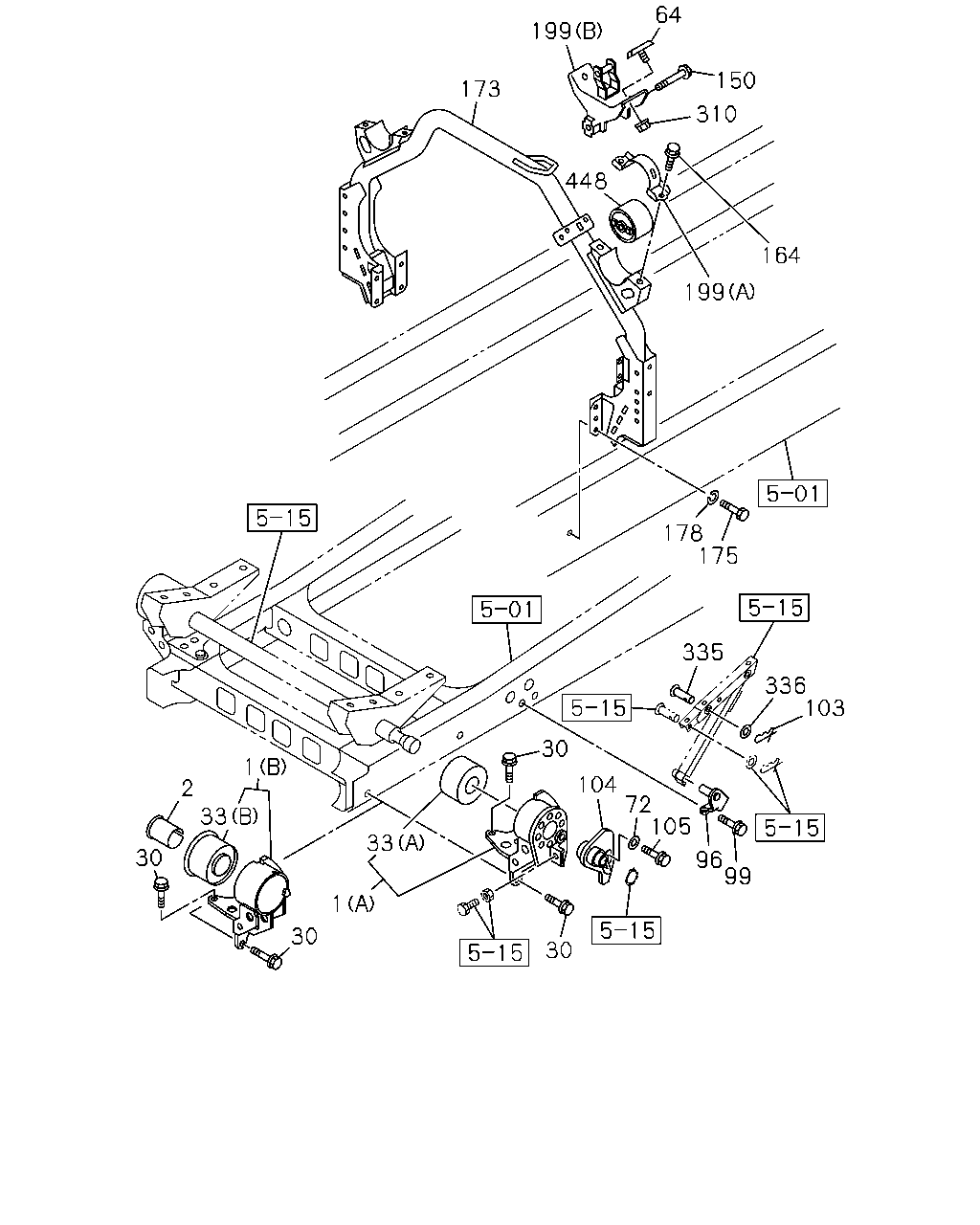

çizim 178422
64 199 150 173 310 448 164 199 178 175 335 336 103 30 1 104 72 105 2 33 33 30 96 99 1 30 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (B) 		8-98010-750-2 01 1 0712- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (B) 		8-98056-501-2 01 1 0712- ●
1 BRACKET; CAB MTG
(A) 		8-98010-747-2 01 1 0710-0711 ● ●
1 BRACKET; CAB MTG
(A) 		8-98010-747-2 01 1 0712- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-747-2 01 1 0712- ●
1 BRACKET; CAB MTG
(A) 		8-98010-746-2 01 1 0710-0711 ● ●
1 BRACKET; CAB MTG
(A) 		8-98010-746-2 01 1 0712- ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-746-2 01 1 0712- ●
2 BUSHING; TORSION BAR
CAB SUSPENSION RIGID<W71> 		8-98010-767-0 02 1 0712- ●
30 BOLT; CAB FRT FOOT
M14X45 FLANGE 		0-28861-445-0 10 1 0710- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (B) 		8-98013-933-1 02 1 0712- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98013-932-2 02 1 0710-0711 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98013-932-2 02 1 0712- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98013-932-2 02 1 0712- ●
64 RUBBER; CUSHION 8-97113-340-0 04 1 0710- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=15 OD=36 		0-91614-714-0 01 1 0710- ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 0710- ● ●
99 BOLT; BRKT
M10X30 FLANGE 		0-28661-030-0 02 1 0710- ● ●
103 PIN; SPLIT,CAB STAY
L=32.6 		8-98062-280-0 01 1 0710- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98010-753-3 01 1 0710- ● ●
105 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE 		0-28661-435-0 01 1 0710- ● ●
150 BOLT; CAB MTG RR
M14X100 		0-10956-400-0 02 1 0710- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M12X25 FLANGE 		0-28651-225-0 04 1 0710- ● ●
173 MEMBER; CAB MTG RR 8-98010-756-5 01 1 0710- ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0710- ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0710- ● ●
199 BRACKET; CAB RR MTG
(B) 		8-98297-105-0 01 1 1503- ●
199 BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF> (B) 		8-98297-105-0 01 1 1503- ●
199 BRACKET; CAB RR MTG
KD PREPARATORY PACK<6HF> (B) 		8-98099-068-0 02 1 1503- ●
199 BRACKET; CAB RR MTG
(B) 		8-98099-068-0 01 1 0711-1301 ● ●
199 BRACKET; CAB RR MTG
(B) 		8-98099-068-0 02 1 1302-1502 ● ●
199 BRACKET; CAB RR MTG
(B) 		8-98099-068-0 01 1 1503- ●
199 BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF> (B) 		8-98099-068-0 01 1 1503- ●
199 BRACKET; CAB RR MTG
(B) 		8-98023-692-0 02 1 0710-0710 ● ●
199 BRACKET; CAB RR MTG
(B) 		8-98023-692-0 01 1 0711-1301 ● ●
199 BRACKET; CAB RR MTG
(A) 		8-98044-556-1 02 1 0710- ● ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 0710- ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 0710- ● ●
448 BUSHING; CAB MTG
CAB SUSPENSION RIGID<W71> 		8-98013-934-1 02 1 0712- ●
448 BUSHING; CAB MTG 8-98010-759-2 02 1 0710-0711 ● ●
448 BUSHING; CAB MTG 8-98010-759-2 02 1 0712- ●
448 BUSHING; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> 		8-98010-759-2 02 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
