5-01 — FRAME AND OTHER PARTS (#39908) — 371 parça

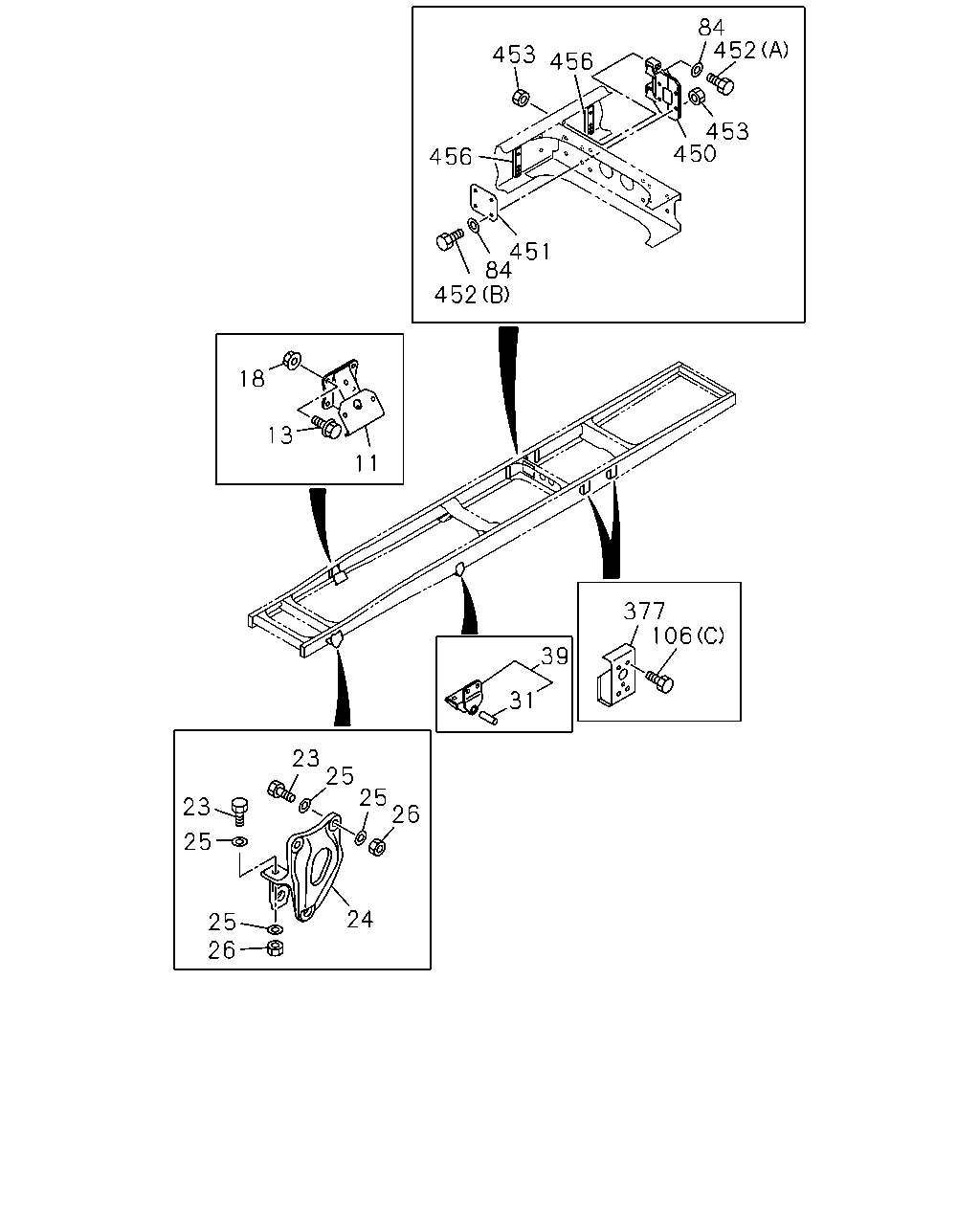

çizim 178416
84 452 453 456 453 450 456 451 84 452 18 13 11 377 106 39 31 23 25 25 26 23 25 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 BRACKET; ENG MTG 8-97604-129-0 02 1 0710-0711 ● ● ● ●
11 BRACKET; ENG MTG 8-97604-129-0 02 1 0712-0808 ● ● ● ● ●
11 BRACKET; ENG MTG 8-97604-129-0 02 1 0809- ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0710-0711 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0712-0808 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0809- ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0710-0711 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0712-0808 ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0809- ● ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0710-0711 ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0712-0808 ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0809- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0710-0711 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0712-0808 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0809- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0710-0711 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0712-0808 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0809- ● ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-0 16 1 0710-0711 ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-0 16 1 0712-0808 ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0809- ● ● ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0710-0711 ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 0710-0711 ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0712-0808 ● ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 0712-0808 ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0809- ● ● ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 0809- ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 0710- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0710-0711 ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0712-0808 ● ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0809- ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0710-0711 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0712-0808 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0809- ● ● ● ● ● ●
84 WASHER; PL,BRKT
AIR SUS(FCD***) ID=16.2 		1-09503-316-0 12 1 0710- ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0710-0711 ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0710-0711 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0712-0808 ● ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0712-0808 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0809- ● ● ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0809- ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 0710- ●
106 BOLT; BRKT
AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 0710- ●
377 BRACKET; TOP PLATE
AIR SUS(FCD***) 		8-98061-350-0 04 1 0710- ●
450 BRACKET; V ROD
AIR SUS(FCD***) 		1-53353-121-0 02 1 0710- ●
451 GUSSET; V ROD
AIR SUS(FCD***) 		8-97610-436-0 02 1 0710- ●
452 BOLT; V ROD
AIR SUS(FCD***) (A) M16X120 		1-09000-677-0 04 1 0710-0908 ●
452 BOLT; V ROD
AIR SUS(FCD***) (A) M16X110 		1-09000-738-0 04 1 0909- ●
452 BOLT; V ROD
AIR SUS(FCD***) (B) M16X50 		1-09000-679-0 08 1 0710- ●
453 NUT; V ROD
AIR SUS(FCD***) M16 FLANGE 		1-09440-066-0 12 1 0710- ●
456 PATCH; STOPPER
AIR SUS(FCD***) 		8-97610-437-1 04 1 0710- ●

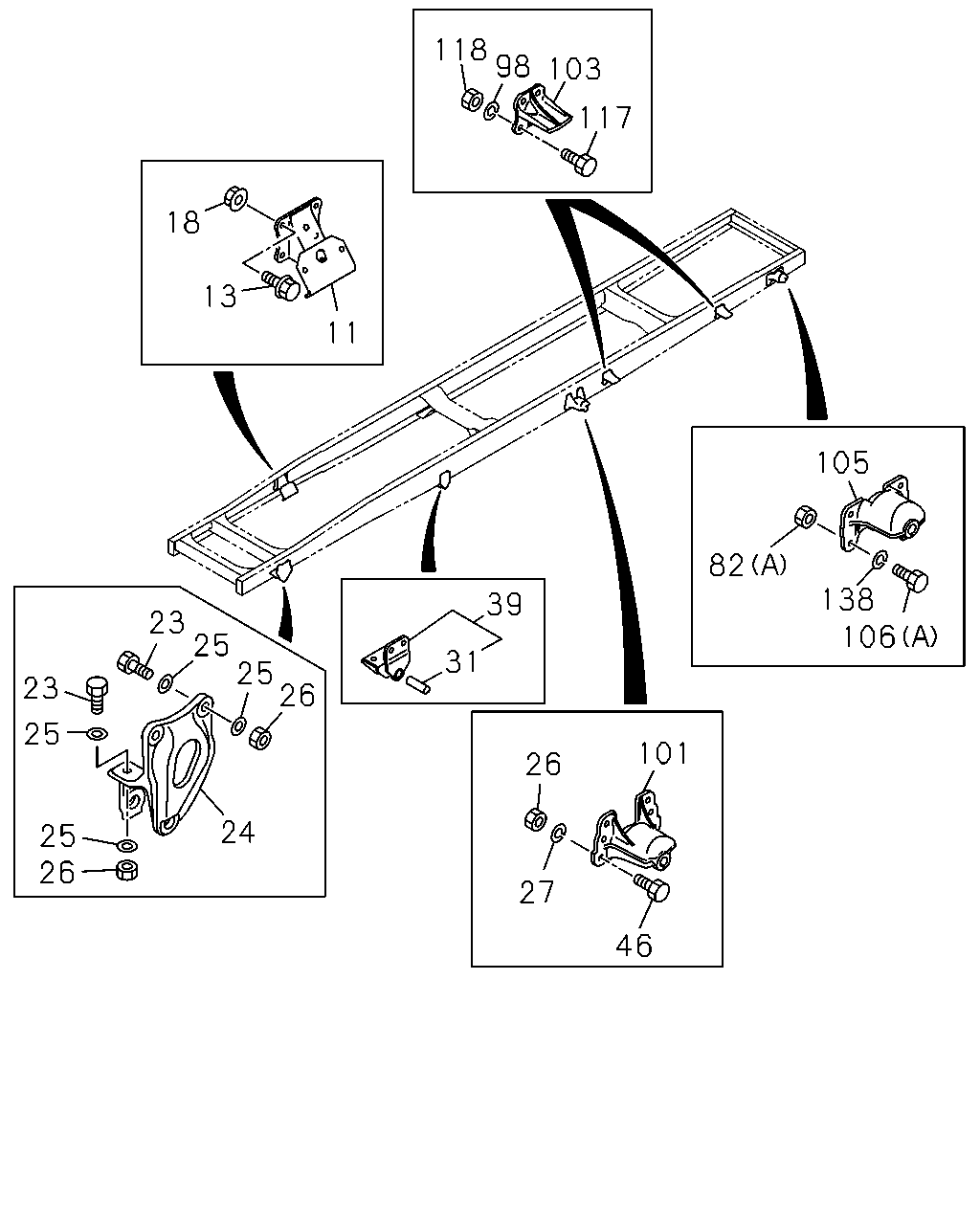

çizim 178421
118 98 103 117 18 13 11 105 82 138 106 39 23 25 25 26 31 23 25 101 26 24 25 26 27 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 BRACKET; ENG MTG 8-97604-129-0 02 1 0710-0711 ● ● ● ●
11 BRACKET; ENG MTG 8-97604-129-0 02 1 0712-0808 ● ● ● ● ●
11 BRACKET; ENG MTG 8-97604-129-0 02 1 0809- ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0710-0711 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0712-0808 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0809- ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0710-0711 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0712-0808 ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0809- ● ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0710-0711 ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0712-0808 ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0809- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0710-0711 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0712-0808 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0809- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0710-0711 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0712-0808 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0809- ● ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-0 16 1 0710-0711 ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-0 16 1 0712-0808 ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0809- ● ● ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0710-0711 ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 0710-0711 ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0712-0808 ● ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 0712-0808 ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0809- ● ● ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 0809- ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 0710- ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0710-0711 ● ● ●
27 WASHER; LK,BRKT,FRT SPR
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 0710-0711 ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0712-0808 ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 0712-0808 ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0809- ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 0809- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0710-0711 ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0712-0808 ● ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0809- ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0710-0711 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0712-0808 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0809- ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0710-0711 ● ● ●
46 BOLT; BRKT FIX
LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 0710-0711 ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0712-0808 ● ● ● ●
46 BOLT; BRKT FIX
LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 0712-0808 ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0809- ● ● ● ● ●
46 BOLT; BRKT FIX
LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 0809- ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0710-0711 ● ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 0710-0711 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0712-0808 ● ● ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 0712-0808 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0809- ● ● ● ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 0809- ●
82 NUT; BRKT
AIR SUS(FCD***) (B) M10 		0-91110-510-0 04 1 0710- ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0710-0711 ● ● ●
98 WASHER; LK,STOPPER
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 0710-0711 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0712-0808 ● ● ● ●
98 WASHER; LK,STOPPER
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 0712-0808 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0809- ● ● ● ● ●
98 WASHER; LK,STOPPER
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 0809- ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0710-0711 ● ● ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 0710-0711 ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0712-0808 ● ● ● ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 0712-0808 ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0809- ● ● ● ● ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 0809- ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0710-0711 ● ● ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 0710-0711 ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0712-0808 ● ● ● ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 0712-0808 ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0809- ● ● ● ● ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 0809- ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0710-0711 ● ● ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 0710-0711 ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0712-0808 ● ● ● ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 0712-0808 ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0809- ● ● ● ● ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 0809- ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0710-0711 ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0710-0711 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0712-0808 ● ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0712-0808 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0809- ● ● ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0809- ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 0710- ●
106 BOLT; BRKT
AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 0710- ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0710-0711 ● ● ●
117 BOLT; STOPPER
LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 0710-0711 ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0712-0808 ● ● ● ●
117 BOLT; STOPPER
LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 0712-0808 ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0809- ● ● ● ● ●
117 BOLT; STOPPER
LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 0809- ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0710-0711 ● ● ●
118 NUT; STOPPER
LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 0710-0711 ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0712-0808 ● ● ● ●
118 NUT; STOPPER
LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 0712-0808 ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0809- ● ● ● ● ●
118 NUT; STOPPER
LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 0809- ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0710-0711 ● ● ●
138 WASHER; LK,BRKT
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 0710-0711 ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0712-0808 ● ● ● ●
138 WASHER; LK,BRKT
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 0712-0808 ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0809- ● ● ● ● ●
138 WASHER; LK,BRKT
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 0809- ●

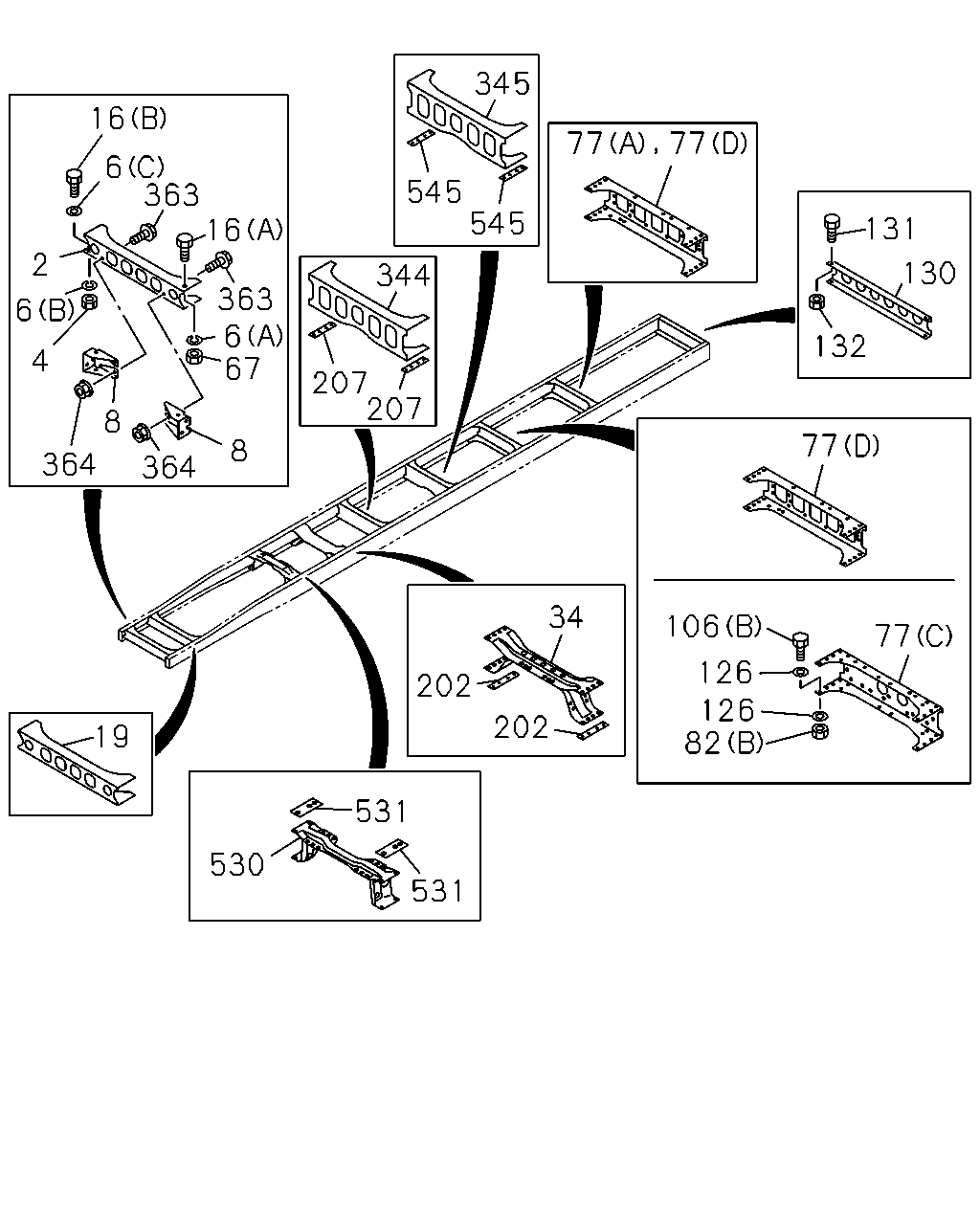

çizim 178428
345 16 77 77 6 363 16 545 545 131 2 130 344 363 6 67 6 132 4 207 207 8 77 8 364 364 34 106 77 126 126 82 202 202 19 531 530 531
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 MEMBER; CROSS,1ST 8-97615-669-1 01 1 0710-0711 ● ● ● ●
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 0712-0808 ● ● ● ● ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 0809- ● ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 FLANGE 		0-91180-214-0 02 1 0710-0710 ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 0710- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 0710- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 0710- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0710-0711 ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0712-0808 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0809- ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-0 01 1 0710-0711 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-1 01 1 0712-0808 ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-1 01 1 0809- ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-0 01 1 0710-0711 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-2 01 1 0712-0808 ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-2 01 1 0809- ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X35 FLANGE 		0-28851-435-0 02 1 0710-0710 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 0710- ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0710-0711 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0712-0808 ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0809- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-2 01 1 0710-0711 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-2 01 1 0712-0808 ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 0809- ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 0710-0711 ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 0712-0808 ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 0809- ● ● ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0710-0711 ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0712-0808 ● ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0809- ● ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) REAR 		8-97609-475-2 01 1 0710- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) FRONT 		8-97609-478-4 01 1 0710- ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL(6SZ) (D) 		8-97610-935-0 02 1 0710-0711 ●
77 MEMBER; CROSS,TRUNNION RR
(D) 		8-97610-935-0 02 1 0710-0711 ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (D) 		8-97610-935-0 02 1 0710-0711 ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL(6SZ) (D) 		8-97610-935-0 02 1 0712-0808 ●
77 MEMBER; CROSS,TRUNNION RR
(D) 		8-97610-935-0 02 1 0712-0808 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (D) 		8-97610-935-0 02 1 0712-0808 ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL(6SZ) (D) 		8-97610-935-1 02 1 0809- ●
77 MEMBER; CROSS,TRUNNION RR
(D) 		8-97610-935-1 02 1 0809- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (D) 		8-97610-935-1 02 1 0809- ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (A) REAR 		8-97609-481-4 01 1 0710- ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (C) FRONT 		8-97609-483-0 01 1 0710- ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0710-0711 ● ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 0710-0711 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0712-0808 ● ● ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 0712-0808 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0809- ● ● ● ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 0809- ●
82 NUT; BRKT
AIR SUS(FCD***) (B) M10 		0-91110-510-0 04 1 0710- ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0710-0711 ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0710-0711 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0712-0808 ● ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0712-0808 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0809- ● ● ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0809- ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 0710- ●
106 BOLT; BRKT
AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 0710- ●
126 WASHER; PL,BRKT
AIR SUS(FCD***) ID=10.5 OD=22 		0-91614-610-0 08 1 0710- ●
130 MEMBER; CROSS,END
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-469-0 01 1 0710- ●
130 MEMBER; CROSS,END
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-470-0 01 1 0710-0711 ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0710-0711 ● ● ●
130 MEMBER; CROSS,END
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-470-0 01 1 0712-0808 ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0712-0808 ● ● ● ●
130 MEMBER; CROSS,END
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-470-0 01 1 0809- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0809- ● ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0710-0711 ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0712-0808 ● ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0809- ● ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0710-0711 ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0712-0808 ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0809- ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-0 02 1 0710-0711 ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-0 02 1 0712-0808 ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 0809- ● ● ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 0710-0711 ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 0712- ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0710-0808 ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0809- ● ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0710-0711 ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0712- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 0710-0711 ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 0712- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0710-0711 ● ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0712-0808 ● ● ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0809- ● ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0710-0711 ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0712-0808 ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0809- ● ● ● ● ● ●
530 MEMBER; CROSS,T/M
MZZ6W M/T(RSA) 		8-97609-814-1 01 1 1012- ● ● ● ● ●
530 MEMBER; CROSS,T/M
MLD6Q M/T(X5J) 		8-97627-753-0 01 1 0806-0808 ● ● ● ● ●
530 MEMBER; CROSS,T/M
MLD6Q M/T(X5J),MLD6S M/T(X7W) 		8-97627-753-0 01 1 0809- ● ● ● ● ● ●
530 MEMBER; CROSS,T/M
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97615-671-2 01 1 0710-0804 ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97615-671-2 01 1 0805-0906 ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97615-671-2 01 1 0907- ●
530 MEMBER; CROSS,T/M
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-809-3 01 1 0710-0711 ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 0710-0711 ● ● ●
530 MEMBER; CROSS,T/M
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-809-3 01 1 0712-0804 ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 0712-0804 ● ● ● ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-809-3 01 1 0805-0808 ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW) 		8-97609-809-3 01 1 0805-0808 ● ● ● ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-809-3 01 1 0809-0906 ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW) 		8-97609-809-3 01 1 0809-0906 ● ● ● ● ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-809-3 01 1 0907- ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-97609-809-3 01 1 0907- ● ● ● ● ●
531 SPACER; C/MBR,T/M
MZZ6W M/T(RSA) 		8-97637-078-0 02 1 1012- ● ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-0 02 1 0710-0711 ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-0 02 1 0712-0808 ● ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 0809-1011 ● ● ● ● ● ●
531 SPACER; C/MBR,T/M
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6S M/T(X7W) 		8-97616-461-1 02 1 1012- ● ● ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 0710-0711 ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 0712- ● ●

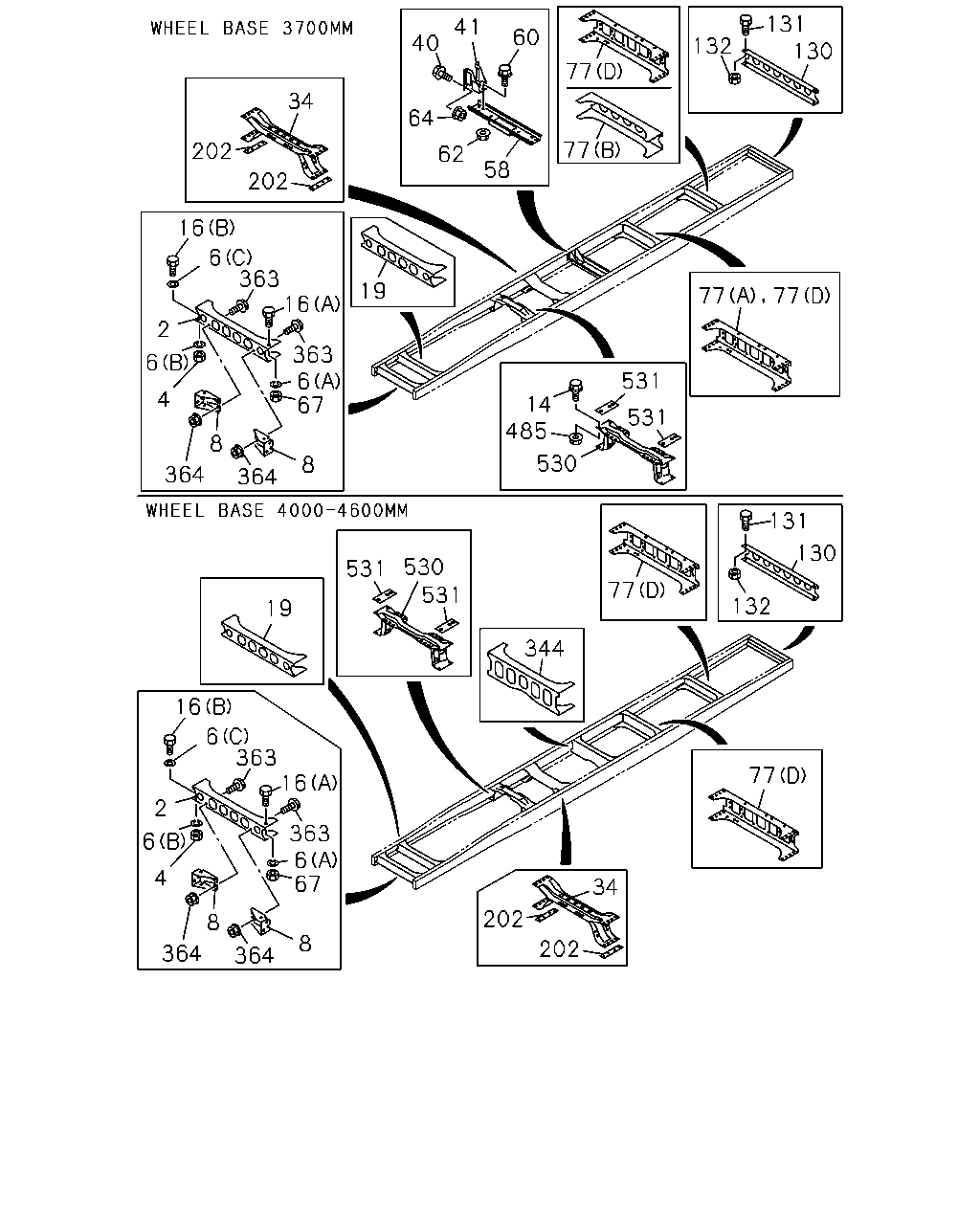

çizim 178436
131 132 130 41 60 40 77 34 64 77 202 62 58 202 16 6 363 16 19 77 77 2 363 6 67 6 531 4 14 485 531 8 530 8 364 364 131 130 530 531 531 77 132 19 344 16 6 363 16 77 2 363 6 67 6 4 34 202 8 8 202 364 364
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 MEMBER; CROSS,1ST 8-97615-669-1 01 1 0710-0711 ● ● ● ●
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 0712-0808 ● ● ● ● ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 0809- ● ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 FLANGE 		0-91180-214-0 02 1 0710-0710 ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 0710- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 0710- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 0710- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0710-0711 ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0712-0808 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0809- ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-0 01 1 0710-0711 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-1 01 1 0712-0808 ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-1 01 1 0809- ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-0 01 1 0710-0711 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-2 01 1 0712-0808 ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-2 01 1 0809- ● ● ● ● ● ●
14 BOLT; TRANS MTG MBR,FRAME
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) M12X35 FLANGE 		0-28661-235-0 04 1 0806-0808 ●
14 BOLT; TRANS MTG MBR,FRAME
MLD6Q M/T(X5J),MLD6S M/T(X7W) POWER TAKE OFF-FLYWHEEL(6SZ) M12X35 FLANGE 		0-28661-235-0 04 1 0809- ●
14 BOLT; TRANS MTG MBR,FRAME
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) M12X40 FLANGE 		0-28661-240-0 02 1 0806-0808 ●
14 BOLT; TRANS MTG MBR,FRAME
MLD6Q M/T(X5J),MLD6S M/T(X7W) POWER TAKE OFF-FLYWHEEL(6SZ) M12X40 FLANGE 		0-28661-240-0 02 1 0809- ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X35 FLANGE 		0-28851-435-0 02 1 0710-0710 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 0710- ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0710-0711 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0712-0808 ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0809- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-2 01 1 0710-0711 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-2 01 1 0712-0808 ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 0809- ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 0710-0711 ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 0712-0808 ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 0809- ● ● ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 0710- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 0710- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 0710- ●
58 MEMBER; CENTER BRG
MZZ6W M/T(RSA) 		8-97620-971-0 01 1 1012- ●
58 MEMBER; CENTER BRG 8-97619-113-0 01 1 0710-1011 ●
58 MEMBER; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6S M/T(X7W) 		8-97619-113-0 01 1 1012- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0710- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0710- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0710- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0710-0711 ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0712-0808 ● ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0809- ● ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) REAR 		8-97609-475-2 01 1 0710- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) FRONT 		8-97609-478-4 01 1 0710- ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL(6SZ) (D) 		8-97610-935-0 02 1 0710-0711 ●
77 MEMBER; CROSS,TRUNNION RR
(D) 		8-97610-935-0 02 1 0710-0711 ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (D) 		8-97610-935-0 02 1 0710-0711 ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL(6SZ) (D) 		8-97610-935-0 02 1 0712-0808 ●
77 MEMBER; CROSS,TRUNNION RR
(D) 		8-97610-935-0 02 1 0712-0808 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (D) 		8-97610-935-0 02 1 0712-0808 ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL(6SZ) (D) 		8-97610-935-1 02 1 0809- ●
77 MEMBER; CROSS,TRUNNION RR
(D) 		8-97610-935-1 02 1 0809- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (D) 		8-97610-935-1 02 1 0809- ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (A) REAR 		8-97609-481-4 01 1 0710- ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (C) FRONT 		8-97609-483-0 01 1 0710- ●
130 MEMBER; CROSS,END
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-469-0 01 1 0710- ●
130 MEMBER; CROSS,END
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-470-0 01 1 0710-0711 ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0710-0711 ● ● ●
130 MEMBER; CROSS,END
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-470-0 01 1 0712-0808 ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0712-0808 ● ● ● ●
130 MEMBER; CROSS,END
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-470-0 01 1 0809- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0809- ● ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0710-0711 ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0712-0808 ● ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0809- ● ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0710-0711 ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0712-0808 ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0809- ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-0 02 1 0710-0711 ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-0 02 1 0712-0808 ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 0809- ● ● ● ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0710-0808 ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0809- ● ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0710-0711 ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0712- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0710-0711 ● ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0712-0808 ● ● ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0809- ● ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0710-0711 ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0712-0808 ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0809- ● ● ● ● ● ●
485 NUT; TRANS MTG MBR,FRAME
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) M12 FLANGE 		0-91180-212-0 06 1 0806-0808 ●
485 NUT; TRANS MTG MBR,FRAME
MLD6Q M/T(X5J),MLD6S M/T(X7W) POWER TAKE OFF-FLYWHEEL(6SZ) M12 FLANGE 		0-91180-212-0 06 1 0809- ●
530 MEMBER; CROSS,T/M
MZZ6W M/T(RSA) 		8-97609-814-1 01 1 1012- ● ● ● ● ●
530 MEMBER; CROSS,T/M
MLD6Q M/T(X5J) 		8-97627-753-0 01 1 0806-0808 ● ● ● ● ●
530 MEMBER; CROSS,T/M
MLD6Q M/T(X5J),MLD6S M/T(X7W) 		8-97627-753-0 01 1 0809- ● ● ● ● ● ●
530 MEMBER; CROSS,T/M
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97615-671-2 01 1 0710-0804 ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97615-671-2 01 1 0805-0906 ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97615-671-2 01 1 0907- ●
530 MEMBER; CROSS,T/M
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-809-3 01 1 0710-0711 ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 0710-0711 ● ● ●
530 MEMBER; CROSS,T/M
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-809-3 01 1 0712-0804 ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 0712-0804 ● ● ● ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-809-3 01 1 0805-0808 ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW) 		8-97609-809-3 01 1 0805-0808 ● ● ● ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-809-3 01 1 0809-0906 ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW) 		8-97609-809-3 01 1 0809-0906 ● ● ● ● ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-809-3 01 1 0907- ●
530 MEMBER; CROSS,T/M
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-97609-809-3 01 1 0907- ● ● ● ● ●
531 SPACER; C/MBR,T/M
MZZ6W M/T(RSA) 		8-97637-078-0 02 1 1012- ● ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-0 02 1 0710-0711 ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-0 02 1 0712-0808 ● ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 0809-1011 ● ● ● ● ● ●
531 SPACER; C/MBR,T/M
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6S M/T(X7W) 		8-97616-461-1 02 1 1012- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
