4-60 — REAR SUSPENSION (#39901) — 96 parça

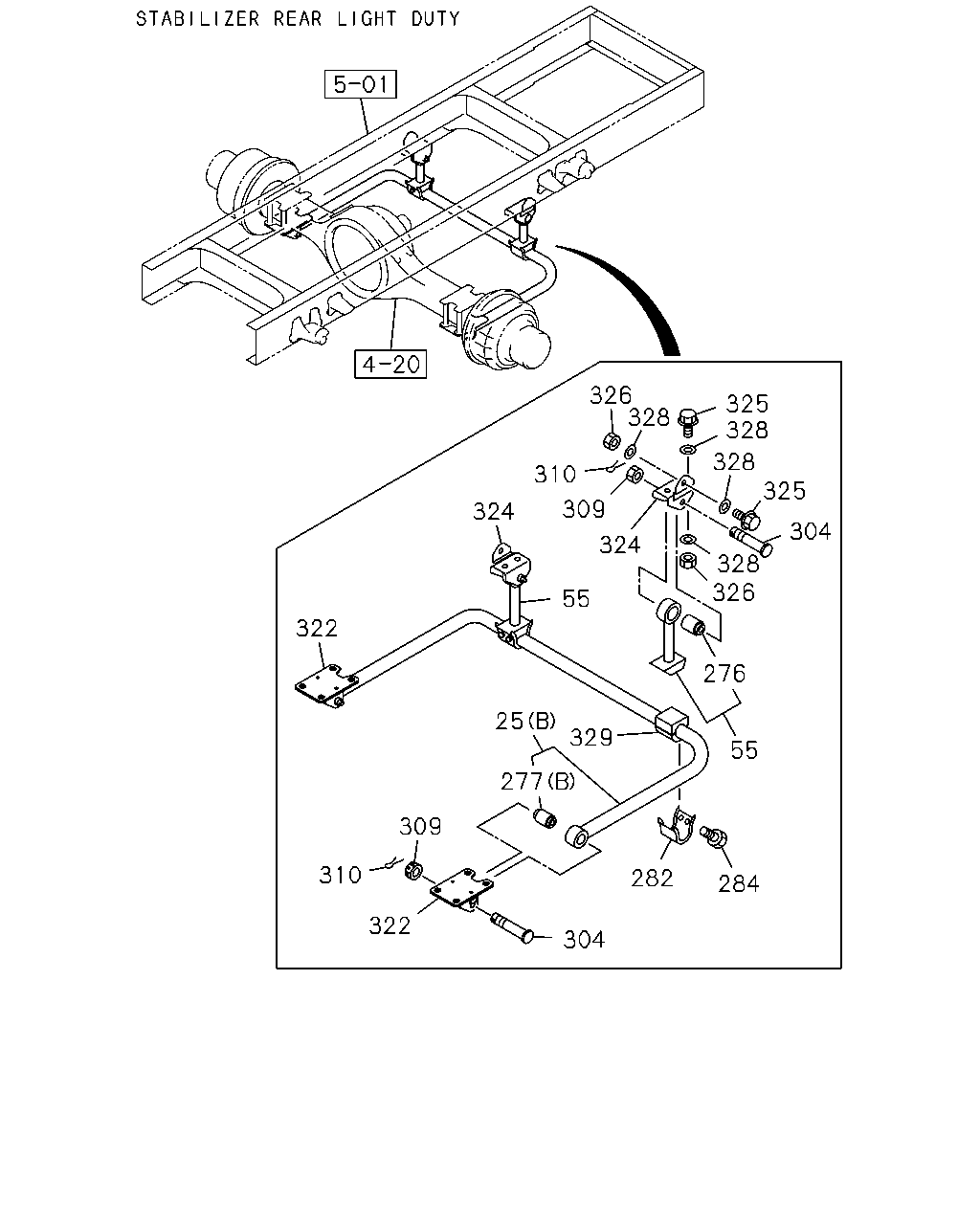

326 328 325 328 328 325 310 309 324 304 324 328 326 55 322 276 25 329 55 277 309 310 282 284 322 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BAR ASM; STAB,RR SUSP STABILIZER REAR LIGHT DUTY<GN1> (B)	1-51770-111-1	01	1	0712-	●
25	BAR ASM; STAB,RR SUSP (A)	8-97604-141-0	01	1	0710-1209		●
25	BAR ASM; STAB,RR SUSP (A)	8-98223-550-1	01	1	1210-		●
55	ROD; STAB STABILIZER REAR LIGHT DUTY<GN1>	1-51770-023-0	02	1	0712-	●
276	BUSHING; STAB ROD STABILIZER REAR LIGHT DUTY<GN1>	1-51779-019-0	02	1	0712-	●
277	BUSHING; STAB,RR UPR (A)	8-97604-143-1	02	1	1210-		●
277	BUSHING; STAB,RR UPR STABILIZER REAR LIGHT DUTY<GN1> (B)	1-51779-067-0	02	1	0712-	●
277	BUSHING; STAB,RR UPR (A)	8-97604-143-0	02	1	0710-1209		●
282	RETAINER; STAB BAR STABILIZER REAR LIGHT DUTY<GN1>	1-51789-015-2	02	1	0712-	●
284	BOLT; RET TO RET STABILIZER REAR LIGHT DUTY<GN1> M10X25	8-94463-351-0	08	1	0712-	●
304	PIN; STAB ROD STABILIZER REAR LIGHT DUTY<GN1>	1-51789-020-2	04	1	0712-	●
309	NUT; STAB ROD STABILIZER REAR LIGHT DUTY<GN1> M24	9-99116-424-0	04	1	0712-	●
310	PIN; SPLIT,STAB ROD STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45	0-81125-045-0	04	1	0712-	●
322	BRACKET; STAB BAR TO RR AXLE STABILIZER REAR LIGHT DUTY<GN1>	1-51781-080-0	01	1	0712-	●
322	BRACKET; STAB BAR TO RR AXLE STABILIZER REAR LIGHT DUTY<GN1>	1-51781-081-0	01	1	0712-	●
324	BRACKET; STAB BAR TO FRAME STABILIZER REAR LIGHT DUTY<GN1>	1-51781-059-0	02	1	0712-	●
325	BOLT; BRKT TO FRAME STABILIZER REAR LIGHT DUTY<GN1> M14X50	0-20951-450-0	06	1	0712-	●
326	NUT; BRKT TO FRAME STABILIZER REAR LIGHT DUTY<GN1> M14	0-91110-514-0	06	1	0712-	●
328	WASHER; PL,BRKT STABILIZER REAR LIGHT DUTY<GN1> ID=15	8-98010-627-1	12	1	0712-	●
329	BUSHING; STAB ROD STABILIZER REAR LIGHT DUTY<GN1>	1-51789-017-0	02	1	0712-	●

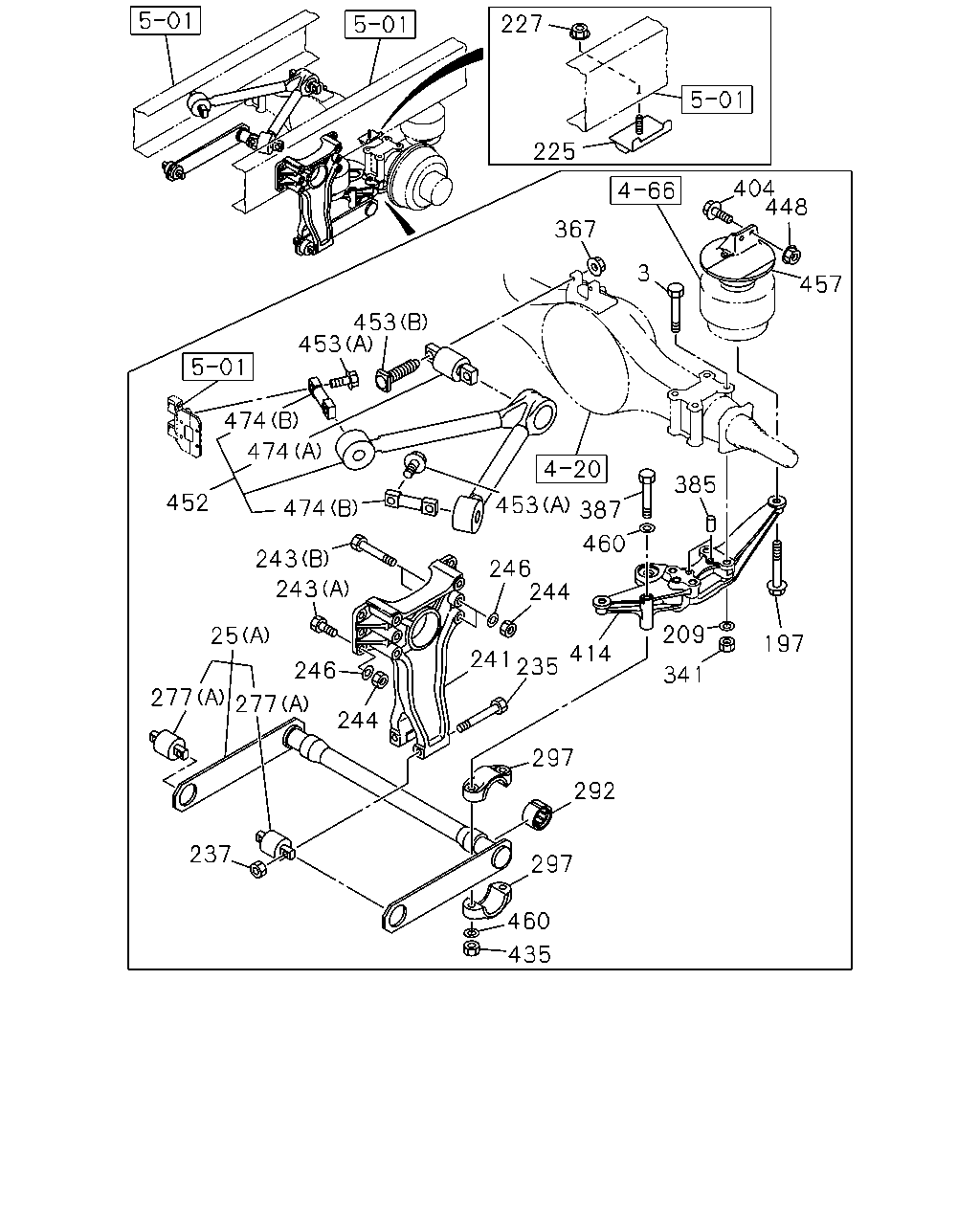

227 225 404 448 367 3 457 453 453 474 474 385 452 453 387 474 460 243 246 244 243 209 25 197 414 241 235 246 341 277 277 244 297 292 237 297 460 435

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	BOLT; BEAM M18X220	8-98015-275-0	08	1	0710-		●
25	BAR ASM; STAB,RR SUSP STABILIZER REAR LIGHT DUTY<GN1> (B)	1-51770-111-1	01	1	0712-	●
25	BAR ASM; STAB,RR SUSP (A)	8-97604-141-0	01	1	0710-1209		●
25	BAR ASM; STAB,RR SUSP (A)	8-98223-550-1	01	1	1210-		●
197	BOLT M16X70 FLANGE	8-98010-416-0	04	1	0710-		●
209	WASHER; PL ID=19	8-98010-401-0	08	1	0710-		●
225	RUBBER; CUSHION,RR SPR	1-53366-168-0	02	1	0710-1103		●
225	RUBBER; CUSHION,RR SPR	8-98187-339-0	02	1	1104-		●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	02	1	0710-		●
235	BOLT; TORQUE ROD M18X170	8-98010-544-0	04	1	0710-		●
237	NUT; TORQUE ROD M18 SELF LOCK	8-98010-391-0	04	1	0710-		●
241	BRACKET; TORQUE ROD	1-53361-090-1	02	1	0710-		●
243	BOLT; BRKT,TORQUE ROD (A) M20X60	8-98010-410-0	04	1	0710-		●
243	BOLT; BRKT,TORQUE ROD (B) M20X150	8-98010-546-0	08	1	0710-		●
244	NUT; BRKT M20	8-98010-408-0	12	1	0710-		●
246	WASHER; TORQUE ROD ID=21	8-98010-403-0	12	1	0710-		●
277	BUSHING; STAB,RR UPR (A)	8-97604-143-1	02	1	1210-		●
277	BUSHING; STAB,RR UPR STABILIZER REAR LIGHT DUTY<GN1> (B)	1-51779-067-0	02	1	0712-	●
277	BUSHING; STAB,RR UPR (A)	8-97604-143-0	02	1	0710-1209		●
292	BUSHING; RUBBER,STAB	1-51779-111-2	02	1	0710-1209		●
292	BUSHING; RUBBER,STAB	8-98156-746-1	02	1	1210-		●
297	CAP; STAB BAR	1-52175-015-1	04	1	0710-1209		●
297	CAP; STAB BAR	8-98174-447-0	04	1	1210-		●
341	NUT; BEAM M18	8-98010-407-0	08	1	0710-		●
367	NUT M24 FLANGE	8-98010-393-0	02	1	0710-		●
385	PIN; KNOCK,SUSP BEAM	1-52179-036-2	04	1	0710-		●
387	BOLT; CAP FIX,STAB BAR M18X200	8-98074-641-0	04	1	0710-		●
404	BOLT; PLATE M14X110	8-98010-543-0	08	1	0710-		●
414	BEAM; AIR SPR	8-98010-002-0	01	1	0710-		●
414	BEAM; AIR SPR	8-98010-000-0	01	1	0710-		●
435	NUT; CAP M18	8-98010-407-0	04	1	0710-		●
448	NUT; PLATE M14 FLANGE	8-98010-395-0	08	1	0710-		●
452	ROD ASM; V	1-51510-770-1	01	1	0710-1309		●
452	ROD ASM; V	8-98239-062-0	01	1	1310-		●
453	PIN; AXLE (A) M18X70 FLANGE	8-98010-540-0	04	1	0710-1102		●
453	PIN; AXLE (A) M18X70 FLANGE	8-98183-506-0	04	1	1103-		●
453	PIN; AXLE (B) M24X78 SQUARE HEAD	8-98010-551-0	02	1	0710-		●
457	PLATE; AIR SPRING,UPR	8-97375-200-0	02	1	0710-		●
457	PLATE; AIR SPRING,UPR	8-97375-201-0	02	1	0710-		●
460	WASHER; CAP ID=19	8-98010-401-0	08	1	0710-		●
474	REPAIR KIT; V-ROD (A)	1-51519-159-1	01	1	0710-1309		●
474	REPAIR KIT; V-ROD (A)	8-98240-108-0	01	1	1310-		●
474	REPAIR KIT; V-ROD (B)	1-51519-160-2	02	1	0710-1309		●
474	REPAIR KIT; V-ROD (B)	8-98240-109-0	02	1	1310-		●

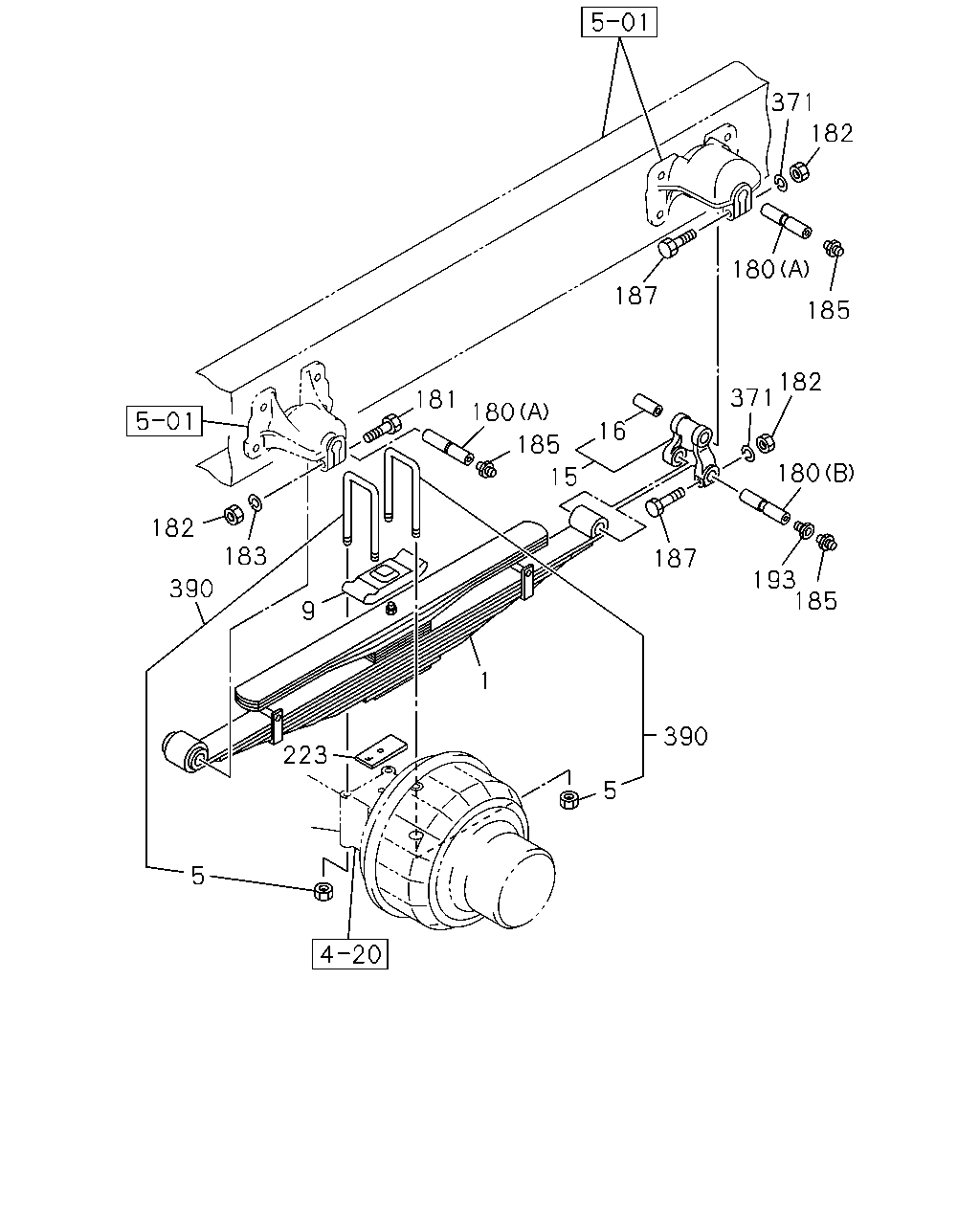

371 182 180 187 185 182 371 181 180 16 185 180 15 182 183 187 193 185 390 9 1 390 223 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR(SAS) 15-LEAF	8-98064-449-0	02	1	0710-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUS HELPER RR(SAU) 11-LEAF	8-98079-006-0	02	1	0710-	●
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	0710-	●
9	PAD; U BOLT,RR SPR	1-51372-059-0	02	1	0710-	●
15	SHACKLE; RR SPR	1-51362-038-2	02	1	0710-	●
16	BUSHING; SHACKLE,RR SPR ID=25	9-51151-032-0	02	1	0710-0902	●
16	BUSHING; SHACKLE,RR SPR ID=25	8-98082-176-0	02	1	0903-	●
180	PIN; RR SPR (A) DO=25 L=115 PT1/8	1-51361-016-0	04	1	0710-	●
180	PIN; RR SPR (B) DO=25 L=115 M12	1-51361-017-0	02	1	0710-	●
181	BOLT; SPR & SHACKLE M12X70	0-10961-270-0	02	1	0710-	●
182	NUT; PIN,RR SPR M12	0-91110-512-0	06	1	0710-	●
183	WASHER; LK,PIN,RR SPR ID=12.2	0-91510-612-0	02	1	0710-	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	06	1	0710-	●
187	BOLT; SPR & SHACKLE M12X70	0-10961-270-0	04	1	0710-	●
193	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	02	1	0710-	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	1-51377-329-1	02	1	0809-0912	●
223	SPACER; U BOLT,RR SPR MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	1-51377-329-1	02	1	1001-	●
223	SPACER; U BOLT,RR SPR MLD6Q M/T(X5J),MLD6S M/T(X7W) WHEEL BASE 3700MM(37W)	1-51377-329-1	02	1	1001-	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 3700MM(37W)	8-98067-502-0	02	1	0710-0711	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 3700MM(37W)	8-98096-335-0	02	1	0712-0808	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4>	8-98096-335-0	02	1	0809-0912	●
223	SPACER; U BOLT,RR SPR MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4>	8-98096-335-0	02	1	1001-	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 4000MM(40W)	8-98043-891-0	02	1	0710-0808	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W)	8-98043-891-0	02	1	0809-1011	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W)	8-98043-891-0	02	1	1012-	●
223	SPACER; U BOLT,RR SPR MZZ6W M/T(RSA) WHEEL BASE 3700MM(37W)	8-98043-891-0	02	1	1012-	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 4600MM(46W)	8-98063-307-0	02	1	0710-0711	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W)	8-98063-307-0	02	1	0712-1212	●
371	WASHER; LK,SHACKLE ID=12.2	0-91510-612-0	04	1	0710-	●
390	U-BOLT SET; RR SPRING STABILIZER REAR LIGHT DUTY<GN1> L=405	1-87870-353-0	04	1	0712-	●
390	U-BOLT SET; RR SPRING L=390	1-87870-399-0	04	1	0710-0711	●
390	U-BOLT SET; RR SPRING EXC. STABILIZER REAR LIGHT DUTY<GN1> L=390	1-87870-399-0	04	1	0712-	●
