4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#39895) — 110 parça

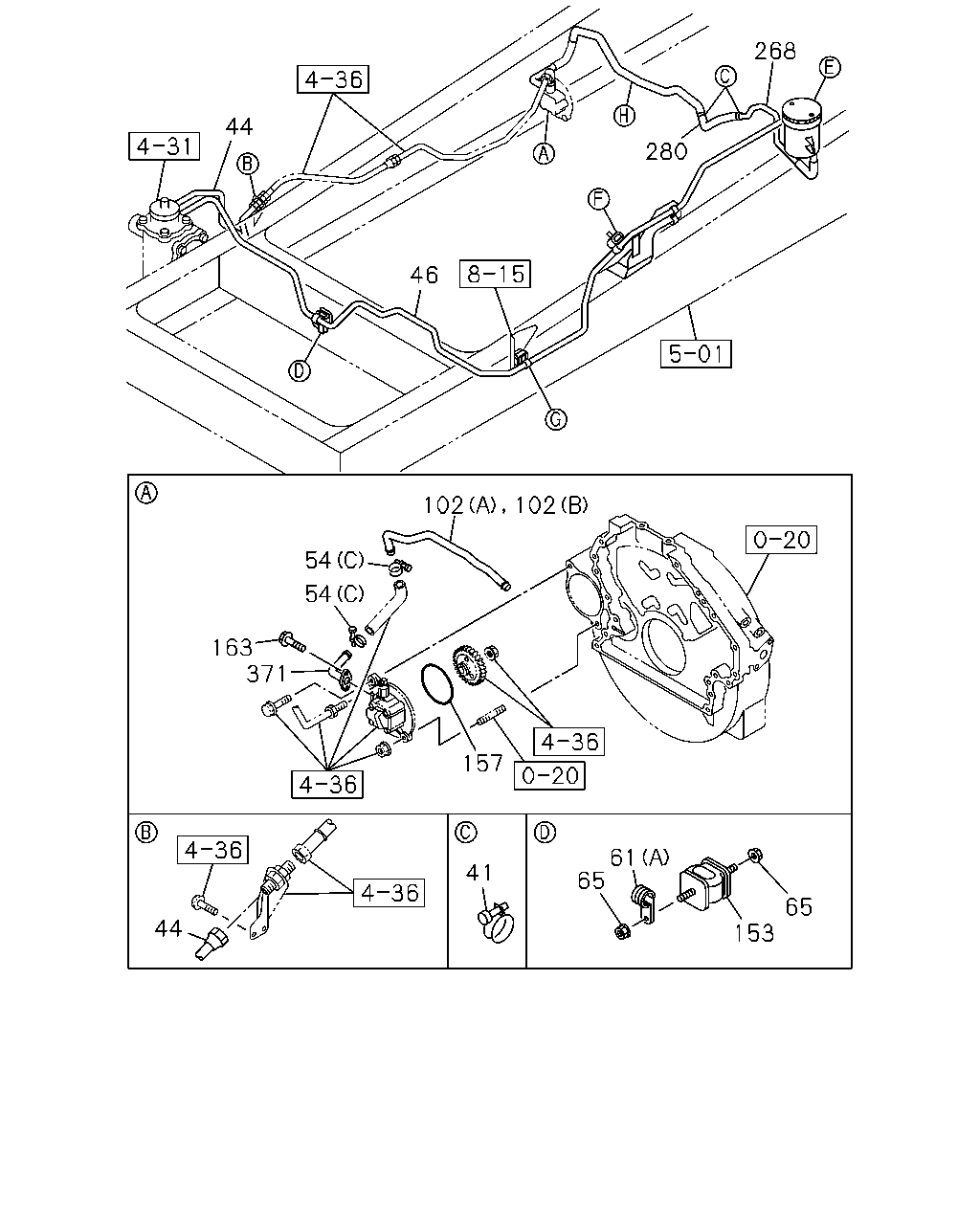

268 44 280 46 102 102 54 54 163 371 157 61 65 41 65 44 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0710-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	0710-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44)	8-98077-661-0	01	1	0710-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2394	8-98080-958-0	01	1	0710-	●	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	06	1	0710-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	01	1	0710-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	0710-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	0710-		●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	0710-	●	●
54	CLIP; OIL PIPE (B)	1-09701-284-0	02	1	0710-1006	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	02	1	0710-1006		●
54	CLIP; OIL PIPE (B)	1-09701-284-0	04	1	1007-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	04	1	1007-		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-	●	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	0710-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0710-	●	●
102	PIPE; SUCTION,P/S EURO2 SPECIFICATION<NT2> (A)	8-98080-186-2	01	1	0809-		●
102	PIPE; SUCTION,P/S POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98077-916-2	01	1	0710-		●
102	PIPE; SUCTION,P/S (A)	8-98057-017-4	01	1	0710-0808	●
102	PIPE; SUCTION,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-017-4	01	1	0710-0808		●
102	PIPE; SUCTION,P/S (A)	8-98057-017-4	01	1	0809-	●
102	PIPE; SUCTION,P/S EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-017-4	01	1	0809-		●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	0710-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	0710-	●	●
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98090-786-0	01	1	0710-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98077-739-2	01	1	0710-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98077-739-2	01	1	0710-		●
280	HOSE; P/S OIL PUMP,INL POWER TAKE OFF-FLYWHEEL(6SZ)	8-98080-020-0	01	1	0710-		●
280	HOSE; P/S OIL PUMP,INL	8-98053-040-1	01	1	0710-	●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98053-040-1	01	1	0710-		●
371	PIPE; OIL,INLET	8-98072-089-1	01	1	0710-	●	●

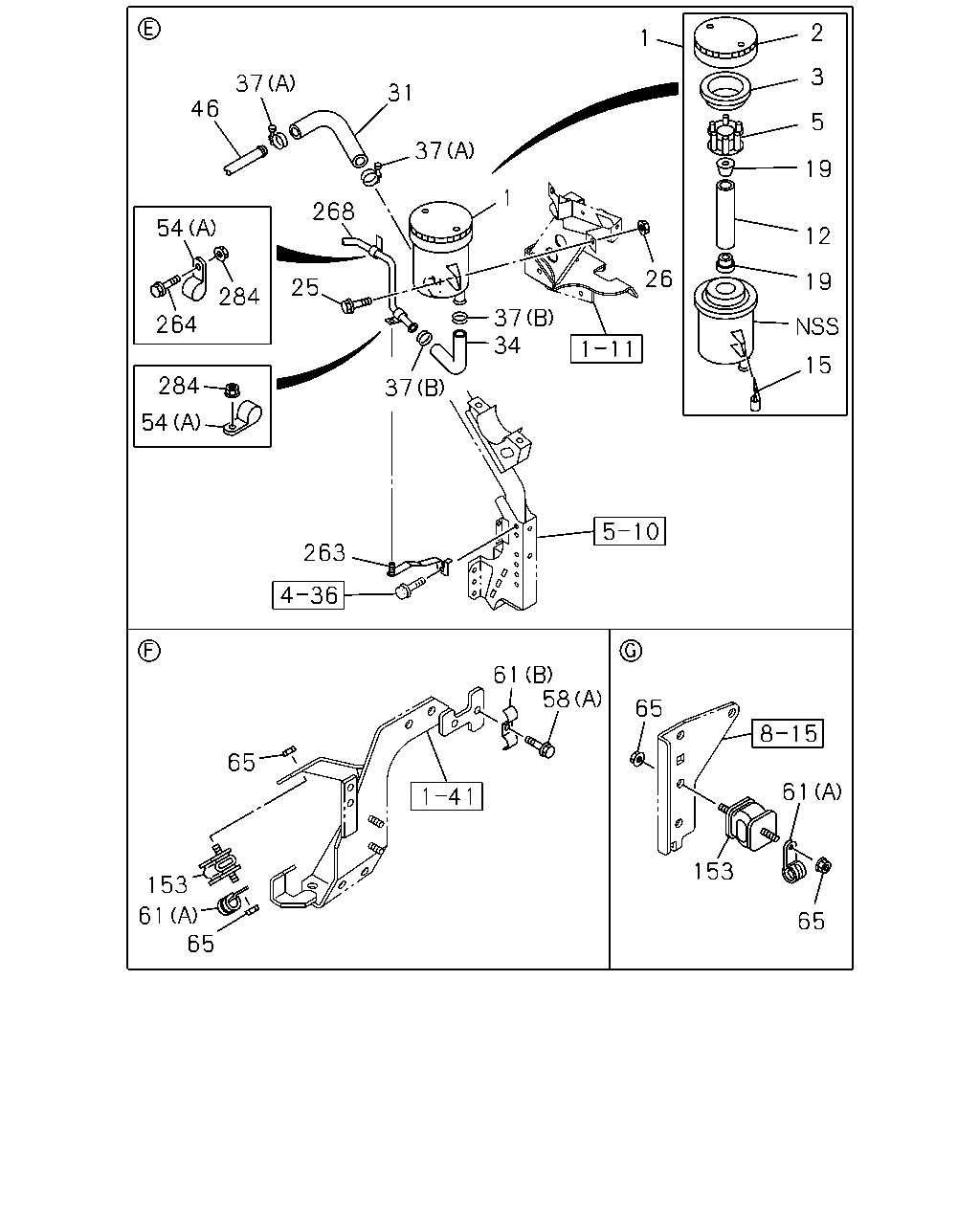

2 1 3 37 31 46 5 37 19 1 268 54 12 26 19 25 284 37 34 264 15 284 37 54 263 61 58 65 65 61 153 153 61 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0710-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0710-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0710-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0710-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0710-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0710-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0710-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
31	HOSE; P/S OIL TANK,INL POWER TAKE OFF-FLYWHEEL(6SZ)	8-98080-018-0	01	1	0710-		●
31	HOSE; P/S OIL TANK,INL	8-98077-740-0	01	1	0710-	●
31	HOSE; P/S OIL TANK,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98077-740-0	01	1	0710-		●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0710-	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0710-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0710-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2394	8-98080-958-0	01	1	0710-	●	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	06	1	0710-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	01	1	0710-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	0710-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	0710-		●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	0710-	●	●
54	CLIP; OIL PIPE (B)	1-09701-284-0	02	1	0710-1006	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	02	1	0710-1006		●
54	CLIP; OIL PIPE (B)	1-09701-284-0	04	1	1007-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	04	1	1007-		●
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	01	1	0710-1006	●	●
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	02	1	1007-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	0710-	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-	●	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	0710-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0710-	●	●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	0710-	●	●
263	BRACKET; P/S PIPE	8-98083-696-0	01	1	0710-0812	●	●
263	BRACKET; P/S PIPE	8-98130-274-0	01	1	0901-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-1008	●
264	BOLT; PIPE BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE	0-28650-820-0	02	1	0710-1008		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
264	BOLT; PIPE BRKT POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE	0-28650-820-0	01	1	0710-1008		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98090-786-0	01	1	0710-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98077-739-2	01	1	0710-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98077-739-2	01	1	0710-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	0710-	●
284	NUT; PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	0-91180-108-0	02	1	0710-		●
284	NUT; PIPE POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	0-91180-108-0	01	1	0710-		●

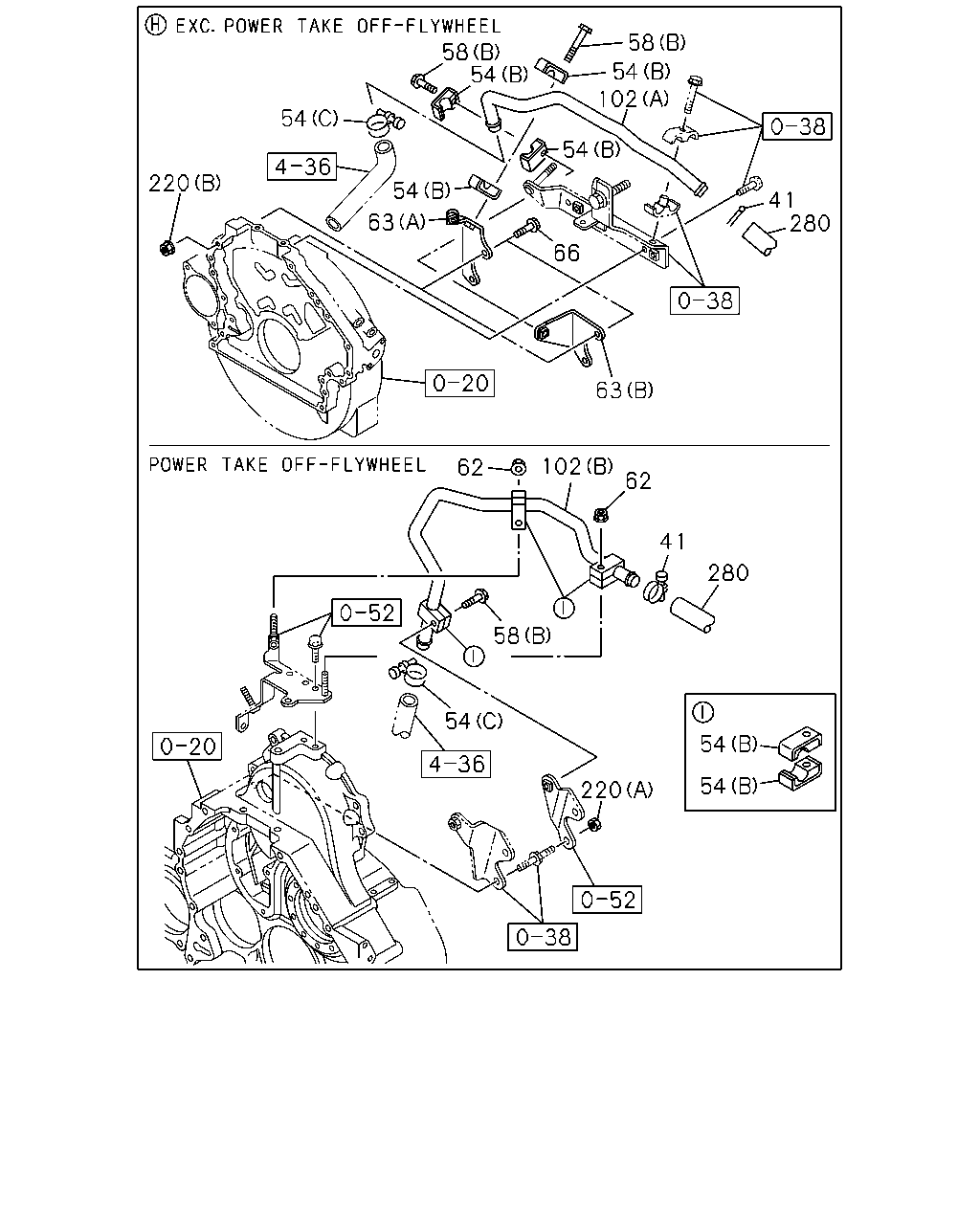

58 54 58 54 102 54 54 220 54 41 280 63 66 63 102 62 62 41 280 58 54 54 54 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0710-	●	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	06	1	0710-		●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	01	1	0710-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	0710-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=19 L=20	0-95235-836-0	02	1	0710-		●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	0710-	●	●
54	CLIP; OIL PIPE (B)	1-09701-284-0	02	1	0710-1006	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	02	1	0710-1006		●
54	CLIP; OIL PIPE (B)	1-09701-284-0	04	1	1007-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-09701-284-0	04	1	1007-		●
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	01	1	0710-1006	●	●
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	02	1	1007-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	0710-	●	●
62	NUT; CLIP FIX POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	0-91180-108-0	02	1	0710-		●
63	BRACKET; CLIP,P/S EURO2 SPECIFICATION<NT2> (B)	8-97375-107-0	01	1	0809-		●
63	BRACKET; CLIP,P/S (A)	8-98075-954-0	01	1	0710-0808	●
63	BRACKET; CLIP,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98075-954-0	01	1	0710-0808		●
63	BRACKET; CLIP,P/S (A)	8-98075-954-0	01	1	0809-	●
63	BRACKET; CLIP,P/S EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98075-954-0	01	1	0809-		●
66	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	0710-	●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	02	1	0710-		●
102	PIPE; SUCTION,P/S EURO2 SPECIFICATION<NT2> (A)	8-98080-186-2	01	1	0809-		●
102	PIPE; SUCTION,P/S POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98077-916-2	01	1	0710-		●
102	PIPE; SUCTION,P/S (A)	8-98057-017-4	01	1	0710-0808	●
102	PIPE; SUCTION,P/S EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-017-4	01	1	0710-0808		●
102	PIPE; SUCTION,P/S (A)	8-98057-017-4	01	1	0809-	●
102	PIPE; SUCTION,P/S EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-017-4	01	1	0809-		●
220	NUT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8 FLANGE	0-91180-108-0	02	1	0710-		●
220	NUT; BRKT,OIL PIPE (B) M10 FLANGE	0-91180-110-0	02	1	0710-0803	●	●
280	HOSE; P/S OIL PUMP,INL POWER TAKE OFF-FLYWHEEL(6SZ)	8-98080-020-0	01	1	0710-		●
280	HOSE; P/S OIL PUMP,INL	8-98053-040-1	01	1	0710-	●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98053-040-1	01	1	0710-		●
