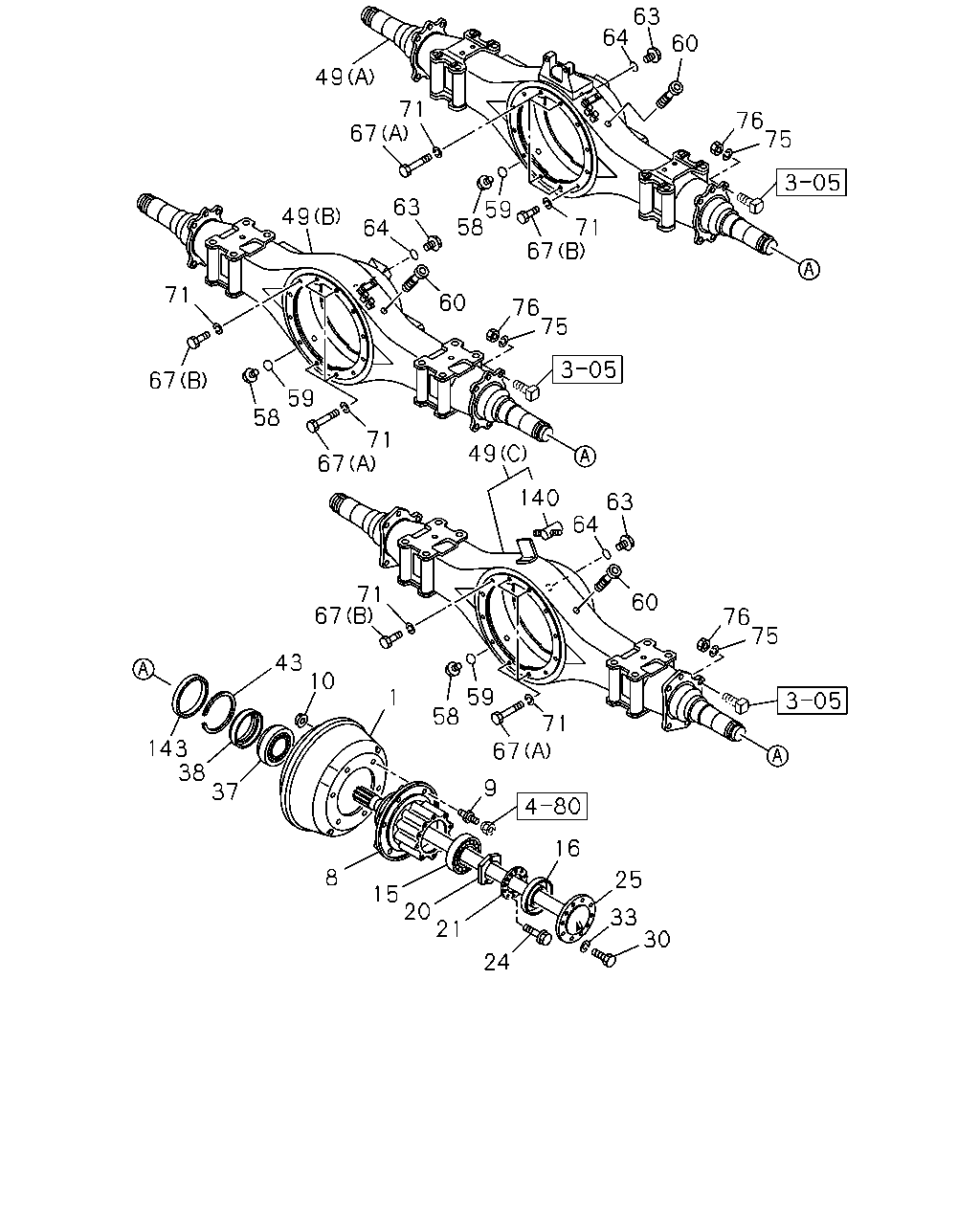

4-20 — REAR AXLE CASE AND SHAFT (#39890) — 51 parça

63 64 60 49 71 76 75 67 63 64 59 58 49 71 67 71 60 76 75 67 59 58 71 49 67 140 63 64 71 67 60 76 75 43 10 59 58 1 71 143 38 37 67 9 16 8 25 15 20 21 33 30 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-361-0	02	1	0710-	●	●
8	HUB; RR AXLE EXC. ANTI LOCK BRAKE(JE5)	1-42311-009-6	02	1	0712-		●
8	HUB; RR AXLE	1-42311-071-1	02	1	0710-0711	●	●
8	HUB; RR AXLE	1-42311-071-1	02	1	0712-	●
8	HUB; RR AXLE ANTI LOCK BRAKE(JE5)	1-42311-071-1	02	1	0712-		●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X43.5 RH THREAD	1-42331-106-2	06	1	0710-	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-2	06	1	0710-	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	12	1	0710-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-016-0	02	1	1003-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-049-0	02	1	0710-1002	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	8-98156-814-0	02	1	1003-	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-159-0	02	1	0710-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-1	02	1	0710-	●	●
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	0710-	●	●
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	0710-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0710-	●	●
25	SHAFT; AXLE,RR L=925	8-97380-682-0	02	1	0710-	●	●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	0710-	●	●
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	0710-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-044-0	02	1	0710-1002	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-154-0	02	1	1003-	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-053-0	02	1	0710-1002	●	●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-161-0	02	1	0710-1002	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-153-0	02	1	1003-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	0710-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	0710-	●	●
49	CASE; RR AXLE BRAKE ADJUSTER MANUAL<BJR> (C)	8-98173-586-0	01	1	1012-		●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (B)	8-98029-621-2	01	1	0712-1409		●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (B)	8-98259-525-0	01	1	1410-		●
49	CASE; RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98012-438-2	01	1	0712-		●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (B)	8-98012-431-1	01	1	0712-1011		●
49	CASE; RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKINGBRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (B)	8-98012-431-1	01	1	1012-		●
49	CASE; RR AXLE (A)	8-98012-443-3	01	1	0710-1409	●
49	CASE; RR AXLE (A)	8-98259-524-0	01	1	1410-	●
49	CASE; RR AXLE (B)	8-98012-440-3	01	1	0710-0711		●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B)	8-98012-440-3	01	1	0712-1409		●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) (B)	8-98259-516-0	01	1	1410-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0710-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0710-	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	0710-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0710-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0710-	●	●
67	BOLT; FINAL DRIVE SETTING (A) M12X60	0-10956-260-0	04	1	0710-	●	●
67	BOLT; FINAL DRIVE SETTING (B) M12X35	0-20951-235-0	08	1	0710-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	0710-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	12	1	0710-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	12	1	0710-	●	●
140	CONNECTOR; AXLE CASE BRAKE ADJUSTER MANUAL<BJR>	1-09656-239-3	01	1	1012-		●
143	RING; EXCITER	1-42319-169-1	02	1	0710-0711	●	●
143	RING; EXCITER	1-42319-169-1	02	1	0712-	●
143	RING; EXCITER ANTI LOCK BRAKE(JE5)	1-42319-169-1	02	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
