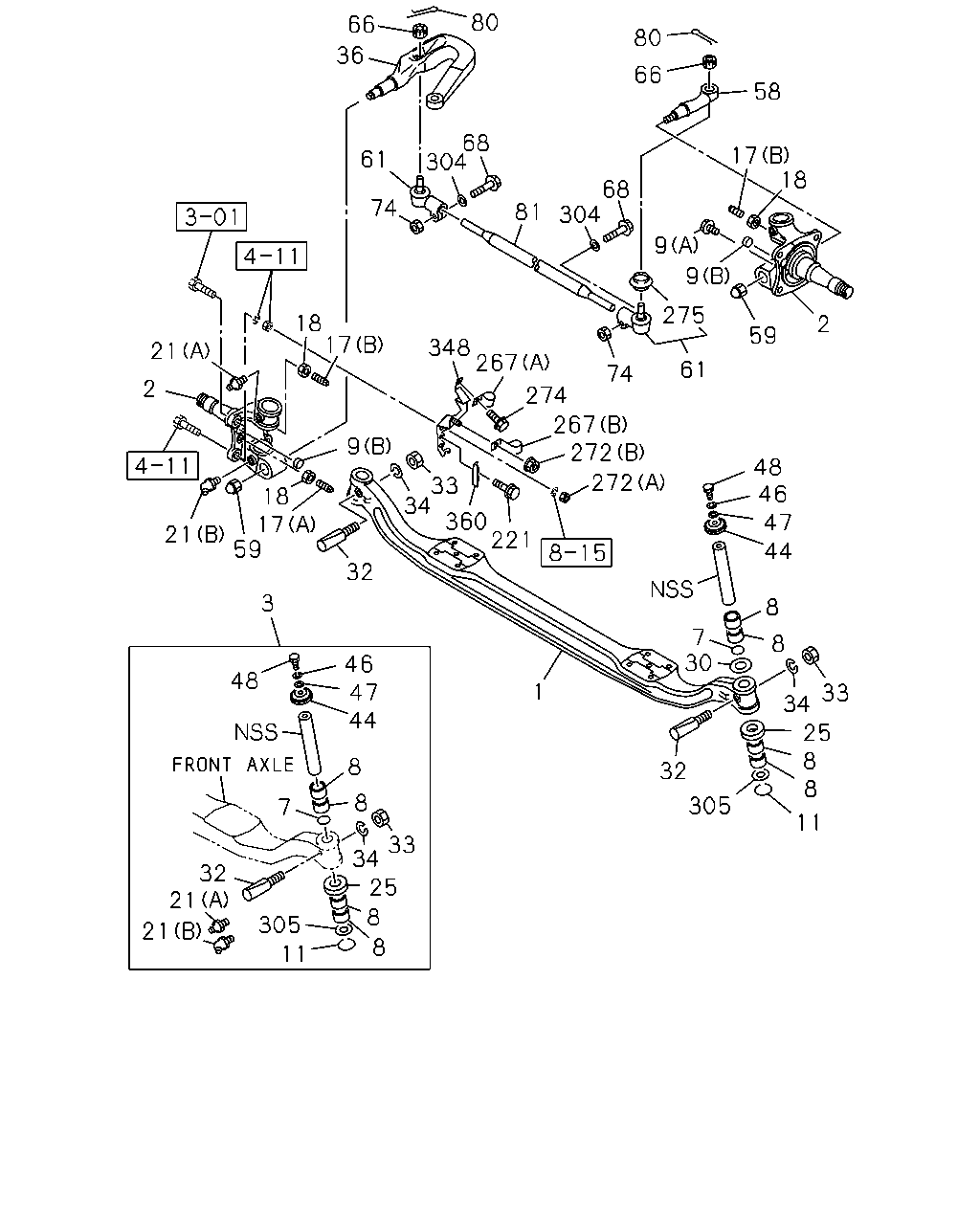

4-10 — FRONT AXLE (#39888) — 133 parça

8 8 11 8 8 25 34 305 32 30 33 8 8 7 1 44 46 47 48 272 272 267 274 267 348 221 360 33 34 61 74 59 2 275 9 9 68 304 81 18 17 58 66 80 80 68 304 61 36 66 74 17 18 9 18 17 59 21 2 21 32 46 47 44 8 8 33 34 25 7 48 3 305 32 21 21 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	8-98057-479-2	01	1	0710-	●	●
2	KNUCKLE; FRT AXLE BRAKE ADJUSTER MANUAL<BJR>	8-98172-431-1	01	1	1012-		●
2	KNUCKLE; FRT AXLE BRAKE ADJUSTER MANUAL<BJR>	8-98172-432-1	01	1	1012-		●
2	KNUCKLE; FRT AXLE	1-43131-127-1	01	1	0710-1011	●	●
2	KNUCKLE; FRT AXLE	1-43131-127-1	01	1	1012-	●
2	KNUCKLE; FRT AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-43131-127-1	01	1	1012-		●
2	KNUCKLE; FRT AXLE	1-43132-127-1	01	1	0710-1011	●	●
2	KNUCKLE; FRT AXLE	1-43132-127-1	01	1	1012-	●
2	KNUCKLE; FRT AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-43132-127-1	01	1	1012-		●
3	KING PIN SET	1-87831-295-2	01	1	0710-	●	●
3	KING PIN SET	1-87831-296-2	01	1	0710-	●	●
7	SEAL; OIL,KING PIN	1-09625-005-1	02	1	0710-	●	●
8	BEARING; NEEDLE,KING PIN NSK	1-09811-339-0	08	1	0710-	●	●
9	PLUG; KNUCKLE EXC. ANTI LOCK BRAKE(JE5) (B) OD=22	1-09600-011-2	02	1	0712-1011		●
9	PLUG; KNUCKLE EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) OD=22	1-09600-011-2	02	1	1012-		●
9	PLUG; KNUCKLE (A) M14X14	8-97329-621-0	01	1	0710-	●	●
11	RING; SNAP,KNUCKLE PLUG	1-09589-017-1	02	1	0710-	●	●
17	BOLT; STOPPER KNUCKLE (A) M14X47	1-09009-058-0	01	1	0710-0805	●	●
17	BOLT; STOPPER KNUCKLE (A) M14X47	1-09009-191-0	01	1	0806-	●	●
17	BOLT; STOPPER KNUCKLE (B) M14X53	8-98065-261-0	02	1	0710-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M14	0-91112-814-0	03	1	0710-	●	●
21	NIPPLE; GREASE,KING PIN (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	0710-	●	●
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-031-0	01	1	0710-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-033-1	01	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=3.900	1-43171-261-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=3.912	1-43171-262-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=3.925	1-43171-263-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=3.937	1-43171-264-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=3.950	1-43171-265-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=3.962	1-43171-266-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=3.975	1-43171-267-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=3.987	1-43171-268-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.000	1-43171-269-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.012	1-43171-270-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.025	1-43171-271-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.037	1-43171-272-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.050	1-43171-273-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.062	1-43171-274-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.075	1-43171-275-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.087	1-43171-276-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.100	1-43171-277-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.112	1-43171-278-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.125	1-43171-279-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.137	1-43171-280-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.150	1-43171-281-1	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.162	1-43171-311-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.175	1-43171-312-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.187	1-43171-313-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.200	1-43171-314-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.212	1-43171-315-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.225	1-43171-316-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.237	1-43171-317-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.250	1-43171-318-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.262	1-43171-319-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.275	1-43171-320-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.287	1-43171-321-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.300	1-43171-322-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.312	1-43171-323-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.325	1-43171-324-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.337	1-43171-325-0	AR	1	0710-	●	●
30	WASHER; THRUST,KING PIN T=4.350	1-43171-326-0	AR	1	0710-	●	●
32	BOLT; KEY,KING PIN	1-43116-013-1	02	1	0710-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0710-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0710-	●	●
36	ARM; KNUCKLE	8-98037-304-1	01	1	0710-	●	●
44	COVER; KING PIN	1-43175-031-0	02	1	0710-	●	●
46	WASHER; LK,COVER ID=12.2	0-91510-812-0	02	1	0710-	●	●
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	0-91614-712-0	02	1	0710-	●	●
48	BOLT; COVER M12X25	1-09009-081-0	02	1	0710-	●	●
58	ARM; TIE ROD	8-98037-296-2	01	1	0710-	●	●
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	0710-	●	●
61	ROD END; TIE ROD	1-43150-748-1	01	1	0710-	●	●
61	ROD END; TIE ROD	1-43150-749-1	01	1	0710-	●	●
66	NUT; TIE ROD END M16 SLOTTED	1-09442-021-1	02	1	0710-0805	●	●
66	NUT; TIE ROD END M16 SLOTTED	1-09442-031-0	02	1	0806-0906	●	●
66	NUT; TIE ROD END M16 SLOTTED	1-09442-031-0	02	1	0907-	●	●
68	BOLT; TIE ROD END M12X45 FLANGE	0-28061-245-0	02	1	0710-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	02	1	0710-	●	●
80	PIN; SPLIT,ROD END OD=3.7 L=22	0-81124-022-0	02	1	0710-	●	●
81	ROD; TIE	8-98038-703-1	01	1	0710-	●	●
221	BOLT; BRKT,SENSOR M8X16 FLANGE	0-28050-816-0	04	1	0710-0906	●	●
221	BOLT; BRKT,SENSOR M8X16 FLANGE	0-28050-816-0	04	1	0907-	●
221	BOLT; BRKT,SENSOR ANTI LOCK BRAKE(JE5) M8X16 FLANGE	0-28050-816-0	04	1	0907-		●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0710-0906	●	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0907-	●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (A) ID=11 L=16	0-95235-025-0	02	1	0907-		●
267	CLIP; HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0710-0906	●	●
267	CLIP; HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0907-	●
267	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0907-		●
272	NUT; CLIP (A) M14	0-91110-514-0	02	1	0710-0906	●	●
272	NUT; CLIP (A) M14	0-91110-514-0	02	1	0907-	●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) (A) M14	0-91110-514-0	02	1	0907-		●
272	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	02	1	0710-0906	●	●
272	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●
272	NUT; CLIP ANTI LOCK BRAKE(JE5) (B) M8 FLANGE	0-91180-108-0	02	1	0907-		●
274	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0710-0906	●	●
274	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0907-	●
274	BOLT; CLIP ANTI LOCK BRAKE(JE5) M8X16 FLANGE	0-28050-816-0	02	1	0907-		●
275	BOOT; ROD END,TIE	1-85574-046-0	02	1	0710-	●	●
304	WASHER; PL ID=12.5	0-91614-512-0	02	1	0710-	●	●
305	COVER; KNUCKLE	1-43175-030-0	02	1	0710-	●	●
348	BRACKET; CLIP	8-98055-138-1	01	1	0710-0906	●	●
348	BRACKET; CLIP	8-98055-138-1	01	1	0907-	●
348	BRACKET; CLIP ANTI LOCK BRAKE(JE5)	8-98055-138-1	01	1	0907-		●
348	BRACKET; CLIP	8-98055-137-1	01	1	0710-0906	●	●
348	BRACKET; CLIP	8-98055-137-1	01	1	0907-	●
348	BRACKET; CLIP ANTI LOCK BRAKE(JE5)	8-98055-137-1	01	1	0907-		●
360	COVER; SENSOR	8-98018-401-0	01	1	0710-0906	●	●
360	COVER; SENSOR	8-98018-401-0	01	1	0907-	●
360	COVER; SENSOR ANTI LOCK BRAKE(JE5)	8-98018-401-0	01	1	0907-		●
360	COVER; SENSOR	8-98018-400-0	01	1	0710-0906	●	●
360	COVER; SENSOR	8-98018-400-0	01	1	0907-	●
360	COVER; SENSOR ANTI LOCK BRAKE(JE5)	8-98018-400-0	01	1	0907-		●

105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
105	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	04	1	0710-0711	●	●
105	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	04	1	0712-	●
105	BOLT; BRKT FIX ANTI LOCK BRAKE(JE5) M8X12 FLANGE	0-28050-812-0	04	1	0712-		●

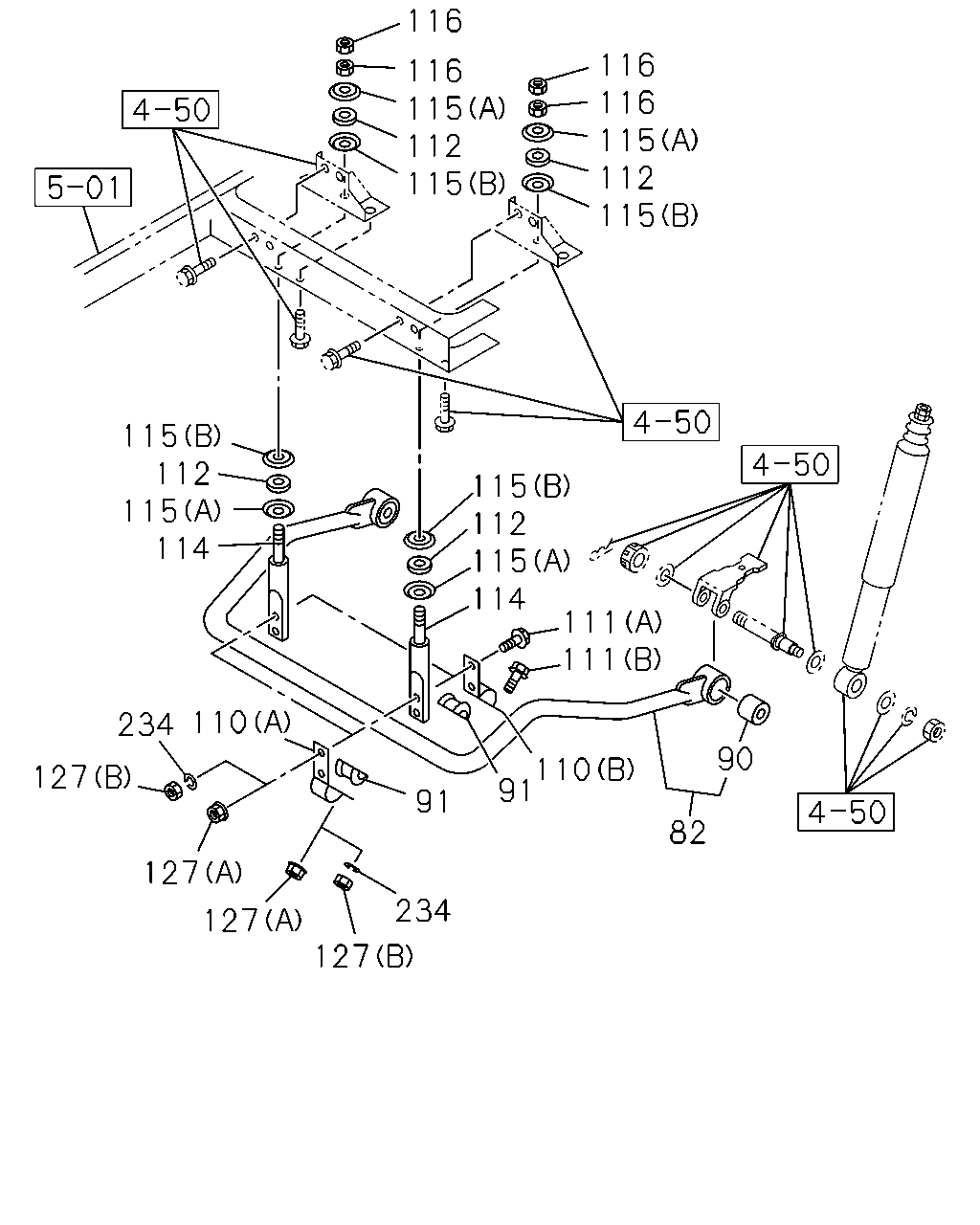

116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 111 111 110 234 90 110 91 127 91 82 127 234 127 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51770-114-0	01	1	0710-	●	●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-066-0	02	1	0710-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0710-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0710-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0710-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X50 FLANGE	0-28051-250-0	04	1	0710-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28651-230-0	02	1	0710-0710	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28051-230-0	02	1	0711-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0710-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-082-0	02	1	0710-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	0710-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	0710-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0710-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> (A) M12 FLANGE	0-91180-212-0	06	1	0710-0710	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> (B) M12	0-91110-512-0	06	1	0711-	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	0711-	●	●
