3-78 — FIXING PARTS; AIR PIPING (#39886) — 124 parça

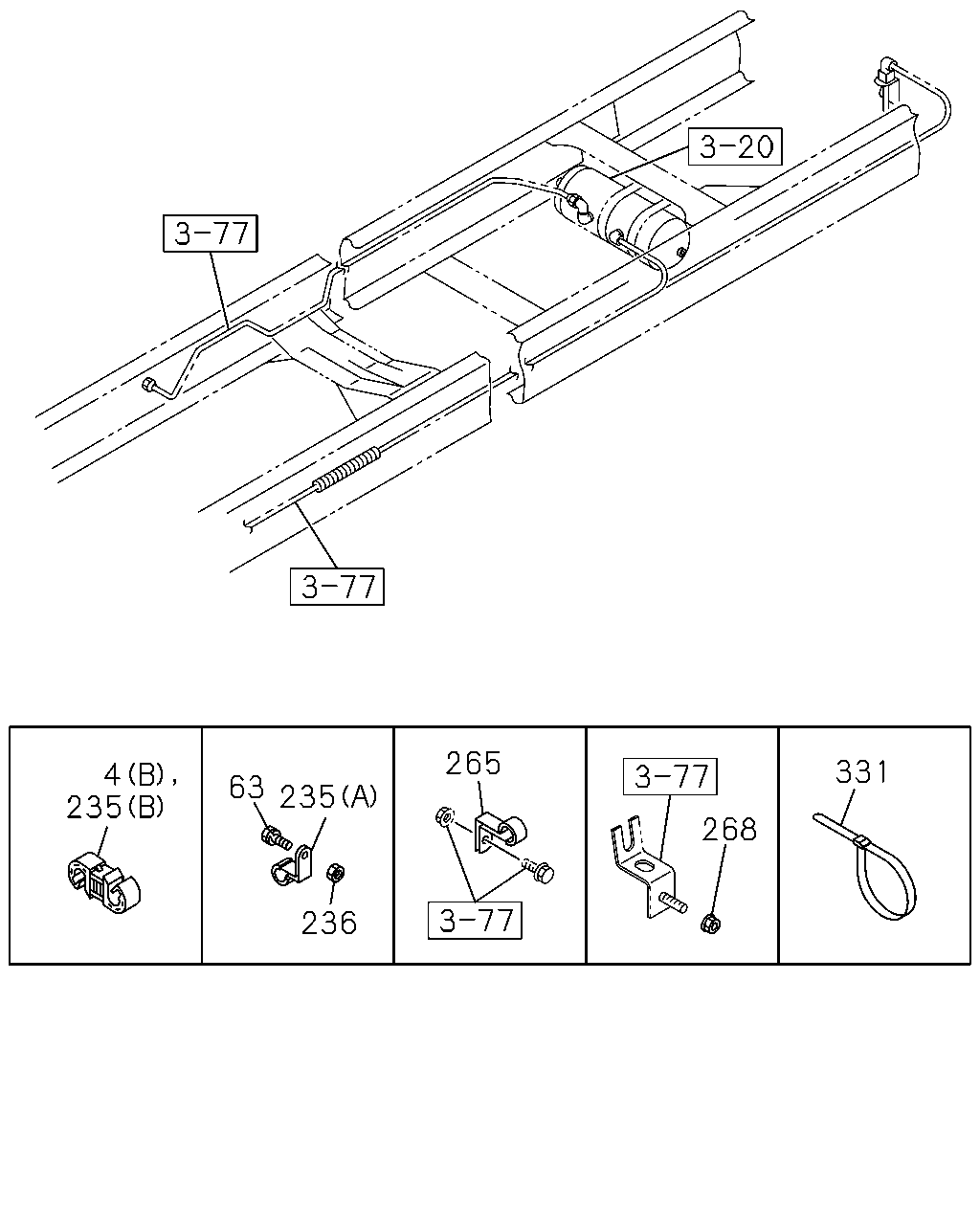

265 331 4 235 63 235 268 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0710-0711	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0803	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0803		●
4	CLIP; AIR PIPE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0804-0901	●
4	CLIP; AIR PIPE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0804-0901		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-		●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	02	1	0710-0901	●	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0902-	●	●
4	CLIP; AIR PIPE (A) ID=12 & 12	1-09709-280-1	01	1	0710-0901	●	●
63	BOLT; CLIP WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	05	1	0710-0711	●	●
63	BOLT; CLIP WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	05	1	0712-0810	●
63	BOLT; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	05	1	0712-0810		●
63	BOLT; CLIP WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	06	1	0811-	●
63	BOLT; CLIP WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	06	1	0811-		●
63	BOLT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8X25 FLANGE	0-28650-825-0	03	1	0710-0711		●
63	BOLT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0712-0808		●
63	BOLT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0809-0810		●
63	BOLT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0811-		●
63	BOLT; CLIP WHEEL BASE 4600MM(46W) M8X25 FLANGE	0-28650-825-0	04	1	0710-0711		●
63	BOLT; CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	04	1	0712-0810		●
63	BOLT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	05	1	0811-		●
235	CLIP; AIR PIPE 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0806-0806	●
235	CLIP; AIR PIPE 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0806-0806		●
235	CLIP; AIR PIPE 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0808		●
235	CLIP; AIR PIPE 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0809-0906		●
235	CLIP; AIR PIPE 4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0907-1011		●
235	CLIP; AIR PIPE MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (B) ID=6.35 & 10.0	1-09709-274-1	01	1	1012-		●
235	CLIP; AIR PIPE WHEEL BASE 5300MM(53W) (A) ID=11 H=20 L=20	8-98033-780-0	05	1	0710-0711	●	●
235	CLIP; AIR PIPE WHEEL BASE 5300MM(53W) (A) ID=11 H=20 L=20	8-98033-780-0	05	1	0712-0810	●
235	CLIP; AIR PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20	8-98033-780-0	05	1	0712-0810		●
235	CLIP; AIR PIPE WHEEL BASE 5300MM(53W) (A) ID=11 H=20 L=20	8-98033-780-0	06	1	0811-	●
235	CLIP; AIR PIPE WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20	8-98033-780-0	06	1	0811-		●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (A) ID=11 H=20 L=20	8-98033-780-0	03	1	0710-0711		●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20	8-98033-780-0	03	1	0712-0808		●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20	8-98033-780-0	03	1	0809-0810		●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20	8-98033-780-0	03	1	0811-		●
235	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) (A) ID=11 H=20 L=20	8-98033-780-0	04	1	0710-0711		●
235	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20	8-98033-780-0	04	1	0712-0810		●
235	CLIP; AIR PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20	8-98033-780-0	05	1	0811-		●
236	NUT; CLIP WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	05	1	0710-0711	●	●
236	NUT; CLIP WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	05	1	0712-0810	●
236	NUT; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	05	1	0712-0810		●
236	NUT; CLIP WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	06	1	0811-	●
236	NUT; CLIP WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	06	1	0811-		●
236	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	03	1	0710-0711		●
236	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	0712-0808		●
236	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	0809-0810		●
236	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	0811-		●
236	NUT; CLIP WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	04	1	0710-0711		●
236	NUT; CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	04	1	0712-0810		●
236	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	05	1	0811-		●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	0710-0711	●	●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	0712-	●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0712-		●
268	NUT; CLIP BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0710-0711		●
268	NUT; CLIP BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	0712-		●
268	NUT; CLIP BRKT WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0712-		●
331	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) L=250	1-09707-126-0	24	1	0710-0710	●	●
331	CLIP; NYLON TUBE WHEEL BASE 3700MM(37W) L=250	1-09707-126-0	18	1	0710-0710		●
331	CLIP; NYLON TUBE WHEEL BASE 4000MM(40W) L=250	1-09707-126-0	19	1	0710-0710		●
331	CLIP; NYLON TUBE WHEEL BASE 4600MM(46W) L=250	1-09707-126-0	22	1	0710-0710		●

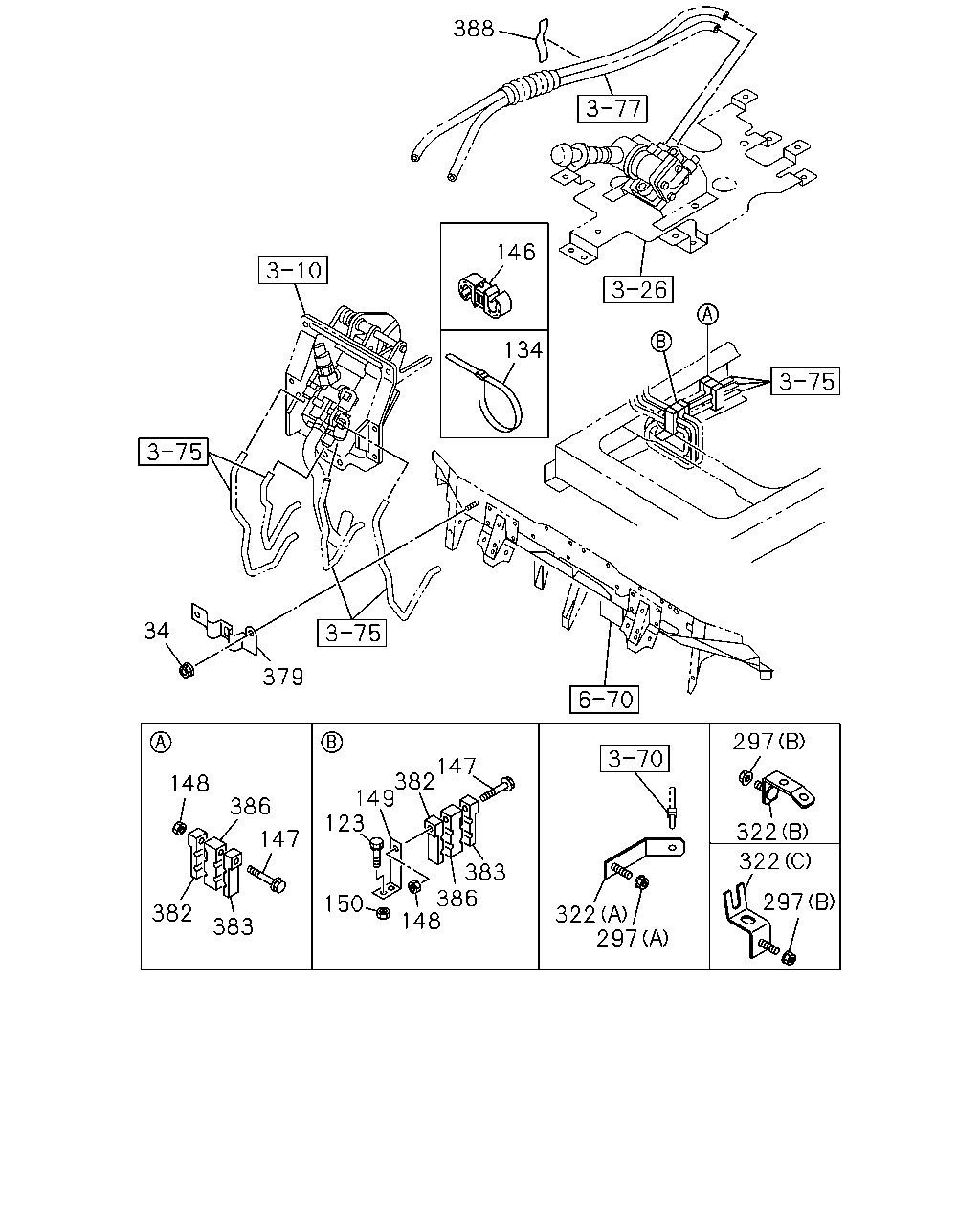

388 146 134 34 379 297 147 382 149 123 148 386 322 147 322 383 386 148 297 150 382 322 297 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0809-	●	●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0710-	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	03	1	0710-	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	0710-1409	●	●
149	BRACKET; PIPE CLIP	8-98296-534-0	01	1	1410-	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
297	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0710-0808	●	●
297	NUT; BRKT CATALYSIS CONTROL WITH DPD<8JM> (A) M8 FLANGE	0-91180-108-0	02	1	0809-	●	●
297	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0710-0710	●	●
297	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	0710-0808		●
297	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) CATALYSIS CONTROL WITH DPD<8JM> (B) M10 FLANGE	0-91180-210-0	01	1	0809-		●
322	BRACKET; CLIP (A)	1-47479-936-1	02	1	0710-0808	●	●
322	BRACKET; CLIP CATALYSIS CONTROL WITH DPD<8JM> (A)	1-47479-936-1	02	1	0809-	●	●
322	BRACKET; CLIP (B)	8-98021-994-1	01	1	0710-0710	●	●
322	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C)	8-98096-272-0	01	1	0710-0808		●
322	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98096-272-0	01	1	0809-		●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	0710-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	0710-	●	●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	03	1	0710-	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	0710-	●	●
388	SEAL 100X40	1-72498-022-1	03	1	0710-0711	●	●
388	SEAL 100X40	1-72498-022-1	03	1	0712-	●
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	0712-		●

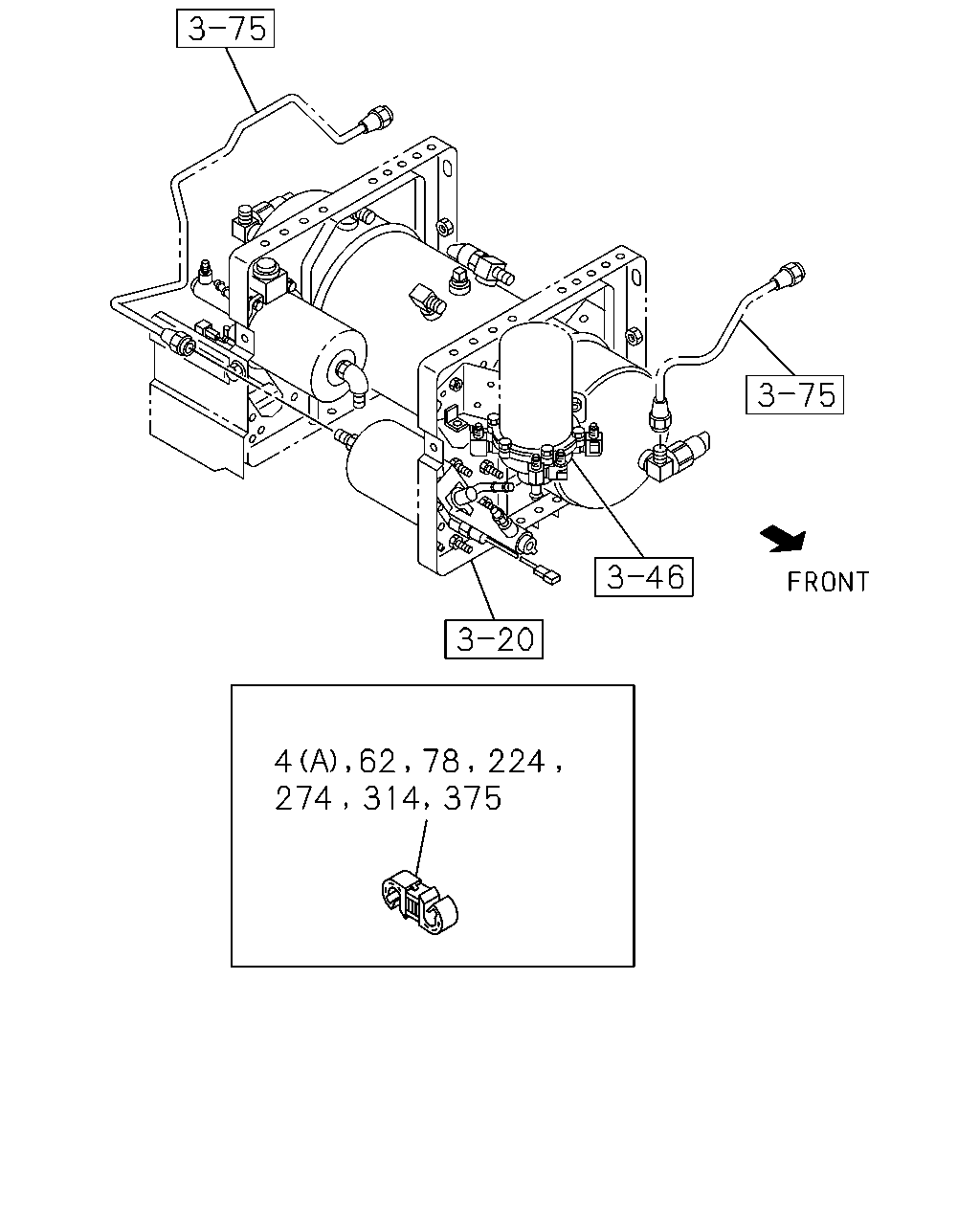

4 62 78 224 375 314 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0710-0711	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0803	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0803		●
4	CLIP; AIR PIPE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0804-0901	●
4	CLIP; AIR PIPE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0804-0901		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-		●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	02	1	0710-0901	●	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0902-	●	●
4	CLIP; AIR PIPE (A) ID=12 & 12	1-09709-280-1	01	1	0710-0901	●	●
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0810-0901	●	●
62	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0710-0809	●	●
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	02	1	0810-0901	●	●
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0710-0901	●	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0710-0711	●	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0712-0901	●
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0712-0901		●
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0902-	●	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0902-	●
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0902-		●
224	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 12	1-09709-275-1	01	1	0712-0901		●
224	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 10.0	1-09709-274-1	01	1	0902-		●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	03	1	0710-0901	●	●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0710-0901	●	●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0710-0711	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0712-	●
274	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0712-		●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0710-0710	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	03	1	0710-	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	02	1	0710-0710	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	04	1	0710-0901	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	05	1	0902-	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0	1-09709-305-0	01	1	0710-	●	●
314	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0710-0901	●	●
375	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0710-0901	●	●
