◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11102 - FRR RHD EURO2/4 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#39885) — 233 parça
çizim 178367
318 97 144 98 37 223 192
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 0806-0808 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0806-0808 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 0809-0906 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0809-0906 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 0907-1011 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0907-1011 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 1012- ●
37 UNION; AIR PIPE
MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 1012- ●
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0710-0711 ● ●
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0712-0803 ●
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0712-0803 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (B) M16 L=74 		0-92123-310-0 01 1 0804-0906 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0804-0906 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 0907-1011 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0907-1011 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 1012- ●
37 UNION; AIR PIPE
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 1012- ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
97 UNION; AIR PIPE
M16 L=42 		0-92123-010-0 01 1 0710-0711 ● ●
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 L=42 		0-92123-010-0 01 1 0712- ● ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710-0711 ● ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0712- ●
98 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0712- ●
144 PIPE; AIR,UNION TO UNION
MLD6Q M/T(X5J) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1454 SERVICED BY L=1550 		1-47428-879-0 01 1 0806-0808 ● ●
144 PIPE; AIR,UNION TO UNION
MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1454 SERVICED BY L=1550 		1-47428-879-0 01 1 0809- ● ●
144 PIPE; AIR,UNION TO UNION
L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 0710-0710 ● ●
144 PIPE; AIR,UNION TO UNION
L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 0710-0711 ● ●
144 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 0712-0803 ● ●
144 PIPE; AIR,UNION TO UNION
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 0804-0906 ● ●
144 PIPE; AIR,UNION TO UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 0907-1011 ● ●
144 PIPE; AIR,UNION TO UNION
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 1012- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710- ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710- ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0710- ●
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0710- ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0710- ● ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) L=1158 SERVICED BY L=1250 		1-47428-876-0 01 1 0809- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=1076 SERVICED BY L=1100 		1-47428-875-0 01 1 0809- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) L=1788 SERVICED BY L=1900 		1-47428-881-0 01 1 0712- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=537 SERVICED BY L=550 		1-47428-867-0 01 1 0712- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=776 SERVICED BY L=800 		1-47428-872-0 01 1 0712- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=1376 SERVICED BY L=1400 		1-47428-878-0 01 1 0712- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=1705 SERVICED BY L=1900 		1-47428-881-0 01 1 0712- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) L=2035 SERVICED BY L=2100 		1-47428-882-0 01 1 0712- ●
318 PIPE; AIR,UNION TO AIR TANK
L=2004 SERVICED BY L=2100 		1-47428-882-0 01 1 0710-0710 ●
318 PIPE; AIR,UNION TO AIR TANK
L=2070 SERVICED BY L=2100 		1-47428-882-0 01 1 0710- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 0710-0711 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 0712- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4000MM(40W) L=784 SERVICED BY L=800 		1-47428-872-0 01 1 0710-0710 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4000MM(40W) L=858 SERVICED BY L=900 		1-47428-873-0 01 1 0710-0711 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) L=858 SERVICED BY L=900 		1-47428-873-0 01 1 0712- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4600MM(46W) L=1383 SERVICED BY L=1400 		1-47428-878-0 01 1 0710-0710 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4600MM(46W) L=1458 SERVICED BY L=1550 		1-47428-879-0 01 1 0710-0711 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) L=1458 SERVICED BY L=1550 		1-47428-879-0 01 1 0712- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5300MM(53W) L=2044 SERVICED BY L=2100 		1-47428-882-0 01 1 0710-0710 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5300MM(53W) L=2118 SERVICED BY L=2500 		1-47428-883-0 01 1 0710-0711 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) L=2118 SERVICED BY L=2500 		1-47428-883-0 01 1 0712- ●

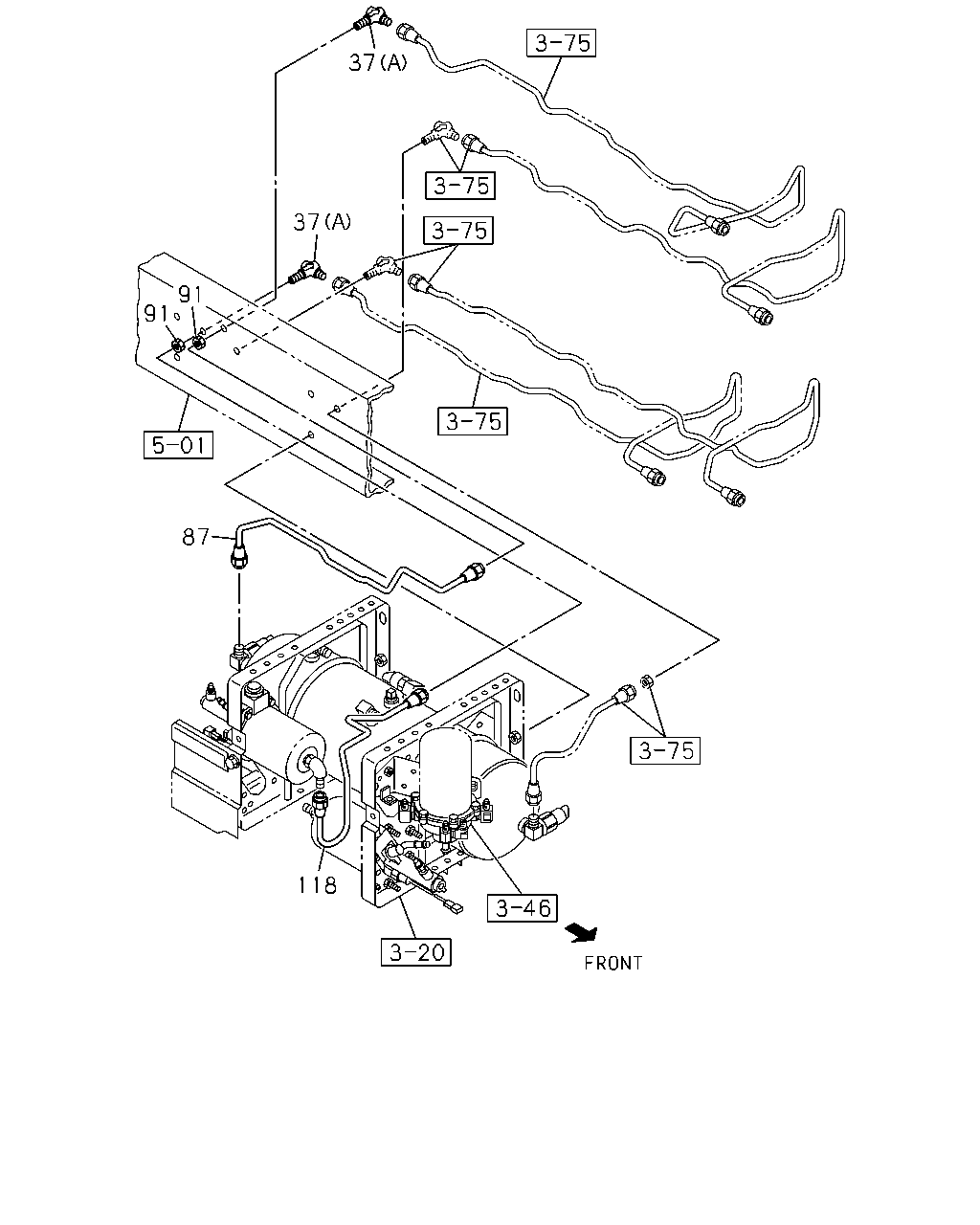

çizim 178371
37 37 91 91 87 118
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 0806-0808 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0806-0808 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 0809-0906 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0809-0906 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 0907-1011 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0907-1011 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 1012- ●
37 UNION; AIR PIPE
MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 1012- ●
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0710-0711 ● ●
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0712-0803 ●
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0712-0803 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (B) M16 L=74 		0-92123-310-0 01 1 0804-0906 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0804-0906 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 0907-1011 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0907-1011 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 1012- ●
37 UNION; AIR PIPE
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 1012- ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0710- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0710- ● ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=679 SERVICED BY L=700 		1-47428-870-0 01 1 0710-0710 ● ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=692 SERVICED BY L=700 		1-47428-870-0 01 1 0710- ● ●

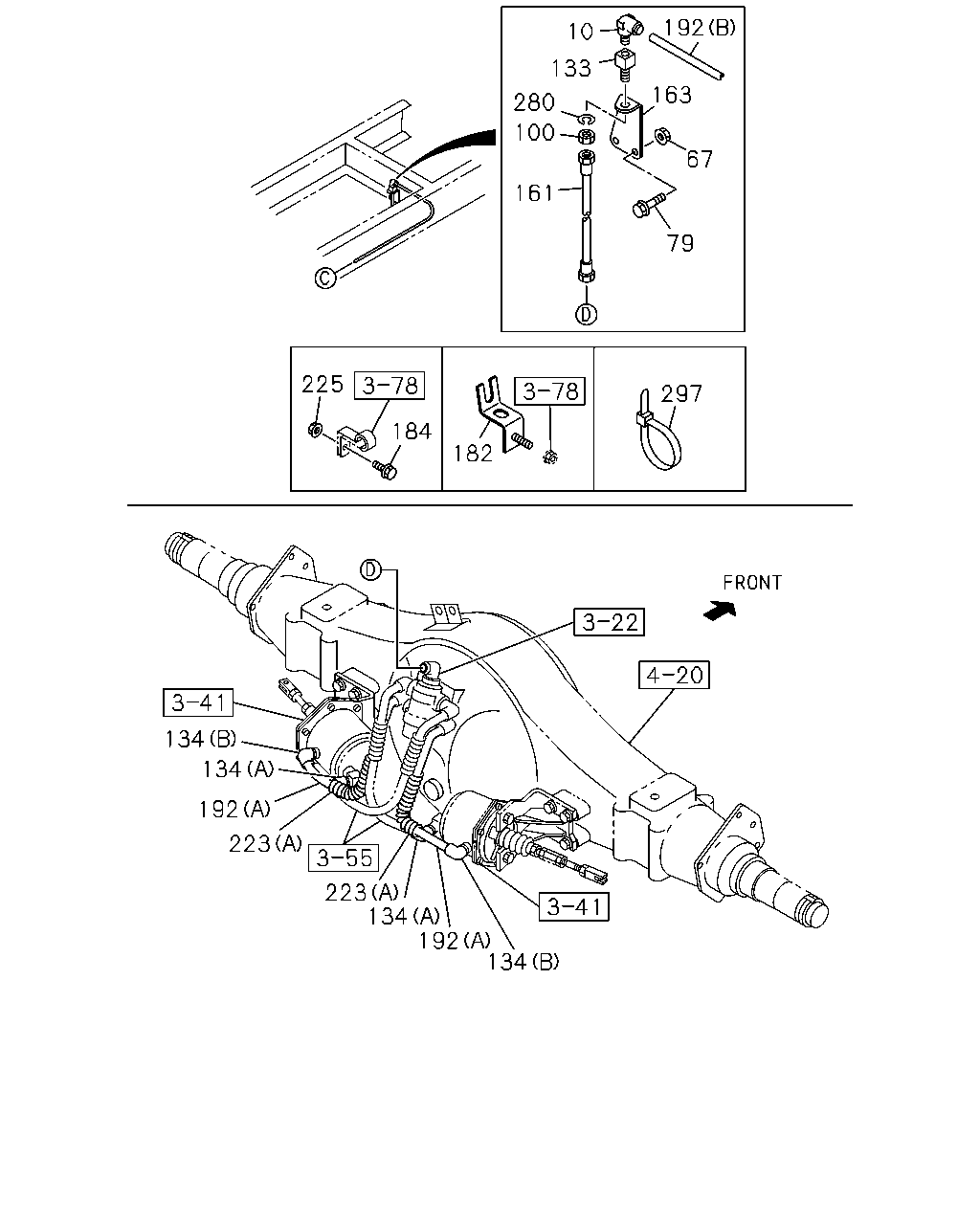

çizim 178375
10 133 280 161 100 192 163 67 79 297 182 225 184 134 134 192 223 223 134 192 134
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-0711 ● ●
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0712- ●
10 CONNECTOR; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0712- ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712- ●
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0712- ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
100 NUT; UNION
M16 		0-91111-516-0 01 1 0710-0711 ● ●
100 NUT; UNION
M16 		0-91111-516-0 01 1 0712- ●
100 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0712- ●
133 UNION; NIPPLE 1-09654-258-2 01 1 0710-0711 ● ●
133 UNION; NIPPLE 1-09654-258-2 01 1 0712-1111 ●
133 UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09654-258-2 01 1 0712-1111 ●
133 UNION; NIPPLE 8-98202-001-0 01 1 1112- ●
133 UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98202-001-0 01 1 1112- ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ● ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ●
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ●
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0710-0711 ● ●
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0712- ●
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0712- ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=460 		1-09363-963-0 01 1 0710-0711 ●
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=460 		1-09363-963-0 01 1 0712- ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=420 		1-09363-805-0 01 1 0710-0710 ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=420 		1-09363-805-0 01 1 0710- ●
163 BRACKET; FLEX HOSE 8-98044-842-0 01 1 0710-0711 ● ●
163 BRACKET; FLEX HOSE 8-98044-842-0 01 1 0712- ●
163 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-842-0 01 1 0712- ●
182 BRACKET; TUBE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) 		8-98096-272-0 01 1 0710-0711 ●
182 BRACKET; TUBE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98096-272-0 01 1 0712- ●
182 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98096-272-0 02 1 0712- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710- ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710- ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0710- ●
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0710- ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0710- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
280 WASHER; LK
ID=16.2 		0-91510-816-0 01 1 0710-0711 ● ●
280 WASHER; LK
ID=16.2 		0-91510-816-0 01 1 0712-0808 ●
280 WASHER; LK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2 		0-91510-816-0 01 1 0712-0808 ●
297 CLIP; BAND
WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 08 1 0809-1109 ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 14 1 1110- ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) L=350 		1-09707-183-0 12 1 0710-0711 ● ●
297 CLIP; BAND
L=350 		1-09707-183-0 12 1 0712-1109 ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 12 1 0712-1109 ●
297 CLIP; BAND
L=350 		1-09707-183-0 01 1 1110- ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) L=350 		1-09707-183-0 05 1 0710-0711 ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 05 1 0712-1109 ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 05 1 1110- ●
297 CLIP; BAND
WHEEL BASE 4000MM(40W) L=350 		1-09707-183-0 08 1 0710-0711 ●
297 CLIP; BAND
WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 08 1 0712-1109 ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 09 1 1110- ●
297 CLIP; BAND
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 09 1 1110- ●
297 CLIP; BAND
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 09 1 0710-0711 ●
297 CLIP; BAND
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 0712-0808 ●
297 CLIP; BAND
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 0809-1109 ●
297 CLIP; BAND
WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 08 1 1110- ●
297 CLIP; BAND
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 11 1 0712-1109 ●
297 CLIP; BAND
WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 11 1 1110- ●
297 CLIP; BAND
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 11 1 1110- ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) L=250 		1-09707-126-0 11 1 0710-0711 ● ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) L=250 		1-09707-126-0 11 1 0712-0906 ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 11 1 0712-0906 ●
297 CLIP; BAND
L=250 		1-09707-126-0 11 1 0907-1109 ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 11 1 0907-1109 ●
297 CLIP; BAND
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 12 1 1110- ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 12 1 1110- ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) L=250 		1-09707-126-0 05 1 0710-0711 ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 05 1 0712-1109 ●
297 CLIP; BAND
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=350 		1-09707-183-0 13 1 1110- ●
297 CLIP; BAND
WHEEL BASE 4600MM(46W) L=250 		1-09707-126-0 10 1 0710-0711 ●
297 CLIP; BAND
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 10 1 0712-1109 ●

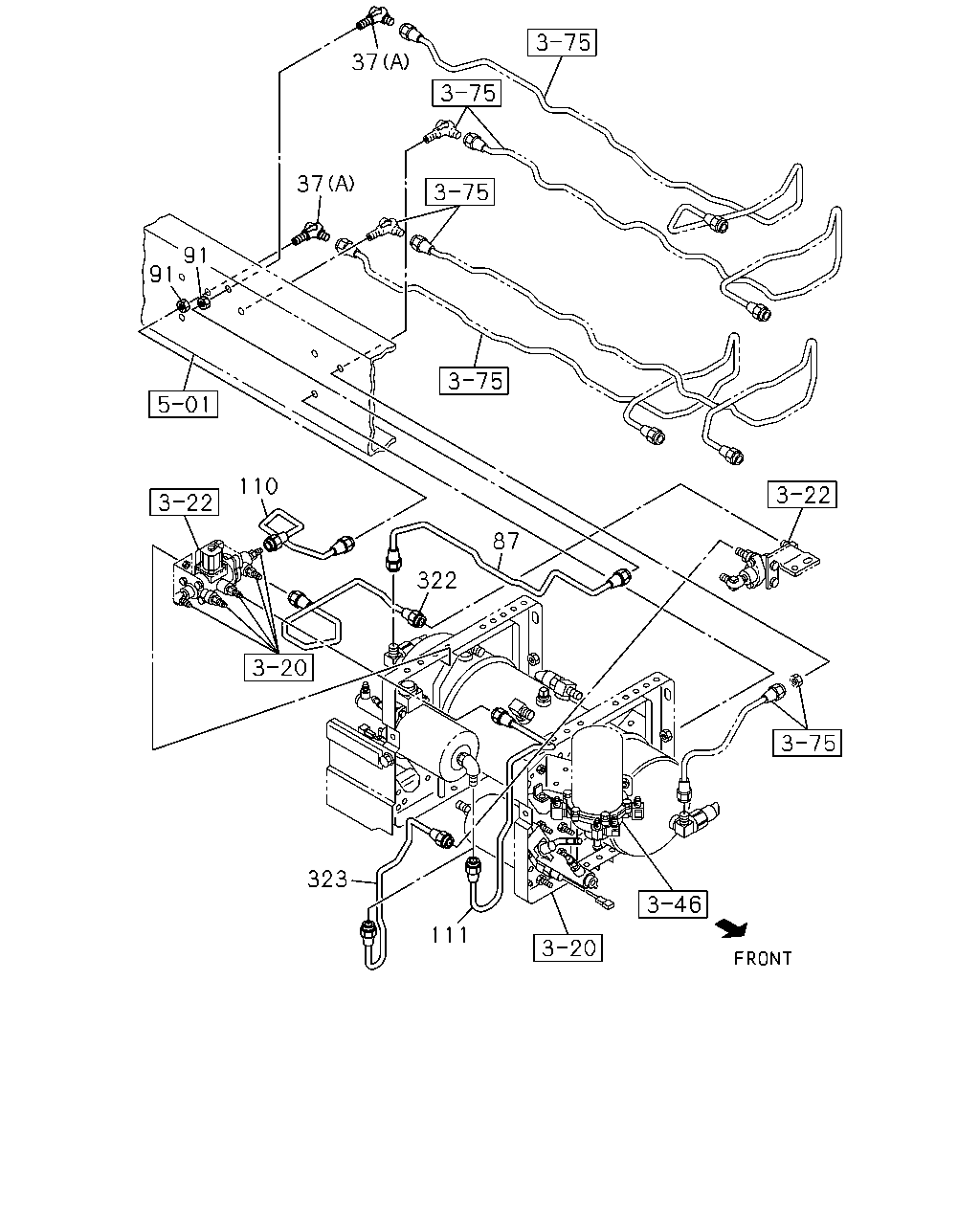

çizim 178379
37 37 91 91 110 87 322 323 111
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 0806-0808 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0806-0808 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 0809-0906 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0809-0906 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 0907-1011 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0907-1011 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 1012- ●
37 UNION; AIR PIPE
MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 1012- ●
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0710-0711 ● ●
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0712-0803 ●
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0712-0803 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (B) M16 L=74 		0-92123-310-0 01 1 0804-0906 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0804-0906 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 0907-1011 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0907-1011 ●
37 UNION; AIR PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 1012- ●
37 UNION; AIR PIPE
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 1012- ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0710- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0710- ● ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 0710- ● ●
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600 		1-47428-868-0 01 1 0710- ● ●
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 0710- ● ●
323 PIPE; AIR,DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600 		1-47428-868-0 01 1 0710- ● ●

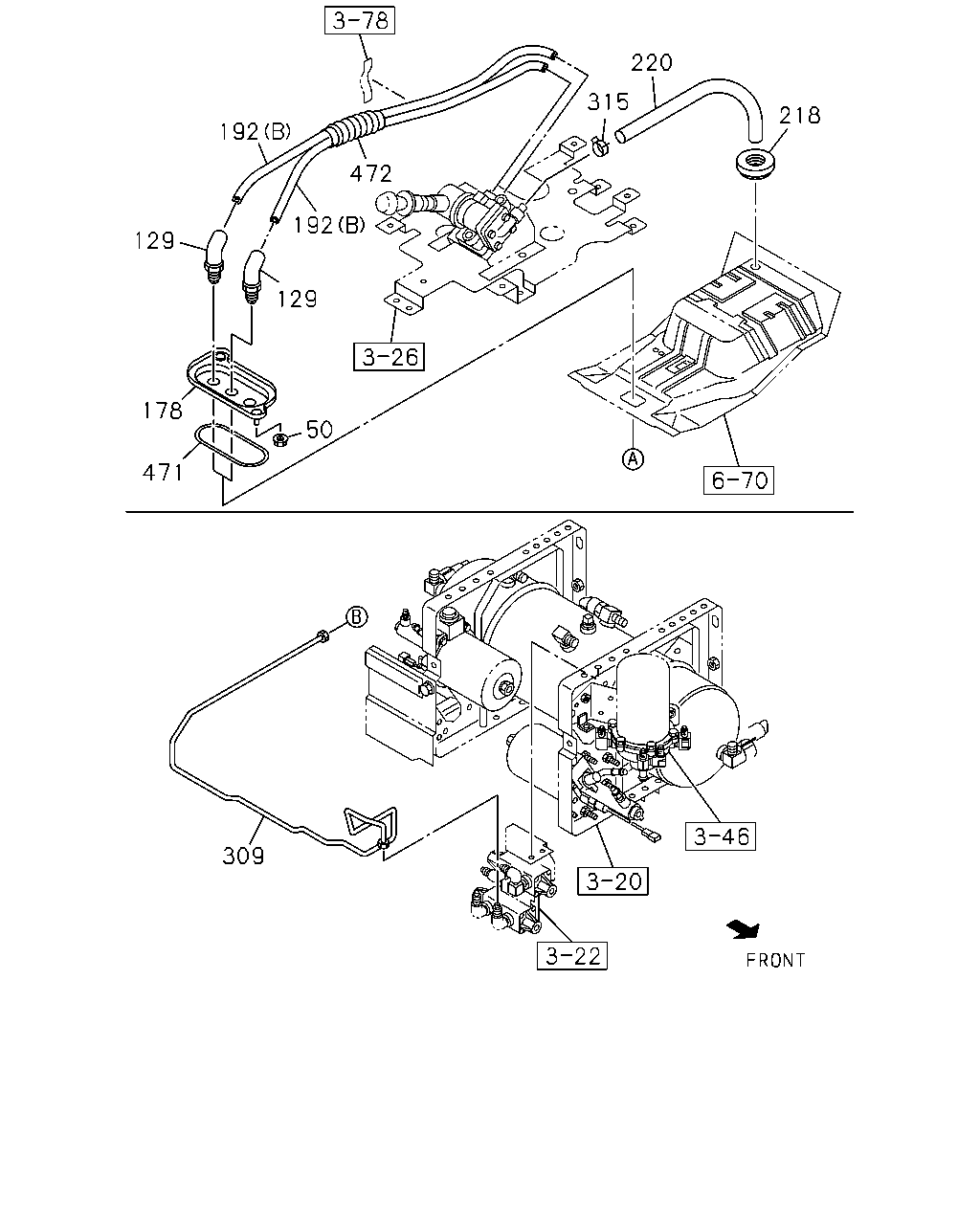

çizim 178386
218 220 192 315 129 192 472 129 50 178 471 309
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0710-0711 ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0712- ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0712- ●
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-052-1 01 1 0712- ●
178 BRACKET; UNION 8-98017-054-0 01 1 0710-0711 ● ●
178 BRACKET; UNION 8-98017-054-1 01 1 0712- ●
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-054-1 01 1 0712- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710- ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710- ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 0710-0711 ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 0712- ●
218 GROMMET; VINYL HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24 		9-61166-007-0 01 1 0712- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0710-0711 ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0712- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0712- ●
309 PIPE; AIR,MPV TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) L=626 SERVICED BY L=660 		1-47428-869-0 01 1 0806-0808 ●
309 PIPE; AIR,MPV TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=626 SERVICED BY L=660 		1-47428-869-0 01 1 0806-0808 ●
309 PIPE; AIR,MPV TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) L=626 SERVICED BY L=660 		1-47428-869-0 01 1 0809-0906 ●
309 PIPE; AIR,MPV TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=626 SERVICED BY L=660 		1-47428-869-0 01 1 0809-0906 ●
309 PIPE; AIR,MPV TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) L=626 SERVICED BY L=660 		1-47428-869-0 01 1 0907-1011 ●
309 PIPE; AIR,MPV TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=626 SERVICED BY L=660 		1-47428-869-0 01 1 0907-1011 ●
309 PIPE; AIR,MPV TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) L=626 SERVICED BY L=660 		1-47428-869-0 01 1 1012- ●
309 PIPE; AIR,MPV TO UNION
MLD6Q M/T(X5J),MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=626 SERVICED BY L=660 		1-47428-869-0 01 1 1012- ●
309 PIPE; AIR,MPV TO UNION
L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0710-0711 ● ●
309 PIPE; AIR,MPV TO UNION
L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0712-0803 ●
309 PIPE; AIR,MPV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0712-0803 ●
309 PIPE; AIR,MPV TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0804-0906 ●
309 PIPE; AIR,MPV TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0804-0906 ●
309 PIPE; AIR,MPV TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0907-1011 ●
309 PIPE; AIR,MPV TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0907-1011 ●
309 PIPE; AIR,MPV TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 1012- ●
309 PIPE; AIR,MPV TO UNION
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 1012- ●
315 CLIP
ID=14 		8-94238-572-0 01 1 0710-0711 ● ●
315 CLIP
ID=14 		8-94238-572-0 01 1 0712- ●
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		8-94238-572-0 01 1 0712- ●
471 SEAL; BRKT 1-79738-832-0 01 1 0710- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0710-0711 ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0712- ●
472 TUBE; SPUTTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-708-0 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
