◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11102 - FRR RHD EURO2/4 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#39881) — 614 parça

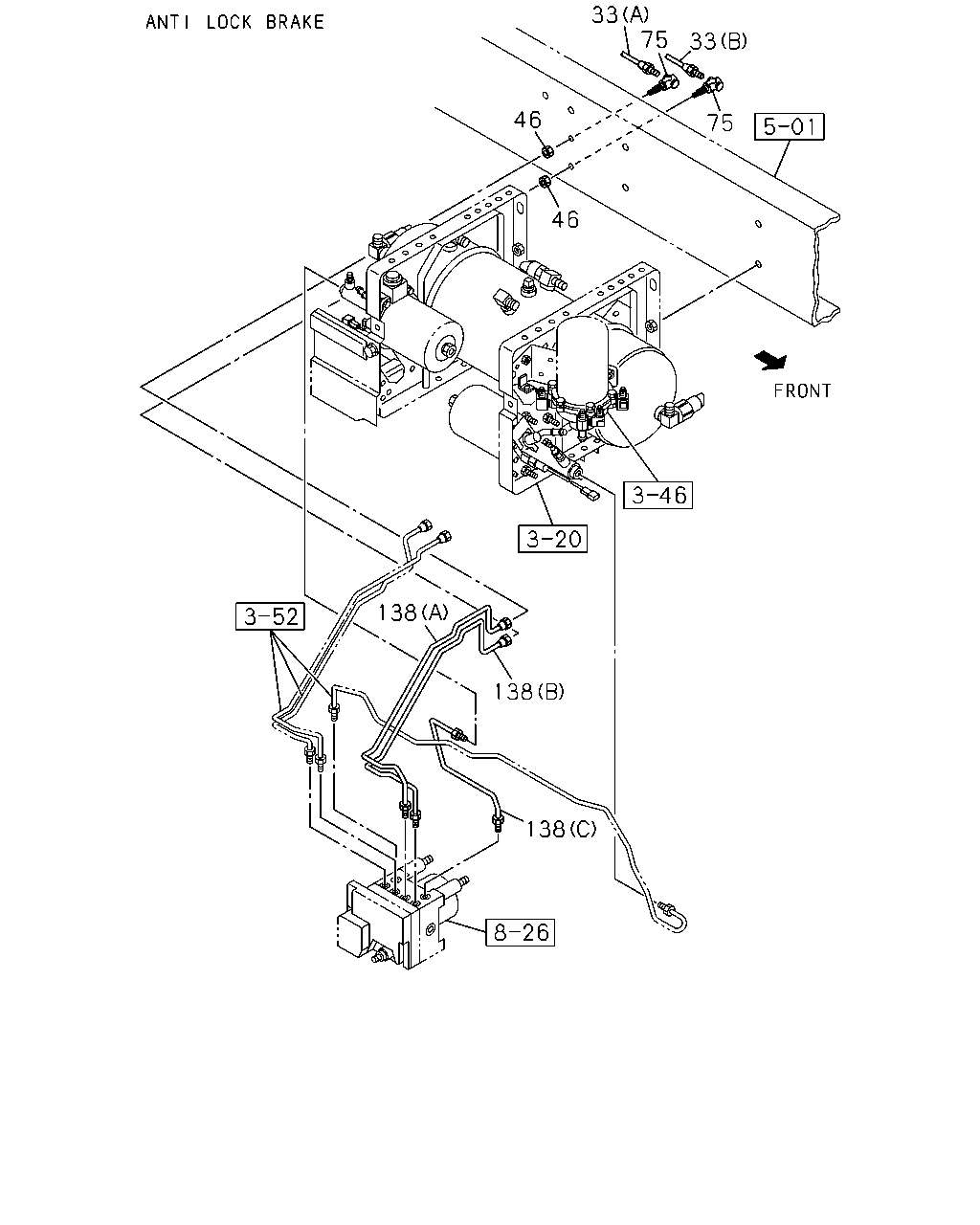

çizim 178360
33 75 33 46 75 46 138 138 138
BalonParca AdiParca NoAdetTipApplied Date A B
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) LH LINE L=1970 		8-98071-244-0 01 1 0809-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) LH LINE L=1970 		8-98071-244-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1970 		8-98071-244-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1963 		8-98183-298-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1906 		8-98071-245-0 01 1 0809-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1906 		8-98071-245-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1906 		8-98071-245-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903 		8-98183-299-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) LH LINE L=1375 		8-98091-617-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1375 		8-98091-617-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1375 		8-98091-617-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1375 		8-98091-617-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1366 		8-98183-306-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (B) RH LINE L=1313 		8-98091-618-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1313 		8-98091-618-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1313 		8-98091-618-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1313 		8-98091-618-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1324 		8-98183-307-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1316 		8-98071-241-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1316 		8-98071-241-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1316 		8-98071-241-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1327 		8-98183-295-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1358 		8-98071-240-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1358 		8-98071-240-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1358 		8-98071-240-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1357 		8-98183-294-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2593 		8-98183-302-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2536 		8-98071-249-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2536 		8-98071-249-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2536 		8-98071-249-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533 		8-98183-303-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=3003 		8-98091-635-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 0710-0906 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 0907-1011 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2912 		8-98091-636-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 0710-0711 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2866 		8-98071-251-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2866 		8-98071-251-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2866 		8-98071-251-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2863 		8-98183-305-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2863 		8-98183-305-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (A) LH LINE 		8-98091-621-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 0710-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (B) RH LINE 		8-98091-622-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (B) RH LINE L=1608 		8-98071-243-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1608 		8-98071-243-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1608 		8-98071-243-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1608 		8-98071-243-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1605 		8-98183-297-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (A) LH LINE L=2343 		8-98090-725-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 0710-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (B) RH LINE L=2252 		8-98090-726-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (B) RH LINE L=2206 		8-98071-247-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2206 		8-98071-247-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2206 		8-98071-247-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2206 		8-98071-247-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203 		8-98183-301-0 01 1 1108- ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0805- ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0804 ● ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0805- ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0805- ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) 		8-98018-438-0 01 1 0805- ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0710-0804 ● ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0805- ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) 		8-98018-438-0 02 1 0805- ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=492 		8-98057-351-0 01 1 0712-0712 ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (C) L=296 		8-98066-107-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 0712- ●

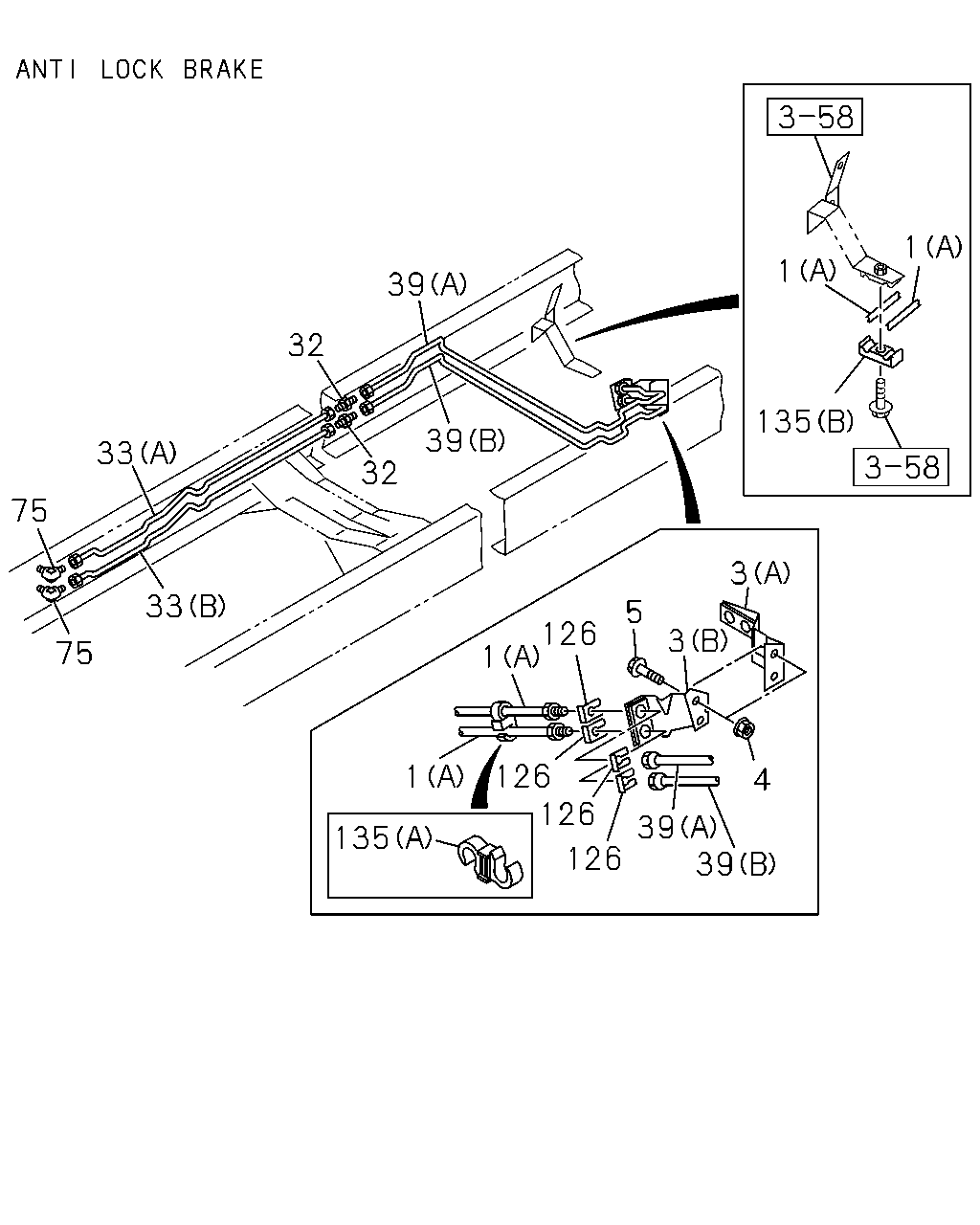

çizim 178365
1 1 39 32 135 39 33 32 75 3 33 5 3 126 75 1 126 126 1 4 39 39 135 126
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480 		8-98172-789-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520 		8-98175-918-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		8-98067-397-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		8-98067-397-0 02 1 0712- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-1011 ●
1 HOSE; FLEX,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1012- ●
1 HOSE; FLEX,RR BRK
(A) L=480 		8-98067-398-0 02 1 0710- ●
3 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98182-778-0 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98175-942-0 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98065-999-2 01 1 0710-1011 ●
3 BRACKET; FLEX HOSE,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (B) 		8-98065-999-2 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98012-144-1 01 1 0710- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0710- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
32 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0810- ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0710-0809 ● ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0810- ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 02 1 0810- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) LH LINE L=1970 		8-98071-244-0 01 1 0809-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) LH LINE L=1970 		8-98071-244-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1970 		8-98071-244-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1963 		8-98183-298-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1906 		8-98071-245-0 01 1 0809-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1906 		8-98071-245-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1906 		8-98071-245-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903 		8-98183-299-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) LH LINE L=1375 		8-98091-617-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1375 		8-98091-617-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1375 		8-98091-617-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1375 		8-98091-617-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1366 		8-98183-306-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (B) RH LINE L=1313 		8-98091-618-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1313 		8-98091-618-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1313 		8-98091-618-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1313 		8-98091-618-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1324 		8-98183-307-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1316 		8-98071-241-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1316 		8-98071-241-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1316 		8-98071-241-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1327 		8-98183-295-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1358 		8-98071-240-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1358 		8-98071-240-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1358 		8-98071-240-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1357 		8-98183-294-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2593 		8-98183-302-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2536 		8-98071-249-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2536 		8-98071-249-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2536 		8-98071-249-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533 		8-98183-303-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=3003 		8-98091-635-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 0710-0906 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 0907-1011 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2912 		8-98091-636-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 0710-0711 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2866 		8-98071-251-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2866 		8-98071-251-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2866 		8-98071-251-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2863 		8-98183-305-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2863 		8-98183-305-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (A) LH LINE 		8-98091-621-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 0710-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (B) RH LINE 		8-98091-622-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (B) RH LINE L=1608 		8-98071-243-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1608 		8-98071-243-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1608 		8-98071-243-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1608 		8-98071-243-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1605 		8-98183-297-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (A) LH LINE L=2343 		8-98090-725-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 0710-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (B) RH LINE L=2252 		8-98090-726-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (B) RH LINE L=2206 		8-98071-247-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2206 		8-98071-247-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2206 		8-98071-247-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2206 		8-98071-247-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203 		8-98183-301-0 01 1 1108- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (D) L=2100 		8-98175-941-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=2126 		8-98182-774-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1169 		8-98076-353-0 01 1 0710- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1690 		8-98090-826-0 01 1 0710-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710 		8-98106-485-0 01 1 0801-1011 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) LH LINE L=1710 		8-98106-485-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1756 		8-98090-827-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH LINE L=1756 		8-98090-827-0 01 1 0712-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH LINE L=1772 		8-98106-486-0 01 1 0801- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1178 		8-98076-354-0 01 1 0710- ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) 		8-98018-438-0 01 1 0805- ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0710-0804 ● ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0805- ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) 		8-98018-438-0 02 1 0805- ●
126 CLIP; FLEX HOSE
EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0712- ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0710-0711 ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0712-1011 ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 0712-1011 ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1012- ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 1012- ●
135 CLIP; FLEX HOSE
(B) 		1-09701-278-2 01 1 0710- ●
135 CLIP; FLEX HOSE
(A) ID=10 & 10 		1-09709-277-1 01 1 0710-0711 ● ●
135 CLIP; FLEX HOSE
(A) ID=10 & 10 		1-09709-277-1 01 1 0712-1011 ●
135 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) (A) ID=10 & 10 		1-09709-277-1 01 1 0712-1011 ●
135 CLIP; FLEX HOSE
(A) ID=10 & 10 		1-09709-277-1 01 1 1012- ●
135 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) (A) ID=10 & 10 		1-09709-277-1 01 1 1012- ●

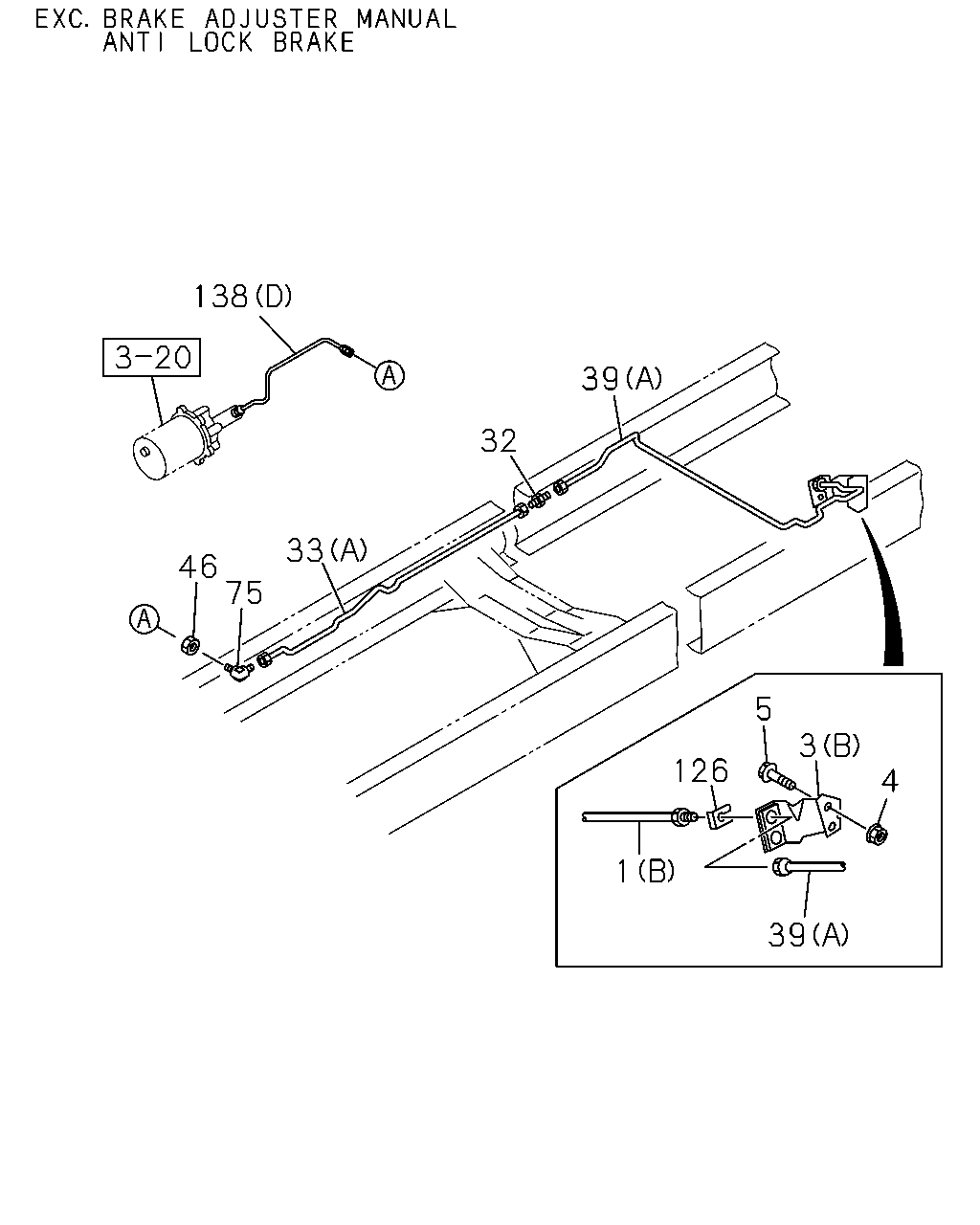

çizim 178389
138 39 32 33 46 75 5 3 126 4 1 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480 		8-98172-789-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520 		8-98175-918-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		8-98067-397-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		8-98067-397-0 02 1 0712- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-1011 ●
1 HOSE; FLEX,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1012- ●
1 HOSE; FLEX,RR BRK
(A) L=480 		8-98067-398-0 02 1 0710- ●
3 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98182-778-0 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98175-942-0 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98065-999-2 01 1 0710-1011 ●
3 BRACKET; FLEX HOSE,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (B) 		8-98065-999-2 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98012-144-1 01 1 0710- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0710- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
32 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0810- ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0710-0809 ● ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0810- ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 02 1 0810- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) LH LINE L=1970 		8-98071-244-0 01 1 0809-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) LH LINE L=1970 		8-98071-244-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1970 		8-98071-244-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1963 		8-98183-298-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1906 		8-98071-245-0 01 1 0809-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1906 		8-98071-245-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1906 		8-98071-245-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903 		8-98183-299-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) LH LINE L=1375 		8-98091-617-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1375 		8-98091-617-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1375 		8-98091-617-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1375 		8-98091-617-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1366 		8-98183-306-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (B) RH LINE L=1313 		8-98091-618-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1313 		8-98091-618-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1313 		8-98091-618-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1313 		8-98091-618-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1324 		8-98183-307-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1316 		8-98071-241-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1316 		8-98071-241-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1316 		8-98071-241-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1327 		8-98183-295-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1358 		8-98071-240-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1358 		8-98071-240-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1358 		8-98071-240-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1357 		8-98183-294-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2593 		8-98183-302-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2536 		8-98071-249-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2536 		8-98071-249-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2536 		8-98071-249-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533 		8-98183-303-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=3003 		8-98091-635-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 0710-0906 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 0907-1011 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2912 		8-98091-636-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 0710-0711 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2866 		8-98071-251-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2866 		8-98071-251-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2866 		8-98071-251-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2863 		8-98183-305-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2863 		8-98183-305-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (A) LH LINE 		8-98091-621-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 0710-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (B) RH LINE 		8-98091-622-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (B) RH LINE L=1608 		8-98071-243-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1608 		8-98071-243-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1608 		8-98071-243-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1608 		8-98071-243-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1605 		8-98183-297-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (A) LH LINE L=2343 		8-98090-725-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 0710-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (B) RH LINE L=2252 		8-98090-726-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (B) RH LINE L=2206 		8-98071-247-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2206 		8-98071-247-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2206 		8-98071-247-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2206 		8-98071-247-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203 		8-98183-301-0 01 1 1108- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (D) L=2100 		8-98175-941-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=2126 		8-98182-774-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1169 		8-98076-353-0 01 1 0710- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1690 		8-98090-826-0 01 1 0710-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710 		8-98106-485-0 01 1 0801-1011 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) LH LINE L=1710 		8-98106-485-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1756 		8-98090-827-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH LINE L=1756 		8-98090-827-0 01 1 0712-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH LINE L=1772 		8-98106-486-0 01 1 0801- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1178 		8-98076-354-0 01 1 0710- ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0805- ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0804 ● ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0805- ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0805- ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) 		8-98018-438-0 01 1 0805- ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0710-0804 ● ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0805- ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) 		8-98018-438-0 02 1 0805- ●
126 CLIP; FLEX HOSE
EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0712- ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0710-0711 ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0712-1011 ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 0712-1011 ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1012- ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 1012- ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=492 		8-98057-351-0 01 1 0712-0712 ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (C) L=296 		8-98066-107-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 0712- ●

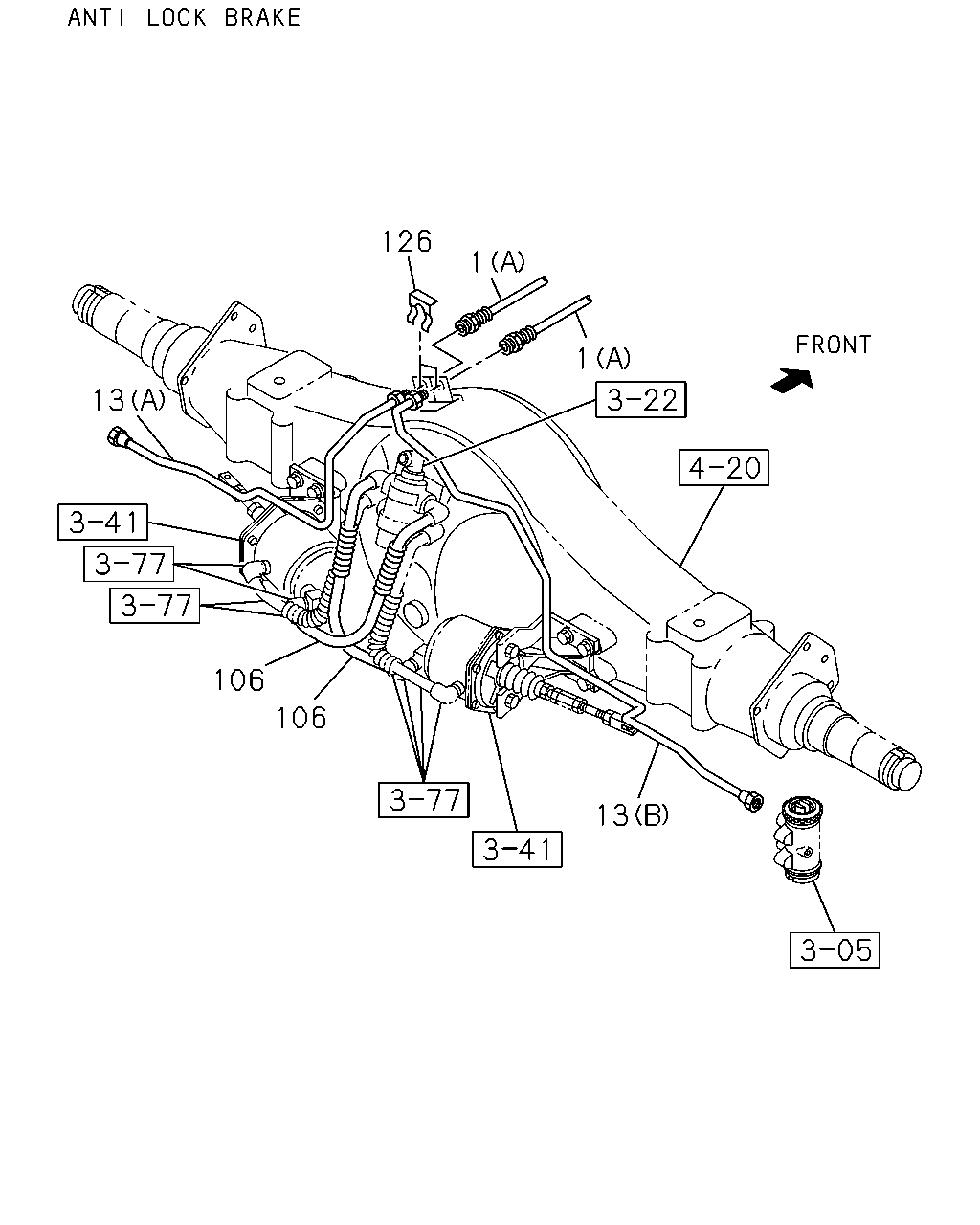

çizim 178472
126 13 106 106 13 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480 		8-98172-789-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520 		8-98175-918-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		8-98067-397-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		8-98067-397-0 02 1 0712- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-1011 ●
1 HOSE; FLEX,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1012- ●
1 HOSE; FLEX,RR BRK
(A) L=480 		8-98067-398-0 02 1 0710- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-679-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-680-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98073-530-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98073-531-0 01 1 1410-1410 ●

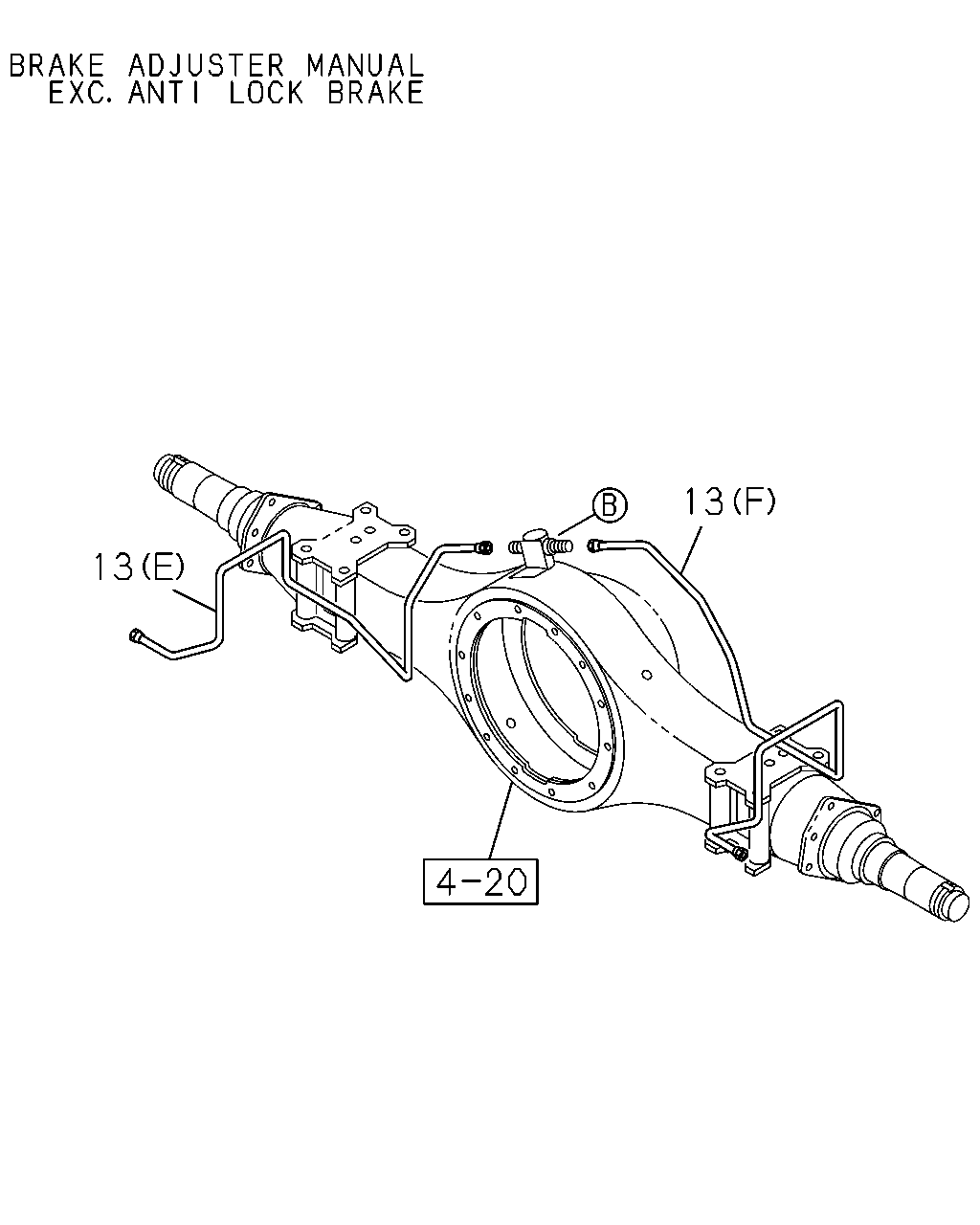

13 PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> (E) L=675 		1-47427-105-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> (F) L=847 		1-47427-106-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-679-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98107-930-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE L=1030 		8-98281-559-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-680-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98107-931-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE L=645 		8-98281-560-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98059-741-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98059-742-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115 		8-98071-761-0 01 1 0712-1011 ●
13 PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKINGBRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115 		8-98071-761-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE L=738 		8-98071-762-0 01 1 0712-1011 ●
13 PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKINGBRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (C) LH LINE L=738 		8-98071-762-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0710-0711 ● ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98073-530-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98107-928-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98107-928-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0710-0711 ● ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98073-531-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98107-929-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98107-929-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98281-558-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98281-558-0 01 1 1410- ●
106 TUBE; NYLON 8-98061-971-0 02 1 0710- ●
106 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98061-971-0 02 1 0710- ●
126 CLIP; FLEX HOSE
EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0712- ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0710-0711 ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0712-1011 ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 0712-1011 ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1012- ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 1012- ●

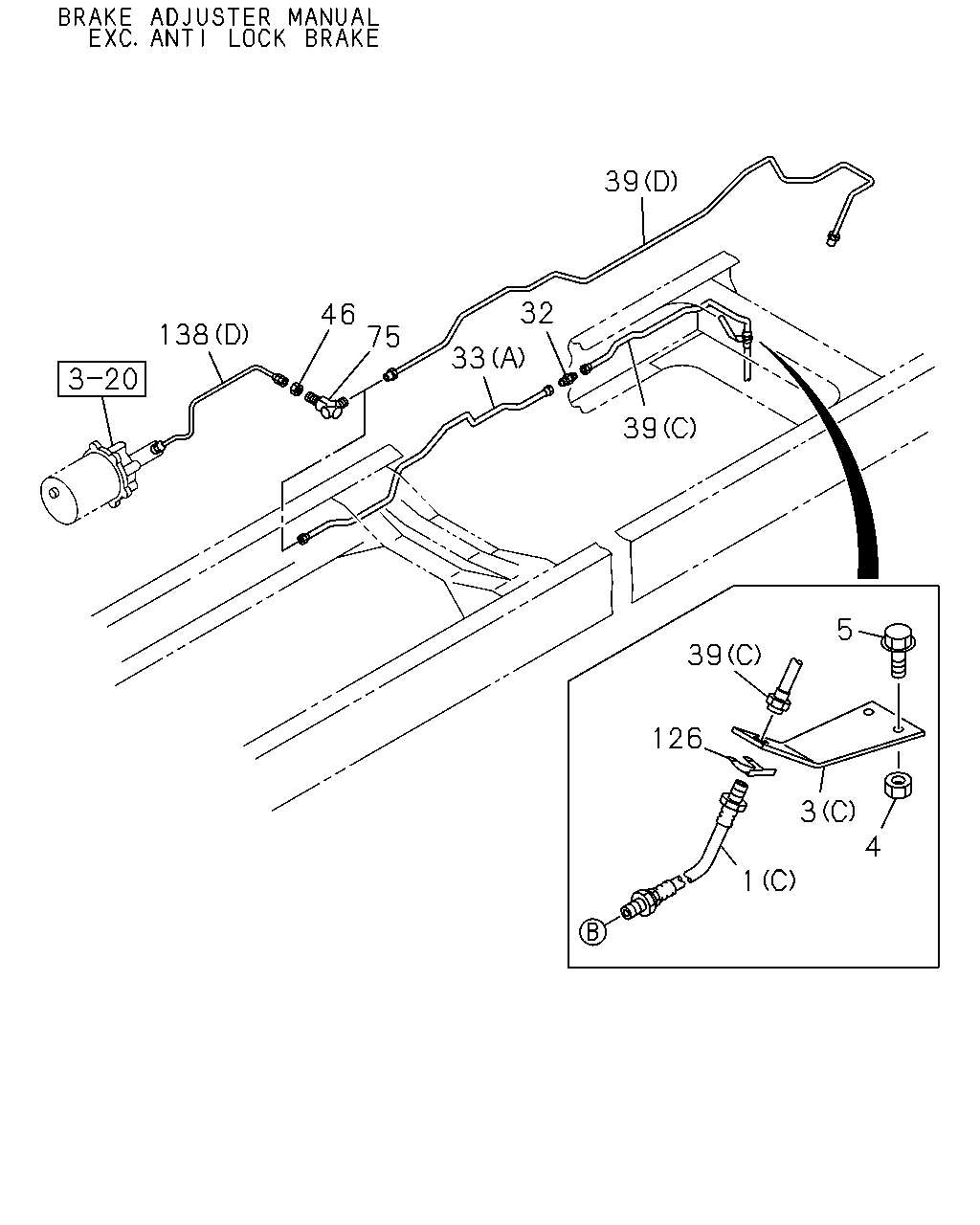

çizim 178488
4 1 3 5 39 126 39 39 32 33 75 46 138
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480 		8-98172-789-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520 		8-98175-918-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		8-98067-397-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		8-98067-397-0 02 1 0712- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-1011 ●
1 HOSE; FLEX,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1012- ●
1 HOSE; FLEX,RR BRK
(A) L=480 		8-98067-398-0 02 1 0710- ●
3 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98182-778-0 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98175-942-0 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98065-999-2 01 1 0710-1011 ●
3 BRACKET; FLEX HOSE,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (B) 		8-98065-999-2 01 1 1012- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98012-144-1 01 1 0710- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0710- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
32 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 01 1 0810- ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0710-0809 ● ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0810- ●
32 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) M10 STRAIGHT 		0-92107-005-0 02 1 0810- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) LH LINE L=1970 		8-98071-244-0 01 1 0809-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) LH LINE L=1970 		8-98071-244-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1970 		8-98071-244-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1963 		8-98183-298-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1906 		8-98071-245-0 01 1 0809-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1906 		8-98071-245-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1906 		8-98071-245-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903 		8-98183-299-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) LH LINE L=1375 		8-98091-617-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1375 		8-98091-617-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1375 		8-98091-617-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1375 		8-98091-617-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE REGULATION ADR(TDU) (A) LH LINE L=1366 		8-98183-306-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (B) RH LINE L=1313 		8-98091-618-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1313 		8-98091-618-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1313 		8-98091-618-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1313 		8-98091-618-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ADR(TDU) (B) RH LINE L=1324 		8-98183-307-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1316 		8-98071-241-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1316 		8-98071-241-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1316 		8-98071-241-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) RH LINE L=1327 		8-98183-295-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1358 		8-98071-240-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1358 		8-98071-240-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1358 		8-98071-240-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ADR(TDU) (A) LH LINE L=1357 		8-98183-294-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2593 		8-98183-302-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2536 		8-98071-249-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2536 		8-98071-249-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2536 		8-98071-249-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533 		8-98183-303-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=3003 		8-98091-635-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 0710-0906 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 0907-1011 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2930 		8-98071-250-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2912 		8-98091-636-0 01 1 0710-0710 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 0710-0711 ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2866 		8-98071-251-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2866 		8-98071-251-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2866 		8-98071-251-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2866 		8-98071-251-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (B) RH LINE L=2863 		8-98183-305-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2863 		8-98183-305-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (A) LH LINE 		8-98091-621-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 0710-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (B) RH LINE 		8-98091-622-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) (B) RH LINE L=1608 		8-98071-243-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1608 		8-98071-243-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1608 		8-98071-243-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1608 		8-98071-243-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1605 		8-98183-297-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (A) LH LINE L=2343 		8-98090-725-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 0710-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1108- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (B) RH LINE L=2252 		8-98090-726-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (B) RH LINE L=2206 		8-98071-247-0 01 1 0710-0711 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2206 		8-98071-247-0 01 1 0712-0906 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2206 		8-98071-247-0 01 1 0907-1011 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2206 		8-98071-247-0 01 1 1012-1107 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203 		8-98183-301-0 01 1 1108- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (D) L=2100 		8-98175-941-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=2126 		8-98182-774-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1169 		8-98076-353-0 01 1 0710- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1690 		8-98090-826-0 01 1 0710-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710 		8-98106-485-0 01 1 0801-1011 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) LH LINE L=1710 		8-98106-485-0 01 1 1012- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1756 		8-98090-827-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH LINE L=1756 		8-98090-827-0 01 1 0712-0712 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
ANTI LOCK BRAKE(JE5) (B) RH LINE L=1772 		8-98106-486-0 01 1 0801- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1178 		8-98076-354-0 01 1 0710- ●
46 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0805- ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0804 ● ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0805- ●
46 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0805- ●
75 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) 		8-98018-438-0 01 1 0805- ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0710-0804 ● ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0805- ●
75 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) 		8-98018-438-0 02 1 0805- ●
126 CLIP; FLEX HOSE
EXC. ANTI LOCK BRAKE(JE5) 		8-97360-054-0 01 1 0712- ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0710-0711 ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0712-1011 ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 0712-1011 ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1012- ●
126 CLIP; FLEX HOSE
ANTI LOCK BRAKE(JE5) 		8-97360-054-0 04 1 1012- ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=492 		8-98057-351-0 01 1 0712-0712 ●
138 PIPE; HYDRAULIC UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) L=497 		8-98108-125-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (C) L=296 		8-98066-107-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=657 		8-98012-129-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0710-0711 ● ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=703 		8-98012-146-0 01 1 0712- ●
çizim 178493
13 1 12 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=480 		8-98172-789-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (C) L=520 		8-98175-918-0 01 1 1012- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0712-0808 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (A) L=350 		8-97138-885-0 02 1 0809- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		8-98067-397-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		8-98067-397-0 02 1 0712- ●
1 HOSE; FLEX,RR BRK
EXC. ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 0712-1011 ●
1 HOSE; FLEX,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) L=485 		8-98057-386-1 01 1 1012- ●
1 HOSE; FLEX,RR BRK
(A) L=480 		8-98067-398-0 02 1 0710- ●
12 BOLT; FLEX HOSE TO RR AXLE
EXC. ANTI LOCK BRAKE(JE5) M8X35 FLANGE 		0-28650-835-0 01 1 0712-1011 ●
12 BOLT; FLEX HOSE TO RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) M8X35 FLANGE 		0-28650-835-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-679-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-680-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98073-530-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98073-531-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> (E) L=675 		1-47427-105-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> (F) L=847 		1-47427-106-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-679-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98107-930-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE L=1030 		8-98281-559-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-680-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98107-931-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE L=645 		8-98281-560-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98059-741-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98059-742-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115 		8-98071-761-0 01 1 0712-1011 ●
13 PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKINGBRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115 		8-98071-761-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE L=738 		8-98071-762-0 01 1 0712-1011 ●
13 PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKINGBRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (C) LH LINE L=738 		8-98071-762-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0710-0711 ● ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98073-530-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98107-928-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98107-928-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0710-0711 ● ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98073-531-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98107-929-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98107-929-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98281-558-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98281-558-0 01 1 1410- ●
çizim 178496
13 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-679-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-680-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98073-530-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98073-531-0 01 1 1410-1410 ●
13 PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> (E) L=675 		1-47427-105-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> (F) L=847 		1-47427-106-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98029-679-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE 		8-98107-930-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE L=1030 		8-98281-559-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98029-680-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE 		8-98107-931-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE L=645 		8-98281-560-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98059-741-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98059-742-0 01 1 0712- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115 		8-98071-761-0 01 1 0712-1011 ●
13 PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKINGBRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (D) RH LINE L=1115 		8-98071-761-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (C) LH LINE L=738 		8-98071-762-0 01 1 0712-1011 ●
13 PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKINGBRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) (C) LH LINE L=738 		8-98071-762-0 01 1 1012- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0710-0711 ● ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98073-530-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98107-928-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98107-928-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98281-557-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0710-0711 ● ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98073-531-0 01 1 0712-0803 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98107-929-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98107-929-0 01 1 0804-1409 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98281-558-0 01 1 1410- ●
13 PIPE; BRK,RR AXLE
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98281-558-0 01 1 1410- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
