3-52 — BRAKE PIPING; OIL,FRONT (#39880) — 217 parça

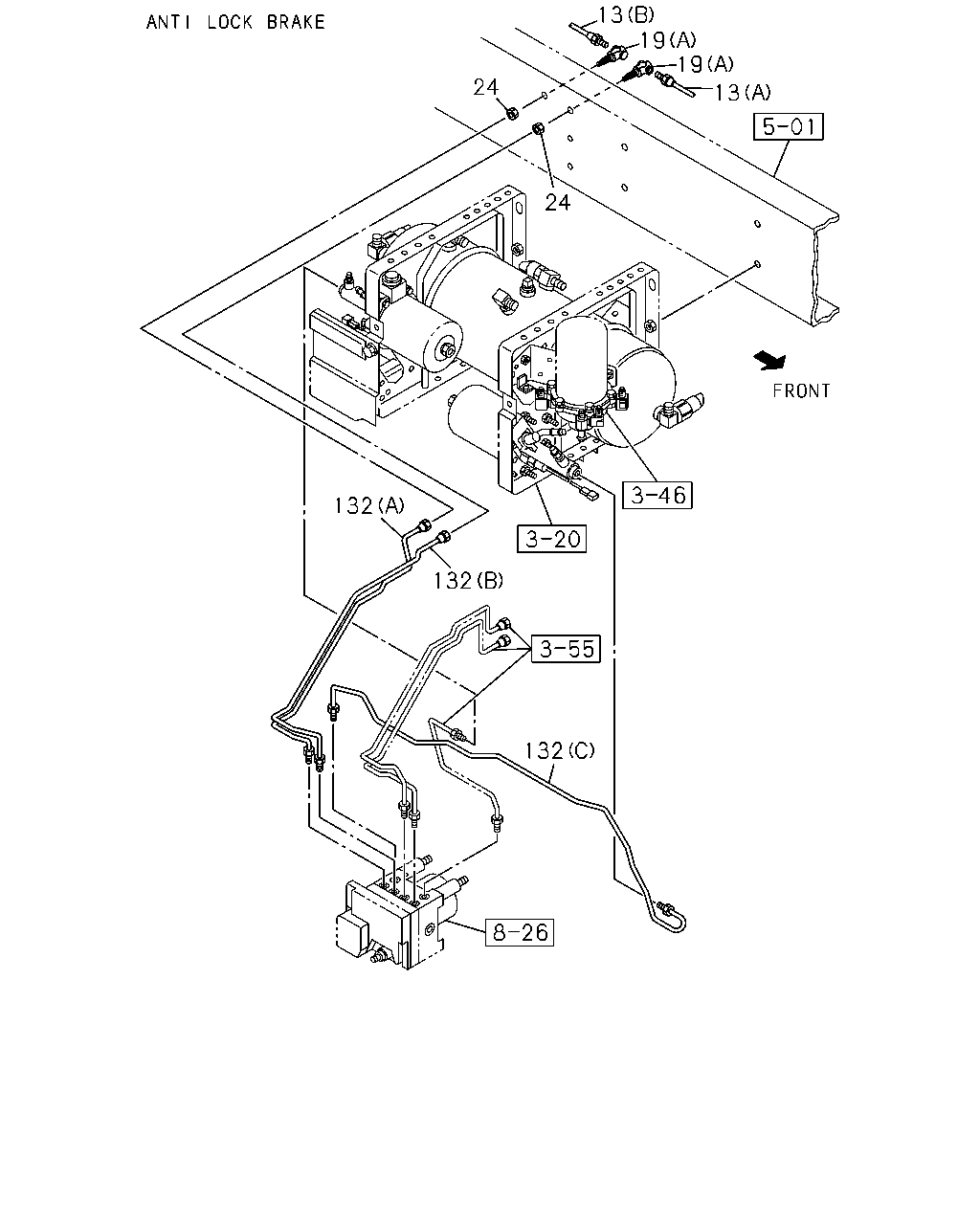

çizim 178356
13 19 19 24 13 24 132 132 132
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=995 		8-98115-457-0 01 1 0806-0806 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ANTI LOCK BRAKE(JE5) (A) L=995 		8-98115-457-0 01 1 0806-0806 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 0806-0808 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 0806-0808 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 0809-0906 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 0809-0906 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 0907-1011 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 0907-1011 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 1012- ●
13 PIPE; OIL,UNION TO UNION
MLD6Q M/T(X5J),MLD6S M/T(X7W) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 1012- ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) (B) L=1891 		8-98113-684-0 01 1 0803-0803 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) (B) L=1891 		8-98113-684-0 01 1 0804-0804 ●
13 PIPE; OIL,UNION TO UNION
EXC. ANTI LOCK BRAKE(JE5) (B) L=1891 		8-98113-684-0 01 1 0804- ●
13 PIPE; OIL,UNION TO UNION
(A) L=967 		8-98067-417-0 01 1 0710-0803 ● ●
13 PIPE; OIL,UNION TO UNION
MZX6P M/T(RSW) (A) L=967 		8-98067-417-0 01 1 0804-0805 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (A) L=967 		8-98067-417-0 01 1 0806-0808 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 0806-0808 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (A) L=967 		8-98067-417-0 01 1 0809-0906 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 0809-0906 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) L=967 		8-98067-417-0 01 1 0907-1011 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 0907-1011 ●
13 PIPE; OIL,UNION TO UNION
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) L=967 		8-98067-417-0 01 1 1012- ● ●
13 PIPE; OIL,UNION TO UNION
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 1012- ●
13 PIPE; OIL,UNION TO UNION
(B) L=1847 		8-98078-163-0 01 1 0710-0802 ● ●
13 PIPE; OIL,UNION TO UNION
ANTI LOCK BRAKE(JE5) (B) L=1847 		8-98078-163-0 01 1 0803-0911 ● ●
13 PIPE; OIL,UNION TO UNION
ANTI LOCK BRAKE(JE5) (B) L=1833 		8-98158-297-0 01 1 0912- ● ●
19 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98113-738-0 01 1 0803- ●
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 0710- ● ●
19 UNION; OIL PIPE
(A) 		8-98018-438-0 02 1 0710-0802 ● ●
19 UNION; OIL PIPE
(A) 		8-98018-438-0 02 1 0803- ●
19 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) 		8-98018-438-0 02 1 0803- ●
24 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0803-1011 ●
24 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 1012- ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0802 ● ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0803- ●
24 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0803- ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=645 		8-98011-949-0 01 1 0710-0711 ● ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=645 		8-98011-949-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=645 		8-98011-949-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=645 		8-98011-949-0 01 1 0804- ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=645 		8-98011-949-0 01 1 0804- ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=621 		8-98011-941-0 01 1 0710-0711 ● ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=621 		8-98011-941-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=621 		8-98011-941-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=625 		8-98116-095-0 01 1 0804- ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=625 		8-98116-095-0 01 1 0804- ●
132 PIPE; OIL,BRK,HYD UNIT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (B) RH LINE L=620 		8-98115-456-0 01 1 0806-0806 ●
132 PIPE; OIL,BRK,HYD UNIT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ANTI LOCK BRAKE(JE5) (B) RH LINE L=620 		8-98115-456-0 01 1 0806-0806 ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662 		8-98057-350-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (G) L=1464 		8-98113-766-0 01 1 0803- ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (F) L=886 		8-98084-323-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662 		8-98095-078-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=949 		8-98078-732-0 01 1 0710-0711 ● ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=949 		8-98078-732-0 01 1 0712- ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (C) L=949 		8-98078-732-0 01 1 0712- ●

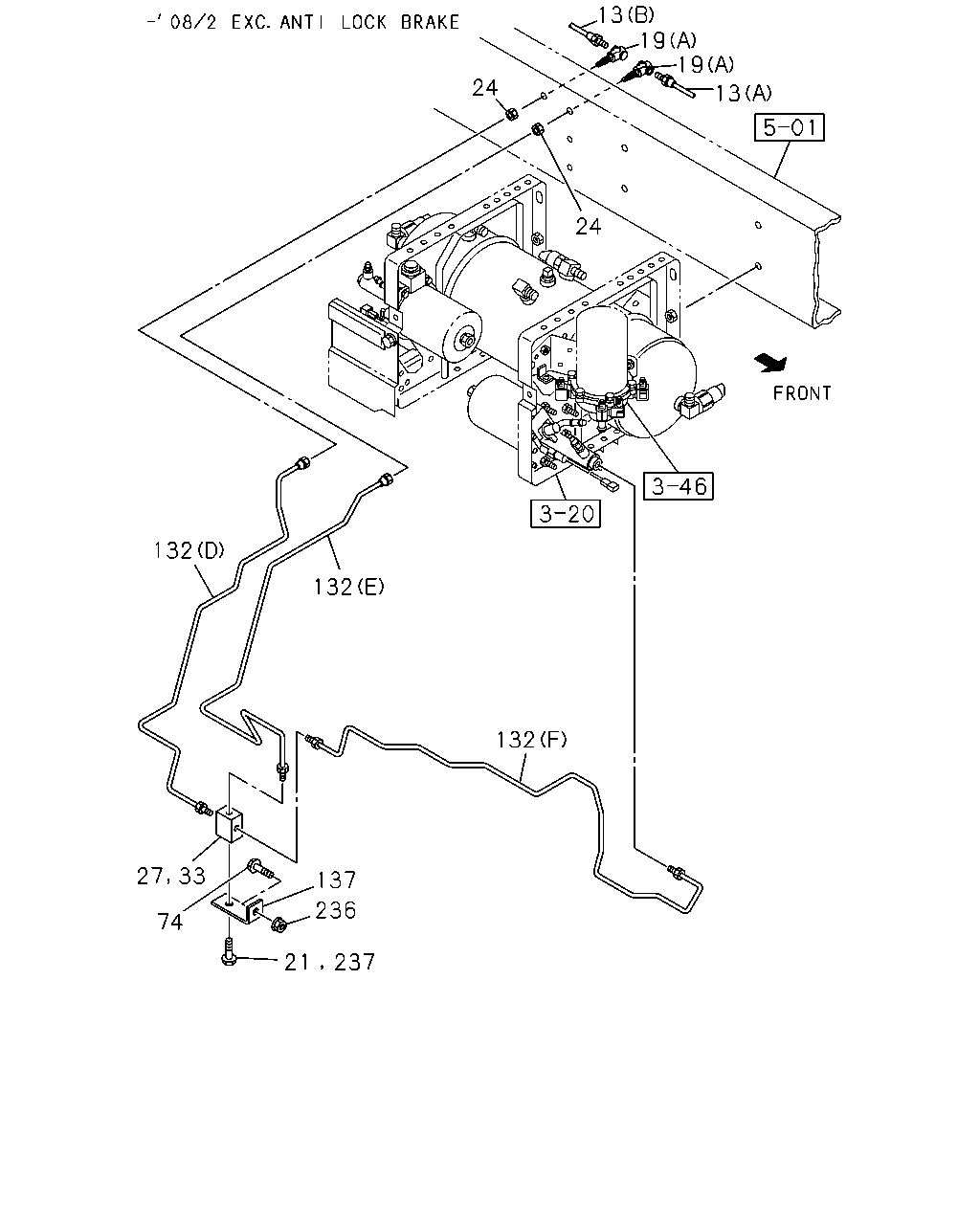

çizim 178361
13 19 19 24 13 24 132 132 132 137 236 74 21 237 27 33
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=995 		8-98115-457-0 01 1 0806-0806 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ANTI LOCK BRAKE(JE5) (A) L=995 		8-98115-457-0 01 1 0806-0806 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 0806-0808 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 0806-0808 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 0809-0906 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 0809-0906 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 0907-1011 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 0907-1011 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 1012- ●
13 PIPE; OIL,UNION TO UNION
MLD6Q M/T(X5J),MLD6S M/T(X7W) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 1012- ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) (B) L=1891 		8-98113-684-0 01 1 0803-0803 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) (B) L=1891 		8-98113-684-0 01 1 0804-0804 ●
13 PIPE; OIL,UNION TO UNION
EXC. ANTI LOCK BRAKE(JE5) (B) L=1891 		8-98113-684-0 01 1 0804- ●
13 PIPE; OIL,UNION TO UNION
(A) L=967 		8-98067-417-0 01 1 0710-0803 ● ●
13 PIPE; OIL,UNION TO UNION
MZX6P M/T(RSW) (A) L=967 		8-98067-417-0 01 1 0804-0805 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (A) L=967 		8-98067-417-0 01 1 0806-0808 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 0806-0808 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (A) L=967 		8-98067-417-0 01 1 0809-0906 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 0809-0906 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) L=967 		8-98067-417-0 01 1 0907-1011 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 0907-1011 ●
13 PIPE; OIL,UNION TO UNION
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) L=967 		8-98067-417-0 01 1 1012- ● ●
13 PIPE; OIL,UNION TO UNION
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 1012- ●
13 PIPE; OIL,UNION TO UNION
(B) L=1847 		8-98078-163-0 01 1 0710-0802 ● ●
13 PIPE; OIL,UNION TO UNION
ANTI LOCK BRAKE(JE5) (B) L=1847 		8-98078-163-0 01 1 0803-0911 ● ●
13 PIPE; OIL,UNION TO UNION
ANTI LOCK BRAKE(JE5) (B) L=1833 		8-98158-297-0 01 1 0912- ● ●
19 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98113-738-0 01 1 0803- ●
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 0710- ● ●
19 UNION; OIL PIPE
(A) 		8-98018-438-0 02 1 0710-0802 ● ●
19 UNION; OIL PIPE
(A) 		8-98018-438-0 02 1 0803- ●
19 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) 		8-98018-438-0 02 1 0803- ●
21 BOLT; UNION BRKT
EXC. ANTI LOCK BRAKE(JE5) M8X10 FLANGE 		0-28050-810-0 01 1 0712-0802 ●
24 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0803-1011 ●
24 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 1012- ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0802 ● ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0803- ●
24 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0803- ●
27 UNION; BRK PIPE
EXC. ANTI LOCK BRAKE(JE5) 		8-97314-636-0 01 1 0712-0802 ●
33 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) 		8-97314-636-0 01 1 0712-0802 ●
74 BOLT; BRKT
EXC. ANTI LOCK BRAKE(JE5) M8X20 FLANGE 		0-28050-820-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=645 		8-98011-949-0 01 1 0710-0711 ● ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=645 		8-98011-949-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=645 		8-98011-949-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=645 		8-98011-949-0 01 1 0804- ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=645 		8-98011-949-0 01 1 0804- ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=621 		8-98011-941-0 01 1 0710-0711 ● ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=621 		8-98011-941-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=621 		8-98011-941-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=625 		8-98116-095-0 01 1 0804- ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=625 		8-98116-095-0 01 1 0804- ●
132 PIPE; OIL,BRK,HYD UNIT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (B) RH LINE L=620 		8-98115-456-0 01 1 0806-0806 ●
132 PIPE; OIL,BRK,HYD UNIT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ANTI LOCK BRAKE(JE5) (B) RH LINE L=620 		8-98115-456-0 01 1 0806-0806 ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662 		8-98057-350-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (G) L=1464 		8-98113-766-0 01 1 0803- ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (F) L=886 		8-98084-323-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662 		8-98095-078-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=949 		8-98078-732-0 01 1 0710-0711 ● ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=949 		8-98078-732-0 01 1 0712- ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (C) L=949 		8-98078-732-0 01 1 0712- ●
137 BRACKET; UNION
EXC. ANTI LOCK BRAKE(JE5) L=105 B=25 		1-47476-161-0 01 1 0712-0802 ●
236 NUT; BRKT
EXC. ANTI LOCK BRAKE(JE5) M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
237 BOLT; UNION
EXC. ANTI LOCK BRAKE(JE5) M8X10 FLANGE 		0-28050-810-0 01 1 0712-0802 ●

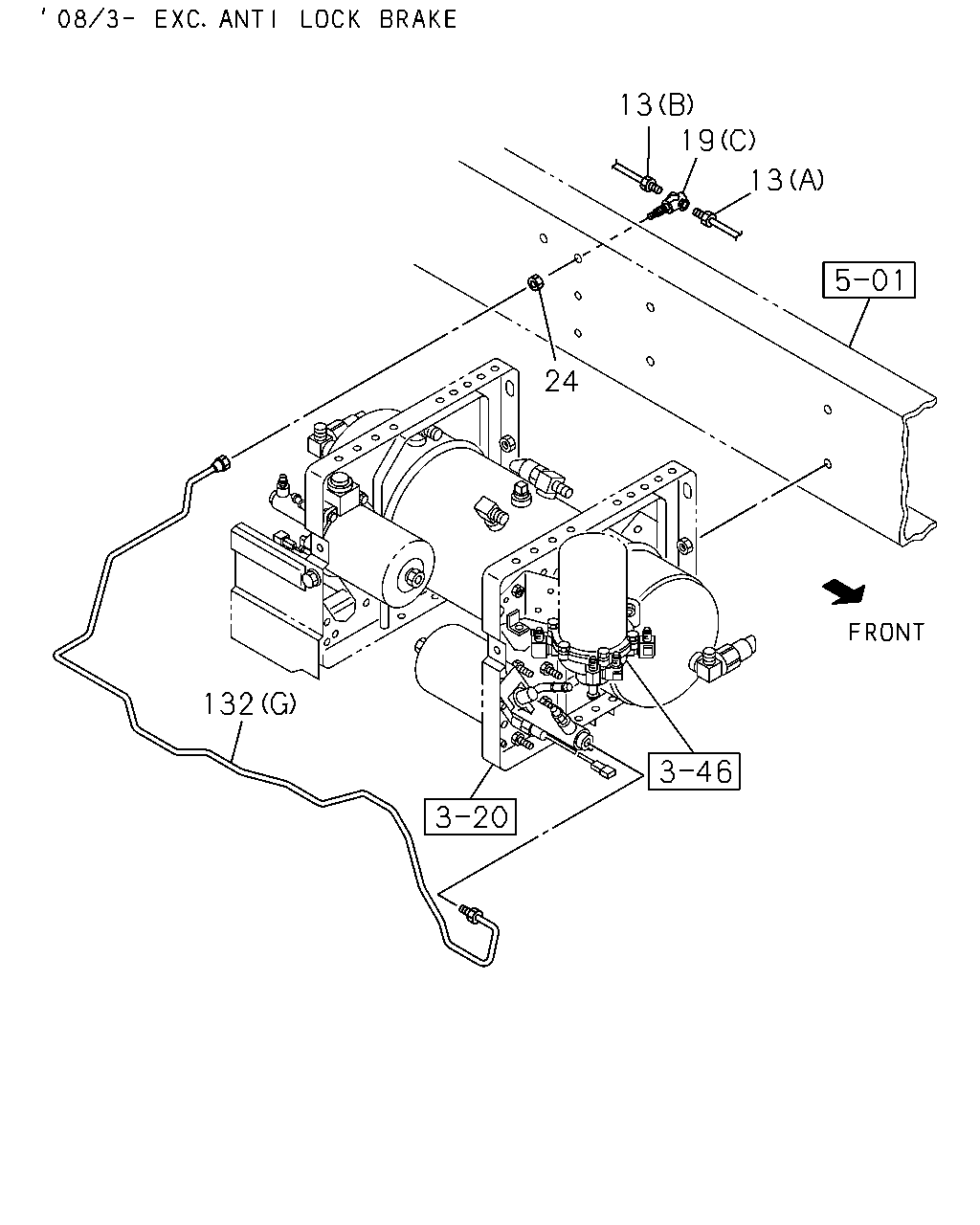

çizim 178475
13 19 13 24 132
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=995 		8-98115-457-0 01 1 0806-0806 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ANTI LOCK BRAKE(JE5) (A) L=995 		8-98115-457-0 01 1 0806-0806 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 0806-0808 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 0806-0808 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 0809-0906 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 0809-0906 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 0907-1011 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 0907-1011 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 1012- ●
13 PIPE; OIL,UNION TO UNION
MLD6Q M/T(X5J),MLD6S M/T(X7W) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 1012- ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) (B) L=1891 		8-98113-684-0 01 1 0803-0803 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) (B) L=1891 		8-98113-684-0 01 1 0804-0804 ●
13 PIPE; OIL,UNION TO UNION
EXC. ANTI LOCK BRAKE(JE5) (B) L=1891 		8-98113-684-0 01 1 0804- ●
13 PIPE; OIL,UNION TO UNION
(A) L=967 		8-98067-417-0 01 1 0710-0803 ● ●
13 PIPE; OIL,UNION TO UNION
MZX6P M/T(RSW) (A) L=967 		8-98067-417-0 01 1 0804-0805 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (A) L=967 		8-98067-417-0 01 1 0806-0808 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 0806-0808 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (A) L=967 		8-98067-417-0 01 1 0809-0906 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 0809-0906 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) L=967 		8-98067-417-0 01 1 0907-1011 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 0907-1011 ●
13 PIPE; OIL,UNION TO UNION
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) L=967 		8-98067-417-0 01 1 1012- ● ●
13 PIPE; OIL,UNION TO UNION
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 1012- ●
13 PIPE; OIL,UNION TO UNION
(B) L=1847 		8-98078-163-0 01 1 0710-0802 ● ●
13 PIPE; OIL,UNION TO UNION
ANTI LOCK BRAKE(JE5) (B) L=1847 		8-98078-163-0 01 1 0803-0911 ● ●
13 PIPE; OIL,UNION TO UNION
ANTI LOCK BRAKE(JE5) (B) L=1833 		8-98158-297-0 01 1 0912- ● ●
19 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98113-738-0 01 1 0803- ●
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 0710- ● ●
19 UNION; OIL PIPE
(A) 		8-98018-438-0 02 1 0710-0802 ● ●
19 UNION; OIL PIPE
(A) 		8-98018-438-0 02 1 0803- ●
19 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) 		8-98018-438-0 02 1 0803- ●
24 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 0803-1011 ●
24 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 1012- ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0802 ● ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0803- ●
24 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 0803- ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=645 		8-98011-949-0 01 1 0710-0711 ● ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=645 		8-98011-949-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=645 		8-98011-949-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=645 		8-98011-949-0 01 1 0804- ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (A) LH LINE L=645 		8-98011-949-0 01 1 0804- ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=621 		8-98011-941-0 01 1 0710-0711 ● ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=621 		8-98011-941-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=621 		8-98011-941-0 01 1 0712-0803 ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=625 		8-98116-095-0 01 1 0804- ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (B) RH LINE L=625 		8-98116-095-0 01 1 0804- ●
132 PIPE; OIL,BRK,HYD UNIT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (B) RH LINE L=620 		8-98115-456-0 01 1 0806-0806 ●
132 PIPE; OIL,BRK,HYD UNIT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ANTI LOCK BRAKE(JE5) (B) RH LINE L=620 		8-98115-456-0 01 1 0806-0806 ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (D) LH LINE L=662 		8-98057-350-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (G) L=1464 		8-98113-766-0 01 1 0803- ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (F) L=886 		8-98084-323-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5) (E) RH LINE L=662 		8-98095-078-0 01 1 0712-0802 ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=949 		8-98078-732-0 01 1 0710-0711 ● ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=949 		8-98078-732-0 01 1 0712- ●
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) (C) L=949 		8-98078-732-0 01 1 0712- ●

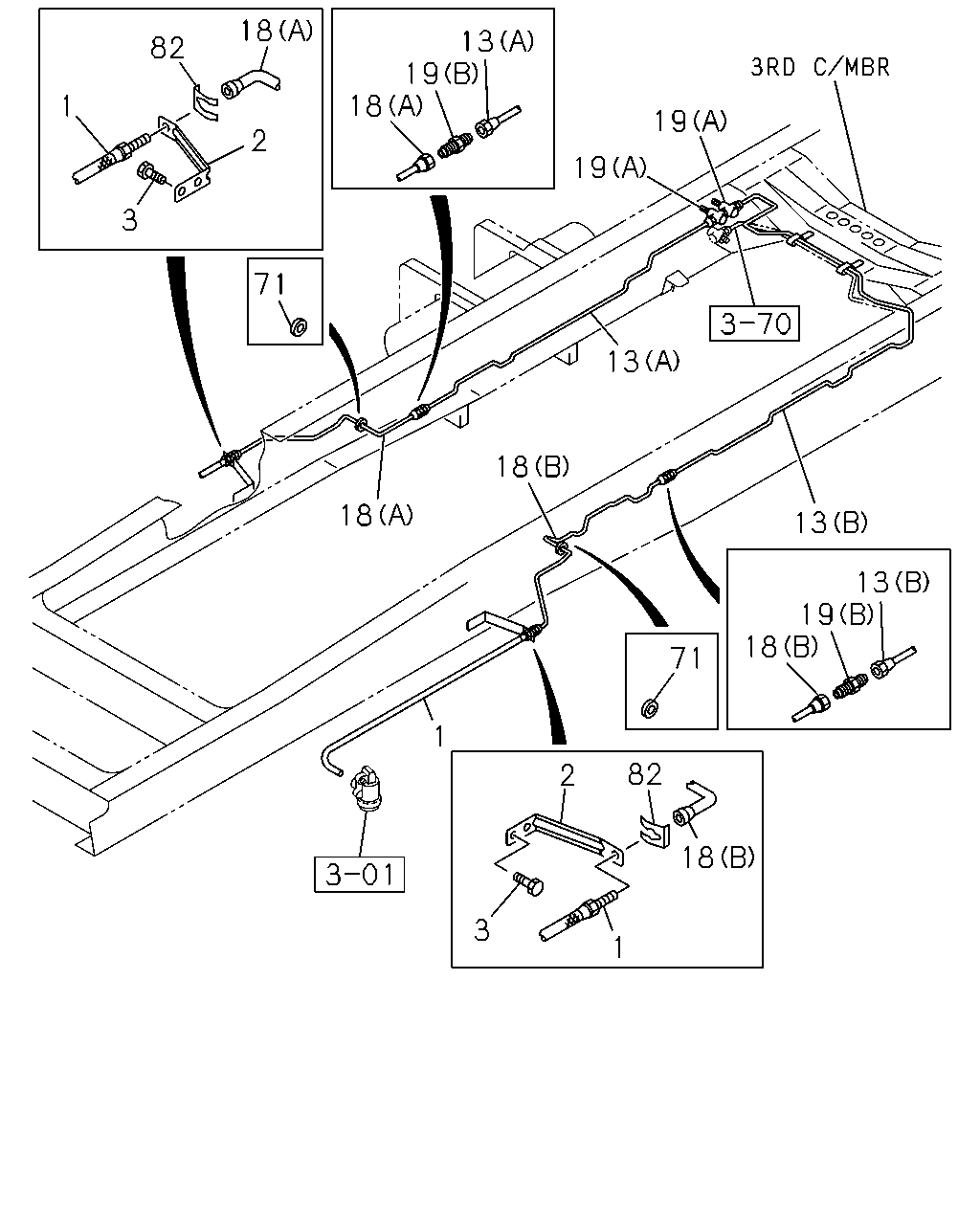

çizim 178476
18 13 19 18 82 1 19 2 19 3 71 13 18 18 13 13 19 18 71 1 82 2 18 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> L=480 		8-98172-789-0 02 1 1012- ●
1 HOSE; FLEX,FRT BRK
L=640 		8-98085-202-0 02 1 0710-1011 ● ●
1 HOSE; FLEX,FRT BRK
L=640 		8-98085-202-0 02 1 1012-1109 ●
1 HOSE; FLEX,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> L=640 		8-98085-202-0 02 1 1012-1109 ●
1 HOSE; FLEX,FRT BRK
L=660 		8-98202-875-0 02 1 1110-1210 ●
1 HOSE; FLEX,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> L=660 		8-98202-875-0 02 1 1110-1210 ●
1 HOSE; FLEX,FRT BRK
L=660 		8-98232-626-0 02 1 1211- ●
1 HOSE; FLEX,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> L=660 		8-98232-626-0 02 1 1211- ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-946-1 02 1 0710- ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=995 		8-98115-457-0 01 1 0806-0806 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ANTI LOCK BRAKE(JE5) (A) L=995 		8-98115-457-0 01 1 0806-0806 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 0806-0808 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 0806-0808 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 0809-0906 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 0809-0906 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 0907-1011 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 0907-1011 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (A) L=976 		8-98121-748-0 01 1 1012- ●
13 PIPE; OIL,UNION TO UNION
MLD6Q M/T(X5J),MLD6S M/T(X7W) ANTI LOCK BRAKE(JE5) (A) L=976 		8-98121-748-0 01 1 1012- ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) (B) L=1891 		8-98113-684-0 01 1 0803-0803 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) (B) L=1891 		8-98113-684-0 01 1 0804-0804 ●
13 PIPE; OIL,UNION TO UNION
EXC. ANTI LOCK BRAKE(JE5) (B) L=1891 		8-98113-684-0 01 1 0804- ●
13 PIPE; OIL,UNION TO UNION
(A) L=967 		8-98067-417-0 01 1 0710-0803 ● ●
13 PIPE; OIL,UNION TO UNION
MZX6P M/T(RSW) (A) L=967 		8-98067-417-0 01 1 0804-0805 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (A) L=967 		8-98067-417-0 01 1 0806-0808 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 0806-0808 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (A) L=967 		8-98067-417-0 01 1 0809-0906 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 0809-0906 ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) L=967 		8-98067-417-0 01 1 0907-1011 ● ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 0907-1011 ●
13 PIPE; OIL,UNION TO UNION
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) L=967 		8-98067-417-0 01 1 1012- ● ●
13 PIPE; OIL,UNION TO UNION
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. ANTI LOCK BRAKE(JE5) (A) L=967 		8-98067-417-0 01 1 1012- ●
13 PIPE; OIL,UNION TO UNION
(B) L=1847 		8-98078-163-0 01 1 0710-0802 ● ●
13 PIPE; OIL,UNION TO UNION
ANTI LOCK BRAKE(JE5) (B) L=1847 		8-98078-163-0 01 1 0803-0911 ● ●
13 PIPE; OIL,UNION TO UNION
ANTI LOCK BRAKE(JE5) (B) L=1833 		8-98158-297-0 01 1 0912- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=1016 		8-98065-376-0 01 1 0710- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=567 		8-98067-426-0 01 1 0710- ● ●
19 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98113-738-0 01 1 0803- ●
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 0710- ● ●
19 UNION; OIL PIPE
(A) 		8-98018-438-0 02 1 0710-0802 ● ●
19 UNION; OIL PIPE
(A) 		8-98018-438-0 02 1 0803- ●
19 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) 		8-98018-438-0 02 1 0803- ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0710- ● ●
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
