3-46 — AIR DRYER (#39879) — 252 parça

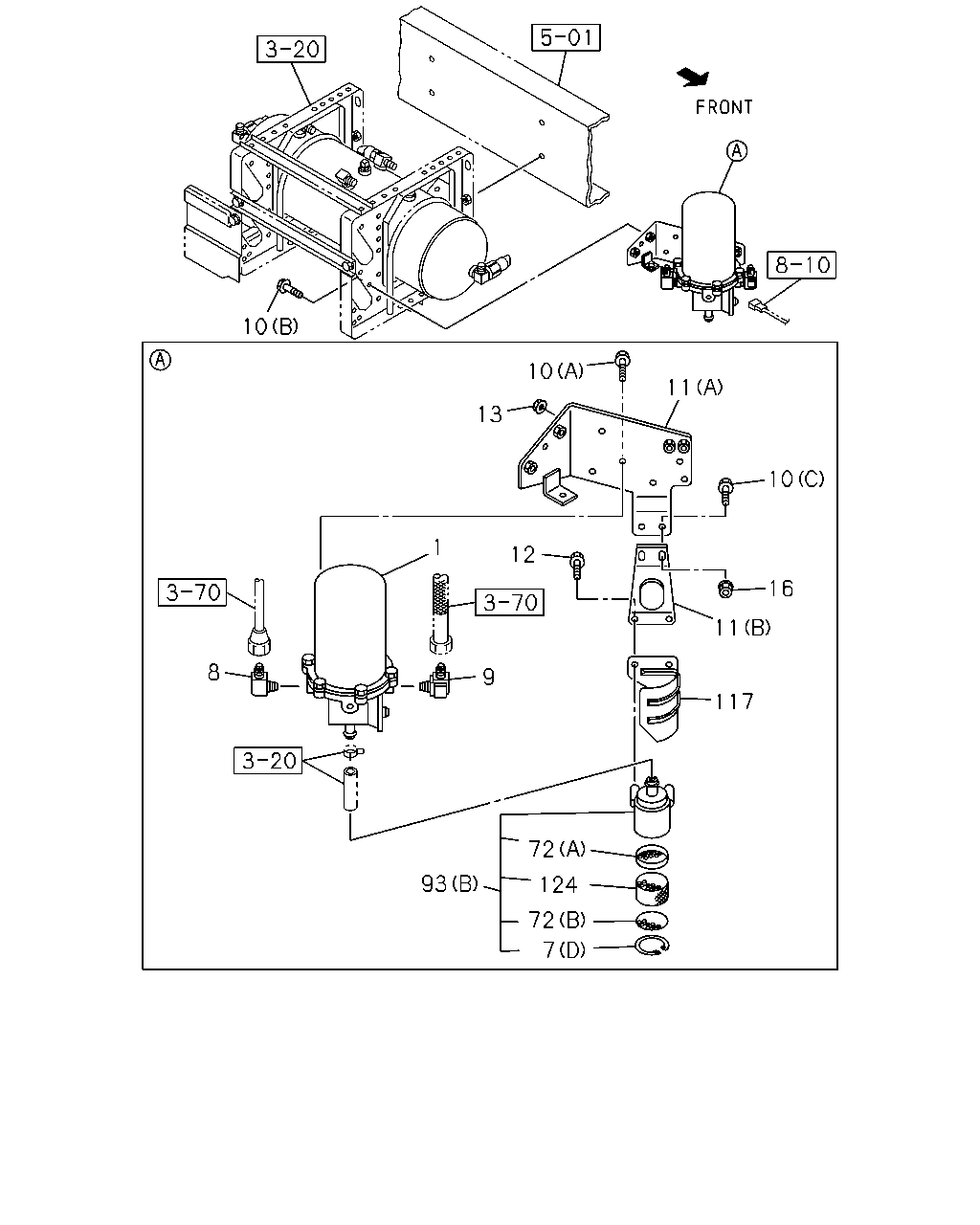

çizim 178357
10 10 11 13 10 1 12 16 11 8 9 117 72 93 124 72 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48190-369-2 01 1 0712-1211 ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98225-289-0 01 1 1212- ●
1 DRYER; AIR 1-48190-370-1 01 1 0710-0711 ● ●
1 DRYER; AIR 1-48190-370-2 01 1 0712-1211 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48190-370-2 01 1 0712-1211 ●
1 DRYER; AIR 8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98225-285-0 01 1 1212- ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0710-0711 ● ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0809-0906 ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (D) 		1-47769-017-0 01 1 0809-0906 ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0809-0906 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (D) 		1-47769-017-0 01 1 0907-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (D) 		1-47769-017-0 01 1 0907-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0907-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (D) 		1-47769-017-0 01 1 1012- ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (D) 		1-47769-017-0 01 1 1012- ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 1012- ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0710- ● ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0710- ● ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0710- ● ●
8 CONNECTOR; OUT,AIR DRYER
TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU) 		1-09656-676-0 01 1 0804- ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0710-0803 ● ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0804-0808 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0804-0808 ●
8 CONNECTOR; OUT,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0804-0808 ●
8 CONNECTOR; OUT,AIR DRYER
EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0804-0808 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0906 ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0906 ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0906 ●
8 CONNECTOR; OUT,AIR DRYER
EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0906 ●
8 CONNECTOR; OUT,AIR DRYER
4HK1-TCS ENG(RJS) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0907-1011 ●
8 CONNECTOR; OUT,AIR DRYER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0907-1011 ●
8 CONNECTOR; OUT,AIR DRYER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0907-1011 ●
8 CONNECTOR; OUT,AIR DRYER
EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0907-1011 ●
8 CONNECTOR; OUT,AIR DRYER
4HK1-TCS ENG(RJS) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1012- ●
8 CONNECTOR; OUT,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1012- ●
8 CONNECTOR; OUT,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1012- ●
8 CONNECTOR; OUT,AIR DRYER
EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR(TDU) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1012- ●
9 CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0710- ● ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0710-0711 ● ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0712-0808 ●
10 BOLT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0712-0808 ●
10 BOLT; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0712-0808 ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0809-0906 ●
10 BOLT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0809-0906 ●
10 BOLT; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0809-0906 ●
10 BOLT; AIR DRYER
4HK1-TCS ENG(RJS) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0907-1011 ●
10 BOLT; AIR DRYER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0907-1011 ●
10 BOLT; AIR DRYER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0907-1011 ●
10 BOLT; AIR DRYER
4HK1-TCS ENG(RJS) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1012- ●
10 BOLT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1012- ●
10 BOLT; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1012- ●
10 BOLT; AIR DRYER
(B) M8X20 FLANGE 		0-28050-820-0 04 1 0710-0710 ● ●
10 BOLT; AIR DRYER
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710- ● ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 0710- ● ●
11 BRACKET; AIR DRYER
(B) 		8-98039-092-0 01 1 0710-0711 ● ●
11 BRACKET; AIR DRYER
(B) 		8-98039-092-0 01 1 0712-0808 ●
11 BRACKET; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98039-092-0 01 1 0712-0808 ●
11 BRACKET; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98039-092-0 01 1 0712-0808 ●
11 BRACKET; AIR DRYER
(B) 		8-98039-092-0 01 1 0809-0906 ●
11 BRACKET; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) 		8-98039-092-0 01 1 0809-0906 ●
11 BRACKET; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98039-092-0 01 1 0809-0906 ●
11 BRACKET; AIR DRYER
4HK1-TCS ENG(RJS) (B) 		8-98039-092-0 01 1 0907-1011 ●
11 BRACKET; AIR DRYER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) 		8-98039-092-0 01 1 0907-1011 ●
11 BRACKET; AIR DRYER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98039-092-0 01 1 0907-1011 ●
11 BRACKET; AIR DRYER
4HK1-TCS ENG(RJS) (B) 		8-98039-092-0 01 1 1012- ●
11 BRACKET; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) 		8-98039-092-0 01 1 1012- ●
11 BRACKET; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98039-092-0 01 1 1012- ●
11 BRACKET; AIR DRYER
(A) 		8-98044-548-4 01 1 0710- ● ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ● ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ●
12 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ●
12 BOLT; BRKT
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0809-0906 ●
12 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> M8X20 FLANGE 		0-28650-820-0 02 1 0809-0906 ●
12 BOLT; BRKT
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 02 1 0809-0906 ●
12 BOLT; BRKT
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 02 1 0907-1011 ●
12 BOLT; BRKT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> M8X20 FLANGE 		0-28650-820-0 02 1 0907-1011 ●
12 BOLT; BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 02 1 0907-1011 ●
12 BOLT; BRKT
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 02 1 1012- ●
12 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> M8X20 FLANGE 		0-28650-820-0 02 1 1012- ●
12 BOLT; BRKT
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 02 1 1012- ●
13 NUT; AIR DRYER
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
16 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
16 NUT; BRKT
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0906 ●
16 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 0809-0906 ●
16 NUT; BRKT
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0809-0906 ●
16 NUT; BRKT
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 02 1 0907-1011 ●
16 NUT; BRKT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 0907-1011 ●
16 NUT; BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0907-1011 ●
16 NUT; BRKT
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
16 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 1012- ●
16 NUT; BRKT
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 0710-0711 ● ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-585-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-585-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 0809-0906 ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) 		1-48199-585-0 01 1 0809-0906 ●
72 PLATE; FILTER,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-585-0 01 1 0809-0906 ●
72 PLATE; FILTER,AIR DRYER
4HK1-TCS ENG(RJS) (A) 		1-48199-585-0 01 1 0907-1011 ●
72 PLATE; FILTER,AIR DRYER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) 		1-48199-585-0 01 1 0907-1011 ●
72 PLATE; FILTER,AIR DRYER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-585-0 01 1 0907-1011 ●
72 PLATE; FILTER,AIR DRYER
4HK1-TCS ENG(RJS) (A) 		1-48199-585-0 01 1 1012- ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) 		1-48199-585-0 01 1 1012- ●
72 PLATE; FILTER,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-585-0 01 1 1012- ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 0710-0711 ● ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-602-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-602-0 01 1 0712-0808 ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 0809-0906 ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) 		1-48199-602-0 01 1 0809-0906 ●
72 PLATE; FILTER,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-602-0 01 1 0809-0906 ●
72 PLATE; FILTER,AIR DRYER
4HK1-TCS ENG(RJS) (B) 		1-48199-602-0 01 1 0907-1011 ●
72 PLATE; FILTER,AIR DRYER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) 		1-48199-602-0 01 1 0907-1011 ●
72 PLATE; FILTER,AIR DRYER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-602-0 01 1 0907-1011 ●
72 PLATE; FILTER,AIR DRYER
4HK1-TCS ENG(RJS) (B) 		1-48199-602-0 01 1 1012- ●
72 PLATE; FILTER,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) 		1-48199-602-0 01 1 1012- ●
72 PLATE; FILTER,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-602-0 01 1 1012- ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0710- ● ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0710-0711 ● ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0809-0906 ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) 		1-48199-581-0 01 1 0809-0906 ●
93 SILENCER; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0809-0906 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) (B) 		1-48199-581-0 01 1 0907-1011 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) 		1-48199-581-0 01 1 0907-1011 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0907-1011 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) (B) 		1-48199-581-0 01 1 1012- ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) 		1-48199-581-0 01 1 1012- ●
93 SILENCER; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 1012- ●
117 COVER; SILENCER 8-98065-972-1 01 1 0710-0711 ● ●
117 COVER; SILENCER 8-98065-972-1 01 1 0712-0808 ●
117 COVER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98065-972-1 01 1 0712-0808 ●
117 COVER; SILENCER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98065-972-1 01 1 0712-0808 ●
117 COVER; SILENCER 8-98065-972-1 01 1 0809-0906 ●
117 COVER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> 		8-98065-972-1 01 1 0809-0906 ●
117 COVER; SILENCER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98065-972-1 01 1 0809-0906 ●
117 COVER; SILENCER
4HK1-TCS ENG(RJS) 		8-98065-972-1 01 1 0907-1011 ●
117 COVER; SILENCER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> 		8-98065-972-1 01 1 0907-1011 ●
117 COVER; SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98065-972-1 01 1 0907-1011 ●
117 COVER; SILENCER
4HK1-TCS ENG(RJS) 		8-98065-972-1 01 1 1012- ●
117 COVER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> 		8-98065-972-1 01 1 1012- ●
117 COVER; SILENCER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98065-972-1 01 1 1012- ●
124 FILTER; SILENCER 1-48199-465-0 01 1 0710-0711 ● ●
124 FILTER; SILENCER 1-48199-465-0 01 1 0712-0808 ●
124 FILTER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-465-0 01 1 0712-0808 ●
124 FILTER; SILENCER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-465-0 01 1 0712-0808 ●
124 FILTER; SILENCER 1-48199-465-0 01 1 0809-0906 ●
124 FILTER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> 		1-48199-465-0 01 1 0809-0906 ●
124 FILTER; SILENCER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-465-0 01 1 0809-0906 ●
124 FILTER; SILENCER
4HK1-TCS ENG(RJS) 		1-48199-465-0 01 1 0907-1011 ●
124 FILTER; SILENCER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> 		1-48199-465-0 01 1 0907-1011 ●
124 FILTER; SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-465-0 01 1 0907-1011 ●
124 FILTER; SILENCER
4HK1-TCS ENG(RJS) 		1-48199-465-0 01 1 1012- ●
124 FILTER; SILENCER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> 		1-48199-465-0 01 1 1012- ●
124 FILTER; SILENCER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-465-0 01 1 1012- ●
çizim 178362
2 3 104 68 104 104 104 104 104 65 70 70 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-456-0 01 1 0712-1211 ●
2 REPAIR KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98226-326-0 01 1 1212- ●
2 REPAIR KIT; AIR DRYER 1-85576-457-0 01 1 0710-0711 ● ●
2 REPAIR KIT; AIR DRYER 1-85576-457-0 01 1 0712-1211 ●
2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-457-0 01 1 0712-1211 ●
2 REPAIR KIT; AIR DRYER 8-98226-323-0 01 1 1212- ●
2 REPAIR KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98226-323-0 01 1 1212- ●
3 PISTON KIT; AIR DRYER 1-85576-383-0 01 1 0710-1211 ● ●
3 PISTON KIT; AIR DRYER 8-98226-322-0 01 1 1212- ● ●
4 THERMOSTAT KIT; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-386-0 01 1 0712- ●
4 THERMOSTAT KIT; AIR DRYER 1-85576-443-0 01 1 0710-0711 ● ●
4 THERMOSTAT KIT; AIR DRYER 1-85576-443-0 01 1 0712- ●
4 THERMOSTAT KIT; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-443-0 01 1 0712- ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 0710- ● ●
68 BODY; VALVE 1-48199-515-0 01 1 0710- ● ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 0710- ● ●
104 GASKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-496-0 01 1 1212- ●
104 GASKET
(A) 		1-48199-495-0 01 1 0710-1211 ● ●
104 GASKET
(A) 		8-98226-321-0 01 1 1212- ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 0710-1211 ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 1212- ●
104 GASKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-496-0 02 1 1212- ●

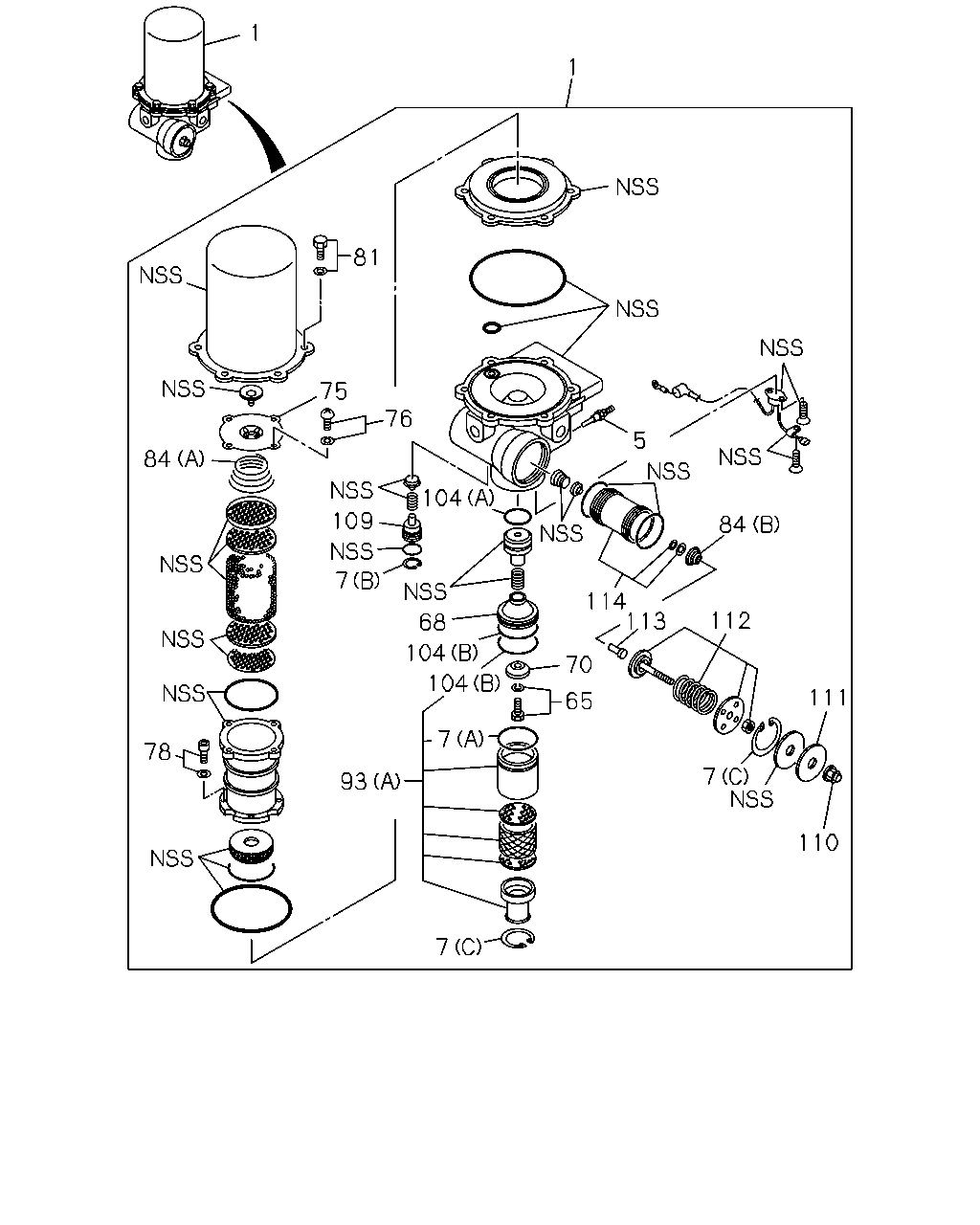

çizim 178368
7 110 7 111 84 112 113 114 70 65 7 93 78 7 104 5 1 81 75 1 84 109 76 68 104 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48190-369-2 01 1 0712-1211 ●
1 DRYER; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98225-289-0 01 1 1212- ●
1 DRYER; AIR 1-48190-370-1 01 1 0710-0711 ● ●
1 DRYER; AIR 1-48190-370-2 01 1 0712-1211 ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48190-370-2 01 1 0712-1211 ●
1 DRYER; AIR 8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98225-285-0 01 1 1212- ●
5 HEATER ASM; AIR DRYER 1-48199-530-0 01 1 0710- ● ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0710-0711 ● ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0712-0808 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0809-0906 ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (D) 		1-47769-017-0 01 1 0809-0906 ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0809-0906 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (D) 		1-47769-017-0 01 1 0907-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (D) 		1-47769-017-0 01 1 0907-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 0907-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (D) 		1-47769-017-0 01 1 1012- ●
7 RING; SNAP,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (D) 		1-47769-017-0 01 1 1012- ●
7 RING; SNAP,AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47769-017-0 01 1 1012- ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0710- ● ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0710- ● ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0710- ● ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 0710- ● ●
68 BODY; VALVE 1-48199-515-0 01 1 0710- ● ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 0710- ● ●
75 COVER; CASE,AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-395-0 01 1 0712- ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 0710-0711 ● ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 0712- ●
75 COVER; CASE,AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48199-427-0 01 1 0712- ●
76 BOLT; COVER,AIR DRYER 1-48199-412-0 04 1 0710- ● ●
78 BOLT; OIL FILTER,AIR DRYER 1-48199-417-0 04 1 0710- ● ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 0710- ● ●
84 SPRING; AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-396-0 01 1 0712- ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 0710-0711 ● ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 0712- ●
84 SPRING; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48199-425-0 01 1 0712- ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 0710- ● ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0710- ● ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0710-0711 ● ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0712-0808 ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0809-0906 ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) 		1-48199-581-0 01 1 0809-0906 ●
93 SILENCER; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0809-0906 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) (B) 		1-48199-581-0 01 1 0907-1011 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) 		1-48199-581-0 01 1 0907-1011 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 0907-1011 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) (B) 		1-48199-581-0 01 1 1012- ●
93 SILENCER; AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) 		1-48199-581-0 01 1 1012- ●
93 SILENCER; AIR DRYER
EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-581-0 01 1 1012- ●
104 GASKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-496-0 01 1 1212- ●
104 GASKET
(A) 		1-48199-495-0 01 1 0710-1211 ● ●
104 GASKET
(A) 		8-98226-321-0 01 1 1212- ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 0710-1211 ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 1212- ●
104 GASKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48199-496-0 02 1 1212- ●
109 STOPPER; CHECK VALVE 1-48199-539-0 01 1 0710- ● ●
110 NUT; CAP 1-48199-527-0 01 1 0710- ● ●
111 PLATE; GOVERNOR 1-48199-526-0 01 1 0710- ● ●
112 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 0710- ● ●
113 STEM; EXHAUST 1-48199-522-0 01 1 0710- ● ●
114 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
