◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11102 - FRR RHD EURO2/4 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#39874) — 272 parça

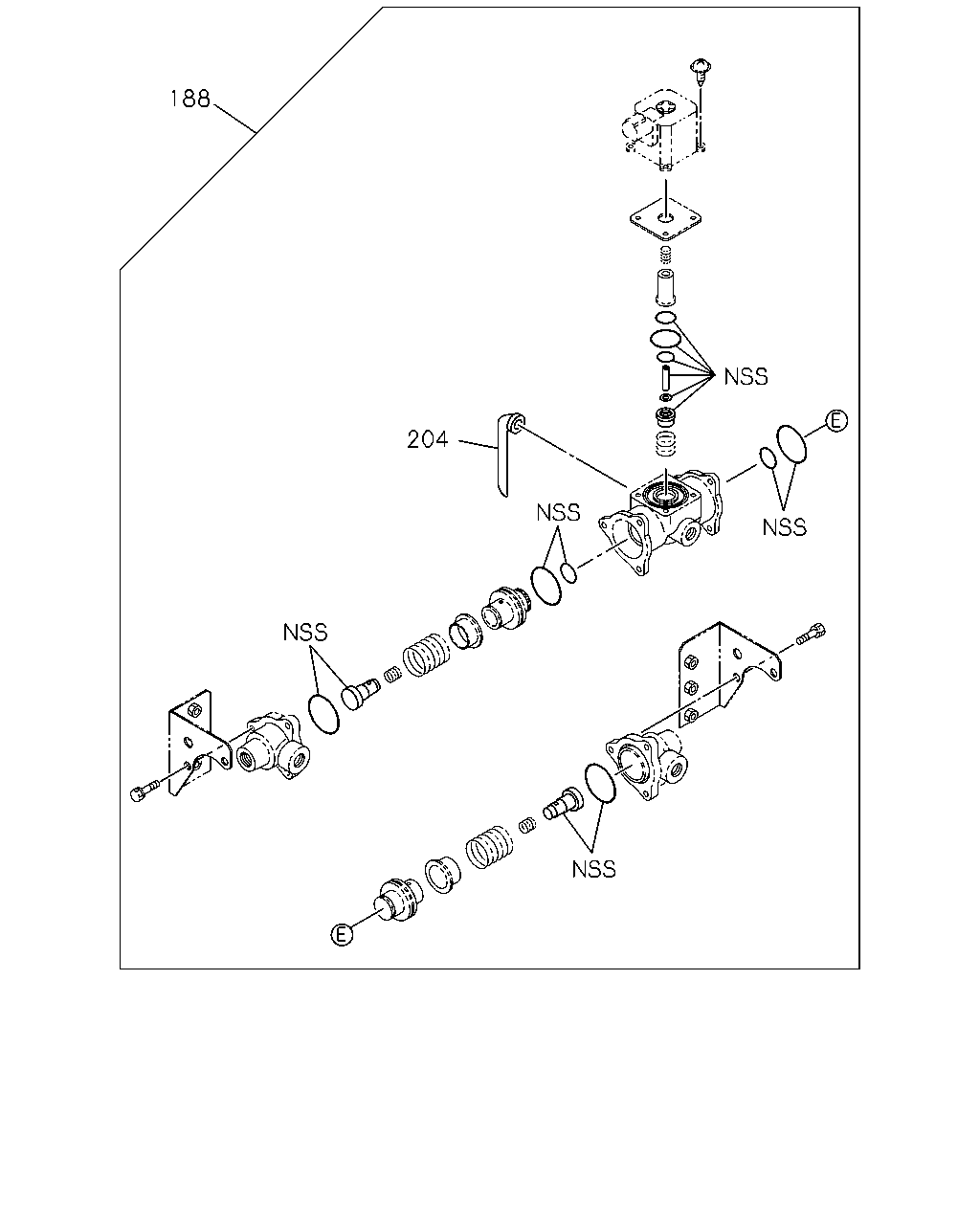

çizim 178336
188 204
BalonParca AdiParca NoAdetTipApplied Date A B
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-85576-304-1 01 1 0712- ●
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-469-1 01 1 0710-0711 ● ●
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-469-1 01 1 0712- ●
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-85576-469-1 01 1 0712- ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710- ● ●
çizim 178345
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date A B
106 VALVE; HSA
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46362-123-1 01 1 0712- ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 0710-0711 ● ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 0712- ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46362-147-1 01 1 0712- ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46366-247-0 01 1 0712- ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-253-0 01 1 0710-0711 ● ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-253-0 01 1 0712- ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46366-253-0 01 1 0712- ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46366-234-0 01 1 0712- ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-192-0 01 1 0710-0711 ● ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-192-0 01 1 0712- ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46366-192-0 01 1 0712- ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0710- ● ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0710- ● ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46366-232-0 02 1 0712- ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-251-0 02 1 0710-0711 ● ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-251-0 02 1 0712- ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46366-251-0 02 1 0712- ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0710- ● ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0710- ● ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0710- ● ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0710- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0710- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0710- ● ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0710- ● ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0710- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0710- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0710- ● ●

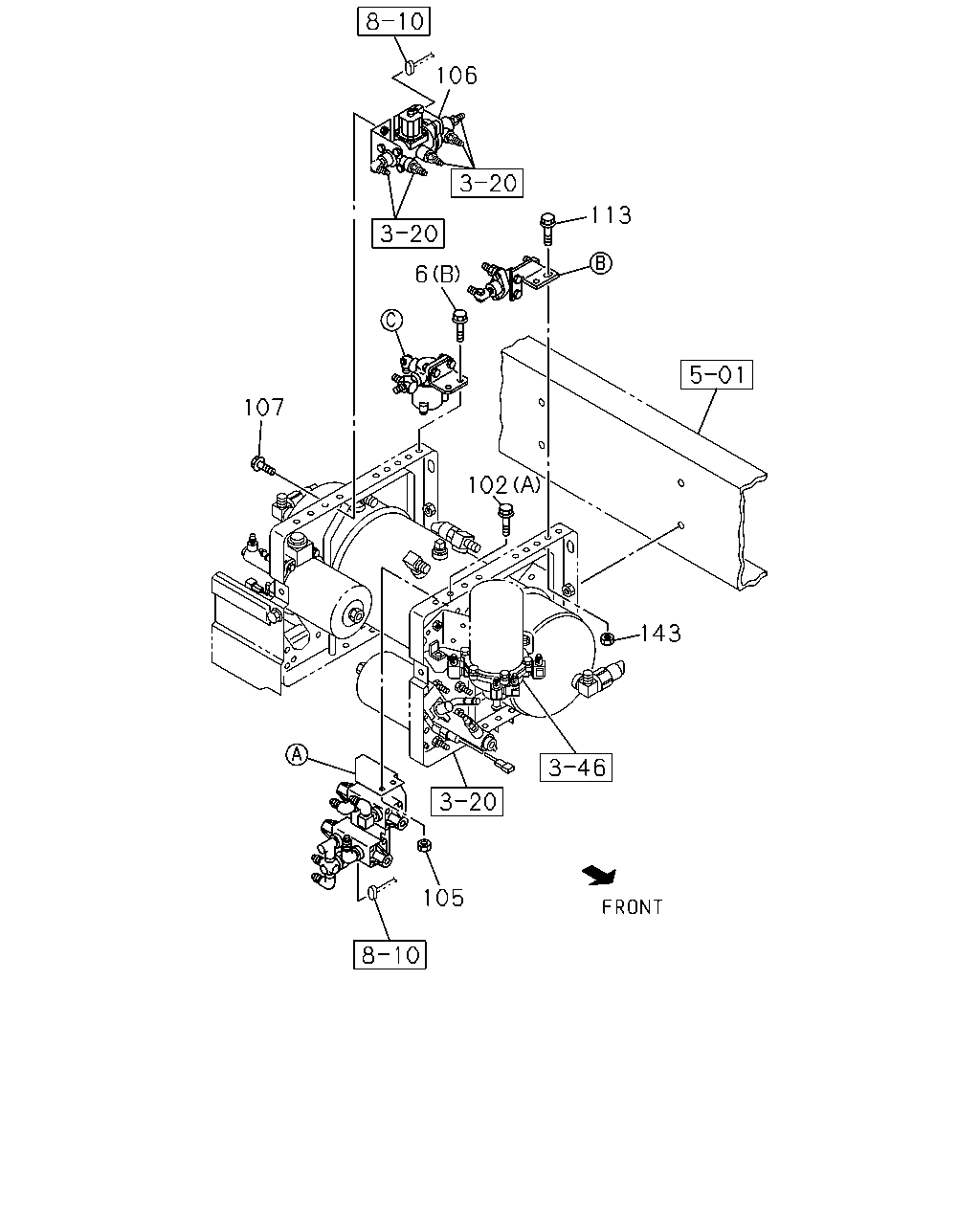

çizim 178347
106 113 6 107 102 143 105
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0710 ● ●
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ● ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ● ●
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46362-123-1 01 1 0712- ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 0710-0711 ● ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 0712- ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		1-46362-147-1 01 1 0712- ●
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 03 1 0710- ● ●
113 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
143 NUT; VLV
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
çizim 178350
259
BalonParca AdiParca NoAdetTipApplied Date A B
259 REPAIR KIT; VALVE
THROTTLE CONTROL SYSTEM(6XH) 		1-85576-381-0 01 1 0710-0710 ● ●
259 REPAIR KIT; VALVE
THROTTLE CONTROL SYSTEM(6XH) 		1-85576-381-0 01 1 0807- ● ●
259 REPAIR KIT; VALVE
THROTTLE CONTROL SYSTEM(6XH) 		1-85576-381-0 01 1 0710-0806 ● ●

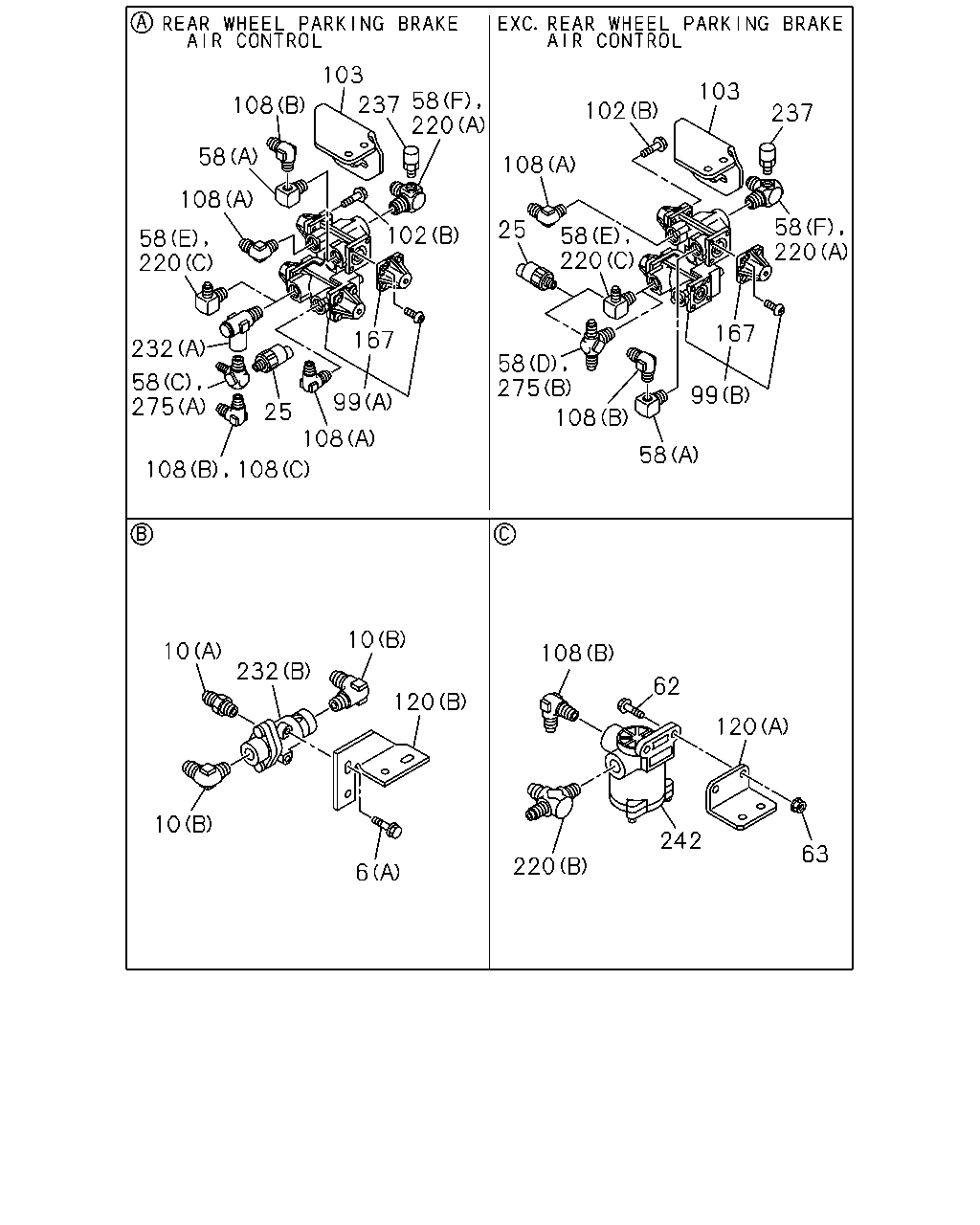

çizim 178351
108 103 58 237 220 58 108 58 102 220 232 58 275 25 99 167 108 108 108 102 103 237 58 220 108 25 58 220 167 99 58 108 275 58 108 62 120 63 242 220 6 120 10 232 10 10
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
10 CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0710- ● ●
10 CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710- ● ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 0710-0710 ● ●
25 SWITCH; PRESSURE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 0710-0711 ● ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> STAMP 5.5 		8-97609-249-0 01 1 0710-0711 ● ●
25 SWITCH; PRESSURE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 0712- ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> STAMP 5.5 		8-97609-249-0 01 1 0712- ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 0712- ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5 		8-97609-249-0 01 1 0712- ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) STAMP 5.5 		8-97609-249-0 01 1 0712- ●
25 SWITCH; PRESSURE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 0712- ●
25 SWITCH; PRESSURE
EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5 		8-97609-249-0 01 1 0712- ●
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (C) 		8-98035-011-0 01 1 1204- ●
58 ADAPTER
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (D) 		1-09656-704-0 01 1 1204- ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>, THROTTLE CONTROL SYSTEM(6XH) (E) 		1-09656-698-0 01 1 1204- ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (F) 		8-98031-239-0 01 1 1204- ●
58 ADAPTER
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0710 ● ●
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0711 ● ●
58 ADAPTER
H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0711 ● ●
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
(B) 		1-09661-815-0 02 1 0710-0711 ● ●
58 ADAPTER
(B) 		1-09661-815-0 02 1 0712- ●
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09661-815-0 02 1 0712- ●
62 BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0710 ● ●
62 BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE 		0-28650-830-0 02 1 0807- ● ●
62 BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0806 ● ●
63 NUT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
63 NUT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 0807- ● ●
63 NUT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 0710-0806 ● ●
99 VALVE; PROTECTION
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48110-293-3 01 1 0712- ●
99 VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A) 		1-48110-288-3 01 1 0712- ●
99 VALVE; PROTECTION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (B) 		1-48110-287-3 01 1 0712- ●
99 VALVE; PROTECTION
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48110-294-0 01 1 0710-0710 ● ●
99 VALVE; PROTECTION
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48110-294-0 01 1 0710-0711 ● ●
99 VALVE; PROTECTION
H.S.A SYSTEM<6EP> (A) 		1-48110-294-0 01 1 0710-0711 ● ●
99 VALVE; PROTECTION
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48110-294-3 01 1 0712- ●
99 VALVE; PROTECTION
H.S.A SYSTEM<6EP> (A) 		1-48110-294-3 01 1 0712- ●
99 VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48110-294-3 01 1 0712- ●
99 VALVE; PROTECTION
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) 		1-48110-294-3 01 1 0712- ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0710 ● ●
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ● ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ● ●
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
EXC. BRAKE REGULATION ADR(TDU) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 0710-0710 ● ●
103 BRACKET; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 0710-0711 ● ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		8-98034-985-1 01 1 0710-0711 ● ●
103 BRACKET; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 0712-1311 ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		8-98034-985-1 01 1 0712-1311 ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 0712-1311 ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98034-985-1 01 1 0712-1311 ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		8-98034-985-1 01 1 0712-1311 ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 0712-1311 ●
103 BRACKET; PROTECTION VALVE
EXC. BRAKE REGULATION ADR(TDU) 		8-98034-985-1 01 1 0712-1311 ●
103 BRACKET; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98221-293-0 01 1 1312- ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		8-98221-293-0 01 1 1312- ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98221-293-0 01 1 1312- ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98221-293-0 01 1 1312- ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		8-98221-293-0 01 1 1312- ●
103 BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98221-293-0 01 1 1312- ●
103 BRACKET; PROTECTION VALVE
EXC. BRAKE REGULATION ADR(TDU) 		8-98221-293-0 01 1 1312- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0806 ● ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0807- ● ●
108 CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710-0710 ● ●
108 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710-0711 ● ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710-0711 ● ●
108 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712- ●
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712- ●
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0710-0711 ● ●
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0712- ●
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0712- ●
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0710-0710 ● ●
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0710-0711 ● ●
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0710-0711 ● ●
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0712-0806 ● ●
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0712-0806 ● ●
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0712-0806 ●
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0807- ● ●
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0807- ●
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48316-012-0 01 1 0710-0710 ● ●
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48316-012-0 01 1 0807- ● ●
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98050-131-0 01 1 0710- ● ●
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48316-012-0 01 1 0710-0806 ● ●
167 COVER; VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-48119-625-0 04 1 0907-1506 ●
167 COVER; VALVE
H.S.A SYSTEM<6EP> 		1-48119-625-0 04 1 0907-1506 ●
167 COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-48119-625-0 04 1 0907-1506 ●
167 COVER; VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		1-48119-625-0 04 1 0907-1506 ●
167 COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) 		1-48119-625-0 04 1 0907-1506 ●
167 COVER; VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-48119-625-0 04 1 1507- ●
167 COVER; VALVE
H.S.A SYSTEM<6EP> 		1-48119-625-0 04 1 1507- ●
167 COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-48119-625-0 04 1 1507- ●
167 COVER; VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		1-48119-625-0 04 1 1507- ●
167 COVER; VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48119-625-0 03 1 0907-1506 ●
167 COVER; VALVE
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48119-625-0 03 1 1507- ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) 		1-09656-698-0 01 1 0710-1203 ● ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) 		1-09656-698-0 01 1 1204- ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) 		1-09656-698-0 01 1 1204- ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98031-239-0 01 1 0710-0710 ● ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98031-239-0 01 1 0710-0711 ● ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> (A) 		8-98031-239-0 01 1 0710-0711 ● ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98031-239-0 01 1 0712-1203 ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> (A) 		8-98031-239-0 01 1 0712-1203 ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98031-239-0 01 1 0712-1203 ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98031-239-0 01 1 0712-1203 ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) 		8-98031-239-0 01 1 0712-1203 ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98031-239-0 01 1 0712-1203 ●
220 CONNECTOR; 3WAY
EXC. BRAKE REGULATION ADR(TDU) (A) 		8-98031-239-0 01 1 0712-1203 ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98031-239-0 01 1 1204- ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> (A) 		8-98031-239-0 01 1 1204- ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98031-239-0 01 1 1204- ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98031-239-0 01 1 1204- ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) 		8-98031-239-0 01 1 1204- ●
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (A) 		8-98031-239-0 01 1 1204- ●
220 CONNECTOR; 3WAY
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98031-239-0 01 1 1204- ●
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) (B) 		1-09656-331-1 01 1 0710-0710 ● ●
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) (B) 		1-09656-331-1 01 1 0807- ● ●
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) (B) 		1-09656-331-1 01 1 0710-0806 ● ●
232 VALVE; CHECK
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0710-0710 ● ●
232 VALVE; CHECK
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0710-0711 ● ●
232 VALVE; CHECK
H.S.A SYSTEM<6EP> (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0710-0711 ● ●
232 VALVE; CHECK
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0712- ●
232 VALVE; CHECK
H.S.A SYSTEM<6EP> (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0712- ●
232 VALVE; CHECK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0712- ●
232 VALVE; CHECK
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0712- ●
232 VALVE; CHECK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0712- ●
232 VALVE; CHECK
THROTTLE CONTROL SYSTEM(6XH) (B) 		1-48410-531-1 01 1 0710- ● ●
237 VALVE; SAFETY 1-48320-012-2 01 1 0710- ● ●
242 VALVE; REGULATION
THROTTLE CONTROL SYSTEM(6XH) 		1-48410-723-0 01 1 0710-0710 ● ●
242 VALVE; REGULATION
THROTTLE CONTROL SYSTEM(6XH) 		1-48410-723-0 01 1 0807- ● ●
242 VALVE; REGULATION
THROTTLE CONTROL SYSTEM(6XH) 		1-48410-723-0 01 1 0710-0806 ● ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) 		1-09656-704-0 01 1 0712-1203 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B) 		1-09656-704-0 01 1 1204- ●
275 CONNECTOR; 4WAY
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98050-414-0 01 1 0712- ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98035-011-0 01 1 0710-0710 ● ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> (A) 		8-98035-011-0 01 1 0710-0711 ● ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> (A) 		8-98035-011-0 01 1 0712-1203 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98035-011-0 01 1 0712-1203 ●
275 CONNECTOR; 4WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (A) 		8-98035-011-0 01 1 0712-1203 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) 		8-98035-011-0 01 1 0712-1203 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> (A) 		8-98035-011-0 01 1 1204- ●
275 CONNECTOR; 4WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) EXC. BRAKE REGULATION ADR(TDU) (A) 		8-98035-011-0 01 1 1204- ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) 		8-98035-011-0 01 1 1204- ●

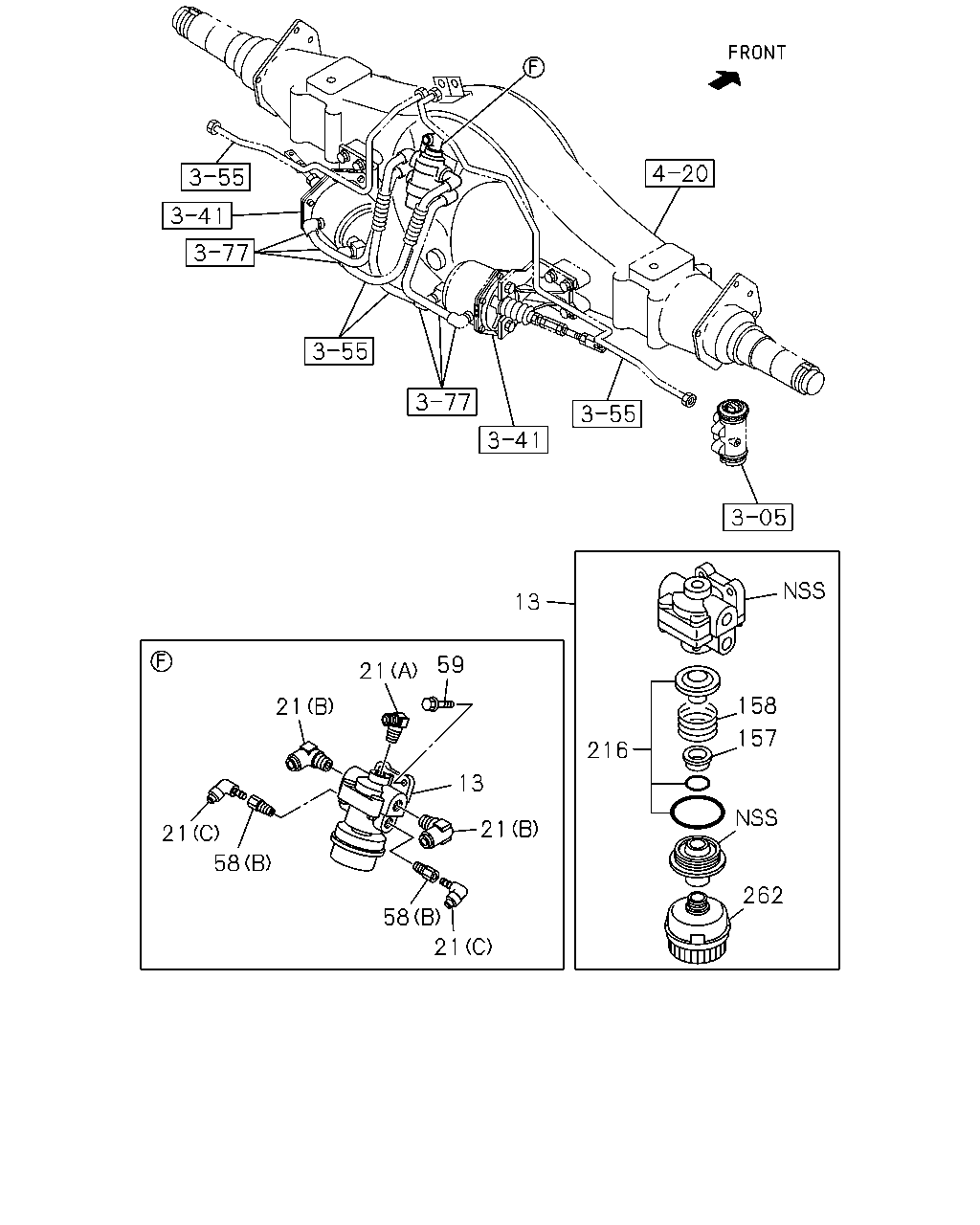

çizim 178364
262 157 158 216 13 59 21 13 21 58 21 21 21 58
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) 		1-48410-783-0 01 1 0712- ●
13 VALVE ASM; QUICK RELEASE 1-48410-781-1 01 1 0710-0711 ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-781-2 01 1 0712- ●
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		1-48410-781-2 01 1 0712- ●
21 CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0710-0711 ● ●
21 CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ●
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ●
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ● ●
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ●
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ●
21 CONNECTOR; QUICK RELEASE VLV
(C) 		1-09661-816-0 02 1 0710-0711 ● ●
21 CONNECTOR; QUICK RELEASE VLV
(C) 		1-09661-816-0 02 1 0712- ●
21 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-09661-816-0 02 1 0712- ●
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (C) 		8-98035-011-0 01 1 1204- ●
58 ADAPTER
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (D) 		1-09656-704-0 01 1 1204- ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>, THROTTLE CONTROL SYSTEM(6XH) (E) 		1-09656-698-0 01 1 1204- ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (F) 		8-98031-239-0 01 1 1204- ●
58 ADAPTER
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0710 ● ●
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0711 ● ●
58 ADAPTER
H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0711 ● ●
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
EXC. BRAKE REGULATION ADR(TDU) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
(B) 		1-09661-815-0 02 1 0710-0711 ● ●
58 ADAPTER
(B) 		1-09661-815-0 02 1 0712- ●
58 ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09661-815-0 02 1 0712- ●
59 BOLT; RELEASE VALVE FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ● ●
59 BOLT; RELEASE VALVE FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0906 ●
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0906 ●
59 BOLT; RELEASE VALVE FIX
M8X20 FLANGE 		0-28050-820-0 02 1 0907- ●
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28050-820-0 02 1 0907- ●
157 RETAINER; VALVE 1-48419-036-0 01 1 0907- ●
157 RETAINER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		1-48419-036-0 01 1 0907- ●
158 SPRING; VALVE 9-48419-003-0 01 1 0907- ●
158 SPRING; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		9-48419-003-0 01 1 0907- ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 01 1 0907- ●
216 REPAIR KIT; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		1-85579-062-0 01 1 0907- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0907- ●
262 SILENCER; RELAY VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		1-48219-149-0 01 1 0907- ●
çizim 432277
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 REPAIR KIT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-85576-451-1 01 1 0907-1506 ●
241 REPAIR KIT; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		1-85576-451-1 01 1 0907-1506 ●
241 REPAIR KIT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-85576-451-1 01 1 0907-1506 ●
241 REPAIR KIT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		1-85576-451-1 01 1 0907-1506 ●
241 REPAIR KIT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) 		1-85576-451-1 01 1 0907-1506 ●
241 REPAIR KIT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-85576-451-2 01 1 1507- ●
241 REPAIR KIT; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		1-85576-451-2 01 1 1507- ●
241 REPAIR KIT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-85576-451-2 01 1 1507- ●
241 REPAIR KIT; PROTECTION VALVE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) 		1-85576-451-2 01 1 1507- ●
241 REPAIR KIT; PROTECTION VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-452-1 01 1 0907-1506 ●
241 REPAIR KIT; PROTECTION VALVE
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-452-2 01 1 1507- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
