Sayfa 3-20 - Isuzu EPC

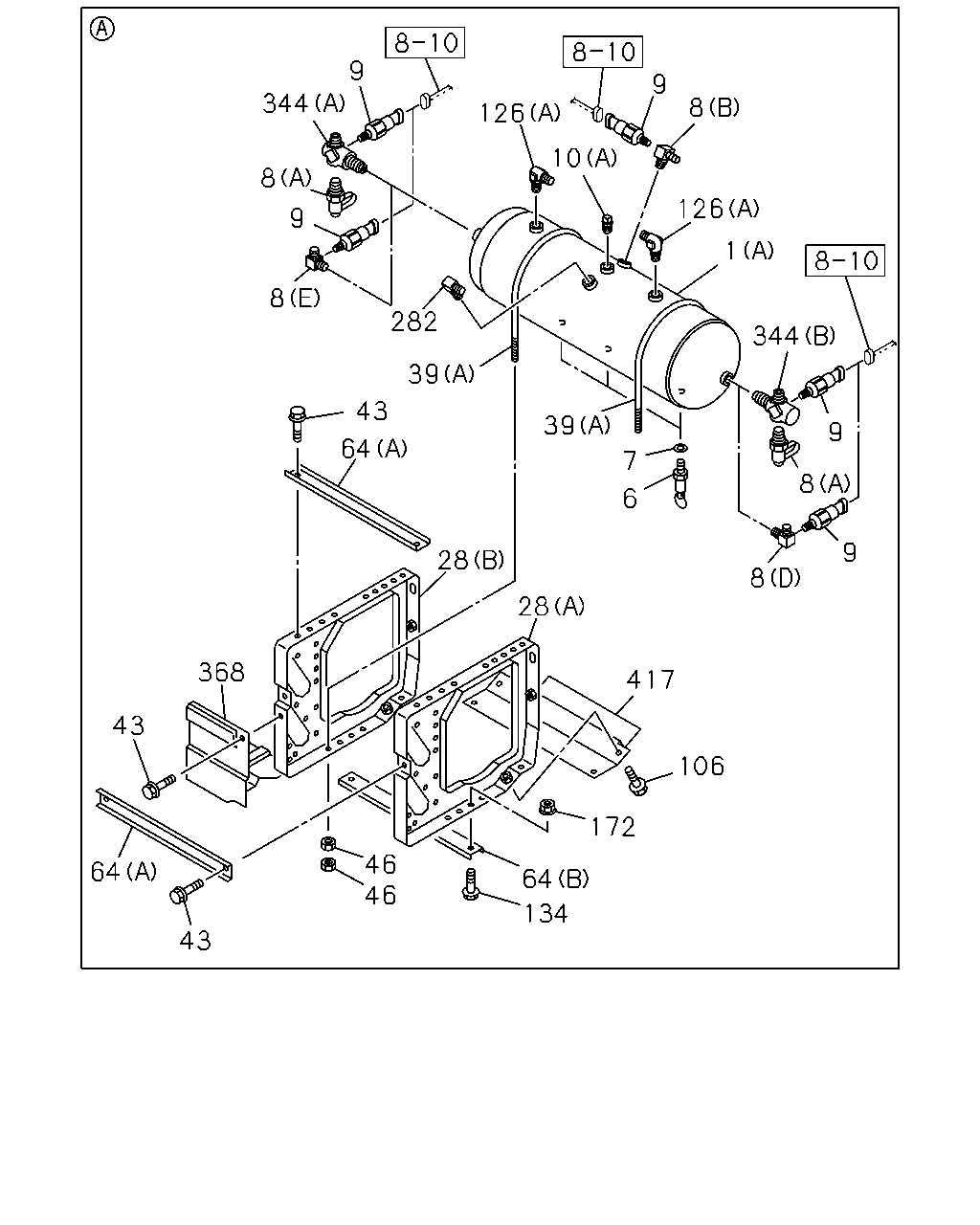

3-20 — AIR TANK (#39873) — 326 parça

9 9 344 8 126 10 8 126 9 1 8 282 344 39 43 39 9 64 7 8 6 9 28 8 28 368 417 43 106 172 46 46 64 64 134 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) (C)	8-98081-870-0	01	1	0712-0906	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	0907-		●
1	TANK ASM; AIR AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) (C)	8-98081-870-1	01	1	0907-	●
1	TANK ASM; AIR EXC. BRAKE REGULATION ADR(TDU) (A)	8-98018-785-3	01	1	0712-	●
1	TANK ASM; AIR BRAKE REGULATION ADR(TDU) EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98018-785-3	01	1	0712-	●
1	TANK ASM; AIR (C)	8-98090-803-0	01	1	0710-0710		●
1	TANK ASM; AIR WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C)	8-98090-803-0	01	1	0710-0710	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0710-0711		●
1	TANK ASM; AIR WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (C)	8-98090-803-1	01	1	0710-0711	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0712-0906		●
1	TANK ASM; AIR AUSTRALIA EQUIPMENT(B13) BRAKE REGULATION ADR(TDU) (C)	8-98090-803-1	01	1	0712-0906	●
1	TANK ASM; AIR (B)	1-48370-659-0	01	1	0710-0711	●	●
1	TANK ASM; AIR (B)	1-48370-659-0	01	1	0712-1101		●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	0712-1101	●
1	TANK ASM; AIR (B)	8-98166-972-0	01	1	1102-		●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-	●
1	TANK ASM; AIR (A)	8-98018-795-2	01	1	0710-0711	●	●
1	TANK ASM; AIR (A)	8-98018-795-2	01	1	0712-		●
1	TANK ASM; AIR AUSTRALIA EQUIPMENT(B13) BRAKE REGULATION ADR(TDU) (A)	8-98018-795-2	01	1	0712-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0710	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5300MM(53W)	1-48312-015-0	01	1	0710-0710		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W)	1-48312-015-0	01	1	0710-0710	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0711	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0711		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W)	1-48312-015-0	01	1	0710-0711	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0712-	●	●
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	0712-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0710-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0710	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5300MM(53W) ID=14	1-09630-145-0	01	1	0710-0710		●
7	GASKET; DRAIN COCK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) ID=14	1-09630-145-0	01	1	0710-0710	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0711	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0711		●
7	GASKET; DRAIN COCK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) ID=14	1-09630-145-0	01	1	0710-0711	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0712-	●	●
7	GASKET; DRAIN COCK BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	0712-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0710-	●	●
8	CONNECTOR; AIR TANK (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-	●
8	CONNECTOR; AIR TANK (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-	●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (H) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-	●
8	CONNECTOR; AIR TANK (C)	1-09656-462-1	01	1	0710-0711	●	●
8	CONNECTOR; AIR TANK (C)	1-09656-462-1	01	1	0712-		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (C)	1-09656-462-1	01	1	0712-	●
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR(TDU) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0712-	●
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR(TDU) (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0712-	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0710-0711	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	0710-0711	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0712-		●
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR(TDU) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0712-	●
8	CONNECTOR; AIR TANK (B)	1-09656-759-0	01	1	0710-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	03	1	0712-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	03	1	0710-0711	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	03	1	0712-		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE REGULATION ADR(TDU)	8-97615-622-0	03	1	0712-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0710-0710		●
10	PLUG; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (B) PT3/8	9-09204-517-0	02	1	0710-0710	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0710-0711		●
10	PLUG; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) PT3/8	9-09204-517-0	02	1	0710-0711	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0712-		●
10	PLUG; AIR TANK AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	02	1	0712-	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0710-0711	●	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0712-1101		●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/4	9-09204-526-0	01	1	0712-1101	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0710-1101	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-		●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	1102-	●
28	BRACKET; AIR TANK (C)	8-98088-205-0	01	1	0710-0710		●
28	BRACKET; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C)	8-98088-205-0	01	1	0710-0710	●
28	BRACKET; AIR TANK (C)	8-98100-165-1	01	1	0710-0711		●
28	BRACKET; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (C)	8-98100-165-1	01	1	0710-0711	●
28	BRACKET; AIR TANK (C)	8-98100-165-3	01	1	0712-		●
28	BRACKET; AIR TANK AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) (C)	8-98100-165-3	01	1	0712-	●
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0710-	●	●
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0710-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0710-0710		●
39	U-BOLT; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (B) L=210	1-48317-458-1	02	1	0710-0710	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0710-0711		●
39	U-BOLT; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) L=210	1-48317-458-1	02	1	0710-0711	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0712-		●
39	U-BOLT; AIR TANK AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) (B) L=210	1-48317-458-1	02	1	0712-	●
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0710-	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X16 FLANGE	0-28050-816-0	06	1	0710-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0710	●	●
46	NUT; U-BOLT WHEEL BASE 5300MM(53W) M8	0-91110-508-0	08	1	0710-0710		●
46	NUT; U-BOLT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M8	0-91110-508-0	08	1	0710-0710	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0711	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0711		●
46	NUT; U-BOLT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8	0-91110-508-0	08	1	0710-0711	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0712-	●	●
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	0712-	●	●
64	STAY; AIR TANK,MAIN (A)	8-98044-510-3	02	1	0710-	●	●
64	STAY; AIR TANK,MAIN (B)	8-98044-511-2	01	1	0710-	●	●
106	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	0710-	●	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	0805-1308	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1309-	●
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-0711	●	●
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0712-1101		●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0712-1101	●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0712-0804	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0712-0804	●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0805-1101	●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0710-0804	●	●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0805-1308		●
126	CONNECTOR; ELBOW BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0805-1308	●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1309-	●	●
134	BOLT; COVER FIX M8X16 FLANGE	0-28050-816-0	04	1	0710-	●	●
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
282	UNION; 2 WAY EXC. BRAKE REGULATION ADR(TDU) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0712-	●
282	UNION; 2 WAY BRAKE REGULATION ADR(TDU) EXC. AUSTRALIA EQUIPMENT(B13) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0712-	●
282	UNION; 2 WAY M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0710-0711	●	●
282	UNION; 2 WAY M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0712-		●
282	UNION; 2 WAY AUSTRALIA EQUIPMENT(B13) BRAKE REGULATION ADR(TDU) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0712-	●
344	CONNECTOR; 4WAY (A)	1-09656-726-0	01	1	0710-0711	●	●
344	CONNECTOR; 4WAY (A)	1-09656-726-0	01	1	0712-		●
344	CONNECTOR; 4WAY BRAKE REGULATION ADR(TDU) (A)	1-09656-726-0	01	1	0712-	●
344	CONNECTOR; 4WAY (B)	1-09656-767-0	01	1	0710-0711	●	●
344	CONNECTOR; 4WAY (B)	1-09656-767-0	01	1	0712-		●
344	CONNECTOR; 4WAY BRAKE REGULATION ADR(TDU) (B)	1-09656-767-0	01	1	0712-	●
368	COVER; AIR TANK	8-98061-625-3	01	1	0710-	●	●
417	COVER; HARNESS	8-98044-519-2	01	1	0710-0801	●	●
417	COVER; HARNESS	8-98111-401-0	01	1	0802-	●	●

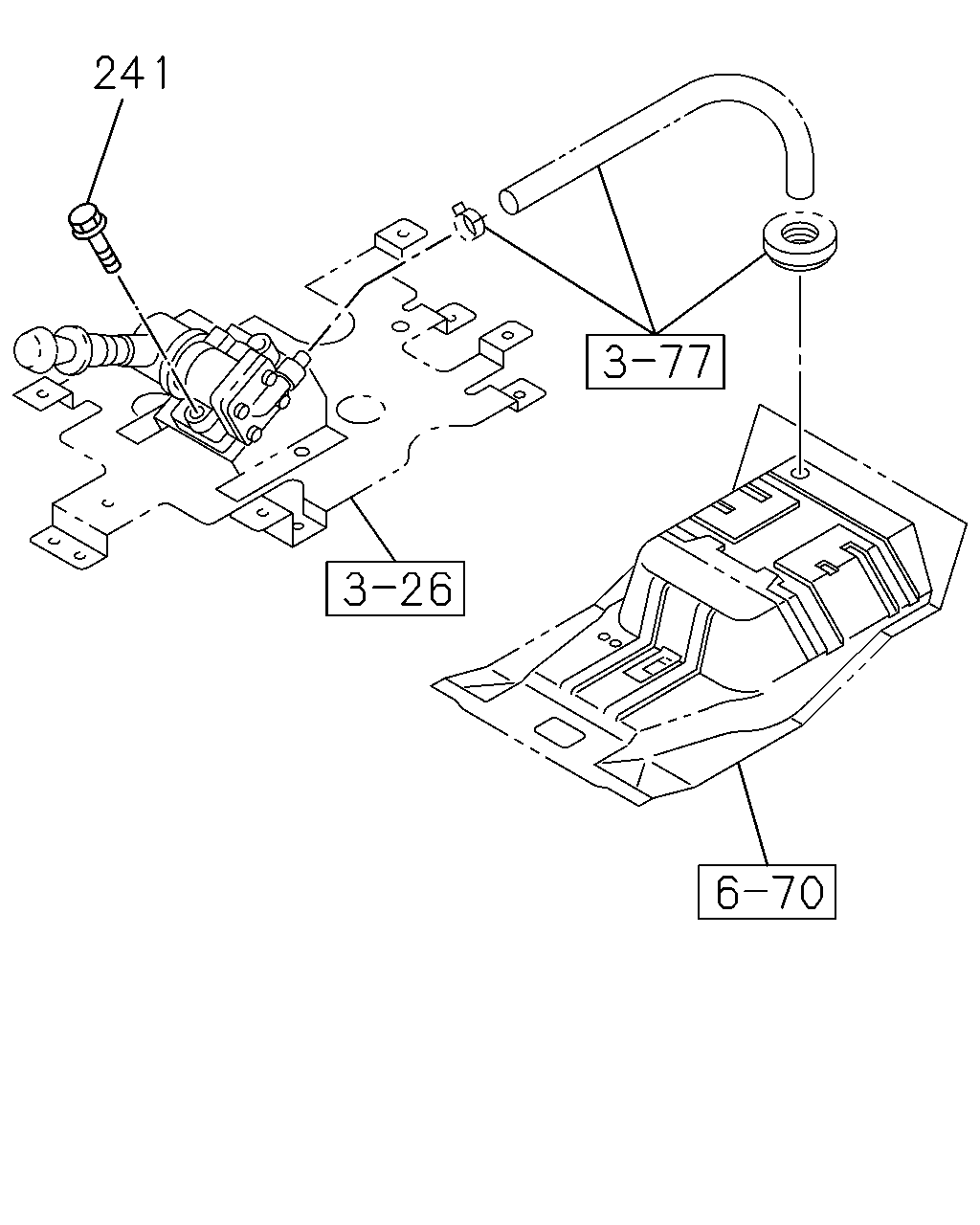

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0710-0711	●	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0712-		●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0712-	●

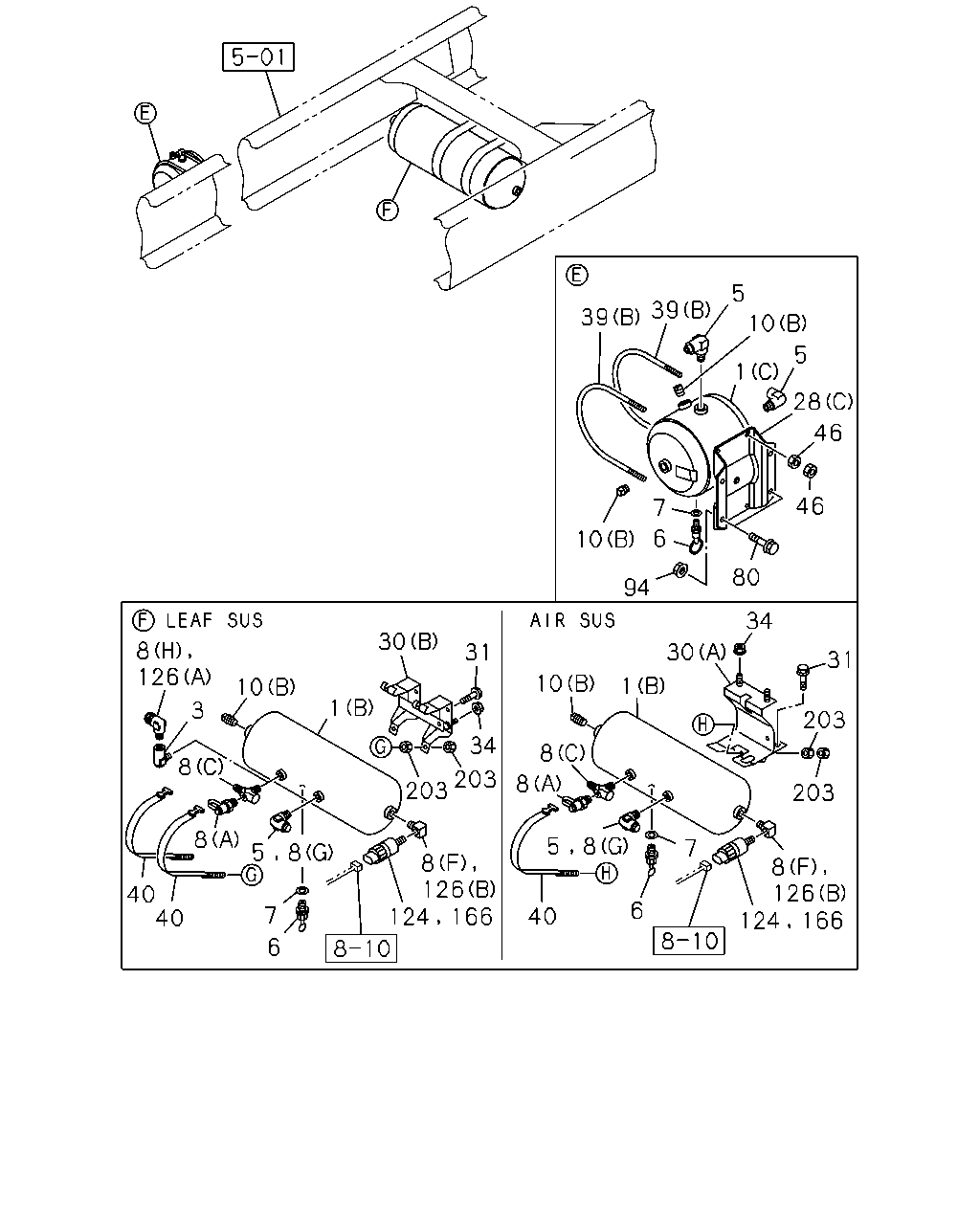

5 39 39 10 5 1 28 46 46 7 6 10 80 94 34 30 8 126 31 30 31 10 1 10 203 1 3 34 8 8 203 203 8 203 8 5 8 7 5 8 8 126 8 126 40 40 6 7 40 6 124 166 124 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) (C)	8-98081-870-0	01	1	0712-0906	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	0907-		●
1	TANK ASM; AIR AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) (C)	8-98081-870-1	01	1	0907-	●
1	TANK ASM; AIR EXC. BRAKE REGULATION ADR(TDU) (A)	8-98018-785-3	01	1	0712-	●
1	TANK ASM; AIR BRAKE REGULATION ADR(TDU) EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-98018-785-3	01	1	0712-	●
1	TANK ASM; AIR (C)	8-98090-803-0	01	1	0710-0710		●
1	TANK ASM; AIR WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C)	8-98090-803-0	01	1	0710-0710	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0710-0711		●
1	TANK ASM; AIR WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (C)	8-98090-803-1	01	1	0710-0711	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0712-0906		●
1	TANK ASM; AIR AUSTRALIA EQUIPMENT(B13) BRAKE REGULATION ADR(TDU) (C)	8-98090-803-1	01	1	0712-0906	●
1	TANK ASM; AIR (B)	1-48370-659-0	01	1	0710-0711	●	●
1	TANK ASM; AIR (B)	1-48370-659-0	01	1	0712-1101		●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	0712-1101	●
1	TANK ASM; AIR (B)	8-98166-972-0	01	1	1102-		●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-	●
1	TANK ASM; AIR (A)	8-98018-795-2	01	1	0710-0711	●	●
1	TANK ASM; AIR (A)	8-98018-795-2	01	1	0712-		●
1	TANK ASM; AIR AUSTRALIA EQUIPMENT(B13) BRAKE REGULATION ADR(TDU) (A)	8-98018-795-2	01	1	0712-	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU)	1-48320-031-1	01	1	0712-	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-0710		●
5	UNION; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-0710	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-0711		●
5	UNION; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-0711	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0712-		●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0712-	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-0711	●	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0712-1101		●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0712-1101	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0710	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5300MM(53W)	1-48312-015-0	01	1	0710-0710		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W)	1-48312-015-0	01	1	0710-0710	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0711	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0711		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W)	1-48312-015-0	01	1	0710-0711	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0712-	●	●
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	0712-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0710-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0710	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5300MM(53W) ID=14	1-09630-145-0	01	1	0710-0710		●
7	GASKET; DRAIN COCK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) ID=14	1-09630-145-0	01	1	0710-0710	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0711	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0711		●
7	GASKET; DRAIN COCK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) ID=14	1-09630-145-0	01	1	0710-0711	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0712-	●	●
7	GASKET; DRAIN COCK BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	0712-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0710-	●	●
8	CONNECTOR; AIR TANK (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-	●
8	CONNECTOR; AIR TANK (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-	●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (H) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-	●
8	CONNECTOR; AIR TANK (C)	1-09656-462-1	01	1	0710-0711	●	●
8	CONNECTOR; AIR TANK (C)	1-09656-462-1	01	1	0712-		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (C)	1-09656-462-1	01	1	0712-	●
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR(TDU) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0712-	●
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR(TDU) (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0712-	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0710-0711	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-		●
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	0710-0711	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0712-		●
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR(TDU) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0712-	●
8	CONNECTOR; AIR TANK (B)	1-09656-759-0	01	1	0710-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0710-0710		●
10	PLUG; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (B) PT3/8	9-09204-517-0	02	1	0710-0710	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0710-0711		●
10	PLUG; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) PT3/8	9-09204-517-0	02	1	0710-0711	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0712-		●
10	PLUG; AIR TANK AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) (B) PT3/8	9-09204-517-0	02	1	0712-	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0710-0711	●	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0712-1101		●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/4	9-09204-526-0	01	1	0712-1101	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0710-1101	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-		●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	1102-	●
28	BRACKET; AIR TANK (C)	8-98088-205-0	01	1	0710-0710		●
28	BRACKET; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C)	8-98088-205-0	01	1	0710-0710	●
28	BRACKET; AIR TANK (C)	8-98100-165-1	01	1	0710-0711		●
28	BRACKET; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (C)	8-98100-165-1	01	1	0710-0711	●
28	BRACKET; AIR TANK (C)	8-98100-165-3	01	1	0712-		●
28	BRACKET; AIR TANK AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) (C)	8-98100-165-3	01	1	0712-	●
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0710-	●	●
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0710-	●	●
30	BRACKET; AIR TANK,SUB (A)	1-48317-903-0	01	1	0710-		●
30	BRACKET; AIR TANK,SUB (B)	1-48317-894-0	01	1	0710-0711	●
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48317-894-1	01	1	0712-	●
31	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	02	1	0710-0711	●	●
31	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	02	1	0712-		●
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●
34	NUT; BRKT,AIR TANK M10 FLANGE	0-91180-210-0	02	1	0710-0711	●	●
34	NUT; BRKT,AIR TANK M10 FLANGE	0-91180-210-0	02	1	0712-		●
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0712-	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0710-0710		●
39	U-BOLT; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (B) L=210	1-48317-458-1	02	1	0710-0710	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0710-0711		●
39	U-BOLT; AIR TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) L=210	1-48317-458-1	02	1	0710-0711	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0712-		●
39	U-BOLT; AIR TANK AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) BRAKE REGULATION ADR(TDU) (B) L=210	1-48317-458-1	02	1	0712-	●
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0710-	●	●
40	BAND ASM; AIR TANK	1-48317-893-1	01	1	0710-		●
40	BAND ASM; AIR TANK	1-48317-893-0	02	1	0710-0711	●
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-893-1	02	1	0712-	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0710	●	●
46	NUT; U-BOLT WHEEL BASE 5300MM(53W) M8	0-91110-508-0	08	1	0710-0710		●
46	NUT; U-BOLT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M8	0-91110-508-0	08	1	0710-0710	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0711	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0711		●
46	NUT; U-BOLT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8	0-91110-508-0	08	1	0710-0711	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0712-	●	●
46	NUT; U-BOLT BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	0712-	●	●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0710-0711	●	●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0712-		●
80	BOLT; BRKT BRAKE REGULATION ADR(TDU) M10X30 FLANGE	0-28651-030-0	03	1	0712-	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0710-0711	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0712-		●
94	NUT; BRKT FIX BRAKE REGULATION ADR(TDU) M10 FLANGE	0-91180-210-0	04	1	0712-	●
124	SWITCH; AIR PRESSURE	8-97615-622-0	01	1	1102-		●
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	8-97615-622-0	01	1	1102-	●
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	01	1	1102-	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	0805-1308	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1309-	●
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-0711	●	●
126	CONNECTOR; ELBOW (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0712-1101		●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0712-1101	●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0712-0804	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0712-0804	●
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0805-1101	●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0710-0804	●	●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0805-1308		●
126	CONNECTOR; ELBOW BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0805-1308	●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1309-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	01	1	0712-1101	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	01	1	0710-0711	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	01	1	0712-1101		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU)	8-97615-622-0	01	1	0712-1101	●
203	NUT M8	0-91110-508-0	02	1	0710-		●
203	NUT M8	0-91110-508-0	04	1	0710-0711	●
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	04	1	0712-	●

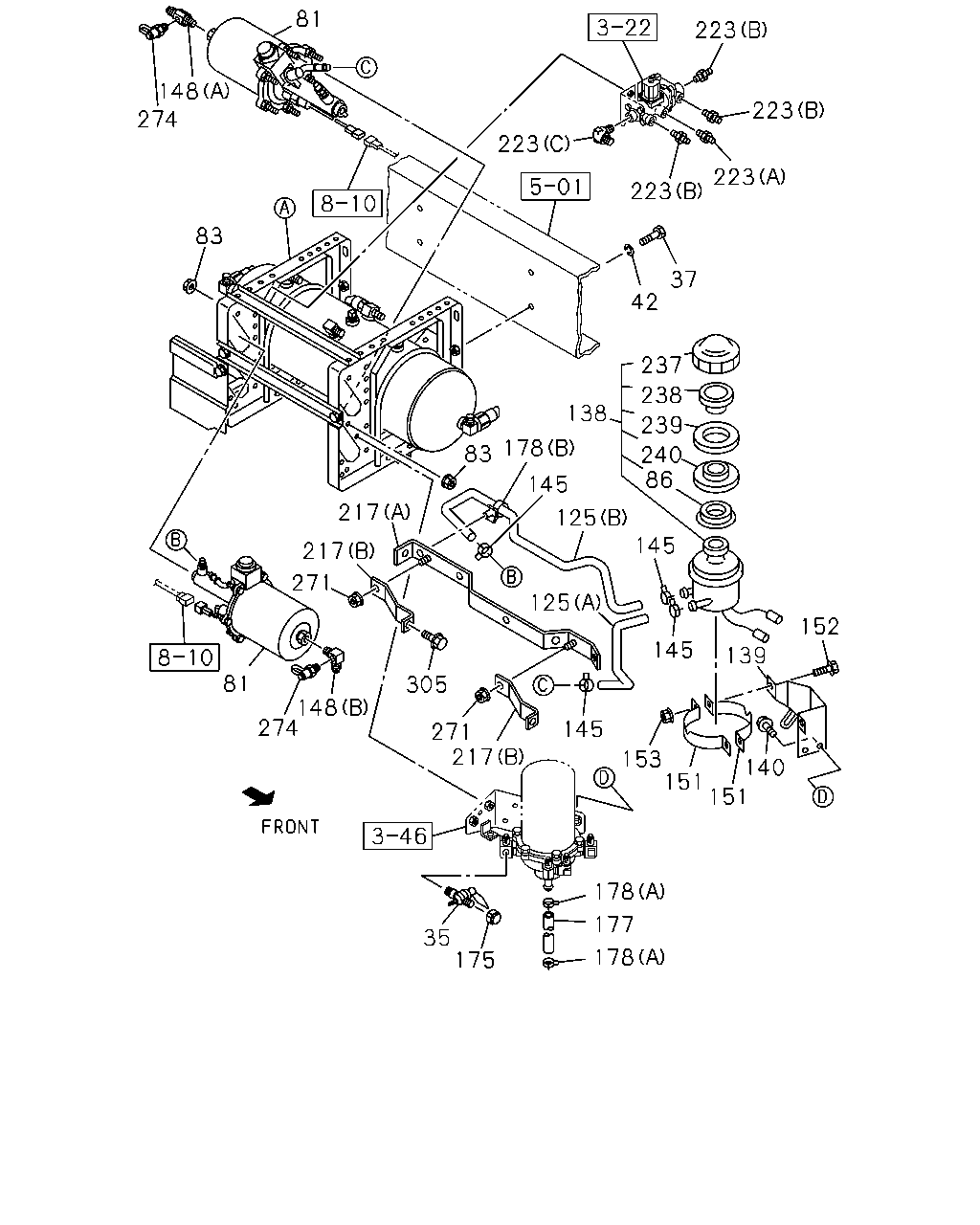

81 223 148 223 274 223 223 223 83 37 42 237 238 138 239 178 83 240 86 145 217 125 145 217 271 125 152 145 139 81 305 148 274 145 271 217 153 151 140 151 178 177 35 175 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU)	1-09680-099-0	01	1	0804-	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	04	1	0710-	●	●
42	WASHER; PL ID=12.5 OD=32	0-91614-712-0	04	1	0710-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-777-0	02	1	0710-0905	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	02	1	0906-	●	●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	08	1	0710-0710	●	●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	09	1	0710-	●	●
86	SEAL; DUST	1-47529-019-0	01	1	0710-	●	●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98051-217-0	01	1	0710-	●	●
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98051-218-1	01	1	0710-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0710-	●	●
139	BRACKET; OIL TANK	8-98051-105-0	01	1	0710-	●	●
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0710-	●	●
148	CONNECTOR; AIR MASTER EXC. BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0712-	●
148	CONNECTOR; AIR MASTER (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0710-0711	●	●
148	CONNECTOR; AIR MASTER (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0712-		●
148	CONNECTOR; AIR MASTER BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0712-	●
148	CONNECTOR; AIR MASTER (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0710-0711	●	●
148	CONNECTOR; AIR MASTER (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0712-		●
148	CONNECTOR; AIR MASTER BRAKE REGULATION ADR(TDU) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0712-	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0710-	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR(TDU)	9-48319-102-0	01	1	0804-	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0710-	●	●
178	CLIP; HOSE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (A) ID=21	8-94242-034-0	01	1	0712-0803	●
178	CLIP; HOSE EXC. BRAKE REGULATION ADR(TDU) (A) ID=21	8-94242-034-0	01	1	0804-	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0710-0711	●	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0712-0808		●
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21	8-94242-034-0	02	1	0712-0808	●
178	CLIP; HOSE BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21	8-94242-034-0	02	1	0712-0808	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0809-0906		●
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) ID=21	8-94242-034-0	02	1	0809-0906	●
178	CLIP; HOSE EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21	8-94242-034-0	02	1	0809-0906	●
178	CLIP; HOSE 4HK1-TCS ENG(RJS) (A) ID=21	8-94242-034-0	02	1	0907-1011		●
178	CLIP; HOSE 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) ID=21	8-94242-034-0	02	1	0907-1011	●
178	CLIP; HOSE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21	8-94242-034-0	02	1	0907-1011	●
178	CLIP; HOSE 4HK1-TCS ENG(RJS) (A) ID=21	8-94242-034-0	02	1	1012-		●
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) ID=21	8-94242-034-0	02	1	1012-	●
178	CLIP; HOSE EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21	8-94242-034-0	02	1	1012-	●
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	0710-	●	●
217	BRACKET; RUBBER HOSE (A)	8-98082-871-0	01	1	0710-	●	●
217	BRACKET; RUBBER HOSE (B)	8-98085-273-1	02	1	0710-	●	●
223	UNION H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-	●	●
223	UNION H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	0710-	●	●
223	UNION H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0710-	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0710-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0710-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0710-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0710-	●	●
271	NUT; BRKT,HOSE M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0710-0711	●	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0712-		●
274	CONNECTOR; VLV BRAKE REGULATION ADR(TDU) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0712-	●
305	BOLT; BRKT,HOSE M8X16 FLANGE	0-28050-816-0	02	1	0710-0710	●	●
305	BOLT; BRKT,HOSE M8X16 FLANGE	0-28050-816-0	01	1	0710-1008	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
