Isuzu WW
▶
TRUCKS
▶
FRR
▶
11102 - FRR RHD EURO2/4 SPACECAB
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#39871) — 50 parça
Tümü
A - FCD5CS
B - FCR5CS
◀

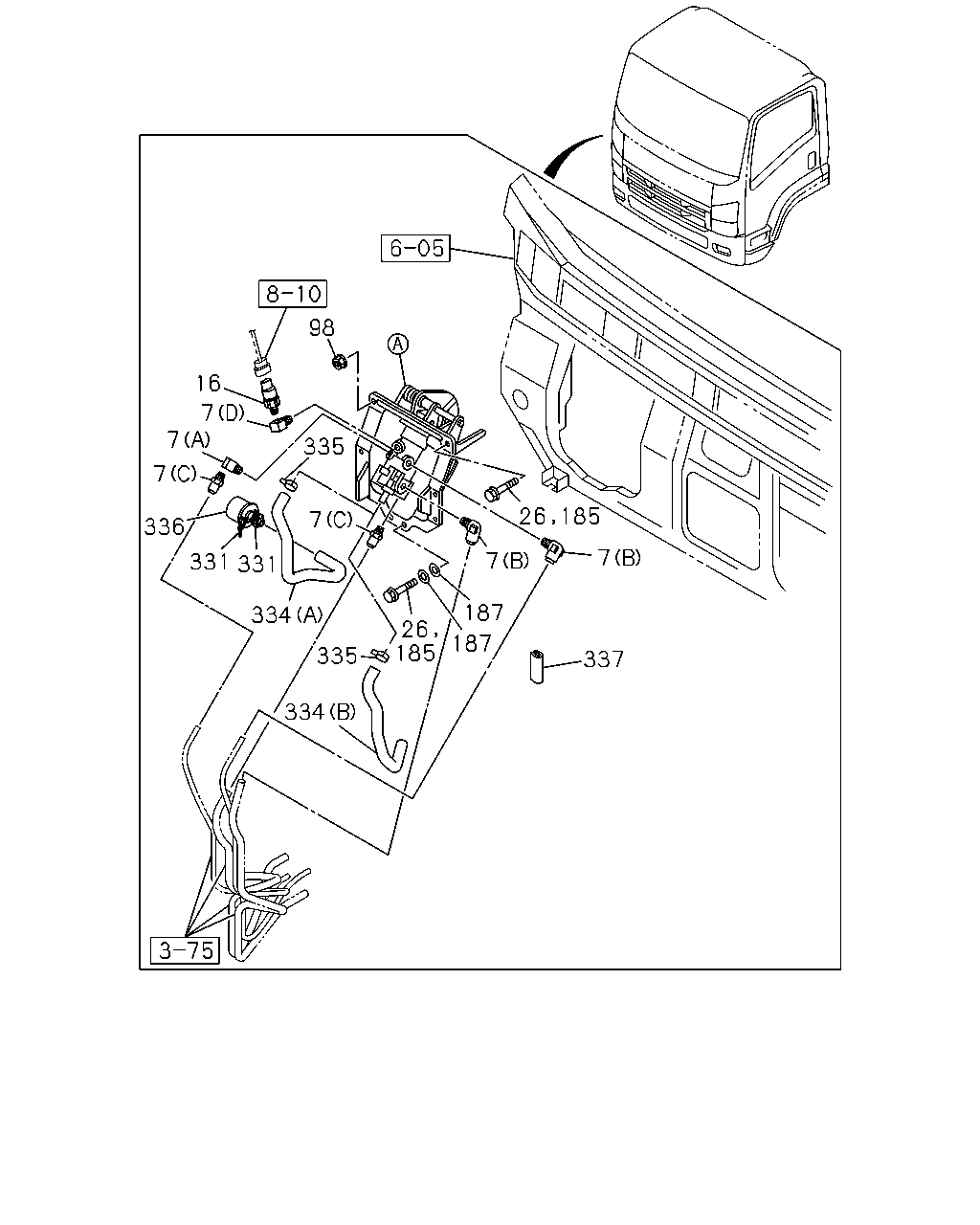

[310A] FIXING (34 parça)

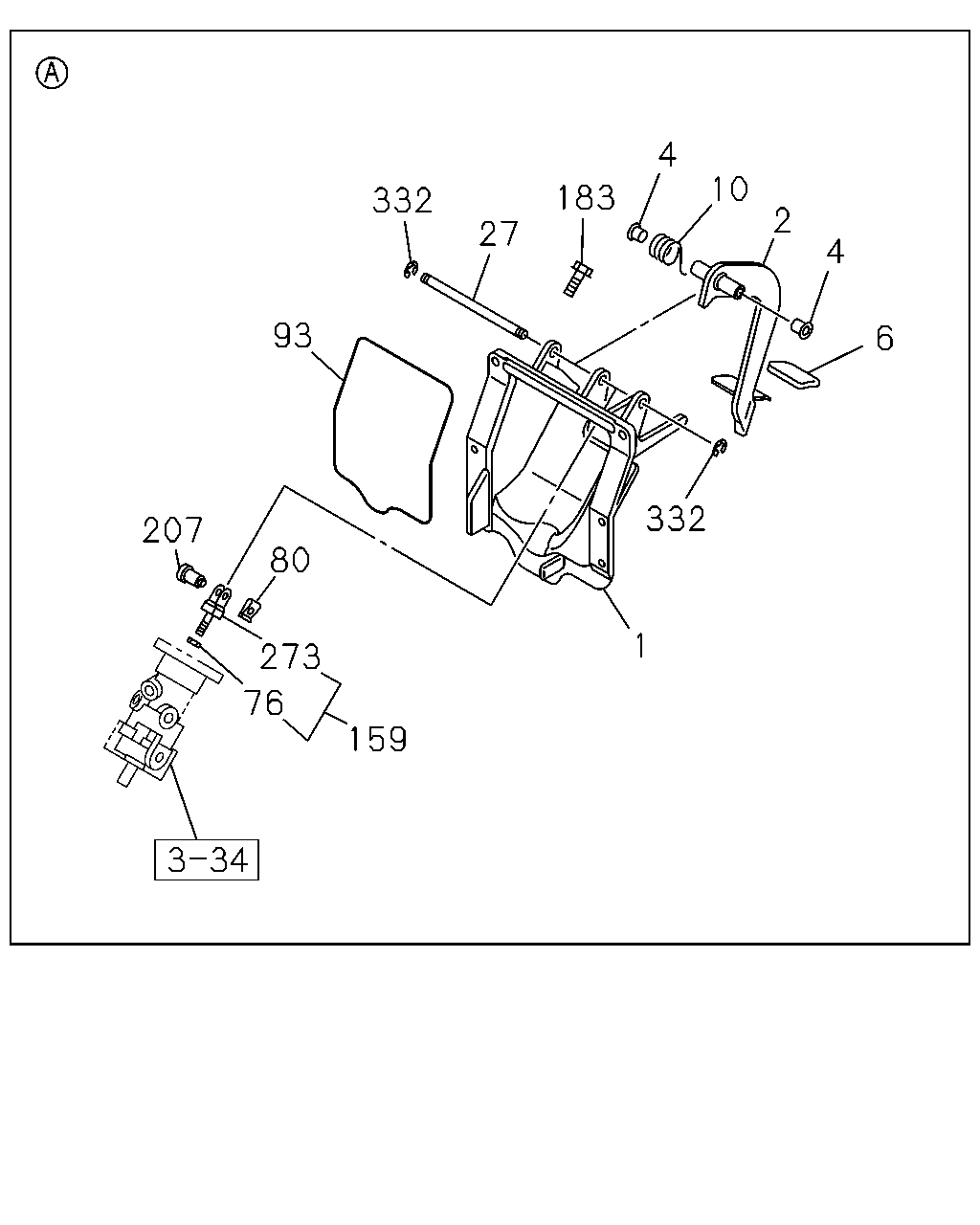

[310A] COMPONENT (16 parça)
▶
98
16
7
335
7
7
7
336
7
7
331
331
187
334
26
185
187
335
337
334
26
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
CONNECTOR; BRK VALVE
(D) PT1/4 2WAY
1-09660-693-0
01
1
0710-
●
●
7
CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW
1-09660-696-0
01
1
0710-
●
●
7
CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
0710-
●
●
7
CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
0710-
●
●
16
SWITCH; STOP LAMP
STAMP 0.3
8-98010-857-0
01
1
0710-
●
●
26
BOLT; PEDAL
M8X25 FLANGE
8-98057-109-0
07
1
0710-0908
●
●
98
NUT; BRKT
M8 FLANGE
0-91180-208-0
01
1
0710-
●
●
185
BOLT; BRKT
M8X25 FLANGE
8-98057-109-0
07
1
0909-1506
●
●
185
BOLT; BRKT
M8X25 HEXALOBULAR
8-98316-699-0
07
1
1507-
●
●
187
WASHER; PL,BRKT
ID=8.4 OD=26
0-91614-808-0
04
1
0710-1506
●
●
187
WASHER; PL,BRKT
ID=8.4 OD=26
8-98316-762-0
04
1
1507-
●
●
331
CLIP; BAND
L=197
1-83574-032-0
02
1
0710-0711
●
●
331
CLIP; BAND
L=197
1-83574-032-0
02
1
0712-1109
●
331
CLIP; BAND
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) L=197
1-83574-032-0
02
1
0712-1109
●
331
CLIP; BAND
L=197
1-83574-032-0
02
1
1110-
●
331
CLIP; BAND
BRAKE REGULATION ADR(TDU) L=197
1-83574-032-0
02
1
1110-
●
334
HOSE; AIR,BRK
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B)
8-97611-145-3
01
1
0712-1109
●
334
HOSE; AIR,BRK
EXC. BRAKE REGULATION ADR(TDU) (B)
8-97611-145-3
01
1
1110-
●
334
HOSE; AIR,BRK
(A)
8-98017-118-4
01
1
0710-0711
●
●
334
HOSE; AIR,BRK
(A)
8-98017-118-4
01
1
0712-1109
●
334
HOSE; AIR,BRK
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (A)
8-98017-118-4
01
1
0712-1109
●
334
HOSE; AIR,BRK
(A)
8-98017-118-4
01
1
1110-
●
334
HOSE; AIR,BRK
BRAKE REGULATION ADR(TDU) (A)
8-98017-118-4
01
1
1110-
●
335
CLAMP; HOSE
ID=24
8-98025-921-0
01
1
0710-
●
●
336
SILENCER; AIR
1-48199-544-0
01
1
0710-0711
●
●
336
SILENCER; AIR
1-48199-544-0
01
1
0712-
●
336
SILENCER; AIR
BRAKE REGULATION ADR(TDU)
1-48199-544-0
01
1
0712-
●
337
PROTECTOR; AIR BRK
L=30
8-94273-221-0
01
1
0710-0711
●
●
337
PROTECTOR; AIR BRK
L=30
8-94273-221-0
01
1
0712-0906
●
337
PROTECTOR; AIR BRK
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) L=30
8-94273-221-0
01
1
0712-0906
●
337
PROTECTOR; AIR BRK
L=30
8-94270-377-1
01
1
0907-1110
●
337
PROTECTOR; AIR BRK
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) L=30
8-94270-377-1
01
1
0907-1110
●
337
PROTECTOR; AIR BRK
L=30
8-94270-377-1
01
1
1111-
●
337
PROTECTOR; AIR BRK
BRAKE REGULATION ADR(TDU) L=30
8-94270-377-1
01
1
1111-
●
4
10
183
332
2
27
4
93
6
332
207
80
1
273
76
159
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET ASM; PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98071-972-1
01
1
0710-
●
●
1
BRACKET ASM; PEDAL
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98071-973-1
01
1
0710-
●
●
2
PEDAL; BRK
8-98057-226-0
01
1
0710-
●
●
4
BUSHING; BRK PEDAL
8-94238-596-0
02
1
0710-
●
●
6
COVER; BRK PEDAL
8-98056-865-0
01
1
0710-
●
●
10
SPRING; RETURN,BRK PEDAL
8-98057-232-1
01
1
0710-
●
●
27
SHAFT; BRK PEDAL
8-98057-231-0
01
1
0710-
●
●
76
NUT; PUSH ROD
M8 FLANGE
0-91180-108-0
01
1
0710-
●
●
80
PIN; SNAP,BRK PEDAL
8-98007-161-0
01
1
0710-
●
●
93
SEAL; BRK PEDAL
1-48199-534-0
01
1
0710-
●
●
159
ROD ASM; PUSH,BRK
8-98057-234-0
01
1
0710-
●
●
183
BOLT; BRK VLV
M8X30 FLANGE
0-28660-830-0
04
1
0710-
●
●
207
PIN; JOINT,BRK PEDAL LINK
8-97387-230-0
01
1
0710-1007
●
●
207
PIN; JOINT,BRK PEDAL LINK
8-98147-657-0
01
1
1008-
●
●
273
ROD; PULL
8-98057-233-0
01
1
0710-
●
●
332
RING; SNAP
ID=12
0-91805-512-0
02
1
0710-
●
●
