◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11102 - FRR RHD EURO2/4 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#39868) — 247 parça

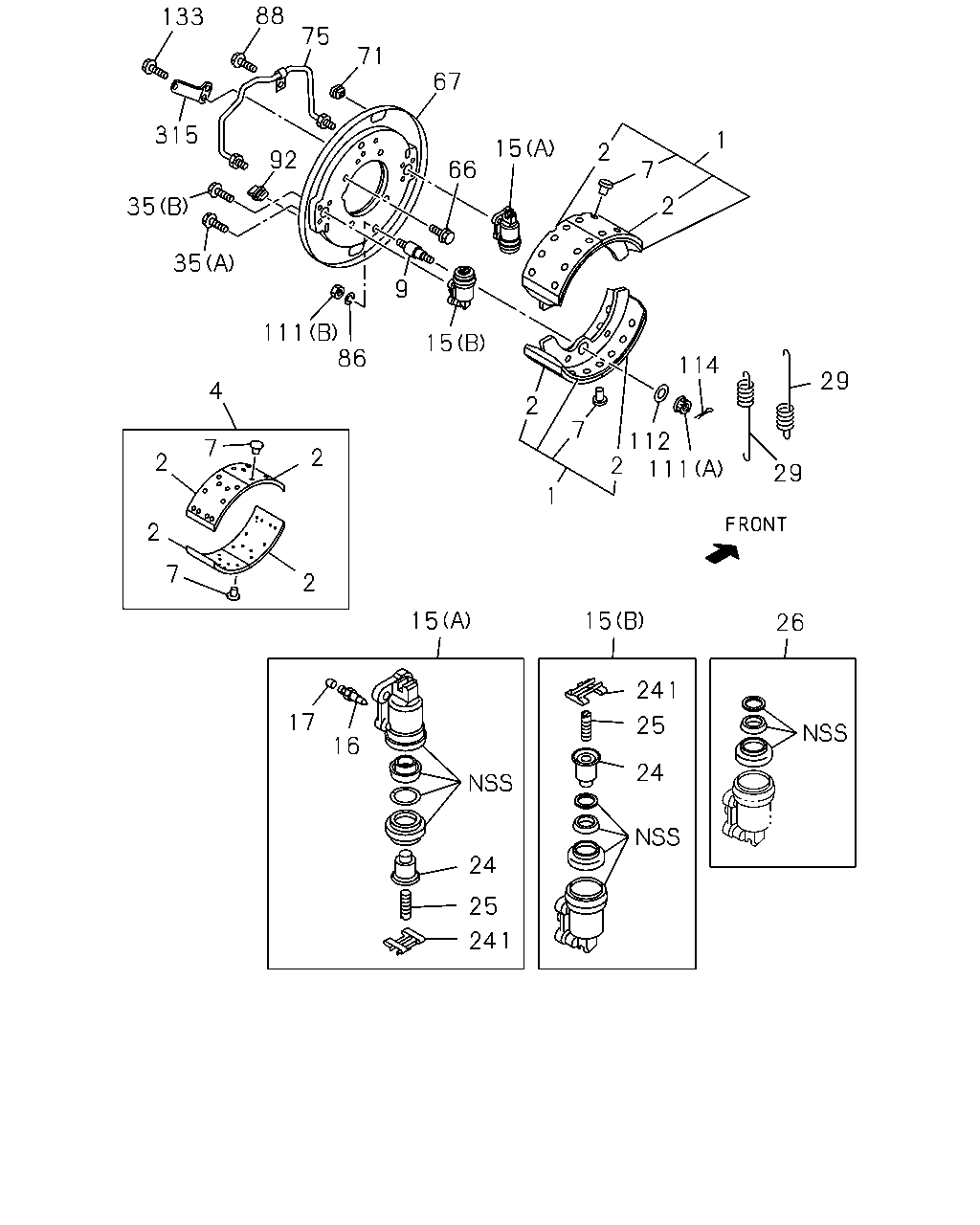

çizim 178343
88 133 75 71 67 315 1 15 2 92 66 7 2 35 35 9 111 86 15 114 29 4 2 7 112 2 111 7 2 2 29 1 2 7 2 15 15 26 241 17 25 16 24 24 25 241
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
BRAKE ADJUSTER MANUAL<BJR> 		1-47120-624-0 04 1 1012- ●
1 SHOE; BRK,FRT 1-47170-483-0 04 1 0710-1011 ● ●
1 SHOE; BRK,FRT 1-47170-483-0 04 1 1012- ●
1 SHOE; BRK,FRT
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47170-483-0 04 1 1012- ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> 		1-47125-801-0 04 1 1012- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-800-0 08 1 0710-1011 ● ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-800-0 08 1 1012- ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-800-0 08 1 1012- ●
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> 		1-88310-501-1 01 1 1012- ●
4 LINING SET; FRT BRK,STANDARD 1-88311-385-0 02 1 0710-1011 ● ●
4 LINING SET; FRT BRK,STANDARD 1-88311-385-0 02 1 1012- ●
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-88311-385-0 02 1 1012- ●
7 RIVET; LINING,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-09732-029-0 56 1 1012- ●
7 RIVET; LINING,FRT BRK 1-09732-056-0 64 1 0710-0803 ● ●
7 RIVET; LINING,FRT BRK
D6X11.5 		1-09732-019-0 64 1 0804-1011 ● ●
7 RIVET; LINING,FRT BRK
D6X11.5 		1-09732-019-0 64 1 1012- ●
7 RIVET; LINING,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5 		1-09732-019-0 64 1 1012- ●
9 PIN; SHOE HOLDER 1-47162-046-0 04 1 0710-1011 ● ●
9 PIN; SHOE HOLDER 1-47162-046-0 04 1 1012- ●
9 PIN; SHOE HOLDER
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47162-046-0 04 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> (C) 		1-47600-938-0 02 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> (C) 		1-47600-939-0 02 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-174-0 01 1 0710-1011 ● ●
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-174-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD 		1-47601-174-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-175-0 01 1 0710-1011 ● ●
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-175-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD 		1-47601-175-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-172-0 01 1 0710-1011 ● ●
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-172-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD 		1-47601-172-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-173-0 01 1 0710-1011 ● ●
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-173-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD 		1-47601-173-0 01 1 1012- ●
16 SCREW; BLEEDER,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		8-98050-476-0 04 1 1012- ●
16 SCREW; BLEEDER,FRT BRK 1-47615-009-0 02 1 0710-1011 ● ●
16 SCREW; BLEEDER,FRT BRK 1-47615-009-0 02 1 1012- ●
16 SCREW; BLEEDER,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47615-009-0 02 1 1012- ●
17 CAP; BLEEDER,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		8-98050-479-0 04 1 1012- ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 0710-1011 ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 1012- ●
17 CAP; BLEEDER,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12 		1-47619-011-0 02 1 1012- ●
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47624-318-0 02 1 1012- ●
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47624-319-0 02 1 1012- ●
24 PISTON; FRT WHEEL CYL 1-47620-237-0 04 1 0710-1011 ● ●
24 PISTON; FRT WHEEL CYL 1-47620-237-0 04 1 1012- ●
24 PISTON; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47620-237-0 04 1 1012- ●
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> LH THREAD 		1-47622-020-0 02 1 1012- ●
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> RH THREAD 		1-47622-021-0 02 1 1012- ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-070-0 04 1 0710-1011 ● ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-070-0 04 1 1012- ●
25 SCREW; ADJ,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47622-070-0 04 1 1012- ●
26 CUP SET; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-87830-679-0 04 1 1012- ●
26 CUP SET; FRT WHEEL CYL 1-87831-309-0 04 1 0710-1011 ● ●
26 CUP SET; FRT WHEEL CYL 1-87831-309-0 04 1 1012- ●
26 CUP SET; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-87831-309-0 04 1 1012- ●
29 SPRING; RETURN,FRT BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> 		1-09583-288-0 04 1 1012- ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-385-2 04 1 0710-1011 ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-385-2 04 1 1012- ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09583-385-2 04 1 1012- ●
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> (C) M14X30 		1-09000-365-0 04 1 1012- ●
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> (D) M8X22 		9-09802-475-0 08 1 1012- ●
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50051-025-0 08 1 0710-0906 ● ●
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50551-025-0 08 1 0907-1011 ● ●
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50551-025-0 08 1 1012- ●
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M10X25 W/LK WASHER 		0-50551-025-0 08 1 1012- ●
35 BOLT; FRT WHEEL CYL
(B) 		1-47159-227-0 08 1 0710-1011 ● ●
35 BOLT; FRT WHEEL CYL
(B) 		1-47159-227-0 08 1 1012- ●
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> (B) 		1-47159-227-0 08 1 1012- ●
66 BOLT; OIL SHIELD COVER
M14X60 		0-20951-460-0 04 1 0710-1011 ● ●
66 BOLT; OIL SHIELD COVER
M14X60 		0-20951-460-0 04 1 1012- ●
66 BOLT; OIL SHIELD COVER
EXC. BRAKE ADJUSTER MANUAL<BJR> M14X60 		0-20951-460-0 04 1 1012- ●
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47150-375-0 01 1 1012- ●
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47150-376-0 01 1 1012- ●
67 PLATE; BACK,FRT BRK 1-47150-705-0 01 1 0710-0907 ● ●
67 PLATE; BACK,FRT BRK 1-47150-717-1 01 1 0908-1011 ● ●
67 PLATE; BACK,FRT BRK 1-47150-717-1 01 1 1012- ●
67 PLATE; BACK,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47150-717-1 01 1 1012- ●
67 PLATE; BACK,FRT BRK 1-47150-704-0 01 1 0710-0907 ● ●
67 PLATE; BACK,FRT BRK 1-47150-716-1 01 1 0908-1011 ● ●
67 PLATE; BACK,FRT BRK 1-47150-716-1 01 1 1012- ●
67 PLATE; BACK,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47150-716-1 01 1 1012- ●
71 GROMMET; CHECK HOLE
BRAKE ADJUSTER MANUAL<BJR> 		1-09333-033-0 04 1 1012- ●
71 GROMMET; CHECK HOLE 1-09333-139-0 04 1 0710-1011 ● ●
71 GROMMET; CHECK HOLE 1-09333-139-0 04 1 1012- ●
71 GROMMET; CHECK HOLE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09333-139-0 04 1 1012- ●
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47414-237-0 01 1 1012- ●
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47414-238-0 01 1 1012- ●
75 PIPE; OIL,FWD,FRT BRK 1-49167-859-0 02 1 0710-1011 ● ●
75 PIPE; OIL,FWD,FRT BRK 1-49167-859-0 02 1 1012- ●
75 PIPE; OIL,FWD,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-49167-859-0 02 1 1012- ●
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> ID=14.2 		0-91510-614-0 04 1 1012- ●
86 WASHER; LK,FRT WHEEL CYL 1-47159-110-0 04 1 0710-1011 ● ●
86 WASHER; LK,FRT WHEEL CYL 1-47159-110-0 04 1 1012- ●
86 WASHER; LK,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47159-110-0 04 1 1012- ●
88 BOLT; BRK PIPE CLAMP
M6X10 		9-01900-610-0 02 1 0710-1011 ● ●
88 BOLT; BRK PIPE CLAMP
M6X10 		9-01900-610-0 02 1 1012- ●
88 BOLT; BRK PIPE CLAMP
EXC. BRAKE ADJUSTER MANUAL<BJR> M6X10 		9-01900-610-0 02 1 1012- ●
92 GROMMET; ADJ HOLE
BRAKE ADJUSTER MANUAL<BJR> 		9-09956-640-0 04 1 1012- ●
92 GROMMET; ADJ HOLE 1-09333-138-0 04 1 0710-1011 ● ●
92 GROMMET; ADJ HOLE 1-09333-138-0 04 1 1012- ●
92 GROMMET; ADJ HOLE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09333-138-0 04 1 1012- ●
111 NUT; FLANGE,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> (C) 		1-09440-002-0 04 1 1012- ●
111 NUT; FLANGE,SHOE HOLD
(A) 		1-09440-101-0 04 1 0710-1011 ● ●
111 NUT; FLANGE,SHOE HOLD
(A) 		1-09440-101-0 04 1 1012- ●
111 NUT; FLANGE,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) 		1-09440-101-0 04 1 1012- ●
111 NUT; FLANGE,SHOE HOLD
(B) 		1-47159-111-0 04 1 0710-1011 ● ●
111 NUT; FLANGE,SHOE HOLD
(B) 		1-47159-111-0 04 1 1012- ●
111 NUT; FLANGE,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR> (B) 		1-47159-111-0 04 1 1012- ●
112 WASHER; PL,SHOE HOLD 1-47169-037-0 04 1 0710-1011 ● ●
112 WASHER; PL,SHOE HOLD 1-47169-037-0 04 1 1012- ●
112 WASHER; PL,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47169-037-0 04 1 1012- ●
114 PIN; SPLIT,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> 		9-09874-040-0 04 1 1012- ●
114 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		9-08112-020-0 04 1 0710-0907 ● ●
114 PIN; SPLIT,SHOE HOLD 1-47169-048-0 04 1 0908-1011 ● ●
114 PIN; SPLIT,SHOE HOLD 1-47169-048-0 04 1 1012- ●
114 PIN; SPLIT,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47169-048-0 04 1 1012- ●
133 BOLT; BRKT
M8X20 W/LK WASHER 		0-50040-820-0 04 1 0710-0906 ● ●
133 BOLT; BRKT
M8X20 W/LK WASHER 		0-50540-820-0 04 1 0907-1011 ● ●
133 BOLT; BRKT
M8X20 W/LK WASHER 		0-50540-820-0 04 1 1012- ●
133 BOLT; BRKT
EXC. BRAKE ADJUSTER MANUAL<BJR> M8X20 W/LK WASHER 		0-50540-820-0 04 1 1012- ●
241 HOLDER 1-47619-097-0 04 1 0710-1011 ● ●
241 HOLDER 1-47619-097-0 04 1 1012- ●
241 HOLDER
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47619-097-0 04 1 1012- ●
315 BRACKET; BRAKE FLEX HOSE 1-47159-229-0 01 1 0710-0907 ● ●
315 BRACKET; BRAKE FLEX HOSE 1-47159-243-0 01 1 0908-1011 ● ●
315 BRACKET; BRAKE FLEX HOSE 1-47159-243-0 01 1 1012- ●
315 BRACKET; BRAKE FLEX HOSE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47159-243-0 01 1 1012- ●
315 BRACKET; BRAKE FLEX HOSE 1-47159-228-0 01 1 0710-0907 ● ●
315 BRACKET; BRAKE FLEX HOSE 1-47159-242-0 01 1 0908-1011 ● ●
315 BRACKET; BRAKE FLEX HOSE 1-47159-242-0 01 1 1012- ●
315 BRACKET; BRAKE FLEX HOSE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47159-242-0 01 1 1012- ●

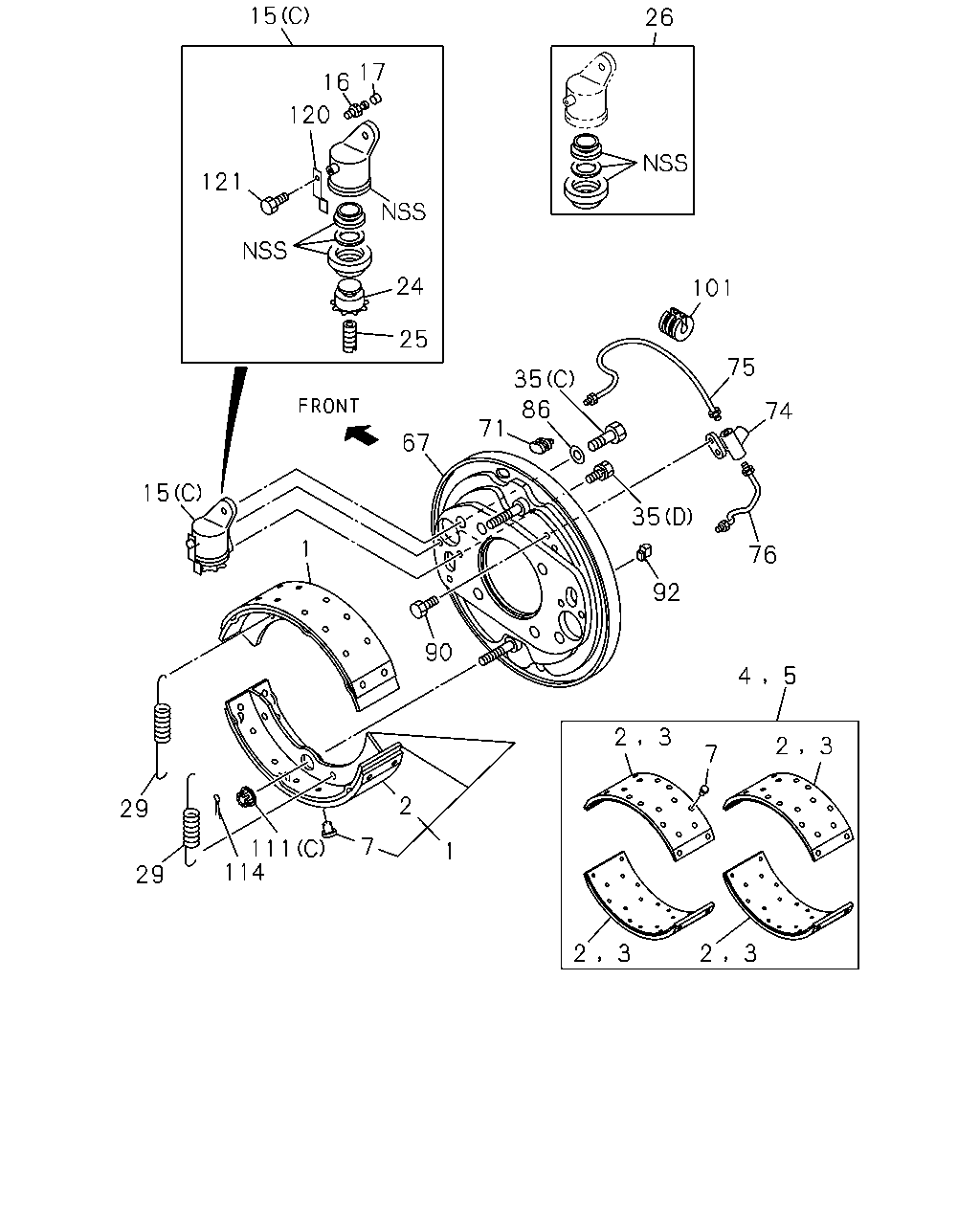

çizim 178487
15 26 17 16 120 121 24 101 25 75 35 86 74 71 67 15 35 1 76 92 90 5 4 3 2 3 2 7 2 29 7 111 114 1 29 2 3 2 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
BRAKE ADJUSTER MANUAL<BJR> 		1-47120-624-0 04 1 1012- ●
1 SHOE; BRK,FRT 1-47170-483-0 04 1 0710-1011 ● ●
1 SHOE; BRK,FRT 1-47170-483-0 04 1 1012- ●
1 SHOE; BRK,FRT
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47170-483-0 04 1 1012- ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> 		1-47125-801-0 04 1 1012- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-800-0 08 1 0710-1011 ● ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-800-0 08 1 1012- ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-800-0 08 1 1012- ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> 		1-47125-802-0 04 1 1012- ●
4 LINING SET; FRT BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> 		1-88310-501-1 01 1 1012- ●
4 LINING SET; FRT BRK,STANDARD 1-88311-385-0 02 1 0710-1011 ● ●
4 LINING SET; FRT BRK,STANDARD 1-88311-385-0 02 1 1012- ●
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-88311-385-0 02 1 1012- ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> 		1-88310-502-1 01 1 1012- ●
7 RIVET; LINING,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-09732-029-0 56 1 1012- ●
7 RIVET; LINING,FRT BRK 1-09732-056-0 64 1 0710-0803 ● ●
7 RIVET; LINING,FRT BRK
D6X11.5 		1-09732-019-0 64 1 0804-1011 ● ●
7 RIVET; LINING,FRT BRK
D6X11.5 		1-09732-019-0 64 1 1012- ●
7 RIVET; LINING,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5 		1-09732-019-0 64 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> (C) 		1-47600-938-0 02 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> (C) 		1-47600-939-0 02 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-174-0 01 1 0710-1011 ● ●
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-174-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD 		1-47601-174-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-175-0 01 1 0710-1011 ● ●
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-175-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD 		1-47601-175-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-172-0 01 1 0710-1011 ● ●
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-172-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD 		1-47601-172-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-173-0 01 1 0710-1011 ● ●
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-173-0 01 1 1012- ●
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD 		1-47601-173-0 01 1 1012- ●
16 SCREW; BLEEDER,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		8-98050-476-0 04 1 1012- ●
16 SCREW; BLEEDER,FRT BRK 1-47615-009-0 02 1 0710-1011 ● ●
16 SCREW; BLEEDER,FRT BRK 1-47615-009-0 02 1 1012- ●
16 SCREW; BLEEDER,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47615-009-0 02 1 1012- ●
17 CAP; BLEEDER,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		8-98050-479-0 04 1 1012- ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 0710-1011 ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 1012- ●
17 CAP; BLEEDER,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12 		1-47619-011-0 02 1 1012- ●
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47624-318-0 02 1 1012- ●
24 PISTON; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47624-319-0 02 1 1012- ●
24 PISTON; FRT WHEEL CYL 1-47620-237-0 04 1 0710-1011 ● ●
24 PISTON; FRT WHEEL CYL 1-47620-237-0 04 1 1012- ●
24 PISTON; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47620-237-0 04 1 1012- ●
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> LH THREAD 		1-47622-020-0 02 1 1012- ●
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> RH THREAD 		1-47622-021-0 02 1 1012- ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-070-0 04 1 0710-1011 ● ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-070-0 04 1 1012- ●
25 SCREW; ADJ,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47622-070-0 04 1 1012- ●
26 CUP SET; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-87830-679-0 04 1 1012- ●
26 CUP SET; FRT WHEEL CYL 1-87831-309-0 04 1 0710-1011 ● ●
26 CUP SET; FRT WHEEL CYL 1-87831-309-0 04 1 1012- ●
26 CUP SET; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-87831-309-0 04 1 1012- ●
29 SPRING; RETURN,FRT BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> 		1-09583-288-0 04 1 1012- ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-385-2 04 1 0710-1011 ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-385-2 04 1 1012- ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09583-385-2 04 1 1012- ●
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> (C) M14X30 		1-09000-365-0 04 1 1012- ●
35 BOLT; FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> (D) M8X22 		9-09802-475-0 08 1 1012- ●
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50051-025-0 08 1 0710-0906 ● ●
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50551-025-0 08 1 0907-1011 ● ●
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50551-025-0 08 1 1012- ●
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M10X25 W/LK WASHER 		0-50551-025-0 08 1 1012- ●
35 BOLT; FRT WHEEL CYL
(B) 		1-47159-227-0 08 1 0710-1011 ● ●
35 BOLT; FRT WHEEL CYL
(B) 		1-47159-227-0 08 1 1012- ●
35 BOLT; FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> (B) 		1-47159-227-0 08 1 1012- ●
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47150-375-0 01 1 1012- ●
67 PLATE; BACK,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47150-376-0 01 1 1012- ●
67 PLATE; BACK,FRT BRK 1-47150-705-0 01 1 0710-0907 ● ●
67 PLATE; BACK,FRT BRK 1-47150-717-1 01 1 0908-1011 ● ●
67 PLATE; BACK,FRT BRK 1-47150-717-1 01 1 1012- ●
67 PLATE; BACK,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47150-717-1 01 1 1012- ●
67 PLATE; BACK,FRT BRK 1-47150-704-0 01 1 0710-0907 ● ●
67 PLATE; BACK,FRT BRK 1-47150-716-1 01 1 0908-1011 ● ●
67 PLATE; BACK,FRT BRK 1-47150-716-1 01 1 1012- ●
67 PLATE; BACK,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47150-716-1 01 1 1012- ●
71 GROMMET; CHECK HOLE
BRAKE ADJUSTER MANUAL<BJR> 		1-09333-033-0 04 1 1012- ●
71 GROMMET; CHECK HOLE 1-09333-139-0 04 1 0710-1011 ● ●
71 GROMMET; CHECK HOLE 1-09333-139-0 04 1 1012- ●
71 GROMMET; CHECK HOLE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09333-139-0 04 1 1012- ●
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47630-013-1 01 1 1012- ●
74 CONNECTOR; FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47630-014-1 01 1 1012- ●
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47414-237-0 01 1 1012- ●
75 PIPE; OIL,FWD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47414-238-0 01 1 1012- ●
75 PIPE; OIL,FWD,FRT BRK 1-49167-859-0 02 1 0710-1011 ● ●
75 PIPE; OIL,FWD,FRT BRK 1-49167-859-0 02 1 1012- ●
75 PIPE; OIL,FWD,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-49167-859-0 02 1 1012- ●
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47414-241-0 01 1 1012- ●
76 PIPE; OIL,BACKWARD,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47414-242-0 01 1 1012- ●
86 WASHER; LK,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> ID=14.2 		0-91510-614-0 04 1 1012- ●
86 WASHER; LK,FRT WHEEL CYL 1-47159-110-0 04 1 0710-1011 ● ●
86 WASHER; LK,FRT WHEEL CYL 1-47159-110-0 04 1 1012- ●
86 WASHER; LK,FRT WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47159-110-0 04 1 1012- ●
90 BOLT; CONNECTOR
BRAKE ADJUSTER MANUAL<BJR> 		5-09030-036-1 02 1 1012- ●
92 GROMMET; ADJ HOLE
BRAKE ADJUSTER MANUAL<BJR> 		9-09956-640-0 04 1 1012- ●
92 GROMMET; ADJ HOLE 1-09333-138-0 04 1 0710-1011 ● ●
92 GROMMET; ADJ HOLE 1-09333-138-0 04 1 1012- ●
92 GROMMET; ADJ HOLE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09333-138-0 04 1 1012- ●
101 PROTECTOR; OIL PIPE,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		9-47461-158-0 02 1 1012- ●
111 NUT; FLANGE,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> (C) 		1-09440-002-0 04 1 1012- ●
111 NUT; FLANGE,SHOE HOLD
(A) 		1-09440-101-0 04 1 0710-1011 ● ●
111 NUT; FLANGE,SHOE HOLD
(A) 		1-09440-101-0 04 1 1012- ●
111 NUT; FLANGE,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) 		1-09440-101-0 04 1 1012- ●
111 NUT; FLANGE,SHOE HOLD
(B) 		1-47159-111-0 04 1 0710-1011 ● ●
111 NUT; FLANGE,SHOE HOLD
(B) 		1-47159-111-0 04 1 1012- ●
111 NUT; FLANGE,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR> (B) 		1-47159-111-0 04 1 1012- ●
114 PIN; SPLIT,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> 		9-09874-040-0 04 1 1012- ●
114 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		9-08112-020-0 04 1 0710-0907 ● ●
114 PIN; SPLIT,SHOE HOLD 1-47169-048-0 04 1 0908-1011 ● ●
114 PIN; SPLIT,SHOE HOLD 1-47169-048-0 04 1 1012- ●
114 PIN; SPLIT,SHOE HOLD
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47169-048-0 04 1 1012- ●
120 SPRING; LK,ADJ,FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47629-072-0 04 1 1012- ●
121 SCREW; LK SPR FRT WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		8-94128-727-0 04 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
