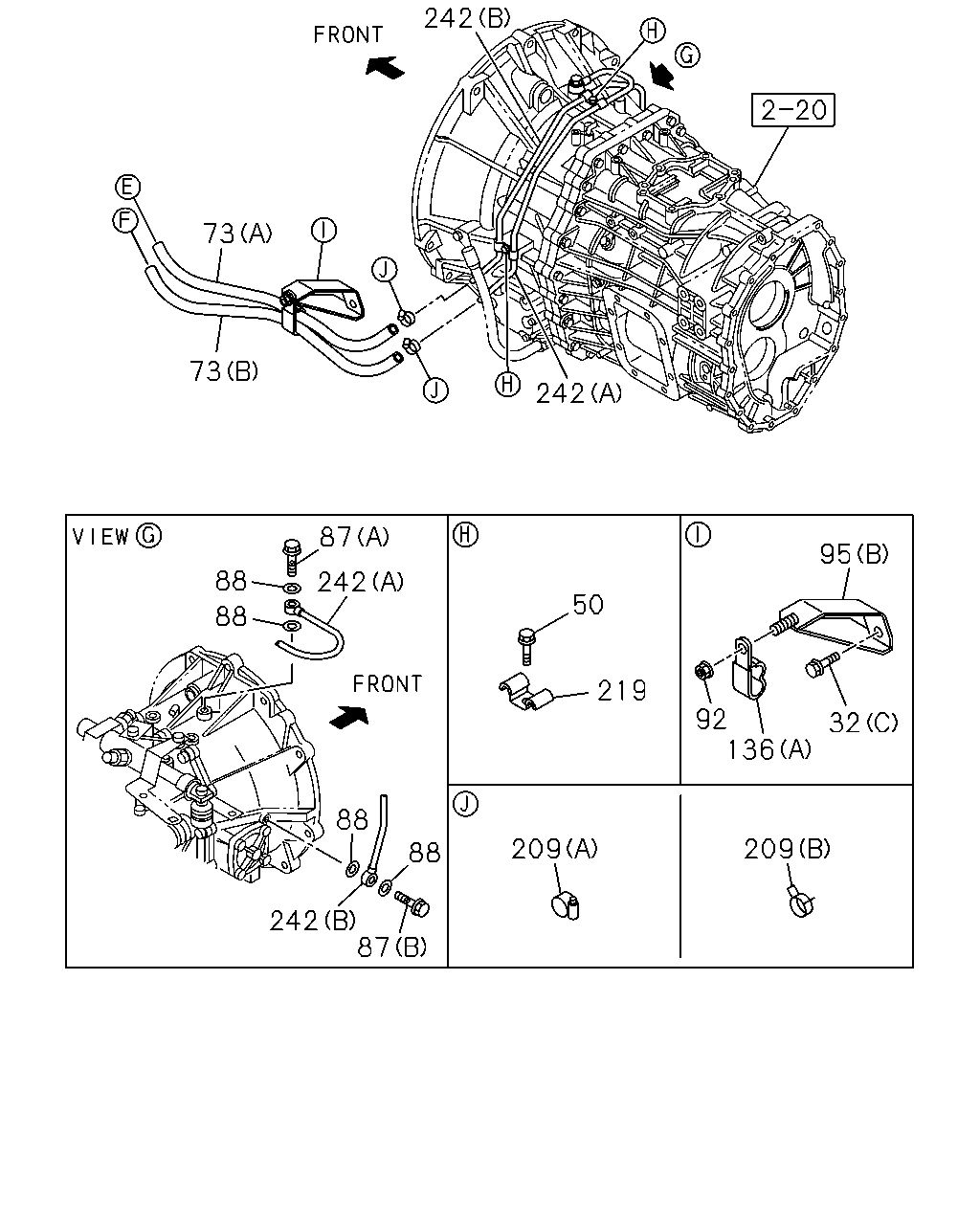

2-53 — TRANSMISSION OIL COOLER SYSTEM (#39865) — 62 parça

242 73 73 242 87 95 88 242 50 88 219 92 136 32 88 209 209 88 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480	8-98022-184-0	01	1	0710-0710	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=380	8-98081-840-0	01	1	0710-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=400	8-98047-274-0	01	1	0710-0710	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=440	8-98081-849-0	01	1	0710-	●	●
73	HOSE; FLEX,TRANS POWER TAKE OFF-FLYWHEEL(6SZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=440	8-98045-570-0	01	1	0710-0710		●
73	HOSE; FLEX,TRANS POWER TAKE OFF-FLYWHEEL(6SZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=430	8-98081-843-0	01	1	0710-		●
73	HOSE; FLEX,TRANS POWER TAKE OFF-FLYWHEEL(6SZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=510	8-98045-571-0	01	1	0710-0710		●
73	HOSE; FLEX,TRANS POWER TAKE OFF-FLYWHEEL(6SZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98091-651-0	01	1	0710-		●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0710-0805	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	0710-	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	0710-	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98065-885-0	01	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98065-886-0	01	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-018-0	01	1	0710-0710	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-564-0	01	1	0710-	●	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	0710-	●	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	0710-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-19.5	8-94426-597-0	08	1	0710-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98192-447-0	08	1	1107-	●	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0710-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0710-1509	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1510-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0710-1509	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1510-	●	●

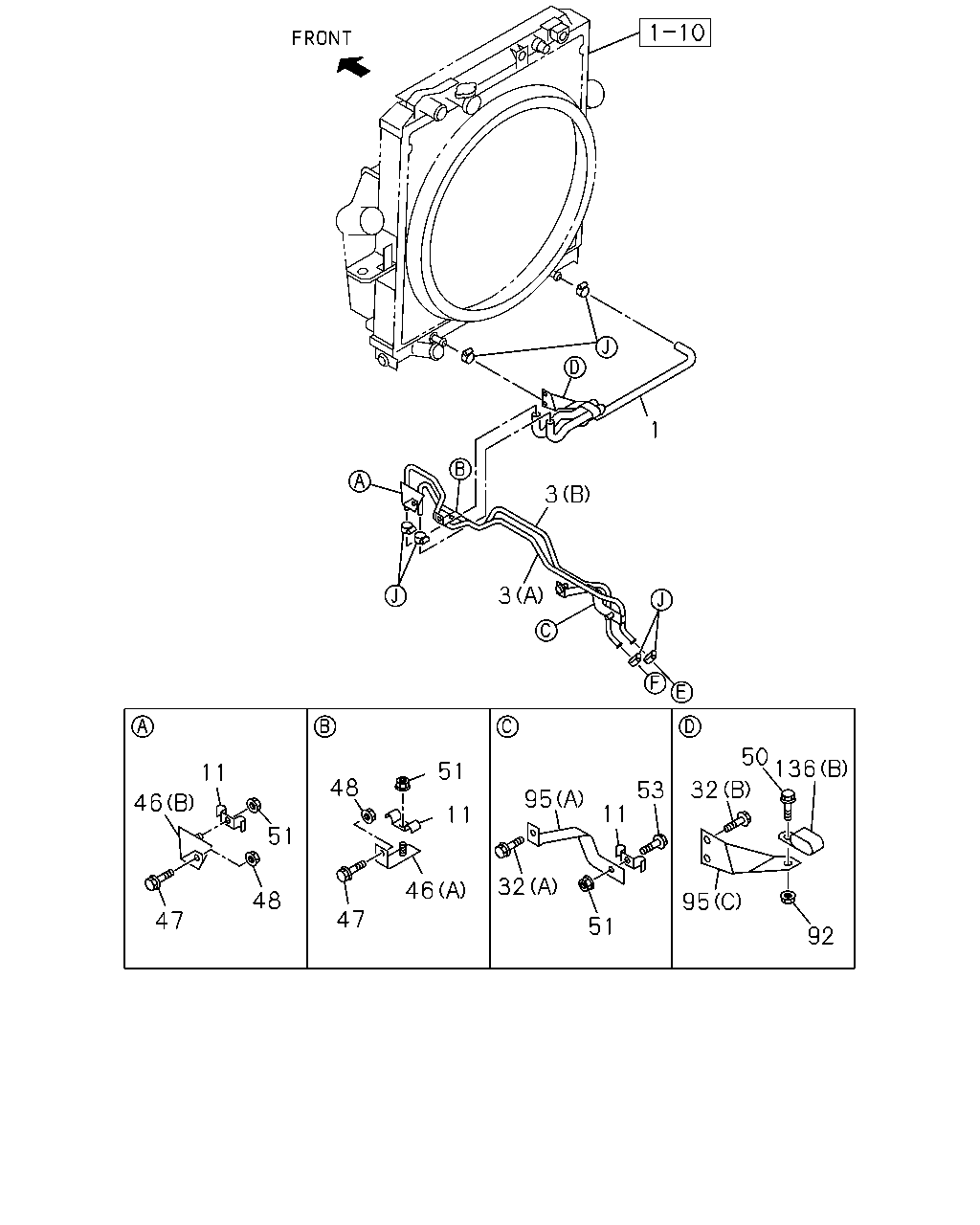

1 3 3 50 136 51 11 48 32 53 95 46 11 11 51 32 46 48 95 47 47 51 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98045-681-0	01	1	0710-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=890 SERVICED BY L=900	1-47428-873-0	01	1	0710-0710	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=881	8-98065-880-2	01	1	0710-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=981 SERVICED BY L=1000	1-47428-874-0	01	1	0710-0710	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=989	8-98065-879-2	01	1	0710-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0710-0906	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0907-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=60	1-47475-455-0	01	1	0710-0710	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98081-044-0	01	1	0710-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98045-565-0	01	1	0710-	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98065-885-0	01	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98065-886-0	01	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-018-0	01	1	0710-0710	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-564-0	01	1	0710-	●	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	0710-	●	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	0710-	●	●

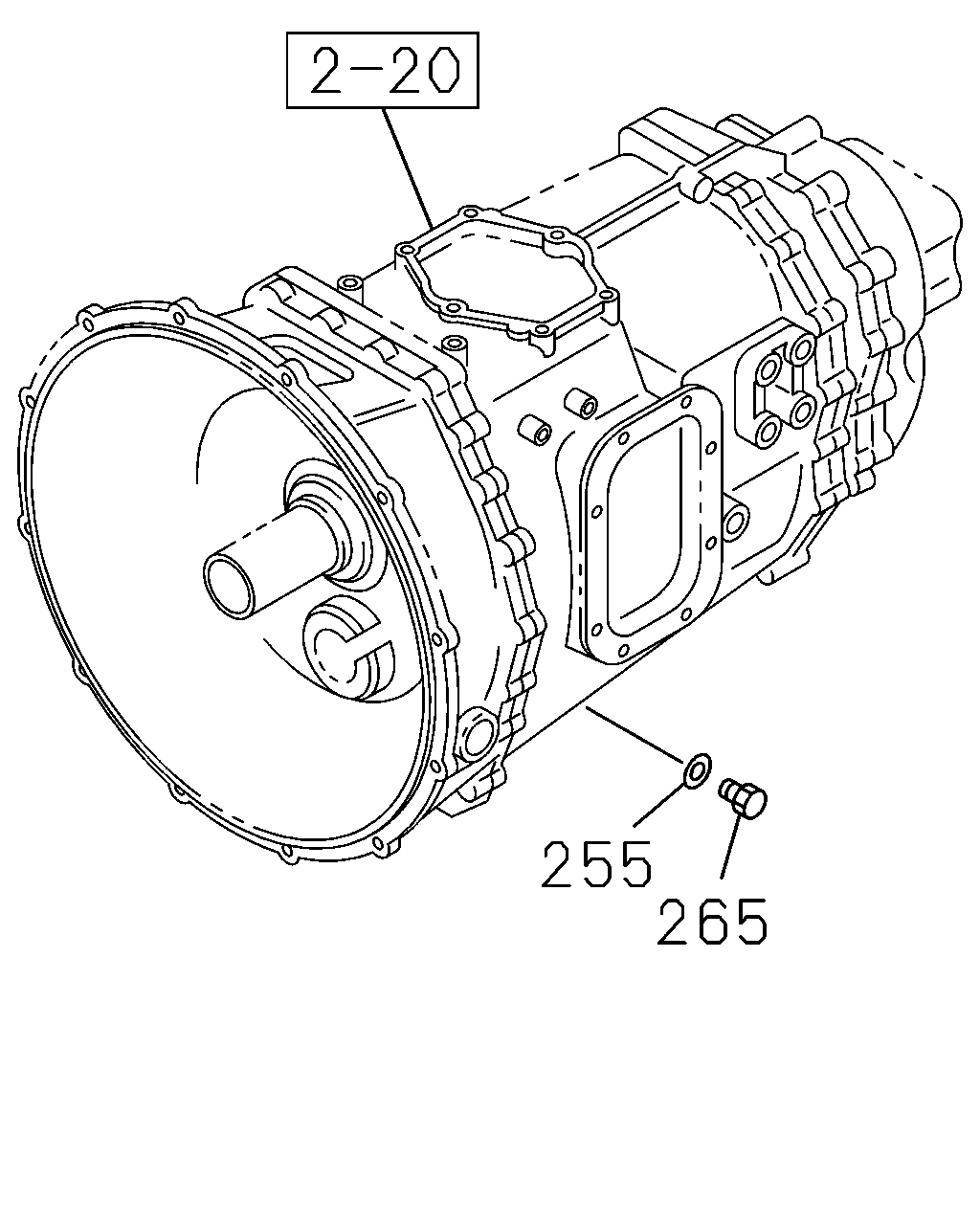

255 265

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	255	GASKET; SENSOR MZW6P M/T(RSZ) ID=12.2	9-09571-412-0	01	1	1405-	●	●
	265	PLUG; HOLE MZW6P M/T(RSZ) M12X9	0-92002-412-0	01	1	1405-	●	●
