Sayfa 2-26 - Isuzu EPC

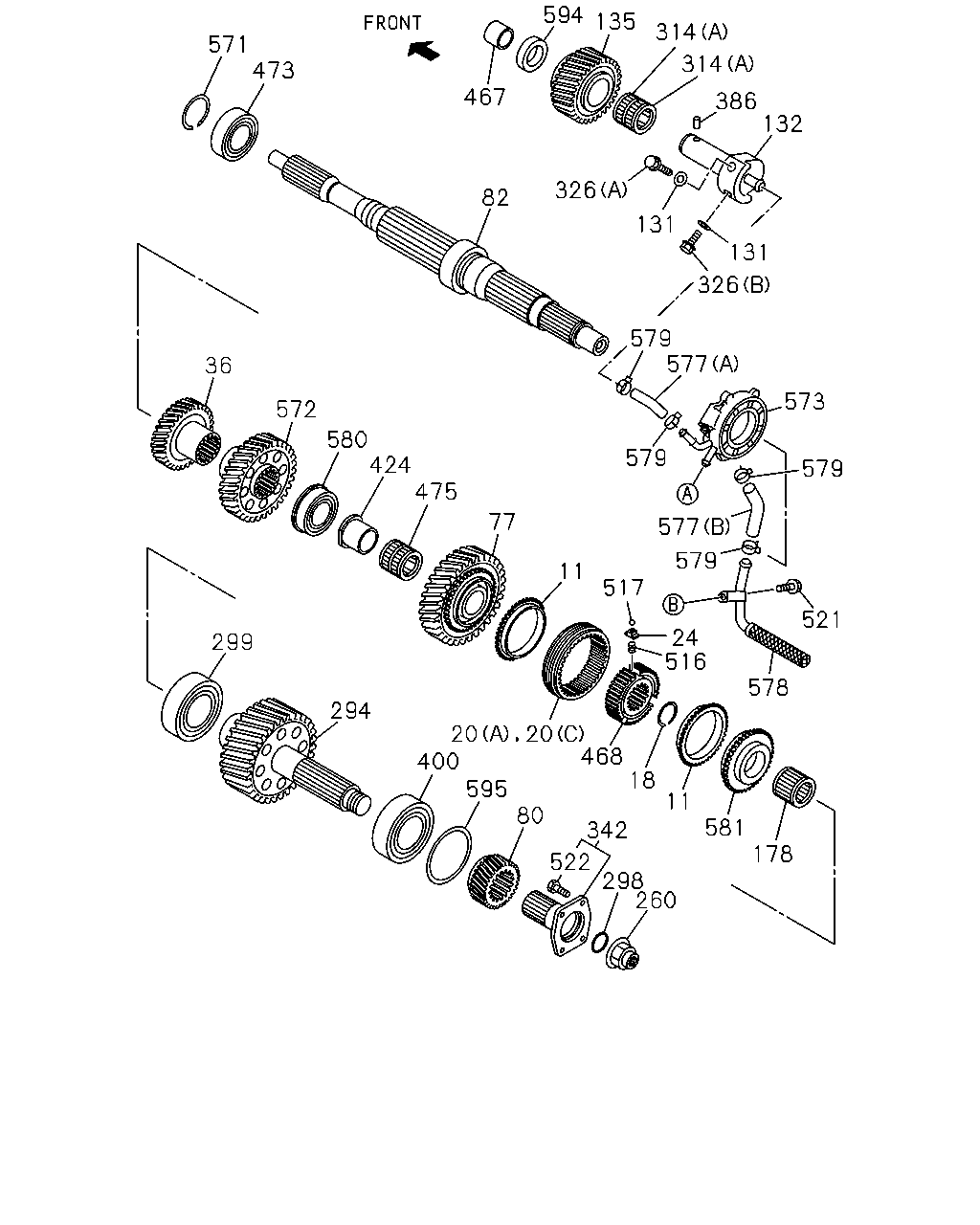

2-26 — MANUAL TRANSMISSION GEAR (#39858) — 870 parça

571 467 473 82 594 326 135 386 314 314 132 131 131 326 577 579 579 573 579 521 579 577 517 24 516 578 581 178 11 18 468 20 11 77 475 424 580 572 36 299 294 400 595 80 522 298 260 342 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0806-0808	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0809-	●	●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	0710-0906			●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	0907-			●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0806-0808	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0809-	●	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0710-0906			●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0907-1011			●	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1012-			●	●	●
20	SLEEVE EXC. 14" CLUTCH(WF6) (A) Z=45	8-98258-279-0	02	1	1509-			●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-					●
20	SLEEVE EXC. 14" CLUTCH(WF6) (A) Z=45	8-97241-296-1	02	1	1211-1308			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1211-1308					●
20	SLEEVE (C) Z=54	8-97241-295-2	01	1	1012-					●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0710-0906			●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0907-1011			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1012-1210			●	●	●
20	SLEEVE 14" CLUTCH(WF6) (C) Z=45	8-97241-296-1	03	1	1211-1308			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311			●	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508			●	●	●
20	SLEEVE 14" CLUTCH(WF6) (C) Z=45	8-98258-279-0	03	1	1509-			●	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0710-0906			●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0907-1210			●	●
20	SLEEVE EXC. 14" CLUTCH(WF6) (B) Z=45	8-98034-769-0	01	1	1211-1308			●	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508			●	●
20	SLEEVE EXC. 14" CLUTCH(WF6) (B) Z=45	8-98034-769-0	01	1	1509-			●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0806-0808	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0809-	●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0710-0906			●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0907-1011			●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1012-			●	●	●
36	GEAR; 3RD,MAINSHAFT Z=35	8-98168-524-0	01	1	1012-					●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0806-0808	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0809-	●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	0710-0906			●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	0907-1010			●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1011-			●	●
77	GEAR; 6TH,MAINSHAFT Z=18	8-97241-264-0	01	1	1012-					●
77	GEAR; 6TH,MAINSHAFT Z=26	1-33253-518-0	01	1	0809-		●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0806-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	0710-0906			●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	0907-1203			●	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1204-			●	●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1012-					●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0806-0808	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0809-	●	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-0	01	1	0710-0906			●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	0907-			●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0806-0808	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0809-	●	●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=19-26	8-98049-375-2	01	1	0710-0905			●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=13-21-19-26	8-98140-880-0	01	1	0906-0906			●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=13-21-19-26	8-98140-880-0	01	1	0907-1308			●	●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=13-21-19-26	8-98245-057-0	01	1	1309-			●	●
82	SHAFT; MAIN,TRANS EXC. 14" CLUTCH(WF6) Z=19-26-14	8-98049-376-1	01	1	0710-0905			●
82	SHAFT; MAIN,TRANS EXC. 14" CLUTCH(WF6) Z=14-13-21-19-26	8-98140-881-0	01	1	0906-0906			●
82	SHAFT; MAIN,TRANS EXC. 14" CLUTCH(WF6) Z=14-13-21-19-26	8-98140-881-0	01	1	0907-1308			●	●
82	SHAFT; MAIN,TRANS EXC. 14" CLUTCH(WF6) Z=14-13-21-19-26	8-98245-058-0	01	1	1309-			●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0806-0808	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0809-	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-0906			●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	0907-			●	●
132	SHAFT; REV	8-97252-655-0	01	1	1012-					●
132	SHAFT; REV	1-33351-017-0	01	1	0806-0808	●
132	SHAFT; REV	1-33351-017-0	01	1	0809-	●	●
132	SHAFT; REV	8-98009-372-0	01	1	0710-0906			●
132	SHAFT; REV	8-98009-372-0	01	1	0907-			●	●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1012-					●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0806-0808	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0809-	●	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	0710-0906			●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	0907-			●	●
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	0710-0906			●
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	0907-			●	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1012-					●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	0710-0906			●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	0907-			●	●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	0710-0906			●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	0907-			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1012-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0710-0805			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	0806-0808			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0806-0808	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	0809-0906			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0809-0906	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	0907-			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0907-	●	●
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	0710-0906			●
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	0907-			●	●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1012-					●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	0710-0906			●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	0907-			●	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	0710-0906			●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	0907-			●	●
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	0710-0906			●
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	0907-			●	●
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	0710-0906			●
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	0907-			●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-307-0	01	1	0806-0808	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-307-1	01	1	0809-	●	●
342	FLANGE; OUTPUT	8-98044-770-0	01	1	0710-0711			●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-770-0	01	1	0712-0906			●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-770-0	01	1	0907-0912			●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98155-334-0	01	1	1001-			●	●
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	0710-0906			●
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	0907-			●	●
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	0710-0906			●
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	0907-			●	●
424	COLLAR; 6TH GEAR	8-97377-954-2	01	1	0710-0904			●
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	0905-0906			●
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	0907-			●	●
467	COLLAR; SHAFT EXC. 14" CLUTCH(WF6)	8-97255-183-1	01	1	0710-0906			●
467	COLLAR; SHAFT EXC. 14" CLUTCH(WF6)	8-97255-183-1	01	1	0907-			●	●
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	0710-0906			●
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	0907-			●	●
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	0710-0906			●
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	0907-			●	●
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	0905-0906			●
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	0907-			●	●
475	BEARING; 6TH	8-97377-955-1	01	1	0710-0710			●
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	0711-0906			●
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	0907-			●	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1012-					●
516	SPRING; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-98032-197-0	09	1	0710-0906			●
516	SPRING; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-98032-197-0	09	1	0907-			●	●
516	SPRING; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-98054-981-0	09	1	0710-0906			●
516	SPRING; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-98054-981-0	09	1	0907-			●	●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	0710-0906			●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	0907-1011			●	●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	1012-			●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1012-					●
517	BALL; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-97252-935-0	10	1	0710-0906			●
517	BALL; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-97252-935-0	10	1	0907-			●	●
521	BOLT M8X12 FLANGE	0-28050-812-0	01	1	0710-0906			●
521	BOLT M8X12 FLANGE	0-28050-812-0	01	1	0907-			●	●
522	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	0710-0711			●
522	BOLT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0712-0906			●
522	BOLT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0907-			●	●
571	RING; SNAP,BRG	8-97377-951-0	01	1	0710-0906			●
571	RING; SNAP,BRG	8-97377-951-0	01	1	0907-			●	●
572	GEAR; 4TH,INPUT Z=37	8-97377-697-0	01	1	0710-0906			●
572	GEAR; 4TH,INPUT Z=37	8-97377-697-0	01	1	0907-1010			●	●
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1011-			●	●
573	PUMP ASM; OIL	8-98044-683-0	01	1	0710-0906			●
573	PUMP ASM; OIL	8-98044-683-0	01	1	0907-1205			●	●
573	PUMP ASM; OIL	8-98212-241-0	01	1	1206-			●	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	0710-0906			●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	0907-			●	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	0710-0906			●
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	0907-1109			●	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1110-			●	●
578	SCREEN; OIL PUMP	8-98009-345-0	01	1	0710-0906			●
578	SCREEN; OIL PUMP	8-98009-345-0	01	1	0907-1109			●	●
578	SCREEN; OIL PUMP	8-98009-345-0	02	1	1110-			●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	06	1	0710-0906			●
579	CLAMP; HOSE ID=16	8-97329-628-0	06	1	0907-1109			●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	10	1	1110-1205			●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1206-			●	●
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	0710-0906			●
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	0907-			●	●
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	0710-0906			●
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	0907-			●	●
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	0710-0906			●
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	0907-			●	●
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	0710-0906			●
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	0907-			●	●
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	0710-0906			●
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	0907-			●	●
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	0710-0906			●
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	0907-			●	●
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	0710-0906			●
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	0907-			●	●
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	0710-0906			●
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	0907-			●	●
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	0710-0906			●
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	0907-			●	●
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	0710-0906			●
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	0907-			●	●
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	0710-0906			●
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	0907-			●	●
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	0710-0906			●
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	0907-			●	●
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	0710-0906			●
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	0907-			●	●
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	0710-0906			●
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	0907-			●	●

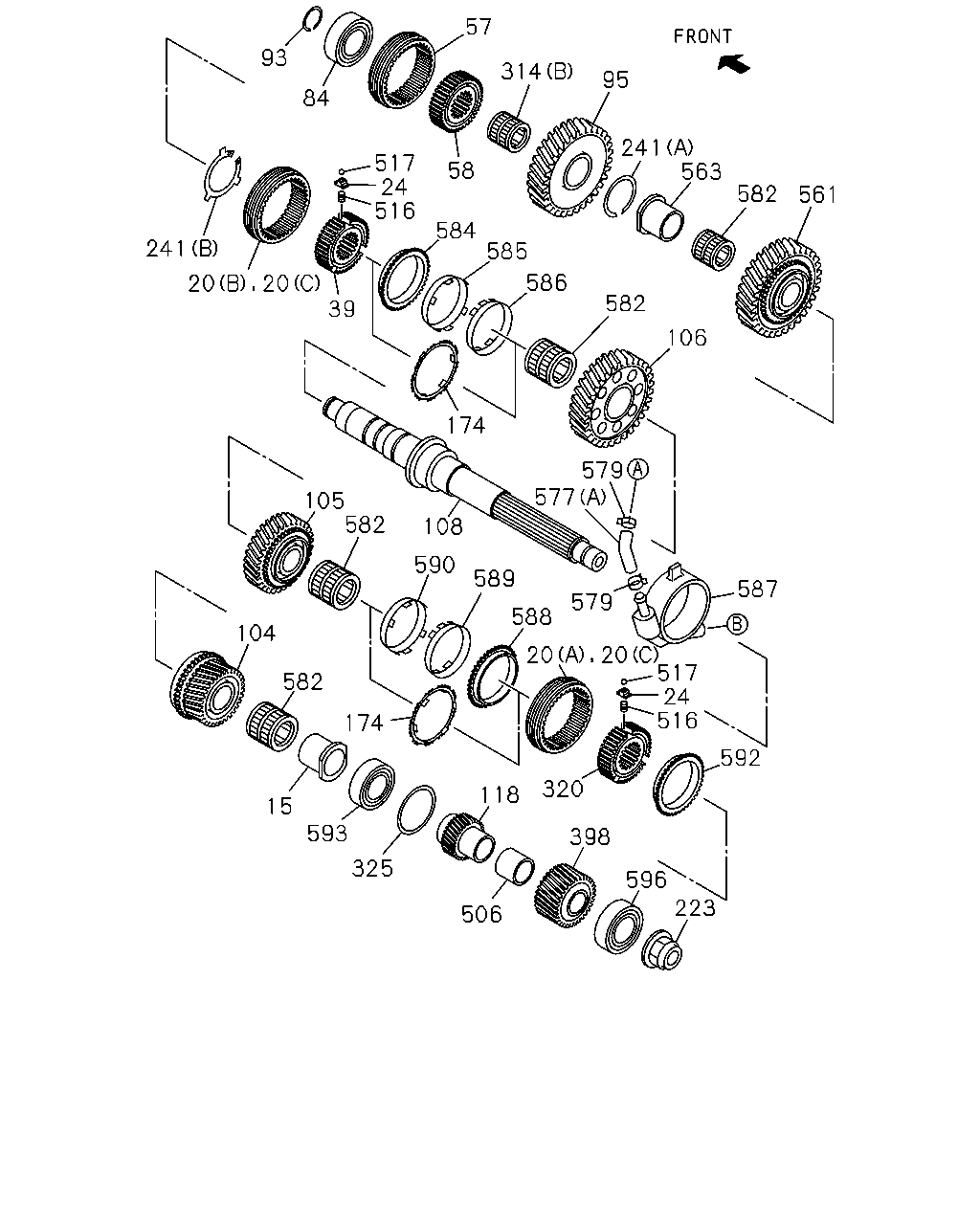

57 314 95 241 563 582 561 582 586 585 584 58 517 84 93 241 20 20 39 516 174 579 577 589 590 582 105 104 582 174 15 593 325 506 118 320 398 596 223 588 20 20 517 24 516 592 579 587 106 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0806-0808	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0809-	●	●
15	COLLAR; 4TH GEAR	8-97380-022-0	01	1	0710-0906			●
15	COLLAR; 4TH GEAR	8-97380-022-0	01	1	0907-1004			●	●
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1005-			●	●
20	SLEEVE EXC. 14" CLUTCH(WF6) (A) Z=45	8-98258-279-0	02	1	1509-			●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-					●
20	SLEEVE EXC. 14" CLUTCH(WF6) (A) Z=45	8-97241-296-1	02	1	1211-1308			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1211-1308					●
20	SLEEVE (C) Z=54	8-97241-295-2	01	1	1012-					●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0710-0906			●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0907-1011			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1012-1210			●	●	●
20	SLEEVE 14" CLUTCH(WF6) (C) Z=45	8-97241-296-1	03	1	1211-1308			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311			●	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508			●	●	●
20	SLEEVE 14" CLUTCH(WF6) (C) Z=45	8-98258-279-0	03	1	1509-			●	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0710-0906			●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0907-1210			●	●
20	SLEEVE EXC. 14" CLUTCH(WF6) (B) Z=45	8-98034-769-0	01	1	1211-1308			●	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508			●	●
20	SLEEVE EXC. 14" CLUTCH(WF6) (B) Z=45	8-98034-769-0	01	1	1509-			●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0806-0808	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0809-	●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0710-0906			●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0907-1011			●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1012-			●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0806-0808	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0809-	●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	0710-0906			●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	0907-1501			●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507			●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-			●	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	0710-0906			●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	0907-			●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0806-0808	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0809-	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0806-0808	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0809-	●	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	0710-0906			●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	0907-			●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0806-0808	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0809-	●	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-0	01	1	0710-0906			●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	0907-			●	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1012-					●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1012-					●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1012-					●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0806-0808	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0809-	●	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	0710-0906			●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	0907-			●	●
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	0710-0906			●
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	0907-			●	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0806-0808	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0809-1107	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●	●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	0710-0906			●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	0907-1010			●	●
104	GEAR; 4TH,COUNTER Z=29	8-98168-502-0	01	1	1011-1203			●	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1204-			●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0806-0808	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0809-1311	●	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●	●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	0710-0906			●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	0907-1010			●	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1011-			●	●
106	GEAR; 2ND,COUNTER Z=44	8-97376-989-0	01	1	0710-0905			●
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	0906-0906			●
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	0907-			●	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98168-526-0	01	1	1012-1308					●
108	SHAFT; COUNTER Z=46-37-27-21	8-98249-483-0	01	1	1309-					●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0806-0808	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0809-	●	●
108	SHAFT; COUNTER Z=27-42-26	8-98005-608-2	01	1	0710-0901			●
108	SHAFT; COUNTER Z=27-42-26	8-98133-783-0	01	1	0902-0906			●
108	SHAFT; COUNTER Z=27-42-26	8-98133-783-0	01	1	0907-0912			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98160-120-0	01	1	1001-1209			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1210-1501			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-			●	●
118	GEAR; 6TH,COUNTER Z=46	8-97241-245-0	01	1	1012-					●
118	GEAR; 6TH,COUNTER Z=54	1-33332-104-1	01	1	0809-		●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0806-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	0710-0906			●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	0907-			●	●
174	SYNCHRONIZER ASM; 2ND-3RD 14" CLUTCH(WF6)	8-98315-823-0	02	1	1509-			●	●
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	0710-0906			●
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	0907-			●	●
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	0710-0906			●
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	0907-			●	●
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	0710-0906			●
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	0907-			●	●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1012-					●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	0710-0906			●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	0907-			●	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	0710-0906			●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	0907-			●	●
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	0710-0906			●
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	0907-1501			●	●
320	HUB; CLU,4TH & 3RD Z=45	8-98303-649-0	01	1	1502-1507			●	●
320	HUB; CLU,4TH & 3RD Z=45	8-98309-859-0	01	1	1508-			●	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	0907-			●	●
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	0710-0906			●
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	0907-			●	●
506	COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1012-					●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	0710-0906			●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	0907-			●	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1012-					●
516	SPRING; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-98032-197-0	09	1	0710-0906			●
516	SPRING; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-98032-197-0	09	1	0907-			●	●
516	SPRING; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-98054-981-0	09	1	0710-0906			●
516	SPRING; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-98054-981-0	09	1	0907-			●	●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	0710-0906			●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	0907-1011			●	●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	1012-			●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1012-					●
517	BALL; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-97252-935-0	10	1	0710-0906			●
517	BALL; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-97252-935-0	10	1	0907-			●	●
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	0710-0906			●
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	0907-			●	●
563	COLLAR; 1ST GEAR	8-97380-022-0	01	1	0710-0906			●
563	COLLAR; 1ST GEAR	8-97380-022-0	01	1	0907-1004			●	●
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1005-			●	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	0710-0906			●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	0907-			●	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	0710-0906			●
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	0907-1109			●	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1110-			●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	06	1	0710-0906			●
579	CLAMP; HOSE ID=16	8-97329-628-0	06	1	0907-1109			●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	10	1	1110-1205			●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1206-			●	●
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	0710-0906			●
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	0907-			●	●
584	RING; BLOCK,2ND 14" CLUTCH(WF6) Z=45	8-98223-605-1	01	1	1211-1308			●	●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	0710-0906			●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	0907-1210			●	●
584	RING; BLOCK,2ND EXC. 14" CLUTCH(WF6) Z=45	8-98034-770-0	01	1	1211-1308			●	●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1309-1508			●	●
584	RING; BLOCK,2ND EXC. 14" CLUTCH(WF6) Z=45	8-98034-770-0	01	1	1509-			●	●
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	0710-0906			●
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	0907-1508			●	●
585	RING; OUTSIDE,2ND EXC. 14" CLUTCH(WF6)	8-97241-309-1	01	1	1509-			●	●
586	RING; INSIDE,2ND 14" CLUTCH(WF6)	8-98223-606-1	01	1	1211-1308			●	●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	0710-0906			●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	0907-1210			●	●
586	RING; INSIDE,2ND EXC. 14" CLUTCH(WF6)	8-97241-312-1	01	1	1211-1308			●	●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1309-1508			●	●
586	RING; INSIDE,2ND EXC. 14" CLUTCH(WF6)	8-97241-312-1	01	1	1509-			●	●
587	CASE; PUMP,COUNTER	8-97377-959-0	01	1	0710-0906			●
587	CASE; PUMP,COUNTER	8-97377-959-0	01	1	0907-1205			●	●
587	CASE; PUMP,COUNTER	8-98212-196-0	01	1	1206-1501			●	●
587	CASE; PUMP,COUNTER	8-98303-650-0	01	1	1502-			●	●
588	RING; BLOCK,3RD 14" CLUTCH(WF6) Z=45	8-98223-605-1	01	1	1210-1308			●	●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	0710-0906			●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	0907-1209			●	●
588	RING; BLOCK,3RD EXC. 14" CLUTCH(WF6) Z=45	8-97241-306-1	01	1	1210-1308			●	●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1309-1508			●	●
588	RING; BLOCK,3RD EXC. 14" CLUTCH(WF6) Z=45	8-97241-306-1	01	1	1509-			●	●
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	0710-0906			●
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	0907-1508			●	●
589	RING; OUTSIDE,3RD EXC. 14" CLUTCH(WF6)	8-97241-309-1	01	1	1509-			●	●
590	RING; INSIDE,3RD 14" CLUTCH(WF6)	8-98223-606-1	01	1	1210-1308			●	●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	0710-0906			●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	0907-1209			●	●
590	RING; INSIDE,3RD EXC. 14" CLUTCH(WF6)	8-97241-312-1	01	1	1210-1308			●	●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1309-1508			●	●
590	RING; INSIDE,3RD EXC. 14" CLUTCH(WF6)	8-97241-312-1	01	1	1509-			●	●
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	0710-0906			●
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	0907-			●	●
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	0710-0906			●
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	0907-			●	●
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	0710-0906			●
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	0907-			●	●

342 345 298 286 30 47 46 45 43 56 58 57 59 56 60 74 75 80 34 37 82 34 42 36 50 2 322 37 38 3 47 46 45 1 16 8 24 9 23 124 22 11 77 39 28 7 70 7 84 93 96 10 11 12 18 121 94 105 94 94 94 14 15 118 104 17 27 128 27 130 128 131 132 108 172 135 129 129 109 110

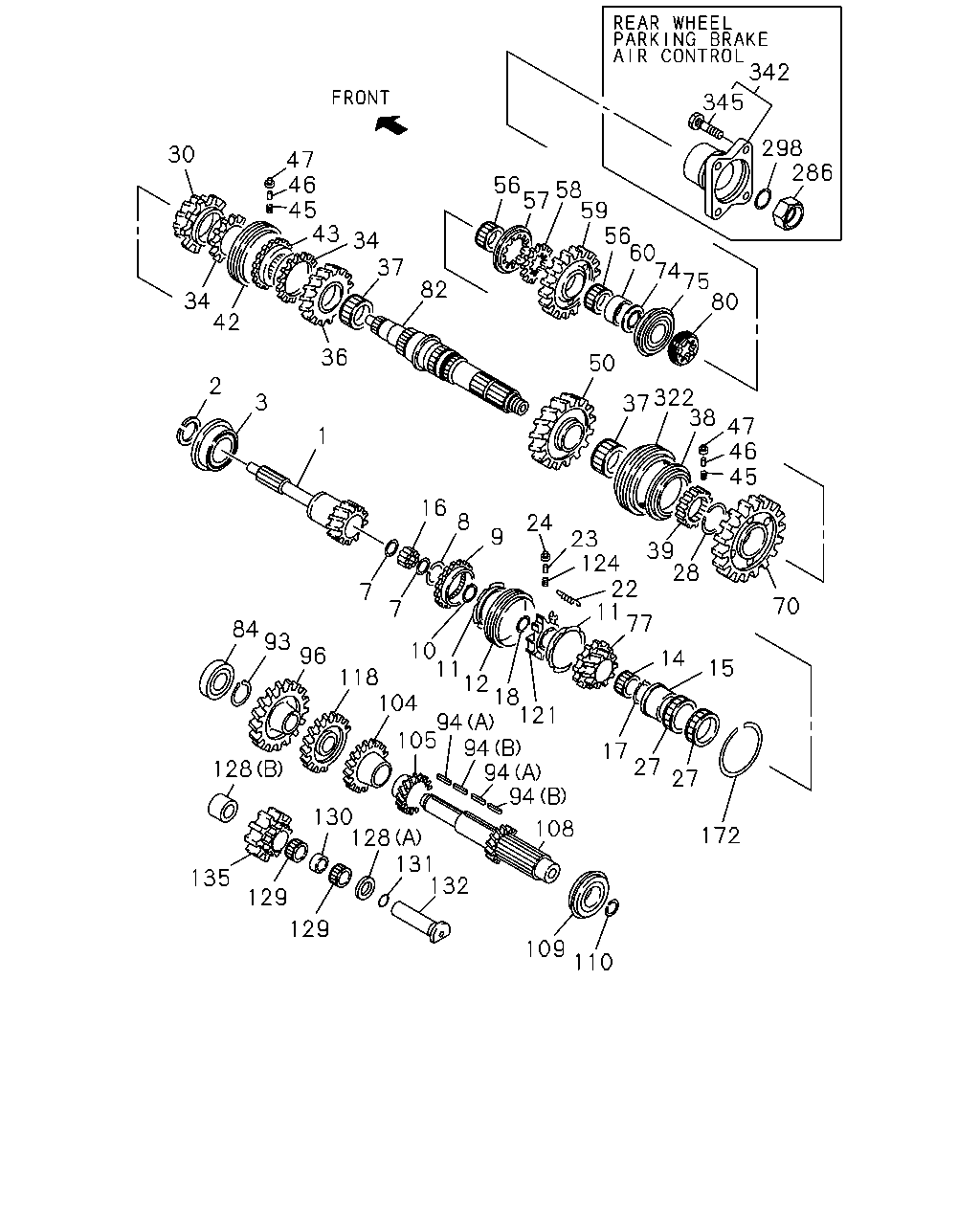

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=25	8-97371-089-0	01	1	1012-					●
1	SHAFT; TOP GEAR,TRANS Z=26	1-33211-789-0	01	1	0809-		●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	0806-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0806-0808	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0809-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0806-0808	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0809-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0806-0808	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0809-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0806-0808	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0809-	●	●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1012-					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0806-0808	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0809-	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0806-0808	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0809-	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0806-0808	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0809-	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0806-0808	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0809-	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0806-0808	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0809-	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0806-0808	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0809-	●	●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	0710-0906			●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	0907-			●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0806-0808	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0809-	●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0806-0808	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0809-	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0806-0808	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0809-	●	●
15	COLLAR; 4TH GEAR	8-97380-022-0	01	1	0710-0906			●
15	COLLAR; 4TH GEAR	8-97380-022-0	01	1	0907-1004			●	●
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1005-			●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0806-0808	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0809-	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0806-0808	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0809-	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0806-0808	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0809-	●	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0710-0906			●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0907-1011			●	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1012-			●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0806-0808	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0809-	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0806-0808	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0809-	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0806-0808	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0809-	●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0710-0906			●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0907-1011			●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1012-			●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0806-0808	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0809-	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1012-					●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0806-0808	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0809-	●	●
30	GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	1012-					●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0806-0808	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0809-1107	●	●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0806-0808	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0809-	●	●
36	GEAR; 3RD,MAINSHAFT Z=35	8-98168-524-0	01	1	1012-					●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0806-0808	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0809-	●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	0710-0906			●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	0907-1010			●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1011-			●	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0806-0808	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0809-	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0806-0808	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0809-	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0806-0808	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0809-	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0806-0808	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0809-	●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	0710-0906			●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	0907-1501			●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507			●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-			●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0806-0808	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0809-	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0806-0808	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0809-	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0806-0808	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0809-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0806-0808	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0809-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0806-0808	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0809-	●	●
50	GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1012-					●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0806-0808	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0809-	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0806-0808	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0809-	●	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	0710-0906			●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	0907-			●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0806-0808	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0809-	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0806-0808	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0809-	●	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	0710-0906			●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	0907-			●	●
59	GEAR; REV MAINSHAFT Z=45	8-97254-182-0	01	1	1012-					●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0806-0808	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0809-	●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0806-0808	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0809-	●	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97254-889-0	01	1	1012-					●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0806-0808	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0809-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0806-0808	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0809-	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0806-0808	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0809-	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0806-0808	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0809-	●	●
77	GEAR; 6TH,MAINSHAFT Z=18	8-97241-264-0	01	1	1012-					●
77	GEAR; 6TH,MAINSHAFT Z=26	1-33253-518-0	01	1	0809-		●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0806-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	0710-0906			●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	0907-1203			●	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1204-			●	●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1012-					●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0806-0808	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0809-	●	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-0	01	1	0710-0906			●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	0907-			●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0806-0808	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0809-	●	●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=19-26	8-98049-375-2	01	1	0710-0905			●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=13-21-19-26	8-98140-880-0	01	1	0906-0906			●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=13-21-19-26	8-98140-880-0	01	1	0907-1308			●	●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=13-21-19-26	8-98245-057-0	01	1	1309-			●	●
82	SHAFT; MAIN,TRANS EXC. 14" CLUTCH(WF6) Z=19-26-14	8-98049-376-1	01	1	0710-0905			●
82	SHAFT; MAIN,TRANS EXC. 14" CLUTCH(WF6) Z=14-13-21-19-26	8-98140-881-0	01	1	0906-0906			●
82	SHAFT; MAIN,TRANS EXC. 14" CLUTCH(WF6) Z=14-13-21-19-26	8-98140-881-0	01	1	0907-1308			●	●
82	SHAFT; MAIN,TRANS EXC. 14" CLUTCH(WF6) Z=14-13-21-19-26	8-98245-058-0	01	1	1309-			●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0806-0808	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0809-	●	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-0	01	1	0710-0906			●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	0907-			●	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1012-					●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1012-					●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1012-					●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0806-0808	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0809-	●	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	0710-0906			●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	0907-			●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0806-0808	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0809-	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0806-0808	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0809-	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-216-1	01	1	0809-		●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0806-	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0806-0808	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0809-1107	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●	●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	0710-0906			●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	0907-1010			●	●
104	GEAR; 4TH,COUNTER Z=29	8-98168-502-0	01	1	1011-1203			●	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1204-			●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0806-0808	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0809-1311	●	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●	●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	0710-0906			●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	0907-1010			●	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1011-			●	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98168-526-0	01	1	1012-1308					●
108	SHAFT; COUNTER Z=46-37-27-21	8-98249-483-0	01	1	1309-					●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0806-0808	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0809-	●	●
108	SHAFT; COUNTER Z=27-42-26	8-98005-608-2	01	1	0710-0901			●
108	SHAFT; COUNTER Z=27-42-26	8-98133-783-0	01	1	0902-0906			●
108	SHAFT; COUNTER Z=27-42-26	8-98133-783-0	01	1	0907-0912			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98160-120-0	01	1	1001-1209			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1210-1501			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-			●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0806-0808	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0809-	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0806-0808	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0809-	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0806-0808	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0809-	●	●
118	GEAR; 6TH,COUNTER Z=46	8-97241-245-0	01	1	1012-					●
118	GEAR; 6TH,COUNTER Z=54	1-33332-104-1	01	1	0809-		●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0806-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	0710-0906			●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	0907-			●	●
121	HUB; CLU,6TH	8-97241-301-2	01	1	1012-					●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0806-0808	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0809-	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0806-0808	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0809-	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=42	1-33239-079-1	01	1	0806-0808	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=42	1-33239-079-1	01	1	0809-	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=2	1-33363-024-1	01	1	0806-0808	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=2	1-33363-024-1	01	1	0809-	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0806-0808	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0809-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0806-0808	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0809-	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0806-0808	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0809-	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0806-0808	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0809-	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-0906			●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	0907-			●	●
132	SHAFT; REV	8-97252-655-0	01	1	1012-					●
132	SHAFT; REV	1-33351-017-0	01	1	0806-0808	●
132	SHAFT; REV	1-33351-017-0	01	1	0809-	●	●
132	SHAFT; REV	8-98009-372-0	01	1	0710-0906			●
132	SHAFT; REV	8-98009-372-0	01	1	0907-			●	●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1012-					●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0806-0808	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0809-	●	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	0710-0906			●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	0907-			●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0806-0808	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0809-	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0806-0808	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0809-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1012-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0710-0805			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	0806-0808			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0806-0808	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	0809-0906			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0809-0906	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	0907-			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0907-	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0806-0808	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0809-	●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-307-0	01	1	0806-0808	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-307-1	01	1	0809-	●	●
342	FLANGE; OUTPUT	8-98044-770-0	01	1	0710-0711			●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-770-0	01	1	0712-0906			●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-770-0	01	1	0907-0912			●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98155-334-0	01	1	1001-			●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0806-0808	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0809-	●	●

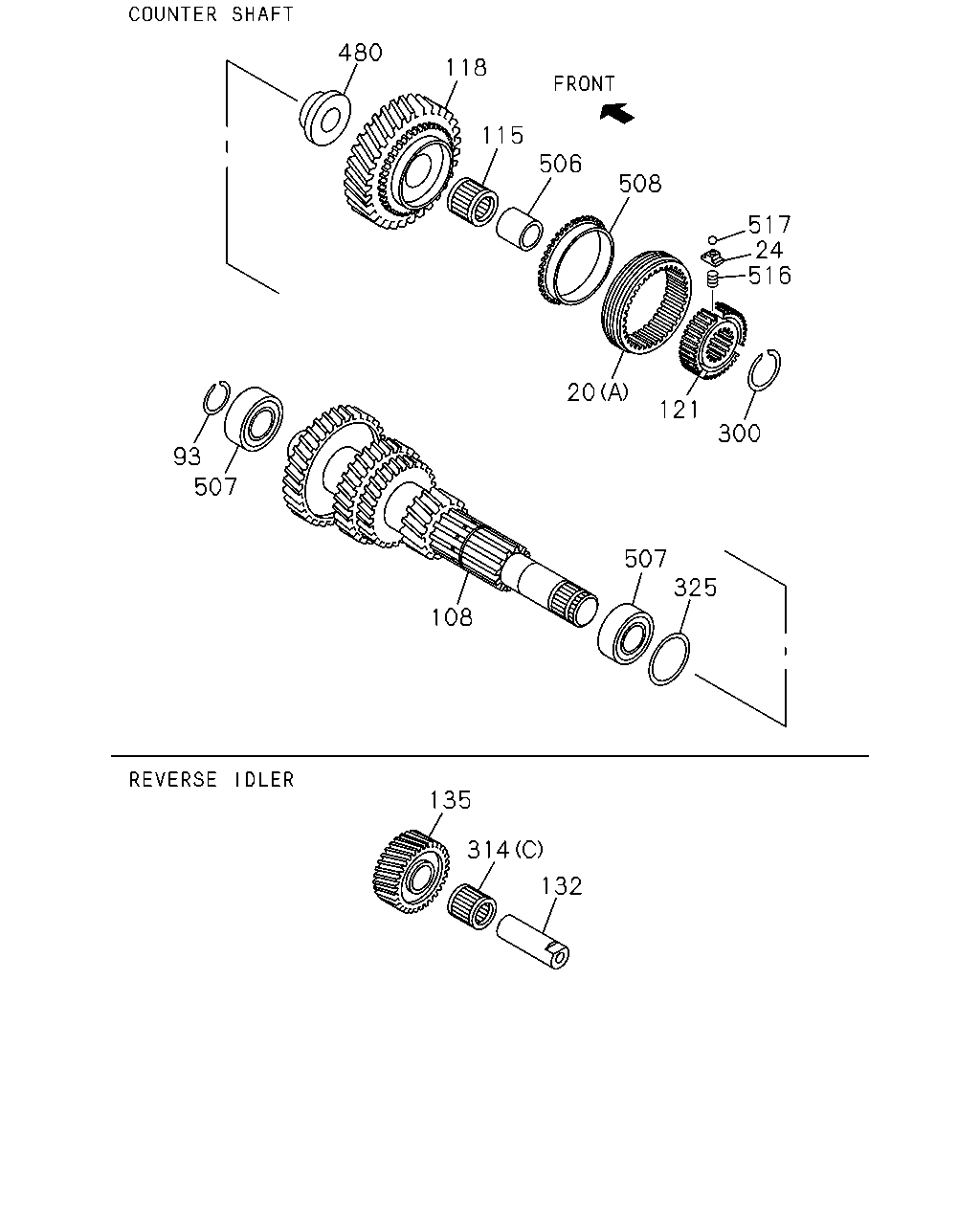

480 118 115 506 508 517 24 516 20 121 300 93 507 507 325 108 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
20	SLEEVE EXC. 14" CLUTCH(WF6) (A) Z=45	8-98258-279-0	02	1	1509-			●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-					●
20	SLEEVE EXC. 14" CLUTCH(WF6) (A) Z=45	8-97241-296-1	02	1	1211-1308			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1211-1308					●
20	SLEEVE (C) Z=54	8-97241-295-2	01	1	1012-					●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0710-0906			●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0907-1011			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1012-1210			●	●	●
20	SLEEVE 14" CLUTCH(WF6) (C) Z=45	8-97241-296-1	03	1	1211-1308			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311			●	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508			●	●	●
20	SLEEVE 14" CLUTCH(WF6) (C) Z=45	8-98258-279-0	03	1	1509-			●	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0710-0906			●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0907-1210			●	●
20	SLEEVE EXC. 14" CLUTCH(WF6) (B) Z=45	8-98034-769-0	01	1	1211-1308			●	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508			●	●
20	SLEEVE EXC. 14" CLUTCH(WF6) (B) Z=45	8-98034-769-0	01	1	1509-			●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0806-0808	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0809-	●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0710-0906			●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0907-1011			●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1012-			●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1012-					●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1012-					●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1012-					●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0806-0808	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0809-	●	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	0710-0906			●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	0907-			●	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98168-526-0	01	1	1012-1308					●
108	SHAFT; COUNTER Z=46-37-27-21	8-98249-483-0	01	1	1309-					●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0806-0808	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0809-	●	●
108	SHAFT; COUNTER Z=27-42-26	8-98005-608-2	01	1	0710-0901			●
108	SHAFT; COUNTER Z=27-42-26	8-98133-783-0	01	1	0902-0906			●
108	SHAFT; COUNTER Z=27-42-26	8-98133-783-0	01	1	0907-0912			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98160-120-0	01	1	1001-1209			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1210-1501			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-			●	●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-					●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1012-					●
118	GEAR; 6TH,COUNTER Z=46	8-97241-245-0	01	1	1012-					●
118	GEAR; 6TH,COUNTER Z=54	1-33332-104-1	01	1	0809-		●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0806-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	0710-0906			●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	0907-			●	●
121	HUB; CLU,6TH	8-97241-301-2	01	1	1012-					●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0806-0808	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0809-	●	●
132	SHAFT; REV	8-97252-655-0	01	1	1012-					●
132	SHAFT; REV	1-33351-017-0	01	1	0806-0808	●
132	SHAFT; REV	1-33351-017-0	01	1	0809-	●	●
132	SHAFT; REV	8-98009-372-0	01	1	0710-0906			●
132	SHAFT; REV	8-98009-372-0	01	1	0907-			●	●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1012-					●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0806-0808	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0809-	●	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	0710-0906			●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	0907-			●	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	1012-					●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	1012-					●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	1012-					●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	1012-					●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1012-					●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	0710-0906			●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	0907-			●	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	0710-0906			●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1012-					●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	0907-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	0710-0906			●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	0907-			●	●
480	WASHER; THRUST,6TH	8-97253-122-1	01	1	1012-					●
506	COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1012-					●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	0710-0906			●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	0907-			●	●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1012-					●
508	RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	1012-					●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1012-					●
516	SPRING; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-98032-197-0	09	1	0710-0906			●
516	SPRING; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-98032-197-0	09	1	0907-			●	●
516	SPRING; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-98054-981-0	09	1	0710-0906			●
516	SPRING; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-98054-981-0	09	1	0907-			●	●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	0710-0906			●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	0907-1011			●	●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	1012-			●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1012-					●
517	BALL; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-97252-935-0	10	1	0710-0906			●
517	BALL; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-97252-935-0	10	1	0907-			●	●

59 396 505 288 393 335 77 80 298 260 518 396 501 70 500 68 41 67 20 517 24 516 41 396 18 500 501 19 20 517 24 516 21 50 515 396 19 30 432 28 505 396 36 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=25	8-97371-089-0	01	1	1012-					●
1	SHAFT; TOP GEAR,TRANS Z=26	1-33211-789-0	01	1	0809-		●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	0806-	●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1012-					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0806-0808	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0809-	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0806-0808	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0809-	●	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0710-0906			●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0907-1011			●	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1012-			●	●	●
19	RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	1012-					●
20	SLEEVE EXC. 14" CLUTCH(WF6) (A) Z=45	8-98258-279-0	02	1	1509-			●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-					●
20	SLEEVE EXC. 14" CLUTCH(WF6) (A) Z=45	8-97241-296-1	02	1	1211-1308			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1211-1308					●
20	SLEEVE (C) Z=54	8-97241-295-2	01	1	1012-					●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0710-0906			●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0907-1011			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1012-1210			●	●	●
20	SLEEVE 14" CLUTCH(WF6) (C) Z=45	8-97241-296-1	03	1	1211-1308			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311			●	●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508			●	●	●
20	SLEEVE 14" CLUTCH(WF6) (C) Z=45	8-98258-279-0	03	1	1509-			●	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0710-0906			●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0907-1210			●	●
20	SLEEVE EXC. 14" CLUTCH(WF6) (B) Z=45	8-98034-769-0	01	1	1211-1308			●	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508			●	●
20	SLEEVE EXC. 14" CLUTCH(WF6) (B) Z=45	8-98034-769-0	01	1	1509-			●	●
21	HUB; CLU,4TH & 5TH	8-97241-299-3	01	1	1012-					●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0806-0808	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0809-	●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0710-0906			●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0907-1011			●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1012-			●	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1012-					●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0806-0808	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0809-	●	●
30	GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	1012-					●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0806-0808	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0809-1107	●	●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-	●	●
36	GEAR; 3RD,MAINSHAFT Z=35	8-98168-524-0	01	1	1012-					●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0806-0808	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0809-	●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	0710-0906			●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	0907-1010			●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1011-			●	●
41	RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1012-					●
50	GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1012-					●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0806-0808	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0809-	●	●
59	GEAR; REV MAINSHAFT Z=45	8-97254-182-0	01	1	1012-					●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0806-0808	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0809-	●	●
67	HUB; CLU,1ST TO REV	8-97255-184-1	01	1	1012-					●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	1012-					●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97254-889-0	01	1	1012-					●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0806-0808	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0809-	●	●
77	GEAR; 6TH,MAINSHAFT Z=18	8-97241-264-0	01	1	1012-					●
77	GEAR; 6TH,MAINSHAFT Z=26	1-33253-518-0	01	1	0809-		●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0806-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	0710-0906			●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	0907-1203			●	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1204-			●	●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1012-					●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0806-0808	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0809-	●	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-0	01	1	0710-0906			●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	0907-			●	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1012-					●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	0710-0906			●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	0907-			●	●
266	RING; SNAP,BRG INNER	8-97286-915-0	01	1	1012-					●
273	RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1012-					●
288	SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1012-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1012-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0710-0805			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	0806-0808			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0806-0808	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	0809-0906			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0809-0906	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	0907-			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0907-	●	●
335	RING; SNAP,BEARING	8-97254-720-0	01	1	1012-					●
393	BEARING; MAINSHAFT END	8-97253-104-0	01	1	1012-					●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	1012-					●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1012-					●
432	BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	1012-					●
500	RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1012-					●
501	RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1012-					●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1012-					●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1012-					●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1012-					●
516	SPRING; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-98032-197-0	09	1	0710-0906			●
516	SPRING; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-98032-197-0	09	1	0907-			●	●
516	SPRING; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-98054-981-0	09	1	0710-0906			●
516	SPRING; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-98054-981-0	09	1	0907-			●	●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	0710-0906			●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	0907-1011			●	●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	1012-			●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1012-					●
517	BALL; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-97252-935-0	10	1	0710-0906			●
517	BALL; SYNCHRO,INDEX EXC. 14" CLUTCH(WF6)	8-97252-935-0	10	1	0907-			●	●
518	SHAFT; MAIN,5TH & 6TH SPEED Z=26-42-23	8-97253-115-3	01	1	1012-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
