◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11102 - FRR RHD EURO2/4 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#39852) — 131 parça

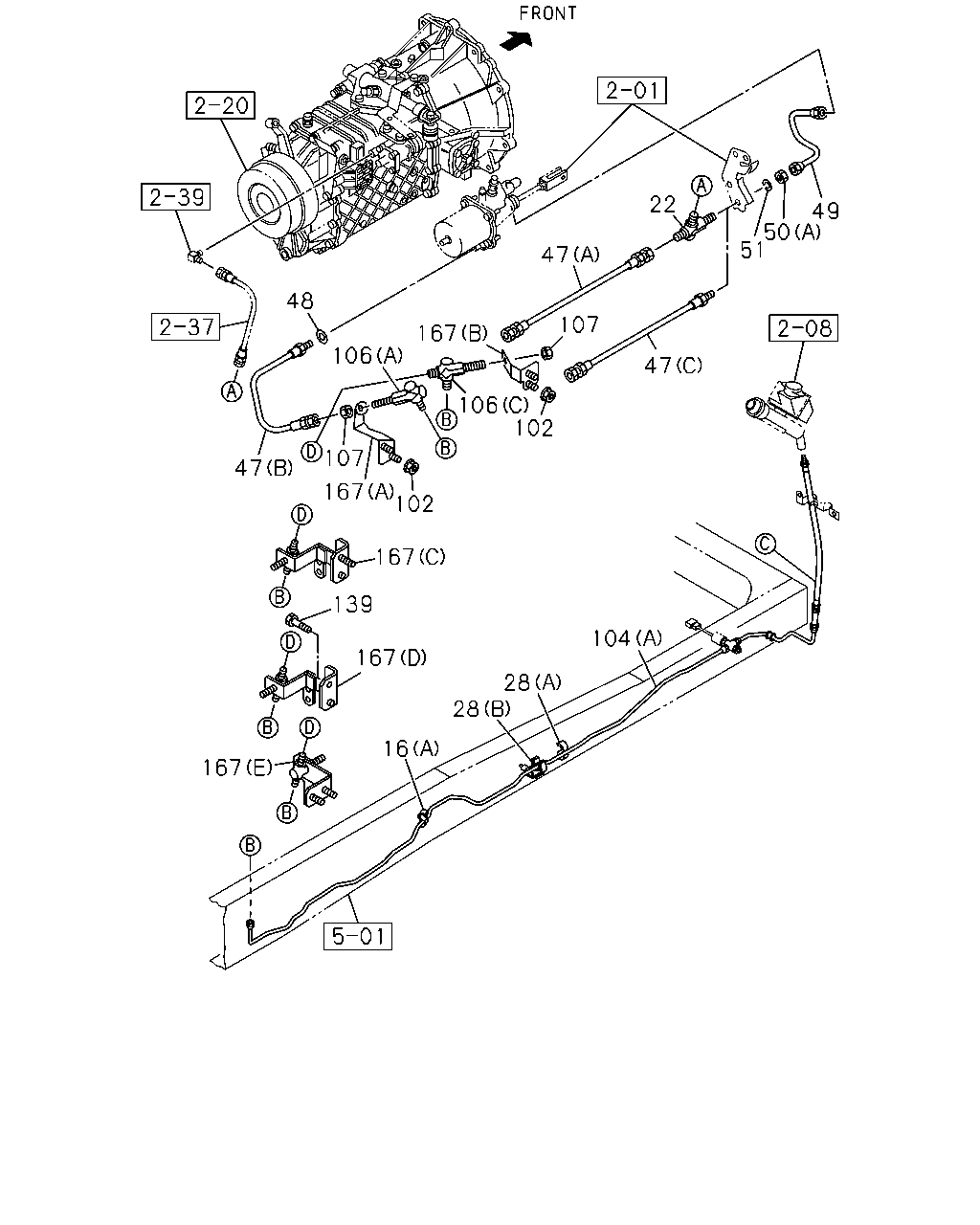

çizim 178303
22 49 50 51 47 48 107 167 106 47 106 102 107 47 167 102 167 139 104 167 28 28 16 167
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 02 1 0902- ● ●
16 CLIP; FLEX HOSE
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 H=45 L=25 		1-09700-866-0 01 1 0806-0808 ● ●
16 CLIP; FLEX HOSE
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 H=45 L=25 		1-09700-866-0 01 1 0809- ● ●
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0710-0901 ● ●
16 CLIP; FLEX HOSE
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0902-0906 ● ●
16 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0907-1011 ● ●
16 CLIP; FLEX HOSE
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1012- ● ●
22 UNION; CLU PIPE
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0710- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=6.35 		1-09701-247-1 01 1 0710- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 0710- ● ●
47 HOSE; FLEX,CLU CONT
4HK1-TCC ENG(RDV) MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=720 		1-09363-970-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCC ENG(RDV) MZZ6W M/T(RSA) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=440 		8-98072-346-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=720 		1-09363-801-0 01 1 1012- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=550 		8-98122-509-0 01 1 0806-0808 ● ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=550 		8-98122-509-0 01 1 0809- ● ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=600 		1-09363-639-0 01 1 0806-0808 ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J),MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=600 		1-09363-639-0 01 1 0809- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98122-510-0 01 1 0806-0808 ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J),MLD6S M/T(X7W) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98122-510-0 01 1 0809- ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=740 		1-09363-674-0 01 1 0712-0906 ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6SM/T(X7W) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=740 		1-09363-674-0 01 1 0907- ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=700 		1-09363-718-0 01 1 0712-0906 ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=700 		1-09363-718-0 01 1 0907- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=390 		8-98080-980-0 01 1 0710-0906 ● ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=390 		8-98080-980-0 01 1 0907- ● ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 0710-0711 ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 0712-0805 ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 0806-0808 ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 0809-0906 ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6SM/T(X7W) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660 		1-09363-971-0 01 1 0907- ● ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=620 		1-09363-705-0 01 1 0710-0711 ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=620 		1-09363-705-0 01 1 0712-0712 ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=620 		1-09363-705-0 01 1 0712-0906 ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=620 		1-09363-705-0 01 1 0907- ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0710- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> L=207 		1-49124-782-0 01 1 1012- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
4HK1-TCS ENG(RJS) 14" CLUTCH(WF6) L=204 		1-49117-400-0 01 1 0710-0906 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
4HK1-TCS ENG(RJS) 14" CLUTCH(WF6) L=204 		1-49117-400-0 01 1 0907- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0710-1006 ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1007-1009 ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0710-0712 ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0710-0712 ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801- ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0801- ● ●
51 WASHER; LK
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0710-0712 ● ●
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 0801- ● ●
51 WASHER; LK
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0801- ● ●
102 NUT; FLEX HOSE,CLU CONT
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 01 1 0806-0808 ● ●
102 NUT; FLEX HOSE,CLU CONT
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 01 1 0809-0809 ● ●
102 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0710-0803 ● ●
102 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0804-0805 ● ●
102 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0806-0906 ● ●
102 NUT; FLEX HOSE,CLU CONT
MLD6Q M/T(X5J),MLD6S M/T(X7W) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0806-0906 ●
102 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0907-1011 ● ●
102 NUT; FLEX HOSE,CLU CONT
MLD6Q M/T(X5J),MLD6S M/T(X7W) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0907-1011 ●
102 NUT; FLEX HOSE,CLU CONT
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 1012- ● ●
102 NUT; FLEX HOSE,CLU CONT
MLD6Q M/T(X5J),MLD6S M/T(X7W) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 1012- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCC ENG(RDV) MZZ6W M/T(RSA) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2683 		8-98162-742-1 01 1 1012- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2214 		8-98115-607-1 01 1 0806-0808 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2214 		8-98115-607-1 01 1 0809- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2217 		8-98121-698-0 01 1 0806-0808 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6Q M/T(X5J),MLD6S M/T(X7W) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2217 		8-98121-698-0 01 1 0809- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 0710- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0710-0803 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0804-0906 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0907- ● ●
106 UNION; OIL PIPE
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M12 2WAY 		1-09654-059-2 01 1 1012- ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0710-0803 ● ●
106 UNION; OIL PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0804-0906 ● ●
106 UNION; OIL PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0907- ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0710-0910 ● ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911- ● ●
107 NUT; UNION,OIL PIPE
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 1012- ●
107 NUT; UNION,OIL PIPE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 0806-0806 ● ●
107 NUT; UNION,OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 0710-0803 ● ●
107 NUT; UNION,OIL PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 0804-0906 ● ●
107 NUT; UNION,OIL PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 0907- ● ●
139 BOLT; BRKT
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X30 FLANGE 		0-28051-030-0 01 1 0810- ● ●
167 BRACKET; UNION
4HK1-TCC ENG(RDV) MZZ6W M/T(RSA) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98086-811-1 01 1 1012- ●
167 BRACKET; UNION
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98128-622-0 01 1 0807-0808 ● ●
167 BRACKET; UNION
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98128-622-0 01 1 0809-0809 ● ●
167 BRACKET; UNION
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98132-086-0 01 1 0810- ● ●
167 BRACKET; UNION
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98128-623-0 01 1 0807-0808 ●
167 BRACKET; UNION
MLD6Q M/T(X5J),MLD6S M/T(X7W) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98128-623-0 01 1 0809- ●
167 BRACKET; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98078-147-0 01 1 0710-0803 ● ●
167 BRACKET; UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98078-147-0 01 1 0804-0906 ● ●
167 BRACKET; UNION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98078-147-0 01 1 0907- ● ●
167 BRACKET; UNION
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98122-491-0 01 1 0806-0806 ● ●
167 BRACKET; UNION
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98122-649-0 01 1 0806-0806 ●
çizim 178471
16 28 48 101 28 50 180 106 184 239 207 16 104 23 104 50
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 02 1 0902- ● ●
16 CLIP; FLEX HOSE
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 H=45 L=25 		1-09700-866-0 01 1 0806-0808 ● ●
16 CLIP; FLEX HOSE
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 H=45 L=25 		1-09700-866-0 01 1 0809- ● ●
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0710-0901 ● ●
16 CLIP; FLEX HOSE
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0902-0906 ● ●
16 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 0907-1011 ● ●
16 CLIP; FLEX HOSE
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1012- ● ●
23 GROMMET; CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0710- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=6.35 		1-09701-247-1 01 1 0710- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 0710- ● ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0710- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 0710-1006 ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1007-1009 ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0710-0712 ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0710-0712 ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 0801- ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 0801- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=440 		8-98072-346-0 01 1 0710- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCC ENG(RDV) MZZ6W M/T(RSA) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2683 		8-98162-742-1 01 1 1012- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2214 		8-98115-607-1 01 1 0806-0808 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2214 		8-98115-607-1 01 1 0809- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2217 		8-98121-698-0 01 1 0806-0808 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6Q M/T(X5J),MLD6S M/T(X7W) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2217 		8-98121-698-0 01 1 0809- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 0710- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0710-0803 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0804-0906 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 0907- ● ●
106 UNION; OIL PIPE
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M12 2WAY 		1-09654-059-2 01 1 1012- ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0710-0803 ● ●
106 UNION; OIL PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0804-0906 ● ●
106 UNION; OIL PIPE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 0907- ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0710-0910 ● ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 0911- ● ●
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09204-510-0 01 1 0710-0910 ● ●
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 0911- ● ●
207 BOLT; CLIP
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 01 1 0806-0808 ● ●
207 BOLT; CLIP
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 01 1 0809- ● ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
