Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#39850) — 598 parça

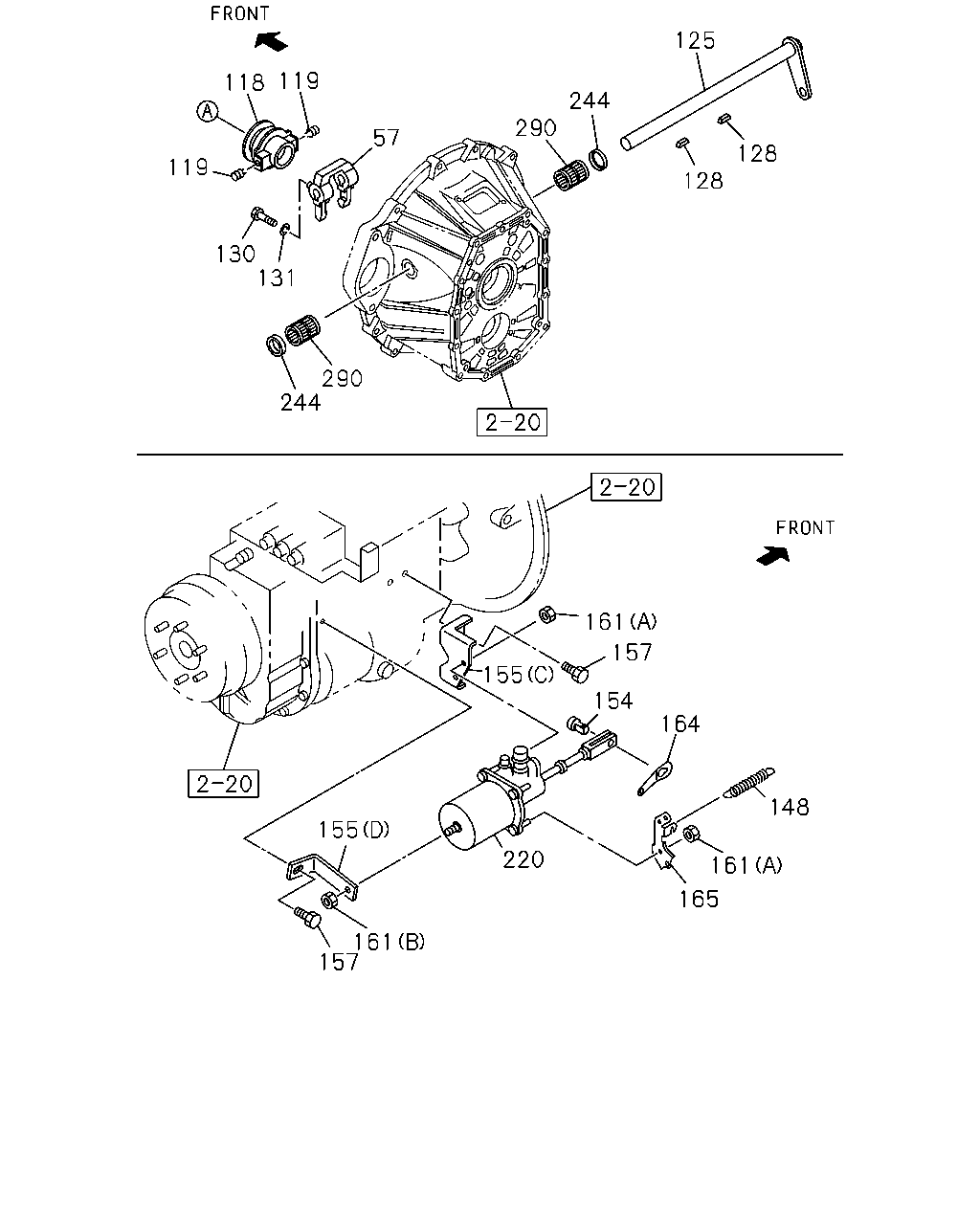

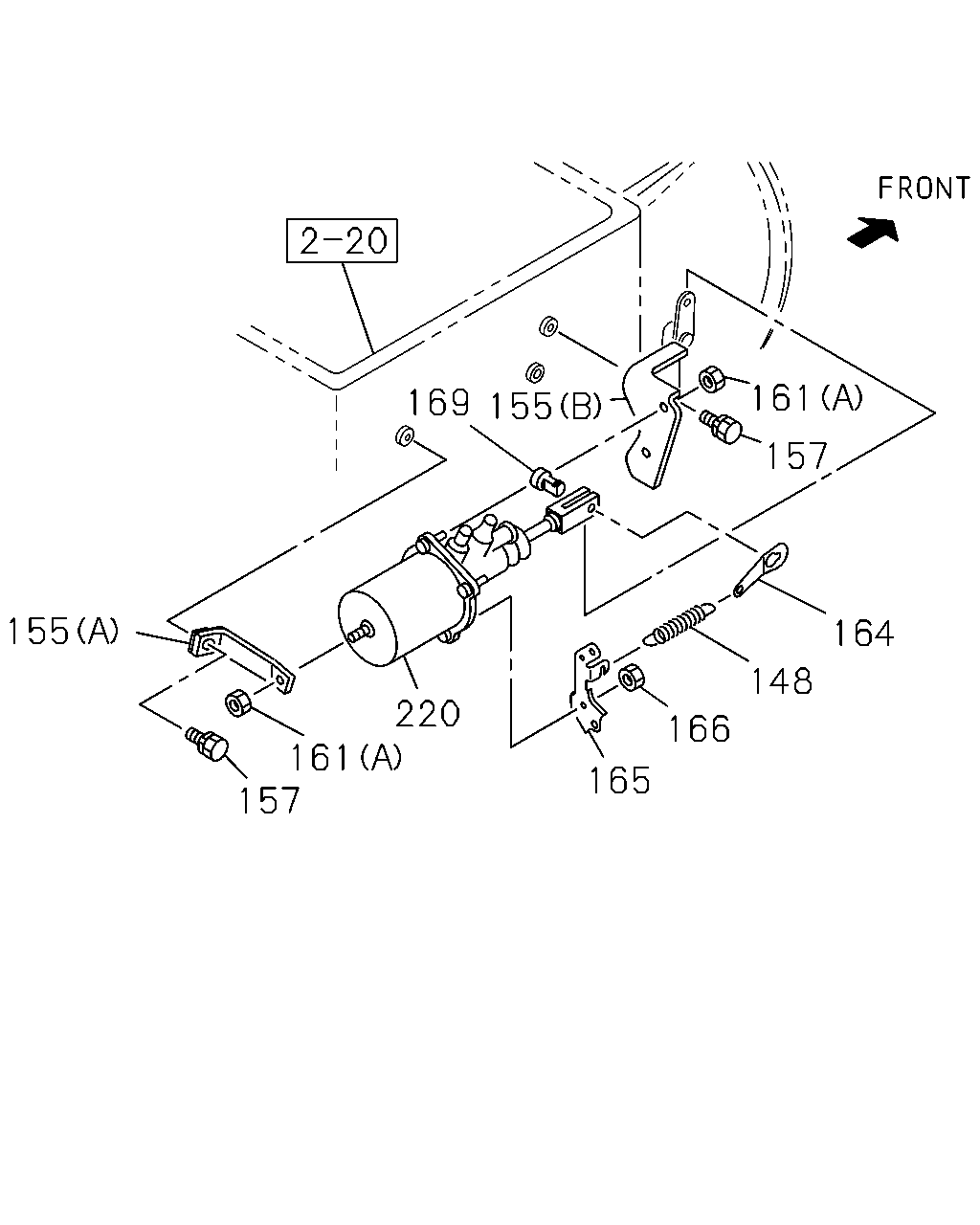

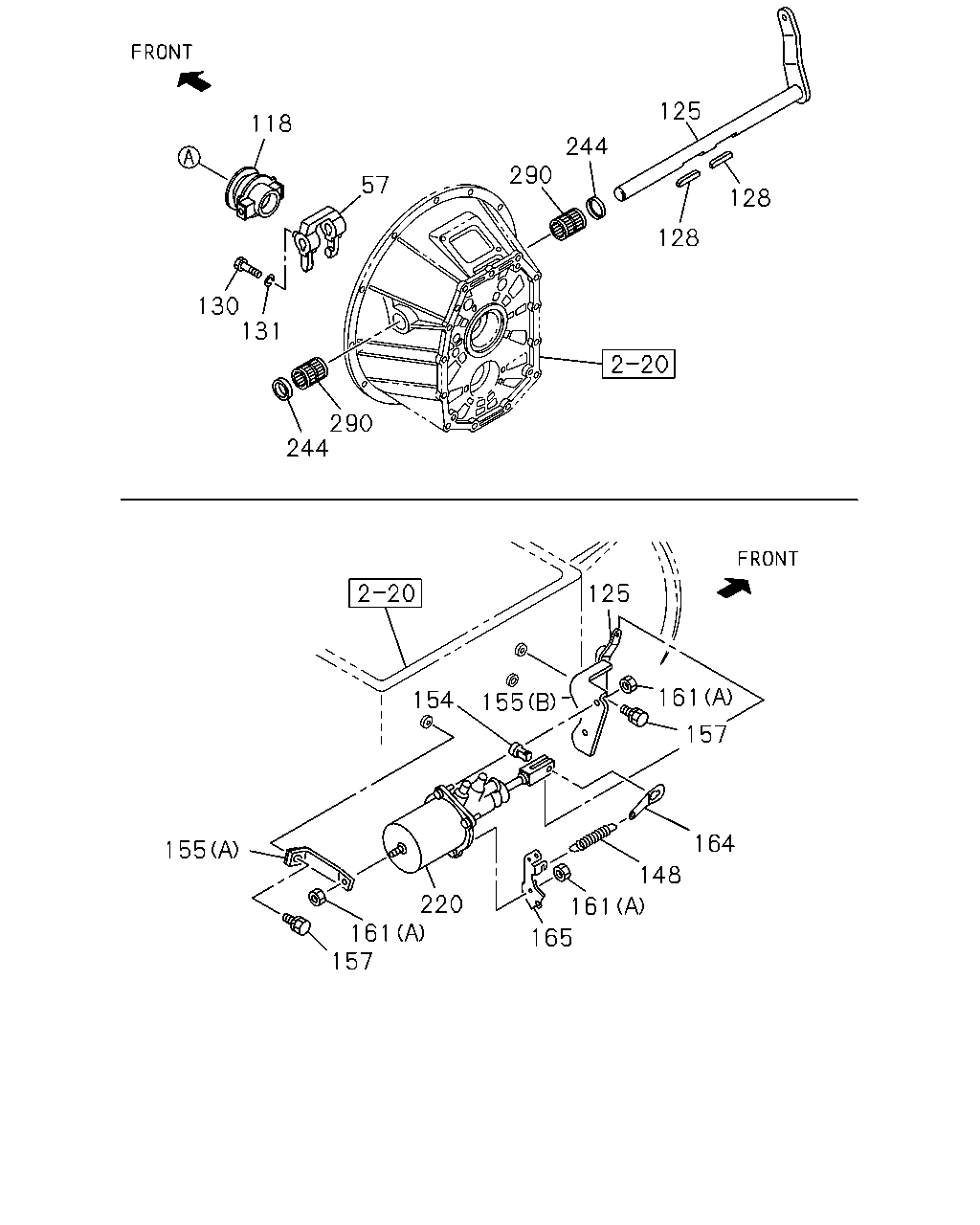

155 161 169 157 155 164 148 220 166 161 157 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
148	SPRING; CLU RETURN L=206.4	1-09583-291-1	01	1	1012-	●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0710-0805		●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0806-0808		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0806-0808			●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0809-0906		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0809-0906			●	●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0907-		●			●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0907-			●	●
155	BRACKET; MINIPACK (C)	1-31429-464-0	01	1	1012-	●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (B)	1-31429-512-0	01	1	0806-0808			●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (B)	1-31429-512-0	01	1	0809-			●	●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-31429-514-0	01	1	0806-0808			●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-31429-514-0	01	1	0809-			●	●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-515-0	01	1	0806-0808			●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-515-0	01	1	0809-			●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0710-0805		●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0806-0808		●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-474-1	01	1	0806-0808			●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0809-0906		●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-474-1	01	1	0809-0906			●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0907-		●			●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-474-1	01	1	0907-			●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (B)	1-31429-477-0	01	1	0710-0906		●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (B)	1-31429-477-0	01	1	0907-		●			●
155	BRACKET; MINIPACK (D)	1-31429-465-1	01	1	1012-	●
157	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	1012-	●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0710-0805		●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0806-0808		●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0806-0808			●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0809-0906		●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0809-0906			●	●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0907-		●			●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0907-			●	●
157	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	01	1	1012-	●
161	NUT; BRKT (A) M8 FLANGE	0-91180-208-0	04	1	1012-	●
161	NUT; BRKT (A) M8 FLANGE	0-91180-208-0	03	1	0806-0808			●
161	NUT; BRKT (A) M8 FLANGE	0-91180-208-0	03	1	0809-			●	●
161	NUT; BRKT 14" CLUTCH(WF6) (A) M8 FLANGE	0-91180-208-0	05	1	0710-0906		●
161	NUT; BRKT 14" CLUTCH(WF6) (A) M8 FLANGE	0-91180-208-0	05	1	0907-		●			●
161	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1012-	●
164	EYE; SPRING	1-31426-019-1	01	1	1012-	●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0710-0805		●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0806-0808		●
164	EYE; SPRING	1-31426-041-0	01	1	0806-0808			●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0809-0906		●
164	EYE; SPRING	1-31426-041-0	01	1	0809-0906			●	●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0907-		●			●
164	EYE; SPRING	1-31426-041-0	01	1	0907-			●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47471-291-0	01	1	1012-	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0710-0805		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0806-0808		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0806-0808			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0809-0906		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0809-0906			●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0907-		●			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0907-			●	●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0806-0808			●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0809-			●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0806-0808			●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0809-			●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. ASSISTOR SHIFT CONTROL<WX8>	1-31800-512-3	01	1	1012-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98177-654-1	01	1	1012-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-525-0	01	1	0806-0808			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-525-1	01	1	0809-			●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-510-1	01	1	0710-0906		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-510-2	01	1	0907-		●			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	0907-1011			●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	1012-	●		●	●

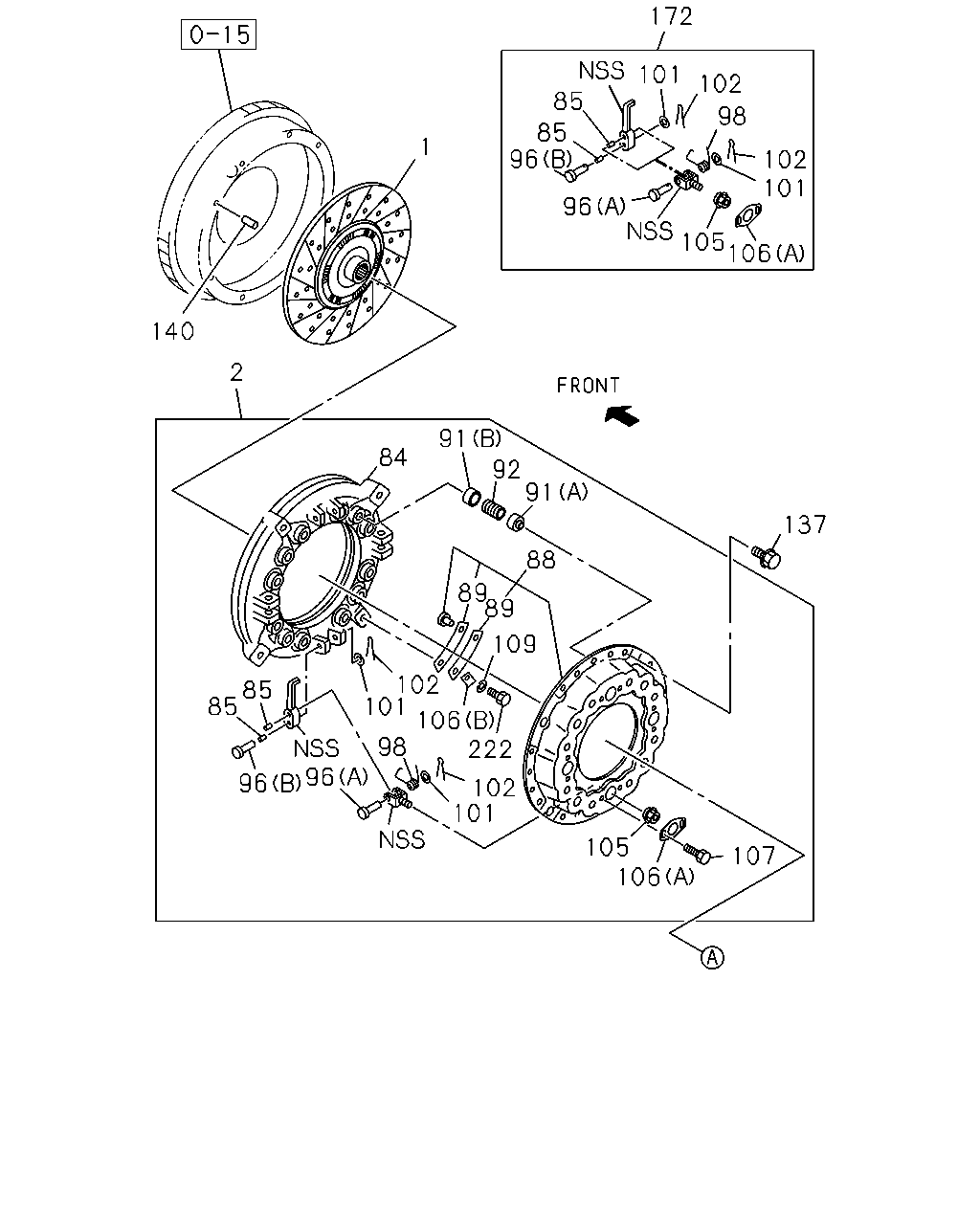

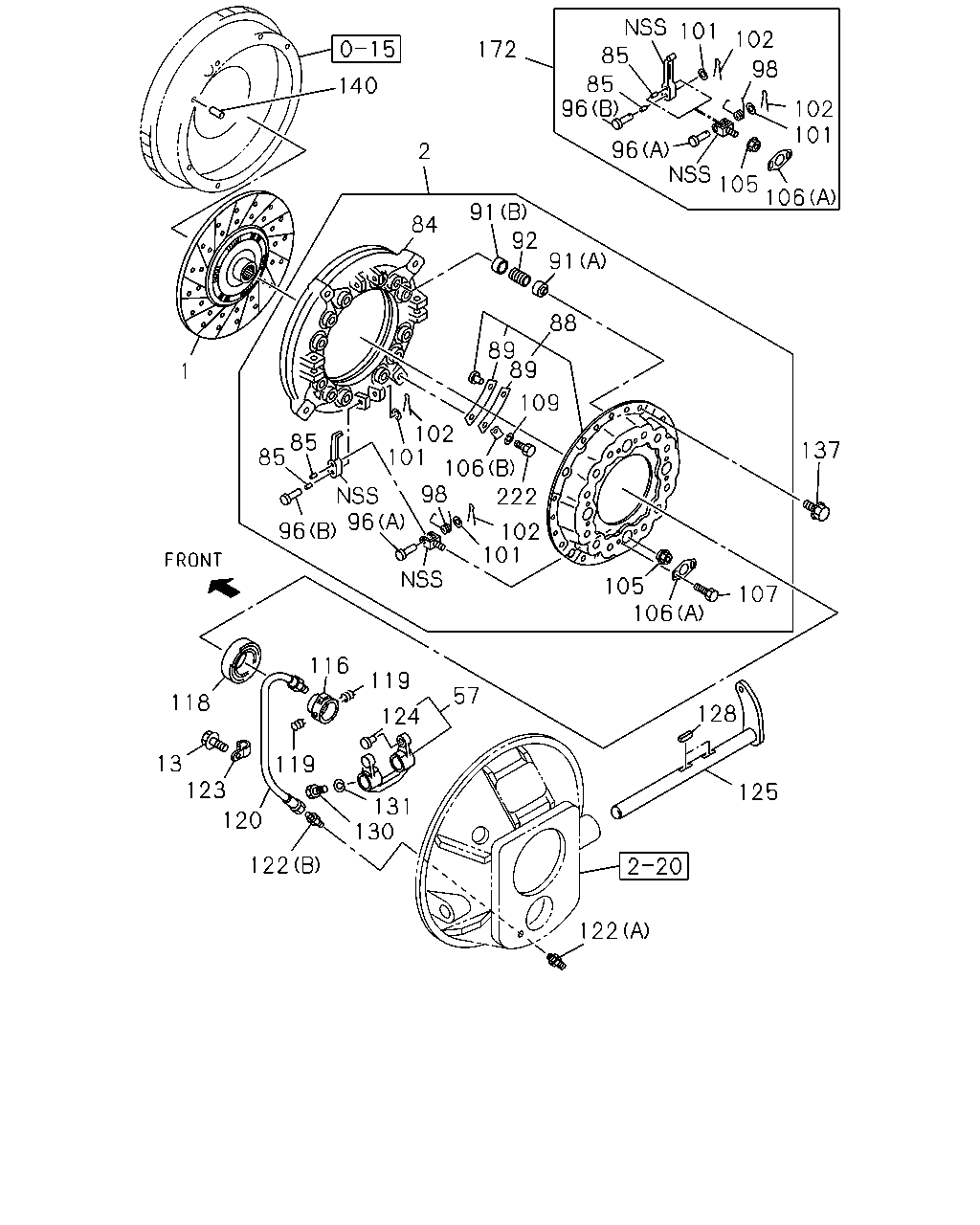

101 102 172 85 98 85 96 140 102 101 96 105 106 2 91 84 92 91 88 89 89 1 109 102 101 85 85 137 106 98 96 222 96 102 101 105 106 107 116 119 57 118 128 124 13 123 119 131 130 125 120 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-949-2	01	1	1012-	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-0	01	1	0710-0906		●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-1	01	1	0907-1401		●	●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31260-040-1	01	1	1402-		●	●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-140-0	01	1	1411-		●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-407-0	01	1	1012-1209	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-454-0	01	1	1210-	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-411-0	01	1	0710-0906		●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-411-0	01	1	0907-		●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-147-0	01	1	0907-		●	●	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0806-0808			●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0809-			●	●
57	FORK; SHIFT,CLU	1-31341-031-0	01	1	1012-	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0806-0808			●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0809-1306			●	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-			●	●
57	FORK; SHIFT,CLU 14" CLUTCH(WF6)	1-31341-048-2	01	1	0710-0906		●
57	FORK; SHIFT,CLU 14" CLUTCH(WF6)	1-31341-048-2	01	1	0907-		●			●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-129-0	01	1	1012-1209	●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	0710-0906		●	●	●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	0907-1209		●	●	●	●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	1210-	●	●	●	●	●
85	BUSHING; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-116-0	08	1	0710-0906		●	●	●
85	BUSHING; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-116-0	08	1	0907-1011		●	●	●	●
85	BUSHING; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-116-0	08	1	1012-	●	●	●	●	●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	0710-0906		●	●	●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	0907-1011		●	●	●	●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	1012-	●	●	●	●	●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	0710-0906		●	●	●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	0907-1011		●	●	●	●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	1012-	●	●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	12	1	1210-	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	12	1	1210-	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	0710-0906		●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	0907-1011		●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	1012-1209	●	●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	1210-		●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	0710-0906		●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	0907-1011		●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	1012-1209	●	●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	1210-		●	●	●	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-060-0	08	1	1012-1209	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-088-0	12	1	1210-	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-095-0	08	1	0710-0906		●	●	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-095-0	08	1	0907-		●	●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (A) L=49.0	1-31232-005-0	04	1	0710-0906		●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (A) L=49.0	1-31232-005-0	04	1	0907-1011		●	●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (A) L=49.0	1-31232-005-0	04	1	1012-	●	●	●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (B) L=57.0	1-31232-014-0	04	1	0710-0906		●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (B) L=57.0	1-31232-014-0	04	1	0907-1011		●	●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (B) L=57.0	1-31232-014-0	04	1	1012-	●	●	●	●	●
98	SPRING; RETURN 14" CLUTCH(WF6)	1-31233-003-0	04	1	0710-0906		●	●	●
98	SPRING; RETURN 14" CLUTCH(WF6)	1-31233-003-0	04	1	0907-1011		●	●	●	●
98	SPRING; RETURN 14" CLUTCH(WF6)	1-31233-003-0	04	1	1012-	●	●	●	●	●
101	WASHER; RELEASE LEVER 14" CLUTCH(WF6)	1-31239-058-0	08	1	0710-0906		●	●	●
101	WASHER; RELEASE LEVER 14" CLUTCH(WF6)	1-31239-058-0	08	1	0907-1011		●	●	●	●
101	WASHER; RELEASE LEVER 14" CLUTCH(WF6)	1-31239-058-0	08	1	1012-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	0710-0906		●	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	0907-1011		●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1012-	●	●	●	●	●
105	NUT; SUPPORT 14" CLUTCH(WF6)	1-31235-014-0	04	1	0710-0906		●	●	●
105	NUT; SUPPORT 14" CLUTCH(WF6)	1-31235-014-0	04	1	0907-1011		●	●	●	●
105	NUT; SUPPORT 14" CLUTCH(WF6)	1-31235-014-0	04	1	1012-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	0710-0906		●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	0907-1011		●	●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	1012-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (A)	1-31239-019-0	04	1	0710-0906		●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (A)	1-31239-019-0	04	1	0907-1011		●	●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (A)	1-31239-019-0	04	1	1012-	●	●	●	●	●
107	BOLT; LK PLATE 14" CLUTCH(WF6)	1-31239-061-0	08	1	0710-0906		●	●	●
107	BOLT; LK PLATE 14" CLUTCH(WF6)	1-31239-061-0	08	1	0907-1011		●	●	●	●
107	BOLT; LK PLATE 14" CLUTCH(WF6)	1-31239-061-0	08	1	1012-	●	●	●	●	●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	0710-0906		●	●	●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	0907-1011		●	●	●	●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	1012-	●	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-075-0	01	1	0806-0808			●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0809-1204			●	●
116	BLOCK; SHIFT,CLU	1-31321-113-0	01	1	1205-1306			●	●
116	BLOCK; SHIFT,CLU	1-31321-114-0	01	1	1307-			●	●
118	BEARING; CLU RELEASE	1-31310-012-0	01	1	1012-	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0806-0808			●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0809-			●	●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-017-1	01	1	0710-0806		●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-026-0	01	1	0807-0906		●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-026-0	01	1	0907-		●			●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-109-0	01	1	0907-		●			●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0907-			●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-110-0	01	1	1012-	●
119	SPRING; SHIFT FORK	1-31329-024-0	02	1	1012-	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0806-0808			●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0809-			●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0806-0808			●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0809-			●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0806-0808			●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0809-			●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0806-0808			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0809-			●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0806-0808			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0809-			●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0806-0808			●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0809-			●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0806-0808			●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0809-			●	●
125	SHAFT; CLU	1-31342-331-0	01	1	1012-	●
125	SHAFT; CLU ASSISTOR SHIFT CONTROL<WX8>	1-31342-344-0	01	1	0806-0808			●
125	SHAFT; CLU ASSISTOR SHIFT CONTROL<WX8>	1-31342-344-0	01	1	0809-			●	●
125	SHAFT; CLU EXC. ASSISTOR SHIFT CONTROL<WX8>	1-31342-346-0	01	1	0806-0808			●
125	SHAFT; CLU EXC. ASSISTOR SHIFT CONTROL<WX8>	1-31342-346-0	01	1	0809-			●	●
125	SHAFT; CLU 14" CLUTCH(WF6)	1-31342-335-0	01	1	0710-0906		●
125	SHAFT; CLU 14" CLUTCH(WF6)	1-31342-335-0	01	1	0907-		●			●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0710-0805		●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0806-0808		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0806-0808			●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0809-0906		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0809-0906			●	●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0907-1011		●			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0907-1011			●	●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	1012-		●			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1012-	●		●	●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0710-0805		●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0806-0808		●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0806-0808			●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0809-0906		●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0809-0906			●	●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0907-1011		●			●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0907-1011			●	●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	1012-		●			●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1012-	●		●	●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0710-0805		●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0806-0808		●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0806-0808			●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0809-0906		●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0809-0906			●	●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0907-1011		●			●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0907-1011			●	●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	1012-		●			●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1012-	●		●	●
137	BOLT; CLU COVER 14" CLUTCH(WF6) M10X20 FLANGE	0-28151-020-0	12	1	0710-	●	●	●	●	●
140	PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-94410-361-0	02	1	0710-0802		●
140	PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-94410-361-0	02	1	0803-0906		●	●	●
140	PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-94410-361-0	02	1	0907-1011		●	●	●	●
140	PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-94410-361-0	02	1	1012-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87831-173-1	01	1	1012-	●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87831-170-1	01	1	0710-0906		●	●	●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87831-170-1	01	1	0907-		●	●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6)	1-31239-059-0	04	1	0710-0906		●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6)	1-31239-059-0	04	1	0907-1011		●	●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6)	1-31239-059-0	04	1	1012-	●	●	●	●	●

125 118 244 290 57 128 128 130 131 290 244 125 155 161 154 157 164 155 148 220 161 161 157 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
57	FORK; SHIFT,CLU	1-31341-031-0	01	1	1012-	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0806-0808			●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0809-1306			●	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-			●	●
57	FORK; SHIFT,CLU 14" CLUTCH(WF6)	1-31341-048-2	01	1	0710-0906		●
57	FORK; SHIFT,CLU 14" CLUTCH(WF6)	1-31341-048-2	01	1	0907-		●			●
118	BEARING; CLU RELEASE	1-31310-012-0	01	1	1012-	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0806-0808			●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0809-			●	●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-017-1	01	1	0710-0806		●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-026-0	01	1	0807-0906		●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-026-0	01	1	0907-		●			●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-109-0	01	1	0907-		●			●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0907-			●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-110-0	01	1	1012-	●
125	SHAFT; CLU	1-31342-331-0	01	1	1012-	●
125	SHAFT; CLU ASSISTOR SHIFT CONTROL<WX8>	1-31342-344-0	01	1	0806-0808			●
125	SHAFT; CLU ASSISTOR SHIFT CONTROL<WX8>	1-31342-344-0	01	1	0809-			●	●
125	SHAFT; CLU EXC. ASSISTOR SHIFT CONTROL<WX8>	1-31342-346-0	01	1	0806-0808			●
125	SHAFT; CLU EXC. ASSISTOR SHIFT CONTROL<WX8>	1-31342-346-0	01	1	0809-			●	●
125	SHAFT; CLU 14" CLUTCH(WF6)	1-31342-335-0	01	1	0710-0906		●
125	SHAFT; CLU 14" CLUTCH(WF6)	1-31342-335-0	01	1	0907-		●			●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0710-0805		●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0806-0808		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0806-0808			●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0809-0906		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0809-0906			●	●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0907-1011		●			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0907-1011			●	●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	1012-		●			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1012-	●		●	●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0710-0805		●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0806-0808		●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0806-0808			●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0809-0906		●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0809-0906			●	●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0907-1011		●			●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0907-1011			●	●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	1012-		●			●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1012-	●		●	●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0710-0805		●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0806-0808		●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0806-0808			●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0809-0906		●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0809-0906			●	●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0907-1011		●			●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0907-1011			●	●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	1012-		●			●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1012-	●		●	●
148	SPRING; CLU RETURN L=206.4	1-09583-291-1	01	1	1012-	●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0710-0805		●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0806-0808		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0806-0808			●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0809-0906		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0809-0906			●	●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0907-		●			●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0907-			●	●
154	PIN; JAW JOINT 14" CLUTCH(WF6)	1-31424-009-0	01	1	0710-0906		●
154	PIN; JAW JOINT 14" CLUTCH(WF6)	1-31424-009-0	01	1	0907-1011		●			●
154	PIN; JAW JOINT 14" CLUTCH(WF6)	1-31424-009-0	01	1	1012-		●			●
154	PIN; JAW JOINT	1-31424-009-0	01	1	1012-	●
155	BRACKET; MINIPACK (C)	1-31429-464-0	01	1	1012-	●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (B)	1-31429-512-0	01	1	0806-0808			●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (B)	1-31429-512-0	01	1	0809-			●	●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-31429-514-0	01	1	0806-0808			●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-31429-514-0	01	1	0809-			●	●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-515-0	01	1	0806-0808			●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-515-0	01	1	0809-			●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0710-0805		●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0806-0808		●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-474-1	01	1	0806-0808			●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0809-0906		●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-474-1	01	1	0809-0906			●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0907-		●			●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-474-1	01	1	0907-			●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (B)	1-31429-477-0	01	1	0710-0906		●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (B)	1-31429-477-0	01	1	0907-		●			●
155	BRACKET; MINIPACK (D)	1-31429-465-1	01	1	1012-	●
157	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	1012-	●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0710-0805		●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0806-0808		●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0806-0808			●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0809-0906		●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0809-0906			●	●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0907-		●			●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0907-			●	●
157	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	01	1	1012-	●
161	NUT; BRKT (A) M8 FLANGE	0-91180-208-0	04	1	1012-	●
161	NUT; BRKT (A) M8 FLANGE	0-91180-208-0	03	1	0806-0808			●
161	NUT; BRKT (A) M8 FLANGE	0-91180-208-0	03	1	0809-			●	●
161	NUT; BRKT 14" CLUTCH(WF6) (A) M8 FLANGE	0-91180-208-0	05	1	0710-0906		●
161	NUT; BRKT 14" CLUTCH(WF6) (A) M8 FLANGE	0-91180-208-0	05	1	0907-		●			●
161	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1012-	●
164	EYE; SPRING	1-31426-019-1	01	1	1012-	●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0710-0805		●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0806-0808		●
164	EYE; SPRING	1-31426-041-0	01	1	0806-0808			●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0809-0906		●
164	EYE; SPRING	1-31426-041-0	01	1	0809-0906			●	●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0907-		●			●
164	EYE; SPRING	1-31426-041-0	01	1	0907-			●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47471-291-0	01	1	1012-	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0710-0805		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0806-0808		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0806-0808			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0809-0906		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0809-0906			●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0907-		●			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0907-			●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. ASSISTOR SHIFT CONTROL<WX8>	1-31800-512-3	01	1	1012-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98177-654-1	01	1	1012-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-525-0	01	1	0806-0808			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-525-1	01	1	0809-			●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-510-1	01	1	0710-0906		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-510-2	01	1	0907-		●			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	0907-1011			●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	1012-	●		●	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	1-09625-002-0	02	1	0710-0906		●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	1-09625-002-0	02	1	0907-1011		●			●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6).	1-09625-002-0	02	1	1012-		●			●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1012-	●
290	BEARING; NEEDLE 14" CLUTCH(WF6) NTN	1-09811-002-1	02	1	0710-0906		●
290	BEARING; NEEDLE 14" CLUTCH(WF6) NTN	1-09811-002-1	02	1	0907-1011		●			●
290	BEARING; NEEDLE 14" CLUTCH(WF6) NTN	1-09811-002-1	02	1	1012-		●			●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1012-	●

125 119 118 244 290 57 128 119 128 130 131 290 244 161 157 155 154 164 148 155 220 161 165 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
57	FORK; SHIFT,CLU	1-31341-031-0	01	1	1012-	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0806-0808			●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0809-1306			●	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-			●	●
57	FORK; SHIFT,CLU 14" CLUTCH(WF6)	1-31341-048-2	01	1	0710-0906		●
57	FORK; SHIFT,CLU 14" CLUTCH(WF6)	1-31341-048-2	01	1	0907-		●			●
118	BEARING; CLU RELEASE	1-31310-012-0	01	1	1012-	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0806-0808			●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0809-			●	●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-017-1	01	1	0710-0806		●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-026-0	01	1	0807-0906		●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-026-0	01	1	0907-		●			●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-109-0	01	1	0907-		●			●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0907-			●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-110-0	01	1	1012-	●
119	SPRING; SHIFT FORK	1-31329-024-0	02	1	1012-	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0806-0808			●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0809-			●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0806-0808			●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0809-			●	●
125	SHAFT; CLU	1-31342-331-0	01	1	1012-	●
125	SHAFT; CLU ASSISTOR SHIFT CONTROL<WX8>	1-31342-344-0	01	1	0806-0808			●
125	SHAFT; CLU ASSISTOR SHIFT CONTROL<WX8>	1-31342-344-0	01	1	0809-			●	●
125	SHAFT; CLU EXC. ASSISTOR SHIFT CONTROL<WX8>	1-31342-346-0	01	1	0806-0808			●
125	SHAFT; CLU EXC. ASSISTOR SHIFT CONTROL<WX8>	1-31342-346-0	01	1	0809-			●	●
125	SHAFT; CLU 14" CLUTCH(WF6)	1-31342-335-0	01	1	0710-0906		●
125	SHAFT; CLU 14" CLUTCH(WF6)	1-31342-335-0	01	1	0907-		●			●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0710-0805		●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0806-0808		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0806-0808			●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0809-0906		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0809-0906			●	●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0907-1011		●			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0907-1011			●	●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	1012-		●			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1012-	●		●	●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0710-0805		●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0806-0808		●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0806-0808			●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0809-0906		●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0809-0906			●	●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0907-1011		●			●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0907-1011			●	●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	1012-		●			●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1012-	●		●	●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0710-0805		●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0806-0808		●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0806-0808			●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0809-0906		●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0809-0906			●	●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0907-1011		●			●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0907-1011			●	●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	1012-		●			●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1012-	●		●	●
148	SPRING; CLU RETURN L=206.4	1-09583-291-1	01	1	1012-	●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0710-0805		●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0806-0808		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0806-0808			●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0809-0906		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0809-0906			●	●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0907-		●			●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0907-			●	●
154	PIN; JAW JOINT 14" CLUTCH(WF6)	1-31424-009-0	01	1	0710-0906		●
154	PIN; JAW JOINT 14" CLUTCH(WF6)	1-31424-009-0	01	1	0907-1011		●			●
154	PIN; JAW JOINT 14" CLUTCH(WF6)	1-31424-009-0	01	1	1012-		●			●
154	PIN; JAW JOINT	1-31424-009-0	01	1	1012-	●
155	BRACKET; MINIPACK (C)	1-31429-464-0	01	1	1012-	●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (B)	1-31429-512-0	01	1	0806-0808			●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (B)	1-31429-512-0	01	1	0809-			●	●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-31429-514-0	01	1	0806-0808			●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-31429-514-0	01	1	0809-			●	●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-515-0	01	1	0806-0808			●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-515-0	01	1	0809-			●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0710-0805		●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0806-0808		●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-474-1	01	1	0806-0808			●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0809-0906		●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-474-1	01	1	0809-0906			●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0907-		●			●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-474-1	01	1	0907-			●	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (B)	1-31429-477-0	01	1	0710-0906		●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (B)	1-31429-477-0	01	1	0907-		●			●
155	BRACKET; MINIPACK (D)	1-31429-465-1	01	1	1012-	●
157	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	1012-	●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0710-0805		●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0806-0808		●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0806-0808			●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0809-0906		●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0809-0906			●	●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0907-		●			●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0907-			●	●
157	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	01	1	1012-	●
161	NUT; BRKT (A) M8 FLANGE	0-91180-208-0	04	1	1012-	●
161	NUT; BRKT (A) M8 FLANGE	0-91180-208-0	03	1	0806-0808			●
161	NUT; BRKT (A) M8 FLANGE	0-91180-208-0	03	1	0809-			●	●
161	NUT; BRKT 14" CLUTCH(WF6) (A) M8 FLANGE	0-91180-208-0	05	1	0710-0906		●
161	NUT; BRKT 14" CLUTCH(WF6) (A) M8 FLANGE	0-91180-208-0	05	1	0907-		●			●
161	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1012-	●
164	EYE; SPRING	1-31426-019-1	01	1	1012-	●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0710-0805		●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0806-0808		●
164	EYE; SPRING	1-31426-041-0	01	1	0806-0808			●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0809-0906		●
164	EYE; SPRING	1-31426-041-0	01	1	0809-0906			●	●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0907-		●			●
164	EYE; SPRING	1-31426-041-0	01	1	0907-			●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47471-291-0	01	1	1012-	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0710-0805		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0806-0808		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0806-0808			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0809-0906		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0809-0906			●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0907-		●			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0907-			●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. ASSISTOR SHIFT CONTROL<WX8>	1-31800-512-3	01	1	1012-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98177-654-1	01	1	1012-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-525-0	01	1	0806-0808			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-525-1	01	1	0809-			●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-510-1	01	1	0710-0906		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-510-2	01	1	0907-		●			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	0907-1011			●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	1012-	●		●	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	1-09625-002-0	02	1	0710-0906		●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	1-09625-002-0	02	1	0907-1011		●			●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6).	1-09625-002-0	02	1	1012-		●			●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1012-	●
290	BEARING; NEEDLE 14" CLUTCH(WF6) NTN	1-09811-002-1	02	1	0710-0906		●
290	BEARING; NEEDLE 14" CLUTCH(WF6) NTN	1-09811-002-1	02	1	0907-1011		●			●
290	BEARING; NEEDLE 14" CLUTCH(WF6) NTN	1-09811-002-1	02	1	1012-		●			●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1012-	●

172 101 102 85 98 85 96 1 102 101 96 105 106 140 2 91 84 92 91 137 88 89 89 109 102 101 85 85 106 222 98 96 96 102 101 105 106 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-949-2	01	1	1012-	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-0	01	1	0710-0906		●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-1	01	1	0907-1401		●	●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31260-040-1	01	1	1402-		●	●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-140-0	01	1	1411-		●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-407-0	01	1	1012-1209	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-454-0	01	1	1210-	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-411-0	01	1	0710-0906		●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-411-0	01	1	0907-		●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-147-0	01	1	0907-		●	●	●	●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-129-0	01	1	1012-1209	●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	0710-0906		●	●	●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	0907-1209		●	●	●	●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	1210-	●	●	●	●	●
85	BUSHING; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-116-0	08	1	0710-0906		●	●	●
85	BUSHING; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-116-0	08	1	0907-1011		●	●	●	●
85	BUSHING; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-116-0	08	1	1012-	●	●	●	●	●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	0710-0906		●	●	●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	0907-1011		●	●	●	●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	1012-	●	●	●	●	●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	0710-0906		●	●	●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	0907-1011		●	●	●	●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	1012-	●	●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	12	1	1210-	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	12	1	1210-	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	0710-0906		●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	0907-1011		●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	1012-1209	●	●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	1210-		●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	0710-0906		●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	0907-1011		●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	1012-1209	●	●	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	1210-		●	●	●	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-060-0	08	1	1012-1209	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-088-0	12	1	1210-	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-095-0	08	1	0710-0906		●	●	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-095-0	08	1	0907-		●	●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (A) L=49.0	1-31232-005-0	04	1	0710-0906		●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (A) L=49.0	1-31232-005-0	04	1	0907-1011		●	●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (A) L=49.0	1-31232-005-0	04	1	1012-	●	●	●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (B) L=57.0	1-31232-014-0	04	1	0710-0906		●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (B) L=57.0	1-31232-014-0	04	1	0907-1011		●	●	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (B) L=57.0	1-31232-014-0	04	1	1012-	●	●	●	●	●
98	SPRING; RETURN 14" CLUTCH(WF6)	1-31233-003-0	04	1	0710-0906		●	●	●
98	SPRING; RETURN 14" CLUTCH(WF6)	1-31233-003-0	04	1	0907-1011		●	●	●	●
98	SPRING; RETURN 14" CLUTCH(WF6)	1-31233-003-0	04	1	1012-	●	●	●	●	●
101	WASHER; RELEASE LEVER 14" CLUTCH(WF6)	1-31239-058-0	08	1	0710-0906		●	●	●
101	WASHER; RELEASE LEVER 14" CLUTCH(WF6)	1-31239-058-0	08	1	0907-1011		●	●	●	●
101	WASHER; RELEASE LEVER 14" CLUTCH(WF6)	1-31239-058-0	08	1	1012-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	0710-0906		●	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	0907-1011		●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1012-	●	●	●	●	●
105	NUT; SUPPORT 14" CLUTCH(WF6)	1-31235-014-0	04	1	0710-0906		●	●	●
105	NUT; SUPPORT 14" CLUTCH(WF6)	1-31235-014-0	04	1	0907-1011		●	●	●	●
105	NUT; SUPPORT 14" CLUTCH(WF6)	1-31235-014-0	04	1	1012-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	0710-0906		●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	0907-1011		●	●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	1012-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (A)	1-31239-019-0	04	1	0710-0906		●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (A)	1-31239-019-0	04	1	0907-1011		●	●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (A)	1-31239-019-0	04	1	1012-	●	●	●	●	●
107	BOLT; LK PLATE 14" CLUTCH(WF6)	1-31239-061-0	08	1	0710-0906		●	●	●
107	BOLT; LK PLATE 14" CLUTCH(WF6)	1-31239-061-0	08	1	0907-1011		●	●	●	●
107	BOLT; LK PLATE 14" CLUTCH(WF6)	1-31239-061-0	08	1	1012-	●	●	●	●	●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	0710-0906		●	●	●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	0907-1011		●	●	●	●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	1012-	●	●	●	●	●
137	BOLT; CLU COVER 14" CLUTCH(WF6) M10X20 FLANGE	0-28151-020-0	12	1	0710-	●	●	●	●	●
140	PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-94410-361-0	02	1	0710-0802		●
140	PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-94410-361-0	02	1	0803-0906		●	●	●
140	PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-94410-361-0	02	1	0907-1011		●	●	●	●
140	PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-94410-361-0	02	1	1012-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87831-173-1	01	1	1012-	●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87831-170-1	01	1	0710-0906		●	●	●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87831-170-1	01	1	0907-		●	●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6)	1-31239-059-0	04	1	0710-0906		●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6)	1-31239-059-0	04	1	0907-1011		●	●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6)	1-31239-059-0	04	1	1012-	●	●	●	●	●

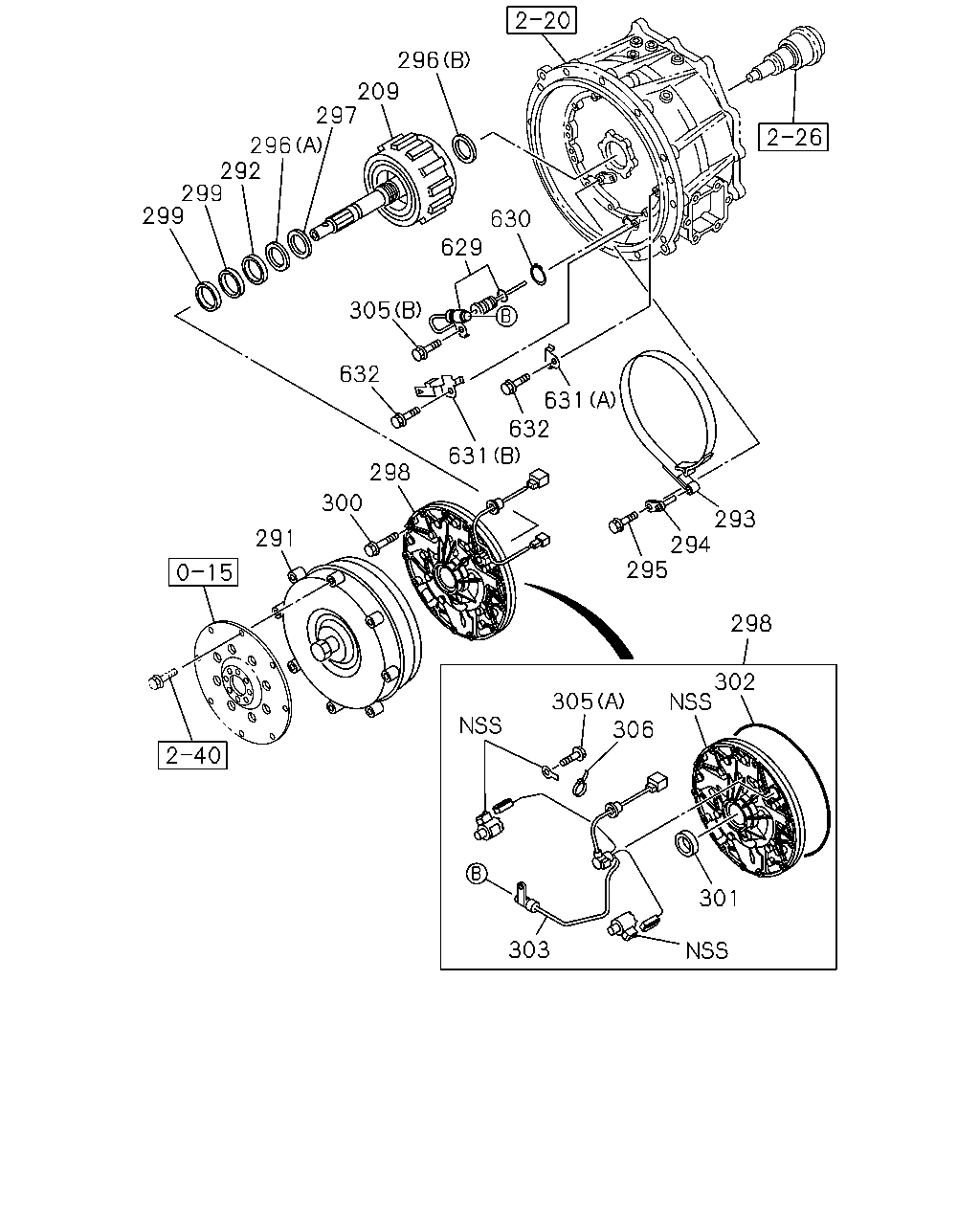

296 209 297 296 292 299 299 630 629 305 632 631 632 631 298 300 293 294 295 291 298 302 305 306 301 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	E
209	CLUTCH ASM EXC. 14" CLUTCH(WF6)	8-98044-527-1	01	1	0710-0906	●
209	CLUTCH ASM EXC. 14" CLUTCH(WF6)	8-98044-527-3	01	1	0907-1412	●	●
209	CLUTCH ASM EXC. 14" CLUTCH(WF6)	8-98275-315-0	01	1	1501-	●	●
291	COUPLING; FLUID EXC. 14" CLUTCH(WF6)	8-98009-304-1	01	1	0710-0906	●
291	COUPLING; FLUID EXC. 14" CLUTCH(WF6)	8-98009-304-2	01	1	0907-1308	●	●
291	COUPLING; FLUID EXC. 14" CLUTCH(WF6)	8-98248-559-1	01	1	1309-	●	●
292	RING; SEAL EXC. 14" CLUTCH(WF6)	8-97255-329-0	01	1	0710-0906	●
292	RING; SEAL EXC. 14" CLUTCH(WF6)	8-97255-329-0	01	1	0907-	●	●
293	BAND; BRAKE EXC. 14" CLUTCH(WF6)	8-97254-651-0	01	1	0710-0906	●
293	BAND; BRAKE EXC. 14" CLUTCH(WF6)	8-97254-651-0	01	1	0907-	●	●
294	PIN; ANCHOR EXC. 14" CLUTCH(WF6)	8-97255-703-0	01	1	0710-0906	●
294	PIN; ANCHOR EXC. 14" CLUTCH(WF6)	8-97255-703-0	01	1	0907-	●	●
295	BOLT; ANCHOR PIN EXC. 14" CLUTCH(WF6) M8X20 FLANGE	0-28650-820-0	01	1	0710-0906	●
295	BOLT; ANCHOR PIN EXC. 14" CLUTCH(WF6) M8X20 FLANGE	0-28650-820-0	01	1	0907-	●	●
296	BEARING; THRUST EXC. 14" CLUTCH(WF6) (A)	8-97255-688-0	01	1	0710-0906	●
296	BEARING; THRUST EXC. 14" CLUTCH(WF6) (A)	8-97255-688-0	01	1	0907-	●	●
296	BEARING; THRUST EXC. 14" CLUTCH(WF6) (B)	8-97255-689-0	01	1	0710-0906	●
296	BEARING; THRUST EXC. 14" CLUTCH(WF6) (B)	8-97255-689-0	01	1	0907-	●	●
297	WASHER; THRUST EXC. 14" CLUTCH(WF6)	8-97300-070-0	01	1	0710-0906	●
297	WASHER; THRUST EXC. 14" CLUTCH(WF6)	8-97300-070-0	01	1	0907-	●	●
298	PUMP ASM; OIL EXC. 14" CLUTCH(WF6)	8-98041-299-0	01	1	0710-0803	●
298	PUMP ASM; OIL EXC. 14" CLUTCH(WF6)	8-98107-925-1	01	1	0804-0906	●
298	PUMP ASM; OIL EXC. 14" CLUTCH(WF6)	8-98107-925-2	01	1	0907-	●	●
299	RING; SEAL EXC. 14" CLUTCH(WF6)	8-97255-330-0	02	1	0710-0906	●
299	RING; SEAL EXC. 14" CLUTCH(WF6)	8-97255-330-0	02	1	0907-	●	●
300	BOLT; OIL PUMP EXC. 14" CLUTCH(WF6) M8X45 FLANGE	0-28050-845-0	11	1	0710-0906	●
300	BOLT; OIL PUMP EXC. 14" CLUTCH(WF6) M8X45 FLANGE	0-28050-845-0	11	1	0907-	●	●
301	SEAL; OIL PUMP EXC. 14" CLUTCH(WF6)	8-97289-811-0	01	1	0710-0906	●
301	SEAL; OIL PUMP EXC. 14" CLUTCH(WF6)	8-97289-811-0	01	1	0907-	●	●
302	RING; OIL PUMP EXC. 14" CLUTCH(WF6)	8-97255-188-0	01	1	0710-0906	●
302	RING; OIL PUMP EXC. 14" CLUTCH(WF6)	8-97255-188-0	01	1	0907-	●	●
303	HARNESS ASM; OIL PUMP EXC. 14" CLUTCH(WF6)	8-98020-613-1	01	1	0710-0906	●
303	HARNESS ASM; OIL PUMP EXC. 14" CLUTCH(WF6)	8-98020-613-1	01	1	0907-	●	●
305	BOLT; BRACKET EXC. 14" CLUTCH(WF6) (A) M6X12 FLANGE	0-28050-612-0	01	1	0710-0906	●
305	BOLT; BRACKET EXC. 14" CLUTCH(WF6) (A) M6X12 FLANGE	0-28050-612-0	01	1	0907-	●	●
305	BOLT; BRACKET EXC. 14" CLUTCH(WF6) (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-0906	●
305	BOLT; BRACKET EXC. 14" CLUTCH(WF6) (B) M6X16 FLANGE	0-28650-616-0	01	1	0907-	●	●
306	CLIP; BAND EXC. 14" CLUTCH(WF6) L=100	8-94279-939-0	02	1	0710-0906	●
306	CLIP; BAND EXC. 14" CLUTCH(WF6) L=100	8-94279-939-0	02	1	0907-	●	●
629	SENSOR; OIL TEMP EXC. 14" CLUTCH(WF6)	8-98021-895-0	01	1	0710-0906	●
629	SENSOR; OIL TEMP EXC. 14" CLUTCH(WF6)	8-98021-895-0	01	1	0907-	●	●
630	RING; SNAP EXC. 14" CLUTCH(WF6) ID=17.5	9-09180-019-0	01	1	0710-0906	●
630	RING; SNAP EXC. 14" CLUTCH(WF6) ID=17.5	9-09180-019-0	01	1	0907-	●	●
631	PLATE; HARNESS EXC. 14" CLUTCH(WF6) (A)	8-98021-285-0	02	1	0710-0906	●
631	PLATE; HARNESS EXC. 14" CLUTCH(WF6) (A)	8-98021-285-0	02	1	0907-	●	●
631	PLATE; HARNESS EXC. 14" CLUTCH(WF6) (B)	8-98023-254-0	01	1	0710-0906	●
631	PLATE; HARNESS EXC. 14" CLUTCH(WF6) (B)	8-98023-254-0	01	1	0907-	●	●
632	BOLT; HARNESS EXC. 14" CLUTCH(WF6) M8X20 FLANGE	0-28650-820-0	03	1	0710-0906	●
632	BOLT; HARNESS EXC. 14" CLUTCH(WF6) M8X20 FLANGE	0-28650-820-0	03	1	0907-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
