Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#3985) — 513 parça

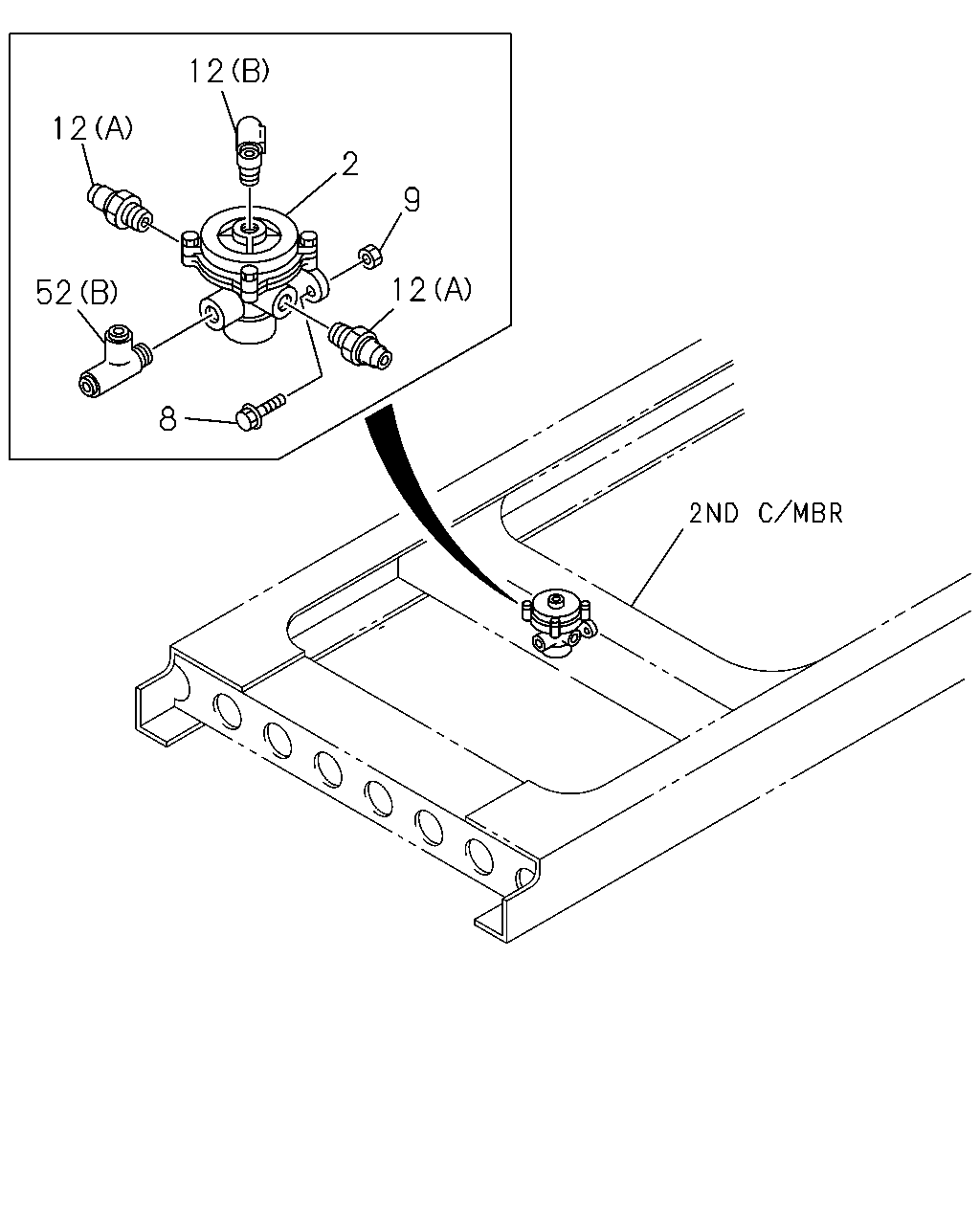

12 12 2 9 12 52 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	02	1	0005-	●
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	0005-0512	●
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	0005-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09656-476-0	01	1	0005-	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-	●

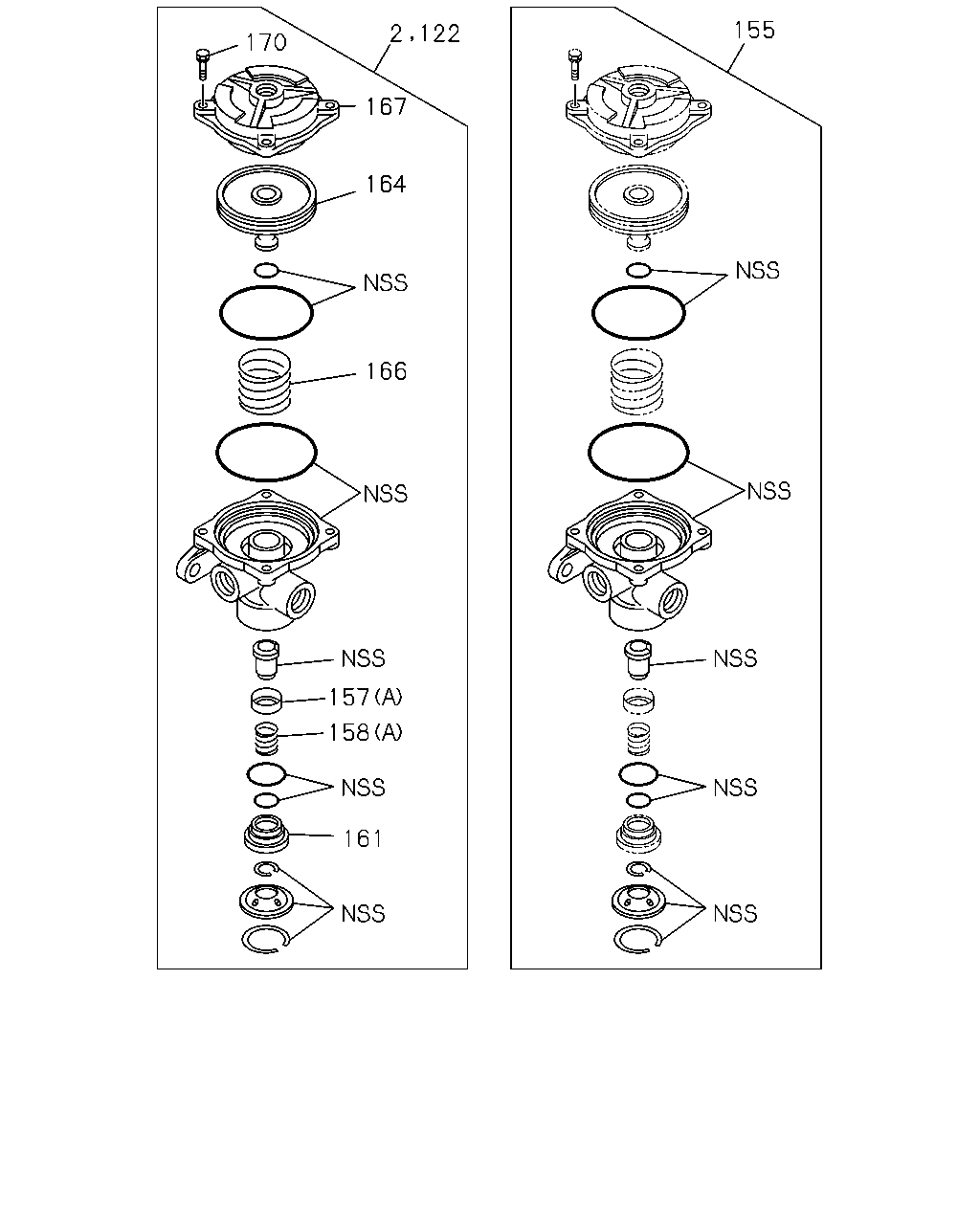

13 157 216 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9510-0004		●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9510-0004	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48410-320-0	01	1	0005-0109	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48410-659-0	01	1	0110-	●	●
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	02	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-659-0	02	1	0110-	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48419-020-0	03	1	0110-	●
157	RETAINER; VALVE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48419-020-0	01	1	0110-	●	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	03	1	0005-0211	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	01	1	0212-	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	02	1	0212-	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	9-48419-003-0	03	1	0110-	●
158	SPRING; VALVE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-48419-003-0	01	1	0110-	●	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	03	1	0005-0211	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	01	1	0212-	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	02	1	0212-	●
216	REPAIR KIT; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-235-0	03	1	0110-	●
216	REPAIR KIT; QUICK RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-235-0	01	1	0110-	●	●

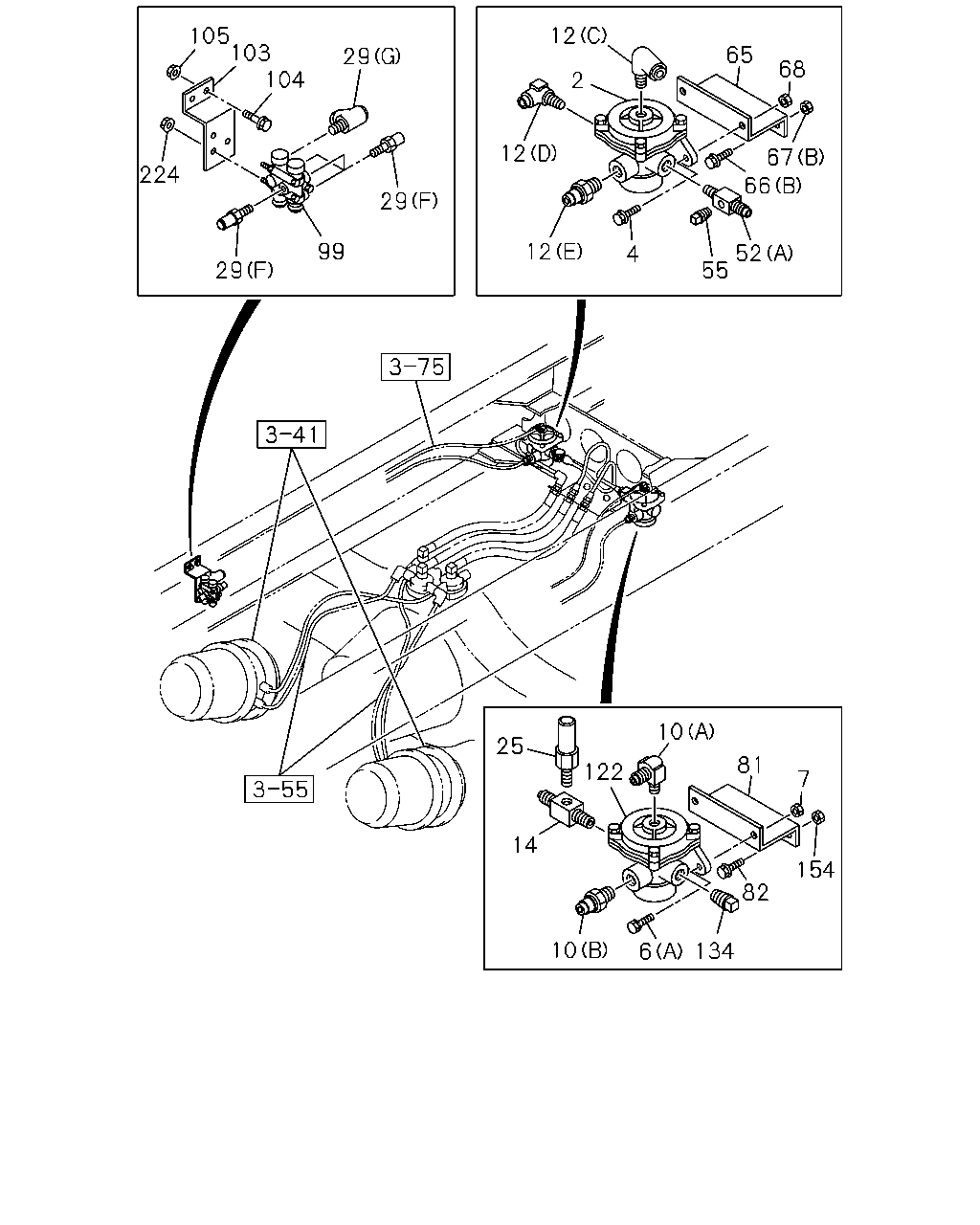

12 105 103 104 65 29 68 2 12 67 224 66 29 99 12 52 55 4 2 10 25 81 122 7 14 154 82 10 134 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	02	1	0005-	●
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	0005-0512	●
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28681-030-0	02	1	0005-0512	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	0005-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09656-476-0	01	1	0005-	●
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82410-163-1	01	1	0005-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0303-	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9510-9802	●	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	9803-0004	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0005-0302		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0005-0302	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0303-		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0303-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	9510-9802	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9803-0106	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-0611	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-0611	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0612-	●
29	CONNECTOR; AIR VLV WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-09650-283-1	01	1	9510-9802	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9803-0302	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0303-0611	●
29	CONNECTOR; AIR VLV WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0612-	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9510-9802	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-0611	●
29	CONNECTOR; AIR VLV WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9510-9802	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0005-	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0005-0106	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (G) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0107-	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09656-476-0	01	1	0005-	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-	●
55	PLUG; SUPPLY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/4	9-99204-513-0	01	1	0005-	●
65	BRACKET; RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-964-0	01	1	0005-	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28681-025-0	02	1	0005-0512	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●
68	NUT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●
68	NUT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-	●
81	BRACKET; RELAY VLV,PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-964-0	01	1	0005-	●
82	BOLT; BRKT,RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28681-025-0	02	1	0005-0512	●
82	BOLT; BRKT,RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-079-0	01	1	9510-9802	●
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-114-4	01	1	9803-0004	●
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-113-5	01	1	0005-0611	●
99	VALVE; PROTECTION WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48110-113-5	01	1	0612-	●
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-113-5	01	1	0612-	●
99	VALVE; PROTECTION WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48110-135-5	01	1	0005-	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-860-0	01	1	0612-	●
103	BRACKET; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47477-281-0	01	1	9510-9802	●
103	BRACKET; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47478-057-0	01	1	9803-	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47478-694-0	01	1	0005-	●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10X20 FLANGE	0-28081-020-0	02	1	9510-9606	●
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10X25 FLANGE	0-28681-025-0	02	1	9607-0512	●
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-	●
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10	9-09110-510-0	02	1	9510-9606	●
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10 FLANGE	0-91150-210-0	02	1	9607-0602	●
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10 FLANGE	0-91180-210-0	02	1	0603-	●
122	VALVE ASM; CONT,WHEEL PARKING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0005-	●
134	PLUG; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/2	9-09204-521-0	01	1	0005-	●
154	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●
154	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-	●
224	NUT; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	03	1	9803-0004	●
224	NUT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	0005-0602	●
224	NUT; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	03	1	0005-0602	●
224	NUT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	03	1	0603-	●
224	NUT; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	03	1	0603-	●

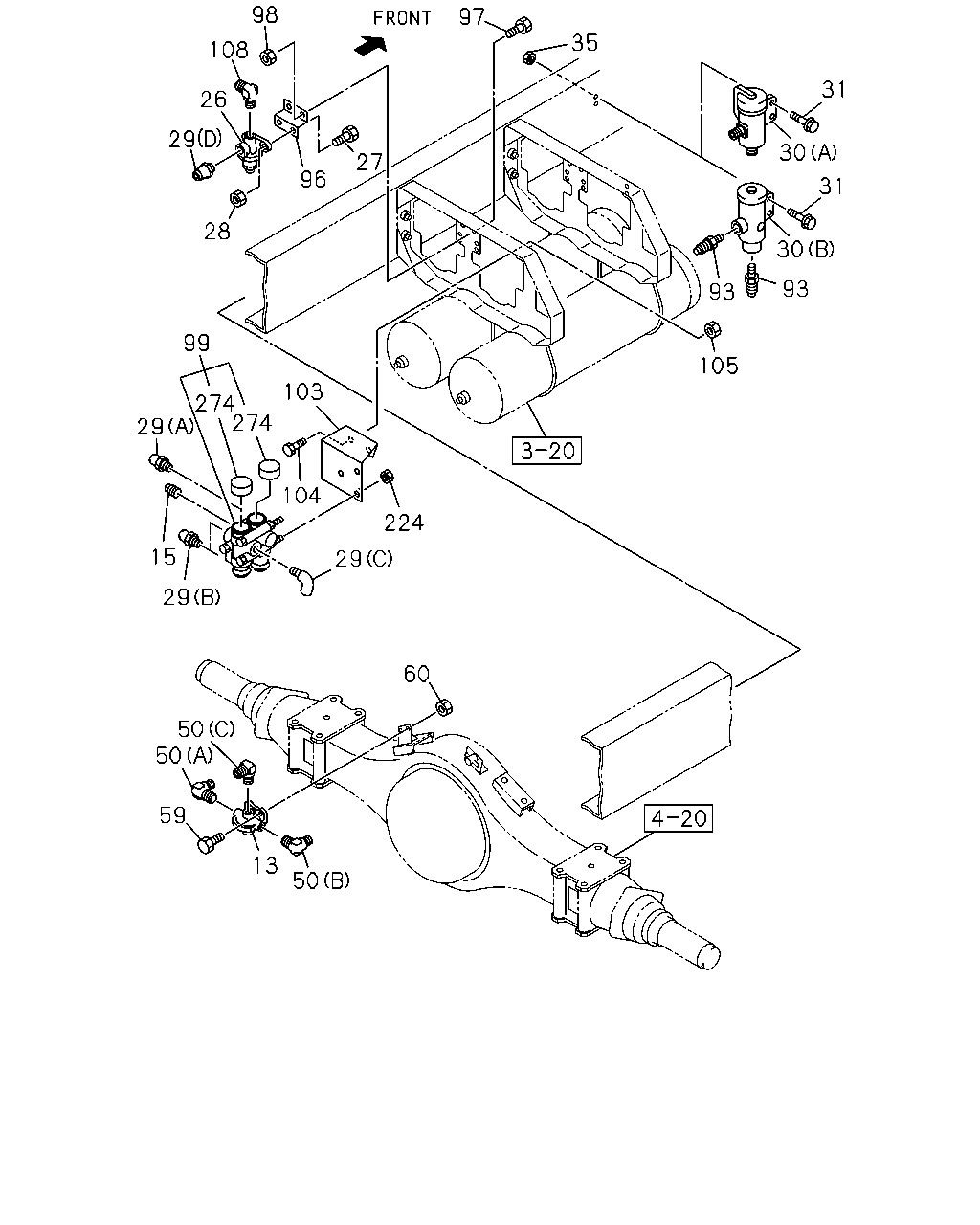

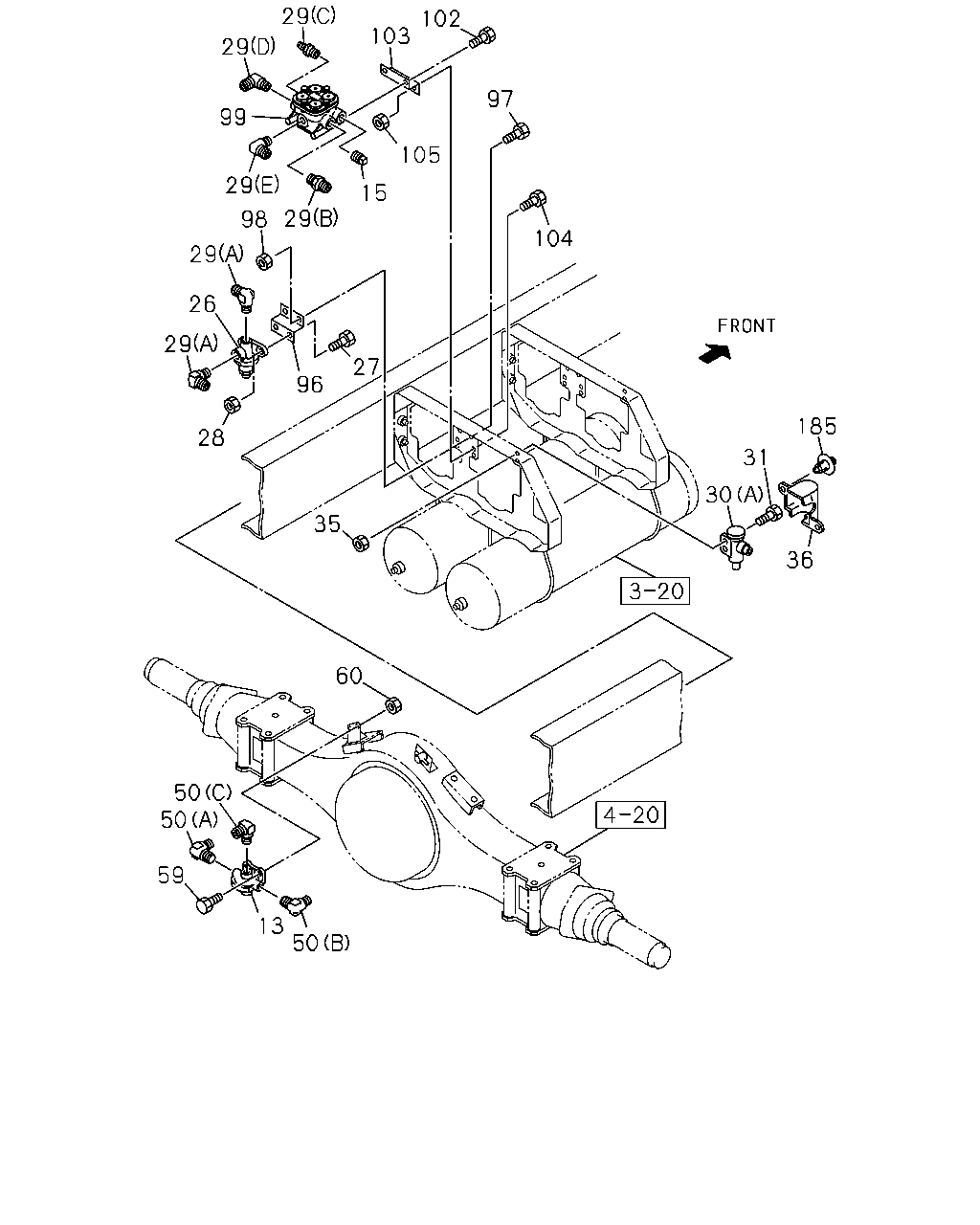

29 102 103 29 97 99 105 29 15 29 98 104 29 26 29 27 96 185 28 31 30 35 36 60 50 50 59 13 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9510-0004		●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9510-0004	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48410-320-0	01	1	0005-0109	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48410-659-0	01	1	0110-	●	●
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	02	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-659-0	02	1	0110-	●
15	PLUG; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT3/8	9-09204-517-0	02	1	0005-	●
15	PLUG; VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	01	1	9510-0302	●
15	PLUG; VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	0303-	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-0	01	1	9510-9802	●	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-0	01	1	9803-0004	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0005-0302		●
26	VALVE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0005-0302	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0303-		●
26	VALVE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-48110-006-1	01	1	0303-	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-0004	●	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	0005-0302		●
27	BOLT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	0005-0302	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	0303-0512		●
27	BOLT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28680-830-0	02	1	0303-0512	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
27	BOLT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0302		●
28	NUT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0302	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0303-0602		●
28	NUT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	0303-0602	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
28	NUT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	0603-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0303-	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9510-9802	●	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	9803-0004	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0005-0302		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0005-0302	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0303-		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0303-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	9510-9802	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9803-0106	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-0611	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-0611	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0612-	●
29	CONNECTOR; AIR VLV WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-09650-283-1	01	1	9510-9802	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9803-0302	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0303-0611	●
29	CONNECTOR; AIR VLV WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0612-	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9510-9802	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-0611	●
29	CONNECTOR; AIR VLV WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9510-9802	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0005-	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0005-0106	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (G) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0107-	●

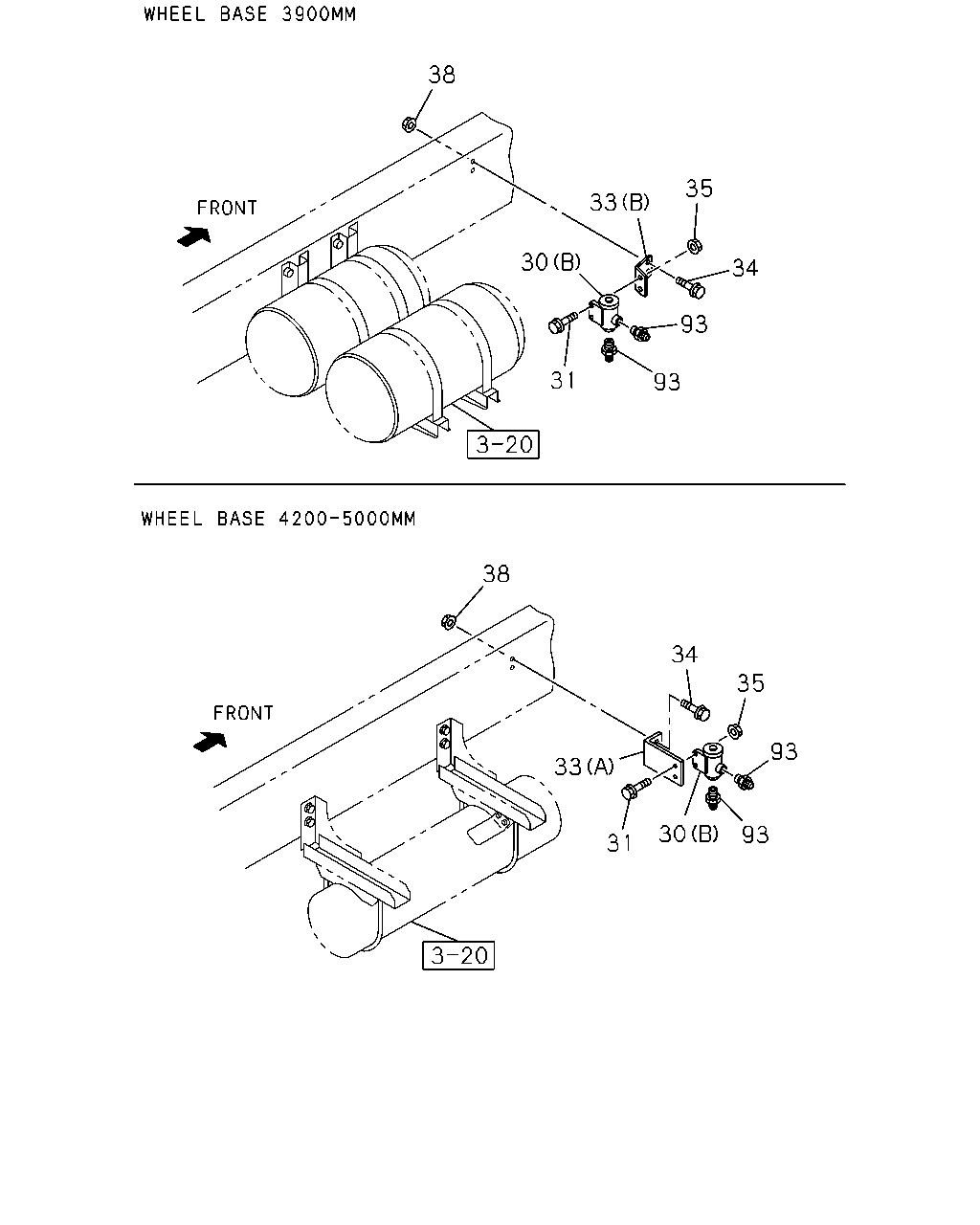

30	GOVERNOR; AIR CONT (A)	1-48350-059-0	01	1	9510-9910	●	●
30	GOVERNOR; AIR CONT (B)	1-48350-063-2	01	1	9911-	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9802	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9803-9911	●	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28680-835-0	02	1	9912-0004	●	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28680-835-0	02	1	0005-0512		●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	0005-0512	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28650-835-0	02	1	0601-		●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9510-9606	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
36	COVER; GOV	1-48359-081-0	01	1	9510-9802	●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9510-0004		●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9510-0004	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0005-	●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9510-0004		●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9510-0004	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0005-	●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9510-0004		●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9510-0004	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-	●	●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-0004		●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-0004	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	02	1	0005-0906	●	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-	●	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	0005-0211	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	04	1	0212-0512	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-0004		●
60	NUT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-0004	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	0005-0512	●	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	02	1	0601-	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-053-1	01	1	9510-9802	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-201-0	01	1	9803-0001	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0002-0004	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0005-0302		●
96	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0005-0302	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0303-		●
96	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-48495-224-0	01	1	0303-	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0302		●
97	BOLT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0302	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0303-0512		●
97	BOLT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X25 FLANGE	0-28680-825-0	02	1	0303-0512	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
97	BOLT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0302		●
98	NUT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0302	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0303-0602		●
98	NUT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	0303-0602	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
98	NUT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	0603-	●
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-079-0	01	1	9510-9802	●
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-114-4	01	1	9803-0004	●
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-113-5	01	1	0005-0611	●
99	VALVE; PROTECTION WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48110-113-5	01	1	0612-	●
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-113-5	01	1	0612-	●
99	VALVE; PROTECTION WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48110-135-5	01	1	0005-	●
102	BOLT; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X20 FLANGE	0-28080-820-0	02	1	9510-9802	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-860-0	01	1	0612-	●
103	BRACKET; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47477-281-0	01	1	9510-9802	●
103	BRACKET; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47478-057-0	01	1	9803-	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47478-694-0	01	1	0005-	●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10X20 FLANGE	0-28081-020-0	02	1	9510-9606	●
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10X25 FLANGE	0-28681-025-0	02	1	9607-0512	●
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-	●
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10	9-09110-510-0	02	1	9510-9606	●
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10 FLANGE	0-91150-210-0	02	1	9607-0602	●
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10 FLANGE	0-91180-210-0	02	1	0603-	●
185	FASTENER; COVER	1-09470-006-0	02	1	9510-9802	●	●

98 97 35 108 31 26 29 30 27 96 31 28 30 93 93 99 105 103 274 274 29 104 224 15 29 29 60 50 50 59 13 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

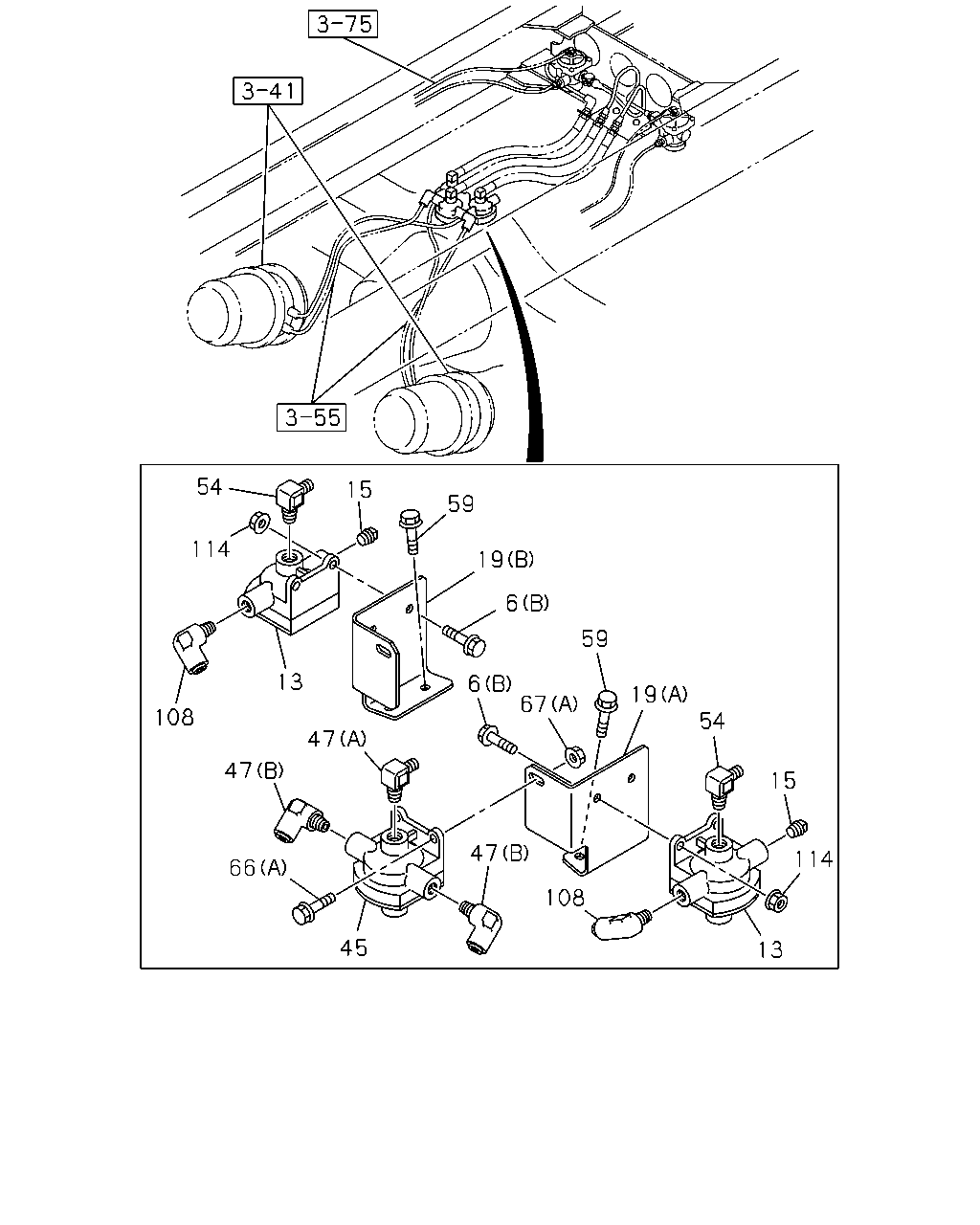

13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9510-0004		●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9510-0004	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48410-320-0	01	1	0005-0109	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48410-659-0	01	1	0110-	●	●
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	02	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-659-0	02	1	0110-	●
15	PLUG; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT3/8	9-09204-517-0	02	1	0005-	●
15	PLUG; VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	01	1	9510-0302	●
15	PLUG; VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	0303-	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-0	01	1	9510-9802	●	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-0	01	1	9803-0004	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0005-0302		●
26	VALVE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0005-0302	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0303-		●
26	VALVE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-48110-006-1	01	1	0303-	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-0004	●	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	0005-0302		●
27	BOLT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	0005-0302	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	0303-0512		●
27	BOLT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28680-830-0	02	1	0303-0512	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
27	BOLT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0302		●
28	NUT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0302	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0303-0602		●
28	NUT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	0303-0602	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
28	NUT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	0603-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0303-	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9510-9802	●	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	9803-0004	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0005-0302		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0005-0302	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0303-		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0303-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	9510-9802	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9803-0106	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-0611	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-0611	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0612-	●
29	CONNECTOR; AIR VLV WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-09650-283-1	01	1	9510-9802	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9803-0302	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0303-0611	●
29	CONNECTOR; AIR VLV WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0612-	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9510-9802	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-0611	●
29	CONNECTOR; AIR VLV WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0612-	●
29	CONNECTOR; AIR VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9510-9802	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0005-	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0005-0106	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (G) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0107-	●
30	GOVERNOR; AIR CONT (A)	1-48350-059-0	01	1	9510-9910	●	●
30	GOVERNOR; AIR CONT (B)	1-48350-063-2	01	1	9911-	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9802	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9803-9911	●	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28680-835-0	02	1	9912-0004	●	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28680-835-0	02	1	0005-0512		●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	0005-0512	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28650-835-0	02	1	0601-		●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9510-9606	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9510-0004		●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9510-0004	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0005-	●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9510-0004		●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9510-0004	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0005-	●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9510-0004		●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9510-0004	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-	●	●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-0004		●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-0004	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	02	1	0005-0906	●	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-	●	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	0005-0211	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	04	1	0212-0512	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-0004		●
60	NUT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-0004	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	0005-0512	●	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	02	1	0601-	●	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9911-	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-053-1	01	1	9510-9802	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-201-0	01	1	9803-0001	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0002-0004	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0005-0302		●
96	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0005-0302	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0303-		●
96	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-48495-224-0	01	1	0303-	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0302		●
97	BOLT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0302	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0303-0512		●
97	BOLT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X25 FLANGE	0-28680-825-0	02	1	0303-0512	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
97	BOLT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0302		●
98	NUT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0302	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0303-0602		●
98	NUT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	0303-0602	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
98	NUT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	0603-	●
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-079-0	01	1	9510-9802	●
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-114-4	01	1	9803-0004	●
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-113-5	01	1	0005-0611	●
99	VALVE; PROTECTION WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48110-113-5	01	1	0612-	●
99	VALVE; PROTECTION CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48110-113-5	01	1	0612-	●
99	VALVE; PROTECTION WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48110-135-5	01	1	0005-	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-860-0	01	1	0612-	●
103	BRACKET; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47477-281-0	01	1	9510-9802	●
103	BRACKET; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47478-057-0	01	1	9803-	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47478-694-0	01	1	0005-	●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10X20 FLANGE	0-28081-020-0	02	1	9510-9606	●
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10X25 FLANGE	0-28681-025-0	02	1	9607-0512	●
104	BOLT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-	●
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10	9-09110-510-0	02	1	9510-9606	●
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10 FLANGE	0-91150-210-0	02	1	9607-0602	●
105	NUT; BRKT,VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10 FLANGE	0-91180-210-0	02	1	0603-	●
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9803-0004	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0005-0302		●
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0005-0302	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0303-		●
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0303-	●
224	NUT; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	03	1	9803-0004	●
224	NUT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	0005-0602	●
224	NUT; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	03	1	0005-0602	●
224	NUT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	03	1	0603-	●
224	NUT; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	03	1	0603-	●
274	COVER; DUST WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48119-450-0	02	1	0005-0611	●
274	COVER; DUST CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48119-450-0	02	1	0005-0611	●
274	COVER; DUST CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48119-450-0	02	1	0612-	●
274	COVER; DUST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48119-450-0	02	1	0612-	●

38 35 33 30 34 93 31 93 38 34 35 93 33 30 93 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	GOVERNOR; AIR CONT (A)	1-48350-059-0	01	1	9510-9910	●	●
30	GOVERNOR; AIR CONT (B)	1-48350-063-2	01	1	9911-	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9802	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9803-9911	●	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28680-835-0	02	1	9912-0004	●	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28680-835-0	02	1	0005-0512		●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	0005-0512	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28650-835-0	02	1	0601-		●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48359-107-1	01	1	0005-	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48359-106-1	01	1	0005-	●
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9510-9606	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
38	NUT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
38	NUT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9911-	●	●

155 170 167 164 166 157 158 161 2 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	02	1	0005-	●
122	VALVE ASM; CONT,WHEEL PARKING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0005-	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	03	1	0005-0211	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	01	1	0212-	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	02	1	0212-	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48419-020-0	03	1	0110-	●
157	RETAINER; VALVE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48419-020-0	01	1	0110-	●	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	03	1	0005-0211	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	01	1	0212-	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	02	1	0212-	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	9-48419-003-0	03	1	0110-	●
158	SPRING; VALVE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-48419-003-0	01	1	0110-	●	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	03	1	0005-0211	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	01	1	0212-	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	02	1	0212-	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	03	1	0005-0211	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	0212-	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	02	1	0212-	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	03	1	0005-0211	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	0212-	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	02	1	0212-	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	03	1	0005-0211	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	0212-	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	02	1	0212-	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	03	1	0005-0211	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	0212-	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	02	1	0212-	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	12	1	0005-0211	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	0212-	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	08	1	0212-	●

54 15 59 114 19 6 59 13 6 67 19 108 54 47 47 15 47 114 66 108 45 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28681-030-0	02	1	0005-0512	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9510-0004		●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9510-0004	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48410-320-0	01	1	0005-0109	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48410-659-0	01	1	0110-	●	●
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	02	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-659-0	02	1	0110-	●
15	PLUG; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT3/8	9-09204-517-0	02	1	0005-	●
15	PLUG; VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	01	1	9510-0302	●
15	PLUG; VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	0303-	●
19	BRACKET; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48495-221-0	01	1	0005-	●
19	BRACKET; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48495-220-0	01	1	0005-	●
45	VALVE; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	01	1	0005-0109	●
45	VALVE; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-659-0	01	1	0110-	●
47	CONNECTOR; RELAY VLV,CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-	●
47	CONNECTOR; RELAY VLV,CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	0005-	●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-0004		●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-0004	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	02	1	0005-0906	●	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-	●	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	0005-0211	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	04	1	0212-0512	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28681-025-0	02	1	0005-0512	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9803-0004	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0005-0302		●
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0005-0302	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0303-		●
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0303-	●
114	NUT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	0005-0602	●
114	NUT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	04	1	0603-	●

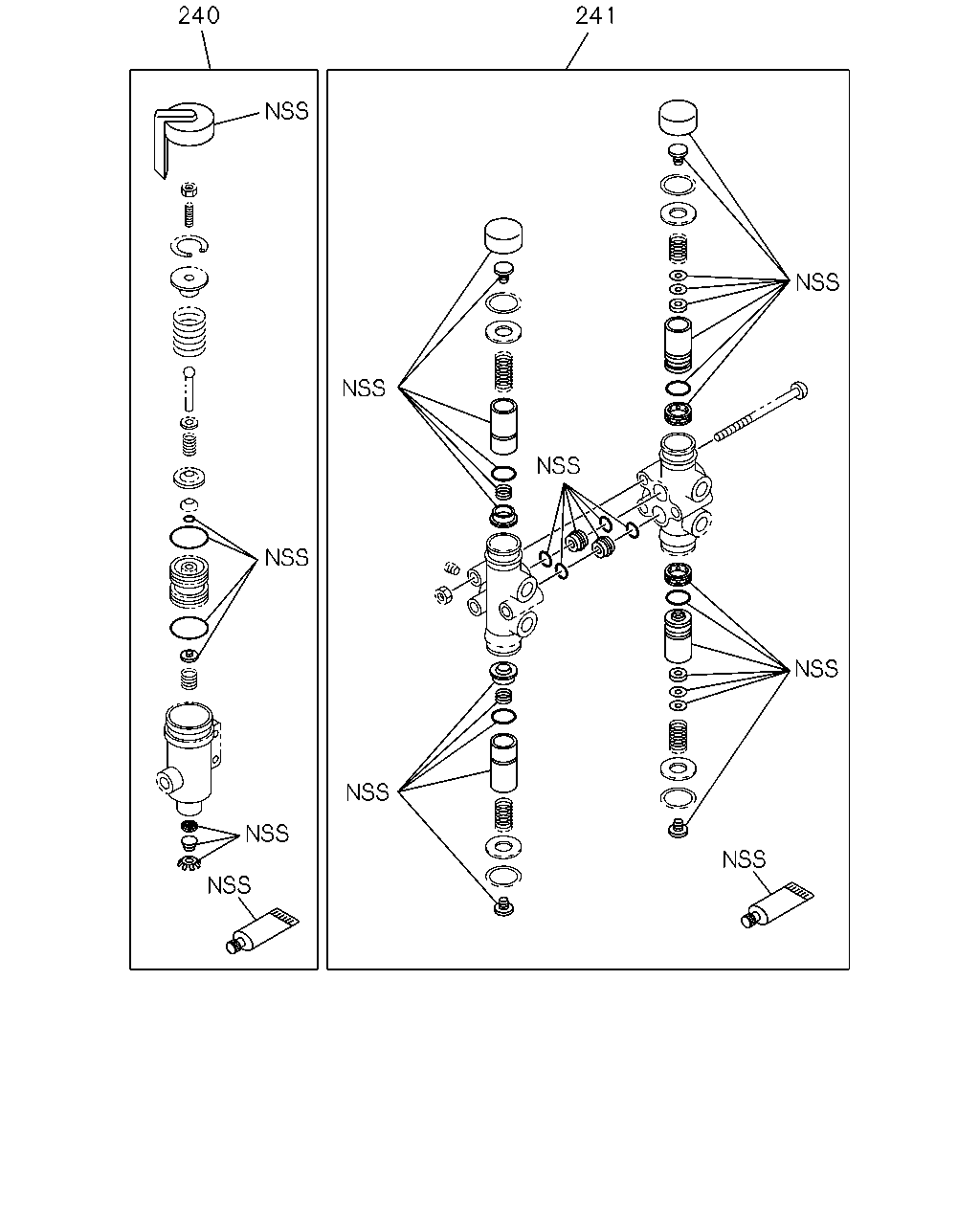

240 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0005-	●	●
240	REPAIR KIT; AIR CONT GOV	1-85576-207-0	01	1	9911-0004	●	●
241	REPAIR KIT; PROTECTION VALVE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-224-0	01	1	0005-0611	●
241	REPAIR KIT; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-85576-224-0	01	1	0005-0611	●
241	REPAIR KIT; PROTECTION VALVE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-85576-224-0	01	1	0612-	●
241	REPAIR KIT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-224-0	01	1	0612-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
