◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11102 - FRR RHD EURO2/4 SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#39849) — 43 parça

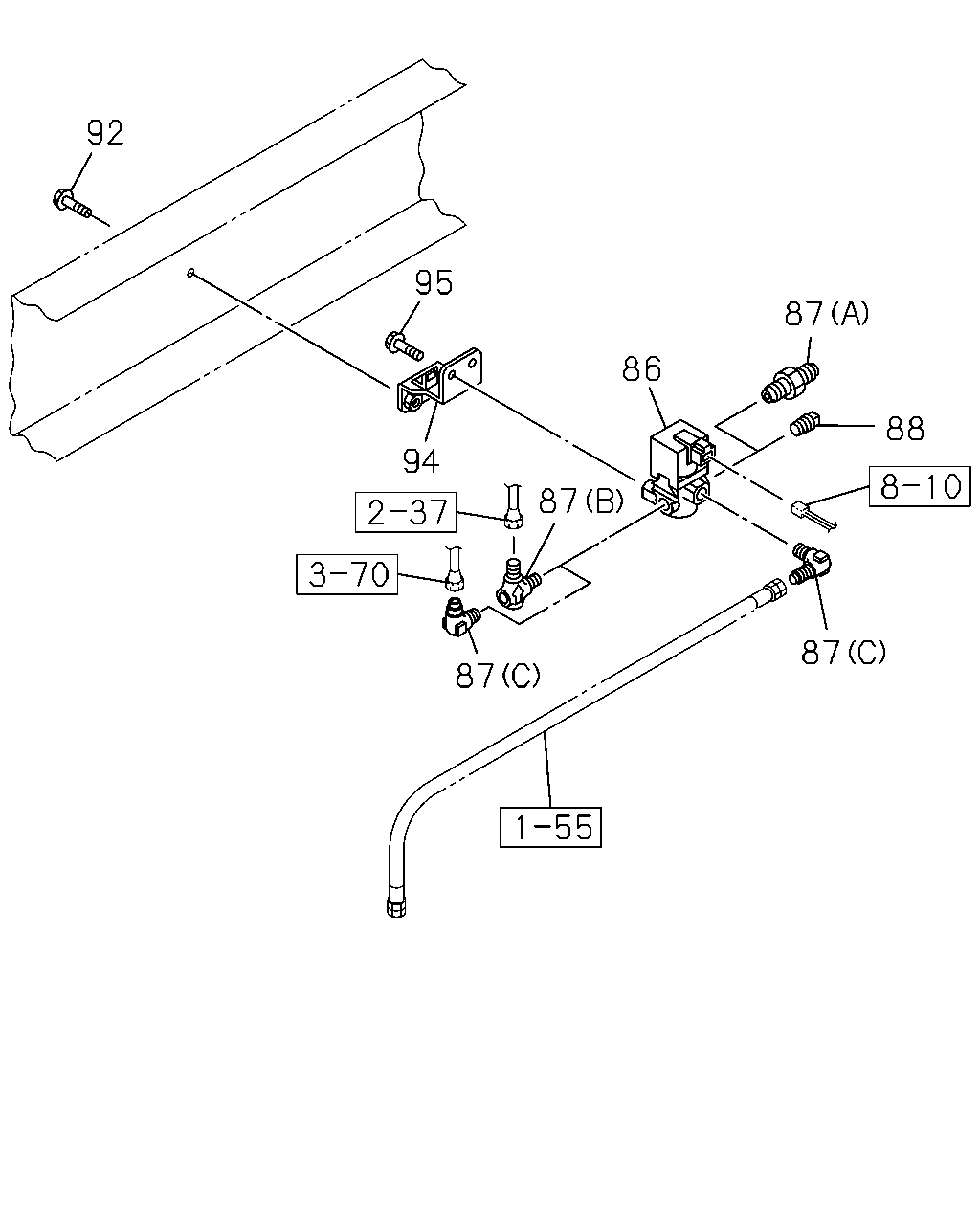

çizim 178293
92 95 87 86 88 94 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0710-1011 ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 1012- ● ●
87 CONNECTOR
LEAF SUS(FCR***) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF),CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0812- ●
87 CONNECTOR
LEAF SUS(FCR***) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 0812-1503 ●
87 CONNECTOR
LEAF SUS(FCR***) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF),CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504- ●
87 CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0710-0711 ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0712-0808 ●
87 CONNECTOR
EXC. BRAKE REGULATION ADR(TDU),TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0712-0808 ●
87 CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809-0811 ●
87 CONNECTOR
AIR SUS(FCD***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0812-1011 ●
87 CONNECTOR
LEAF SUS(FCR***) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0812-1011 ●
87 CONNECTOR
LEAF SUS(FCR***) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0812-1011 ●
87 CONNECTOR
LEAF SUS(FCR***) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. RIGID SEAT WO/ARM REST<TAZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0812-1011 ●
87 CONNECTOR
LEAF SUS(FCR***) EXC. BRAKE REGULATION ADR(TDU),TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0812-1011 ●
87 CONNECTOR
LEAF SUS(FCR***) EXC. BRAKE REGULATION ADR(TDU),TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ● ●
87 CONNECTOR
LEAF SUS(FCR***) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ● ●
87 CONNECTOR
LEAF SUS(FCR***) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ● ●
87 CONNECTOR
LEAF SUS(FCR***) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. RIGID SEAT WO/ARM REST<TAZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ● ●
87 CONNECTOR
AIR SUS(FCD***) WHEEL BASE 5300MM(53W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012- ●
87 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-0711 ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0712-0808 ●
87 CONNECTOR
BRAKE REGULATION ADR(TDU) (A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0809-0811 ●
87 CONNECTOR
AIR SUS(FCD***) (A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0812- ●
87 CONNECTOR
LEAF SUS(FCR***) BRAKE REGULATION ADR(TDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0812- ●
87 CONNECTOR
LEAF SUS(FCR***) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0812- ●
87 CONNECTOR
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-0811 ●
87 CONNECTOR
AIR SUS(FCD***) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0812-1011 ●
87 CONNECTOR
LEAF SUS(FCR***) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0812-1011 ●
87 CONNECTOR
LEAF SUS(FCR***) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0812-1011 ●
87 CONNECTOR
LEAF SUS(FCR***) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR(TDU) EXC. RIGID SEAT WO/ARM REST<TAZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0812-1011 ●
87 CONNECTOR
LEAF SUS(FCR***) BRAKE REGULATION ADR(TDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0812-1011 ●
87 CONNECTOR
LEAF SUS(FCR***) EXC. BRAKE REGULATION ADR(TDU) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0812-1011 ●
87 CONNECTOR
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012- ● ●
88 PLUG
EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 0712-1011 ●
88 PLUG
EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 1012- ● ●
92 BOLT; MAG VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0807 ● ●
92 BOLT; MAG VLV
M10X25 FLANGE 		0-28651-025-0 02 1 0808-1008 ●
92 BOLT; MAG VLV
M10X30 FLANGE 		0-28651-030-0 02 1 1009-1011 ●
92 BOLT; MAG VLV
M10X30 FLANGE 		0-28651-030-0 02 1 1012- ● ●
94 BRACKET; MAG VLV,EXH BRAKE 8-98078-098-0 01 1 0710-1011 ●
94 BRACKET; MAG VLV,EXH BRAKE 8-98078-098-0 01 1 1012- ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0710-1011 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1012- ● ●
