◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11102 - FRR RHD EURO2/4 SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER ▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#39848) — 48 parça

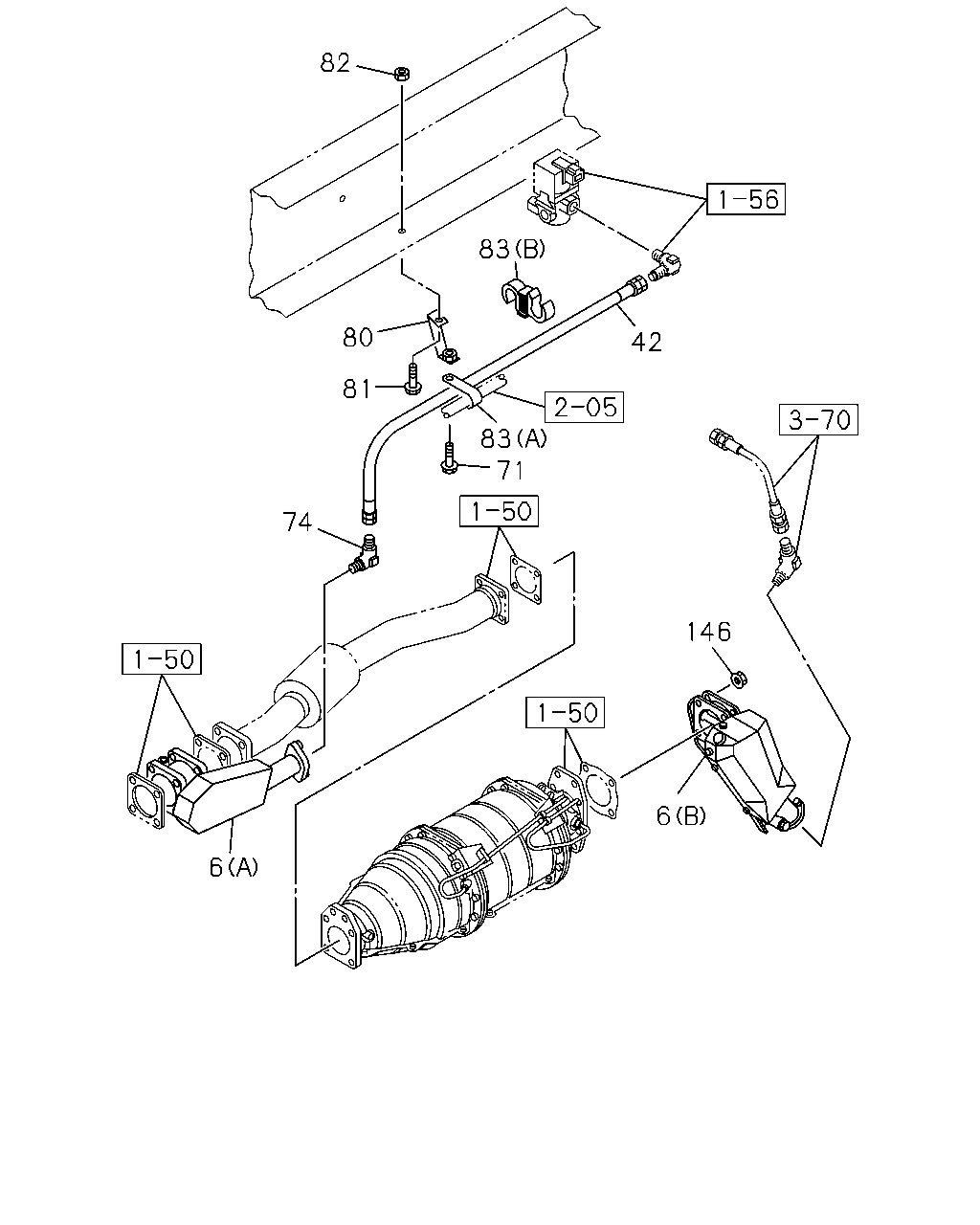

çizim 178298
82 83 80 42 81 83 71 74 146 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		8-98054-172-4 01 1 0710-0906 ●
6 VALVE; EXH BRAKE
(A) 		8-98054-172-6 01 1 0907-1011 ●
6 VALVE; EXH BRAKE
(A) 		8-98054-172-6 01 1 1012- ● ●
6 VALVE; EXH BRAKE
(B) 		8-98054-188-4 01 1 0710-0808 ●
6 VALVE; EXH BRAKE
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98054-188-6 01 1 0809- ●
42 HOSE; FLEX,EXH BRK
MLD6Q M/T(X5J),MLD6S M/T(X7W) POWER TAKE OFF-FLYWHEEL(6SZ) L=560 		1-09363-914-0 01 1 0809- ●
42 HOSE; FLEX,EXH BRK
MLD6Q M/T(X5J) L=660 		1-09363-971-0 01 1 0806-0808 ●
42 HOSE; FLEX,EXH BRK
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=660 		1-09363-971-0 01 1 0809- ●
42 HOSE; FLEX,EXH BRK
L=600 		1-09363-639-0 01 1 0710-0803 ●
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW) L=600 		1-09363-639-0 01 1 0804-0906 ●
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=600 		1-09363-639-0 01 1 0907-1011 ●
42 HOSE; FLEX,EXH BRK
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) L=600 		1-09363-639-0 01 1 1012- ● ●
71 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0808 ●
71 BOLT; CLIP
MZX6P M/T(RSW) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0812 ●
71 BOLT; CLIP
MZX6P M/T(RSW) M8X25 FLANGE 		0-28650-825-0 01 1 0901-0906 ●
71 BOLT; CLIP
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 FLANGE 		0-28650-825-0 01 1 0901-0906 ●
71 BOLT; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) M8X25 FLANGE 		0-28650-825-0 01 1 0907-1011 ●
71 BOLT; CLIP
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 FLANGE 		0-28650-825-0 01 1 0907-1011 ●
71 BOLT; CLIP
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
71 BOLT; CLIP
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-1011 ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012- ● ●
80 BRACKET; FLEX HOSE 8-98078-153-0 01 1 0710-0803 ●
80 BRACKET; FLEX HOSE
MZX6P M/T(RSW) 		8-98078-153-0 01 1 0804-0906 ●
80 BRACKET; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98078-153-0 01 1 0907-1011 ●
80 BRACKET; FLEX HOSE
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98078-153-0 01 1 1012- ● ●
81 BOLT; HOSE BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0710-0801 ●
81 BOLT; HOSE BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 0802-0803 ●
81 BOLT; HOSE BRKT
MZX6P M/T(RSW) M10X25 FLANGE 		0-28051-025-0 01 1 0804-0906 ●
81 BOLT; HOSE BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X25 FLANGE 		0-28051-025-0 01 1 0907-1011 ●
81 BOLT; HOSE BRKT
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X25 FLANGE 		0-28051-025-0 01 1 1012- ● ●
82 NUT; HOSE BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0812 ●
82 NUT; HOSE BRKT
MZX6P M/T(RSW) M10 FLANGE 		0-91180-210-0 01 1 0901-0906 ●
82 NUT; HOSE BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 01 1 0907-1011 ●
82 NUT; HOSE BRKT
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 01 1 1012- ● ●
83 CLIP; FLEX HOSE
MLD6Q M/T(X5J),MLD6S M/T(X7W) POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=10 & 12 		1-09709-278-1 01 1 0902- ●
83 CLIP; FLEX HOSE
MLD6Q M/T(X5J),MLD6S M/T(X7W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=11 L=50 		0-95235-085-0 01 1 0901- ●
83 CLIP; FLEX HOSE
MLD6Q M/T(X5J) (A) ID=11 L=50 		0-95235-085-0 01 1 0806-0808 ●
83 CLIP; FLEX HOSE
(A) ID=11X2 L=16 		1-09700-820-0 01 1 0710-0803 ●
83 CLIP; FLEX HOSE
MZX6P M/T(RSW) (A) ID=11X2 L=16 		1-09700-820-0 01 1 0804-0906 ●
83 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=11X2 L=16 		1-09700-820-0 01 1 0907-1011 ●
83 CLIP; FLEX HOSE
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=11X2 L=16 		1-09700-820-0 01 1 1012- ● ●
83 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0710-0906 ●
83 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0907-1011 ●
83 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 1012- ●
83 CLIP; FLEX HOSE
LEAF SUS(FCR***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 1012- ●
146 NUT; EXH BRK VLV
M8 W/LK WASHER 		8-97581-234-0 04 1 0710-0808 ●
146 NUT; EXH BRK VLV
EURO4 SPECIFICATION<NT4> M8 W/LK WASHER 		8-97581-234-0 04 1 0809- ●
