1-50 — EXHAUST PIPE AND SILENCER (#39847) — 433 parça

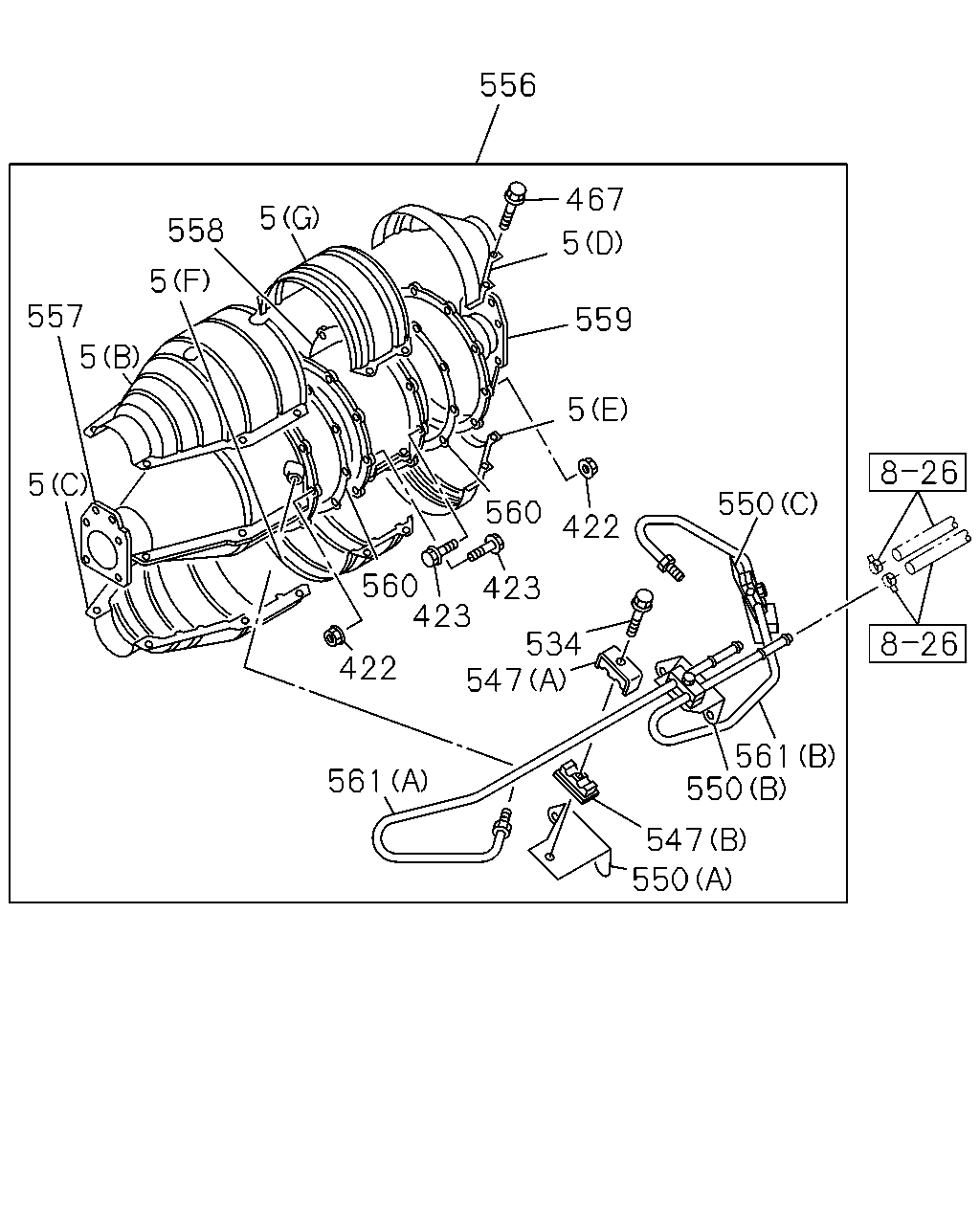

çizim 178323
556 467 5 558 5 5 557 559 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98089-287-1 01 1 0809-0906 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98089-287-1 01 1 0809-0906 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98089-287-1 01 1 0907-1011 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98089-287-1 01 1 0907-1011 ●
5 PROTECTOR; HEAT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98089-287-1 01 1 1012- ●
5 PROTECTOR; HEAT
EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98089-287-1 01 1 1012- ●
5 PROTECTOR; HEAT
(G) 		8-97605-172-0 01 1 0710-0808 ● ●
5 PROTECTOR; HEAT
(G) 		8-97605-172-0 01 1 0809- ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (G) 		8-97605-172-0 01 1 0809- ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0710-0808 ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0809- ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97611-086-0 01 1 0809- ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0710-0808 ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0809- ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97611-087-0 01 1 0809- ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0710-0808 ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0809- ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-97611-088-0 01 1 0809- ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0710-0808 ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0809- ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (E) 		8-97611-089-0 01 1 0809- ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0710-0808 ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0809- ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-97613-390-0 01 1 0809- ●
5 PROTECTOR; HEAT
(A) 		8-98044-122-0 01 1 0710-0711 ● ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0712-0808 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98044-122-0 01 1 0712-0808 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0712-0808 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0809-0906 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EURO2 SPECIFICATION<NT2> (A) 		8-98044-122-0 01 1 0809-0906 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EURO2 SPECIFICATION<NT2>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0809-0906 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0907-1011 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EURO2 SPECIFICATION<NT2> (A) 		8-98044-122-0 01 1 0907-1011 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EURO2 SPECIFICATION<NT2>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0907-1011 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 1012- ●
5 PROTECTOR; HEAT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EURO2 SPECIFICATION<NT2> (A) 		8-98044-122-0 01 1 1012- ●
5 PROTECTOR; HEAT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EURO2 SPECIFICATION<NT2>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 1012- ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0710-0808 ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0809- ●
422 NUT; PIPE
CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 20 1 0809- ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0710-0808 ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0809- ●
423 BOLT; PIPE
CATALYSIS CONTROL WITH DPD<8JM> M8X35 FLANGE 		0-28650-835-0 20 1 0809- ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0710-0808 ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0809- ●
467 BOLT; PROTECTOR
CATALYSIS CONTROL WITH DPD<8JM> M6X16 		8-98019-179-0 14 1 0809- ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0710-0808 ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0809- ●
534 BOLT; CLIP
CATALYSIS CONTROL WITH DPD<8JM> M6X35 FLANGE 		0-28650-635-0 03 1 0809- ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0710-0808 ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0809- ●
547 CLIP; PIPE
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97381-635-0 03 1 0809- ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0710-0808 ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0809- ●
547 CLIP; PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97381-636-0 03 1 0809- ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0710-0808 ● ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0809- ●
550 BRACKET; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97611-083-0 01 1 0809- ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0710-0808 ● ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0809- ●
550 BRACKET; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97611-084-0 01 1 0809- ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0710-0808 ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0809- ●
550 BRACKET; DPD
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97611-085-0 01 1 0809- ●
556 DPD ASM 8-97613-331-6 01 1 0710-0808 ● ●
556 DPD ASM 8-97613-331-6 01 1 0809-1010 ●
556 DPD ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97613-331-6 01 1 0809-1010 ●
556 DPD ASM 8-97622-883-4 01 1 1011- ●
556 DPD ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97622-883-4 01 1 1011- ●
557 CATALYST ASM 8-97608-055-5 01 1 0710-0808 ● ●
557 CATALYST ASM 8-97608-055-8 01 1 0809- ●
557 CATALYST ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97608-055-8 01 1 0809- ●
558 FILTER ASM 8-97608-057-3 01 1 0710-0808 ● ●
558 FILTER ASM 8-97608-057-3 01 1 0809- ●
558 FILTER ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97608-057-3 01 1 0809- ●
559 COVER; RR 8-97611-078-0 01 1 0710-0808 ● ●
559 COVER; RR 8-97611-078-0 01 1 0809-1010 ●
559 COVER; RR
CATALYSIS CONTROL WITH DPD<8JM> 		8-97611-078-0 01 1 0809-1010 ●
559 COVER; RR 8-97622-887-0 01 1 1011- ●
559 COVER; RR
CATALYSIS CONTROL WITH DPD<8JM> 		8-97622-887-0 01 1 1011- ●
560 GASKET; DPD 8-97611-080-0 02 1 0710-0808 ● ●
560 GASKET; DPD 8-97611-080-0 02 1 0809- ●
560 GASKET; DPD
CATALYSIS CONTROL WITH DPD<8JM> 		8-97611-080-0 02 1 0809- ●
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0710-0808 ● ●
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0809-1010 ●
561 PIPE; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97611-081-0 01 1 0809-1010 ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011- ●
561 PIPE; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97622-888-0 01 1 1011- ●
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0710-0808 ● ●
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0809-1010 ●
561 PIPE; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97611-082-0 01 1 0809-1010 ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011- ●
561 PIPE; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97622-889-0 01 1 1011- ●

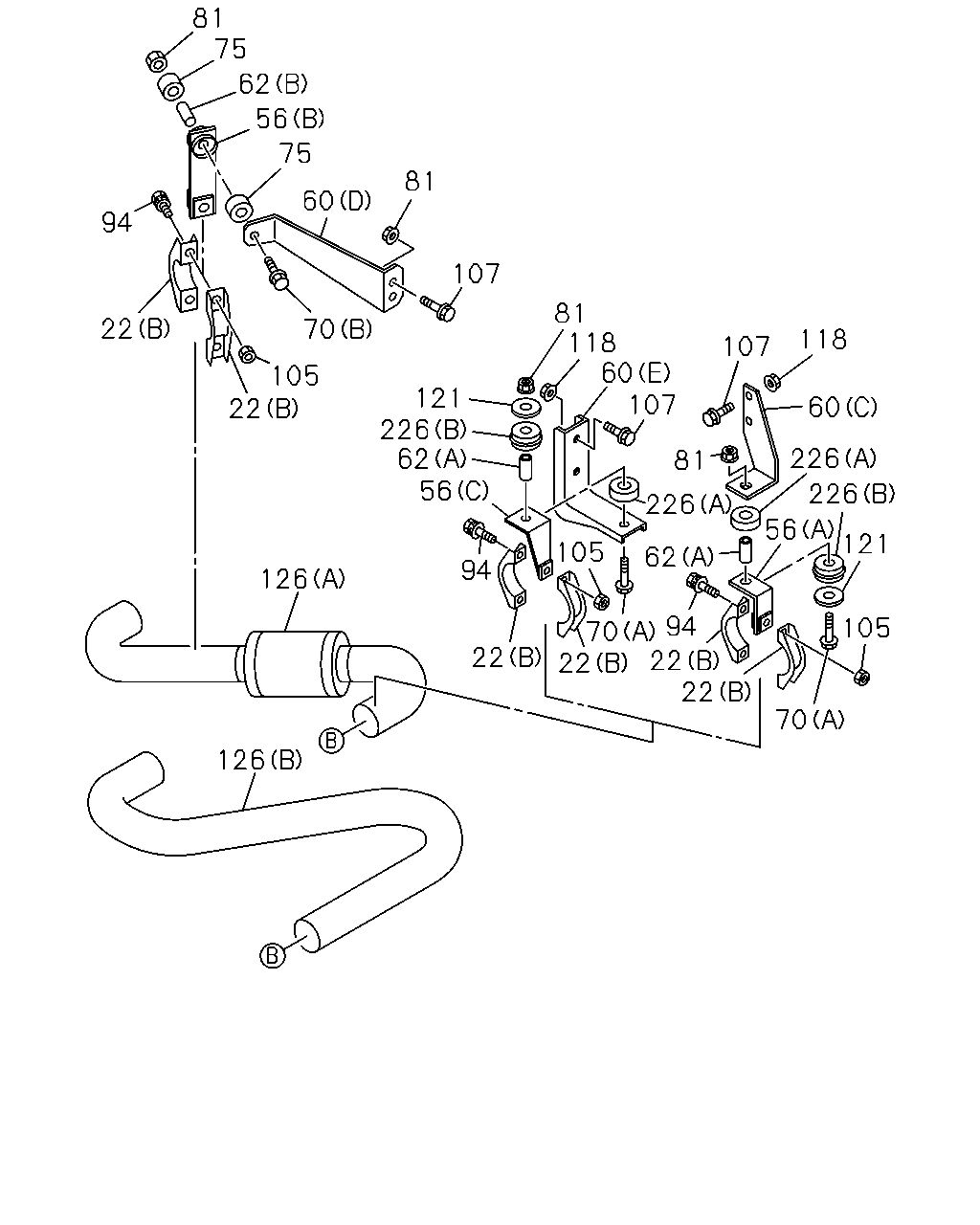

çizim 178332
81 75 62 56 75 81 60 94 107 81 118 60 107 22 70 118 107 105 22 121 226 62 56 60 226 81 226 226 56 121 105 62 94 126 70 22 94 22 22 105 22 70 126
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 0710- ● ●
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 0710- ● ●
22 CLAMP; EXH PIPE
(A) 		1-22133-295-0 01 1 0710-1309 ● ●
22 CLAMP; EXH PIPE
(A) 		8-97646-674-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
EURO2 SPECIFICATION<NT2> (C) 		8-98086-352-0 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (A) 		8-98059-757-1 01 1 0710-0808 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) 		8-98059-757-1 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-584-0 01 1 0710-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-755-0 01 1 0710-0711 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-755-0 01 1 0710-0711 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-755-0 01 1 0712-0808 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) 		8-98059-755-0 01 1 0712-0808 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> (C) 		8-98059-755-0 01 1 0809- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98074-824-1 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98074-825-0 01 1 0710-0808 ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98074-825-0 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
EURO4 SPECIFICATION<NT4> (E) 		8-98074-825-0 01 1 0809- ●
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION<NT2> (D) 		8-98090-167-0 01 1 0809- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (C) 		1-22152-305-2 01 1 0710-0808 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (C) 		1-22152-305-2 01 1 0809- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0710- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0710-0808 ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0809- ●
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION<NT4> (B) 		8-98059-712-1 01 1 0809- ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98059-753-1 01 1 0710-0711 ● ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98059-753-1 01 1 0710-0711 ● ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98059-753-1 01 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) 		8-98059-753-1 01 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION<NT2> (E) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> (E) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION<NT2> (E) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> (E) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-640-0 01 1 0710-0808 ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-640-0 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION<NT4> (D) 		8-98070-640-0 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98245-521-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION<NT4> (D) 		8-98245-521-0 01 1 1310- ●
62 TUBE; DIST,BRKT
EURO2 SPECIFICATION<NT2> (A) L=39 		8-98060-852-0 02 1 0809- ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0710-0808 ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0710-0808 ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0710-0808 ● ●
62 TUBE; DIST,BRKT
EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 0809- ● ●
62 TUBE; DIST,BRKT
EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 0809- ● ●
62 TUBE; DIST,BRKT
EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 0809- ● ●
70 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X70 FLANGE 		0-28051-070-0 02 1 0809- ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0808 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0808 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0808 ● ●
70 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809- ● ●
70 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809- ● ●
70 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0710- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0808 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0808 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0808 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0808 ● ●
81 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 01 1 0809- ● ●
81 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 01 1 0809- ● ●
81 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 01 1 0809- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0808 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809- ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 0809- ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 0809- ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0710- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0710- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0808 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0808 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-0906 ● ●
107 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 0809-0906 ● ●
107 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 0809-0906 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0907- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0907- ● ●
107 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 0907- ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<NT2> ID=11 OD=54 		1-09503-154-2 02 1 0809- ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0710-0808 ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0710-0808 ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0710-0808 ● ●
121 WASHER; PL,BRKT
EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 01 1 0809- ● ●
121 WASHER; PL,BRKT
EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 01 1 0809- ● ●
121 WASHER; PL,BRKT
EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 01 1 0809- ● ●
126 PIPE; EXH,RR
EURO2 SPECIFICATION<NT2> (B) 		8-98073-427-0 01 1 0809- ●
126 PIPE; EXH,RR
(A) 		8-98043-365-2 01 1 0710-0808 ● ●
126 PIPE; EXH,RR
(A) 		8-98043-365-2 01 1 0809-1309 ●
126 PIPE; EXH,RR
EURO4 SPECIFICATION<NT4> (A) 		8-98043-365-2 01 1 0809-1309 ●
126 PIPE; EXH,RR
(A) 		8-98245-503-0 01 1 1310- ●
126 PIPE; EXH,RR
EURO4 SPECIFICATION<NT4> (A) 		8-98245-503-0 01 1 1310- ●
226 RUBBER; CUSHION
EURO2 SPECIFICATION<NT2> (A) 		8-94457-277-1 02 1 0809- ●
226 RUBBER; CUSHION
EURO2 SPECIFICATION<NT2> (B) 		8-94457-278-1 02 1 0809- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0808 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0808 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0808 ● ●
226 RUBBER; CUSHION
EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 0809- ● ●
226 RUBBER; CUSHION
EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 0809- ● ●
226 RUBBER; CUSHION
EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 0809- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0808 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0808 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0808 ● ●
226 RUBBER; CUSHION
EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 0809- ● ●
226 RUBBER; CUSHION
EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 0809- ● ●
226 RUBBER; CUSHION
EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 0809- ● ●

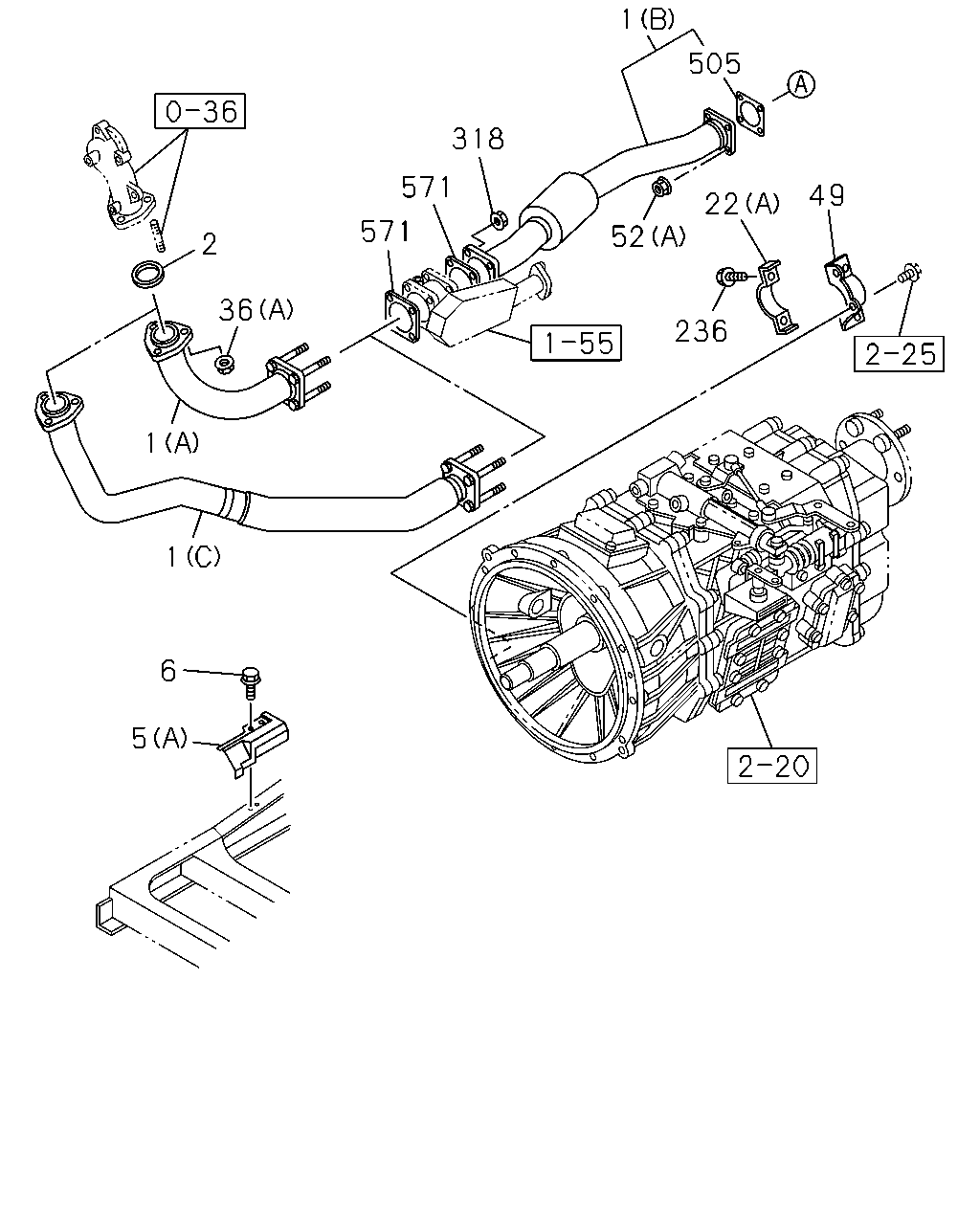

çizim 178334
1 505 318 571 49 22 571 52 36 236 1 1 6 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> (C) 		8-98082-498-0 01 1 0809- ●
1 PIPE; EXH
EURO2 SPECIFICATION<NT2> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98096-347-0 01 1 0809- ●
1 PIPE; EXH
POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98070-183-0 01 1 0710-0808 ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98070-183-1 01 1 0809-1107 ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98198-853-0 01 1 1108- ●
1 PIPE; EXH
POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98070-181-3 01 1 0710-0808 ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98070-181-3 01 1 0809-0912 ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98161-197-0 01 1 1001-1202 ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98208-161-0 01 1 1203-1303 ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98243-547-0 01 1 1304- ●
1 PIPE; EXH
(A) 		8-98043-016-3 01 1 0710-0808 ●
1 PIPE; EXH
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98043-016-3 01 1 0710-0808 ●
1 PIPE; EXH
(A) 		8-98043-016-3 01 1 0809-0912 ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98043-016-3 01 1 0809-0912 ●
1 PIPE; EXH
(A) 		8-98161-196-0 01 1 1001-1202 ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98161-196-0 01 1 1001-1202 ●
1 PIPE; EXH
(A) 		8-98208-160-0 01 1 1203-1303 ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98208-160-0 01 1 1203-1303 ●
1 PIPE; EXH
(A) 		8-98243-546-0 01 1 1304- ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98243-546-0 01 1 1304- ●
1 PIPE; EXH
(B) 		8-98035-936-3 01 1 0710-0808 ●
1 PIPE; EXH
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98035-936-3 01 1 0710-0808 ●
1 PIPE; EXH
(B) 		8-98035-936-4 01 1 0809-1107 ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98035-936-4 01 1 0809-1107 ●
1 PIPE; EXH
(B) 		8-98198-849-0 01 1 1108- ●
1 PIPE; EXH
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98198-849-0 01 1 1108- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98089-287-1 01 1 0809-0906 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98089-287-1 01 1 0809-0906 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98089-287-1 01 1 0907-1011 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98089-287-1 01 1 0907-1011 ●
5 PROTECTOR; HEAT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98089-287-1 01 1 1012- ●
5 PROTECTOR; HEAT
EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98089-287-1 01 1 1012- ●
5 PROTECTOR; HEAT
(G) 		8-97605-172-0 01 1 0710-0808 ● ●
5 PROTECTOR; HEAT
(G) 		8-97605-172-0 01 1 0809- ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (G) 		8-97605-172-0 01 1 0809- ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0710-0808 ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0809- ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97611-086-0 01 1 0809- ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0710-0808 ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0809- ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97611-087-0 01 1 0809- ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0710-0808 ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0809- ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-97611-088-0 01 1 0809- ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0710-0808 ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0809- ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (E) 		8-97611-089-0 01 1 0809- ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0710-0808 ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0809- ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-97613-390-0 01 1 0809- ●
5 PROTECTOR; HEAT
(A) 		8-98044-122-0 01 1 0710-0711 ● ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0712-0808 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98044-122-0 01 1 0712-0808 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0712-0808 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0809-0906 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EURO2 SPECIFICATION<NT2> (A) 		8-98044-122-0 01 1 0809-0906 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EURO2 SPECIFICATION<NT2>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0809-0906 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0907-1011 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EURO2 SPECIFICATION<NT2> (A) 		8-98044-122-0 01 1 0907-1011 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EURO2 SPECIFICATION<NT2>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0907-1011 ●
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 1012- ●
5 PROTECTOR; HEAT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EURO2 SPECIFICATION<NT2> (A) 		8-98044-122-0 01 1 1012- ●
5 PROTECTOR; HEAT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EURO2 SPECIFICATION<NT2>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 1012- ●
6 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ● ●
6 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0906 ●
6 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0906 ●
6 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0906 ●
6 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 02 1 0907-1011 ●
6 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0907-1011 ●
6 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 02 1 0907-1011 ●
6 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
6 BOLT; HEAT PROTECTOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
6 BOLT; HEAT PROTECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 0710- ● ●
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 0710- ● ●
22 CLAMP; EXH PIPE
(A) 		1-22133-295-0 01 1 0710-1309 ● ●
22 CLAMP; EXH PIPE
(A) 		8-97646-674-0 01 1 1310- ● ●
36 NUT; EXH PIPE
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 02 1 0809- ●
36 NUT; EXH PIPE
(B) M10 		0-91110-510-0 04 1 0710- ●
36 NUT; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) M10 		0-91110-510-0 04 1 0710- ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0710- ● ●
49 BRACKET; EXH PIPE TO TRANS 8-98042-786-0 01 1 0710-1301 ●
49 BRACKET; EXH PIPE TO TRANS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98042-786-0 01 1 0710-1301 ●
49 BRACKET; EXH PIPE TO TRANS 8-98234-530-0 01 1 1302- ●
49 BRACKET; EXH PIPE TO TRANS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98234-530-0 01 1 1302- ●
49 BRACKET; EXH PIPE TO TRANS
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98043-225-0 01 1 0710-1301 ●
49 BRACKET; EXH PIPE TO TRANS
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98234-531-0 01 1 1302- ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0810- ●
52 NUT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10 FLANGE 		0-91180-210-0 02 1 0810- ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 0710-0809 ●
52 NUT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10 FLANGE 		0-91180-210-0 08 1 0710-0809 ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 0810- ●
52 NUT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10 FLANGE 		0-91180-210-0 06 1 0810- ●
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 0710- ● ●
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710- ● ●
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 0710- ● ●
505 GASKET; CONV TO EXH PIPE
EURO2 SPECIFICATION<NT2> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98096-305-0 01 1 0809- ●
505 GASKET; CONV TO EXH PIPE
ID=87 		8-94394-391-0 01 1 0710-0808 ● ●
505 GASKET; CONV TO EXH PIPE
EURO4 SPECIFICATION<NT4> ID=87 		8-94394-391-0 01 1 0809- ● ●
571 GASKET
ID=64 		8-97373-108-0 02 1 0710- ● ●

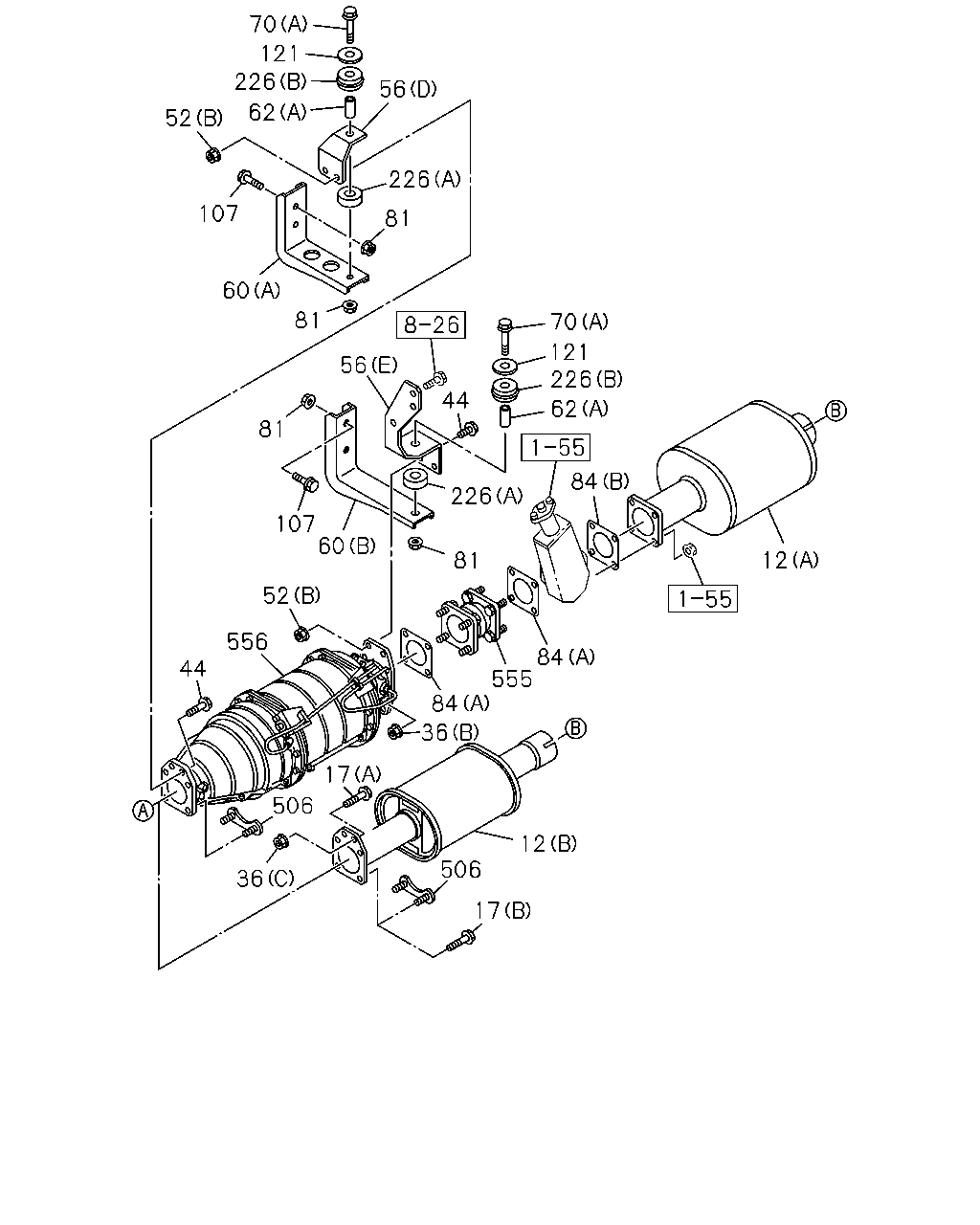

çizim 178348
70 121 226 56 62 52 226 107 81 60 81 70 121 226 56 44 62 81 84 226 107 60 12 81 52 556 84 555 44 84 36 17 506 12 506 36 17
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> (B) 		8-98090-389-2 01 1 0809- ●
12 SILENCER ASM; EXH
(A) 		8-98041-921-0 01 1 0710-0808 ● ●
12 SILENCER ASM; EXH
(A) 		8-98041-921-0 01 1 0809- ●
12 SILENCER ASM; EXH
EURO4 SPECIFICATION<NT4> (A) 		8-98041-921-0 01 1 0809- ●
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE 		0-28051-235-0 04 1 1204- ●
17 BOLT; EXH PIPE
EURO2 SPECIFICATION<NT2> (A) M10X35 FLANGE 		0-28651-035-0 02 1 0809- ●
36 NUT; EXH PIPE
EURO2 SPECIFICATION<NT2> (C) M10 FLANGE 		0-91180-210-0 02 1 0809- ●
36 NUT; EXH PIPE
(B) M10 		0-91110-510-0 04 1 0710- ●
36 NUT; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) M10 		0-91110-510-0 04 1 0710- ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0710- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0710- ●
44 BOLT; BRKT
EURO4 SPECIFICATION<NT4> M10X35 FLANGE 		0-28651-035-0 08 1 0710- ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0810- ●
52 NUT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10 FLANGE 		0-91180-210-0 02 1 0810- ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 0710-0809 ●
52 NUT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10 FLANGE 		0-91180-210-0 08 1 0710-0809 ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 0810- ●
52 NUT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10 FLANGE 		0-91180-210-0 06 1 0810- ●
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
EURO2 SPECIFICATION<NT2> (C) 		8-98086-352-0 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (A) 		8-98059-757-1 01 1 0710-0808 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (A) 		8-98059-757-1 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-584-0 01 1 0710-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-755-0 01 1 0710-0711 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-755-0 01 1 0710-0711 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-755-0 01 1 0712-0808 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) 		8-98059-755-0 01 1 0712-0808 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> (C) 		8-98059-755-0 01 1 0809- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98074-824-1 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98074-825-0 01 1 0710-0808 ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98074-825-0 01 1 0809- ●
56 BRACKET; CLAMP,EXH PIPE
EURO4 SPECIFICATION<NT4> (E) 		8-98074-825-0 01 1 0809- ●
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION<NT2> (D) 		8-98090-167-0 01 1 0809- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (C) 		1-22152-305-2 01 1 0710-0808 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> (C) 		1-22152-305-2 01 1 0809- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0710- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0710-0808 ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0809- ●
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION<NT4> (B) 		8-98059-712-1 01 1 0809- ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98059-753-1 01 1 0710-0711 ● ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98059-753-1 01 1 0710-0711 ● ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98059-753-1 01 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) 		8-98059-753-1 01 1 0712-0808 ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION<NT2> (E) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> (E) 		8-98059-753-1 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION<NT2> (E) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> (E) 		8-98245-530-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-640-0 01 1 0710-0808 ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-640-0 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION<NT4> (D) 		8-98070-640-0 01 1 0809-1309 ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98245-521-0 01 1 1310- ●
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION<NT4> (D) 		8-98245-521-0 01 1 1310- ●
62 TUBE; DIST,BRKT
EURO2 SPECIFICATION<NT2> (A) L=39 		8-98060-852-0 02 1 0809- ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0710-0808 ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0710-0808 ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0710-0808 ● ●
62 TUBE; DIST,BRKT
EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 0809- ● ●
62 TUBE; DIST,BRKT
EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 0809- ● ●
62 TUBE; DIST,BRKT
EURO4 SPECIFICATION<NT4> (A) L=39 		8-98060-852-0 01 1 0809- ● ●
70 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X70 FLANGE 		0-28051-070-0 02 1 0809- ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0808 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0808 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0808 ● ●
70 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809- ● ●
70 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809- ● ●
70 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0808 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0808 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0808 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0808 ● ●
81 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 01 1 0809- ● ●
81 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 01 1 0809- ● ●
81 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 01 1 0809- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0808 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809- ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 0809- ●
81 NUT; BRKT
EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 0809- ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0710- ●
84 GASKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (B) ID=85.8 		1-22116-043-0 01 1 0710- ●
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 0710-0808 ● ●
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 0809- ●
84 GASKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) ID=64 		8-97373-108-0 02 1 0809- ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0808 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0808 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-0906 ● ●
107 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 0809-0906 ● ●
107 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 0809-0906 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0907- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0907- ● ●
107 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 0907- ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<NT2> ID=11 OD=54 		1-09503-154-2 02 1 0809- ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0710-0808 ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0710-0808 ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0710-0808 ● ●
121 WASHER; PL,BRKT
EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 01 1 0809- ● ●
121 WASHER; PL,BRKT
EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 01 1 0809- ● ●
121 WASHER; PL,BRKT
EURO4 SPECIFICATION<NT4> ID=11 OD=54 		1-09503-154-2 01 1 0809- ● ●
226 RUBBER; CUSHION
EURO2 SPECIFICATION<NT2> (A) 		8-94457-277-1 02 1 0809- ●
226 RUBBER; CUSHION
EURO2 SPECIFICATION<NT2> (B) 		8-94457-278-1 02 1 0809- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0808 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0808 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0808 ● ●
226 RUBBER; CUSHION
EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 0809- ● ●
226 RUBBER; CUSHION
EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 0809- ● ●
226 RUBBER; CUSHION
EURO4 SPECIFICATION<NT4> (A) 		8-94457-277-1 01 1 0809- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0808 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0808 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0808 ● ●
226 RUBBER; CUSHION
EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 0809- ● ●
226 RUBBER; CUSHION
EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 0809- ● ●
226 RUBBER; CUSHION
EURO4 SPECIFICATION<NT4> (B) 		8-94457-278-1 01 1 0809- ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 0710-1203 ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1204- ●
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> M12X35 		1-22131-963-0 02 1 1204- ●
555 PIPE; EXH,DPD 8-98060-847-0 01 1 0710-0808 ● ●
555 PIPE; EXH,DPD 8-98060-847-0 01 1 0809- ●
555 PIPE; EXH,DPD
EURO4 SPECIFICATION<NT4> 		8-98060-847-0 01 1 0809- ●
556 DPD ASM 8-97613-331-6 01 1 0710-0808 ● ●
556 DPD ASM 8-97613-331-6 01 1 0809-1010 ●
556 DPD ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97613-331-6 01 1 0809-1010 ●
556 DPD ASM 8-97622-883-4 01 1 1011- ●
556 DPD ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97622-883-4 01 1 1011- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
