Sayfa 1-41 - Isuzu EPC

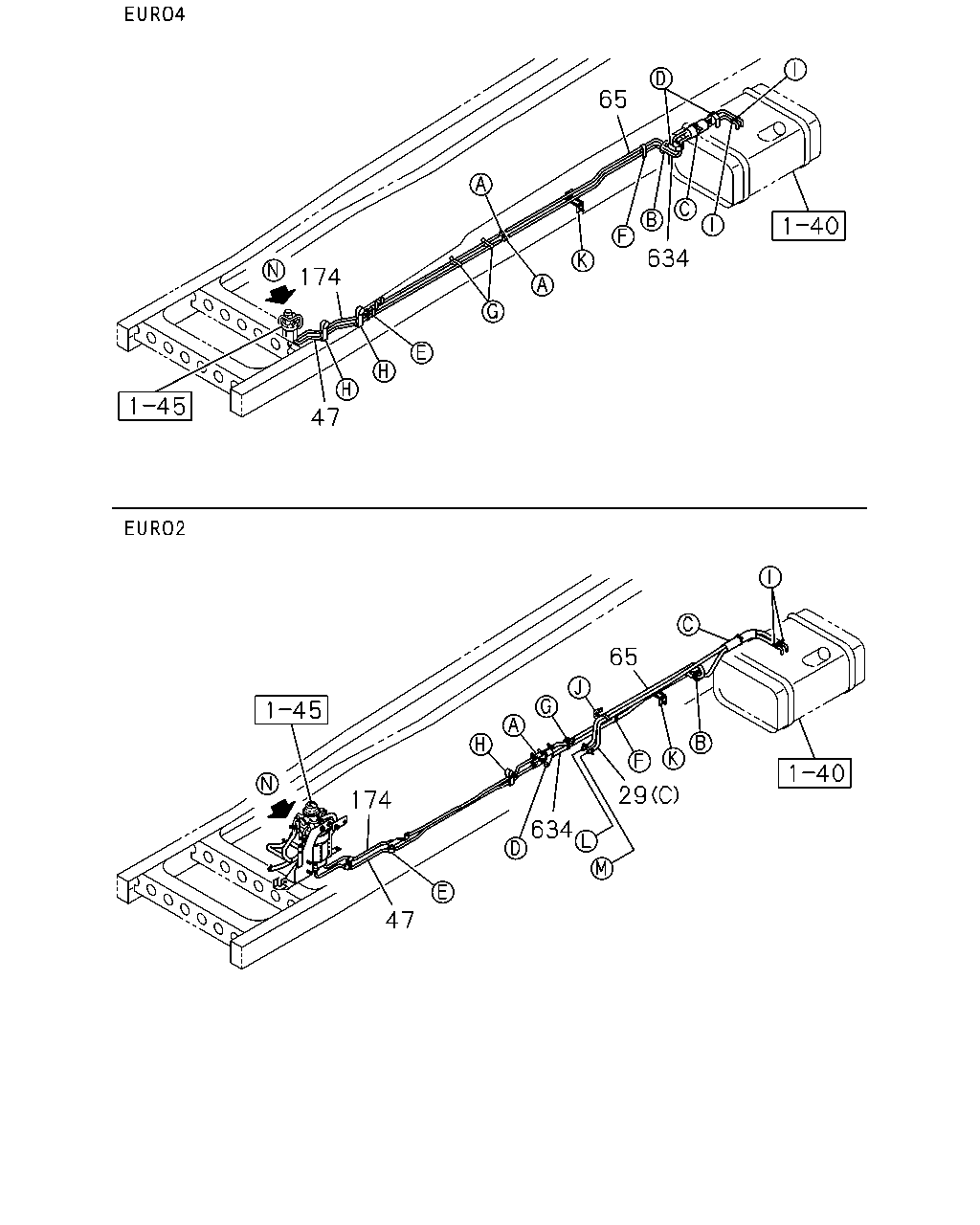

1-41 — FUEL PIPING; CHASSIS (#39845) — 361 parça

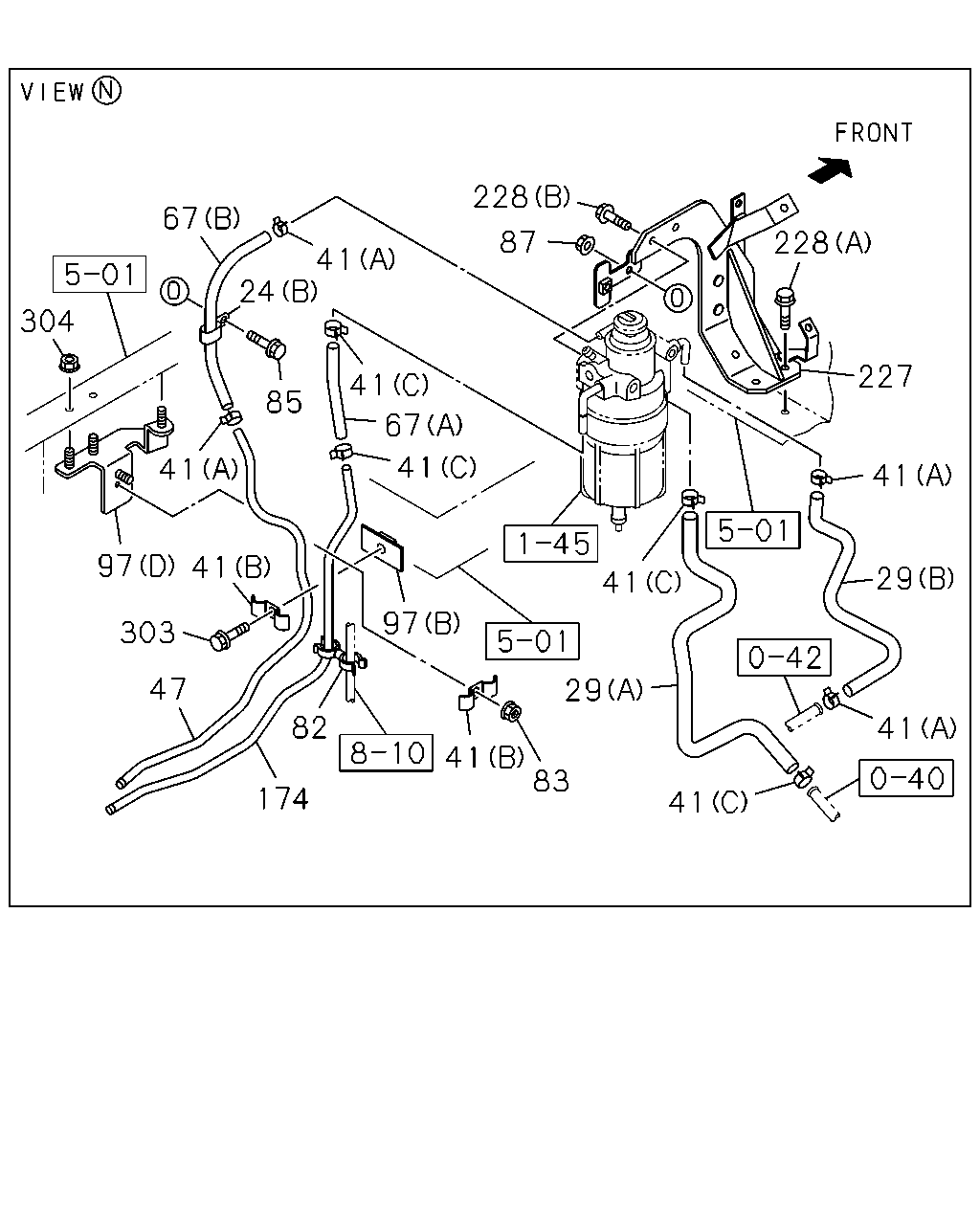

65 634 47 174 174 47 634 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (C) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
29	HOSE; FUEL WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> (C) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
29	HOSE; FUEL (A)	8-98078-194-3	01	1	0710-	●	●
29	HOSE; FUEL (B)	8-98078-195-1	01	1	0710-	●	●
47	PIPE; FUEL,RETURN L=1496	8-98082-818-0	01	1	0710-0710	●	●
47	PIPE; FUEL,RETURN L=799	8-98059-893-0	01	1	0710-0710	●	●
47	PIPE; FUEL,RETURN L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	0710-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE L=60 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0711	●	●
65	HOSE; FUEL,DELIVERY PIPE L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808	●
65	HOSE; FUEL,DELIVERY PIPE L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0809-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0710	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> L=640 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
174	PIPE; FUEL,FEED,FRT	8-98082-817-0	01	1	0710-0710	●	●
174	PIPE; FUEL,FEED,FRT L=1322	8-98100-140-0	01	1	0710-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0711	●	●
634	HOSE; RUBBER RETURN L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	0712-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	0712-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0710	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808	●
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=2200 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●

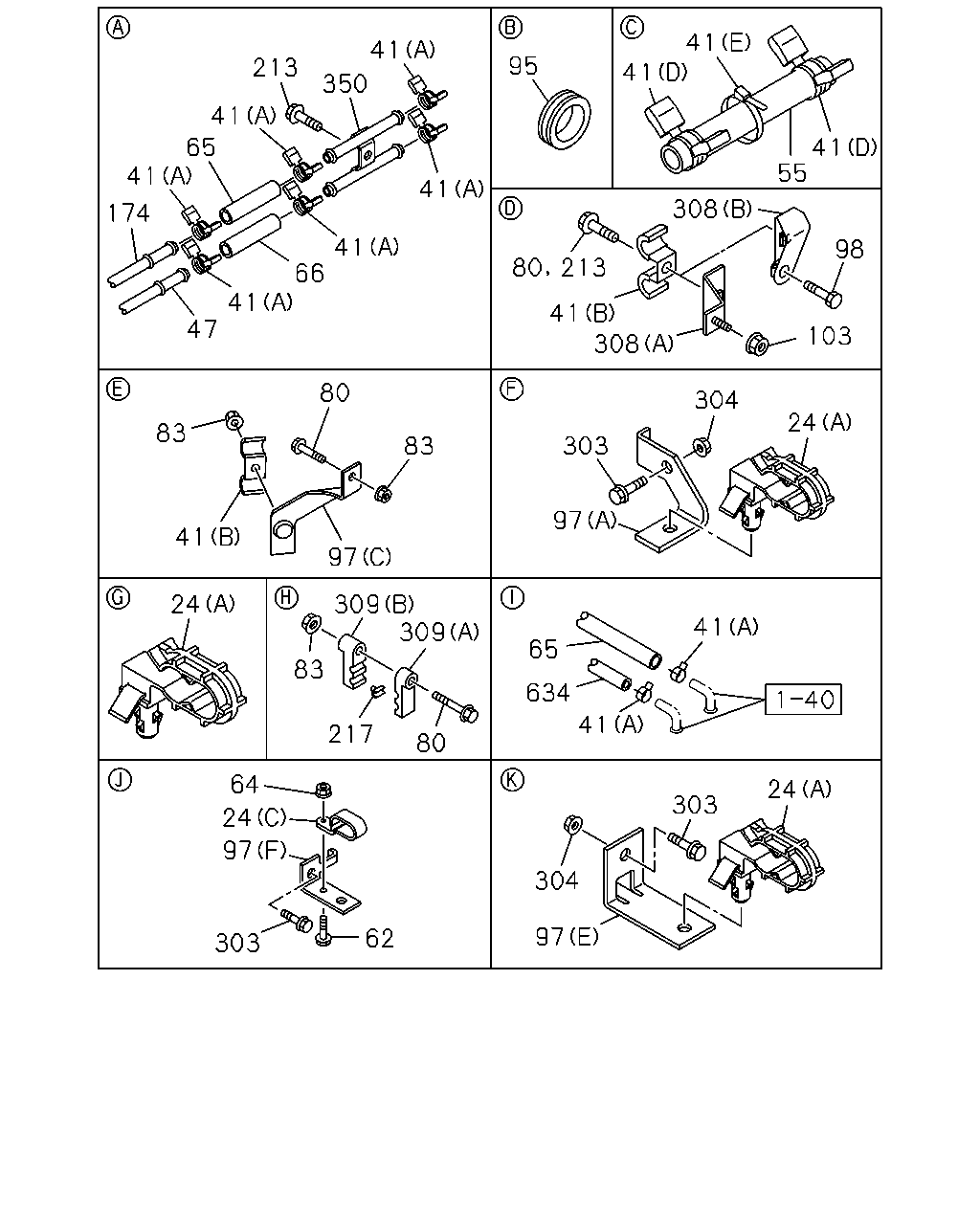

41 41 41 95 213 350 41 65 41 55 41 41 308 174 41 66 98 41 47 41 308 103 80 304 24 83 303 83 97 41 97 24 309 309 41 65 83 634 41 217 80 64 24 303 24 97 304 97 62 303 80 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-	●
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0710-0710	●	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	0710-0711	●	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	07	1	0712-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	0712-	●
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	0710-0710	●
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0710-0710	●
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	0710-0808	●
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	0809-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0710-0710	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0710-0906	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0907-1011	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	02	1	0902-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	04	1	0809-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0809-1003	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (E) L=140	5-09707-031-1	01	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0710-0712	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0801-0804		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E) L=140	5-09707-031-1	03	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0809-0906	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0907-1003		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0907-1003	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1004-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	01	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-	●	●
47	PIPE; FUEL,RETURN L=1496	8-98082-818-0	01	1	0710-0710	●	●
47	PIPE; FUEL,RETURN L=799	8-98059-893-0	01	1	0710-0710	●	●
47	PIPE; FUEL,RETURN L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	0710-	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1003	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> ID=27 L=500	8-98119-327-0	01	1	0809-1003	●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=800	1-09361-018-0	01	1	1004-	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0801-0804	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0710-0712	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0801-0804		●
55	COVER; PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0801-0804	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0805-		●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0805-	●
62	BOLT; CLIP FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M8X20 FLANGE	0-28650-820-0	01	1	0809-	●
64	NUT; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE L=60 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0711	●	●
65	HOSE; FUEL,DELIVERY PIPE L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0808	●
65	HOSE; FUEL,DELIVERY PIPE L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0809-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO4 SPECIFICATION<NT4> L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0710	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO4 SPECIFICATION<NT4> L=640 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W) EURO4 SPECIFICATION<NT4> L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) EURO4 SPECIFICATION<NT4> L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
66	HOSE; FUEL,RETURN PIPE L=60 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	01	1	0710-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0710	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-	●	●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> (F)	8-98100-216-1	01	1	0809-	●
97	BRACKET; CLIP (E)	8-98098-427-1	01	1	0710-0712	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (E)	8-98098-427-1	01	1	0801-0801	●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W) (E)	8-98098-427-1	01	1	0801-0804	●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W) (E)	8-98109-768-0	01	1	0805-0806	●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0807-0808	●	●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0809-		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	0809-	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0710-0711		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	0710-0711	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0712-		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	0712-	●
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	0710-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0710-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0710-	●	●
98	BOLT; BRKT,FUEL PIPE M10X30 FLANGE	0-28651-030-0	01	1	0804-	●	●
103	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0710	●	●
103	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0803	●	●
174	PIPE; FUEL,FEED,FRT	8-98082-817-0	01	1	0710-0710	●	●
174	PIPE; FUEL,FEED,FRT L=1322	8-98100-140-0	01	1	0710-	●	●
213	BOLT; FUEL PIPE FIX M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
217	COLLAR; FUEL PIPE FIX ID=8	1-47459-011-0	01	1	0907-	●	●
217	COLLAR; FUEL PIPE FIX ID=8	1-47459-011-0	03	1	0710-0906	●	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0806-0808	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0712	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0801	●
303	BOLT; BRKT WHEEL BASE 4000MM(40W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0804	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0805-0808	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-0809	●	●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	0809-0809	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-		●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-	●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	0809-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0710-0711	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0710-0711		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	02	1	0710-0711	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-0805	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-0805		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	02	1	0712-0805	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0806-0808	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-	●	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0809-	●
304	NUT; BRKT TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1009-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	0809-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	0809-	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0712	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M10 FLANGE	0-91180-210-0	01	1	0801-0801	●
304	NUT; BRKT WHEEL BASE 4000MM(40W) M10 FLANGE	0-91180-210-0	01	1	0801-0804	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0805-0808	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0809	●	●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	0809-0809	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-		●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-	●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	0809-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0711		●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-1003		●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	0712-1003	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-1003	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1004-	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1004-		●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1004-	●
308	BRACKET; FUEL PIPE (A)	8-98080-065-0	02	1	0710-0710	●	●
308	BRACKET; FUEL PIPE (A)	8-98080-065-0	01	1	0710-0803	●	●
308	BRACKET; FUEL PIPE (B)	8-98117-691-0	01	1	0804-	●	●
309	CLIP; PIPE (A) ID=10 & 10	1-09709-241-0	01	1	0907-	●	●
309	CLIP; PIPE (B) ID=10 & 10	1-09709-243-0	01	1	0907-	●	●
309	CLIP; PIPE (A) ID=10 & 10	1-09709-241-0	03	1	0710-0906	●	●
309	CLIP; PIPE (B) ID=10 & 10	1-09709-243-0	03	1	0710-0906	●	●
350	PIPE; FUEL,DEL & RET	8-98084-131-0	01	1	0710-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0711	●	●
634	HOSE; RUBBER RETURN L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	0712-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	0712-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0710	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808	●
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=2200 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●

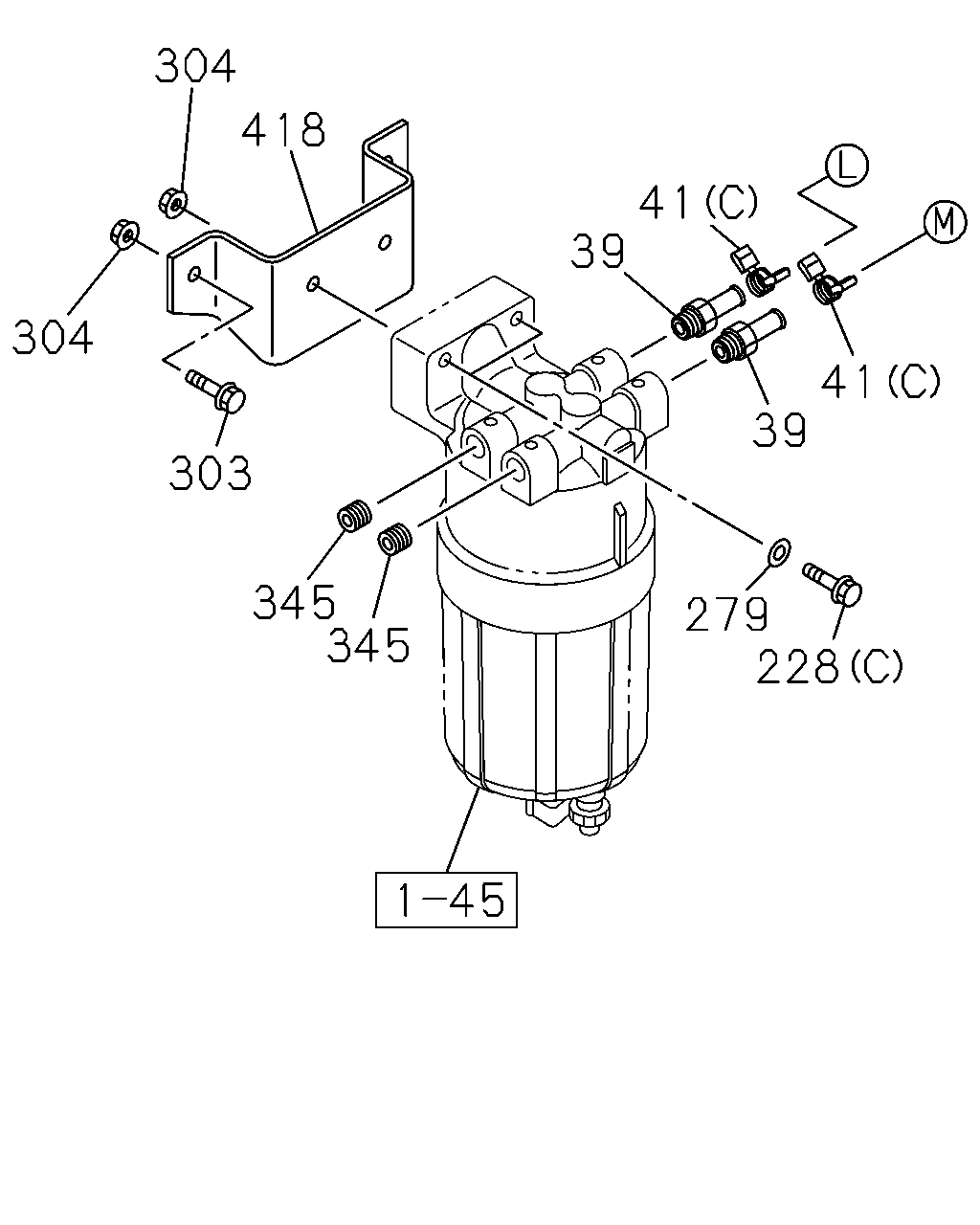

304 418 41 39 304 41 39 303 345 345 279 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL EURO2 SPECIFICATION<NT2>	8-97358-699-0	02	1	0809-0903	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	02	1	0902-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	04	1	0809-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0809-1003	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (E) L=140	5-09707-031-1	01	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0710-0712	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0801-0804		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E) L=140	5-09707-031-1	03	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0809-0906	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0907-1003		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0907-1003	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1004-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	01	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> (C) M10X50 FLANGE	0-28051-050-0	02	1	0809-	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
279	WASHER EURO2 SPECIFICATION<NT2> ID=10.5 OD=26	0-91614-710-0	02	1	0809-	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0806-0808	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0712	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0801	●
303	BOLT; BRKT WHEEL BASE 4000MM(40W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0804	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0805-0808	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-0809	●	●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	0809-0809	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-		●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-	●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	0809-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0710-0711	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0710-0711		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	02	1	0710-0711	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-0805	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-0805		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	02	1	0712-0805	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0806-0808	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-	●	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0809-	●
304	NUT; BRKT TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1009-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	0809-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	0809-	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0712	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M10 FLANGE	0-91180-210-0	01	1	0801-0801	●
304	NUT; BRKT WHEEL BASE 4000MM(40W) M10 FLANGE	0-91180-210-0	01	1	0801-0804	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0805-0808	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0809	●	●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	0809-0809	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-		●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-	●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	0809-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0711		●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-1003		●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	0712-1003	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-1003	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1004-	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1004-		●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1004-	●
345	PLUG EURO2 SPECIFICATION<NT2> NPTF3/8-18	8-97329-623-0	02	1	0809-	●
418	BRACKET; PRE FUEL FILTER EURO2 SPECIFICATION<NT2>	8-98114-787-0	01	1	0809-	●

67 304 41 97 303 47 41 85 24 41 41 67 41 97 82 174 41 83 41 41 29 41 227 228 87 228 41 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-	●
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0710-0710	●	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	0710-0711	●	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	07	1	0712-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	0712-	●
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	0710-0710	●
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0710-0710	●
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	0710-0808	●
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	0809-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0710-0710	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0710-0906	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0907-1011	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1012-	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (C) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
29	HOSE; FUEL WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> (C) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
29	HOSE; FUEL (A)	8-98078-194-3	01	1	0710-	●	●
29	HOSE; FUEL (B)	8-98078-195-1	01	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	02	1	0902-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	04	1	0809-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> (E) L=140	5-09707-031-1	03	1	0809-1003	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	03	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (E) L=140	5-09707-031-1	01	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0710-0712	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0801-0804		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E) L=140	5-09707-031-1	03	1	0801-0804	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0809-0906		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0809-0906	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0907-1003		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=140	5-09707-031-1	01	1	0907-1003	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1004-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (E) L=250	5-09707-030-1	01	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-	●	●
47	PIPE; FUEL,RETURN L=1496	8-98082-818-0	01	1	0710-0710	●	●
47	PIPE; FUEL,RETURN L=799	8-98059-893-0	01	1	0710-0710	●	●
47	PIPE; FUEL,RETURN L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	0710-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> (F)	8-98100-216-1	01	1	0809-	●
97	BRACKET; CLIP (E)	8-98098-427-1	01	1	0710-0712	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (E)	8-98098-427-1	01	1	0801-0801	●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W) (E)	8-98098-427-1	01	1	0801-0804	●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W) (E)	8-98109-768-0	01	1	0805-0806	●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0807-0808	●	●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0809-		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	0809-	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0710-0711		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	0710-0711	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0712-		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	0712-	●
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	0710-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0710-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0710-	●	●
174	PIPE; FUEL,FEED,FRT	8-98082-817-0	01	1	0710-0710	●	●
174	PIPE; FUEL,FEED,FRT L=1322	8-98100-140-0	01	1	0710-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-367-3	01	1	0710-0808	●	●
227	BRACKET; FUEL SEDIMENTER	8-98130-667-0	01	1	0809-	●	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> (C) M10X50 FLANGE	0-28051-050-0	02	1	0809-	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0806-0808	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0712	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0801	●
303	BOLT; BRKT WHEEL BASE 4000MM(40W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0804	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0805-0808	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-0809	●	●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	0809-0809	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-		●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-	●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	0809-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0710-0711	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0710-0711		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	02	1	0710-0711	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-0805	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-0805		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	02	1	0712-0805	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0806-0808	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-	●	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0809-	●
304	NUT; BRKT TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1009-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	0809-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	0809-	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0712	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M10 FLANGE	0-91180-210-0	01	1	0801-0801	●
304	NUT; BRKT WHEEL BASE 4000MM(40W) M10 FLANGE	0-91180-210-0	01	1	0801-0804	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0805-0808	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0809	●	●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	0809-0809	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-		●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-	●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	0809-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0711		●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-1003		●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	0712-1003	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-1003	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1004-	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1004-		●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1004-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
