Sayfa 1-31 - Isuzu EPC

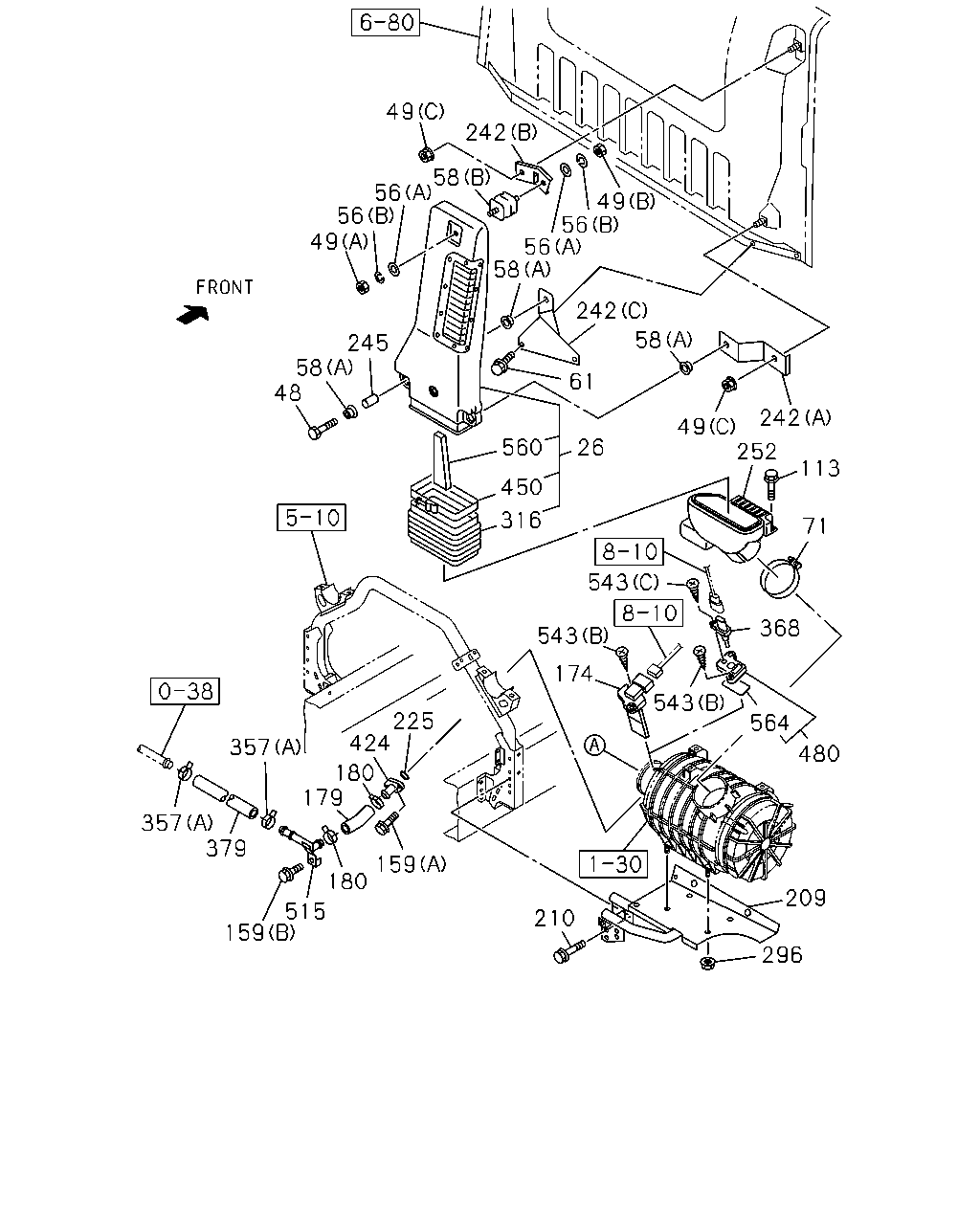

1-31 — AIR DUCT (#39842) — 227 parça

49 242 58 56 56 49 49 56 56 58 242 58 245 61 58 48 242 49 252 26 560 113 450 316 71 543 368 543 174 543 225 424 564 357 480 180 179 357 379 159 180 209 515 159 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	DUCT; AIR INT	8-98010-361-2	01	1	0710-1011	●
26	DUCT; AIR INT	8-98010-361-2	01	1	1012-	●	●
48	BOLT; AIR DUCT M10X26	1-09030-044-1	02	1	0710-1011	●
48	BOLT; AIR DUCT M10X26	1-09030-044-1	02	1	1012-	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0710-1011	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1012-	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0710-1011	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1012-	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	0710-1011	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1012-	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0710-1011	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1012-	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0710-1011	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1012-	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0710-1011	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1012-	●	●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0710-0810	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-1011	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1012-	●	●
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0710-0807	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0808-1011	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1012-	●	●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0710-0812	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0901-1011	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1012-	●	●
113	BOLT; RESONATOR M6X16 W/PL WASHER	8-98094-071-0	03	1	0710-0906	●
113	BOLT; RESONATOR M6X16 W/PL WASHER	8-98094-071-0	03	1	0907-1011	●
113	BOLT; RESONATOR M6X16 W/PL WASHER	8-98094-071-0	03	1	1012-1012	●	●
113	BOLT; RESONATOR EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> M6X16 W/PL WASHER	8-98094-071-0	03	1	1012-	●	●
113	BOLT; RESONATOR EURO4 SPECIFICATION<NT4> M6X16 W/PL WASHER	8-98094-071-0	03	1	1012-	●
159	BOLT; AIR PIPE (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-0803	●
159	BOLT; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6X16 FLANGE	0-28050-616-0	02	1	0804-0808	●
159	BOLT; AIR PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6X16 FLANGE	0-28050-616-0	02	1	0809-1011	●
159	BOLT; AIR PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6X16 FLANGE	0-28050-616-0	02	1	1012-	●	●
159	BOLT; AIR PIPE (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-0808	●
159	BOLT; AIR PIPE EURO4 SPECIFICATION<NT4> (B) M8X25 FLANGE	0-28650-825-0	01	1	0809-	●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0710-0808	●
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	0809-	●
179	HOSE; AIR INT	8-98063-233-0	01	1	0710-0808	●
179	HOSE; AIR INT EURO4 SPECIFICATION<NT4>	8-98063-233-0	01	1	0809-	●
180	CLIP; AIR INT HOSE ID=24	8-98025-921-0	02	1	0710-0808	●
180	CLIP; AIR INT HOSE EURO4 SPECIFICATION<NT4> ID=24	8-98025-921-0	02	1	0809-	●
209	BRACKET; ACL	8-98010-343-4	01	1	0710-1011	●
209	BRACKET; ACL	8-98010-343-4	01	1	1012-	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	0710-1011	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1012-	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0710-0808	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0809-1011	●
225	GASKET; AIR PIPE EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	0809-1011	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1012-	●	●
225	GASKET; AIR PIPE EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	1012-	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0710-1011	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1012-	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0710-1011	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1012-	●	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	0710-1011	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	1012-	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0710-1011	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1012-	●	●
252	DUCT; AIR INT EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB>	8-98010-639-1	01	1	1012-	●	●
252	DUCT; AIR INT	8-98095-778-0	01	1	0710-0906	●
252	DUCT; AIR INT	8-98095-778-0	01	1	0907-1011	●
252	DUCT; AIR INT	8-98095-778-0	01	1	1012-1012	●	●
252	DUCT; AIR INT EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB>	8-98095-778-0	01	1	1012-	●	●
252	DUCT; AIR INT EURO4 SPECIFICATION<NT4>	8-98095-778-0	01	1	1012-	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0710-1011	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0908-1011	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1012-	●	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1002-1011	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1012-	●	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1002-1011	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1012-	●	●
357	CLIP; RUBBER HOSE (B) ID=77-95	1-09707-198-0	01	1	0710-0810	●
357	CLIP; RUBBER HOSE (B) ID=75-95	8-98133-357-0	01	1	0811-0906	●
357	CLIP; RUBBER HOSE (B) ID=75-95	8-98133-357-0	01	1	0907-1001	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1002-1011	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1012-	●	●
357	CLIP; RUBBER HOSE (C) ID=58-76	1-09707-203-0	02	1	0710-0811	●
357	CLIP; RUBBER HOSE (C) ID=55-75	8-98133-349-0	02	1	0812-0906	●
357	CLIP; RUBBER HOSE (C) ID=55-75	8-98133-349-0	02	1	0907-1001	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1002-1011	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1012-	●	●
357	CLIP; RUBBER HOSE (A) ID=24	8-98025-921-0	02	1	0710-0906	●
357	CLIP; RUBBER HOSE (A) ID=24	8-98025-921-0	02	1	0907-1011	●
357	CLIP; RUBBER HOSE (A) ID=24	8-98025-921-0	02	1	1012-	●	●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>	8-98065-377-0	01	1	0809-1011	●
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>	8-98065-377-0	01	1	1012-	●	●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2>	8-98075-713-1	01	1	0809-1011	●
379	HOSE; RUBBER EURO2 SPECIFICATION<NT2>	8-98075-713-1	01	1	1012-	●	●
379	HOSE; RUBBER POWER TAKE OFF-FLYWHEEL(6SZ)	8-98078-741-0	01	1	0710-0808	●
379	HOSE; RUBBER EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98078-741-0	01	1	0809-	●
379	HOSE; RUBBER EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98062-621-1	01	1	0710-0808	●
379	HOSE; RUBBER EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98062-621-1	01	1	0809-	●
424	PIPE; AIR,INL	8-98081-835-0	01	1	0710-0808	●
424	PIPE; AIR,INL EURO4 SPECIFICATION<NT4>	8-98081-835-0	01	1	0809-	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0710-1011	●
450	CLAMP; HOSE	9-09915-504-1	01	1	1012-	●	●
480	ADAPTER EURO2 SPECIFICATION<NT2>	8-98086-417-0	01	1	0809-1011	●
480	ADAPTER EURO2 SPECIFICATION<NT2>	8-98086-417-0	01	1	1012-	●	●
515	PIPE; AIR,SUCTION	8-98061-569-1	01	1	0710-0808	●
515	PIPE; AIR,SUCTION EURO4 SPECIFICATION<NT4>	8-98061-569-1	01	1	0809-	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (C) M5X14 W/LK WASHER	0-36220-514-0	01	1	0809-1011	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (C) M5X14 W/LK WASHER	0-36220-514-0	01	1	1012-	●	●
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0808	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0809-	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0710-0808	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-1011	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-1011	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1012-	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1012-	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0907-	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	02	1	0710-0906	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>	8-98071-416-0	01	1	0809-1011	●
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>	8-98071-416-0	01	1	1012-	●	●

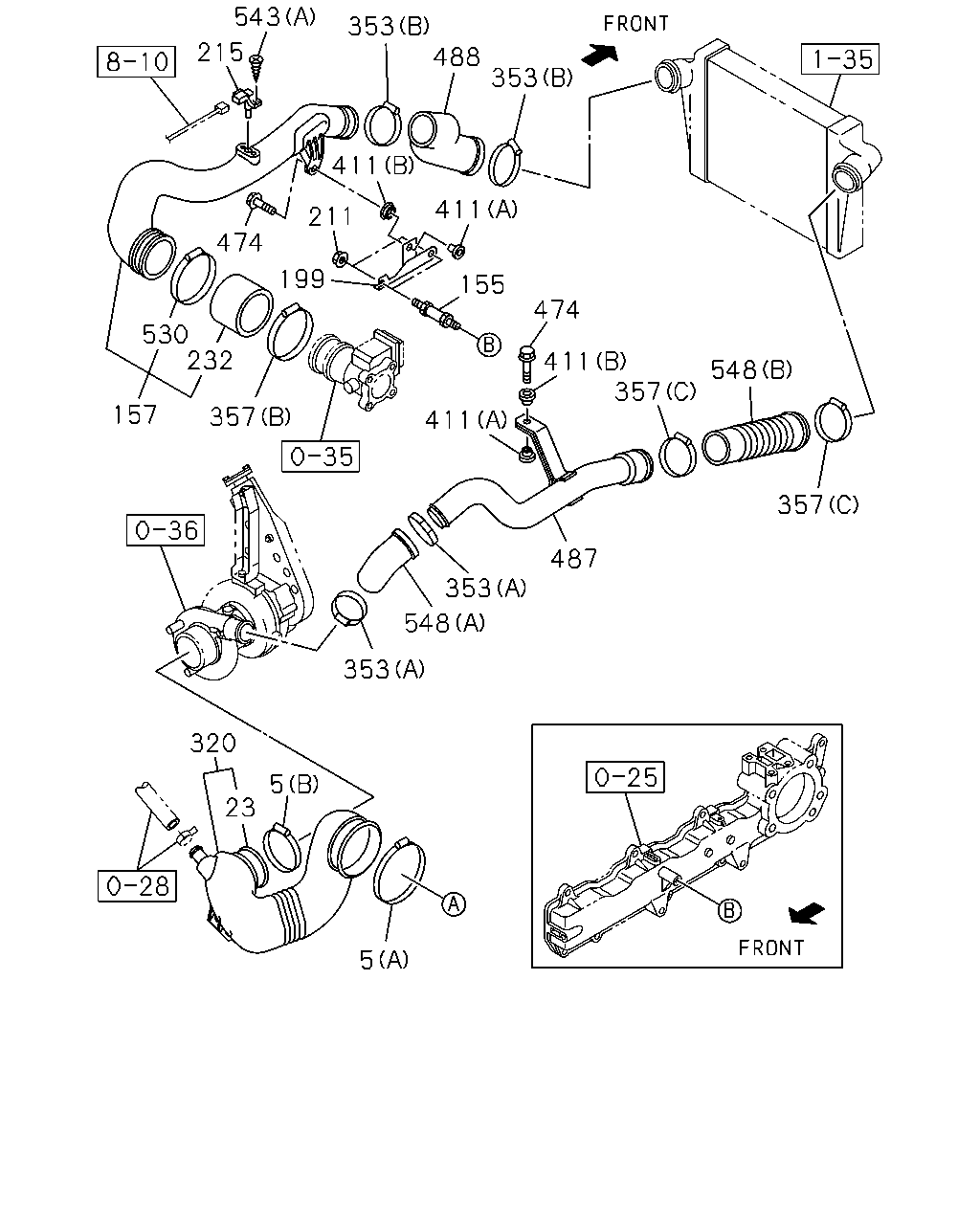

543 353 488 353 215 411 411 211 474 199 155 474 530 232 411 357 548 157 357 411 357 487 353 548 353 320 5 23 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1002-	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	01	1	1002-1011	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	01	1	1012-1111	●	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=75	8-98206-613-0	01	1	1112-	●	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (B) ID=58-76	1-09707-203-0	01	1	0809-0811	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (B) ID=55-75	8-98133-349-0	01	1	0812-1001	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	01	1	1002-1011	●
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	01	1	1012-	●	●
5	CLIP; AIR DUCT (B) ID=77-95	1-09707-198-0	01	1	0710-0808	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=77-95	1-09707-198-0	01	1	0809-0810	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=75-95	8-98133-357-0	01	1	0811-1001	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1002-1011	●
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1012-	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0710-0812	●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0901-1001	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1002-	●
23	CLIP; HOSE EURO2 SPECIFICATION<NT2> ID=87-116	1-09707-144-0	01	1	1102-	●
23	CLIP; HOSE ID=87-116	1-09707-144-0	01	1	1102-		●
155	BOLT; BRKT M10X17,M10X30 L=105	8-97233-428-0	02	1	0710-0906	●
155	BOLT; BRKT M10X17,M10X30 L=105	8-97233-428-0	02	1	0907-1011	●
155	BOLT; BRKT M10X17,M10X30 L=105	8-97233-428-0	02	1	1012-	●	●
157	PIPE; AIR	8-98010-719-3	01	1	0710-0906	●
157	PIPE; AIR	8-98010-719-3	01	1	0907-1011	●
157	PIPE; AIR	8-98010-719-3	01	1	1012-	●	●
199	BRACKET; PIPE	8-97385-293-1	01	1	0710-0906	●
199	BRACKET; PIPE	8-97385-293-1	01	1	0907-1011	●
199	BRACKET; PIPE	8-97385-293-1	01	1	1012-	●	●
211	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-0906	●
211	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0907-1011	●
211	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1012-	●	●
215	SENSOR; MAP	8-98009-418-0	01	1	0710-0906	●
215	SENSOR; MAP	8-98009-418-0	01	1	0907-1011	●
215	SENSOR; MAP	8-98009-418-0	01	1	1012-	●	●
232	HOSE; CONN	8-98067-929-0	01	1	0710-0906	●
232	HOSE; CONN	8-98067-929-0	01	1	0907-1011	●
232	HOSE; CONN	8-98067-929-0	01	1	1012-	●	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>	8-98073-539-3	01	1	0809-1011	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>	8-98073-539-3	01	1	1012-	●
320	HOSE; CONN,ACL	8-98073-539-3	01	1	1012-		●
320	HOSE; CONN,ACL	8-98010-643-3	01	1	0710-0808	●
320	HOSE; CONN,ACL EURO4 SPECIFICATION<NT4>	8-98010-643-3	01	1	0809-	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1002-1011	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1012-	●	●
353	CLIP; RUBBER HOSE (A) ID=50-69	1-09707-135-0	02	1	0710-0711	●
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	0712-0906	●
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	0907-1011	●
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	1012-	●	●
353	CLIP; RUBBER HOSE (B) ID=58-76	1-09707-203-0	02	1	0710-0811	●
353	CLIP; RUBBER HOSE (B) ID=55-75	8-98133-349-0	02	1	0812-0906	●
353	CLIP; RUBBER HOSE (B) ID=55-75	8-98133-349-0	02	1	0907-1001	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1002-1011	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1012-	●	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1002-1011	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1012-	●	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1002-1011	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1012-	●	●
357	CLIP; RUBBER HOSE (B) ID=77-95	1-09707-198-0	01	1	0710-0810	●
357	CLIP; RUBBER HOSE (B) ID=75-95	8-98133-357-0	01	1	0811-0906	●
357	CLIP; RUBBER HOSE (B) ID=75-95	8-98133-357-0	01	1	0907-1001	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1002-1011	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1012-	●	●
357	CLIP; RUBBER HOSE (C) ID=58-76	1-09707-203-0	02	1	0710-0811	●
357	CLIP; RUBBER HOSE (C) ID=55-75	8-98133-349-0	02	1	0812-0906	●
357	CLIP; RUBBER HOSE (C) ID=55-75	8-98133-349-0	02	1	0907-1001	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1002-1011	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1012-	●	●
357	CLIP; RUBBER HOSE (A) ID=24	8-98025-921-0	02	1	0710-0906	●
357	CLIP; RUBBER HOSE (A) ID=24	8-98025-921-0	02	1	0907-1011	●
357	CLIP; RUBBER HOSE (A) ID=24	8-98025-921-0	02	1	1012-	●	●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	0710-0906	●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	0907-1011	●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	1012-	●	●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	0710-0906	●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	0907-1011	●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	1012-	●	●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	0710-0906	●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	0907-1011	●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	1012-	●	●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2>	8-98073-592-0	01	1	0809-1011	●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2>	8-98073-592-0	01	1	1012-	●	●
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98038-759-3	01	1	0710-0808	●
487	PIPE; TURBO TO CHARGE AIR COOLER EURO4 SPECIFICATION<NT4>	8-98038-759-3	01	1	0809-	●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	0710-0906	●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	0907-1011	●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	1012-	●	●
530	CLAMP; AIR DUCT	8-98068-074-0	01	1	0710-0805	●
530	CLAMP; AIR DUCT ID=77-95	1-09707-198-0	01	1	0806-0810	●
530	CLAMP; AIR DUCT ID=75-95	8-98133-357-0	01	1	0811-0906	●
530	CLAMP; AIR DUCT ID=75-95	8-98133-357-0	01	1	0907-1011	●
530	CLAMP; AIR DUCT ID=75-95	8-98133-357-0	01	1	1012-	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (C) M5X14 W/LK WASHER	0-36220-514-0	01	1	0809-1011	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (C) M5X14 W/LK WASHER	0-36220-514-0	01	1	1012-	●	●
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0808	●
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0809-	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0710-0808	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-1011	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-1011	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1012-	●	●
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1012-	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-971-1	01	1	1102-	●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98181-971-1	01	1	1102-		●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (B)	8-98181-972-1	01	1	1102-	●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98181-972-1	01	1	1102-		●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98061-809-1	01	1	0710-0906	●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98061-809-1	01	1	0907-1011	●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98061-809-1	01	1	1012-1101	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EXC. EURO2 SPECIFICATION<NT2> (A)	8-98061-809-1	01	1	1102-	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	0710-0906	●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	0907-1011	●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	1012-1101	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EXC. EURO2 SPECIFICATION<NT2> (B)	8-98061-810-0	01	1	1102-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
