Sayfa 1-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11102 - FRR RHD EURO2/4 SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

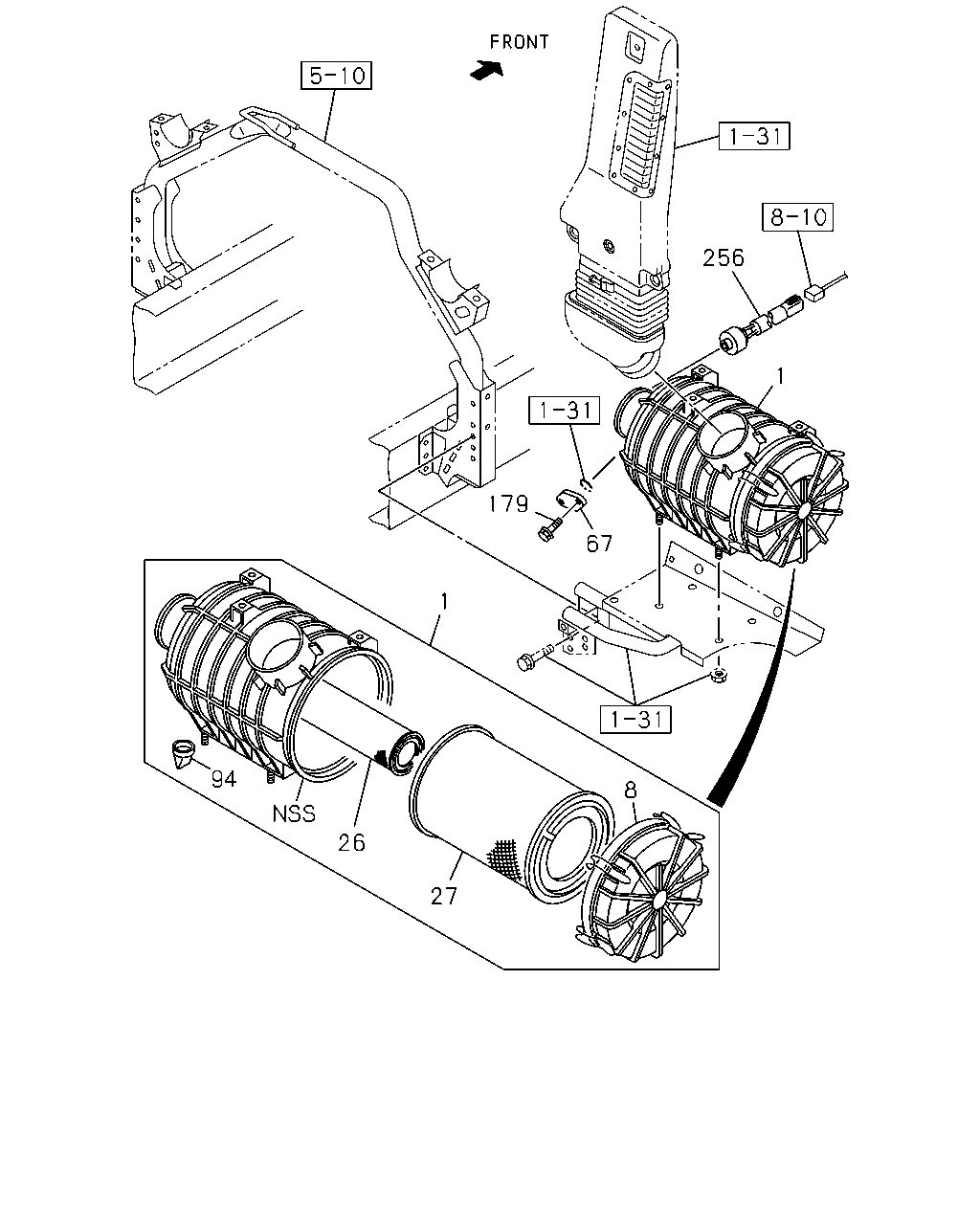

1-30 — AIR CLEANER (#39841) — 26 parça

256 1 179 67 1 94 26 27 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLEANER ASM; AIR	8-98082-165-1	01	1	0710-0906	●
1	CLEANER ASM; AIR	8-98082-165-1	01	1	0907-1011	●
1	CLEANER ASM; AIR	8-98082-165-1	01	1	1012-	●	●
8	COVER ASM; ACL	8-98066-740-0	01	1	0710-0906	●
8	COVER ASM; ACL	8-98066-740-0	01	1	0907-1011	●
8	COVER ASM; ACL	8-98066-740-0	01	1	1012-	●	●
26	FILTER; ACL,INNER BEST VALUE PARTS	1-87610-114-0	01	1	0907-1011	●
26	FILTER; ACL,INNER BEST VALUE PARTS	1-87610-114-0	01	1	1012-	●	●
26	FILTER; ACL,INNER	8-98071-422-0	01	1	0710-0906	●
26	FILTER; ACL,INNER	8-98071-422-0	01	1	0907-1011	●
26	FILTER; ACL,INNER	8-98071-422-0	01	1	1012-	●	●
27	FILTER; ACL,OUTER BEST VALUE PARTS	1-87610-113-0	01	1	0907-1011	●
27	FILTER; ACL,OUTER BEST VALUE PARTS	1-87610-113-0	01	1	1012-	●	●
27	FILTER; ACL,OUTER DRY TYPE	8-98071-421-0	01	1	0710-0906	●
27	FILTER; ACL,OUTER DRY TYPE	8-98071-421-0	01	1	0907-1011	●
27	FILTER; ACL,OUTER DRY TYPE	8-98071-421-0	01	1	1012-	●	●
67	COVER; ACL EURO2 SPECIFICATION<NT2>	8-98081-729-0	01	1	0809-1011	●
67	COVER; ACL EURO2 SPECIFICATION<NT2>	8-98081-729-0	01	1	1012-1208	●	●
67	COVER; ACL EURO2 SPECIFICATION<NT2>	8-98217-788-0	01	1	1209-	●	●
94	VALVE; VACUATOR	1-14219-279-0	01	1	0710-1011	●
94	VALVE; VACUATOR	1-14219-279-0	01	1	1012-	●	●
179	BOLT; COVER,ACL EURO2 SPECIFICATION<NT2> M6X16 FLANGE	0-28050-616-0	02	1	0809-1011	●
179	BOLT; COVER,ACL EURO2 SPECIFICATION<NT2> M6X16 FLANGE	0-28050-616-0	02	1	1012-	●	●
256	SENSOR; AIRFLOW	8-98071-103-1	01	1	0710-1002	●
256	SENSOR; AIRFLOW	8-98152-742-1	01	1	1003-1011	●
256	SENSOR; AIRFLOW	8-98152-742-1	01	1	1012-	●	●
