1 |

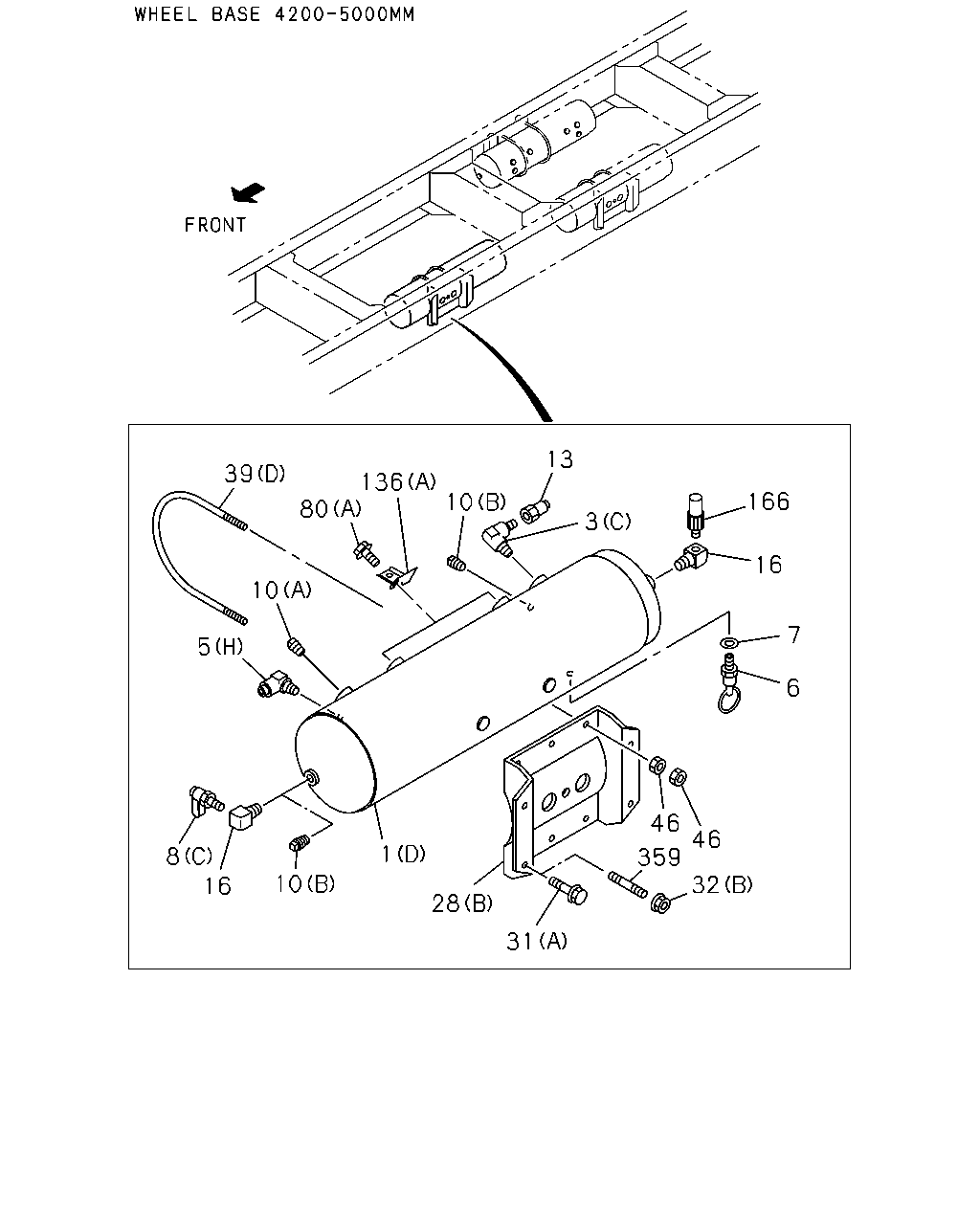

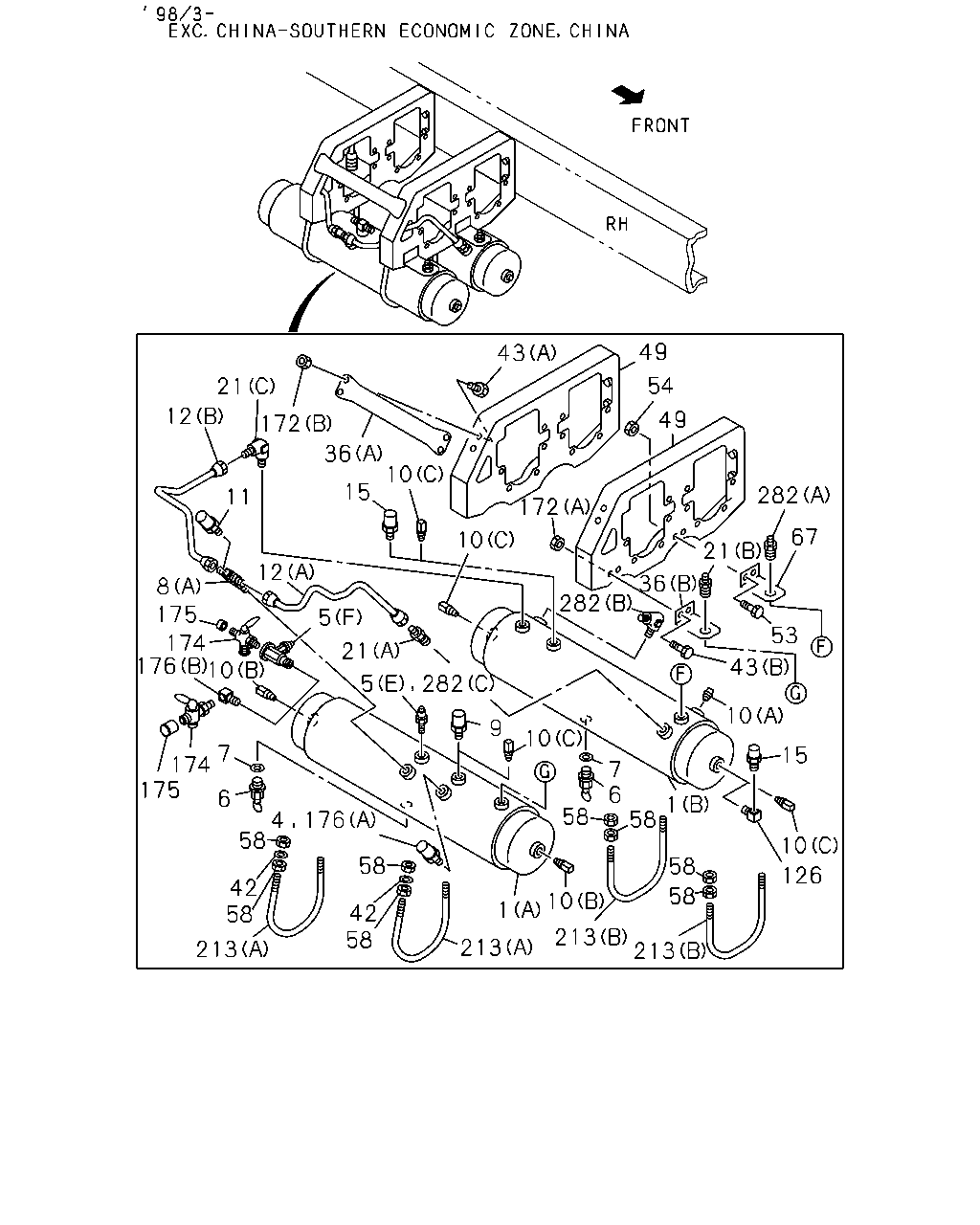

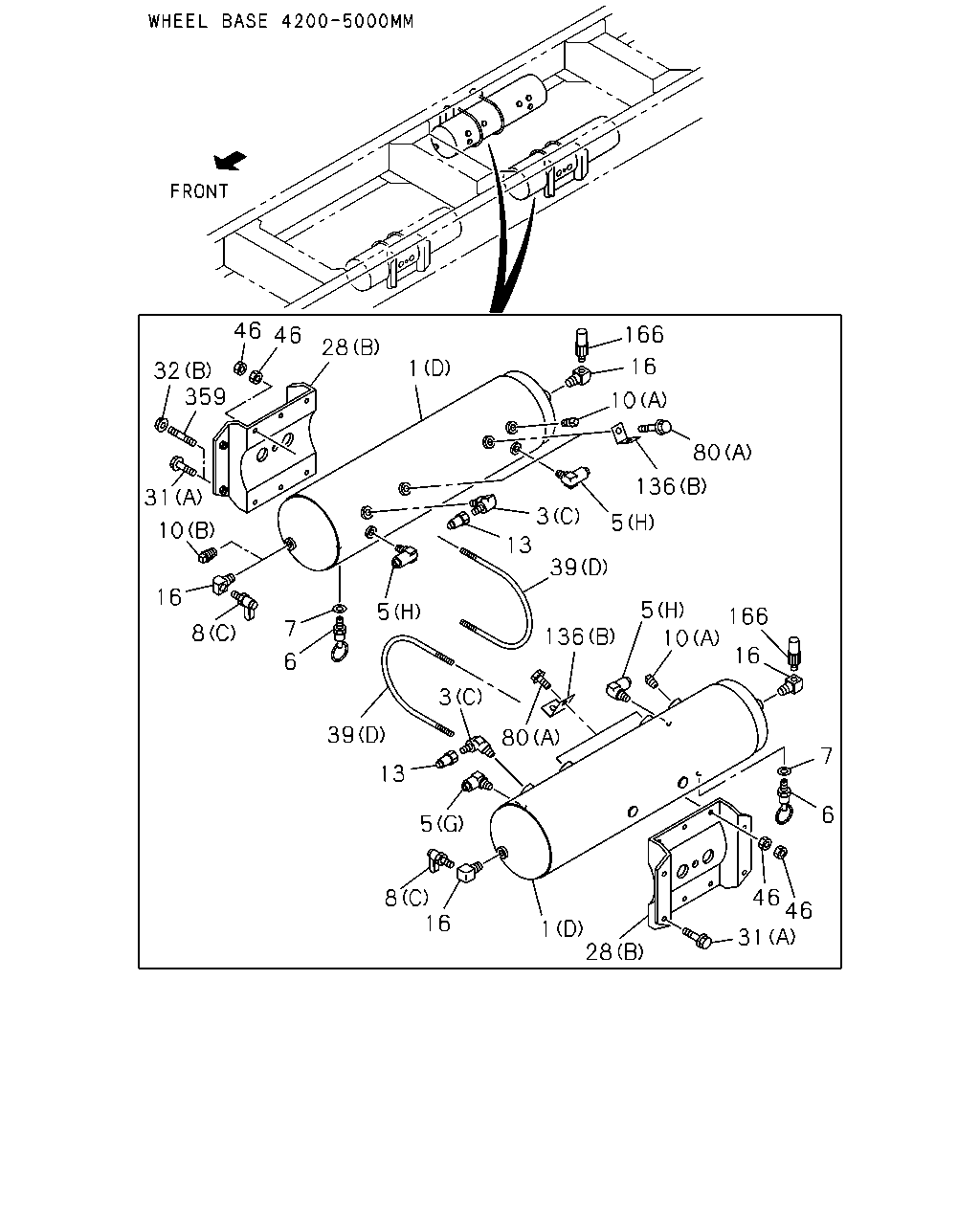

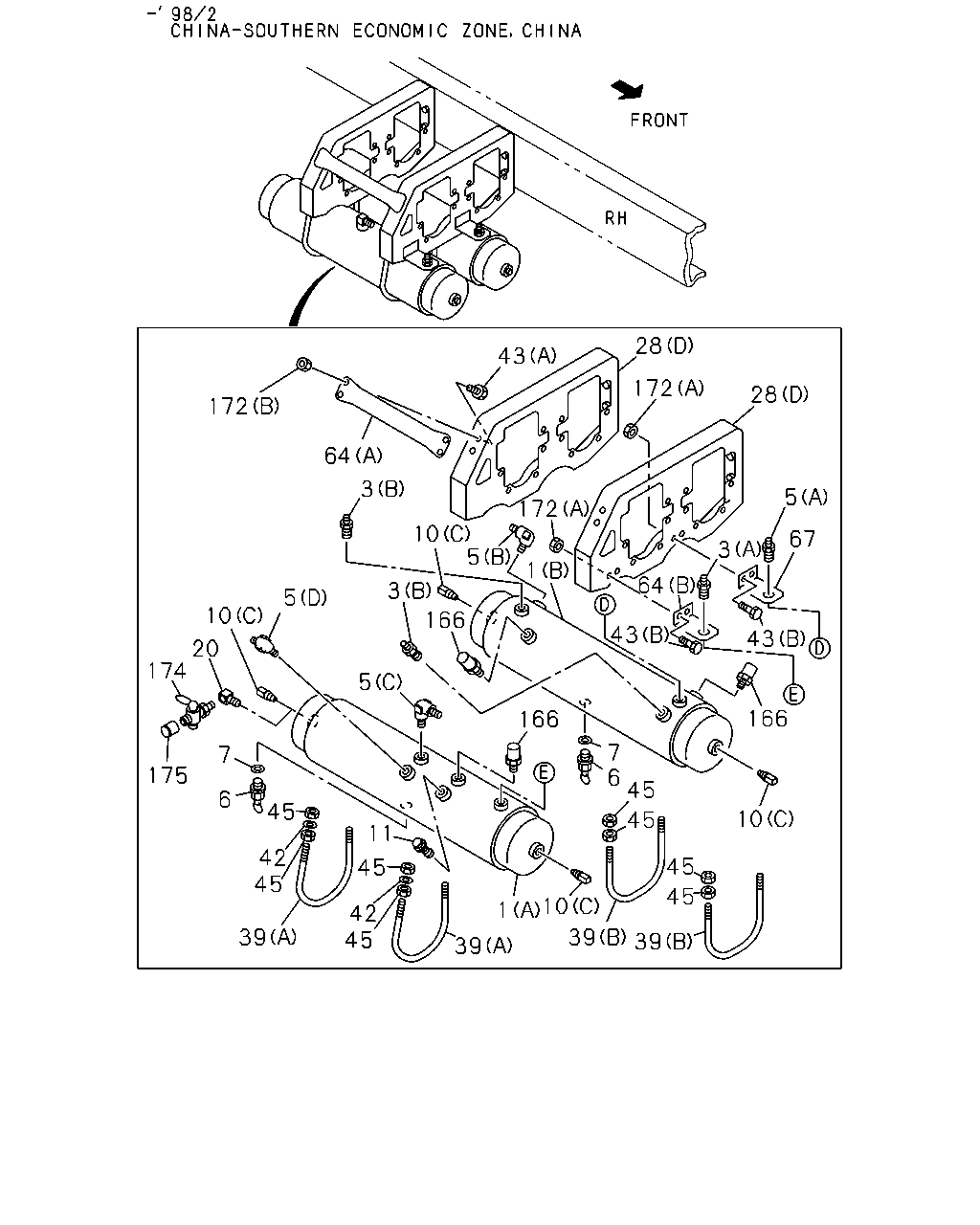

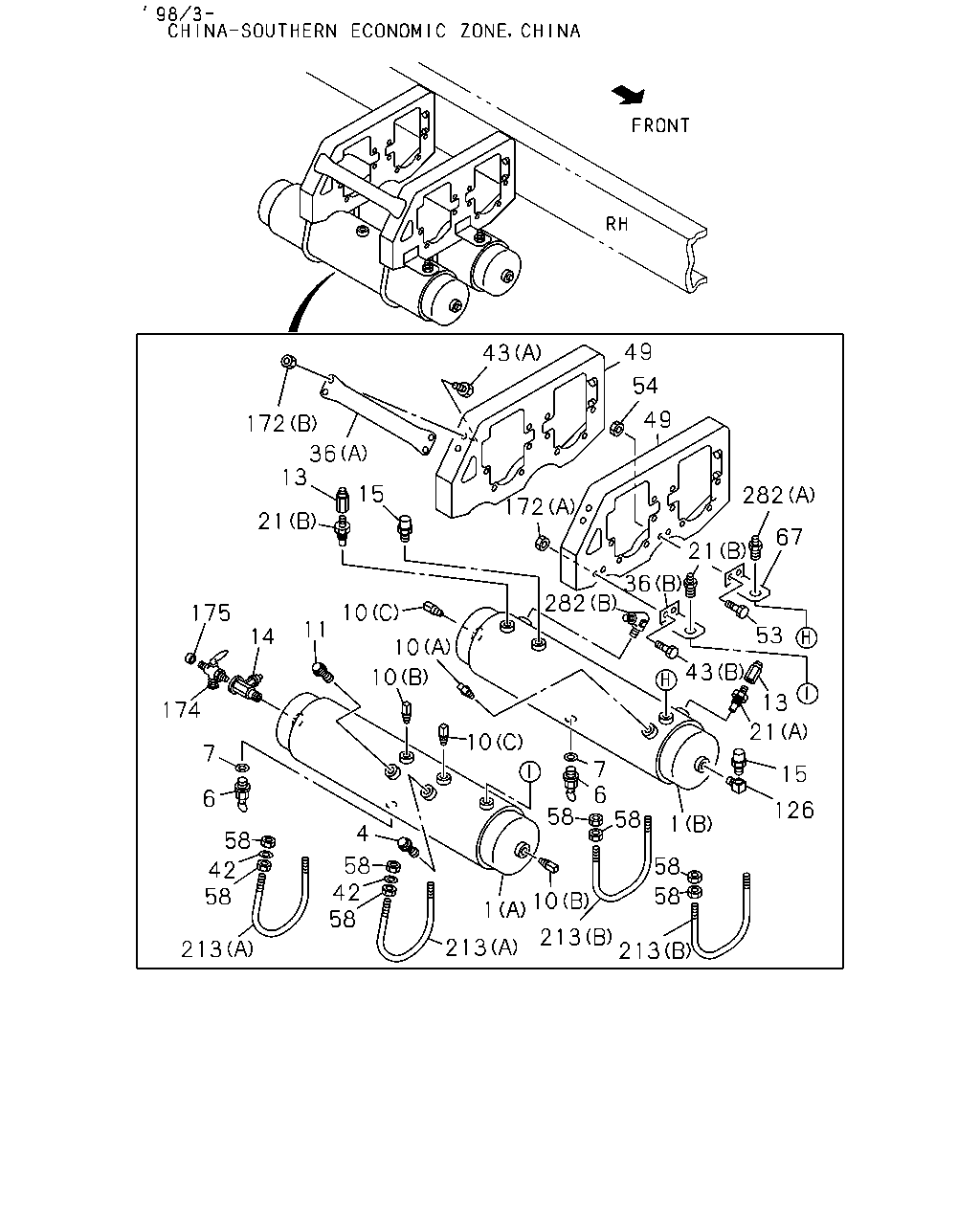

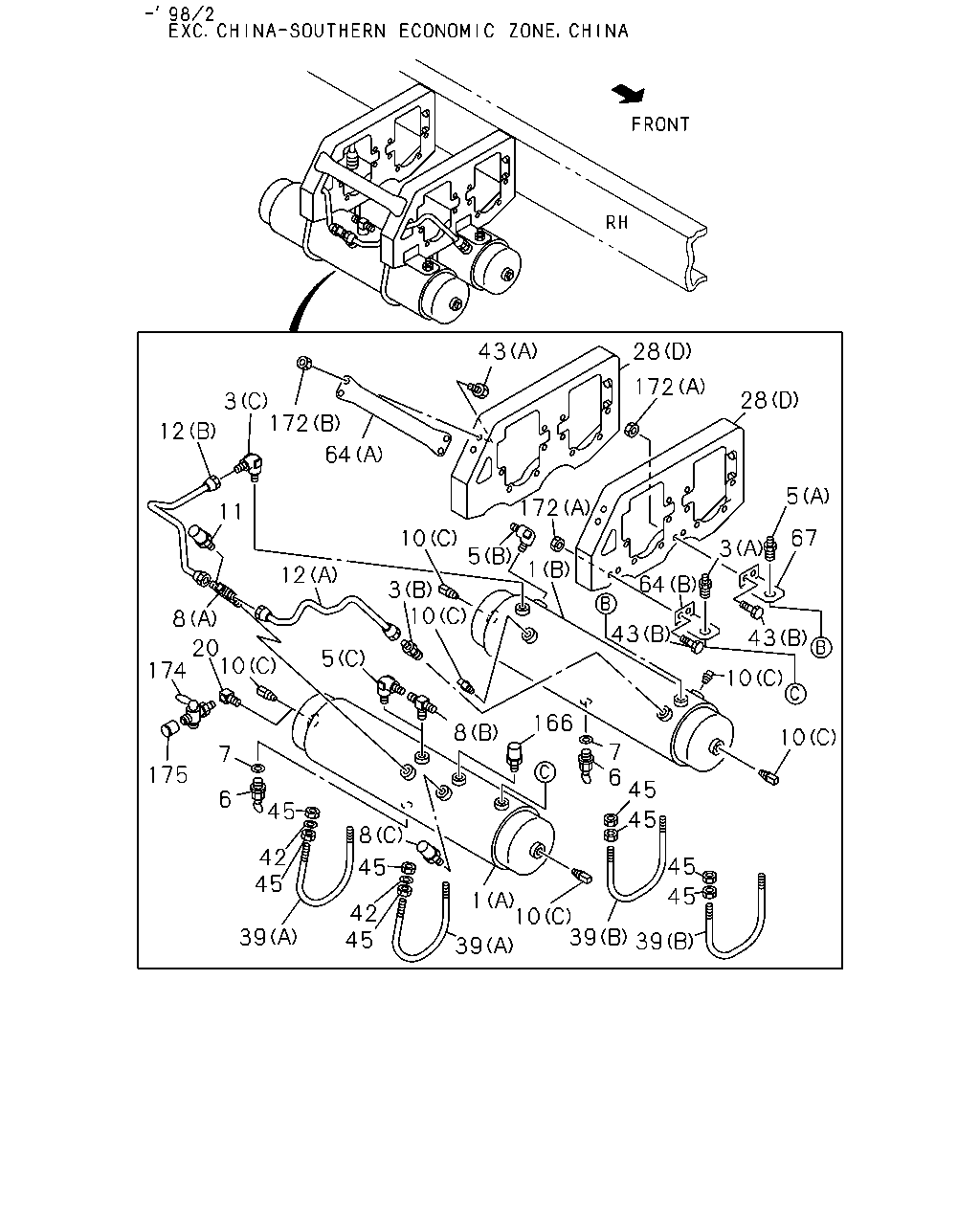

TANK ASM; AIR
(A)
|
1-48330-598-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
1 |
TANK ASM; AIR
(B)
|
1-48370-512-2 |
01 |
1 |
9803-0004 |
● |
● |
| |
1 |
TANK ASM; AIR
(B)
|
1-48370-512-2 |
01 |
1 |
0005- |
● |
|
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-48370-512-2 |
01 |
1 |
0005- |
|
● |
| |
1 |
TANK ASM; AIR
(B)
|
1-48370-299-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
1 |
TANK ASM; AIR
(A)
|
1-48370-513-0 |
01 |
1 |
9803-0004 |
● |
● |
| |
1 |
TANK ASM; AIR
(A)
|
1-48370-513-0 |
01 |
1 |
0005-0212 |
● |
|
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-48370-513-0 |
01 |
1 |
0005-0212 |
|
● |
| |
1 |
TANK ASM; AIR
(A)
|
1-48330-598-0 |
01 |
1 |
0301- |
● |
|
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-48330-598-0 |
01 |
1 |
0301- |
|
● |
| |
1 |

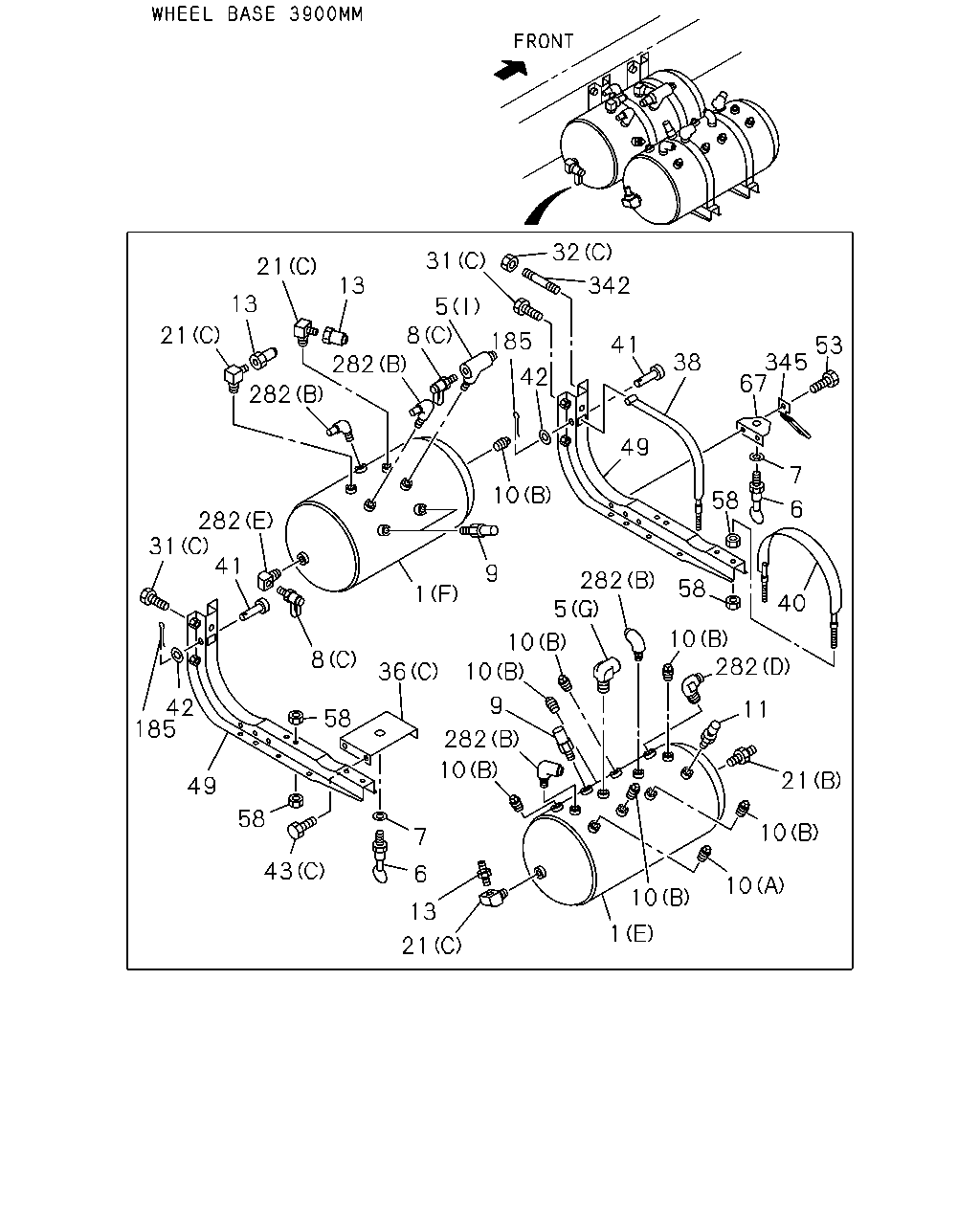

TANK ASM; AIR
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(F)
|
1-48370-181-1 |
01 |
1 |
0005- |
|
● |
| |
1 |
TANK ASM; AIR
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(E)
|
1-48370-221-0 |
01 |
1 |
0608- |
|
● |
| |
1 |
TANK ASM; AIR
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(E)
|
1-48370-221-0 |
01 |
1 |
0005-0607 |
|
● |
| |
1 |

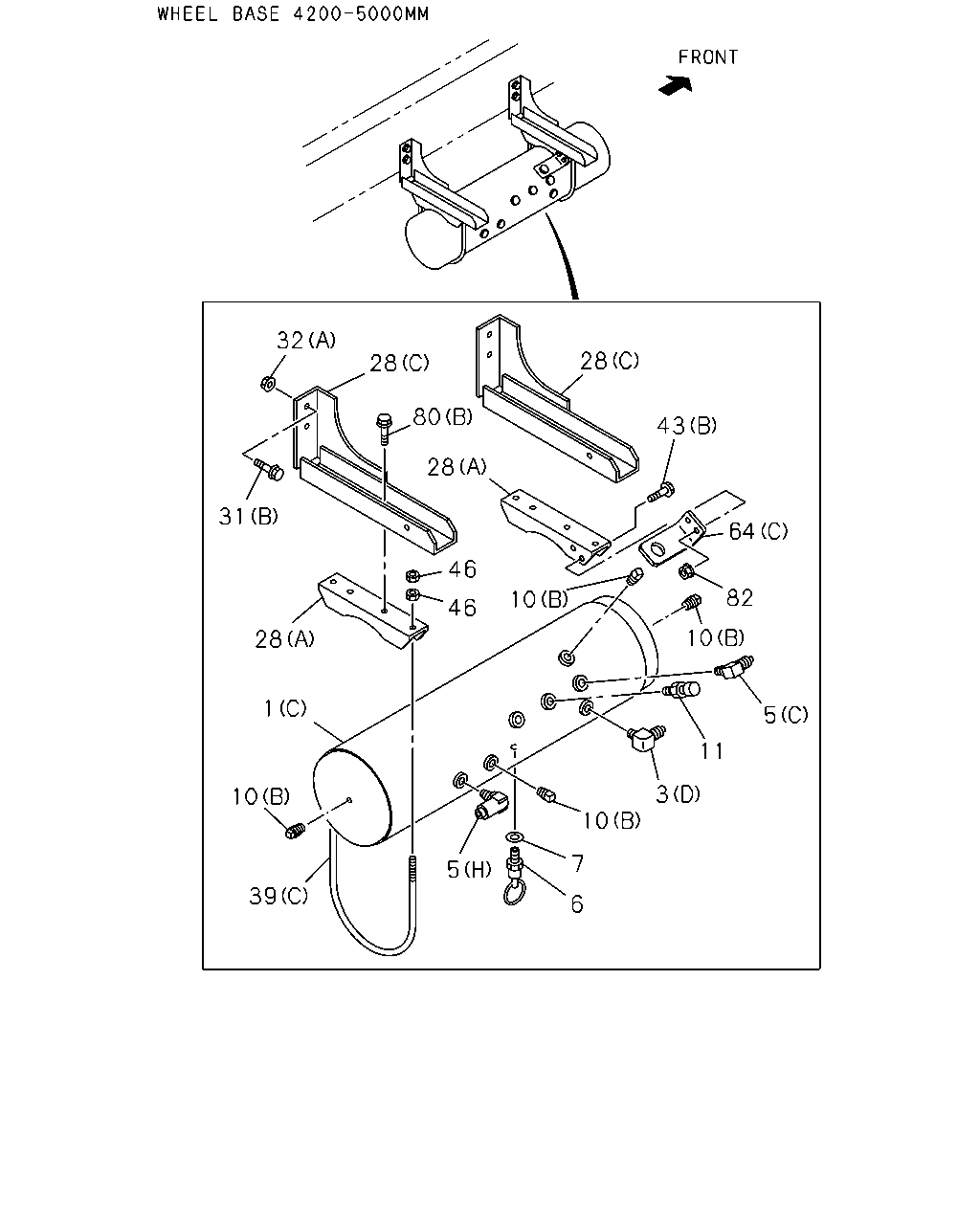

TANK ASM; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
|
1-48370-855-0 |
03 |
1 |
0005-0301 |
|
● |
| |
1 |
TANK ASM; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
|
1-48371-152-0 |
03 |
1 |
0302- |
|
● |
| |
1 |
TANK ASM; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
|
1-48370-856-0 |
01 |
1 |
0005-0301 |
|
● |
| |
1 |
TANK ASM; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
|
1-48371-151-0 |
01 |
1 |
0302- |
|
● |
| |
4 |
CONNECTOR; FLARE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
|
1-09650-283-1 |
01 |
1 |
9803-0004 |
● |
|
| |
4 |
CONNECTOR; FLARE
EXC. TIRE INFLATOR DEVICE<SG4>
|
1-09650-283-1 |
01 |
1 |
9803-0004 |
● |
|
| |
4 |
CONNECTOR; FLARE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
|
1-09650-283-1 |
01 |
1 |
9803-0004 |
|
● |
| |
4 |
CONNECTOR; FLARE
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
|
1-09650-283-1 |
01 |
1 |
9803-0004 |
|
● |
| |
4 |
CONNECTOR; FLARE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-09650-283-1 |
01 |
1 |
9803-0004 |
|
● |
| |
4 |
CONNECTOR; FLARE
AIR SUSP DRIVER SEAT<A56>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>
|
1-09650-283-1 |
01 |
1 |
0005-0005 |
● |
|
| |
4 |
CONNECTOR; FLARE
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09650-283-1 |
01 |
1 |
0005-0005 |
● |
|
| |
4 |
CONNECTOR; FLARE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
|
1-09650-283-1 |
01 |
1 |
0005-0005 |
|
● |
| |
4 |
CONNECTOR; FLARE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-09650-283-1 |
01 |
1 |
0005-0005 |
|
● |
| |
4 |
CONNECTOR; FLARE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
|
1-09650-283-1 |
01 |
1 |
0005-0005 |
|
● |
| |
4 |
CONNECTOR; FLARE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>
|
1-09650-283-1 |
01 |
1 |
0006- |
● |
|
| |
4 |
CONNECTOR; FLARE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09650-283-1 |
01 |
1 |
0006- |
● |
|
| |
4 |
CONNECTOR; FLARE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
|
1-09650-283-1 |
01 |
1 |
0006- |
|
● |
| |
4 |
CONNECTOR; FLARE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-09650-283-1 |
01 |
1 |
0006- |
|
● |
| |
4 |
CONNECTOR; FLARE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
|
1-09650-283-1 |
01 |
1 |
0006- |
|
● |
| |
5 |
UNION; AIR TANK
(A)
M16 & PT3/8 STRAIGHT
|
1-09650-179-1 |
01 |
1 |
9510-9802 |
● |
● |
| |
5 |
UNION; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
(F)
DIN12 & R3/8 & RC1/4 3WAY
|
1-09660-845-0 |
01 |
1 |
9803-0004 |
● |
|
| |
5 |
UNION; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(F)
DIN12 & R3/8 & RC1/4 3WAY
|
1-09660-845-0 |
01 |
1 |
9803-0004 |
|
● |
| |
5 |
UNION; AIR TANK
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
(F)
DIN12 & R3/8 & RC1/4 3WAY
|
1-09660-845-0 |
01 |
1 |
0005-0005 |
● |
|
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(F)
DIN12 & R3/8 & RC1/4 3WAY
|
1-09660-845-0 |
01 |
1 |
0005-0005 |
|
● |
| |
5 |
UNION; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
(F)
DIN12 & R3/8 & RC1/4 3WAY
|
1-09660-845-0 |
01 |
1 |
0006-0212 |
● |
|
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(F)
DIN12 & R3/8 & RC1/4 3WAY
|
1-09660-845-0 |
01 |
1 |
0006-0212 |
|
● |
| |
5 |
UNION; AIR TANK
(B)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
5 |
UNION; AIR TANK
TIRE INFLATOR DEVICE<SG4>
(E)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
9803-0004 |
● |
|
| |
5 |
UNION; AIR TANK
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(E)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
9803-0004 |
|
● |
| |
5 |
UNION; AIR TANK
AIR SUSP DRIVER SEAT<A56>
TIRE INFLATOR DEVICE<SG4>
(E)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0005-0005 |
● |
|
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(E)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0005-0005 |
|
● |
| |
5 |
UNION; AIR TANK
TIRE INFLATOR DEVICE<SG4>
(E)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0006-0212 |
● |
|
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(E)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0006-0212 |
|
● |
| |
5 |
UNION; AIR TANK
TIRE INFLATOR DEVICE<SG4>
(E)
DIN8 R1/4 STRAIGHT
|
1-09660-963-0 |
01 |
1 |
0301- |
● |
|
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(E)
DIN8 R1/4 STRAIGHT
|
1-09660-963-0 |
01 |
1 |
0301- |
|
● |
| |
5 |
UNION; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
5 |
UNION; AIR TANK
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(D)
M20 & PT3/8 ELBOW
|
1-09650-439-0 |
01 |
1 |
9510-9802 |
|
● |
| |
5 |
UNION; AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(G)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0005- |
|
● |
| |
5 |
UNION; AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(I)
DIN8 & R3/8 & RC1/4 3WAY
|
1-09660-988-1 |
01 |
1 |
0005- |
|
● |
| |
5 |
UNION; AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
0005- |
|
● |
| |
5 |
UNION; AIR TANK
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W),
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(G)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0005- |
|
● |
| |
5 |
UNION; AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(H)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
05 |
1 |
0005- |
|
● |
| |
6 |
COCK; DRAIN,AIR TANK
|
1-48312-015-0 |
04 |
1 |
9510-0010 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
|
1-48312-015-0 |
04 |
1 |
0011- |
● |
|
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-48312-015-0 |
04 |
1 |
0011- |
|
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
|
1-48312-015-0 |
04 |
1 |
0011- |
|
● |
| |
6 |
COCK; DRAIN,AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48312-015-0 |
05 |
1 |
0005- |
|
● |
| |
7 |
GASKET; DRAIN COCK
ID=14.2 OD=19.2
|
1-09630-085-0 |
04 |
1 |
9601-9604 |
● |
● |
| |
7 |
GASKET; DRAIN COCK
ID=14.2 OD=23.0
|
9-09572-014-0 |
04 |
1 |
9605-9608 |
● |
● |
| |
7 |
GASKET; DRAIN COCK
ID=14
|
1-09630-145-0 |
04 |
1 |
9609-0010 |
● |
● |
| |
7 |
GASKET; DRAIN COCK
ID=14
|
1-09630-145-0 |
04 |
1 |
0011- |
● |
|
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=14
|
1-09630-145-0 |
04 |
1 |
0011- |
|
● |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
ID=14
|
1-09630-145-0 |
04 |
1 |
0011- |
|
● |
| |
7 |
GASKET; DRAIN COCK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=14
|
1-09630-145-0 |
05 |
1 |
0005- |
|
● |
| |
8 |
CONNECTOR; AIR TANK
(C)
|
1-09650-283-1 |
01 |
1 |
9510-9802 |
● |
|
| |
8 |
CONNECTOR; AIR TANK
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(C)
|
1-09650-283-1 |
01 |
1 |
9510-9802 |
|
● |
| |
8 |
CONNECTOR; AIR TANK
(A)
|
1-09656-699-0 |
01 |
1 |
9510-0004 |
● |
|
| |
8 |

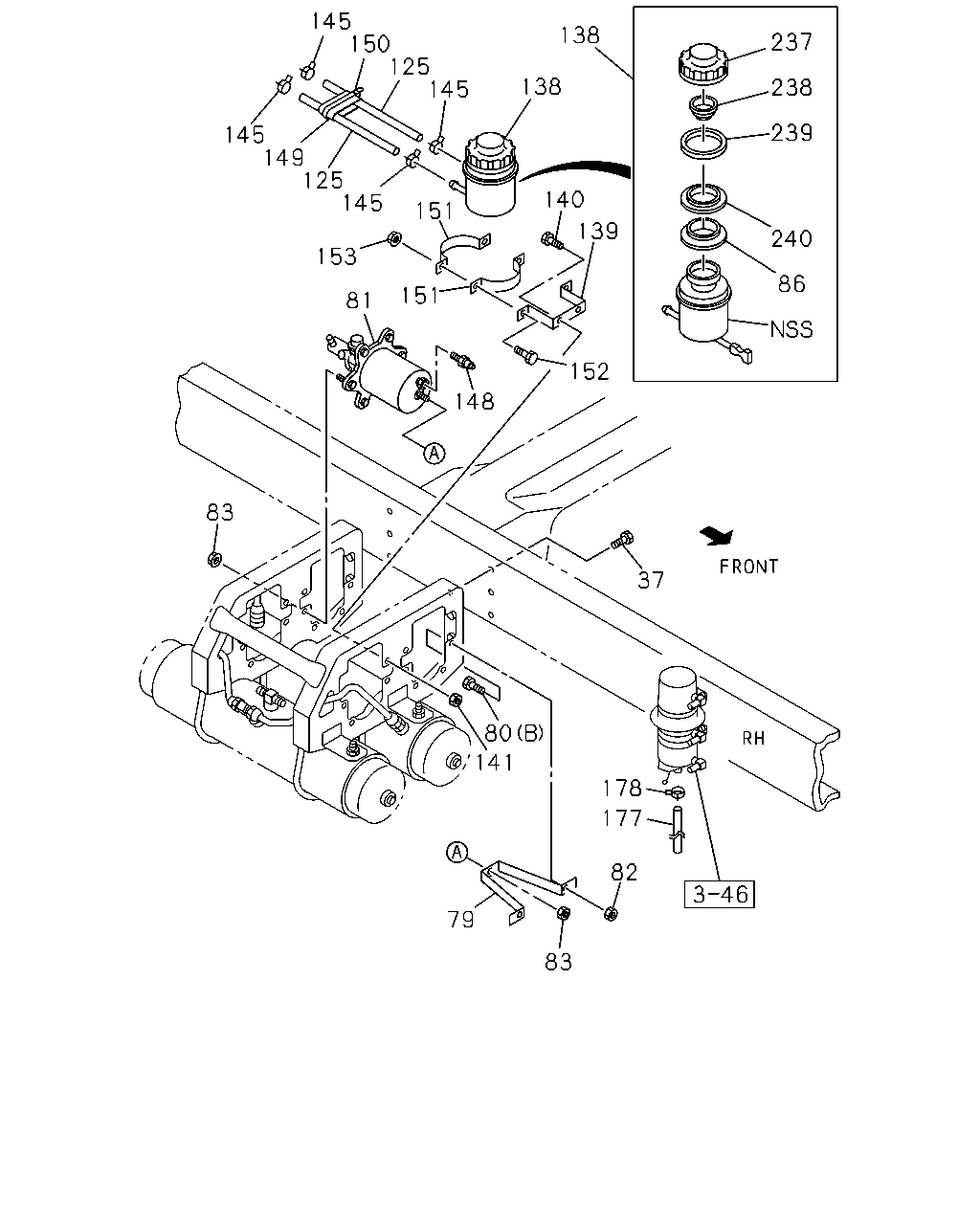

CONNECTOR; AIR TANK
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
|
1-09656-699-0 |
01 |
1 |
9510-0004 |
|
● |
| |
8 |
CONNECTOR; AIR TANK
AIR SUSP DRIVER SEAT<A56>
(A)
|
1-09656-699-0 |
01 |
1 |
0005-0005 |
● |
|
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
|
1-09656-699-0 |
01 |
1 |
0005-0005 |
|
● |
| |
8 |
CONNECTOR; AIR TANK
(A)
|
1-09656-699-0 |
01 |
1 |
0006-0010 |
● |
|
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
|
1-09656-699-0 |
01 |
1 |
0006-0010 |
|
● |
| |
8 |
CONNECTOR; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
|
1-09656-699-0 |
01 |
1 |
0006-0010 |
|
● |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
|
1-09656-699-0 |
01 |
1 |
0006-0010 |
|
● |
| |
8 |
CONNECTOR; AIR TANK
(A)
|
1-09656-699-0 |
01 |
1 |
0011- |
● |
|
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
|
1-09656-699-0 |
01 |
1 |
0011- |
|
● |
| |
8 |
CONNECTOR; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
|
1-09656-699-0 |
01 |
1 |
0011- |
|
● |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
|
1-09656-699-0 |
01 |
1 |
0011- |
|
● |
| |
8 |
CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
M12 & M16 & PT1/4 3WAY
|
1-09650-170-1 |
01 |
1 |
9510-9802 |
● |
|
| |
8 |
CONNECTOR; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
M12 & M16 & PT1/4 3WAY
|
1-09650-170-1 |
01 |
1 |
9510-9802 |
|
● |
| |
8 |
CONNECTOR; AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
R1/4 & M16 TEST CONNECTOR
|
1-47459-013-1 |
02 |
1 |
0005- |
|
● |
| |
8 |
CONNECTOR; AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
R1/4 & M16 TEST CONNECTOR
|
1-47459-013-0 |
03 |
1 |
0005-0301 |
|
● |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
530KPA
|
1-48340-054-0 |
01 |
1 |
9803-0004 |
● |
|
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
530KPA
|
1-48340-054-0 |
01 |
1 |
9803-0004 |
|
● |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
AIR SUSP DRIVER SEAT<A56>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
530KPA
|
1-48340-054-0 |
01 |
1 |
0005-0005 |
● |
|
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
530KPA
|
1-48340-054-0 |
01 |
1 |
0005-0005 |
|
● |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
530KPA
|
1-48340-054-1 |
01 |
1 |
0006- |
● |
|
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
530KPA
|
1-48340-054-1 |
01 |
1 |
0006- |
|
● |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
530KPA
|
1-48340-054-1 |
01 |
1 |
0006- |
|
● |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
530KPA
|
1-48340-054-1 |
03 |
1 |
0005- |
|
● |
| |
10 |
PLUG; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
9803-0004 |
● |
|
| |
10 |
PLUG; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
9803-0004 |
|
● |
| |
10 |
PLUG; AIR TANK
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
9803-0004 |
|
● |
| |
10 |
PLUG; AIR TANK
AIR SUSP DRIVER SEAT<A56>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
0005-0005 |
● |
|
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
0005-0005 |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
0005-0005 |
|
● |
| |
10 |
PLUG; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
0006-0212 |
● |
|
| |
10 |
PLUG; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
0006-0212 |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
0006-0212 |
|
● |
| |
10 |
PLUG; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>
(C)
PT1/4
|
9-99204-513-0 |
05 |
1 |
0301- |
● |
|
| |
10 |
PLUG; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
05 |
1 |
0301- |
|
● |
| |
10 |
PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4>
(C)
PT1/4
|
9-99204-513-0 |
05 |
1 |
9510-9802 |
● |
|
| |
10 |
PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
05 |
1 |
9510-9802 |
|
● |
| |
10 |
PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
PT1/4
|
9-99204-513-0 |
02 |
1 |
9803-0004 |
● |
|
| |
10 |
PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
02 |
1 |
9803-0004 |
|
● |
| |
10 |
PLUG; AIR TANK
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
02 |
1 |
9803-0004 |
|
● |
| |
10 |
PLUG; AIR TANK
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0005-0005 |
● |
|
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0005-0005 |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0005-0005 |
|
● |
| |
10 |
PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0006-0212 |
● |
|
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0006-0212 |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0006-0212 |
|
● |
| |
10 |
PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
(C)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0301- |
● |
|
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0301- |
|
● |
| |
10 |
PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4>
(C)
PT1/4
|
9-99204-513-0 |
06 |
1 |
9510-9802 |
● |
|
| |
10 |
PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
06 |
1 |
9510-9802 |
|
● |
| |
10 |
PLUG; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
PT1/4
|
9-99204-513-0 |
03 |
1 |
9803-0004 |
● |
|
| |
10 |
PLUG; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
03 |
1 |
9803-0004 |
|
● |
| |
10 |
PLUG; AIR TANK
AIR SUSP DRIVER SEAT<A56>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
PT1/4
|
9-99204-513-0 |
03 |
1 |
0005-0005 |
● |
|
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
03 |
1 |
0005-0005 |
|
● |
| |
10 |
PLUG; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
PT1/4
|
9-99204-513-0 |
03 |
1 |
0006-0212 |
● |
|
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
03 |
1 |
0006-0212 |
|
● |
| |
10 |
PLUG; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
03 |
1 |
0006-0212 |
|
● |
| |
10 |
PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>
(C)
PT1/4
|
9-99204-513-0 |
03 |
1 |
0301- |
● |
|
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
03 |
1 |
0301- |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
03 |
1 |
0301- |
|
● |
| |
10 |
PLUG; AIR TANK
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
TIRE INFLATOR DEVICE<SG4>
(C)
PT1/4
|
9-99204-513-0 |
03 |
1 |
9510-9802 |
|
● |
| |
10 |
PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
9803-0004 |
● |
|
| |
10 |
PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
9803-0004 |
● |
|
| |
10 |
PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
9803-0004 |
|
● |
| |
10 |
PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
9803-0004 |
|
● |
| |
10 |
PLUG; AIR TANK
AIR SUSP DRIVER SEAT<A56>
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0005-0005 |
● |
|
| |
10 |
PLUG; AIR TANK
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0005-0005 |
● |
|
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0005-0005 |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0005-0005 |
|
● |
| |
10 |
PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0006-0010 |
● |
|
| |
10 |
PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0006-0010 |
● |
|
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0006-0010 |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0006-0010 |
|
● |
| |
10 |
PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0011-0212 |
● |
|
| |
10 |
PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4>
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0011-0212 |
● |
|
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0011-0212 |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0011-0212 |
|
● |
| |
10 |
PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
PT1/4
|
9-99204-513-0 |
04 |
1 |
0301- |
● |
|
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. TIRE INFLATOR DEVICE<SG4>
(C)
PT1/4
|
9-99204-513-0 |
04 |
1 |
0301- |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
PT1/4
|
9-99204-513-0 |
04 |
1 |
0301- |
|
● |
| |
10 |
PLUG; AIR TANK
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. TIRE INFLATOR DEVICE<SG4>
(C)
PT1/4
|
9-99204-513-0 |
04 |
1 |
9510-9802 |
|
● |
| |
10 |
PLUG; AIR TANK
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
9803-0004 |
● |
● |
| |
10 |
PLUG; AIR TANK
AIR SUSP DRIVER SEAT<A56>
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0005-0005 |
● |
|
| |
10 |
PLUG; AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0005-0005 |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0005-0005 |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0005-0005 |
|
● |
| |
10 |
PLUG; AIR TANK
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0006-0010 |
● |
|
| |
10 |
PLUG; AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0006-0010 |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0006-0010 |
|
● |
| |
10 |
PLUG; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0006-0010 |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0006-0010 |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0006-0010 |
|
● |
| |
10 |
PLUG; AIR TANK
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0011- |
● |
|
| |
10 |
PLUG; AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0011- |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0011- |
|
● |
| |
10 |
PLUG; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0011- |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0011- |
|
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0011- |
|
● |
| |
10 |
PLUG; AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
PT3/8
|
9-09204-517-0 |
07 |
1 |
0005- |
|
● |
| |
10 |
PLUG; AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0005- |
|
● |
| |
10 |
PLUG; AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
PT3/8
|
9-09204-517-0 |
03 |
1 |
0005-0301 |
|
● |
| |
10 |
PLUG; AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
PT3/8
|
9-09204-517-0 |
08 |
1 |
0302- |
|
● |
| |
10 |
PLUG; AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
PT3/4
|
9-09204-526-0 |
03 |
1 |
0005- |
|
● |
| |
11 |
VALVE; SAFETY,AIR TANK
|
1-48320-012-2 |
01 |
1 |
9510- |
● |
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
(B)
|
1-47497-011-0 |
01 |
1 |
9510-0004 |
● |
|
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
|
1-47497-011-0 |
01 |
1 |
9510-0004 |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
AIR SUSP DRIVER SEAT<A56>
(B)
|
1-47497-011-0 |
01 |
1 |
0005-0005 |
● |
|
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
|
1-47497-011-0 |
01 |
1 |
0005-0005 |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
(B)
|
1-47497-011-0 |
01 |
1 |
0006-0010 |
● |
|
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
|
1-47497-011-0 |
01 |
1 |
0006-0010 |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
|
1-47497-011-0 |
01 |
1 |
0006-0010 |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
|
1-47497-011-0 |
01 |
1 |
0006-0010 |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
(B)
|
1-47497-011-0 |
01 |
1 |
0011- |
● |
|
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
|
1-47497-011-0 |
01 |
1 |
0011- |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
|
1-47497-011-0 |
01 |
1 |
0011- |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
|
1-47497-011-0 |
01 |
1 |
0011- |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
(A)
|
1-47497-012-0 |
01 |
1 |
9510-0004 |
● |
|
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
|
1-47497-012-0 |
01 |
1 |
9510-0004 |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
AIR SUSP DRIVER SEAT<A56>
(A)
|
1-47497-012-0 |
01 |
1 |
0005-0005 |
● |
|
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
|
1-47497-012-0 |
01 |
1 |
0005-0005 |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
(A)
|
1-47497-012-0 |
01 |
1 |
0006-0010 |
● |
|
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
|
1-47497-012-0 |
01 |
1 |
0006-0010 |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
|
1-47497-012-0 |
01 |
1 |
0006-0010 |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
|
1-47497-012-0 |
01 |
1 |
0006-0010 |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
(A)
|
1-47497-012-0 |
01 |
1 |
0011- |
● |
|
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
|
1-47497-012-0 |
01 |
1 |
0011- |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
|
1-47497-012-0 |
01 |
1 |
0011- |
|
● |
| |
12 |
PIPE ASM; AIR,AIR TANK TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
|
1-47497-012-0 |
01 |
1 |
0011- |
|
● |
| |
15 |
SWITCH; LOW PRESS,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
530KPA
|
1-48340-054-0 |
02 |
1 |
9803-0004 |
● |
|
| |
15 |
SWITCH; LOW PRESS,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
530KPA
|
1-48340-054-0 |
02 |
1 |
9803-0004 |
|
● |
| |
15 |
SWITCH; LOW PRESS,AIR TANK
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
530KPA
|
1-48340-054-0 |
02 |
1 |
9803-0004 |
|
● |
| |
15 |
SWITCH; LOW PRESS,AIR TANK
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
530KPA
|
1-48340-054-0 |
02 |
1 |
0005-0005 |
● |
|
| |
15 |
SWITCH; LOW PRESS,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
530KPA
|
1-48340-054-0 |
02 |
1 |
0005-0005 |
|
● |
| |
15 |
SWITCH; LOW PRESS,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
530KPA
|
1-48340-054-0 |
02 |
1 |
0005-0005 |
|
● |
| |
15 |
SWITCH; LOW PRESS,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
530KPA
|
1-48340-054-1 |
02 |
1 |
0006- |
● |
|
| |
15 |
SWITCH; LOW PRESS,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
530KPA
|
1-48340-054-1 |
02 |
1 |
0006- |
|
● |
| |
15 |
SWITCH; LOW PRESS,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
530KPA
|
1-48340-054-1 |
02 |
1 |
0006- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
01 |
1 |
9803-0004 |
● |
|
| |
21 |
VALVE; CHECK,AIR TANK
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
01 |
1 |
9803-0004 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
AIR SUSP DRIVER SEAT<A56>
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
01 |
1 |
0005-0005 |
● |
|
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
01 |
1 |
0005-0005 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
01 |
1 |
0006-0010 |
● |
|
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
01 |
1 |
0006-0010 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
01 |
1 |
0006-0010 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
01 |
1 |
0006-0010 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
01 |
1 |
0011- |
● |
|
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
01 |
1 |
0011- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
01 |
1 |
0011- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
01 |
1 |
0011- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
(C)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
9803-0004 |
● |
|
| |
21 |
VALVE; CHECK,AIR TANK
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(C)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
9803-0004 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
AIR SUSP DRIVER SEAT<A56>
(C)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
0005-0005 |
● |
|
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(C)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
0005-0005 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
(C)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
0006-0010 |
● |
|
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
0006-0010 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
0006-0010 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(C)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
0006-0010 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
(C)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
0011- |
● |
|
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
0011- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
0011- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(C)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
0011- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
9803-0004 |
● |
● |
| |
21 |
VALVE; CHECK,AIR TANK
AIR SUSP DRIVER SEAT<A56>
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0005-0005 |
● |
|
| |
21 |
VALVE; CHECK,AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0005-0005 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0005-0005 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0005-0005 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0006-0010 |
● |
|
| |
21 |
VALVE; CHECK,AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0006-0010 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0006-0010 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0006-0010 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0006-0010 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0006-0010 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0011- |
● |
|
| |
21 |
VALVE; CHECK,AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0011- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0011- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0011- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0011- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0011- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
02 |
1 |
9803-0004 |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
M20 & PT3/4 STRAIGHT
|
1-48410-182-3 |
02 |
1 |
0005- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M22 & PT3/4
|
1-48410-136-3 |
01 |
1 |
0005- |
|
● |
| |
21 |
VALVE; CHECK,AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
03 |
1 |
0005- |
|
● |
| |
36 |
STAY; MAIN TANK
(A)
|
1-53318-293-1 |
01 |
1 |
9803-0004 |
● |
● |
| |
36 |
STAY; MAIN TANK
(A)
|
1-53318-293-1 |
01 |
1 |
0005- |
● |
|
| |
36 |
STAY; MAIN TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-53318-293-1 |
01 |
1 |
0005- |
|
● |
| |
36 |
STAY; MAIN TANK
(B)
|
8-94301-490-0 |
01 |
1 |
9803-0004 |
● |
● |
| |
36 |
STAY; MAIN TANK
(B)
|
8-94301-490-0 |
01 |
1 |
0005- |
● |
|
| |
36 |
STAY; MAIN TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
8-94301-490-0 |
01 |
1 |
0005- |
|
● |
| |
36 |
STAY; MAIN TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
|
1-48317-607-0 |
01 |
1 |
0005- |
|
● |
| |
42 |
WASHER; PL
ID=8.4 OD=18
|
9-09160-608-0 |
04 |
1 |
9510-0004 |
● |
● |
| |
42 |
WASHER; PL
ID=8.4 OD=18
|
9-09160-608-0 |
04 |
1 |
0005-0605 |
● |
|
| |
42 |
WASHER; PL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=8.4 OD=18
|
9-09160-608-0 |
04 |
1 |
0005-0605 |
|
● |
| |
42 |
WASHER; PL
ID=8.4 OD=18
|
0-91610-608-0 |
04 |
1 |
0606- |
● |
|
| |
42 |
WASHER; PL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=8.4 OD=18
|
0-91610-608-0 |
04 |
1 |
0606- |
|
● |
| |
42 |
WASHER; PL
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=10.5
|
9-09164-510-0 |
02 |
1 |
0005- |
|
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
(B)
M8X20 FLANGE
|
0-28080-820-0 |
04 |
1 |
9510-9702 |
● |
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
(B)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9703-9802 |
● |
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
(B)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9803-0010 |
● |
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
(B)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0011-0512 |
● |
|
| |
43 |
BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0011-0512 |
|
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
(B)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0011-0512 |
|
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
(B)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
● |
|
| |
43 |
BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
|
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
(B)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
|
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
(A)
M10X20 FLANGE
|
0-28081-020-0 |
04 |
1 |
9510-9702 |
● |
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
(A)
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
9703-0004 |
● |
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
(A)
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
0005-0512 |
● |
|
| |
43 |
BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
0005-0512 |
|
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
(A)
M10X25 FLANGE
|
0-28651-025-0 |
04 |
1 |
0601- |
● |
|
| |
43 |
BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M10X25 FLANGE
|
0-28651-025-0 |
04 |
1 |
0601- |
|
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
0005-0512 |
|
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0601- |
|
● |
| |
49 |
BRACKET; AIR TANK
|
1-53318-338-6 |
02 |
1 |
9803-0004 |
● |
● |
| |
49 |
BRACKET; AIR TANK
|
1-53318-338-6 |
02 |
1 |
0005- |
● |
|
| |
49 |
BRACKET; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-53318-338-6 |
02 |
1 |
0005- |
|
● |
| |
49 |
BRACKET; AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48317-601-5 |
02 |
1 |
0005- |
|
● |
| |
53 |
BOLT; STAY,AIR TANK
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9803-0004 |
● |
● |
| |
53 |
BOLT; STAY,AIR TANK
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0005-0512 |
● |
|
| |
53 |
BOLT; STAY,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0005-0512 |
|
● |
| |
53 |
BOLT; STAY,AIR TANK
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
● |
|
| |
53 |
BOLT; STAY,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
|
● |
| |
53 |
BOLT; STAY,AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0005-0512 |
|
● |
| |
53 |
BOLT; STAY,AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
|
● |
| |
54 |
NUT; STAY
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9803-0004 |
● |
● |
| |
54 |
NUT; STAY
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0602 |
● |
|
| |
54 |
NUT; STAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0602 |
|
● |
| |
54 |
NUT; STAY
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
| |
54 |
NUT; STAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
| |
58 |
NUT; BAND,AIR TANK
M8
|
9-09110-408-0 |
16 |
1 |
9803-0004 |
● |
● |
| |
58 |
NUT; BAND,AIR TANK
M8
|
9-09110-408-0 |
16 |
1 |
0005-0512 |
● |
|
| |
58 |
NUT; BAND,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8
|
9-09110-408-0 |
16 |
1 |
0005-0512 |
|
● |
| |
58 |
NUT; BAND,AIR TANK
M8
|
0-91110-508-0 |
16 |
1 |
0601- |
● |
|
| |
58 |
NUT; BAND,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8
|
0-91110-508-0 |
16 |
1 |
0601- |
|
● |
| |
58 |
NUT; BAND,AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8
|
9-09110-408-0 |
12 |
1 |
0005-0512 |
|
● |
| |
58 |
NUT; BAND,AIR TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8
|
0-91110-508-0 |
12 |
1 |
0601- |
|
● |
| |
67 |
STAY; SUB TANK
|
1-48317-349-0 |
01 |
1 |
9510-0004 |
● |
● |
| |
67 |
STAY; SUB TANK
|
1-48317-349-0 |
01 |
1 |
0005- |
● |
|
| |
67 |
STAY; SUB TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-48317-349-0 |
01 |
1 |
0005- |
|
● |
| |
67 |
STAY; SUB TANK
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48317-691-0 |
01 |
1 |
0005- |
|
● |
| |
126 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0301- |
● |
|
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. TIRE INFLATOR DEVICE<SG4>
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0301- |
|
● |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0301- |
|
● |
| |
126 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
PT1/4 MALE & PT1/4 FEMALE X2 3WAY
|
1-09660-363-0 |
01 |
1 |
9803-9806 |
● |
|
| |
126 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
PT1/4 MALE & PT1/4 FEMALE X2 3WAY
|
1-09660-363-0 |
01 |
1 |
9803-9806 |
|
● |
| |
126 |
CONNECTOR; ELBOW
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
PT1/4 MALE & PT1/4 FEMALE X2 3WAY
|
1-09660-363-0 |
01 |
1 |
9803-9806 |
|
● |
| |
126 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
9807-0004 |
● |
|
| |
126 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
9807-0004 |
|
● |
| |
126 |
CONNECTOR; ELBOW
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
9807-0004 |
|
● |
| |
126 |
CONNECTOR; ELBOW
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0005-0005 |
● |
|
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0005-0005 |
|
● |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0005-0005 |
|
● |
| |
126 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0006-0212 |
● |
|
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0006-0212 |
|
● |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0006-0212 |
|
● |
| |
126 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
02 |
1 |
0301- |
● |
|
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
02 |
1 |
0301- |
|
● |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
02 |
1 |
0301- |
|
● |
| |
172 |
NUT; STAY,AIR TANK,MAIN
(A)
M8
|
9-09110-408-0 |
04 |
1 |
9510-9702 |
● |
● |
| |
172 |
NUT; STAY,AIR TANK,MAIN
(A)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9703-9802 |
● |
● |
| |
172 |
NUT; STAY,AIR TANK,MAIN
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9803-0004 |
● |
● |
| |
172 |
NUT; STAY,AIR TANK,MAIN
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0602 |
● |
|
| |
172 |
NUT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0602 |
|
● |
| |
172 |
NUT; STAY,AIR TANK,MAIN
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
| |
172 |
NUT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
| |
172 |
NUT; STAY,AIR TANK,MAIN
(B)
M10
|
9-09110-510-0 |
04 |
1 |
9510-9702 |
● |
● |
| |
172 |
NUT; STAY,AIR TANK,MAIN
(B)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9703-0004 |
● |
● |
| |
172 |
NUT; STAY,AIR TANK,MAIN
(B)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
0005-0602 |
● |
|
| |
172 |
NUT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
0005-0602 |
|
● |
| |
172 |
NUT; STAY,AIR TANK,MAIN
(B)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0603- |
● |
|
| |
172 |
NUT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0603- |
|
● |
| |
174 |
COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4>
|
1-09680-036-0 |
01 |
1 |
9510-0004 |
● |
● |
| |
174 |
COCK; AIR,INFLATOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
|
1-09680-036-0 |
01 |
1 |
0005-0005 |
● |
● |
| |
174 |
COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4>
|
1-09680-036-0 |
01 |
1 |
0006-0010 |
● |
|
| |
174 |
COCK; AIR,INFLATOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
|
1-09680-036-0 |
01 |
1 |
0006-0010 |
|
● |
| |
174 |
COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4>
|
1-09680-099-0 |
01 |
1 |
0011- |
● |
|
| |
174 |
COCK; AIR,INFLATOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
|
1-09680-099-0 |
01 |
1 |
0011- |
|
● |
| |
175 |
CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4>
|
9-48319-102-0 |
01 |
1 |
9510-0004 |
● |
● |
| |
175 |
CAP; AIR COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
|
9-48319-102-0 |
01 |
1 |
0005-0005 |
● |
● |
| |
175 |
CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4>
|
9-48319-102-0 |
01 |
1 |
0006- |
● |
|
| |
175 |
CAP; AIR COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
|
9-48319-102-0 |
01 |
1 |
0006- |
|
● |
| |
176 |
ADAPTER
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09650-283-1 |
01 |
1 |
9803-0004 |
● |
|
| |
176 |
ADAPTER
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
|
1-09650-283-1 |
01 |
1 |
9803-0004 |
|
● |
| |
176 |
ADAPTER
AIR SUSP DRIVER SEAT<A56>
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09650-283-1 |
01 |
1 |
0005-0005 |
● |
|
| |
176 |
ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
|
1-09650-283-1 |
01 |
1 |
0005-0005 |
|
● |
| |
176 |
ADAPTER
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09650-283-1 |
01 |
1 |
0006- |
● |
|
| |
176 |
ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
|
1-09650-283-1 |
01 |
1 |
0006- |
|
● |
| |
176 |
ADAPTER
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
9803-0004 |
● |
|
| |
176 |
ADAPTER
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
9803-0004 |
|
● |
| |
176 |
ADAPTER
AIR SUSP DRIVER SEAT<A56>
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0005-0005 |
● |
|
| |
176 |
ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0005-0005 |
|
● |
| |
176 |
ADAPTER
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0006-0212 |
● |
|
| |
176 |
ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0006-0212 |
|
● |
| |
176 |
ADAPTER
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0301- |
● |
|
| |
176 |
ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0301- |
|
● |
| |
213 |
BOLT; U AIR TANK
(A)
L=97.5
|
1-48317-323-1 |
02 |
1 |
9803-0004 |
● |
● |
| |
213 |
BOLT; U AIR TANK
(A)
L=97.5
|
1-48317-323-1 |
02 |
1 |
0005- |
● |
|
| |
213 |
BOLT; U AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=97.5
|
1-48317-323-1 |
02 |
1 |
0005- |
|
● |
| |
213 |
BOLT; U AIR TANK
(B)
L=195
|
1-48317-367-2 |
02 |
1 |
9803-0004 |
● |
● |
| |
213 |
BOLT; U AIR TANK
(B)
L=195
|
1-48317-367-2 |
02 |
1 |
0005- |
● |
|
| |
213 |
BOLT; U AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=195
|
1-48317-367-2 |
02 |
1 |
0005- |
|
● |
| |
282 |
UNION; 2 WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
9803-0004 |
● |
|
| |
282 |
UNION; 2 WAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
9803-0004 |
● |
|
| |
282 |
UNION; 2 WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
9803-0004 |
|
● |
| |
282 |
UNION; 2 WAY
TIRE INFLATOR DEVICE<SG4>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
9803-0004 |
|
● |
| |
282 |
UNION; 2 WAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
9803-0004 |
|
● |
| |
282 |
UNION; 2 WAY
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0005-0005 |
● |
|
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. TIRE INFLATOR DEVICE<SG4>
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0005-0005 |
|
● |
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0005-0005 |
|
● |
| |
282 |
UNION; 2 WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0006-0212 |
● |
|
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. TIRE INFLATOR DEVICE<SG4>
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0006-0212 |
|
● |
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0006-0212 |
|
● |
| |
282 |
UNION; 2 WAY
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0301- |
● |
|
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0301- |
|
● |
| |
282 |
UNION; 2 WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
9803-0004 |
● |
|
| |
282 |
UNION; 2 WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
9803-0004 |
|
● |
| |
282 |
UNION; 2 WAY
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. TIRE INFLATOR DEVICE<SG4>
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
9803-0004 |
|
● |
| |
282 |
UNION; 2 WAY
AIR SUSP DRIVER SEAT<A56>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0005-0005 |
● |
|
| |
282 |
UNION; 2 WAY
AIR SUSP DRIVER SEAT<A56>
TIRE INFLATOR DEVICE<SG4>
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0005-0005 |
● |
|
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0005-0005 |
|
● |
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0005-0005 |
|
● |
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
TIRE INFLATOR DEVICE<SG4>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0005-0005 |
|
● |
| |
282 |
UNION; 2 WAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0006-0212 |
● |
|
| |
282 |
UNION; 2 WAY
TIRE INFLATOR DEVICE<SG4>
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0006-0212 |
● |
|
| |
282 |
UNION; 2 WAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0006-0212 |
|
● |
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0006-0212 |
|
● |
| |
282 |
UNION; 2 WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
0301- |
● |
|
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
0301- |
|
● |
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
0301- |
|
● |
| |
282 |
UNION; 2 WAY
EXC. TIRE INFLATOR DEVICE<SG4>
(C)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
9803-0004 |
● |
|
| |
282 |
UNION; 2 WAY
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
9803-0004 |
|
● |
| |
282 |
UNION; 2 WAY
AIR SUSP DRIVER SEAT<A56>
EXC. TIRE INFLATOR DEVICE<SG4>
(C)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0005-0005 |
● |
|
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR SUSP DRIVER SEAT<A56>
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0005-0005 |
|
● |
| |
282 |
UNION; 2 WAY
EXC. TIRE INFLATOR DEVICE<SG4>
(C)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0006-0212 |
● |
|
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0006-0212 |
|
● |
| |
282 |
UNION; 2 WAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
0006-0212 |
|
● |
| |
282 |
UNION; 2 WAY
EXC. TIRE INFLATOR DEVICE<SG4>
(C)
DIN8 R1/4 STRAIGHT
|
1-09660-963-0 |
01 |
1 |
0301- |
● |
|
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN
ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
DIN8 R1/4 STRAIGHT
|
1-09660-963-0 |
01 |
1 |
0301- |
|
● |
| |
282 |
UNION; 2 WAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
TIRE INFLATOR DEVICE<SG4>,CHINA-SOUTHERN ECONOMIC
ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
DIN8 R1/4 STRAIGHT
|
1-09660-963-0 |
01 |
1 |
0301- |
|
● |
| |
282 |
UNION; 2 WAY
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
9803-0004 |
● |
● |
| |
282 |
UNION; 2 WAY
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0005- |
● |
|
| |
282 |
UNION; 2 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0005- |
|
● |
| |
282 |
UNION; 2 WAY
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
0005- |
|
● |
| |
282 |
UNION; 2 WAY
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(E)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0005- |
|
● |
| |
282 |
UNION; 2 WAY
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
04 |
1 |
0005- |
|
● |
