◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11145 - FXZ EXC.EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30A - GEAR SHIFTER AND QUADRANT BOX ▶
2-30A — GEAR SHIFTER AND QUADRANT BOX (#39834) — 114 parça

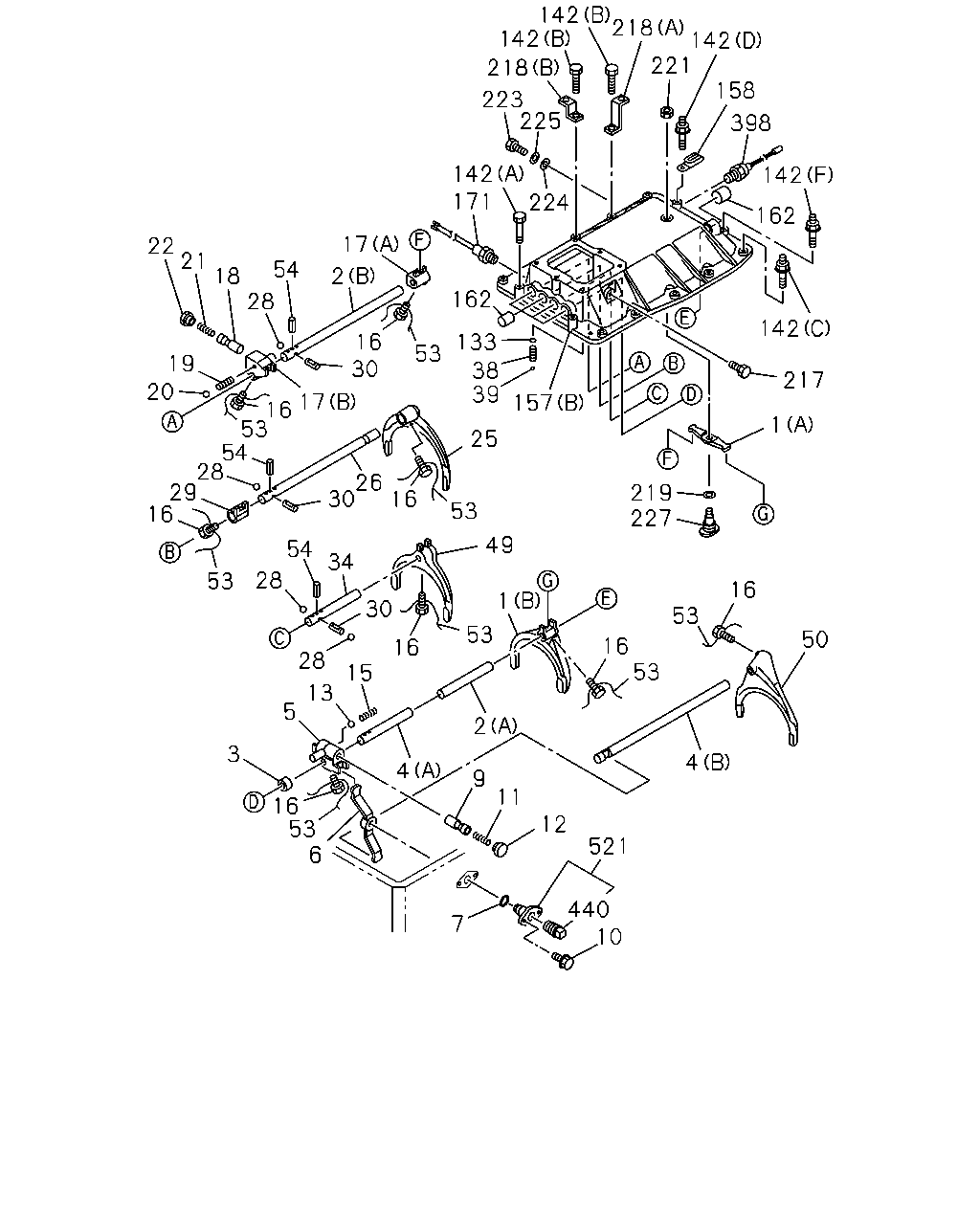

çizim 161874
142 218 142 142 221 218 158 223 225 398 142 171 142 224 162 17 22 21 162 54 18 28 2 142 16 30 133 53 19 20 38 39 217 17 157 16 53 54 28 29 16 1 25 26 30 219 227 16 53 49 54 34 28 53 1 16 30 53 53 50 16 53 16 28 15 13 5 2 3 4 9 4 16 53 6 11 12 521 440 10 7
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 0801-
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 0801-
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-400-1 01 1 0801-
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-415-1 01 1 0801-
3 STOPPER; 6TH SHIFT ROD 9-33537-018-0 01 1 0801-
4 ROD; SHIFT,6TH
(A) 		1-33531-405-1 01 1 0801-
4 ROD; SHIFT,6TH
(B) 		1-33531-407-1 01 1 0801-
5 BLOCK; SHIFT,6TH 1-33511-372-2 01 1 0801-
6 LEVER; RELAY 9-33511-402-1 01 1 0801-
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0801-
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-022-1 01 1 0801-
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 0801-
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0801-
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0801-
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0801-
15 SPRING; LK,SHIFT SLEEVE 9-09941-007-0 01 1 0801-
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 08 1 0801-
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 0801-
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 0801-
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0801-
19 SPRING; COIL COMP 1-09580-438-0 01 1 0801-
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0801-
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 0801-
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0801-
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 0801-
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 0801-
28 BALL; INTER LK 9-00097-501-0 04 1 0801-
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0801-
30 PIN; INTER LK 9-33534-003-0 03 1 0801-
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-402-1 01 1 0801-
38 SPRING; DETENT 1-09580-379-0 04 1 0801-
39 BALL; DETENT 1-09843-012-0 04 1 0801-
49 ARM; SHIFT,4TH & 5TH 1-33511-461-0 01 1 0801-
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 0801-
53 WIRE; BOLT
L=180 		1-09780-024-0 06 1 0801-
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 0801-
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0801-
133 SEAT; SPR 1-33549-072-0 04 1 0801-
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		0-28181-028-0 11 1 0801-0805
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		8-98044-944-0 11 1 0806-
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0801-0805
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806-
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0801-0805
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806-
142 BOLT; QUAD BOX
(D) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0801-0805
142 BOLT; QUAD BOX
(D) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806-
142 BOLT; QUAD BOX
(F) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0801-0805
142 BOLT; QUAD BOX
(F) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0801-0805
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806-
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 0801-
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 0801-1311
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1312-
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0801-
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 0801-
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0801-0801
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1109
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110-
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 0801-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0801-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0801-
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0801-
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0801-
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0801-
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0801-
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0801-
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0801-
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0801-
440 PLUG; OIL
PT1/4 		9-99204-513-0 01 1 0801-
521 SPINDLE; 6TH 1-33119-255-0 01 1 0801-

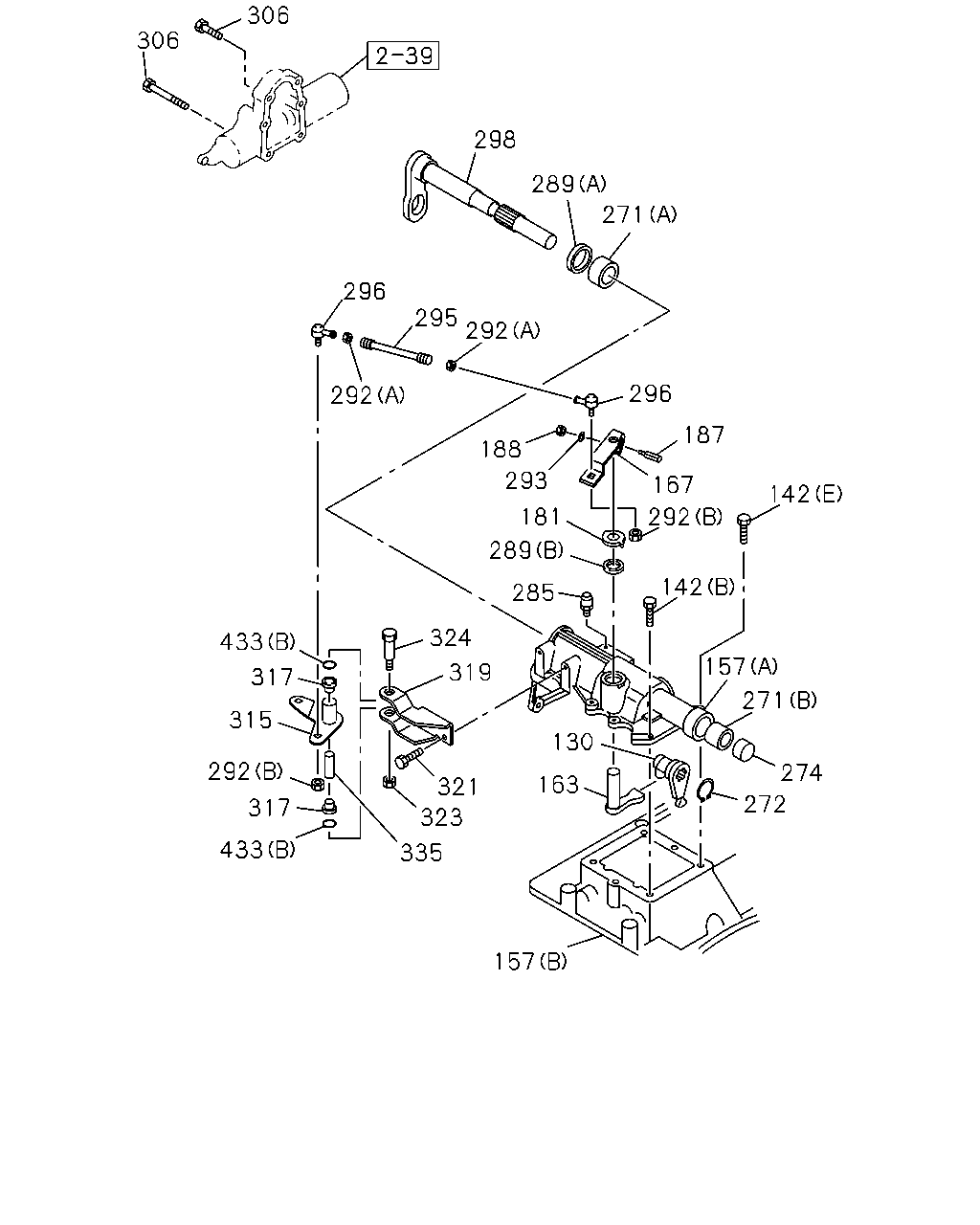

çizim 161884
306 306 298 289 271 296 295 292 296 292 187 188 293 167 142 181 292 289 142 285 324 433 157 319 317 271 315 130 292 274 163 321 272 317 323 433 335 157
BalonParca AdiParca NoAdetTipApplied Date
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0801-
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		0-28181-028-0 11 1 0801-0805
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		8-98044-944-0 11 1 0806-
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0801-0805
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806-
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0801-0805
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806-
142 BOLT; QUAD BOX
(D) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0801-0805
142 BOLT; QUAD BOX
(D) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806-
142 BOLT; QUAD BOX
(F) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0801-0805
142 BOLT; QUAD BOX
(F) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0801-0805
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806-
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 0801-
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 0801-1311
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1312-
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0801-
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0801-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0801-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0801-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0801-
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0801-
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0801-
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0801-
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0801-
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0801-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0801-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0801-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0801-
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0801-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0801-
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0801-
296 ROD END 1-09760-108-0 02 1 0801-
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0801-
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 0801-
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 0801-
315 LEVER; SELECT 8-98097-127-0 01 1 0801-
317 BUSHING; LEVER 1-09330-119-0 02 1 0801-
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0801-
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0801-
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0801-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28051-060-0 01 1 0801-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0801-
433 GASKET; BUSHING
(B) 		1-09623-636-0 02 1 0801-
