Sayfa 2-26B - Isuzu EPC

2-26B — MANUAL TRANSMISSION GEAR (#39832) — 308 parça

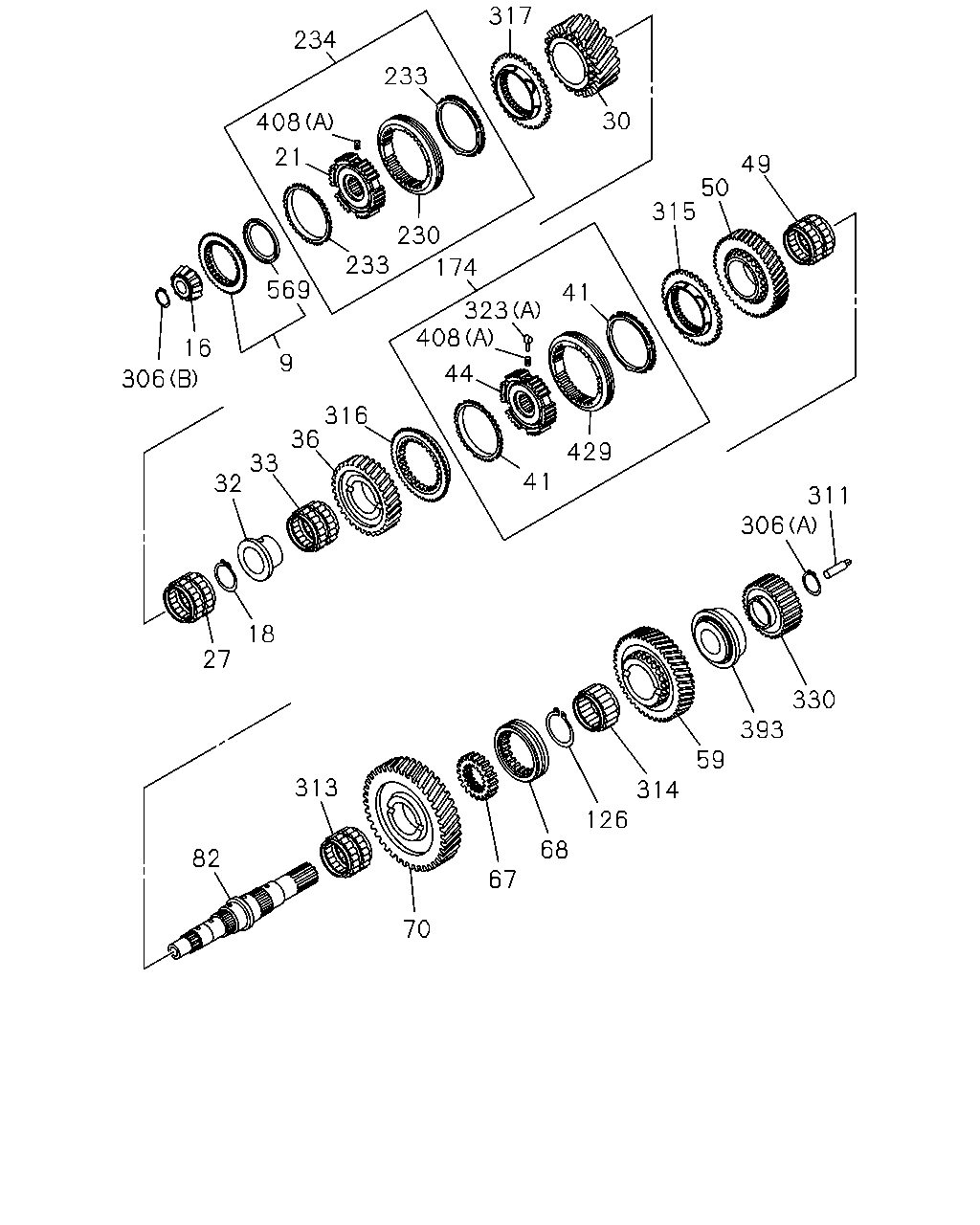

317 234 233 408 21 30 230 233 569 9 16 306 32 33 36 316 44 408 323 174 41 315 50 49 311 306 330 393 59 314 126 68 67 70 313 18 41 429 27 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLUTCH; DOG,TOP GEAR	1-33265-631-0	01	1	0801-
16	BEARING; PILOT,MAINSHAFT	1-33239-212-0	01	1	0801-
18	RING; SNAP,CLU HUB T=2.4	1-33259-054-0	01	1	0801-
18	RING; SNAP,CLU HUB T=2.3	1-33259-060-0	01	1	0801-
18	RING; SNAP,CLU HUB T=2.2	1-33259-061-0	01	1	0801-
18	RING; SNAP,CLU HUB T=2.1	1-33259-062-0	01	1	0801-
18	RING; SNAP,CLU HUB T=2.0	1-33259-063-0	01	1	0801-
18	RING; SNAP,CLU HUB T=1.9	1-33259-064-0	01	1	0801-
21	HUB; CLU,4TH & 5TH	1-33261-295-0	01	1	0801-
27	BEARING; 4TH GEAR	1-33259-128-0	02	1	0801-
30	GEAR; 4TH,MAINSHAFT	1-33251-436-0	01	1	0801-
32	COLLAR; 3RD GEAR	1-33259-059-0	01	1	0801-1305
32	COLLAR; 3RD GEAR	1-33259-140-0	01	1	1306-
33	BEARING; NEEDLE,3RD GEAR	1-33259-127-0	01	1	0801-
36	GEAR; 3RD,MAINSHAFT	1-33252-478-0	01	1	0801-
41	RING; BLOCK,2ND & 3RD	1-33265-498-0	02	1	0801-
44	HUB; CLU,2ND & 3RD,MAIN SHIFT PATTERN DOUBLE-H<EDZ>	1-33261-303-0	01	1	1011-1106
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-303-0	01	1	1107-
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-231-0	01	1	0801-1010
44	HUB; CLU,2ND & 3RD,MAIN SHIFT PATTERN SINGLE-H<EDY>	1-33261-231-0	01	1	1011-1106
49	BEARING; NEEDLE,2ND GEAR	1-33259-126-0	02	1	0801-
50	GEAR; 2ND,MAINSHAFT SHIFT PATTERN DOUBLE-H<EDZ>	1-33251-448-0	01	1	1011-1106
50	GEAR; 2ND,MAINSHAFT	1-33251-448-0	01	1	1107-
50	GEAR; 2ND,MAINSHAFT	1-33251-435-0	01	1	0801-1010
50	GEAR; 2ND,MAINSHAFT SHIFT PATTERN SINGLE-H<EDY>	1-33251-435-0	01	1	1011-1106
59	GEAR; REV MAINSHAFT SHIFT PATTERN DOUBLE-H<EDZ>	1-33257-101-0	01	1	1011-1106
59	GEAR; REV MAINSHAFT	1-33257-101-0	01	1	1107-
59	GEAR; REV MAINSHAFT	1-33257-100-0	01	1	0801-1010
59	GEAR; REV MAINSHAFT SHIFT PATTERN SINGLE-H<EDY>	1-33257-100-0	01	1	1011-1106
67	HUB; CLU,1ST TO REV SHIFT PATTERN DOUBLE-H<EDZ>	1-33259-135-0	01	1	0907-1106
67	HUB; CLU,1ST TO REV	1-33259-135-0	01	1	1107-
67	HUB; CLU,1ST TO REV	1-33259-048-0	01	1	0801-0906
67	HUB; CLU,1ST TO REV SHIFT PATTERN SINGLE-H<EDY>	1-33259-048-0	01	1	0907-1106
68	SLEEVE; 1ST TO REV	1-33259-049-0	01	1	0801-
70	GEAR; 1ST,MAINSHAFT	1-33251-434-0	01	1	0801-
82	SHAFT; MAIN,TRANS	1-33231-337-0	01	1	0801-
126	RING; SNAP,CLU HUB T=2.8	1-33259-050-0	01	1	0801-
126	RING; SNAP,CLU HUB T=2.7	1-33259-051-0	01	1	0801-
126	RING; SNAP,CLU HUB T=2.6	1-33259-052-0	01	1	0801-
126	RING; SNAP,CLU HUB T=2.5	1-33259-053-0	01	1	0801-
126	RING; SNAP,CLU HUB T=2.4	1-33259-054-0	01	1	0801-
126	RING; SNAP,CLU HUB T=4.0	1-33269-047-0	01	1	0801-
126	RING; SNAP,CLU HUB T=3.9	1-33269-048-0	01	1	0801-
126	RING; SNAP,CLU HUB T=3.8	1-33269-049-0	01	1	0801-
126	RING; SNAP,CLU HUB T=3.7	1-33269-050-0	01	1	0801-
174	SYNCHRONIZER ASM; 2ND-3RD SHIFT PATTERN SINGLE-H<EDY>	1-33260-169-0	01	1	0801-1106
230	SLEEVE; 4TH TO 5TH	1-33262-239-0	01	1	0801-
233	RING; BLOCK 4TH TO 5TH	1-33269-096-0	02	1	0801-
234	SYNCHRONIZER ASM; 4TH TO 5TH SHIFT PATTERN SINGLE-H<EDY>	1-33260-170-0	01	1	0801-1106
306	RING; SNAP,MAINSHAFT (A) T=3.20	1-33319-061-0	01	1	0801-1305
306	RING; SNAP,MAINSHAFT (A) T=3.15	1-33319-062-0	01	1	0801-1305
306	RING; SNAP,MAINSHAFT (A) T=3.10	1-33319-063-0	01	1	0801-1305
306	RING; SNAP,MAINSHAFT (A) T=3.05	1-33319-064-0	01	1	0801-1305
306	RING; SNAP,MAINSHAFT (A) T=3.00	1-33319-065-0	01	1	0801-1305
306	RING; SNAP,MAINSHAFT (A) T=2.95	1-33319-066-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (A) T=2.90	1-33319-067-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (A) T=2.85	1-33319-068-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (A) T=2.80	1-33319-069-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (A) T=2.75	1-33319-070-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (A) T=2.70	1-33319-071-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (A) T=2.65	1-33319-072-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (A) T=2.60	1-33319-073-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (A) T=2.55	1-33319-074-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (A) T=2.50	1-33319-075-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (A) T=2.45	1-33319-076-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (A) T=2.40	1-33319-077-0	01	1	0801-1305
306	RING; SNAP,MAINSHAFT (A) T=2.35	1-33319-078-0	01	1	0801-1305
306	RING; SNAP,MAINSHAFT (A) T=2.30	1-33319-079-0	01	1	0801-1305
306	RING; SNAP,MAINSHAFT (A) T=2.25	1-33319-080-0	01	1	0801-1305
306	RING; SNAP,MAINSHAFT (A) T=2.20	1-33319-081-0	01	1	0801-1305
306	RING; SNAP,MAINSHAFT (A) T=2.15	1-33319-082-0	01	1	0801-1305
306	RING; SNAP,MAINSHAFT (A) T=2.10	1-33319-083-0	01	1	0801-1305
306	RING; SNAP,MAINSHAFT (B) T=2.5	1-43319-021-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (B) T=2.4	1-43319-101-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (B) T=2.3	1-43319-102-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (B) T=2.0	1-43319-103-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (B) T=2.1	1-43319-104-0	01	1	0801-
306	RING; SNAP,MAINSHAFT (B) T=2.2	1-43319-105-0	01	1	0801-
311	PIPE; MAINSHAFT	1-33239-349-0	01	1	0801-
313	BEARING; NEEDLE,LOW GEAR	1-33259-124-0	01	1	0801-
314	BEARING; NEEDLE,REV GEAR	1-33259-125-0	01	1	0801-
315	CLUTCH; DOG,2ND GEAR	1-33265-629-0	01	1	0801-
316	CLUTCH; DOG,3RD GEAR	1-33265-629-0	01	1	0801-
317	CLUTCH; DOG,4TH GEAR	1-33265-630-0	01	1	0801-
323	INSERT (B)	1-33263-027-0	09	1	0801-
323	INSERT (A)	1-33263-030-0	06	1	0801-
330	GEAR; SUN SHIFT PATTERN DOUBLE-H<EDZ>	1-33259-134-0	01	1	0907-0909
330	GEAR; SUN	1-33259-134-0	01	1	0910-
330	GEAR; SUN	1-33259-105-0	01	1	0801-0906
330	GEAR; SUN SHIFT PATTERN SINGLE-H<EDY>	1-33259-105-0	01	1	0907-0909
393	BEARING; MAINSHAFT END	1-33259-104-0	01	1	0801-
408	SPRING (B)	1-33269-038-0	09	1	0801-
408	SPRING (C)	1-33269-039-0	09	1	0801-
408	SPRING (A)	1-33269-042-0	06	1	0801-
429	SLEEVE; 2ND & 3RD SHIFT PATTERN DOUBLE-H<EDZ>	1-33262-244-0	01	1	1011-1106
429	SLEEVE; 2ND & 3RD	1-33262-244-0	01	1	1107-
429	SLEEVE; 2ND & 3RD	1-33262-192-0	01	1	0801-1010
429	SLEEVE; 2ND & 3RD SHIFT PATTERN SINGLE-H<EDY>	1-33262-192-0	01	1	1011-1106
569	DAM; OIL	1-33269-097-0	01	1	0801-

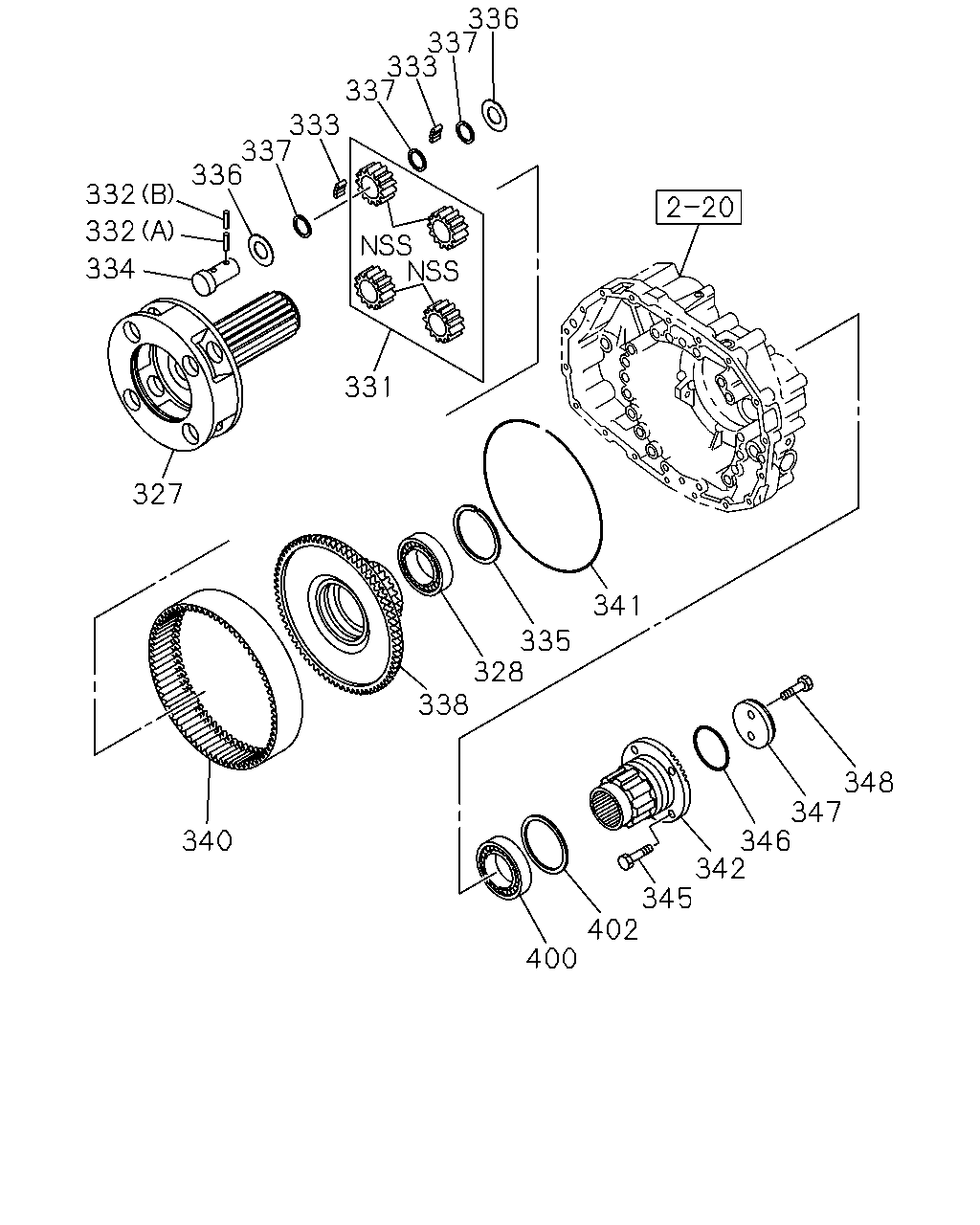

336 337 333 337 333 337 336 332 332 334 331 327 341 335 328 338 348 347 346 342 345 402 400 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
327	CARRIER; PLANETARY GEAR	1-33231-338-0	01	1	0801-
328	BEARING; CARRIER	1-33339-094-0	01	1	0801-
331	GEAR SET; PLANETARY	1-33239-350-0	01	1	0801-
332	PIN; LOCK,SHAFT (A)	1-33239-178-0	04	1	0801-
332	PIN; LOCK,SHAFT (B)	1-33239-179-0	04	1	0801-
333	ROLLER; PLANETARY GEAR	1-33239-232-0	AR	1	0801-
334	SHAFT; PLANETARY GEAR	1-33239-359-0	04	1	0801-
335	RING; SNAP,BEARING T=2.50	1-33339-075-0	01	1	0801-
335	RING; SNAP,BEARING T=2.40	1-33339-076-0	01	1	0801-
335	RING; SNAP,BEARING T=2.30	1-33339-077-0	01	1	0801-
335	RING; SNAP,BEARING T=2.20	1-33339-078-0	01	1	0801-
335	RING; SNAP,BEARING T=2.10	1-33339-079-0	01	1	0801-
335	RING; SNAP,BEARING T=2.00	1-33339-080-0	01	1	0801-
336	WASHER; THRUST,PLANETARY GEAR	1-33239-174-0	08	1	0801-
337	WASHER; PLANETARY GEAR,INNER	1-33239-176-0	12	1	0801-
338	CARRIER; RING GEAR	1-33331-275-0	01	1	0801-
340	GEAR; RING SHIFT PATTERN DOUBLE-H<EDZ>	1-33339-099-0	01	1	0907-1106
340	GEAR; RING	1-33339-099-0	01	1	1107-
340	GEAR; RING	1-33339-095-0	01	1	0801-0906
340	GEAR; RING SHIFT PATTERN SINGLE-H<EDY>	1-33339-095-0	01	1	0907-1106
341	WIRE; LOCK,CARRIER	1-33339-096-0	01	1	0801-
342	FLANGE; OUTPUT	1-37243-429-0	01	1	0801-
345	BOLT; FLANGE TO YOKE	1-37249-147-0	04	1	0801-
346	GASKET; FLANGE	1-37249-156-0	01	1	0801-
347	WASHER; FLANGE	1-09509-060-0	01	1	0801-
348	BOLT; SHAFT SHIFT PATTERN DOUBLE-H<EDZ>	1-37249-215-0	02	1	1011-1106
348	BOLT; SHAFT	1-37249-215-0	02	1	1107-
348	BOLT; SHAFT	1-37249-207-0	02	1	0801-1010
348	BOLT; SHAFT SHIFT PATTERN SINGLE-H<EDY>	1-37249-207-0	02	1	1011-1106
400	BEARING; OUTPUT SHAFT RR	1-33139-212-0	01	1	0801-
402	SHIM T=2.20	1-33139-064-0	01	1	0801-0906
402	SHIM SHIFT PATTERN SINGLE-H<EDY> T=2.20	1-33139-064-0	01	1	0907-1106
402	SHIM T=2.10	1-33139-065-0	01	1	0801-0906
402	SHIM SHIFT PATTERN SINGLE-H<EDY> T=2.10	1-33139-065-0	01	1	0907-1106
402	SHIM T=2.00	1-33139-066-0	01	1	0801-0906
402	SHIM SHIFT PATTERN SINGLE-H<EDY> T=2.00	1-33139-066-0	01	1	0907-1106
402	SHIM T=1.90	1-33139-067-0	01	1	0801-0906
402	SHIM SHIFT PATTERN SINGLE-H<EDY> T=1.90	1-33139-067-0	01	1	0907-1106
402	SHIM T=1.80	1-33139-068-0	01	1	0801-0906
402	SHIM SHIFT PATTERN SINGLE-H<EDY> T=1.80	1-33139-068-0	01	1	0907-1106
402	SHIM T=1.70	1-33139-069-0	01	1	0801-0906
402	SHIM SHIFT PATTERN SINGLE-H<EDY> T=1.70	1-33139-069-0	01	1	0907-1106
402	SHIM T=1.60	1-33139-070-0	01	1	0801-0906
402	SHIM SHIFT PATTERN SINGLE-H<EDY> T=1.60	1-33139-070-0	01	1	0907-1106
402	SHIM T=1.50	1-33139-071-0	01	1	0801-0906
402	SHIM SHIFT PATTERN SINGLE-H<EDY> T=1.50	1-33139-071-0	01	1	0907-1106
402	SHIM T=1.40	1-33139-072-0	01	1	0801-0906
402	SHIM SHIFT PATTERN SINGLE-H<EDY> T=1.40	1-33139-072-0	01	1	0907-1106
402	SHIM T=1.30	1-33139-073-0	01	1	0801-0906
402	SHIM SHIFT PATTERN SINGLE-H<EDY> T=1.30	1-33139-073-0	01	1	0907-1106

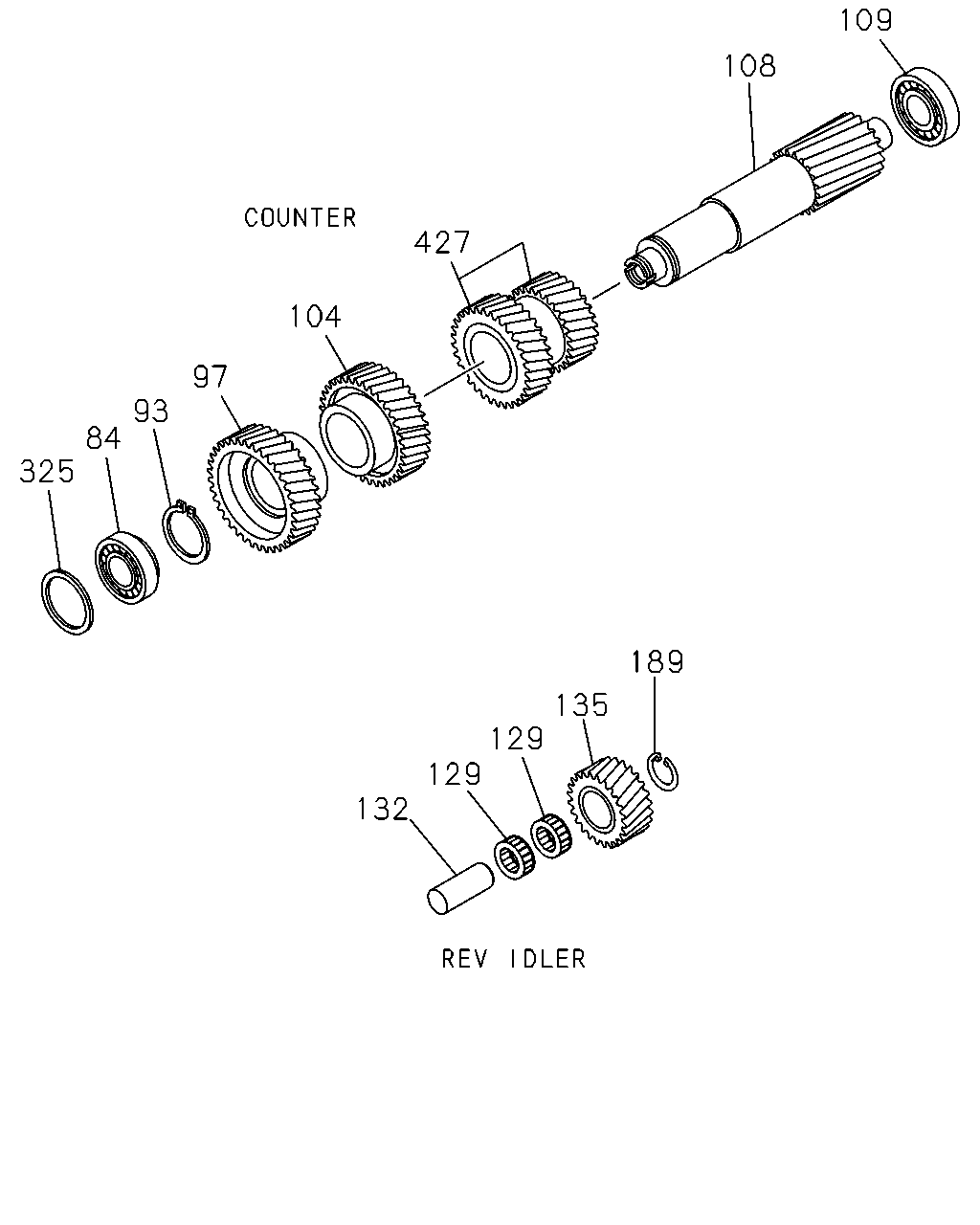

109 108 427 104 97 93 84 325 189 135 129 129 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	BEARING; COUNTER SHAFT,FRT	1-33312-016-0	01	1	0801-
93	RING; SNAP,COUNTER FRT BRG T=2.6	1-33319-264-0	01	1	1306-
93	RING; SNAP,COUNTER FRT BRG T=2.0	1-33319-251-0	01	1	0801-
93	RING; SNAP,COUNTER FRT BRG T=2.5	1-33319-252-0	01	1	0801-
93	RING; SNAP,COUNTER FRT BRG T=2.4	1-33319-253-0	01	1	0801-
93	RING; SNAP,COUNTER FRT BRG T=2.3	1-33319-254-0	01	1	0801-
93	RING; SNAP,COUNTER FRT BRG T=2.2	1-33319-255-0	01	1	0801-
93	RING; SNAP,COUNTER FRT BRG T=2.1	1-33319-256-0	01	1	0801-
97	GEAR; 5TH,COUNTER	1-33338-398-0	01	1	0801-
104	GEAR; 4TH,COUNTER	1-33338-397-0	01	1	0801-
108	SHAFT; COUNTER	1-33311-347-0	01	1	0801-
109	BEARING; COUNTER SHAFT,RR	1-33312-006-0	01	1	0801-
129	BEARING; NEEDLE,IDLER	1-33369-026-0	02	1	0801-
132	SHAFT; REV	1-33351-024-0	01	1	0801-
135	GEAR; REV IDLER SHIFT PATTERN DOUBLE-H<EDZ>	1-33361-096-0	01	1	1011-1106
135	GEAR; REV IDLER	1-33361-096-0	01	1	1107-
135	GEAR; REV IDLER	1-33361-092-0	01	1	0801-1010
135	GEAR; REV IDLER SHIFT PATTERN SINGLE-H<EDY>	1-33361-092-0	01	1	1011-1106
189	RING; SNAP,REV,GEAR	1-44519-224-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN DOUBLE-H<EDZ> T=1.50	8-98080-571-0	01	1	1011-1106
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98080-571-0	01	1	1107-
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN DOUBLE-H<EDZ> T=2.40	1-33389-086-0	01	1	0907-0909
325	SHIM; COUNTER SHAFT BRG T=2.40	1-33389-086-0	01	1	0910-
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN DOUBLE-H<EDZ> T=2.35	1-33389-087-0	01	1	0907-0909
325	SHIM; COUNTER SHAFT BRG T=2.35	1-33389-087-0	01	1	0910-
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN DOUBLE-H<EDZ> T=2.30	1-33389-088-0	01	1	0907-0909
325	SHIM; COUNTER SHAFT BRG T=2.30	1-33389-088-0	01	1	0910-
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN DOUBLE-H<EDZ> T=2.25	1-33389-089-0	01	1	0907-0909
325	SHIM; COUNTER SHAFT BRG T=2.25	1-33389-089-0	01	1	0910-
325	SHIM; COUNTER SHAFT BRG T=1.60	1-33389-047-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.55	1-33389-048-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.50	1-33389-049-0	01	1	0801-1010
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN SINGLE-H<EDY> T=1.50	1-33389-049-0	01	1	1011-1106
325	SHIM; COUNTER SHAFT BRG T=1.45	1-33389-050-0	01	1	0801-0906
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN SINGLE-H<EDY> T=1.45	1-33389-050-0	01	1	0907-0909
325	SHIM; COUNTER SHAFT BRG T=1.40	1-33389-051-0	01	1	0801-0906
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN SINGLE-H<EDY> T=1.40	1-33389-051-0	01	1	0907-0909
325	SHIM; COUNTER SHAFT BRG T=2.00	1-33389-073-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.90	1-33389-074-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.80	1-33389-075-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.70	1-33389-076-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.65	1-33389-077-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.75	1-33389-078-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.85	1-33389-079-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.95	1-33389-080-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=2.05	1-33389-081-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=2.10	1-33389-082-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=2.15	1-33389-083-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=2.20	1-33389-084-0	01	1	0801-
427	GEAR; 2ND & 3RD,COUNTER	1-33332-131-0	01	1	0801-1305
427	GEAR; 2ND & 3RD,COUNTER	1-33332-132-0	01	1	1306-

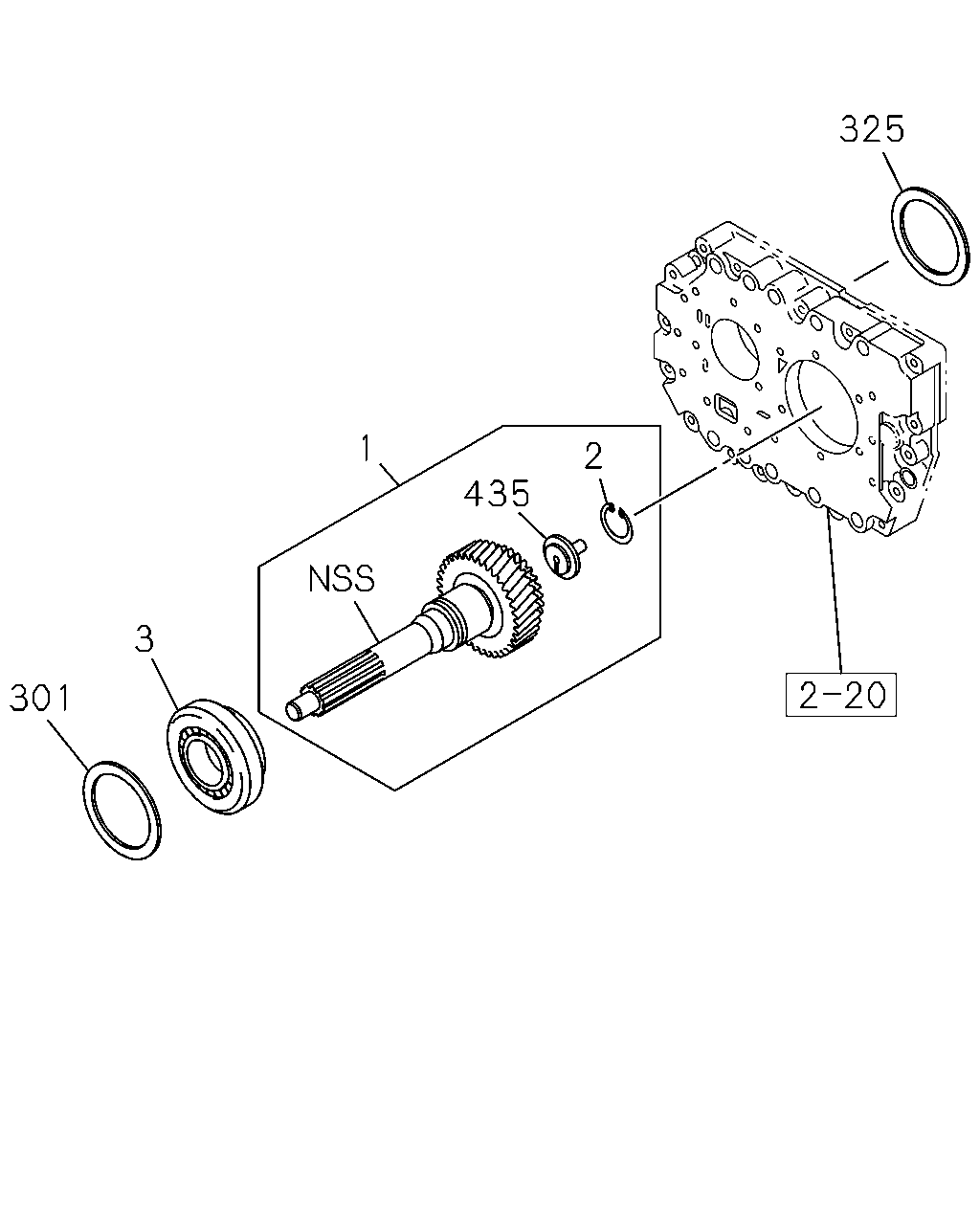

325 1 2 435 3 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS	1-33215-038-0	01	1	0801-
2	RING; SNAP,TOP GEAR SHAFT SHIFT PATTERN SINGLE-H<EDY>	1-33219-159-0	01	1	0910-
3	BEARING; TOP GEAR SHAFT	1-33219-320-0	01	1	0801-
301	SHIM; TOP GEAR SHAFT T=1.20	1-33139-047-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT T=1.10	1-33139-050-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT T=1.15	1-33139-204-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT T=1.25	1-33139-205-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=1.80	1-33139-039-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=1.80	1-33139-039-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=1.70	1-33139-041-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=1.70	1-33139-041-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=2.30	1-33139-223-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=2.30	1-33139-223-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=2.25	1-33139-224-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=2.25	1-33139-224-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=2.20	1-33139-225-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=2.20	1-33139-225-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=2.15	1-33139-226-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=2.15	1-33139-226-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=2.10	1-33139-227-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=2.10	1-33139-227-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=2.05	1-33139-228-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=2.05	1-33139-228-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=2.00	1-33139-229-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=2.00	1-33139-229-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=1.95	1-33139-230-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=1.95	1-33139-230-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=1.90	1-33139-231-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=1.90	1-33139-231-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=1.85	1-33139-232-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=1.85	1-33139-232-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=1.75	1-33139-233-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=1.75	1-33139-233-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN DOUBLE-H<EDZ> T=1.65	1-33139-234-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=1.65	1-33139-234-0	01	1	0910-
301	SHIM; TOP GEAR SHAFT T=1.60	1-33139-042-0	01	1	0801-
301	SHIM; TOP GEAR SHAFT T=1.50	1-33139-043-0	01	1	0801-
301	SHIM; TOP GEAR SHAFT T=1.40	1-33139-045-0	01	1	0801-
301	SHIM; TOP GEAR SHAFT T=1.30	1-33139-046-0	01	1	0801-
301	SHIM; TOP GEAR SHAFT T=1.20	1-33139-047-0	01	1	0801-0906
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN SINGLE-H<EDY> T=1.20	1-33139-047-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=1.10	1-33139-050-0	01	1	0801-0906
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN SINGLE-H<EDY> T=1.10	1-33139-050-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=1.45	1-33139-201-0	01	1	0801-
301	SHIM; TOP GEAR SHAFT T=1.55	1-33139-202-0	01	1	0801-
301	SHIM; TOP GEAR SHAFT T=1.05	1-33139-203-0	01	1	0801-0906
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN SINGLE-H<EDY> T=1.05	1-33139-203-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=1.15	1-33139-204-0	01	1	0801-0906
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN SINGLE-H<EDY> T=1.15	1-33139-204-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=1.25	1-33139-205-0	01	1	0801-0906
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN SINGLE-H<EDY> T=1.25	1-33139-205-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=1.35	1-33139-206-0	01	1	0801-
301	SHIM; TOP GEAR SHAFT T=0.90	1-33139-207-0	01	1	0801-0906
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN SINGLE-H<EDY> T=0.90	1-33139-207-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=0.95	1-33139-208-0	01	1	0801-0906
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN SINGLE-H<EDY> T=0.95	1-33139-208-0	01	1	0907-0909
301	SHIM; TOP GEAR SHAFT T=1.00	1-33139-209-0	01	1	0801-0906
301	SHIM; TOP GEAR SHAFT SHIFT PATTERN SINGLE-H<EDY> T=1.00	1-33139-209-0	01	1	0907-0909
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN DOUBLE-H<EDZ> T=1.50	8-98080-571-0	01	1	1011-1106
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98080-571-0	01	1	1107-
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN DOUBLE-H<EDZ> T=2.40	1-33389-086-0	01	1	0907-0909
325	SHIM; COUNTER SHAFT BRG T=2.40	1-33389-086-0	01	1	0910-
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN DOUBLE-H<EDZ> T=2.35	1-33389-087-0	01	1	0907-0909
325	SHIM; COUNTER SHAFT BRG T=2.35	1-33389-087-0	01	1	0910-
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN DOUBLE-H<EDZ> T=2.30	1-33389-088-0	01	1	0907-0909
325	SHIM; COUNTER SHAFT BRG T=2.30	1-33389-088-0	01	1	0910-
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN DOUBLE-H<EDZ> T=2.25	1-33389-089-0	01	1	0907-0909
325	SHIM; COUNTER SHAFT BRG T=2.25	1-33389-089-0	01	1	0910-
325	SHIM; COUNTER SHAFT BRG T=1.60	1-33389-047-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.55	1-33389-048-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.50	1-33389-049-0	01	1	0801-1010
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN SINGLE-H<EDY> T=1.50	1-33389-049-0	01	1	1011-1106
325	SHIM; COUNTER SHAFT BRG T=1.45	1-33389-050-0	01	1	0801-0906
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN SINGLE-H<EDY> T=1.45	1-33389-050-0	01	1	0907-0909
325	SHIM; COUNTER SHAFT BRG T=1.40	1-33389-051-0	01	1	0801-0906
325	SHIM; COUNTER SHAFT BRG SHIFT PATTERN SINGLE-H<EDY> T=1.40	1-33389-051-0	01	1	0907-0909
325	SHIM; COUNTER SHAFT BRG T=2.00	1-33389-073-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.90	1-33389-074-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.80	1-33389-075-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.70	1-33389-076-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.65	1-33389-077-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.75	1-33389-078-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.85	1-33389-079-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=1.95	1-33389-080-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=2.05	1-33389-081-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=2.10	1-33389-082-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=2.15	1-33389-083-0	01	1	0801-
325	SHIM; COUNTER SHAFT BRG T=2.20	1-33389-084-0	01	1	0801-
435	PIPE; INPUTSHAFT SHIFT PATTERN SINGLE-H<EDY>	1-33219-158-0	01	1	0910-

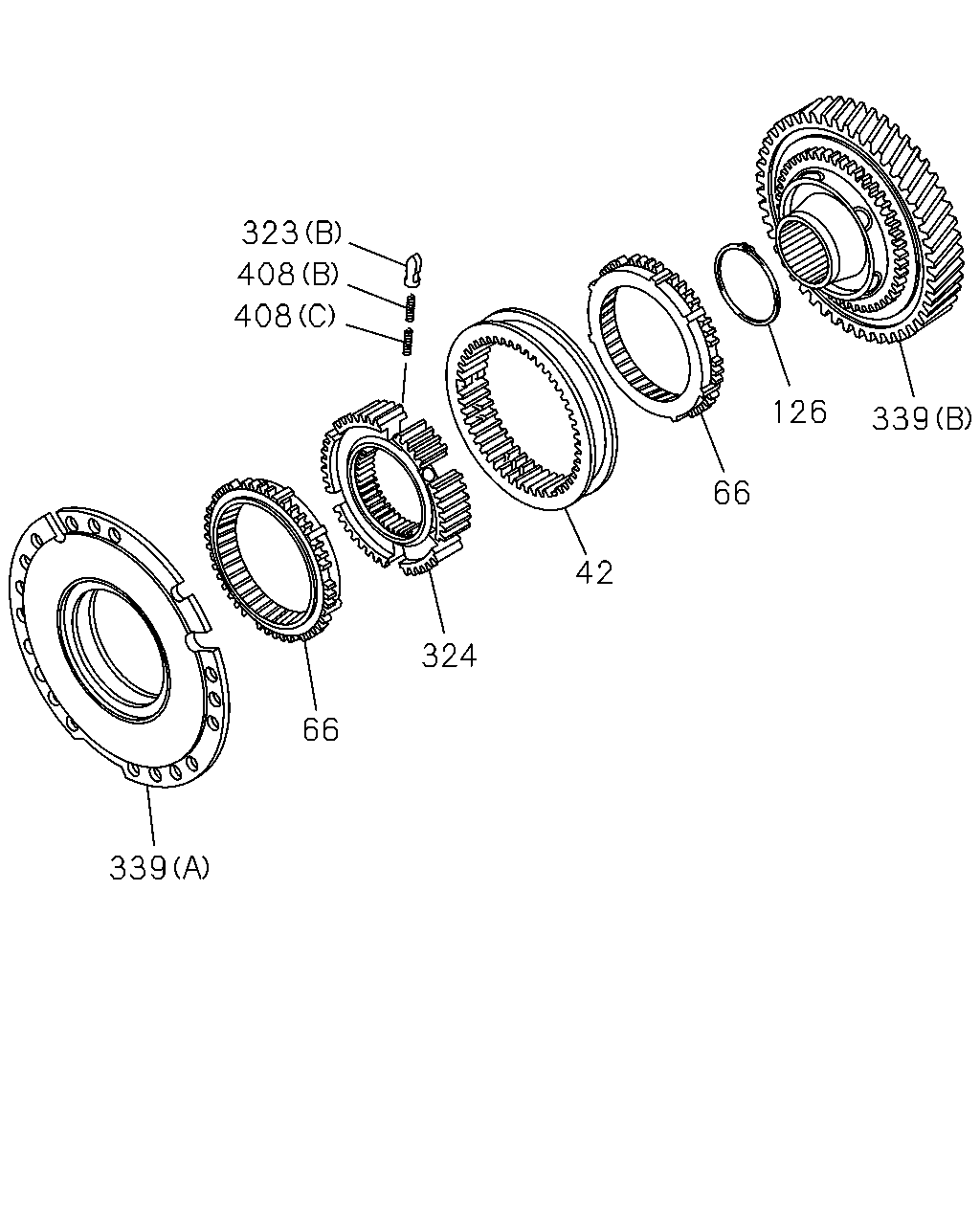

323 408 408 126 339 66 42 324 66 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	SLEEVE	1-33262-195-0	01	1	0801-
66	RING; BLOCK,SYN	1-33339-069-0	02	1	0801-
126	RING; SNAP,CLU HUB T=2.8	1-33259-050-0	01	1	0801-
126	RING; SNAP,CLU HUB T=2.7	1-33259-051-0	01	1	0801-
126	RING; SNAP,CLU HUB T=2.6	1-33259-052-0	01	1	0801-
126	RING; SNAP,CLU HUB T=2.5	1-33259-053-0	01	1	0801-
126	RING; SNAP,CLU HUB T=2.4	1-33259-054-0	01	1	0801-
126	RING; SNAP,CLU HUB T=4.0	1-33269-047-0	01	1	0801-
126	RING; SNAP,CLU HUB T=3.9	1-33269-048-0	01	1	0801-
126	RING; SNAP,CLU HUB T=3.8	1-33269-049-0	01	1	0801-
126	RING; SNAP,CLU HUB T=3.7	1-33269-050-0	01	1	0801-
323	INSERT (B)	1-33263-027-0	09	1	0801-
323	INSERT (A)	1-33263-030-0	06	1	0801-
324	HUB; CLU	1-33261-230-0	01	1	0801-
339	CLUTCH; PLANETARY GEAR (A)	1-33265-453-0	01	1	0801-
339	CLUTCH; PLANETARY GEAR (B)	1-33265-632-0	01	1	0801-
408	SPRING (B)	1-33269-038-0	09	1	0801-
408	SPRING (C)	1-33269-039-0	09	1	0801-
408	SPRING (A)	1-33269-042-0	06	1	0801-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
