◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#3983) — 68 parça
çizim 116017
97 46 45 324 218 46 45
BalonParca AdiParca NoAdetTipApplied Date A B
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-9812 ● ●
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9901- ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		9-09525-535-0 02 1 9510-0606 ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 02 1 0607- ● ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 9510- ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 FLANGE 		8-94279-517-0 02 1 9510-9611 ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9612- ● ●
324 BRACKET 1-79996-260-2 01 1 9510- ● ●

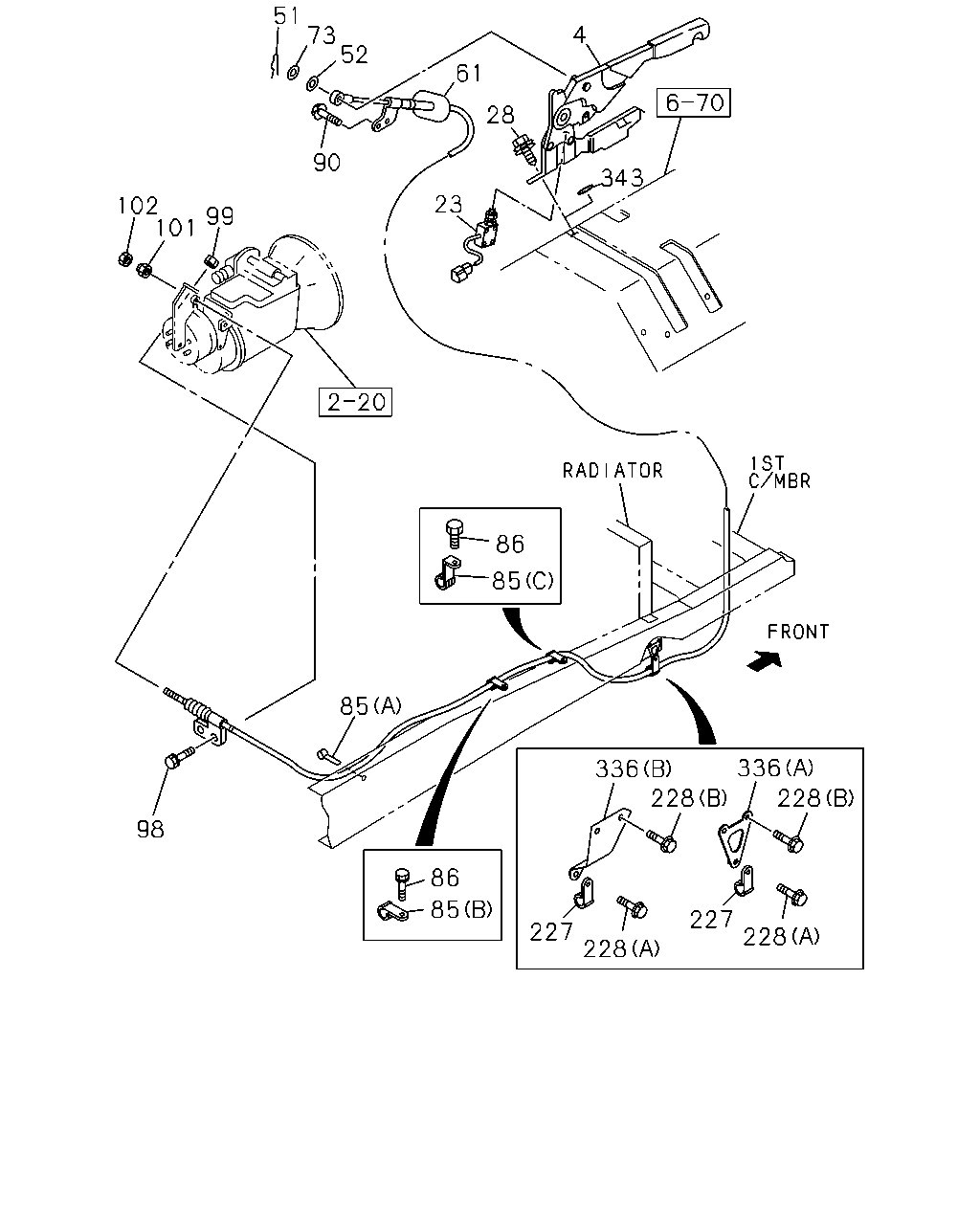

çizim 116018
51 4 73 52 61 28 90 343 23 102 101 99 86 85 85 336 336 228 228 98 86 85 227 228 227 228
BalonParca AdiParca NoAdetTipApplied Date A B
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-295-0 01 1 9510-9809 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-423-0 01 1 9810-9908 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-485-0 01 1 9909-9911 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-505-0 01 1 9912-0010 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-565-0 01 1 0011- ● ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 9510- ● ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-0904 ● ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 9510- ● ●
52 WASHER; CURVED RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19 		8-94206-429-1 02 1 9510- ● ●
61 CABLE; PARKING BRK
EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4819 		1-79996-693-0 01 1 0608- ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4794 		1-79996-227-1 01 1 9510-9601 ● ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4405 		1-79996-275-0 01 1 9602-9909 ● ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4694 		1-79996-461-3 01 1 9910-0607 ● ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4694 		1-79996-461-3 01 1 0608- ●
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> L=4694 		1-79996-461-3 01 1 0608- ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4894 		1-79996-238-1 01 1 9510-9601 ● ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4794 		1-79996-227-1 01 1 9602-9909 ● ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4794 		1-79996-459-3 01 1 9910-0607 ● ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4794 		1-79996-459-3 01 1 0608- ●
61 CABLE; PARKING BRK
MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> L=4794 		1-79996-459-3 01 1 0608- ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 		9-09160-516-0 01 1 9510-0605 ● ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 9510-9612 ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 02 1 9701- ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30 		1-09701-080-0 01 1 9510- ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40 		1-09701-139-0 01 1 9510-1101 ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=40 		1-09701-014-0 01 1 1102- ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512 ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0904 ● ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE 		0-28081-025-0 02 1 9510-9606 ● ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28681-030-0 02 1 9607-0512 ● ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		9-09110-510-0 02 1 9510-9702 ● ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91150-210-0 02 1 9703-0602 ● ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		1-46259-007-0 01 1 9510- ● ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9510-9709 ● ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 9710-0602 ● ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		9-09525-235-0 01 1 9510-0606 ● ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		0-95235-235-0 01 1 0607- ● ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28080-816-0 01 1 9510-0512 ● ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9510- ● ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-36183-162-1 01 1 9510-0004 ● ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-36183-162-1 01 1 0005-0212 ● ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-36183-162-1 01 1 0301-0607 ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (A) 		1-36183-162-1 01 1 0301-0607 ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-36183-162-1 01 1 0608- ●
336 BRACKET; RADIATOR
6HE1 TCC ENG(76L) CHILE EQUIPMENT(TDK) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-36183-162-1 01 1 0608- ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHILE EQUIPMENT(TDK),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (A) 		1-36183-162-1 01 1 0608- ●
336 BRACKET; RADIATOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-36183-199-0 01 1 0005-0212 ●
336 BRACKET; RADIATOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-36183-199-0 01 1 0301-0607 ●
336 BRACKET; RADIATOR
6HK1 TCC ENG(81L) CHILE EQUIPMENT(TDK) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-36183-199-0 01 1 0608- ●
336 BRACKET; RADIATOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-36183-199-0 01 1 0608- ●
343 SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 03 1 9510- ● ●
