2-20A — MANUAL TRANSMISSION ASM AND CASE (#39825) — 38 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

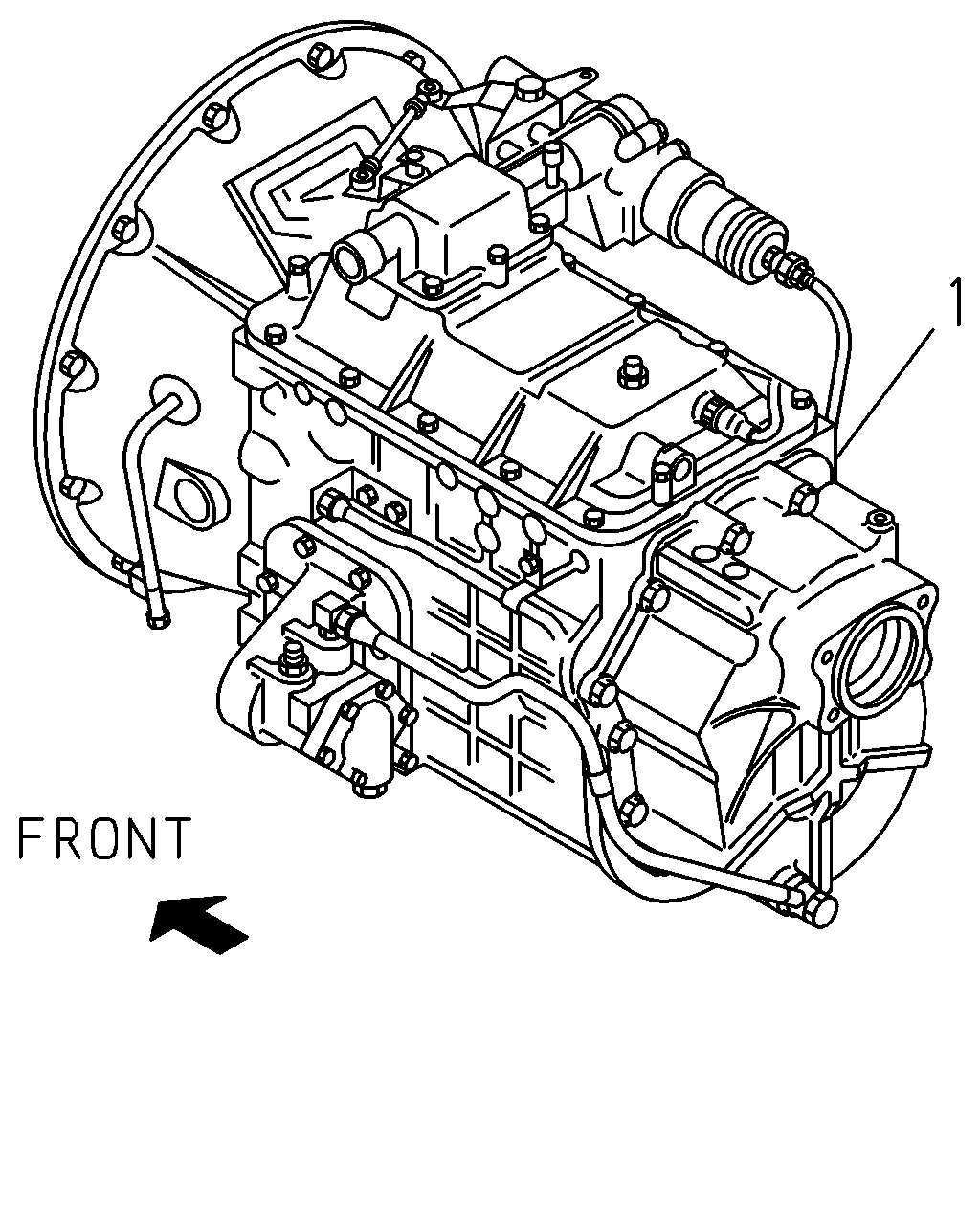

	1	TRANSMISSION ASM; MANUAL	1-33044-147-0	01	1	0801-

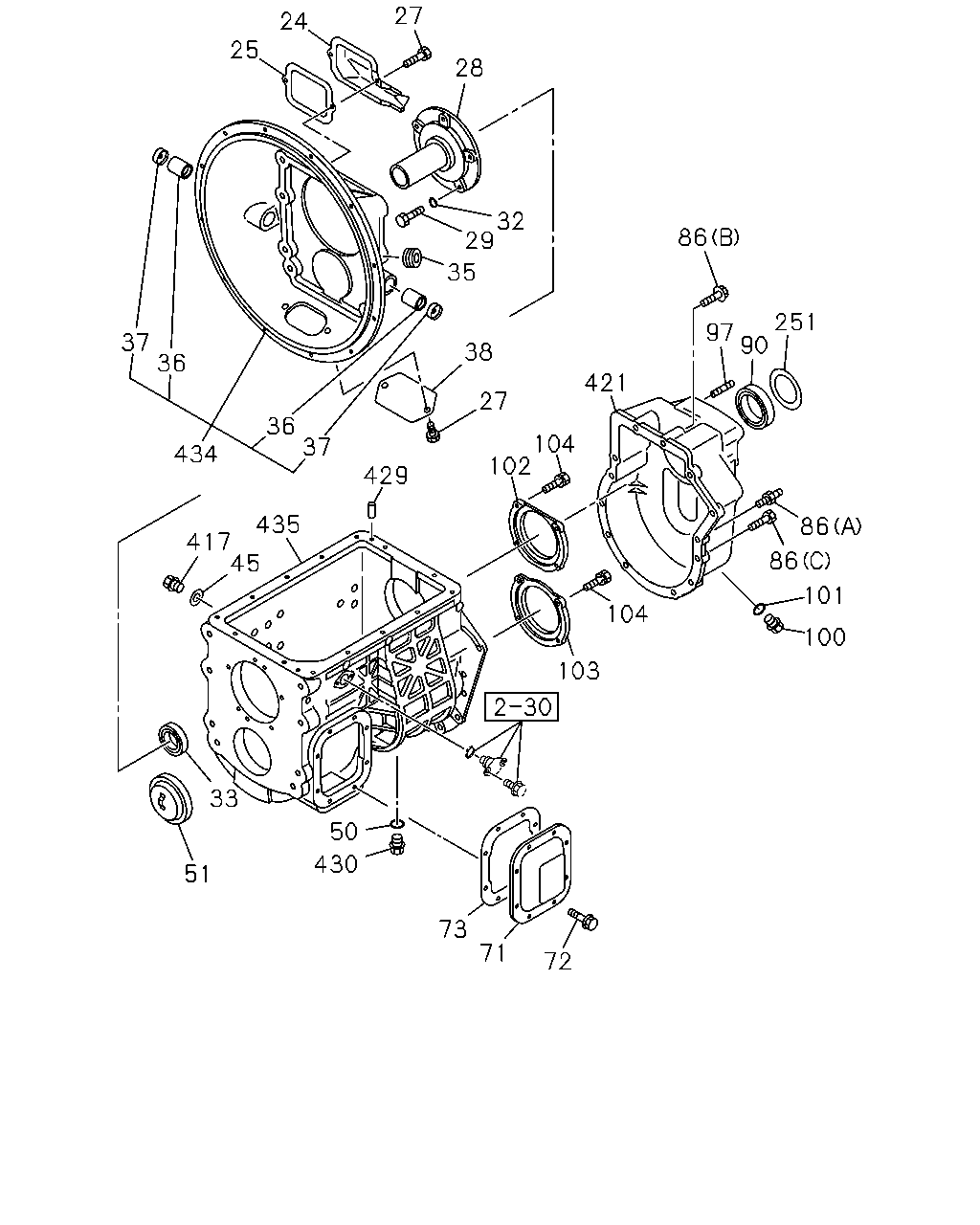

27 24 25 28 32 29 86 35 251 97 90 37 36 38 421 27 36 37 104 102 434 429 435 86 417 45 86 101 104 100 103 33 50 430 51 73 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0801-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0801-1406
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0801-
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0801-
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0801-0805
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	0806-
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0801-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0801-
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0801-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0801-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0801-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0801-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0801-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0801-
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	0801-
71	COVER; SIDE,TRANS CASE	1-33141-030-1	01	1	0801-
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0801-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	0801-
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0801-
86	BOLT; RR COVER (B) M12X65 FLANGE	1-09044-113-0	02	1	0801-
86	BOLT; RR COVER (A) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0801-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0801-
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0801-
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	0801-
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0801-
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	0801-
103	RETAINER; BRG	9-33151-014-0	01	1	0801-
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0801-
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	0801-1204
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0801-
421	COVER; RR,TRANS	1-33131-191-2	01	1	0801-1002
421	COVER; RR,TRANS	1-33131-192-2	01	1	1003-
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	0801-
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0801-
434	HOUSING; CLU	1-31110-218-1	01	1	0801-
435	CASE; TRANS	1-33111-330-0	01	1	0801-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
