2-08 — CLUTCH MASTER CYLINDER (#39823) — 27 parça

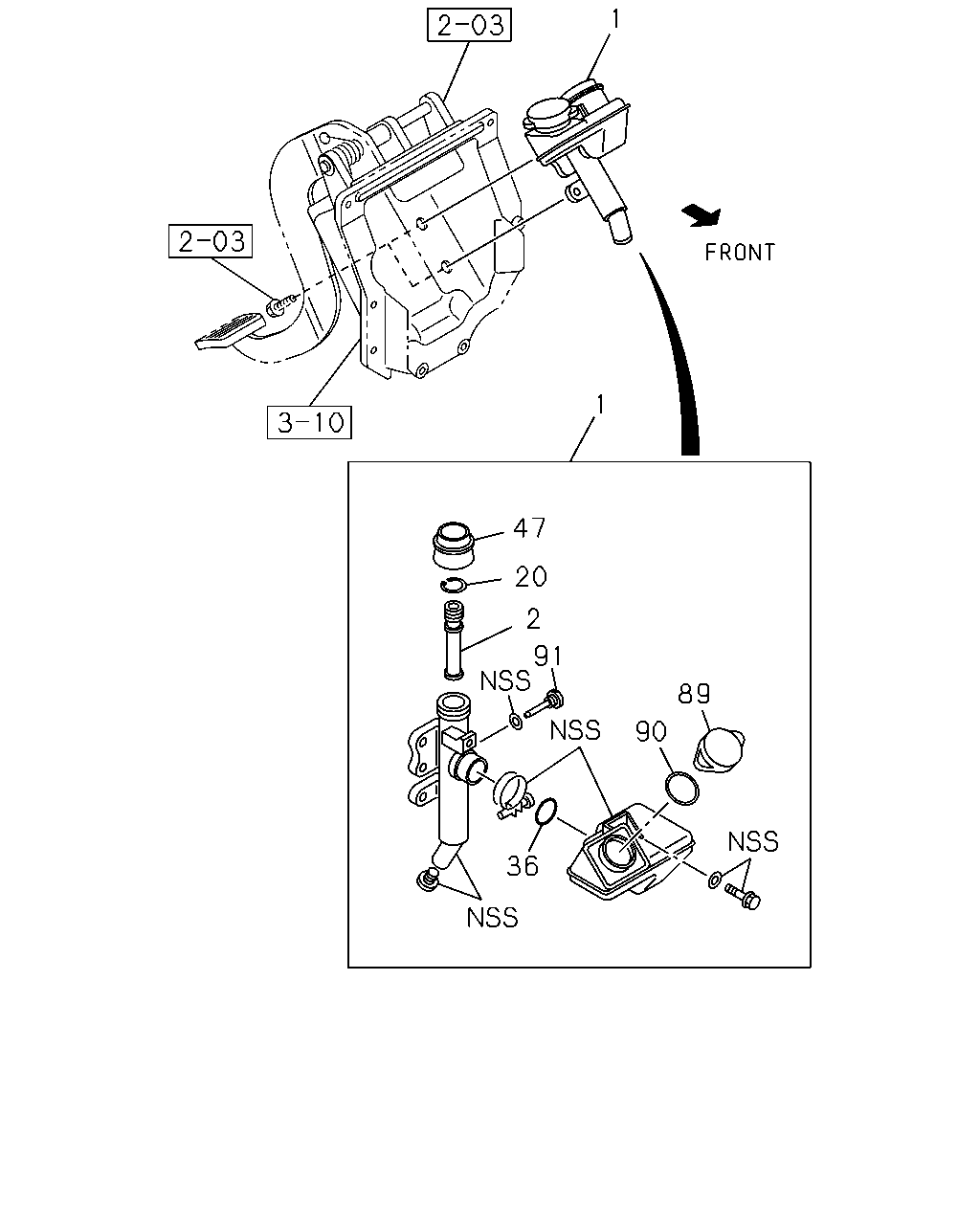

1 1 47 20 2 91 89 90 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER ASM; CLUTCH MASTER ZF9S1310 M/T(Y5K)	1-47500-357-3	01	1	0801-	●	●
1	CYLINDER ASM; CLUTCH MASTER TRANSMISSION-FULLER RTO11908(Y5L)	1-47500-358-2	01	1	0801-	●	●
1	CYLINDER ASM; CLUTCH MASTER MAL6R M/T(Y2J)	1-47500-250-2	01	1	0801-		●
2	REPAIR KIT; CLU M/CYL ZF9S1310 M/T(Y5K)	1-47550-052-1	01	1	0801-	●	●
2	REPAIR KIT; CLU M/CYL TRANSMISSION-FULLER RTO11908(Y5L)	1-47550-053-1	01	1	0801-	●	●
2	REPAIR KIT; CLU M/CYL MAL6R M/T(Y2J)	1-85576-461-0	01	1	0801-		●
20	RING; SNAP,BODY ZF9S1310 M/T(Y5K)	1-47515-009-0	01	1	0801-	●	●
20	RING; SNAP,BODY TRANSMISSION-FULLER RTO11908(Y5L)	1-47515-010-0	01	1	0801-	●	●
20	RING; SNAP,BODY MAL6R M/T(Y2J)	1-47519-013-0	01	1	0801-		●
36	GASKET; CLU M/CYL MAL6R M/T(Y2J)	1-47519-014-0	01	1	0801-		●
47	COVER; DUST,PUSH ROD MAL6R M/T(Y2J)	1-47519-018-0	01	1	0801-		●
89	CAP; OIL FILLER,CLU M/CYL MAL6R M/T(Y2J)	1-47519-017-0	01	1	0801-		●
90	GASKET; OIL FILLER,CLU M/CYL MAL6R M/T(Y2J)	1-47519-016-0	01	1	0801-		●
91	BOLT; STOPPER MAL6R M/T(Y2J)	1-47519-015-0	01	1	0801-		●

1 1 19 20 2 21 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER ASM; CLUTCH MASTER ZF9S1310 M/T(Y5K)	1-47500-357-3	01	1	0801-	●	●
1	CYLINDER ASM; CLUTCH MASTER TRANSMISSION-FULLER RTO11908(Y5L)	1-47500-358-2	01	1	0801-	●	●
1	CYLINDER ASM; CLUTCH MASTER MAL6R M/T(Y2J)	1-47500-250-2	01	1	0801-		●
2	REPAIR KIT; CLU M/CYL ZF9S1310 M/T(Y5K)	1-47550-052-1	01	1	0801-	●	●
2	REPAIR KIT; CLU M/CYL TRANSMISSION-FULLER RTO11908(Y5L)	1-47550-053-1	01	1	0801-	●	●
2	REPAIR KIT; CLU M/CYL MAL6R M/T(Y2J)	1-85576-461-0	01	1	0801-		●
11	CAP; OUTER,CLU M/CYL ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-47519-017-0	01	1	0801-	●	●
13	GASKET; OIL TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-47519-016-0	01	1	0801-	●	●
19	BOOT; CLU M/CYL ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-47519-018-0	01	1	0801-	●	●
20	RING; SNAP,BODY ZF9S1310 M/T(Y5K)	1-47515-009-0	01	1	0801-	●	●
20	RING; SNAP,BODY TRANSMISSION-FULLER RTO11908(Y5L)	1-47515-010-0	01	1	0801-	●	●
20	RING; SNAP,BODY MAL6R M/T(Y2J)	1-47519-013-0	01	1	0801-		●
21	VALVE; CHECK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-47565-004-0	01	1	0801-	●	●
