Sayfa 2-05 - Isuzu EPC

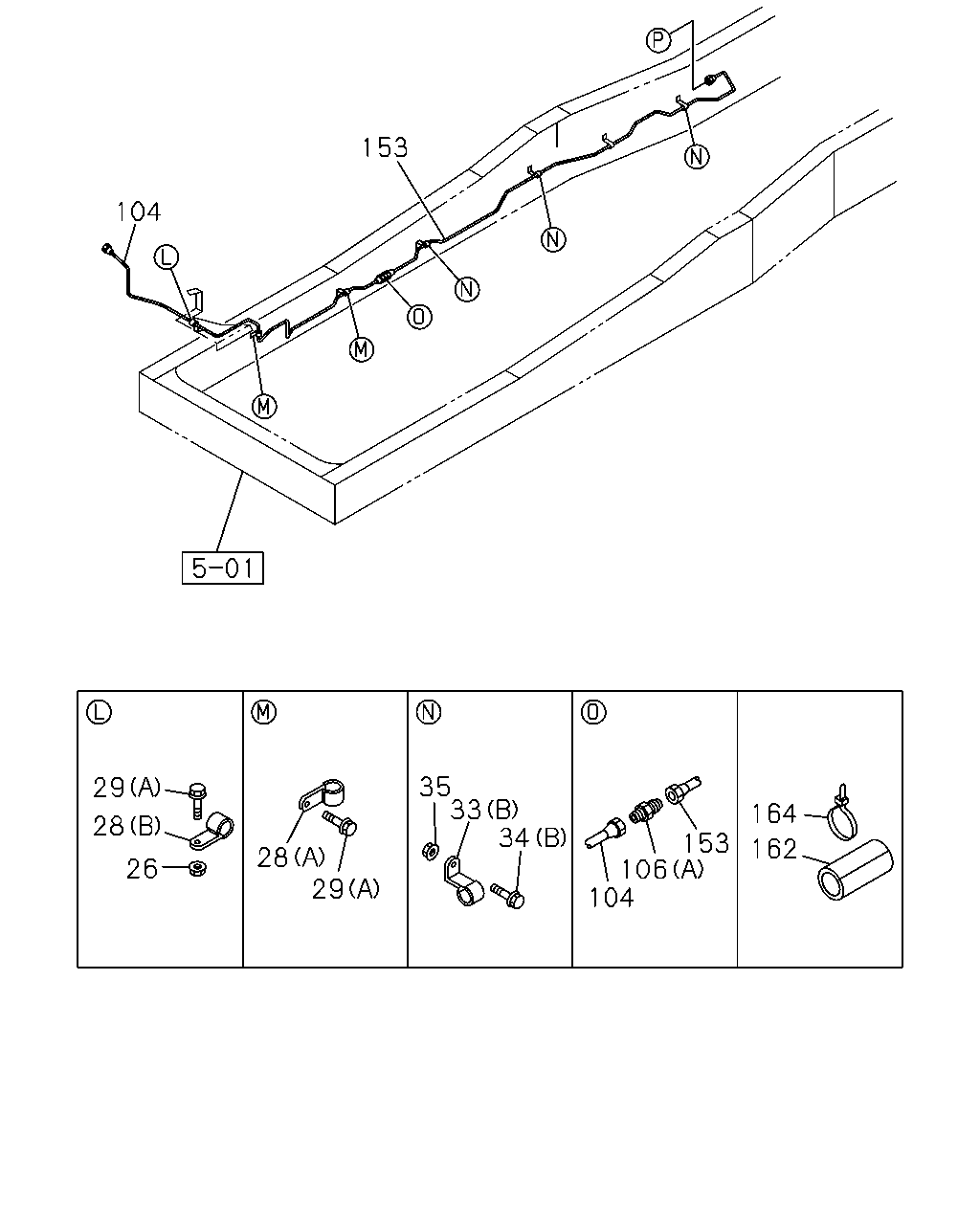

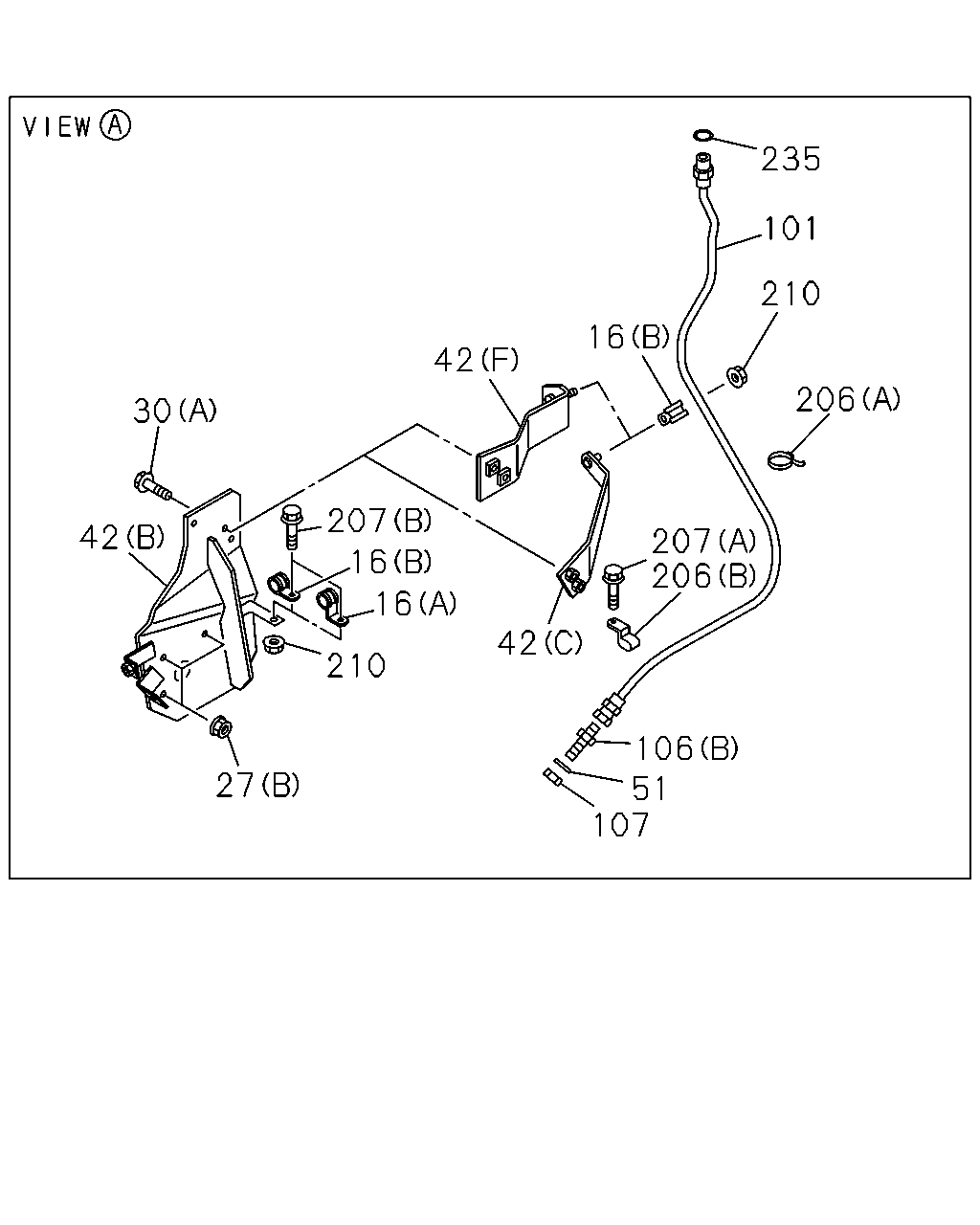

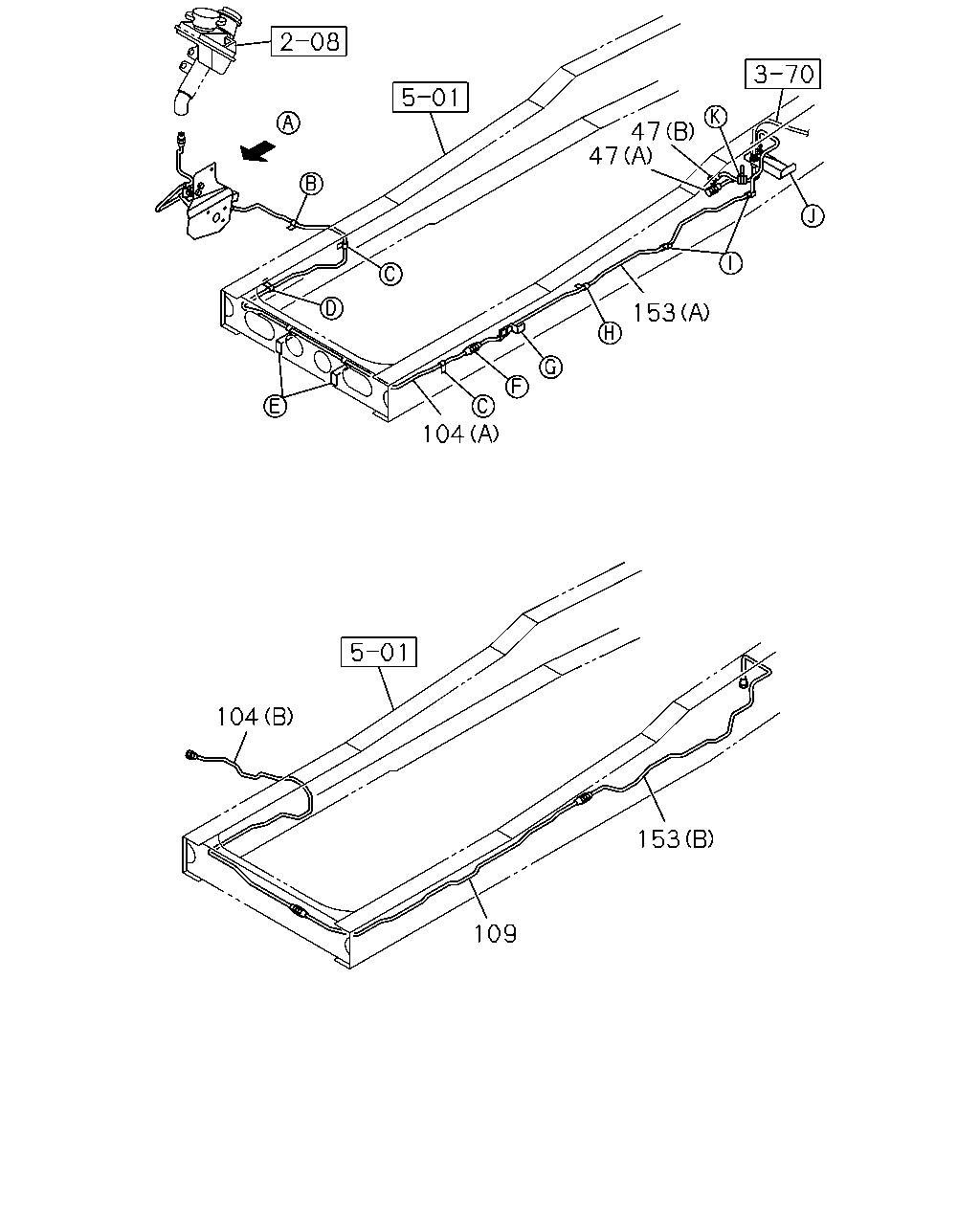

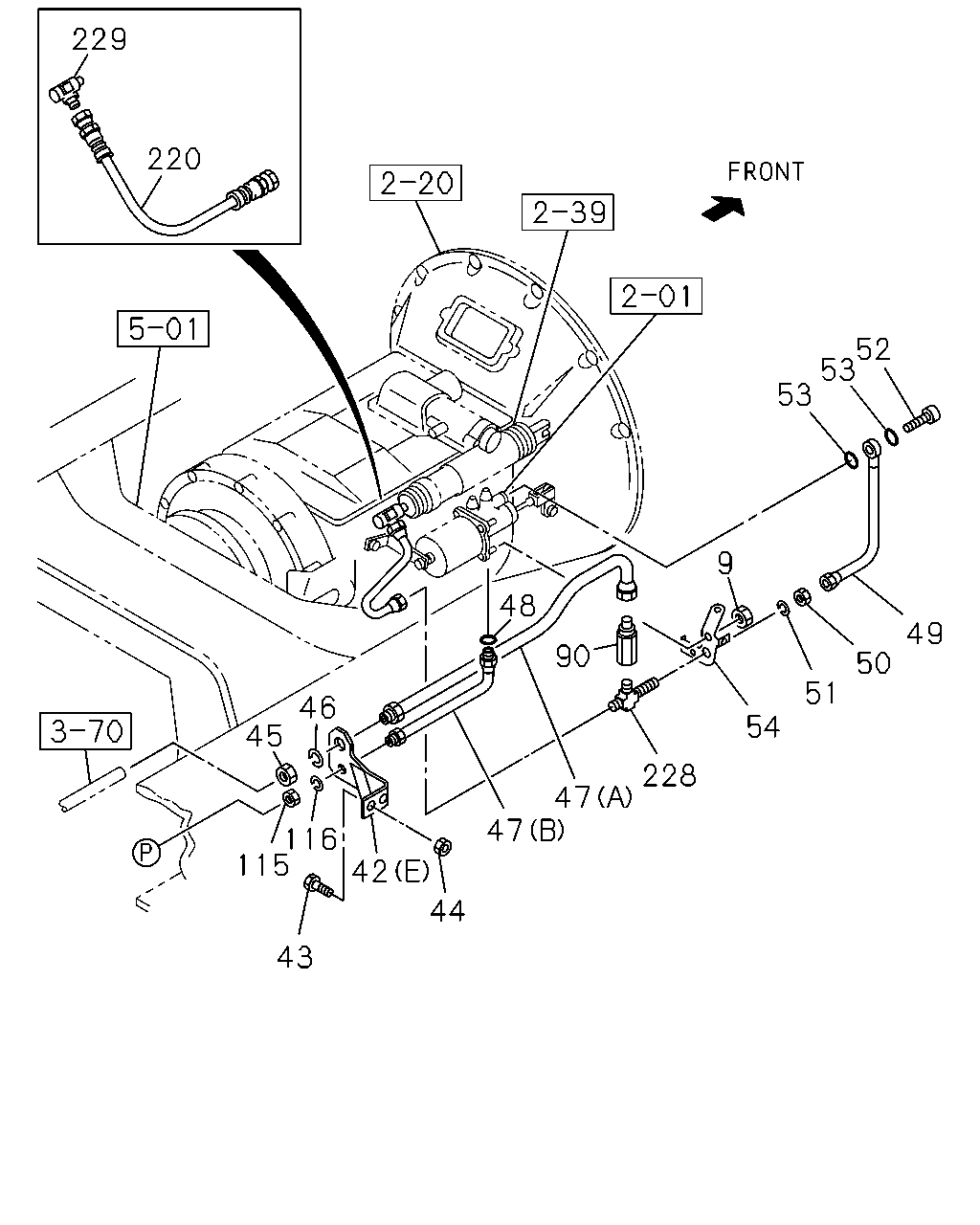

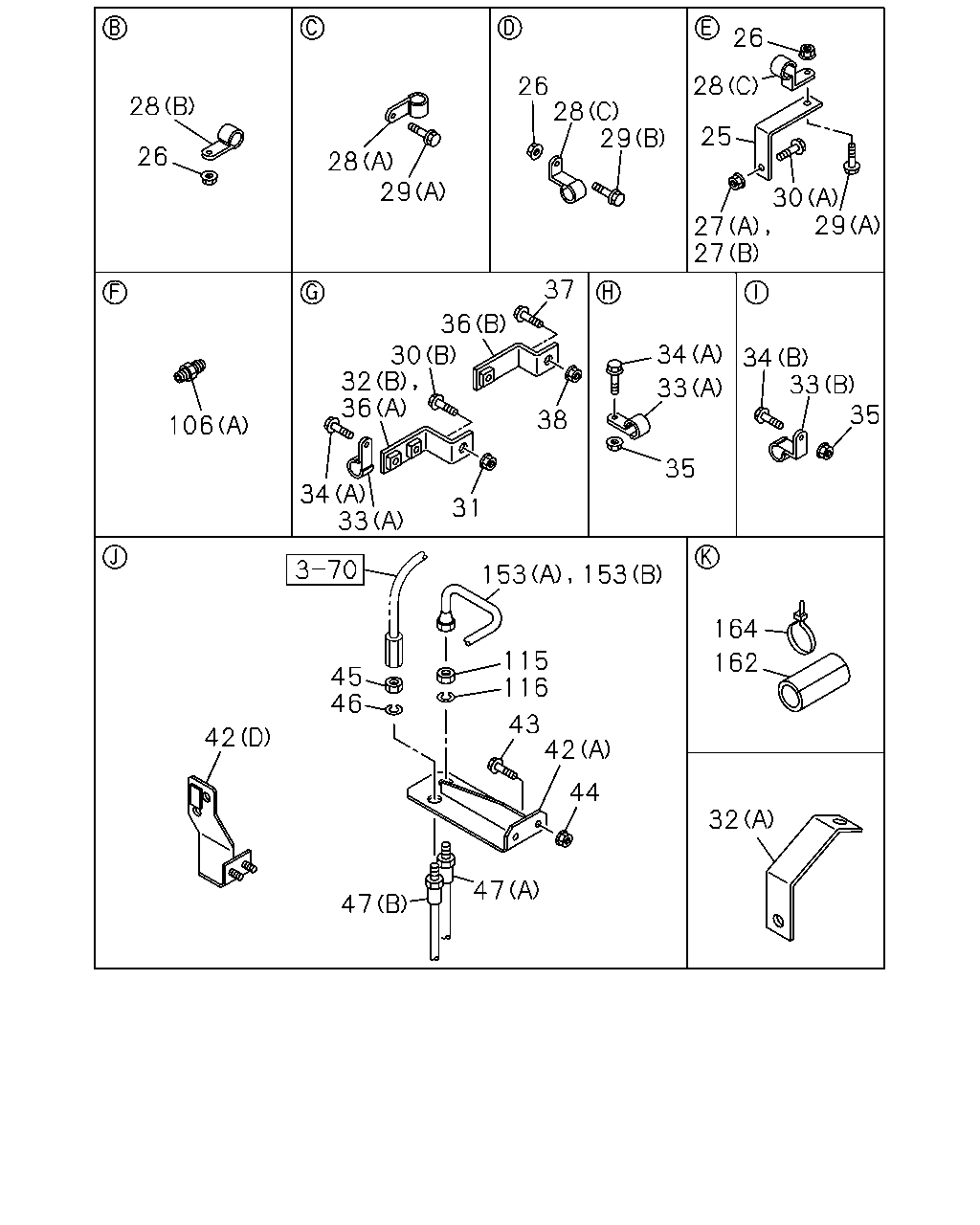

2-05 — CLUTCH PIPING (#39821) — 368 parça

26 28 26 28 29 28 25 26 28 29 30 29 27 27 37 36 30 32 36 34 34 33 35 33 38 106 35 34 33 31 153 153 164 115 116 162 45 46 43 42 42 44 32 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE ZF9S1310 M/T(Y5K) WEST MALAYSIA EQUIPMENT(SEQ)	8-97621-141-0	02	1	0804-0805	●
25	BRACKET; OIL PIPE ZF9S1310 M/T(Y5K) WEST MALAYSIA EQUIPMENT(SEQ)	8-98123-059-0	01	1	0806-	●
25	BRACKET; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	8-98105-075-0	02	1	0801-0803	●	●
25	BRACKET; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	8-98105-075-0	02	1	0804-0805		●
25	BRACKET; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	8-98105-075-0	02	1	0804-0805	●
25	BRACKET; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	8-98123-057-0	01	1	0806-		●
25	BRACKET; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	8-98123-057-0	01	1	0806-	●
26	NUT; CLIP,OIL PIPE MAL6R M/T(Y2J) M8 FLANGE	0-91180-108-0	01	1	0804-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	04	1	0801-0805	●	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	0806-	●	●
27	NUT; BRKT ZF9S1310 M/T(Y5K) WEST MALAYSIA EQUIPMENT(SEQ) (B) M10 FLANGE	0-91180-210-0	02	1	0804-0805	●
27	NUT; BRKT ZF9S1310 M/T(Y5K) WEST MALAYSIA EQUIPMENT(SEQ) (B) M10 FLANGE	0-91180-210-0	01	1	0806-	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE	0-91180-108-0	02	1	0801-0803	●	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE	0-91180-108-0	02	1	0804-0805		●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M8 FLANGE	0-91180-108-0	02	1	0804-0805	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE	0-91180-108-0	01	1	0806-		●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M8 FLANGE	0-91180-108-0	01	1	0806-	●
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	0801-	●	●
28	CLIP; OIL PIPE MAL6R M/T(Y2J) (A) ID=9 L=20	0-95234-835-0	01	1	0804-	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=9 L=20	0-95234-835-0	02	1	0801-	●	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	0801-0805	●	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	0806-	●	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	0801-0803	●	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	0804-	●	●
28	CLIP; OIL PIPE MAL6R M/T(Y2J) (B) ID=9 L=40	0-95234-875-0	01	1	0804-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T(Y2J) (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T(Y2J) (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	04	1	0801-0801	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0802-0805	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0806-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) WEST MALAYSIA EQUIPMENT(SEQ) (A) M10X25 FLANGE	0-28651-025-0	02	1	0804-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0801-0803	●	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0801-0803	●	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0804-	●	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0804-		●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M8X25 FLANGE	0-28650-825-0	02	1	0804-	●
31	NUT; BRKT ZF9S1310 M/T(Y5K) WEST MALAYSIA EQUIPMENT(SEQ) M10 FLANGE	0-91180-210-0	01	1	0806-	●
31	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	01	1	0801-0805	●	●
31	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	01	1	0806-	●	●
31	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	01	1	0806-		●
31	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91180-108-0	01	1	0806-	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B)	1-47479-482-0	01	1	0806-	●	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98123-057-0	01	1	0806-		●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	8-98123-057-0	01	1	0806-	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K) WEST MALAYSIA EQUIPMENT(SEQ) (A)	8-98123-059-0	01	1	0806-	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0804-1101		●
33	CLIP; OIL PIPE MAL6R M/T(Y2J),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0804-1101	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1102-	●	●
33	CLIP; OIL PIPE MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1102-	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0801-	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=9 L=20	0-95234-835-0	02	1	0801-0805	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=9 L=20	0-95234-835-0	04	1	0806-	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0801-0802	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0803-0803	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0804-1101	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1102-		●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1102-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) M8X16 FLANGE	0-28050-816-0	01	1	1102-	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	03	1	0804-		●
34	BOLT; PIPE CLIP MAL6R M/T(Y2J),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	03	1	0804-	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0801-0801	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0802-0805	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0806-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0801-0802	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	03	1	0803-0803	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	02	1	0804-	●	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	04	1	0804-0805	●	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	0806-		●
35	NUT; PIPE CLIP MAL6R M/T(Y2J),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	0806-	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	01	1	0801-	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	0801-0802	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	04	1	0803-0803	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	03	1	0804-0805		●
35	NUT; PIPE CLIP MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	03	1	0804-0805	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	0806-	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	02	1	0806-	●	●
36	BRACKET; CLIP ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=80 H=20	1-82699-304-0	01	1	1102-	●
36	BRACKET; CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A)	1-47479-482-0	01	1	0801-0802	●	●
36	BRACKET; CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-97624-332-0	01	1	0803-0805	●	●
37	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	01	1	1102-	●
38	NUT; CLIP BRKT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	01	1	1102-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (D)	8-98161-856-0	01	1	0911-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) (E)	1-47477-546-1	01	1	0804-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (D)	8-98105-674-0	01	1	0801-0910	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (D)	8-98105-674-0	01	1	0911-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	0801-	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	0801-1101	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (D)	8-98099-829-0	01	1	1102-		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	1102-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	0801-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	0801-1201	●	●
42	BRACKET; FLEX HOSE,CLU CONT (F)	8-98179-878-0	01	1	1202-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	0801-0803	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	0804-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	0804-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	02	1	0801-0803	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0804-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) M20	0-91111-520-0	01	1	0804-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M12	9-09840-280-0	01	1	0801-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T(Y2J) ID=20.2	0-91510-520-0	01	1	0804-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=12.2	0-91510-512-0	01	1	0801-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) L=430	1-09363-623-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T(Y2J) (A) L=480	0-07806-480-1	01	1	0804-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T(Y2J) (B) L=470	1-09364-692-0	01	1	0804-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=490	1-09363-632-0	01	1	0801-0802	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=470	1-09363-682-0	01	1	0803-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	0801-0802	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=430	8-98072-326-0	01	1	0803-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (A) L=350	1-09363-624-0	01	1	0801-1101	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (A) L=350	1-09363-624-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) L=350	1-09363-624-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=370	8-98072-331-0	01	1	0801-1101	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) L=370	8-98072-331-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=370	8-98072-331-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=400	1-09363-606-0	01	1	0801-0802	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=380	1-09363-884-0	01	1	0803-1101	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (A) L=380	1-09363-884-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=380	1-09363-884-0	01	1	1102-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0801-0805	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	0801-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0801-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0801-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=1514	8-98183-263-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (B) L=1784 SERVICED BY L=1800	1-47428-768-0	01	1	0911-	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T(Y2J) (C) L=1574 SERVICED BY L=1700	1-47428-767-0	01	1	0804-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (A) L=2038 SERVICED BY L=2150	1-47428-770-0	01	1	0801-0805	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	0806-1101	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=2320 SERVICED BY L=2400	1-47428-771-0	01	1	0801-0805	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	0806-1101	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=2682 SERVICED BY L=2700	1-47428-772-0	01	1	0801-0805	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=1800 SERVICED BY L=1800	1-47428-768-0	01	1	0806-0910	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (B) L=1800 SERVICED BY L=1800	1-47428-768-0	01	1	0911-	●
162	COVER; RUBBER,FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=175	1-09707-178-0	01	1	0801-0803	●	●
162	COVER; RUBBER,FLEX HOSE L=175	1-09707-178-0	01	1	0804-	●	●
164	CLIP; BAND,FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=350	1-09707-183-0	01	1	0801-0803	●	●
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	0804-	●	●

47 47 153 104 104 153 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) L=430	1-09363-623-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T(Y2J) (A) L=480	0-07806-480-1	01	1	0804-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T(Y2J) (B) L=470	1-09364-692-0	01	1	0804-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=490	1-09363-632-0	01	1	0801-0802	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=470	1-09363-682-0	01	1	0803-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	0801-0802	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=430	8-98072-326-0	01	1	0803-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (A) L=350	1-09363-624-0	01	1	0801-1101	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (A) L=350	1-09363-624-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) L=350	1-09363-624-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=370	8-98072-331-0	01	1	0801-1101	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) L=370	8-98072-331-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=370	8-98072-331-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=400	1-09363-606-0	01	1	0801-0802	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=380	1-09363-884-0	01	1	0803-1101	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (A) L=380	1-09363-884-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=380	1-09363-884-0	01	1	1102-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T(Y2J) (C) L=1215 SERVICED BY L=1250	1-47428-764-0	01	1	0804-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) L=2570 SERVICED BY L=2700	1-47428-772-0	01	1	0801-0805	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1747 SERVICED BY L=1800	1-47428-768-0	01	1	0806-	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=1680 SERVICED BY L=1700	1-47428-767-0	01	1	0806-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=1514	8-98183-263-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (B) L=1784 SERVICED BY L=1800	1-47428-768-0	01	1	0911-	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T(Y2J) (C) L=1574 SERVICED BY L=1700	1-47428-767-0	01	1	0804-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (A) L=2038 SERVICED BY L=2150	1-47428-770-0	01	1	0801-0805	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	0806-1101	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=2320 SERVICED BY L=2400	1-47428-771-0	01	1	0801-0805	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	0806-1101	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=2682 SERVICED BY L=2700	1-47428-772-0	01	1	0801-0805	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=1800 SERVICED BY L=1800	1-47428-768-0	01	1	0806-0910	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (B) L=1800 SERVICED BY L=1800	1-47428-768-0	01	1	0911-	●

235 101 210 16 42 206 30 207 42 207 206 16 16 42 210 106 51 107 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0802-1201	●	●
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	02	1	0801-0801	●	●
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	01	1	0802-1201	●	●
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	03	1	1202-	●	●
27	NUT; BRKT ZF9S1310 M/T(Y5K) WEST MALAYSIA EQUIPMENT(SEQ) (B) M10 FLANGE	0-91180-210-0	02	1	0804-0805	●
27	NUT; BRKT ZF9S1310 M/T(Y5K) WEST MALAYSIA EQUIPMENT(SEQ) (B) M10 FLANGE	0-91180-210-0	01	1	0806-	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE	0-91180-108-0	02	1	0801-0803	●	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE	0-91180-108-0	02	1	0804-0805		●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M8 FLANGE	0-91180-108-0	02	1	0804-0805	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE	0-91180-108-0	01	1	0806-		●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M8 FLANGE	0-91180-108-0	01	1	0806-	●
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	0801-	●	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) WEST MALAYSIA EQUIPMENT(SEQ) (A) M10X25 FLANGE	0-28651-025-0	02	1	0804-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0801-0803	●	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0801-0803	●	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0804-	●	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0804-		●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M8X25 FLANGE	0-28650-825-0	02	1	0804-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (D)	8-98161-856-0	01	1	0911-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) (E)	1-47477-546-1	01	1	0804-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (D)	8-98105-674-0	01	1	0801-0910	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (D)	8-98105-674-0	01	1	0911-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	0801-	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	0801-1101	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (D)	8-98099-829-0	01	1	1102-		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	1102-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	0801-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	0801-1201	●	●
42	BRACKET; FLEX HOSE,CLU CONT (F)	8-98179-878-0	01	1	1202-	●	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	0801-	●	●
51	WASHER; LK MAL6R M/T(Y2J) ID=20.2	0-91510-620-0	01	1	0801-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98103-346-1	01	1	0801-1201	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98180-779-0	01	1	1202-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0801-0805	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	0801-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	0801-	●	●
206	CLIP; TUBE (A) L=350	1-09707-183-0	01	1	0801-0803	●	●
206	CLIP; TUBE (A) L=350	1-09707-183-0	01	1	0804-		●
206	CLIP; TUBE BRAKE REGULATION ADR<TDU> (A) L=350	1-09707-183-0	01	1	0804-	●
206	CLIP; TUBE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	0801-0803	●	●
206	CLIP; TUBE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	0804-		●
206	CLIP; TUBE BRAKE REGULATION ADR<TDU> (B) ID=16 H=25 L=25	1-09701-162-0	01	1	0804-	●
207	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0801-	●	●
207	BOLT; CLIP (A) M8X30 FLANGE	0-28650-830-0	01	1	0801-0803	●	●
207	BOLT; CLIP (A) M8X30 FLANGE	0-28650-830-0	01	1	0804-		●
207	BOLT; CLIP BRAKE REGULATION ADR<TDU> (A) M8X30 FLANGE	0-28650-830-0	01	1	0804-	●
210	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0801-1201	●	●
210	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1202-	●	●
210	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0801-0803	●	●
210	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0804-		●
210	NUT; CLIP BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91180-108-0	01	1	0804-	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0	9-09571-410-0	01	1	0801-	●	●

229 220 52 53 53 9 48 49 90 50 51 46 54 45 228 47 47 116 115 42 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE MAL6R M/T(Y2J) M10 FLANGE	0-91180-210-0	02	1	0801-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (D)	8-98161-856-0	01	1	0911-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) (E)	1-47477-546-1	01	1	0804-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (D)	8-98105-674-0	01	1	0801-0910	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (D)	8-98105-674-0	01	1	0911-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	0801-	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	0801-1101	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (D)	8-98099-829-0	01	1	1102-		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	1102-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	0801-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	0801-1201	●	●
42	BRACKET; FLEX HOSE,CLU CONT (F)	8-98179-878-0	01	1	1202-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	0801-0803	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	0804-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	0804-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	02	1	0801-0803	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0804-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) M20	0-91111-520-0	01	1	0804-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M12	9-09840-280-0	01	1	0801-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T(Y2J) ID=20.2	0-91510-520-0	01	1	0804-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=12.2	0-91510-512-0	01	1	0801-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) L=430	1-09363-623-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T(Y2J) (A) L=480	0-07806-480-1	01	1	0804-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T(Y2J) (B) L=470	1-09364-692-0	01	1	0804-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=490	1-09363-632-0	01	1	0801-0802	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=470	1-09363-682-0	01	1	0803-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	0801-0802	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=430	8-98072-326-0	01	1	0803-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (A) L=350	1-09363-624-0	01	1	0801-1101	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (A) L=350	1-09363-624-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) L=350	1-09363-624-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=370	8-98072-331-0	01	1	0801-1101	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) L=370	8-98072-331-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=370	8-98072-331-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=400	1-09363-606-0	01	1	0801-0802	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=380	1-09363-884-0	01	1	0803-1101	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (A) L=380	1-09363-884-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=380	1-09363-884-0	01	1	1102-	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) ID=10.2 OD=16.0	9-09571-410-0	01	1	0804-	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) ID=11 OD=18	9-09572-510-0	01	1	0804-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL6R M/T(Y2J) L=245	1-49117-733-0	01	1	0801-	●
50	NUT; UNION MAL6R M/T(Y2J) M20	0-91111-520-0	01	1	0801-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	0801-	●	●
51	WASHER; LK MAL6R M/T(Y2J) ID=20.2	0-91510-620-0	01	1	0801-	●
52	BOLT; EYE,AIR PIPE MAL6R M/T(Y2J) M14X27 FLANGE	1-09675-086-0	01	1	0801-	●
53	GASKET; JOINT BOLT MAL6R M/T(Y2J) ID=14.2 OD=19.2	1-09630-085-0	02	1	0801-1312	●
53	GASKET; JOINT BOLT MAL6R M/T(Y2J) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
54	BRACKET; AIR,FLEX HOSE MAL6R M/T(Y2J)	1-47477-284-1	01	1	0801-	●
90	NIPPLE; OIL PIPE MAL6R M/T(Y2J) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0801-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0801-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0801-	●	●
220	HOSE; FLEX,POWER ASSIST MAL6R M/T(Y2J) L=480	1-09363-659-0	01	1	0801-	●
228	UNION; 3 WAY MAL6R M/T(Y2J)	1-09656-640-0	01	1	0801-	●
229	CONNECTOR; ELOBOW MAL6R M/T(Y2J) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0801-	●

153 104 35 33 34 29 164 28 153 106 104 162 28 29 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; CLIP,OIL PIPE MAL6R M/T(Y2J) M8 FLANGE	0-91180-108-0	01	1	0804-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	04	1	0801-0805	●	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	0806-	●	●
28	CLIP; OIL PIPE MAL6R M/T(Y2J) (A) ID=9 L=20	0-95234-835-0	01	1	0804-	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=9 L=20	0-95234-835-0	02	1	0801-	●	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	0801-0805	●	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	0806-	●	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	0801-0803	●	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	0804-	●	●
28	CLIP; OIL PIPE MAL6R M/T(Y2J) (B) ID=9 L=40	0-95234-875-0	01	1	0804-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T(Y2J) (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T(Y2J) (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	04	1	0801-0801	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0802-0805	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0806-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0804-1101		●
33	CLIP; OIL PIPE MAL6R M/T(Y2J),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0804-1101	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1102-	●	●
33	CLIP; OIL PIPE MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1102-	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0801-	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=9 L=20	0-95234-835-0	02	1	0801-0805	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=9 L=20	0-95234-835-0	04	1	0806-	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0801-0802	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0803-0803	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0804-1101	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1102-		●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1102-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) M8X16 FLANGE	0-28050-816-0	01	1	1102-	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	03	1	0804-		●
34	BOLT; PIPE CLIP MAL6R M/T(Y2J),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	03	1	0804-	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0801-0801	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0802-0805	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0806-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0801-0802	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	03	1	0803-0803	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	02	1	0804-	●	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	04	1	0804-0805	●	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	0806-		●
35	NUT; PIPE CLIP MAL6R M/T(Y2J),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	0806-	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	01	1	0801-	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	0801-0802	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	04	1	0803-0803	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	03	1	0804-0805		●
35	NUT; PIPE CLIP MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	03	1	0804-0805	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	0806-	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	02	1	0806-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T(Y2J) (C) L=1215 SERVICED BY L=1250	1-47428-764-0	01	1	0804-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) L=2570 SERVICED BY L=2700	1-47428-772-0	01	1	0801-0805	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1747 SERVICED BY L=1800	1-47428-768-0	01	1	0806-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0801-0805	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	0801-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=1514	8-98183-263-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (B) L=1784 SERVICED BY L=1800	1-47428-768-0	01	1	0911-	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T(Y2J) (C) L=1574 SERVICED BY L=1700	1-47428-767-0	01	1	0804-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (A) L=2038 SERVICED BY L=2150	1-47428-770-0	01	1	0801-0805	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	0806-1101	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=2320 SERVICED BY L=2400	1-47428-771-0	01	1	0801-0805	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	0806-1101	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=2682 SERVICED BY L=2700	1-47428-772-0	01	1	0801-0805	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=1800 SERVICED BY L=1800	1-47428-768-0	01	1	0806-0910	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (B) L=1800 SERVICED BY L=1800	1-47428-768-0	01	1	0911-	●
162	COVER; RUBBER,FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=175	1-09707-178-0	01	1	0801-0803	●	●
162	COVER; RUBBER,FLEX HOSE L=175	1-09707-178-0	01	1	0804-	●	●
164	CLIP; BAND,FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=350	1-09707-183-0	01	1	0801-0803	●	●
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	0804-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
